Compare OxyRevo Hyperbaric Chambers

OxyRevo Hyperbaric Chamber Comparison: All 12 Models Side by Side

RecovAthlete sells 12 OxyRevo hyperbaric chambers. Eight are soft shell chambers that reach 1.4 or 1.5 ATA. Four are hard shell chambers that reach up to 2.0 ATA.

The tables below compare pressure, size, weight, windows and price. Each model name links to its product page. To filter and shop the range, see all OxyRevo hyperbaric chambers, or every brand in our hyperbaric chambers for sale.

OxyRevo chambers are made in China by Zhuji Belecon Health Technology Co., Ltd. They are CE certified, not FDA cleared. RecovAthlete has been an authorized OxyRevo dealer since 2023.

Quick Picks: Which OxyRevo Chamber Fits Your Need

If you want Look at The fact behind it
The lowest starting price Elite32 Lowest priced OxyRevo model we sell. 1.4 ATA, lying.
More shoulder room lying down Elite36 or Apex36 36 in diameter instead of 32 in.
The highest soft shell pressure Apex32 or Apex36 1.5 ATA, with 7 windows.
To sit or recline Forward90 Folding chair included. 1.4 or 1.5 ATA build.
A seated chamber for a small room Forward90 MINI 66 in long instead of 90 in.
Entry from a wheelchair Heal40 or Heal50 Heal40 has the larger cabin. Heal50 reaches 1.5 ATA and is lighter.
2.0 ATA lying down Quest30 or Quest36 Stainless steel hard shell, 1.5 or 2.0 ATA build.
2.0 ATA seated Space60 or Space60 Pro Seated hard shell. The Pro adjusts in 10 steps by touch screen.

All 12 OxyRevo Models at a Glance

Model Shell and position Max pressure Size Weight Starting price
Elite32 Soft, lying 1.4 ATA 90 in long, 32 in diameter 28.6 lbs $7,499
Elite36 Soft, lying 1.4 ATA 90 in long, 36 in diameter 33 lbs $7,999
Apex32 Soft, lying 1.5 ATA 90 in long, 32 in diameter 33 lbs $7,999
Apex36 Soft, lying 1.5 ATA 90 in long, 36 in diameter 37 lbs $8,499
Forward90 Soft, sitting 1.4 or 1.5 ATA 90 x 47 x 47 in 30 lbs 1.4 ATA: $8,999
1.5 ATA: $9,499
Forward90 MINI Soft, sitting 1.4 or 1.5 ATA 66 x 47 x 47 in 30 lbs 1.4 ATA: $7,989
1.5 ATA: $8,839
Heal40 Soft, sitting, wheelchair entry 1.4 ATA 67 x 62 x 75 in 95 lbs $10,499
Heal50 Soft, sitting, wheelchair entry 1.5 ATA 44 x 54 x 66 in 55 lbs $10,499
Quest30 Hard, lying 1.5 or 2.0 ATA 89 in long, 30 in diameter 507 lbs 1.5 ATA: $26,999
2.0 ATA: $27,999
Quest36 Hard, lying 1.5 or 2.0 ATA 89 in long, 36 in diameter 573 lbs 1.5 ATA: $28,999
2.0 ATA: $29,999
Space60 Hard, sitting 1.5 or 2.0 ATA 79 in long, 60 in high 1,760 lbs 1.5 ATA: $34,499
2.0 ATA: $35,499
Space60 Pro Hard, sitting 2.0 ATA 83 in long, 60 in high 1,760 lbs $48,499

Prices are the lowest build of each model and can change. The product page shows the current price.

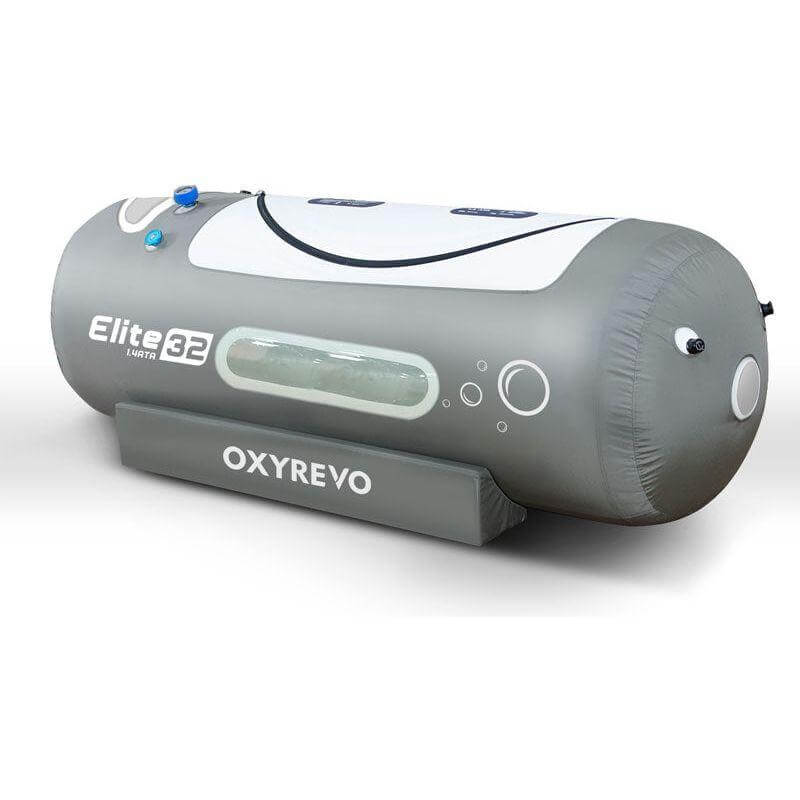

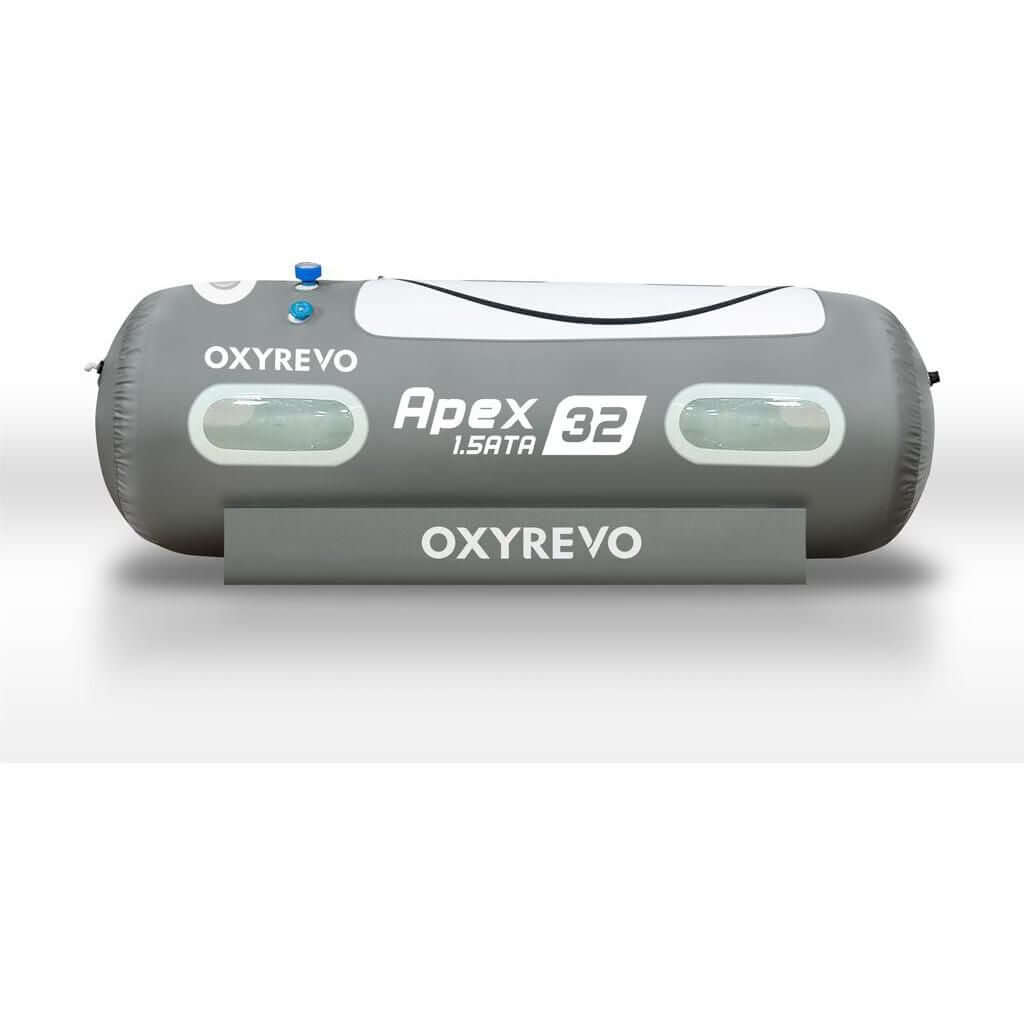

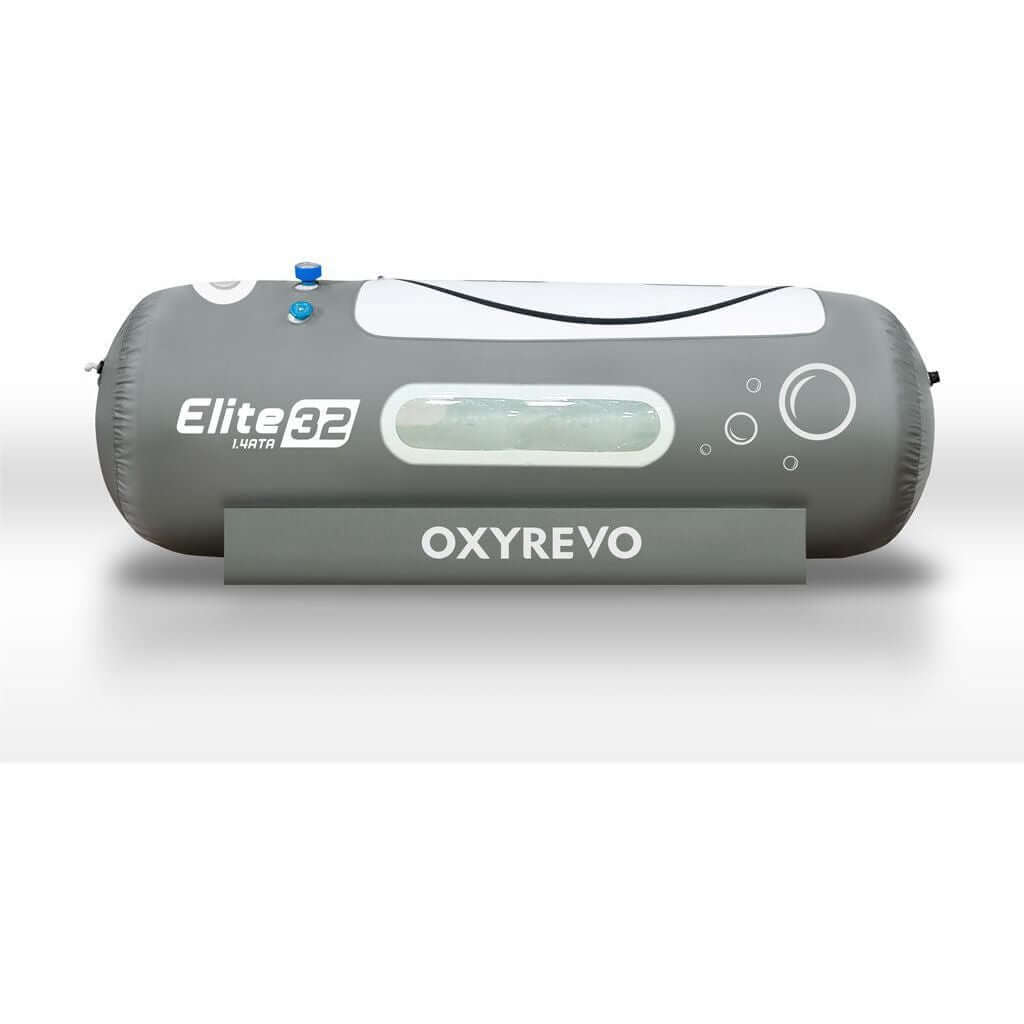

Soft Lying Chambers: Elite32 vs Elite36 vs Apex32 vs Apex36

All four are 90 inches long and inflate around an internal frame. Two numbers separate them: maximum pressure and diameter. The number in each name is the diameter in inches.

Spec Elite32 Elite36 Apex32 Apex36
Max pressure 1.4 ATA 1.4 ATA 1.5 ATA 1.5 ATA
Pressure steps 1.1, 1.2, 1.3, 1.4 1.1, 1.2, 1.3, 1.4 1.2, 1.3, 1.4, 1.5 1.2, 1.3, 1.4, 1.5
Length 90 in (230 cm) 90 in (230 cm) 90 in (230 cm) 90 in (230 cm)
Diameter 32 in (80 cm) 36 in (90 cm) 32 in (80 cm) 36 in (90 cm)
Chamber weight 28.6 lbs (13 kg) 33 lbs (15 kg) 33 lbs (15 kg) 37 lbs (17 kg)
Windows 5 5 7 7
Sound level 50 dB or under 50 dB or under 50 dB or under 50 dB or under
Price, Standard kit $7,499 $7,999 $7,999 $8,499
Price, Pro kit $7,999 $8,499 $8,499 $8,999

Fact: the Apex36 has room for one adult and one child. The 32 inch models are for one person.

Our view: pick the 36 inch diameter if you have broad shoulders or feel closed in. Pick 1.5 ATA over 1.4 ATA only if you or your physician want the higher setting. Both ranges start lower and step up.

Soft Sitting Chambers: Forward90 vs Forward90 MINI

Both seat you upright on a folding chair, and both come in a 1.4 or 1.5 ATA build. The MINI is 24 inches shorter for rooms that cannot fit a 90 inch chamber.

Spec Forward90 Forward90 MINI
Pressure builds 1.4 ATA (steps 1.1 to 1.4) or 1.5 ATA (steps 1.2 to 1.5) 1.4 ATA (steps 1.1 to 1.4) or 1.5 ATA (steps 1.2 to 1.5)
Length 90 in (230 cm) 66 in
Width x height 47 x 47 in (120 x 120 cm) 47 x 47 in
Chamber weight 30 lbs 30 lbs
Windows 4 4
Seating Folding chair included Folding chair included
Lie flat Yes, with the chair removed No, seated or reclined only
Price, 1.4 ATA Standard kit $8,999, Pro kit $9,499 Standard kit $7,989, Pro kit $8,414
Price, 1.5 ATA Standard kit $9,499, Pro kit $9,999 Standard kit $8,839, Pro kit $9,264

Fact: the Forward90 has room for one adult and one child. The MINI is for one person.

A seated chamber can be easier to get in and out of. You do not have to crawl in or lie down. If lying flat matters to you, the standard Forward90 or a lying model is the better fit. Compare every brand in our sitting hyperbaric chambers.

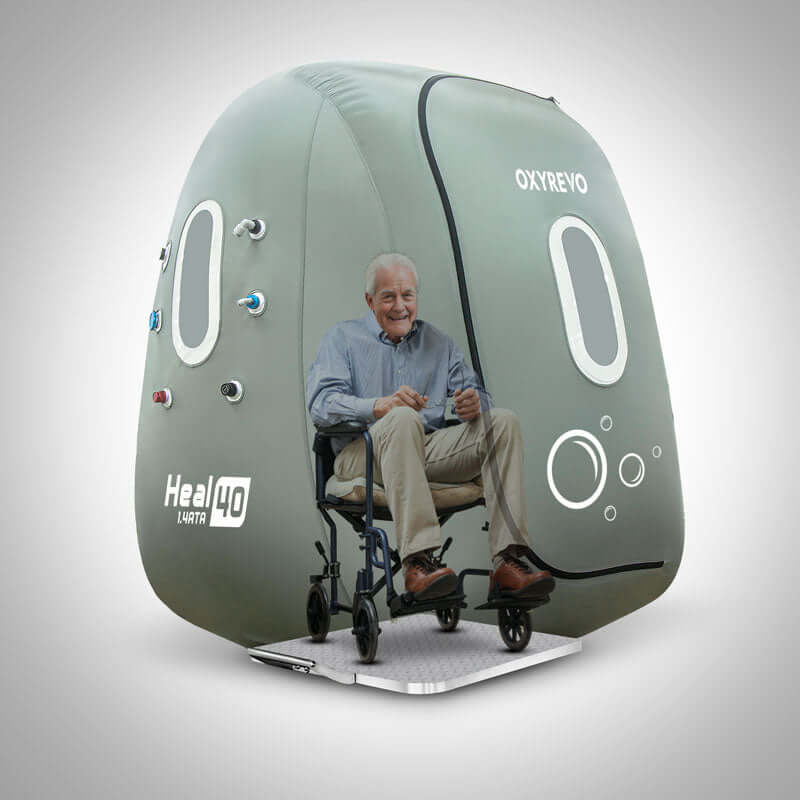

Wheelchair Chambers: Heal40 vs Heal50

Both let a user roll in from a wheelchair or sit on a regular chair inside. The Heal40 is the larger cabin on a rigid base. The Heal50 reaches higher pressure and is lighter.

Spec Heal40 Heal50
Max pressure 1.4 ATA 1.5 ATA
Pressure steps 1.2, 1.3, 1.4 1.2, 1.3, 1.4, 1.5
Inflated size (L x W x H) 67 x 62 x 75 in (170 x 160 x 190 cm) 44 x 54 x 66 in (112 x 136 x 167 cm)
Chamber weight 95 lbs (43 kg) 55 lbs
Base and entry Aluminum base with a slope No metal base, PU ramp
Price Standard kit $10,499, Pro kit $10,999 $10,499

Our view: choose the Heal40 if the user needs room to turn a wheelchair or wants a stable floor. Choose the Heal50 if the room is small or 1.5 ATA matters. See all wheelchair accessible hyperbaric chambers.

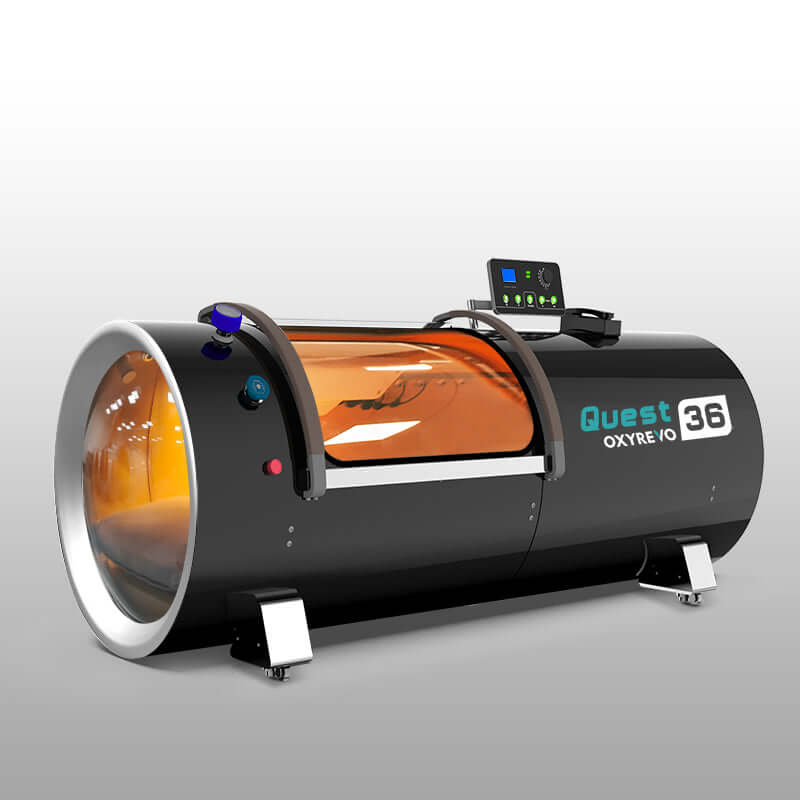

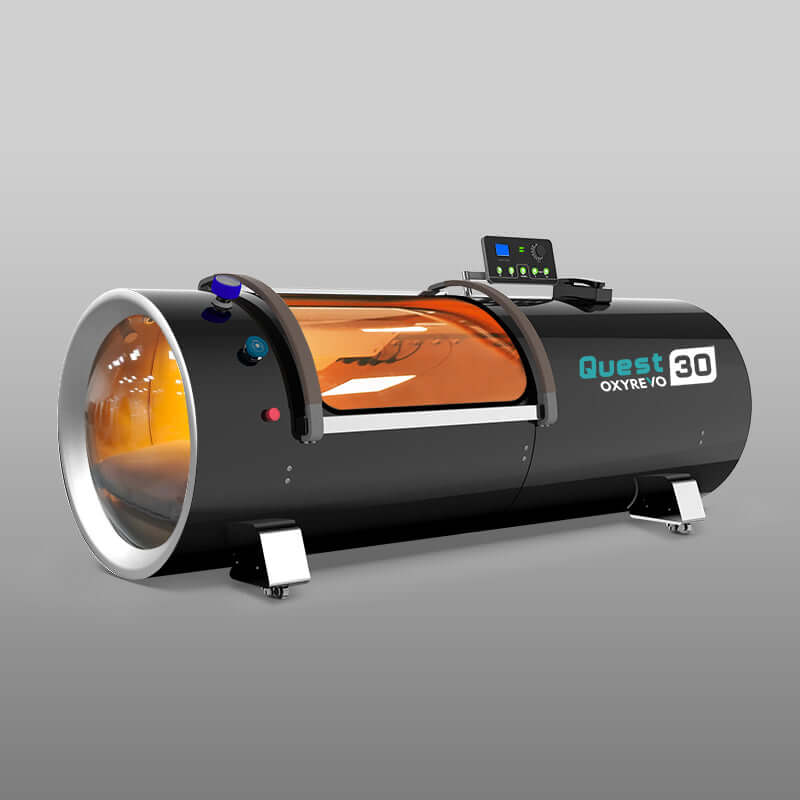

Hard Shell Lying Chambers: Quest30 vs Quest36

Both are stainless steel chambers with polycarbonate windows at the head and foot ends. They differ in diameter, weight and price. Each comes in a 1.5 ATA or 2.0 ATA build.

Spec Quest30 Quest36
Pressure builds 1.5 ATA (adjusts 1.2 to 1.5) or 2.0 ATA (adjusts 1.4 to 2.0) 1.5 ATA (adjusts 1.2 to 1.5) or 2.0 ATA (adjusts 1.4 to 2.0)
Length 89 in (220 cm) 89 in (220 cm)
Diameter 30 in (75 cm) 36 in (90 cm)
Weight 507 lbs (230 kg) 573 lbs (260 kg)
Occupancy One person, lying only One adult and one child
Crate size 95 x 37 x 40 in 43 in wide
Controls Panels and screens inside and outside Panels and screens inside and outside
Session timer 0 to 120 minutes 0 to 120 minutes
Colors Black or white Black or white
Price, 1.5 ATA $26,999 $28,999
Price, 2.0 ATA $27,999 $29,999

Fact: the Quest36 is 6 inches wider and 66 lbs heavier. Our view: the wider chamber suits larger users or a parent with a child. The narrower one suits a solo user and a tighter delivery route.

Hard Shell Sitting Chambers: Space60 vs Space60 Pro

Both seat the user upright behind a transparent front door. Each comes in a Standard width and a narrower Mini width.

Spec Space60 Space60 Pro
Pressure builds 1.5 ATA (adjusts 1.2 to 1.5) or 2.0 ATA (adjusts 1.4 to 2.0) 2.0 ATA, 10 steps 1.1 to 2.0 by touch screen
Length 79 in (200 cm) 83 in (210 cm)
Height 60 in (153 cm) 60 in (153 cm)
Width, Standard 34 in body (86 cm) 37.8 in at the side windows (96 cm)
Width, Mini 30.7 in body (78 cm) 33.5 in at the side windows (85 cm)
Crated weight Ask us About 2,645 lbs
Weight 1,760 lbs (800 kg) 1,760 lbs (800 kg)
Body Stainless steel 304, transparent door, two side windows Stainless steel 304, transparent door, larger side windows
Price, Mini 1.5 ATA $34,499, 2.0 ATA $35,499 $48,499
Price, Standard 1.5 ATA $34,999, 2.0 ATA $35,999 $48,999

Fact: neither Space60 width clears a standard 30 inch door frame. The Space60 Pro side windows are fixed and set its widest point. Check your floor and delivery route before you order. See every hard shell hyperbaric chamber we carry.

Soft Shell vs Hard Shell: What Changes

Factor Soft shell OxyRevo Hard shell OxyRevo
Max pressure 1.4 or 1.5 ATA 1.5 or 2.0 ATA
Chamber weight 28.6 to 95 lbs 507 to 1,760 lbs
Body Heat-welded fabric over an internal frame Stainless steel with polycarbonate windows
Can you move it later Yes, it deflates and packs down Plan on it staying in one room
Controls Valves and two pressure gauges, inside and out Control panels and screens inside and out, phone system
Starting price $7,499 $26,999

If you need 2.0 ATA, only a hard shell reaches it. Read 1.5 ATA vs 2.0 ATA before you decide. Compare soft models in our portable hyperbaric chamber range.

Standard Kit vs Pro Kit on Soft Chambers

Soft OxyRevo chambers run off an operating kit that sits beside the chamber. You choose the kit when you order.

Item Standard kit Pro kit
Layout Separate machines One all-in-one unit
Air compressor 1 oil-free compressor 1 oil-free compressor
Oxygen concentrator 1 x 10 L 1 x 10 L
Air dehumidifier 1 2
Extras None Timer and alarm, anion generator, air purifier
Added cost Base price $500 more on most models, $425 on the MINI

The concentrator delivers 90 to 97% oxygen purity. That is concentrated oxygen, not 100% oxygen. The Heal50 is sold as one build.

Optional Upgrades

These add-ons fit some models. Availability and pricing vary by model, so ask us before you order.

  • Red light panel inside the chamber: 660 nm red and 850 nm near infrared, 24 V DC. Made for the Apex, Forward90, Quest and Space60 models.
  • Water chiller air conditioner: cools the air going into the chamber. Runs on 110 V or 220 V.
  • OmniBreath valve: switches between a BIBS mask and a standard mask. Pair it with the 20 L concentrator.
  • TV holder and Bluetooth speaker: the TV sits outside the chamber. Made for the Space60 models.

Before You Order an OxyRevo Chamber

  1. Measure the room: Soft lying models need 90 inches of length. Add floor space beside the chamber for the operating kit.
  2. Measure the route: For a hard shell, measure every door, hall and turn. The narrowest hard shell is the Quest30 at 30 inches. The Space60 Mini is 30.7 inches wide.
  3. Check the floor: Hard shells weigh 507 to 1,760 lbs. Ask a contractor whether your floor can hold the load.
  4. Check the power: Ask us for the power spec of your model and kit. Then ask an electrician whether you need a dedicated circuit.
  5. Plan the oxygen safety: Concentrated oxygen raises fire risk. Keep flames, heaters and battery-powered devices away from the chamber.
  6. Confirm lead time: Chambers are built to order. Call us for the current lead time to your address.

Safety Features and Certification

Soft models: pressure gauges inside and outside, an emergency valve and dual air filters. YKK zippers open from inside or outside. Seams are heat welded, with no glue or stitching.

Hard models: a door sensor stops the chamber from running with the door open. Pressure releases slowly on its own if power fails. A phone system links the user inside to the person outside.

Important:

OxyRevo chambers are CE certified and UKCA verified, and the maker holds ISO 13485:2016. They are not FDA approved or cleared. They are wellness equipment, not a substitute for hospital HBOT. Talk to your physician before you start. See the OxyRevo certifications page for every certificate number.

OxyRevo vs Other Hyperbaric Brands

OxyRevo does not make a 1.3 ATA chamber. Newtowne Hyperbarics makes 1.3 ATA hyperbaric chambers. Our hyperbaric chamber brands comparison sets the brands side by side. For running costs, see the hyperbaric chamber price guide.

Buying OxyRevo From RecovAthlete

Send us your door widths, stairs and room size, and we will check the fit with you before you order. Call 866-861-6317, 9am to 6pm EST, Monday to Friday, or book a 30 minute call.

See hyperbaric chamber financing for monthly payment options. Found the same model for less? Our price match policy lists the terms. White glove delivery and setup is a paid add-on.

OxyRevo Comparison Questions

What is the difference between OxyRevo Elite and Apex chambers?

Elite chambers reach 1.4 ATA and have 5 windows. Apex chambers reach 1.5 ATA and have 7 windows. Both come in 32 and 36 inch diameters and are 90 inches long.

Which OxyRevo chamber is the cheapest?

The Elite32 has the lowest starting price of the OxyRevo models we sell. The Forward90 MINI is the lowest priced seated model. Current prices are in the tables above.

Can two people use an OxyRevo chamber?

The Apex36, Forward90 and Quest36 have room for one adult and one child. No OxyRevo model is built for two adults.

Can an OxyRevo soft chamber reach 2.0 ATA?

No. Soft OxyRevo chambers top out at 1.5 ATA. For 2.0 ATA you need a Quest30, Quest36, Space60 or Space60 Pro.

Which OxyRevo hard shell is the narrowest?

The Quest30, at 30 inches. The Space60 Mini is 30.7 inches wide, and the Space60 Pro Mini is 33.5 inches at its side windows. Neither Space60 clears a standard 30 inch door frame.

Do I need to buy oxygen tanks?

No. Every OxyRevo chamber we sell runs with a 10 L oxygen concentrator that makes concentrated oxygen from room air.

How loud is an OxyRevo soft chamber?

Soft OxyRevo chambers run at 50 dB or under, with quiet relief valves.

Is OxyRevo FDA cleared?

No. OxyRevo chambers are CE certified and UKCA verified, not FDA approved or cleared. Use them as wellness equipment, with your physician's guidance.
