Oxyrevo Quest30 1.5 - 2.0 ATA Hard Hyperbaric Chamber | Lying Type

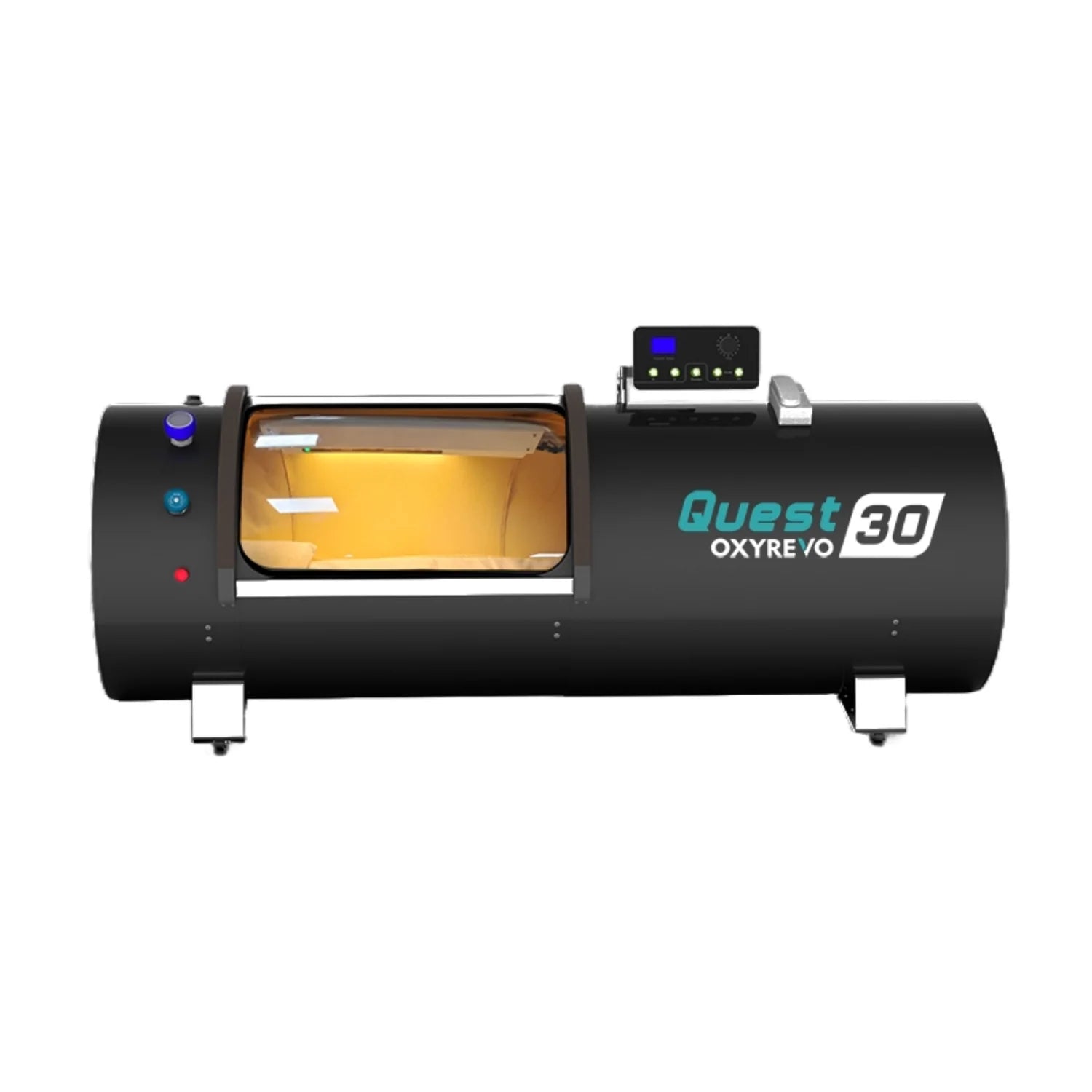

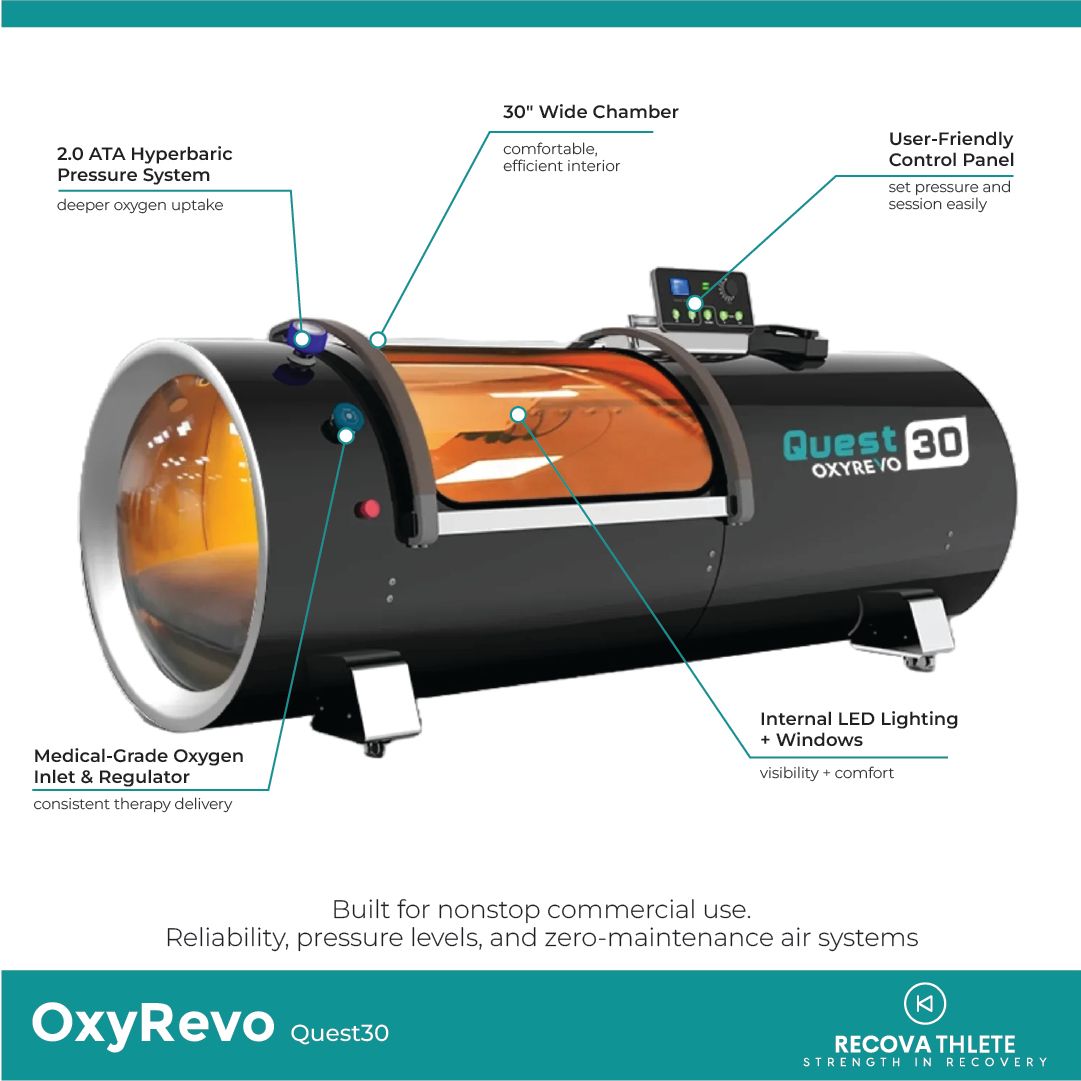

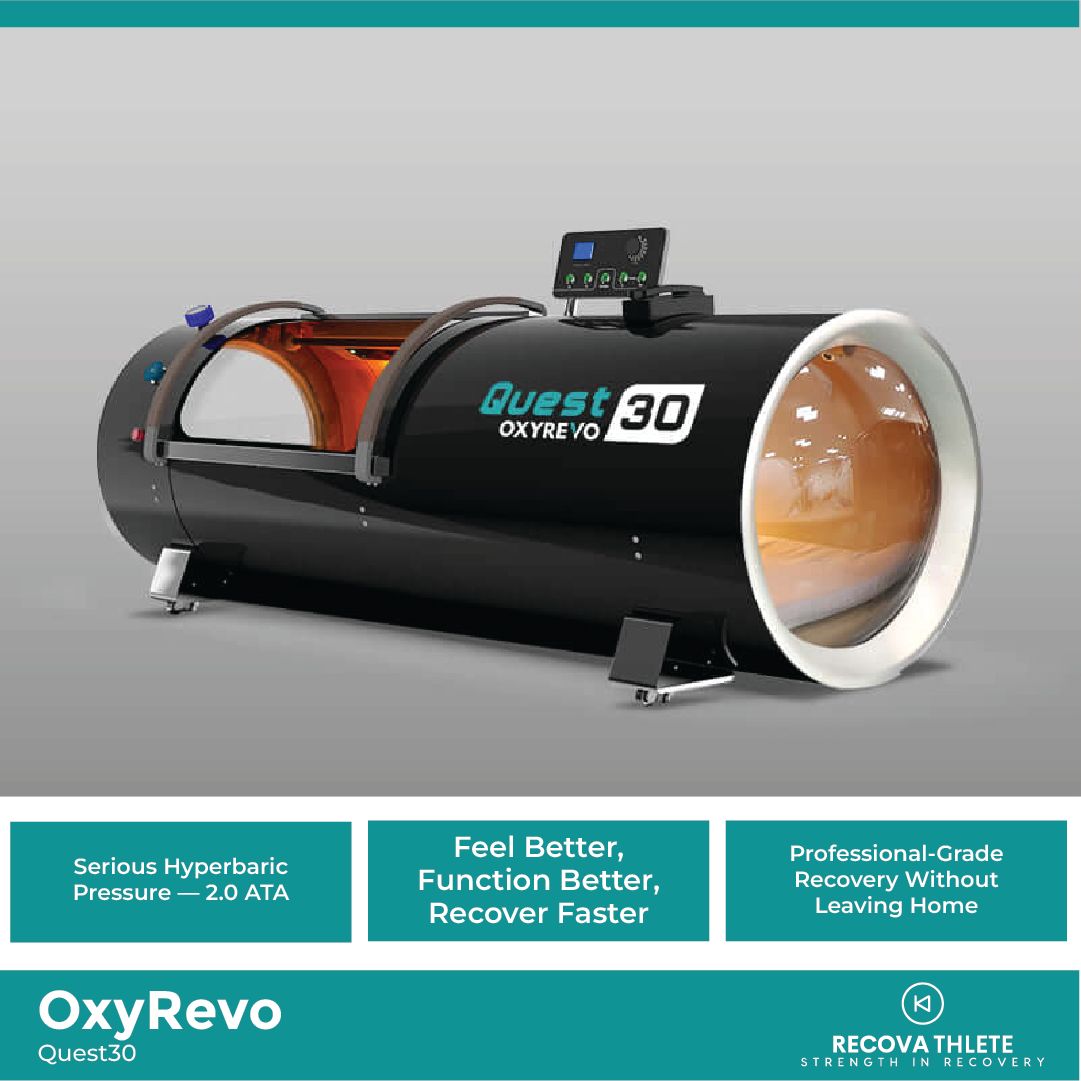

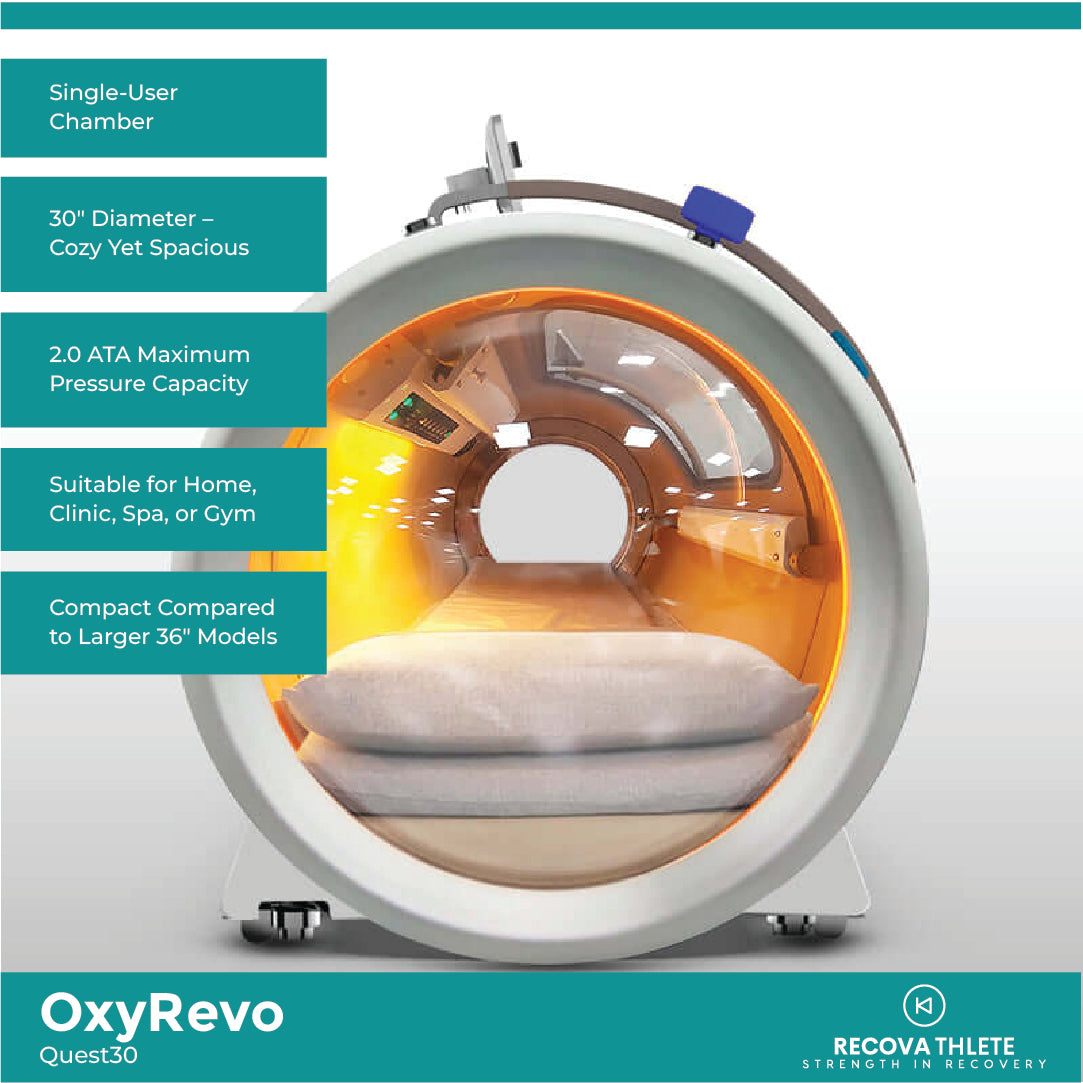

The cabin is 89 inches long and 30 inches in diameter, and you lie down on a mattress inside it. That 30 inch figure is the width you feel, so it suits one person of average build lying flat. Broader shoulders, or anyone who wants elbow room to read, will be happier in a 36 inch cabin. Call 866-861-6317 with your height and build and we will tell you plainly which one to order.

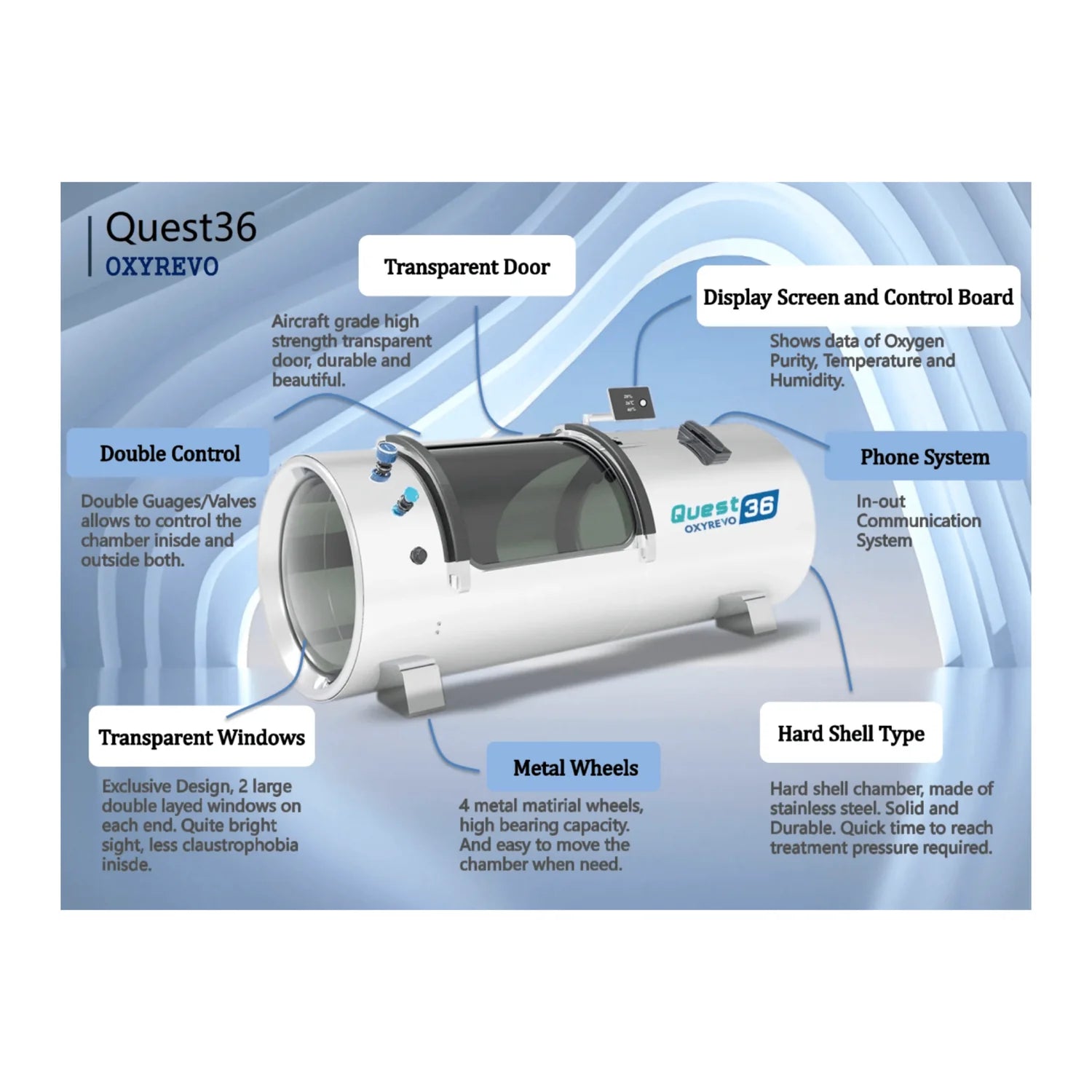

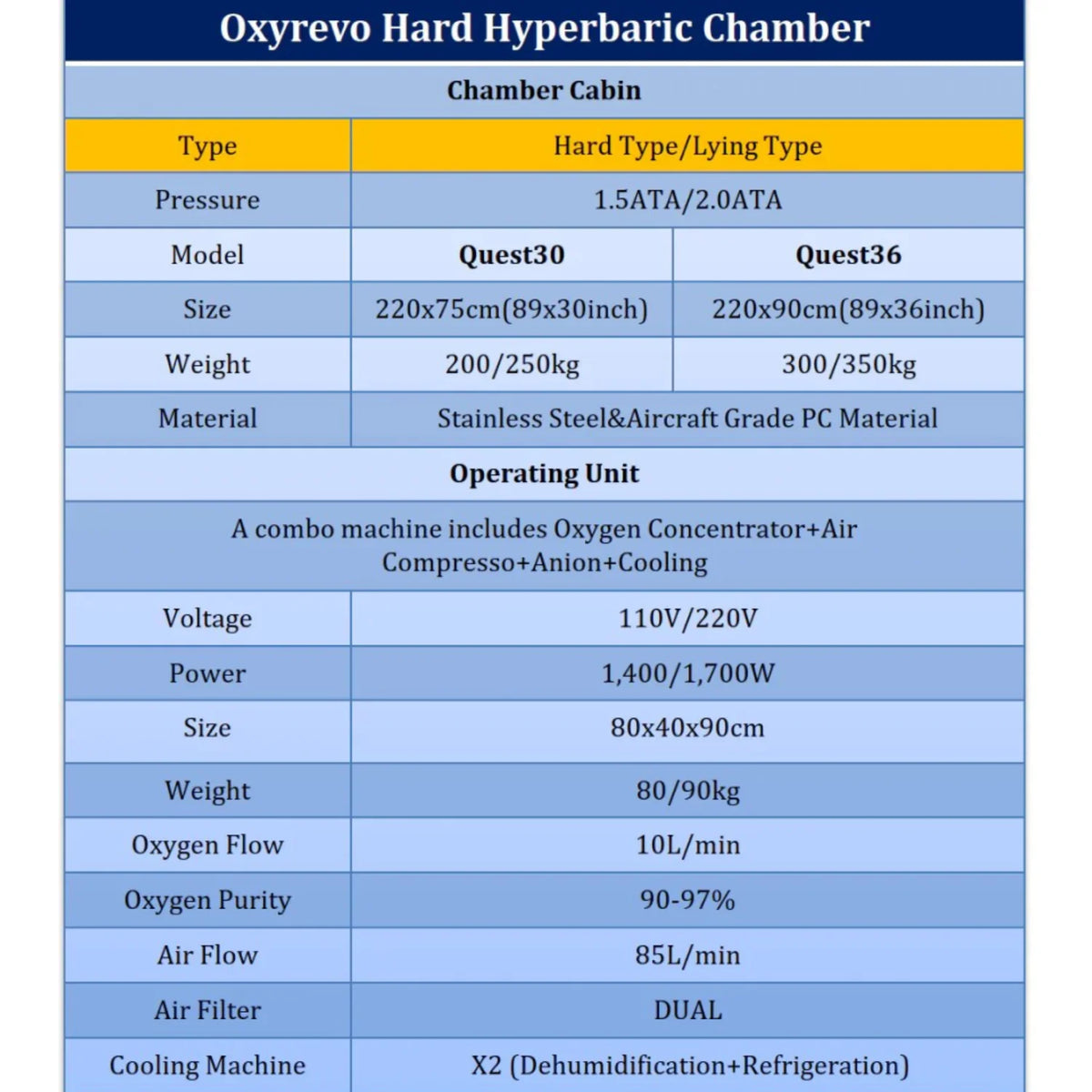

Diameter, and almost nothing else. Both cabins are 89 inches long, both come in 1.5 or 2.0 ATA builds, and both run on the same all-in-one operating unit. The Quest36 gives you six more inches across and weighs 573 lbs against 507. Pick the Quest30 when the room or the route is tight, and the OxyRevo Quest36 when space is not the constraint.

The 1.5 ATA build adjusts from 1.2 to 1.5 ATA. The 2.0 ATA build adjusts from 1.4 to 2.0 and uses thicker steel with reinforced components to hold it. Those are the two builds we sell. Other pressure configurations exist, but call 866-861-6317 first so we can check feasibility before you order. The ceiling is built into the chamber, so it is not a setting you can raise later. Which pressure is right for you is a question for your physician, and we will not guess at it for you.

ATA stands for atmospheres absolute. One ATA is the air pressure at sea level, so a 2.0 ATA hyperbaric chamber holds twice that, 100 kPa above the room. Soft shell chambers stop at roughly 1.3 to 1.5 ATA because fabric cannot hold more, so 2.0 ATA hyperbaric chambers are all hard shell. The Quest30 2.0 build adjusts from 1.4 to 2.0 ATA on thicker steel. Which pressure suits you is a decision to take with your physician.

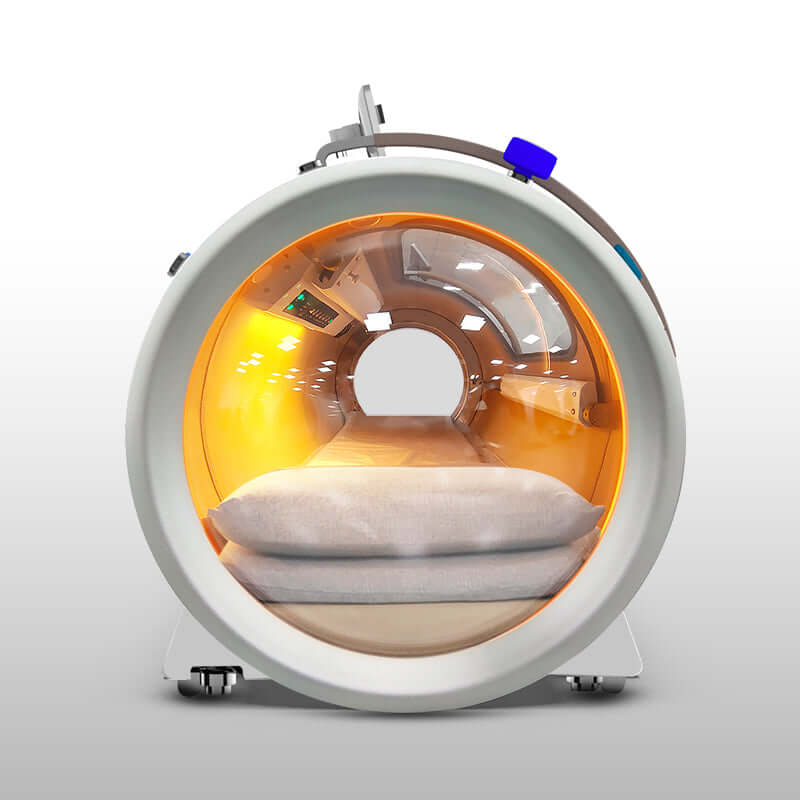

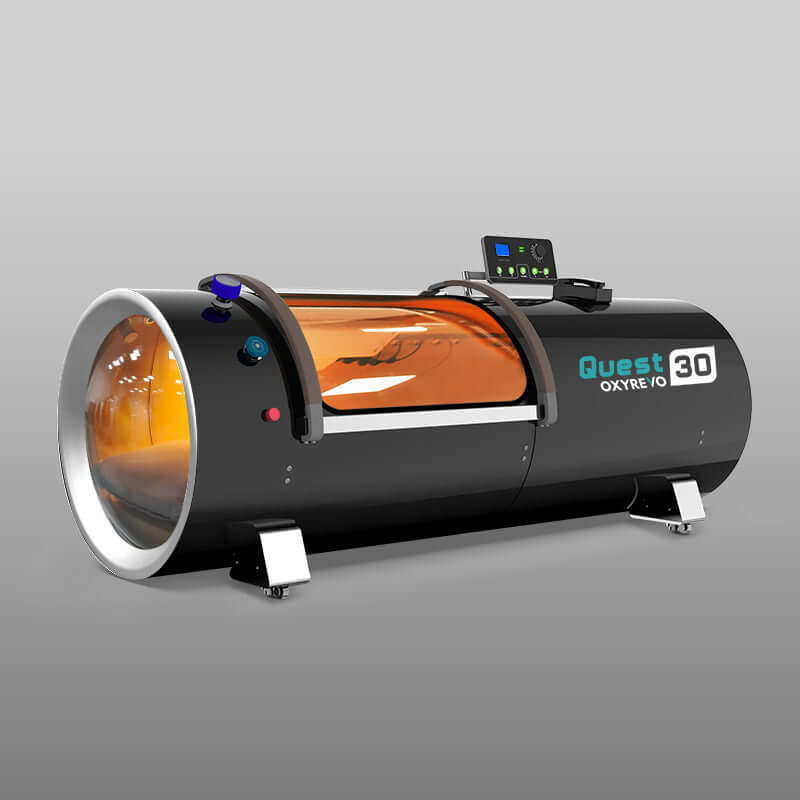

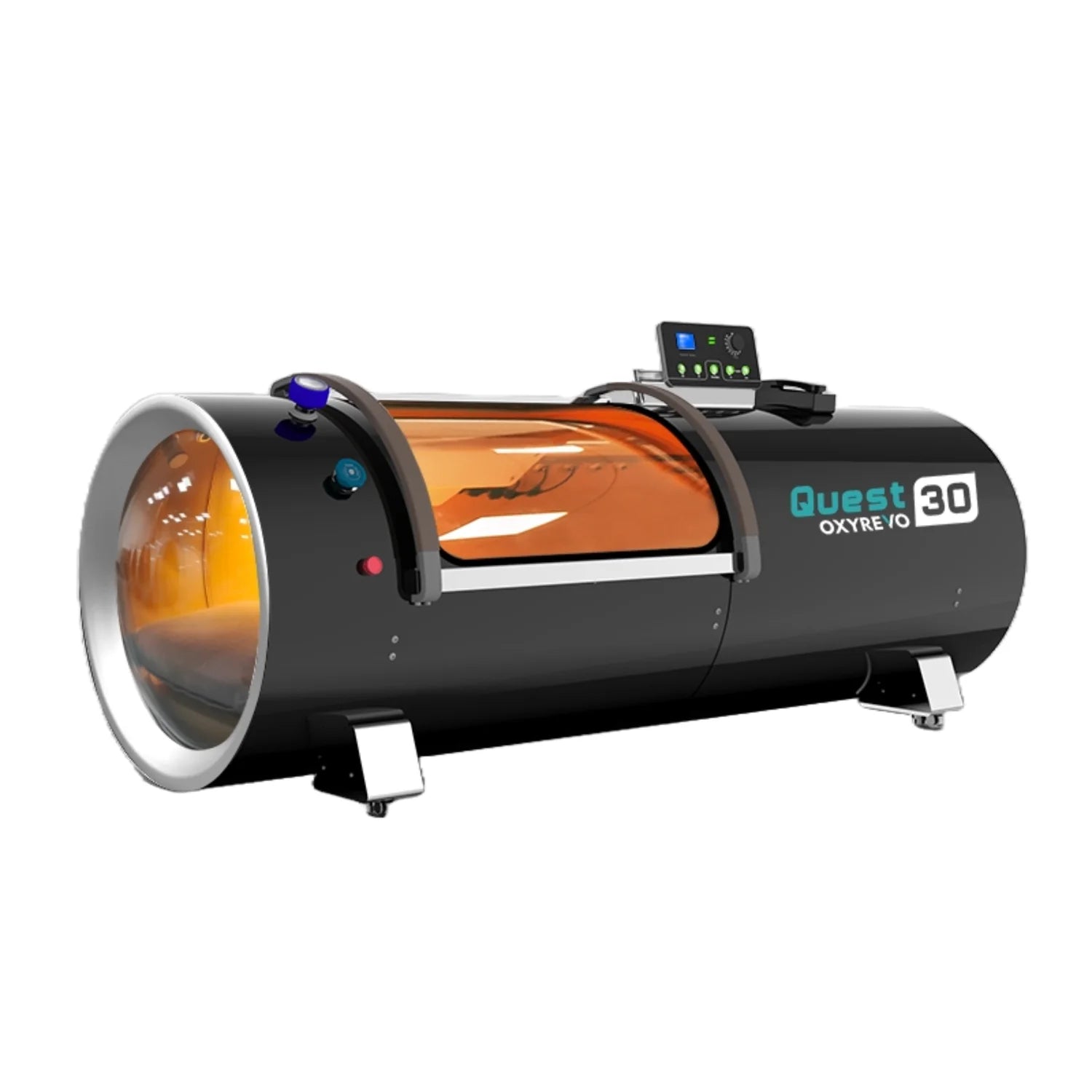

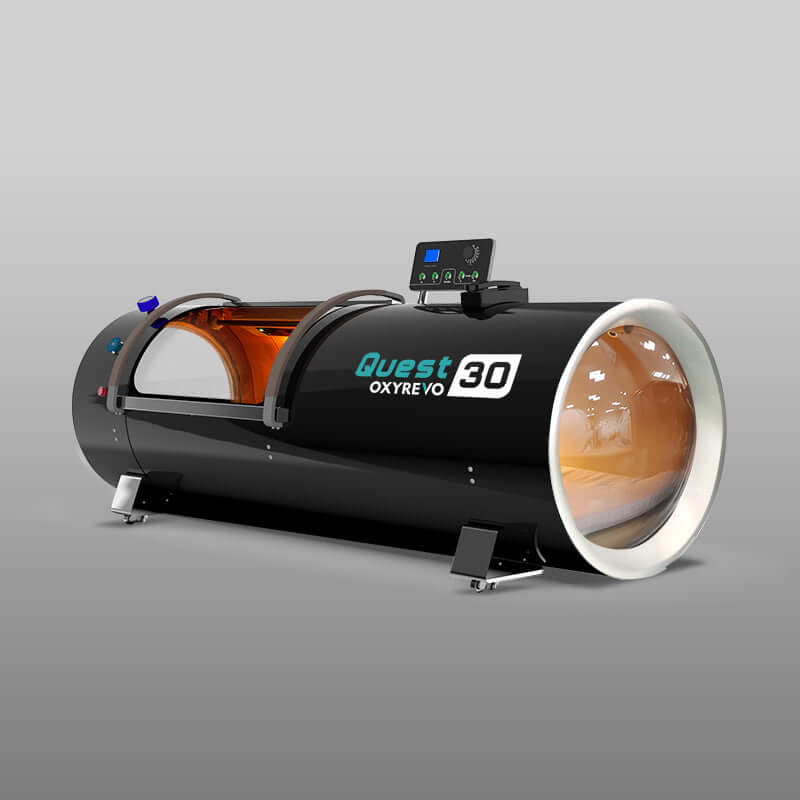

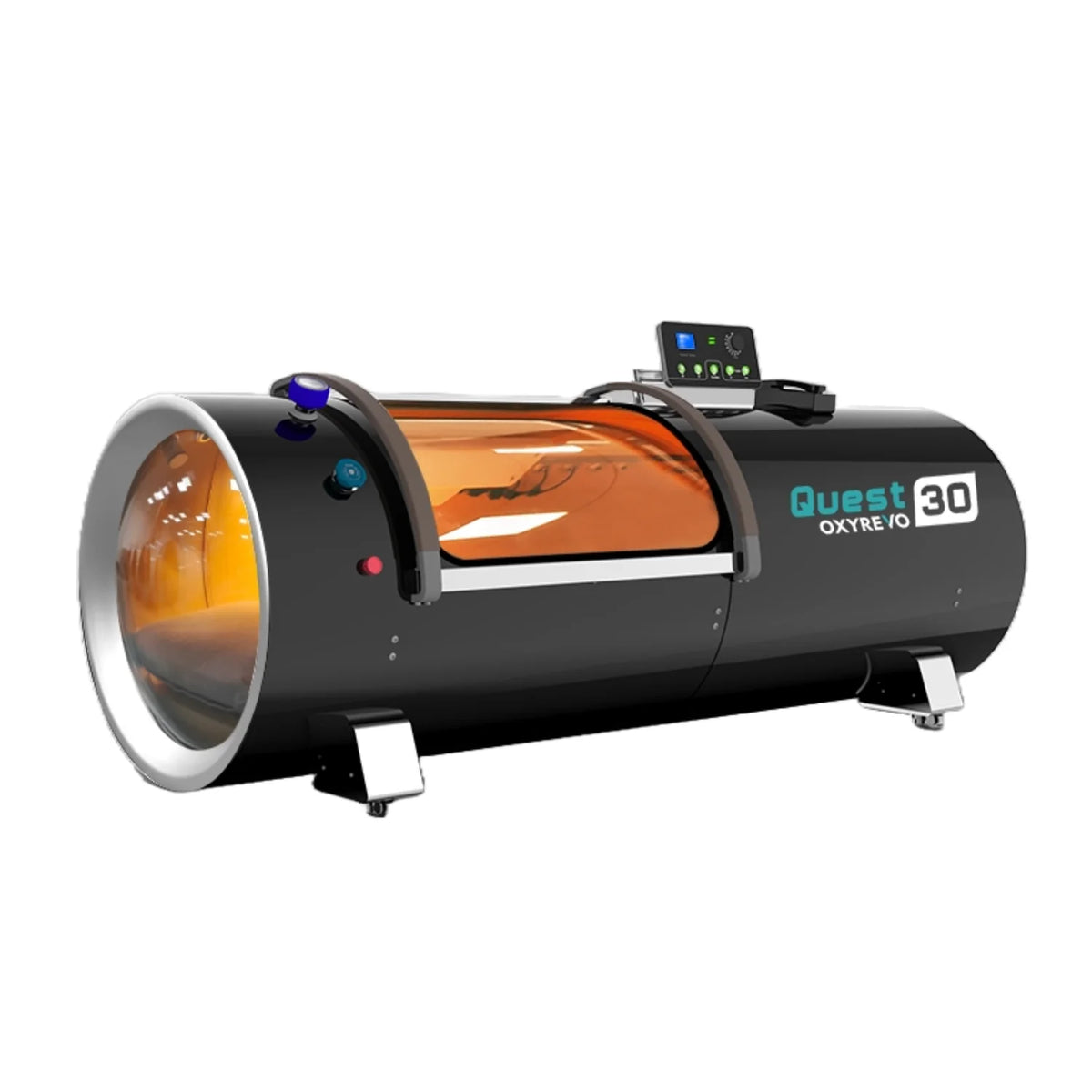

Soft chambers are TPU fabric over a frame, and they run mild hyperbaric oxygen therapy at about 1.3 to 1.5 ATA. You enter through a zipper at floor level and the shell changes shape as it inflates. The Quest30 is welded stainless steel with polycarbonate windows, so the cabin is the same shape at rest and under pressure, and the 2.0 ATA build goes where no fabric chamber can. Zips, seams and fabric are also the parts that fail first on a soft chamber, and none of them exist here.

No. It is a monoplace chamber, built for one person lying down. If you need two people in one cabin, call 866-861-6317 and we will point you at the multi-person hyperbaric oxygen chambers we carry instead.

No. The Quest30 is a horizontal cylinder 30 inches across, so the position is lying. If you want to sit or recline during a session, the OxyRevo Space60 is the hard sitting hyperbaric chamber built for that, with 60 inches of interior height and a folding recliner inside.

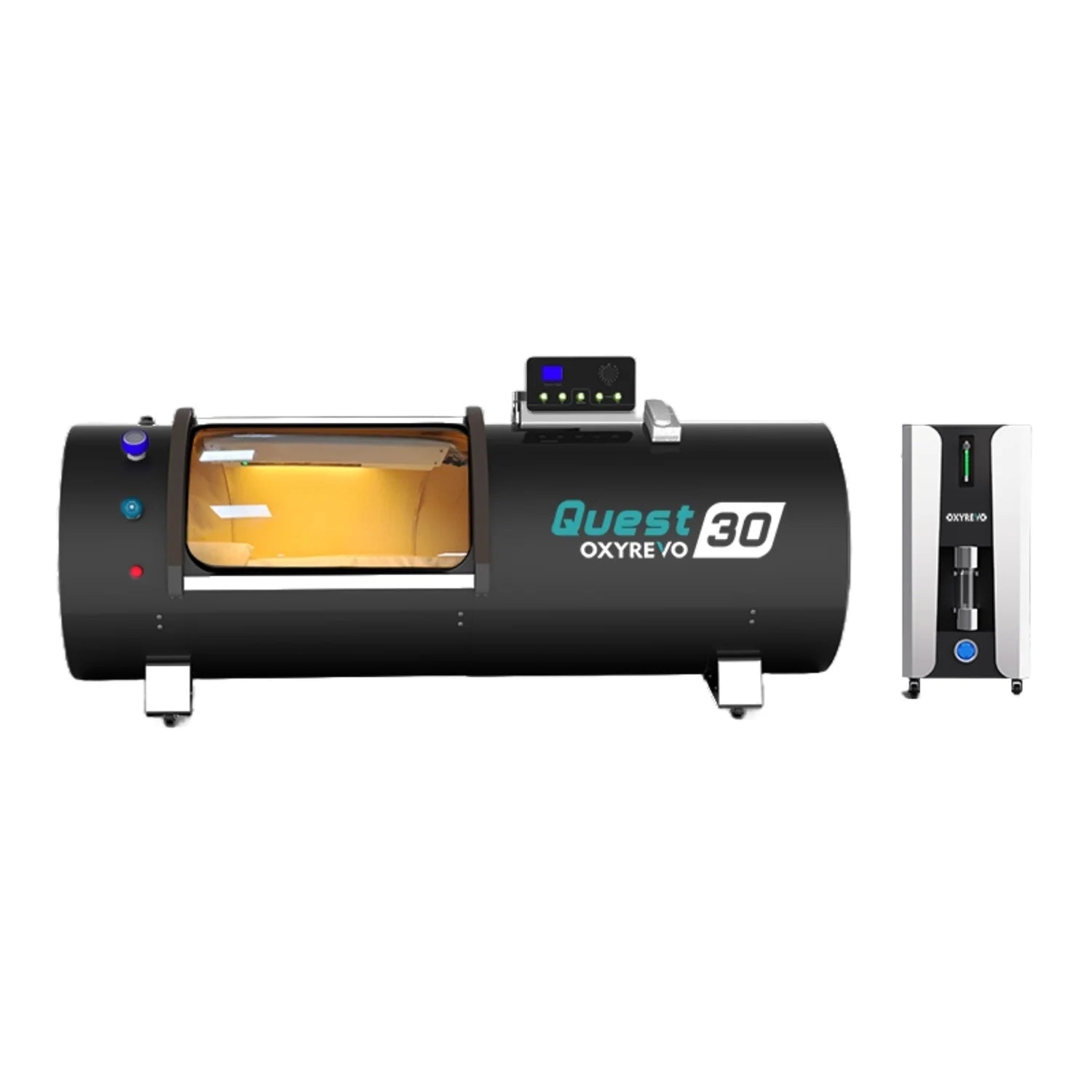

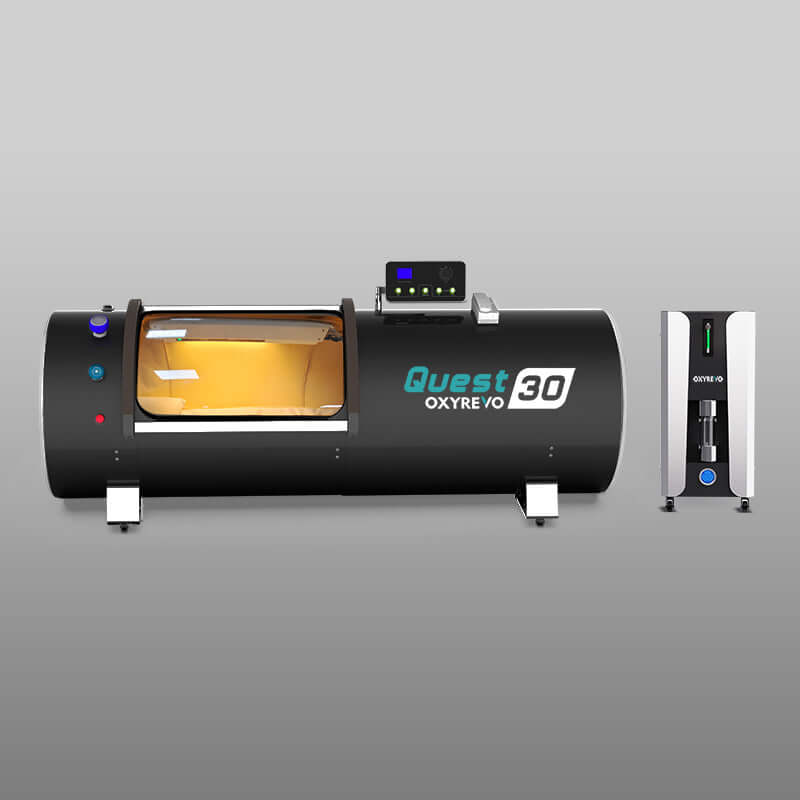

Plan for two pieces of equipment. The chamber itself is 89 by 30 inches, and the all-in-one operating unit sits beside it at roughly 28 by 14 by 30 inches. OxyRevo asks that the unit is placed away from the wall in open air so it can shed heat. The crate is larger than the chamber, so measure the doorways, corners and stairs on your delivery route before you order, not after.

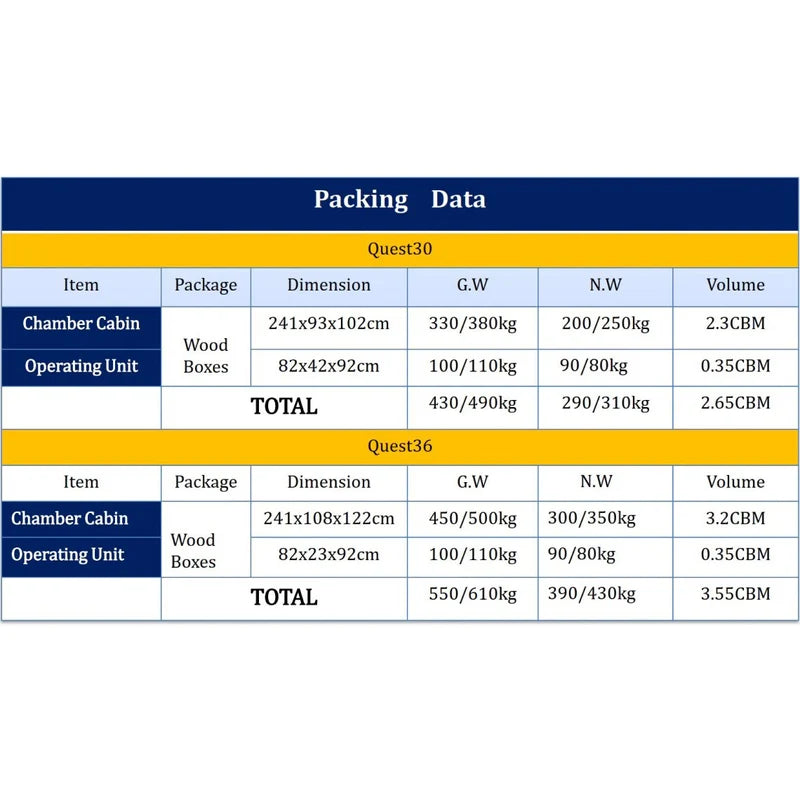

It ships as two wooden boxes on a pallet. The chamber crate is 95 by 37 by 40 inches and the operating unit crate is 32 by 17 by 36 inches, about 1,000 lbs of freight together. The chamber crate is wider than a standard interior door, so uncrate it in the garage or the driveway. Once it is out of the box the cabin is 30 inches across and rolls on its own wheels. White Glove Delivery covers all of this as a paid add-on.

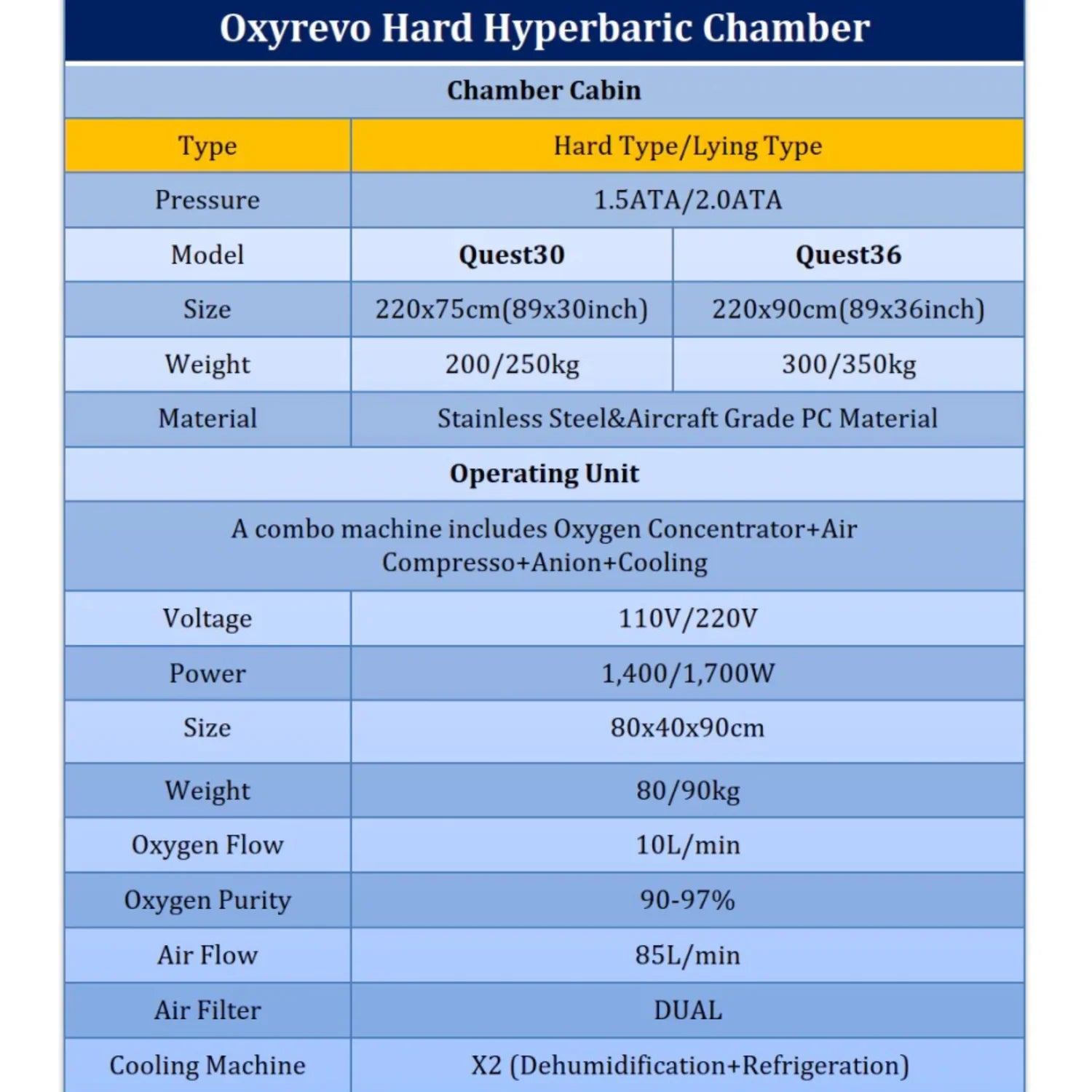

The operating unit runs on 110V or 220V and draws 1,400 W. That is a single standard outlet in most homes, though a clinic running sessions back to back should have an electrician confirm the circuit. The chamber itself has no separate power feed; everything runs through the operating unit.

No. The 10 L concentrator inside the operating unit makes the oxygen supply on site, 90 to 97% pure oxygen, and runs continuously while the chamber is on. There are no cylinders to store, refill or pay for. If you want more flow, the 20L concentrator upgrade replaces it before the unit ships.

OxyRevo asks you to run room air conditioning whenever the room is above 68°F. The two cooling machines inside the operating unit pull humidity out of the cabin and drop the interior temperature, but they work against whatever the room is doing. A cool room means a comfortable 90 minute session. A warm one will not.

It runs at 50 dB or under, roughly a quiet conversation or a fridge in the next room. The noise comes from the all-in-one unit rather than the cabin, since that is where the compressor and the two cooling machines sit. If you are putting the chamber next to a bedroom or a treatment room wall, that is the box to think about placing away from it.

No, and no technician is needed. Connecting the chamber unit to the all-in-one machine is the whole job, and the steps are on the Description tab. Two things the manual is firm about: check the pin alignment before you push any connector home, and run the empty chamber once before the first session to confirm it operates normally. Keep both machines away from the wall so the operating unit can shed heat.

Yes, within reason. The chamber tank sits on four solid wheels. Screw the gear on each wheel clockwise to release the wheels, roll the chamber, then screw them back anti-clockwise to lock it in position. At 507 lbs it is the lightest of the OxyRevo hard chambers, but it is still a two-person push on carpet.

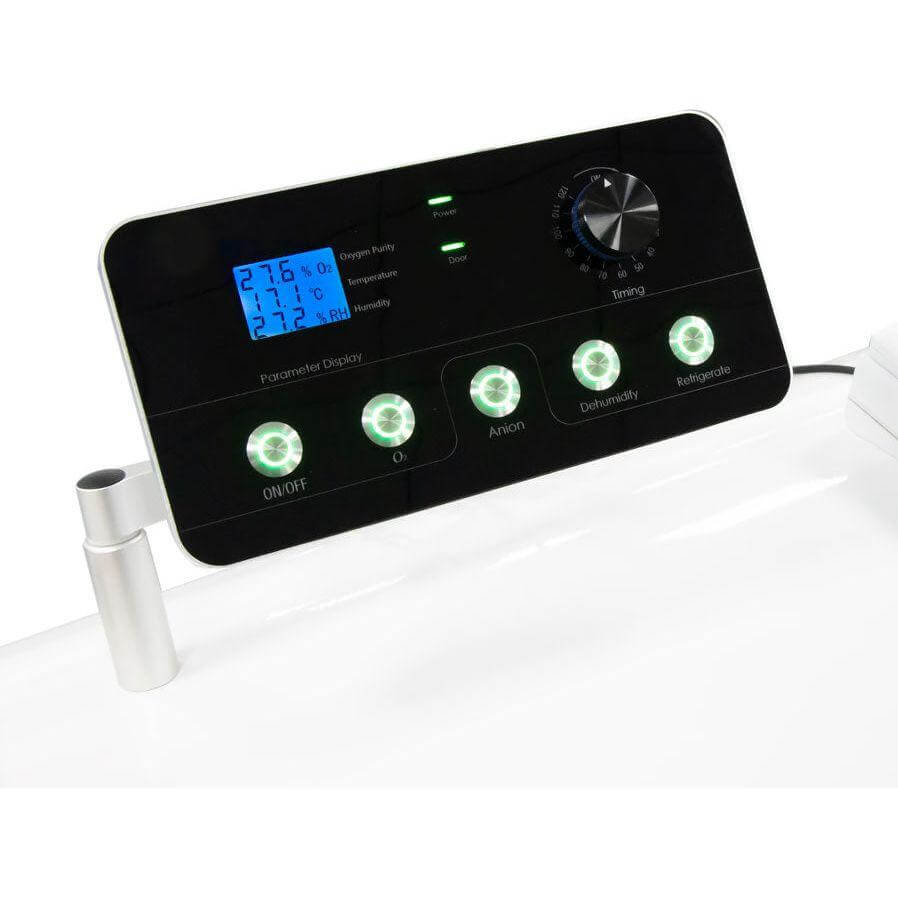

OxyRevo suggests 60 to 120 minutes, and the built-in timer runs to 120 minutes with a buzzer at the end. How long and how often you should use a hyperbaric chamber is a question for your physician, not for us.

The cabin reaches your set pressure in about 12 minutes, at which point the automatic relief valves hold it there. Coming back down takes about 5 to 10 minutes after you unscrew the deflate valve. The door will not open until the gauge reads 0 kPa, so budget roughly 20 minutes on top of your session time.

OxyRevo describes the sensation as similar to a plane taking off and landing, and says it is normal. The manual suggests chewing gum, yawning, or pinching your nose and blowing gently against a closed mouth until the pressure settles. You can also slow the climb using the internal deflate valve. If your ears will not equalize, OxyRevo says to end the session.

Loose, comfortable clothes. OxyRevo asks you to take off shoes before getting in, and to remove jewellery or anything sharp that could damage the cabin or the mattress. Long socks and stockings should come off. Disposable foot and hair covers are fine to use, and clinics often do. Use the bathroom and drink your water before you get in, because a session runs an hour or two and the door stays shut until the chamber is back to zero.

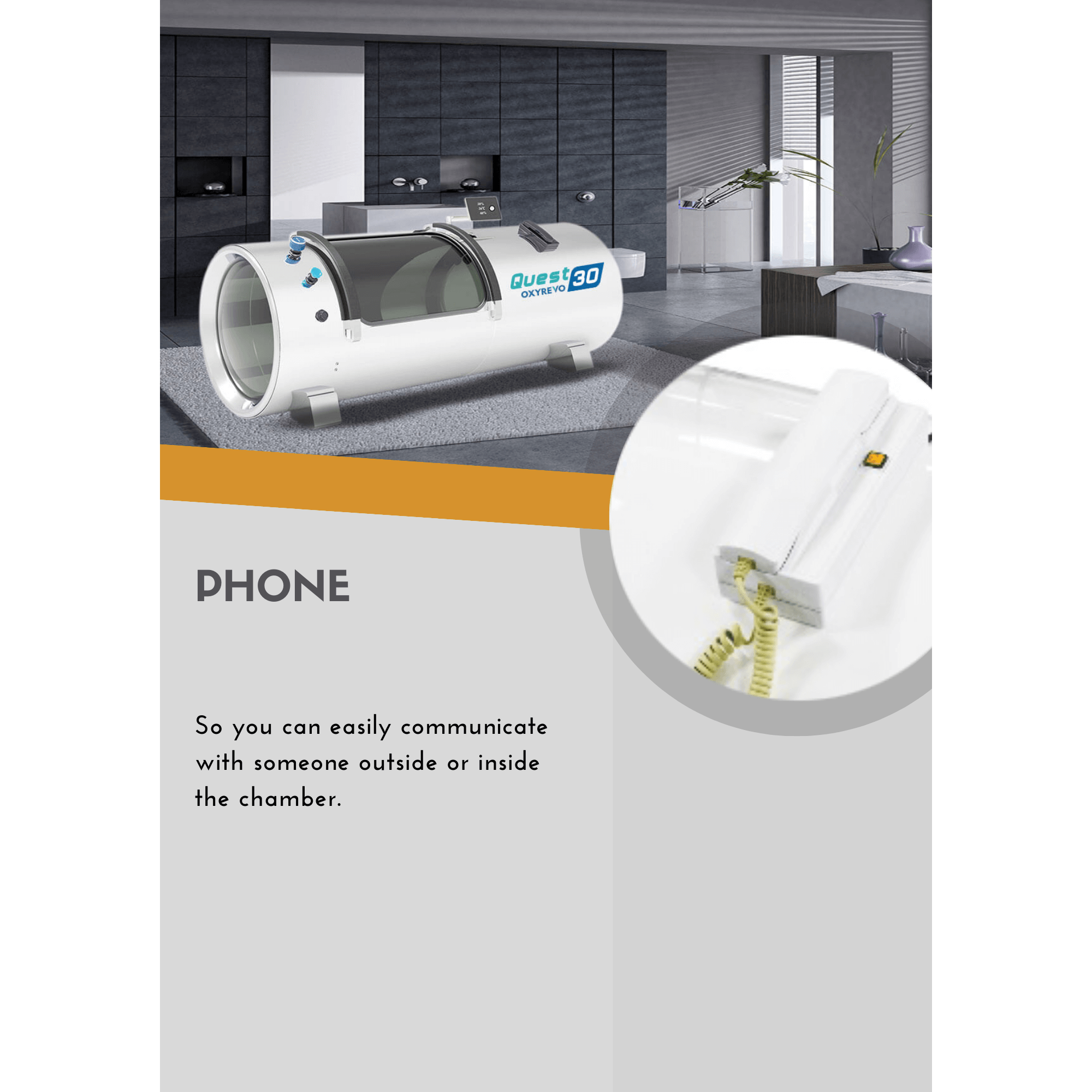

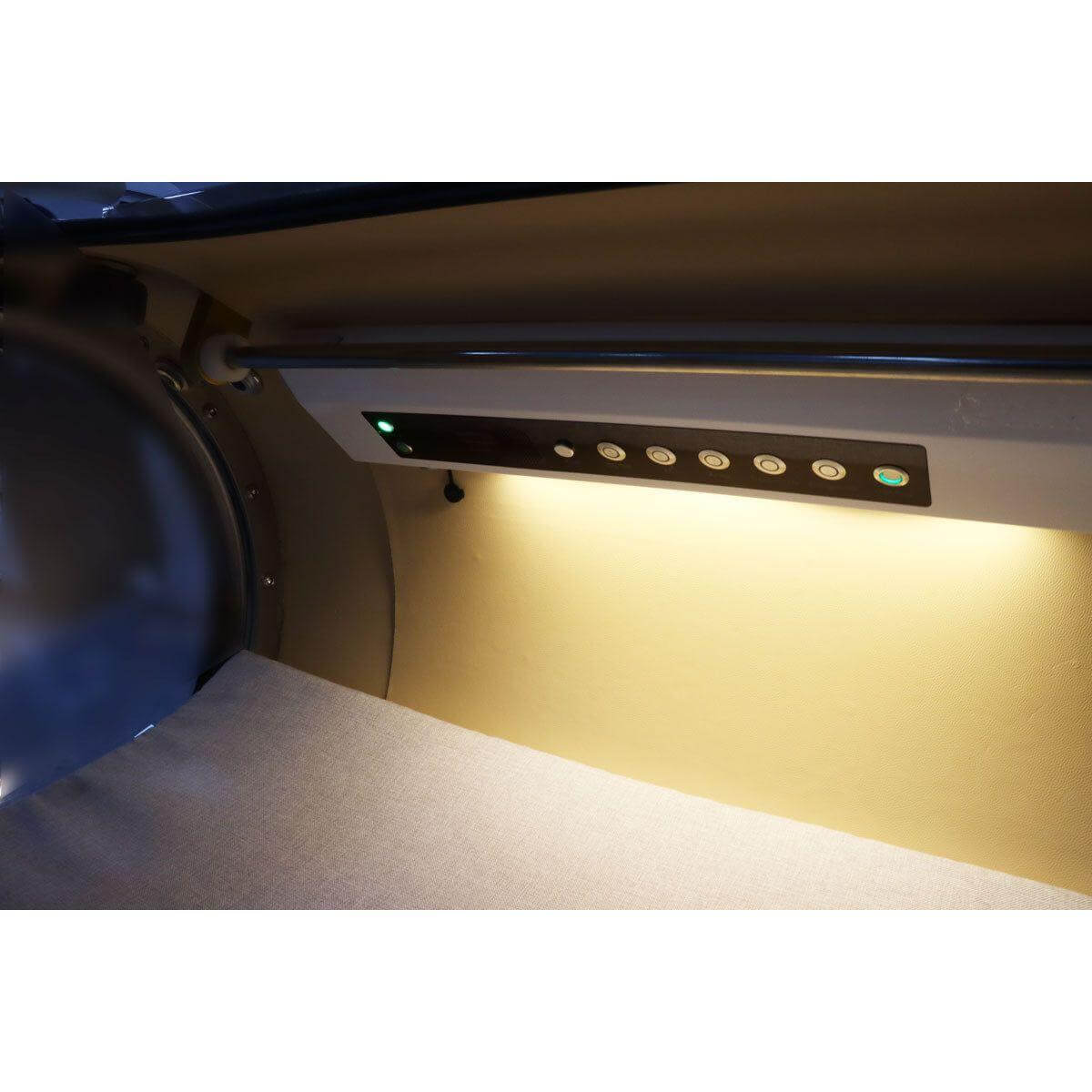

Yes. The manual allows electronic products and drinks inside the chamber. Most people read, work or sleep through a session. The internal reading light and the phone handset mean you do not have to come out to see what you are doing or to speak to someone in the room.

The power failure safety system depressurizes the chamber in a controlled sequence, and the door lowers only once the pressure is released. The emergency relief valve is also operable from inside the cabin, so a user who is asleep or alone is not depending on someone outside.

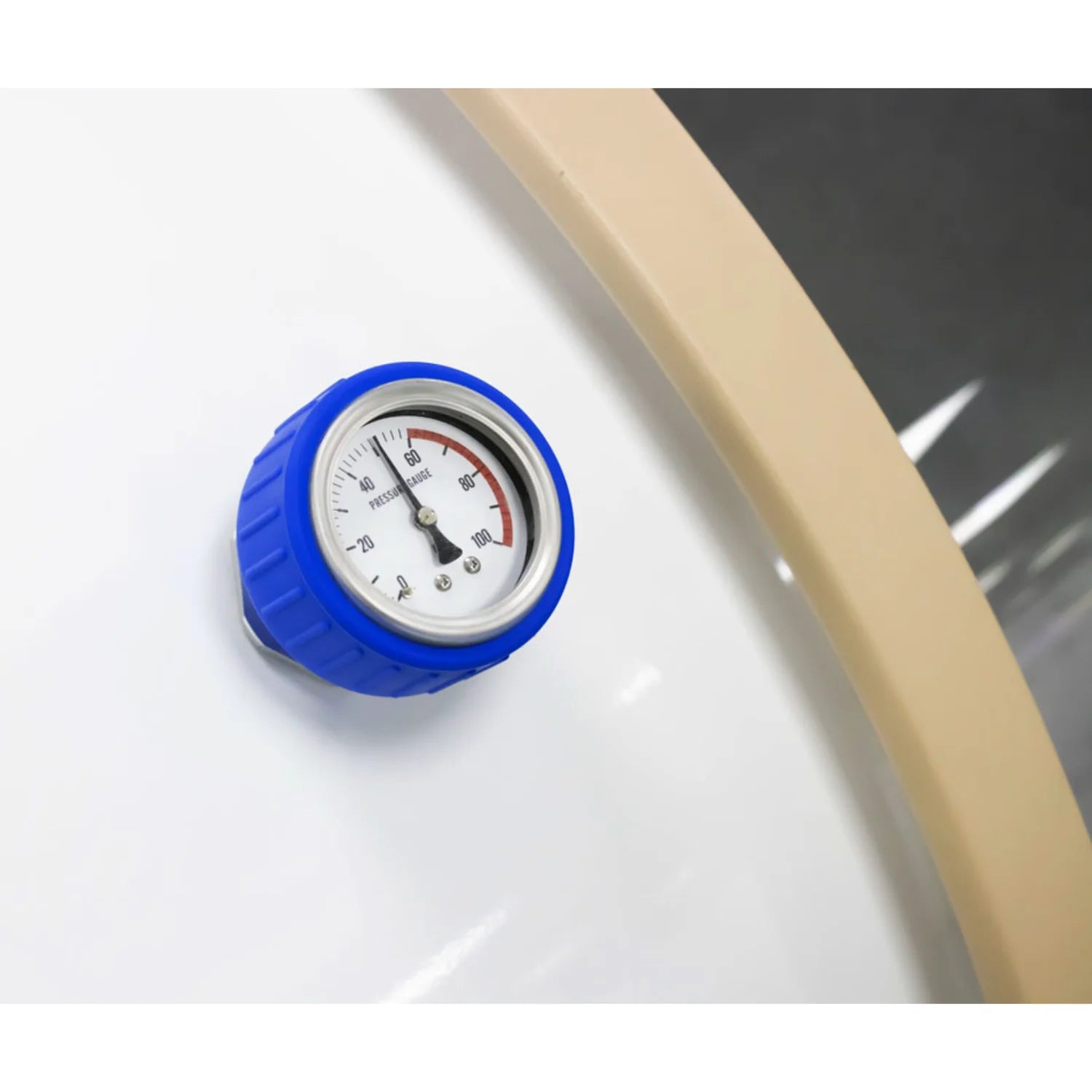

No. The door opens only when the gauge reads 0 kPa. Working the other way, the smart door sensor stops the chamber from pressurizing until the door is fully closed, and indicator lights inside and outside turn green to confirm the seal.

No. OxyRevo chambers are CE certified under the machinery directive as non-medical equipment, and OxyRevo manufactures under ISO 13485. They are not FDA cleared and not FDA approved, and we will not describe them as either. Anyone telling you a Chinese-built hard chamber carries FDA clearance is worth a second question.

OxyRevo lists conditions it says the chamber must not be used with: pregnancy, severe infectious disease, bad colds, pneumothorax, severe emphysema, blood pressure above 160/100, and severe heart problems. That is the manufacturer's own list and we pass it on as written. Whether hyperbaric oxygen is appropriate for you is for your doctor to judge, not us.

Verified buyer reviews sit in the review section further up this page, and RecovAthlete's store reviews are on our Google Business Profile. Be aware that hard chambers at this price sell in small numbers, so there are far fewer public reviews than for a soft chamber or a massage gun. Any site showing hundreds of them is worth a second look. If you want to know what owners actually report, call 866-861-6317 and ask.

Hard shell chambers sit well above soft shell chambers, because the cabin is welded stainless steel rated to hold 2.0 ATA rather than fabric rated to 1.5. The Quest30 price for each build, and the monthly financing figure, are at the top of this page. The 1.5 and 2.0 ATA builds are priced differently, and custom paint or branding adds to both the cost and the build time.

Yes. Private owners, clinics, wellness centres and sports facilities buy hard hyperbaric chambers in the United States and Canada without a licence. What you cannot do is market a chamber as treating a medical condition, which is why our pages describe what the machine is and what it does mechanically, and leave the medical question to your physician.

RecovAthlete sells direct and does not bill insurance. Whether your insurer will cover any part of a chamber purchase is a question for them, and the answer usually turns on how the chamber is being used and who prescribed it. Ask before you order rather than after.

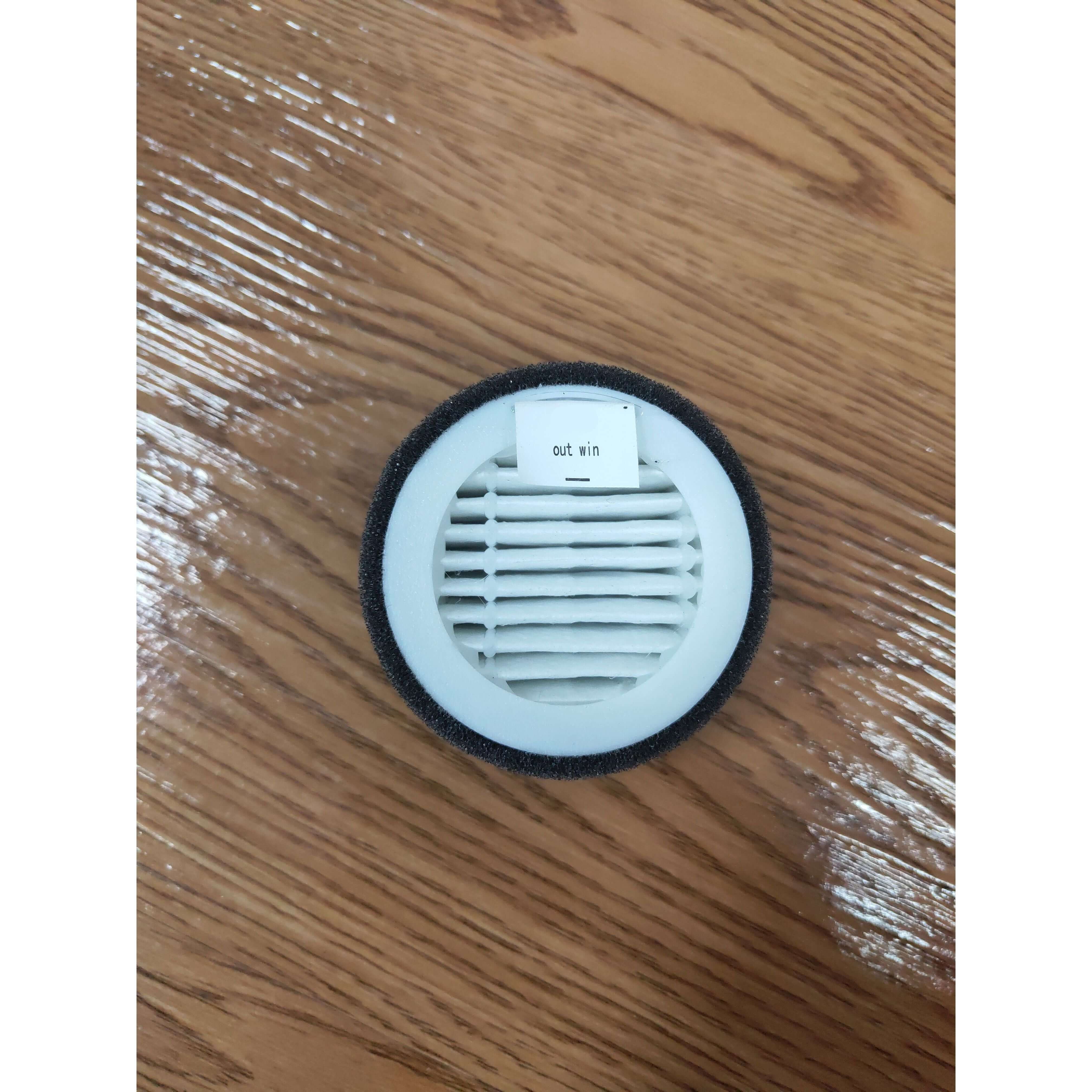

Very little. Replace the activated carbon cotton air filters every 6 to 12 months, depending on how often you run it. Empty the humidity water container by hand when it fills. Wipe the cabin down with a damp or antibacterial cloth when needed, then run it under pressure for 20 minutes until dry. Spare filters and fuses ship in the box.

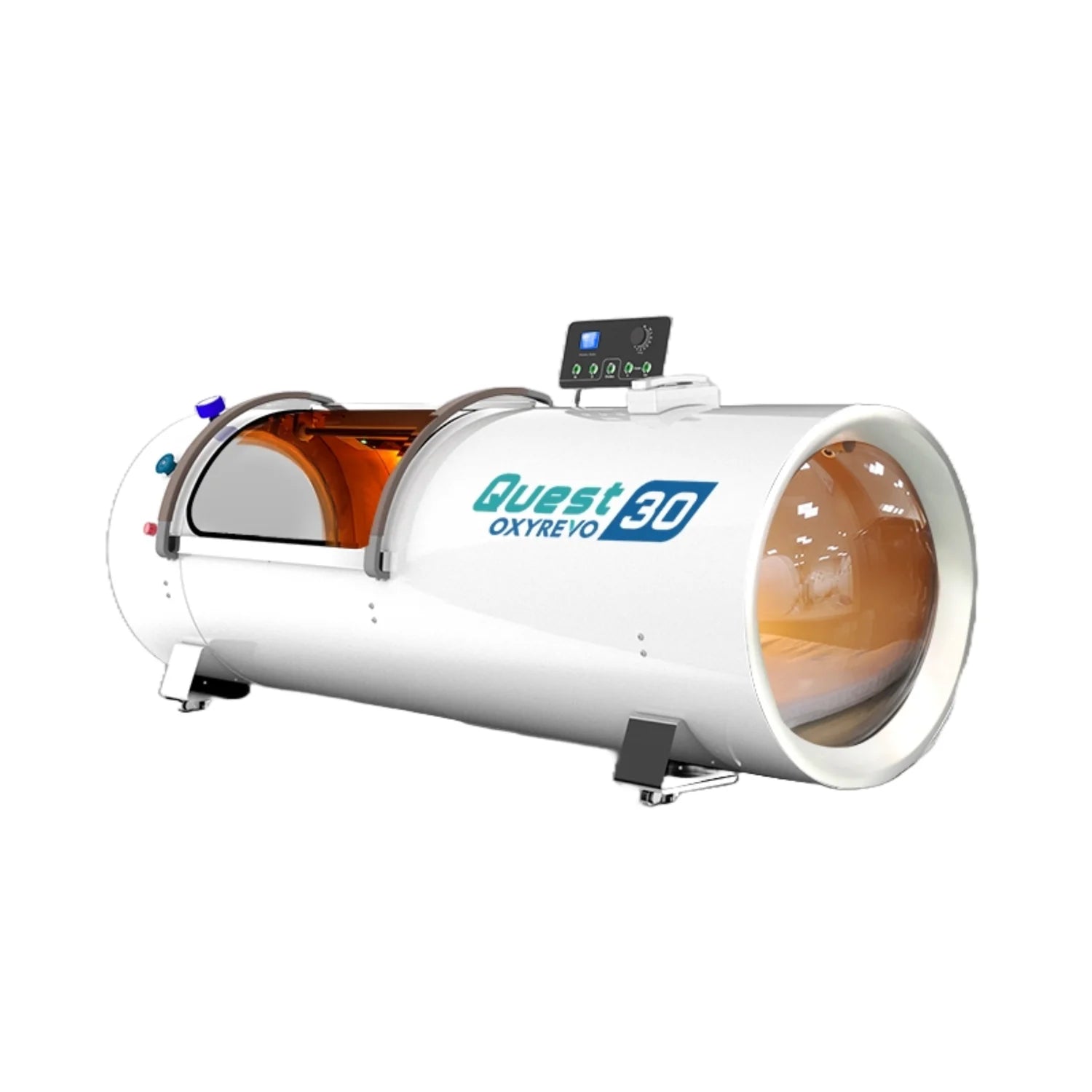

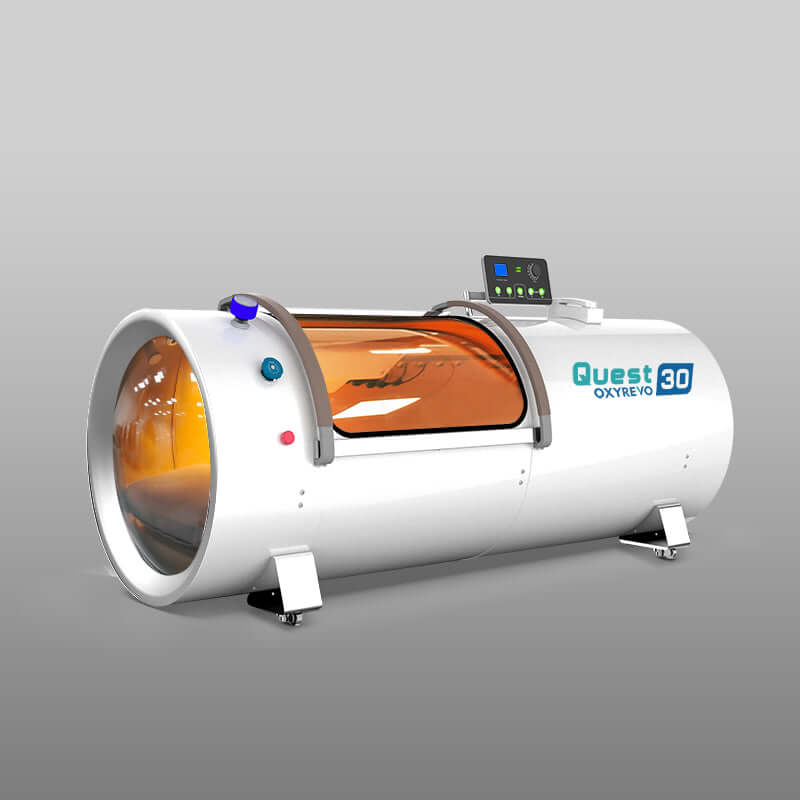

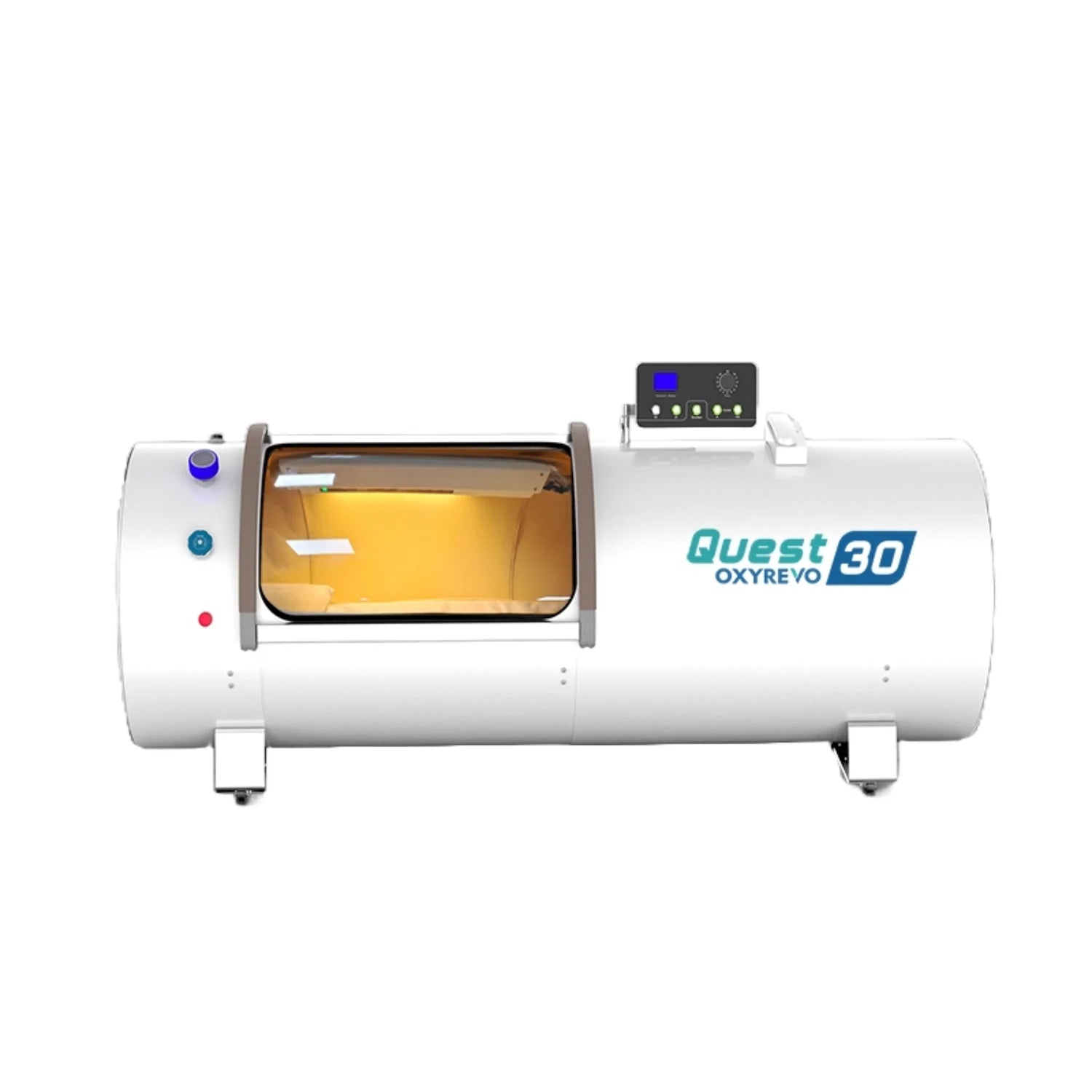

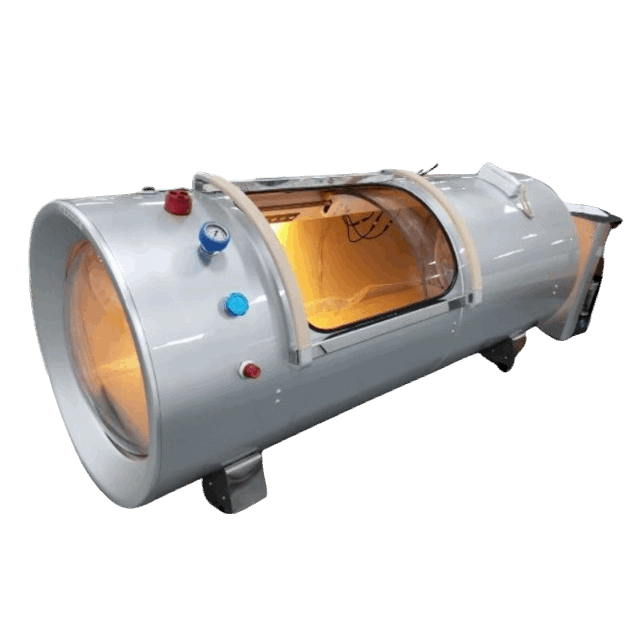

Black and white are the two stock finishes at checkout. OxyRevo also paints chambers to order, including a navy blue it uses on the Quest range, and will apply your own branding instead of the OxyRevo mark. Custom paint and branding add to the build time, so call 866-861-6317 before you order rather than after.

Two years from the date of delivery on materials and workmanship, when the chamber has been operated properly. Because RecovAthlete is an authorized OxyRevo dealer, that factory warranty stands and parts come through the manufacturer rather than a third-party seller.

Each Quest30 is built to the pressure, colour and branding you choose, so the lead time depends on the build and the destination. We ship to the United States and Canada. Call 866-861-6317 and we will give you the current window before you place the order rather than a number that reads well on a web page.

Yes. The options and the monthly figure are at the top of this page. Business buyers often finance a chamber as equipment rather than through the consumer route, which changes the terms and sometimes the tax treatment. Canadian financing runs through a separate partner and needs a qualification step first, so start that call early if you are ordering into Canada.

Not for wellness use. Private owners and clinics buy hard chambers without one. Whether hyperbaric oxygen is right for you, and at what pressure, is a conversation to have with your physician before you order.
