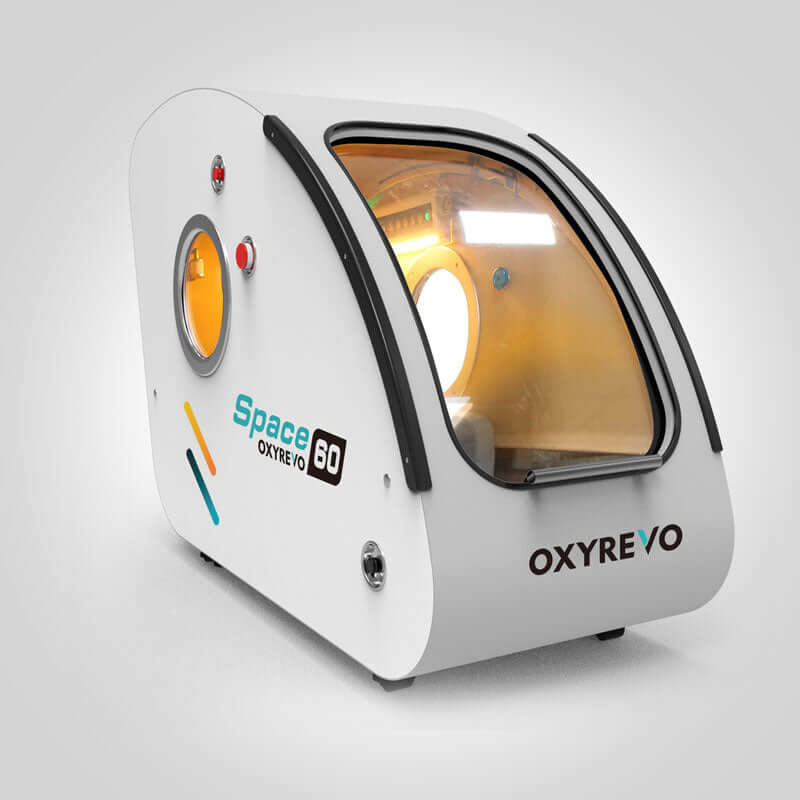

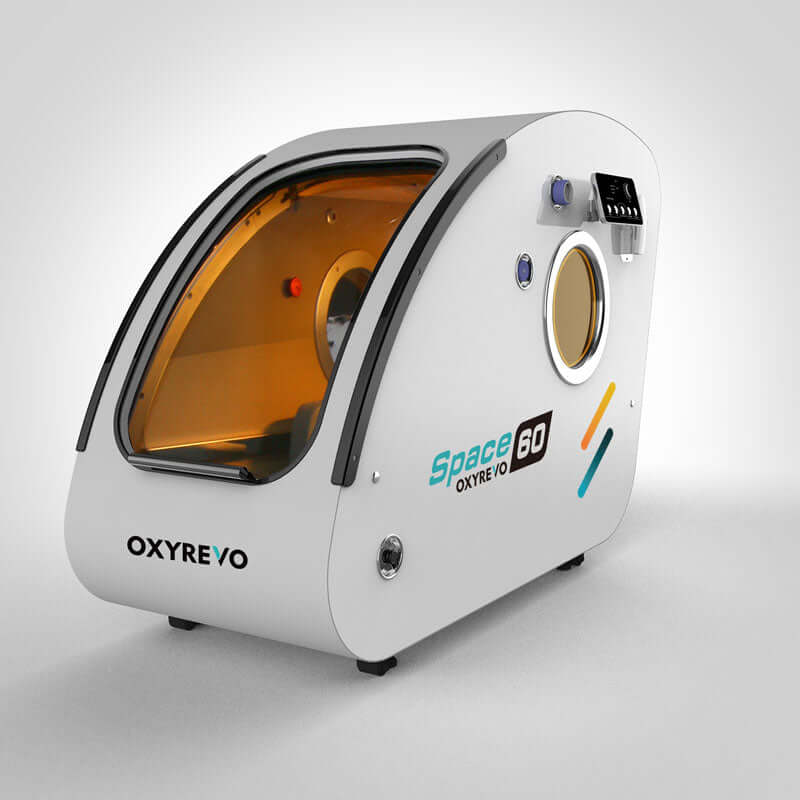

OxyRevo Space60 1.5 to 2.0 ATA Hard Sitting Hyperbaric Chamber

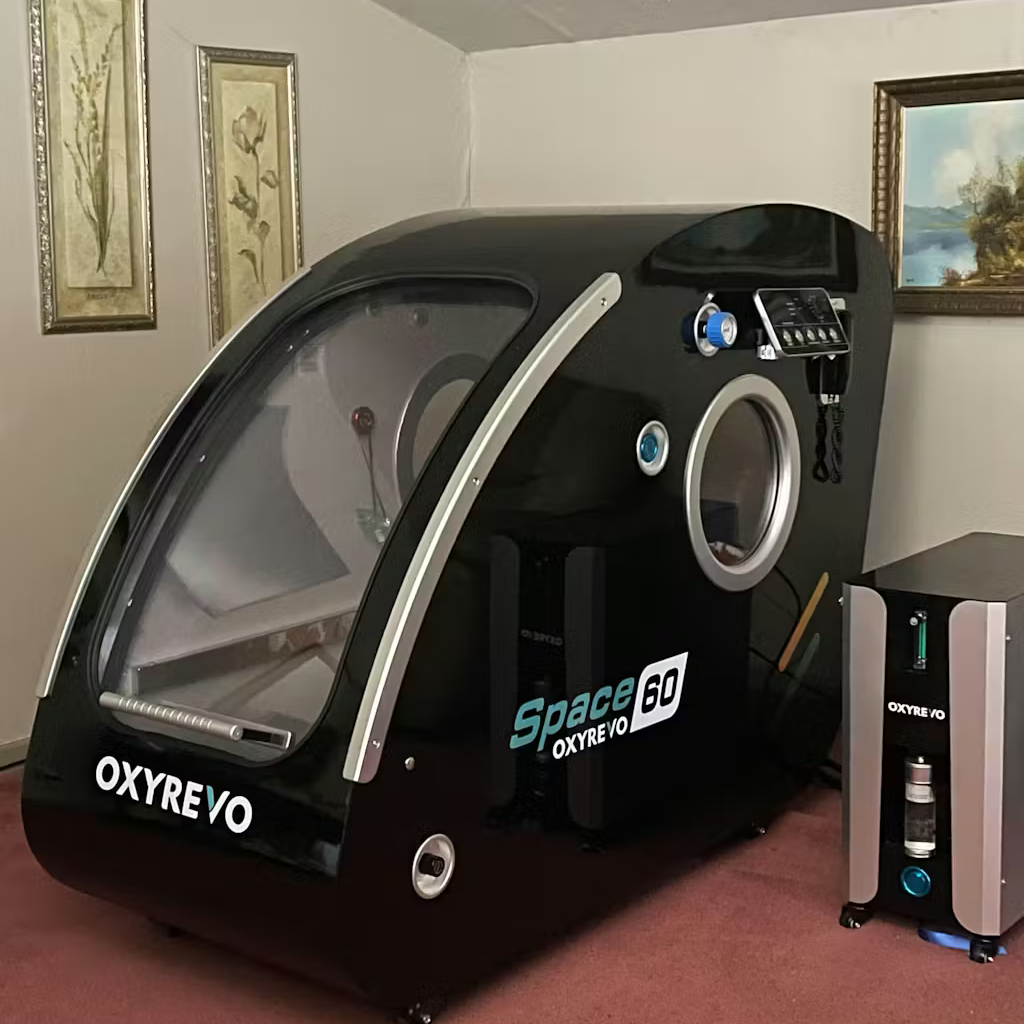

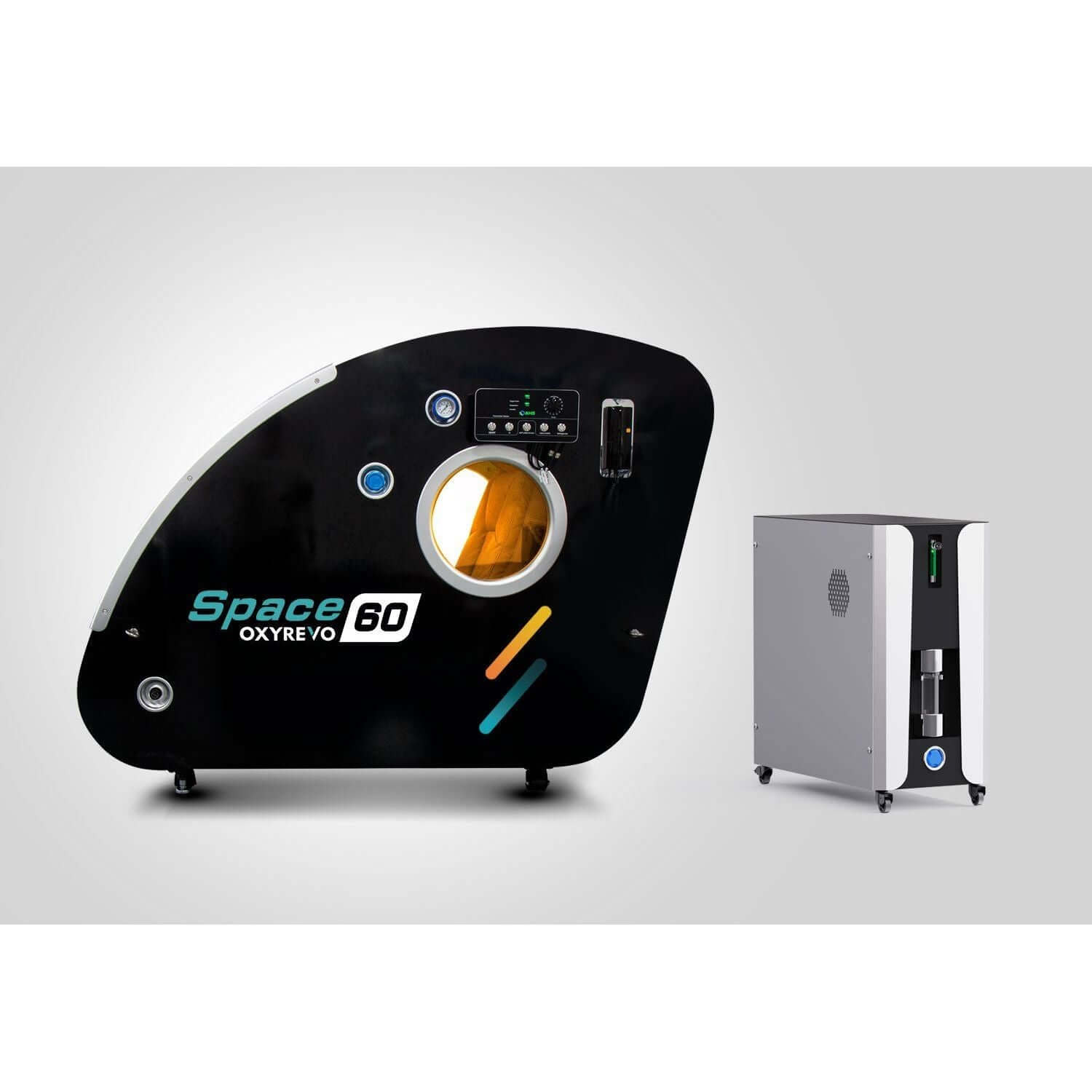

Both Space60 builds share the shell, the sitting design and the all-in-one machine unit. The 1.5 ATA build is adjustable from 1.2 to 1.5 ATA and is aimed at home wellness. The 2.0 ATA build is adjustable from 1.4 to 2.0 ATA and is made in heavier materials for the full range. Which pressure is right for you is a question for your physician.

Width only. The Space60 Standard is 34 inches (86 cm) wide and the Mini is 29.5 inches (75 cm). Every other dimension, the pressure options and the chair are the same. The Mini is built narrow enough to clear a standard 30 inch residential doorway as built, so it reaches rooms the Standard cannot without removing the outside panels. Both widths are offered in the 1.5 ATA build and the 2.0 ATA build, and you choose from the options at the top of this page.

No. The Space60 is a single-occupant chamber. It is 79 inches long with 60 inches of interior height and seats one person to sit or recline. If you need two people at the same time in side-by-side seats, that is a different, larger walk-in class of chamber. Call 866-861-6317 and we will point you to the right option.

No. The Space60 tops out at 2.0 ATA in the 2.0 build. Chambers rated to 2.5 ATA are true medical-grade units built for hospitals and medical facilities. They cost far more, need certified professionals to operate, and carry extra certification requirements. We do not stock them, though we can source one on request. Whether you need that pressure is a question for your physician.

Two reasons. The hard shell reaches up to 2.0 ATA, which soft chambers cannot. For reference, OxyRevo's own soft chambers, the Elite32, Elite36, Apex32 and Apex36, are rated at 1.4 to 1.5 ATA. And the Space60 has a hard door, so there are no zippers to work through getting in and out. See the Comparison tab for a full side by side.

The Space60 is 79 inches long and 60 inches tall. The Standard is 34 inches wide, the Mini 29.5 inches. The Mini clears a standard 30 inch residential doorway as built, and the Standard passes a 34 inch doorway with the outside panels removed. Before you order, contact us so we can assess the route in. This matters most for basements and anywhere the chamber has to go through an elevator. We strongly recommend White Glove delivery for tricky routes.

The Space60 weighs 1,323 lbs (600 kg). Four solid lockable wheels are fitted at the base, so it can be repositioned within a room once it is in place. Getting it into the room in the first place is what White Glove delivery is for.

With standard delivery the trucking company brings the crated Space60 to your location, and the unloading, uncrating and moving are yours to handle. White Glove delivery is a paid add-on: unloading, setup and cleanup are done for you, and the team walks you through operating the chamber. On a chamber with a 1,323 lb net weight, this is the option we recommend.

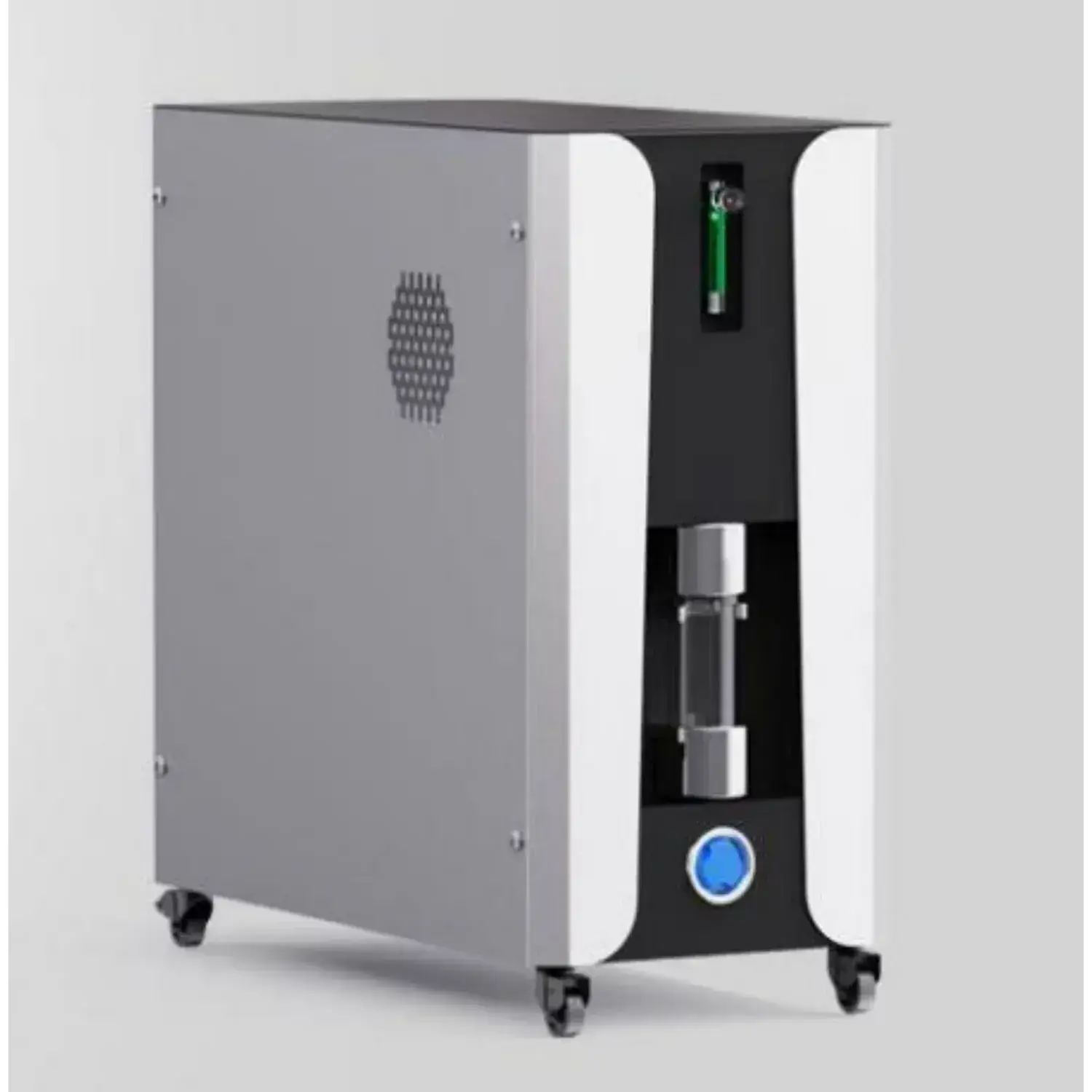

The Space60 all-in-one unit runs on a standard 110V or 220V outlet and draws 1,700W. Confirm your outlet with us before delivery so there are no surprises on setup day.

No. Installation is connecting the wires and tubes from the all-in-one operating unit to the chamber tank, with no special commissioning process. Once connected, the Space60 is operated from either the internal or external control panel. White Glove delivery is a paid add-on if you would rather have it set up for you.

The Space60 fits most users under 6 feet 5 inches and 300 lbs comfortably. It is a single-occupant chamber, 79 inches long with 60 inches of interior height. The Standard width gives the most shoulder room. If you are near the top of that range, call 866-861-6317 and we will talk through the fit before you order.

On average 6 to 8 weeks. That is roughly four weeks for production and testing, then about four weeks for shipping. Once the chamber ships we send vessel tracking for the ocean leg. After it clears US customs you receive a tracking number for the truck delivery, and the delivery team contacts you to schedule the drop-off. The expedited shipping option cuts about two weeks off that timeline.

All machines and components carry a 1-year commercial and 2-year home use warranty, plus lifetime technical support at no cost. If a quality issue comes up in the warranty period and can be repaired, OxyRevo supplies the replacement parts free and walks you through the repair with photos and video. If it cannot be repaired, they send a new machine at no cost. A 2-year extended warranty is available as a paid add-on at checkout.

OxyRevo publishes durability figures per component: chamber capsule 10,000 hours, air compressor 10,000 hours, cooler 10,000 hours, and oxygen concentrator 5,000 hours.

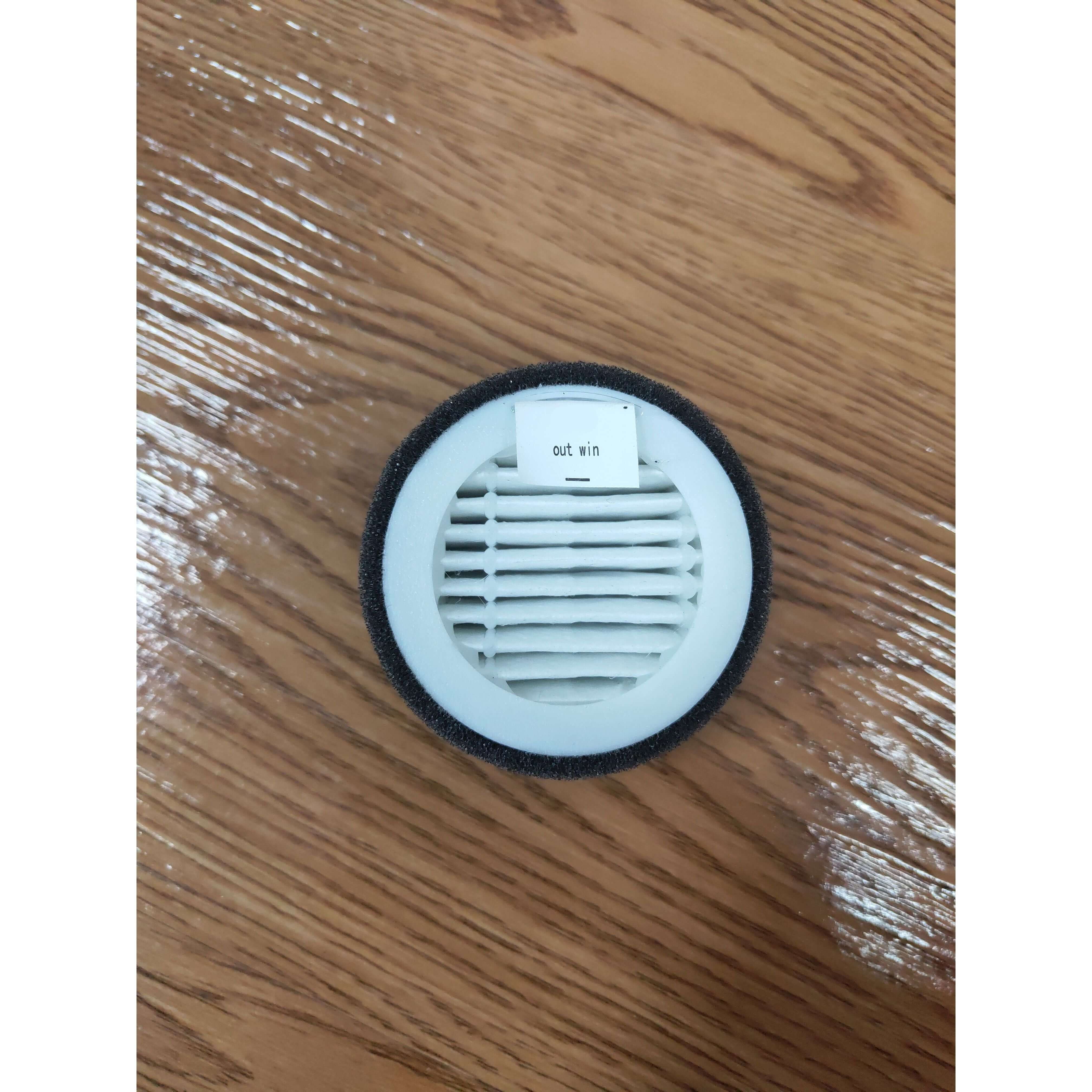

Yes. The onboard oxygen concentrator produces oxygen continuously, so there are no oxygen tanks to buy or refill. The compressor filters are the only parts that need replacing, every 6 to 12 months depending on how often you run it. Spare filters and fuses ship with the chamber, and you can order more. Call 866-861-6317 for any replacement part.

Yes, we deliver hard chambers into Canada. Prices are quoted in US dollars unless we state otherwise. Financing options are available for Canadian buyers through our finance partners. Call 866-861-6317 or reply to your quote and we will confirm delivery, currency and financing for your address.

Output capacity. The 10L concentrator, included as standard, delivers up to 10 litres of oxygen per minute. The 20L delivers up to 20 litres per minute, for cases where a more consistent flow is wanted while the chamber holds working pressure. If you are adding the BIBS mask, order it with the 20L unit. The BIBS will physically work on the 10L, but the flow can feel insufficient during a session. See the Optional Upgrades tab for pricing.

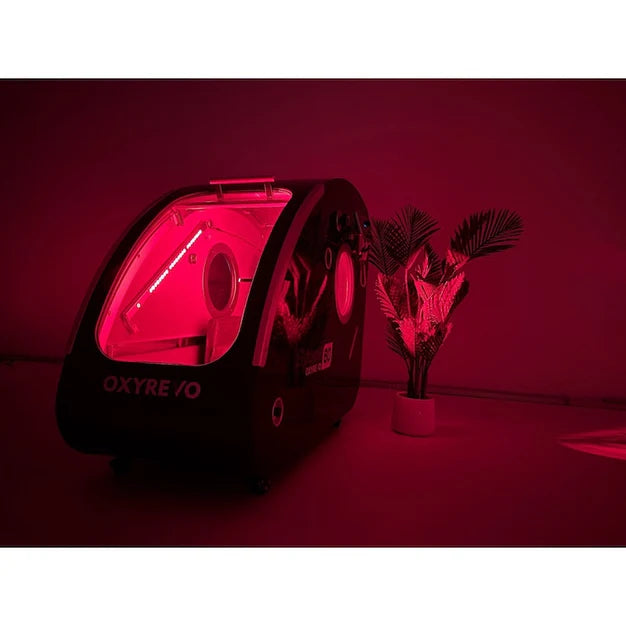

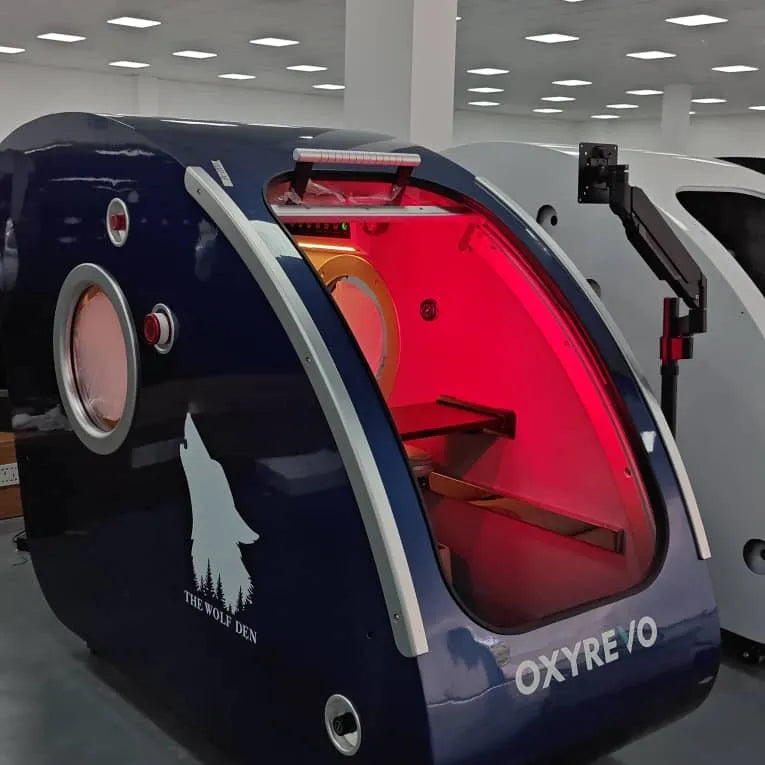

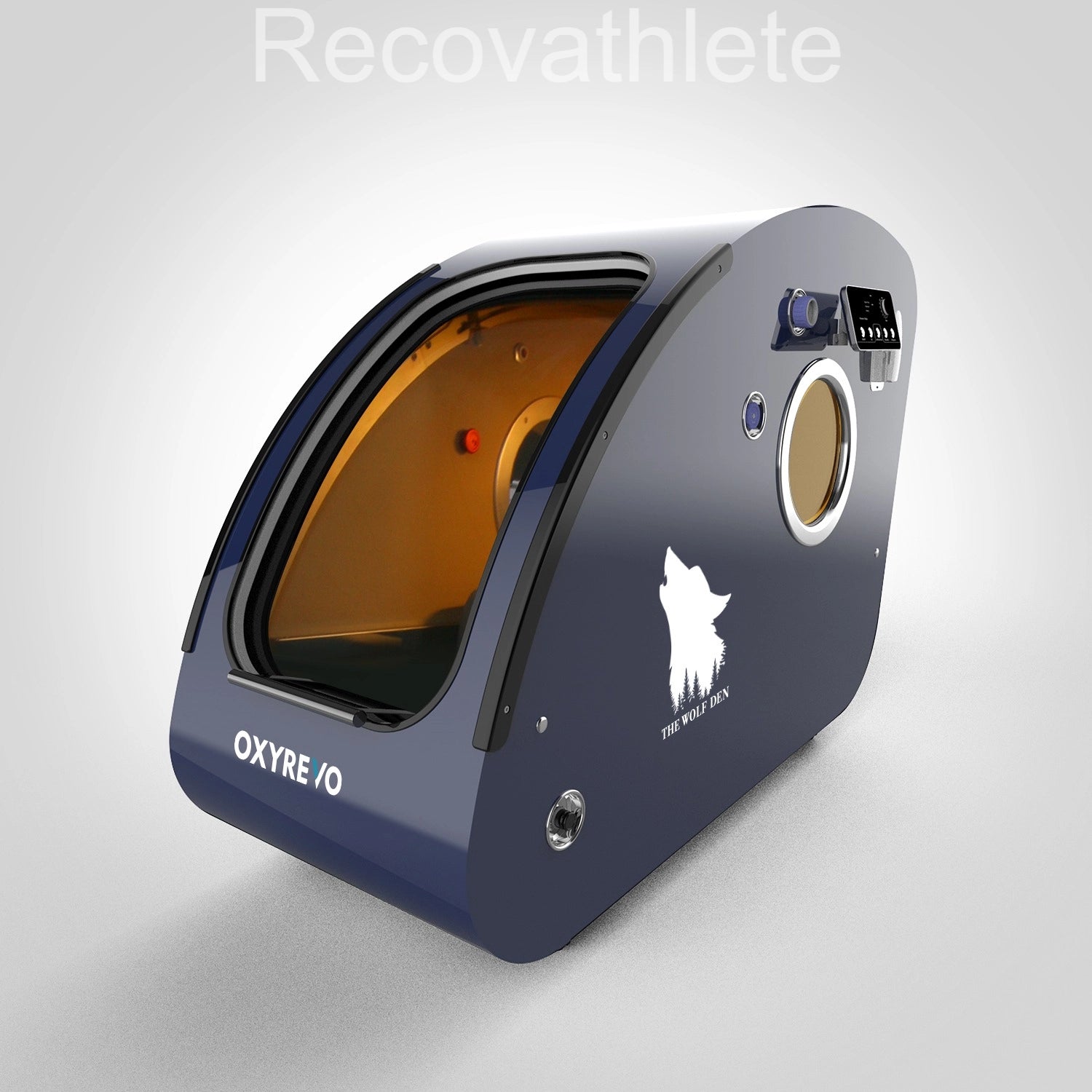

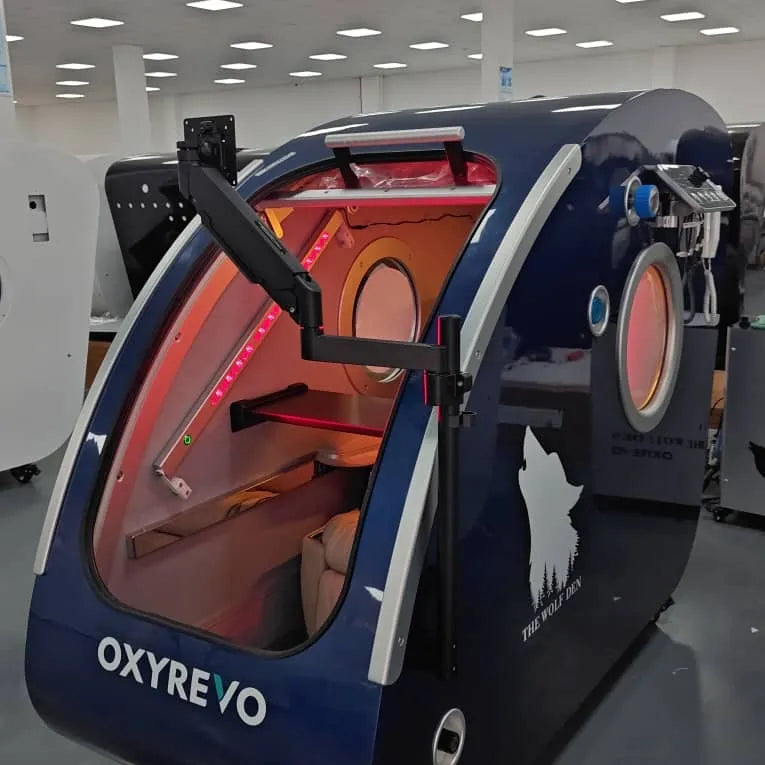

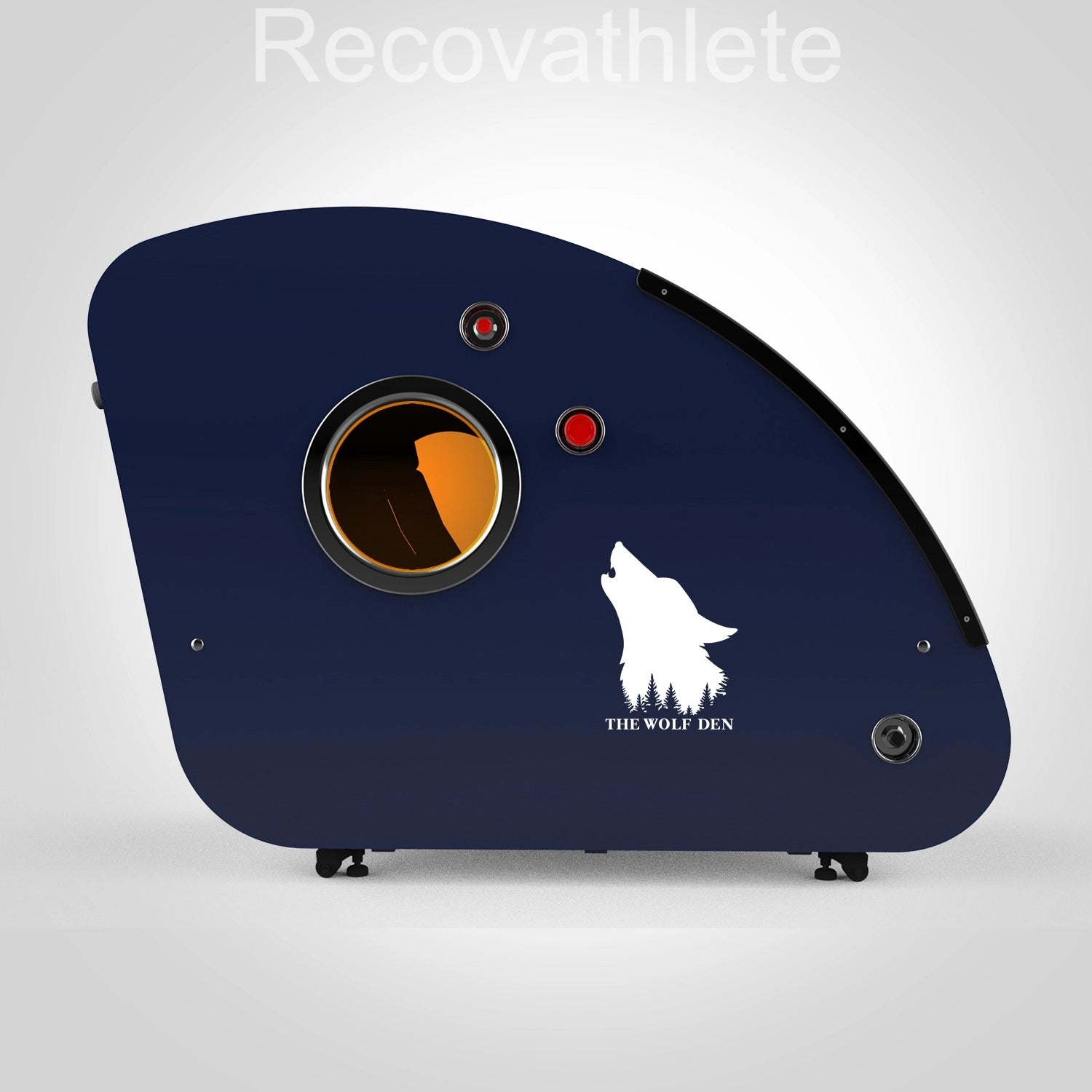

The paid add-ons for the Space60 include a red light panel, a water chiller air conditioner, a 20L oxygen concentrator system, a BIBS mask bundled with the 20L concentrator, an entertainment system with an external TV holder and Bluetooth speaker, an ABS working table, a 2-year extended warranty, expedited shipping, and a custom logo. The hardware upgrades are fitted at the factory, so specify them with your order. Full detail and pricing are on the Optional Upgrades tab.

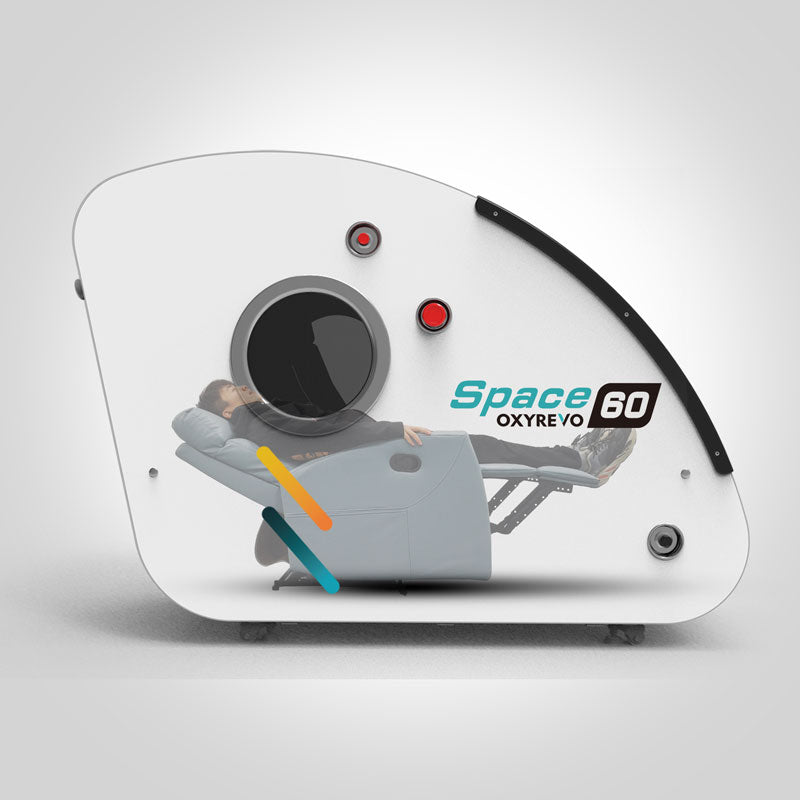

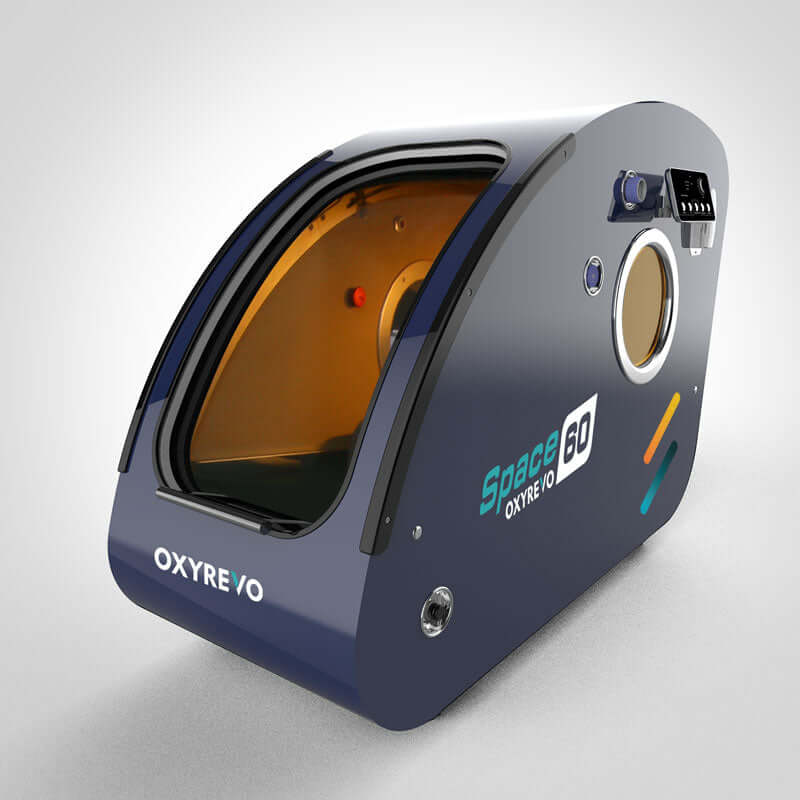

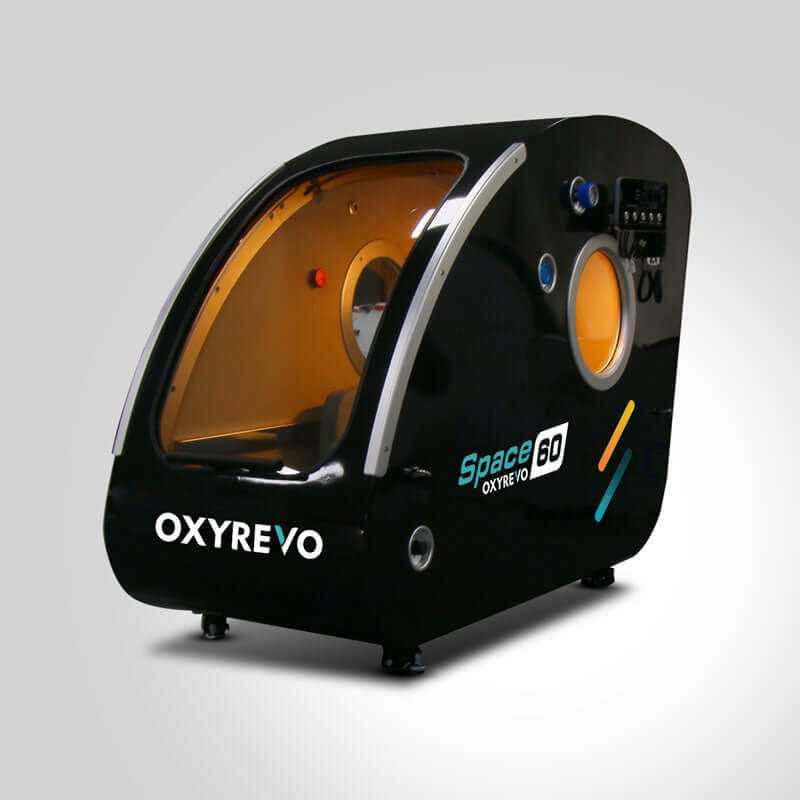

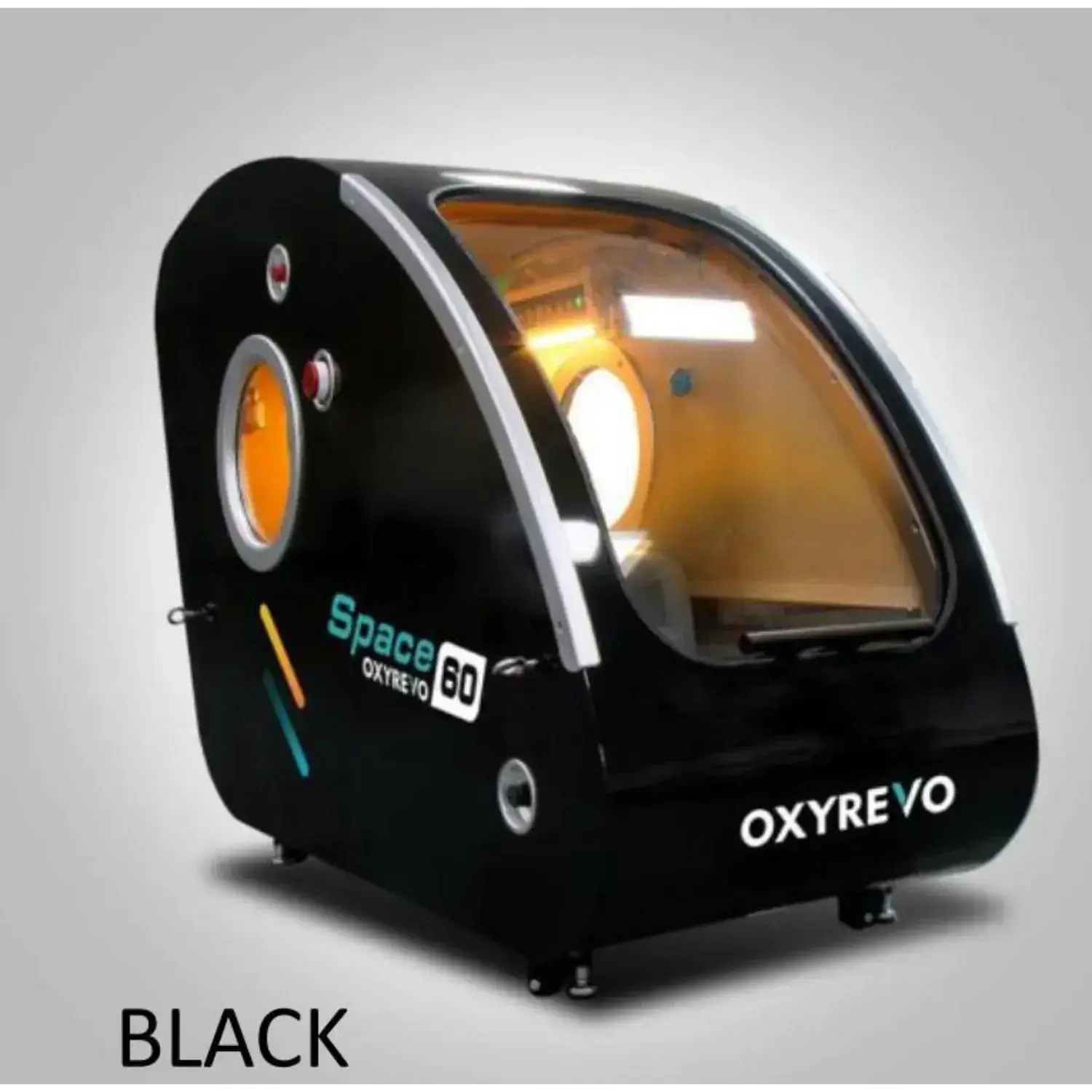

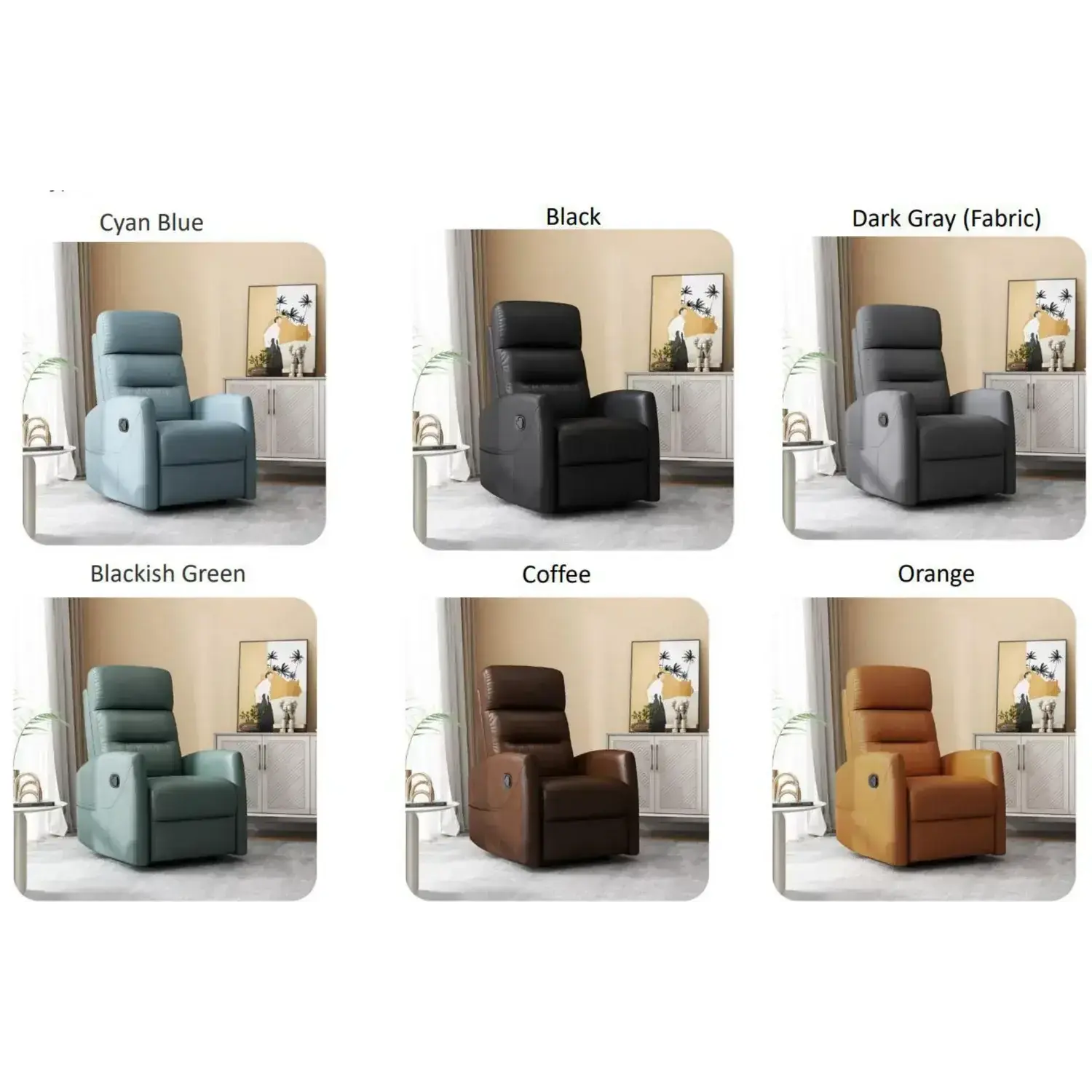

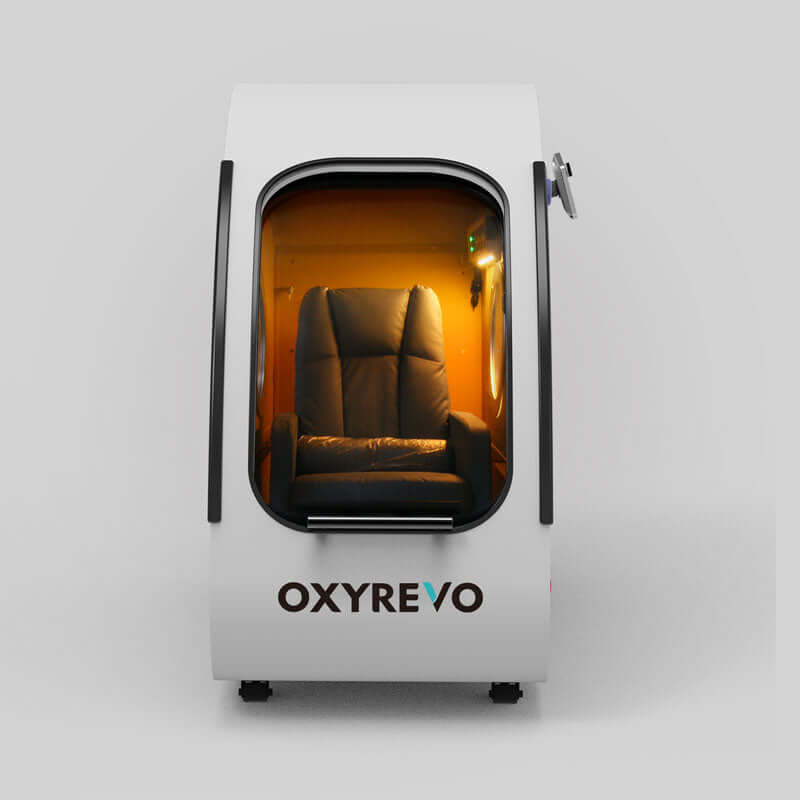

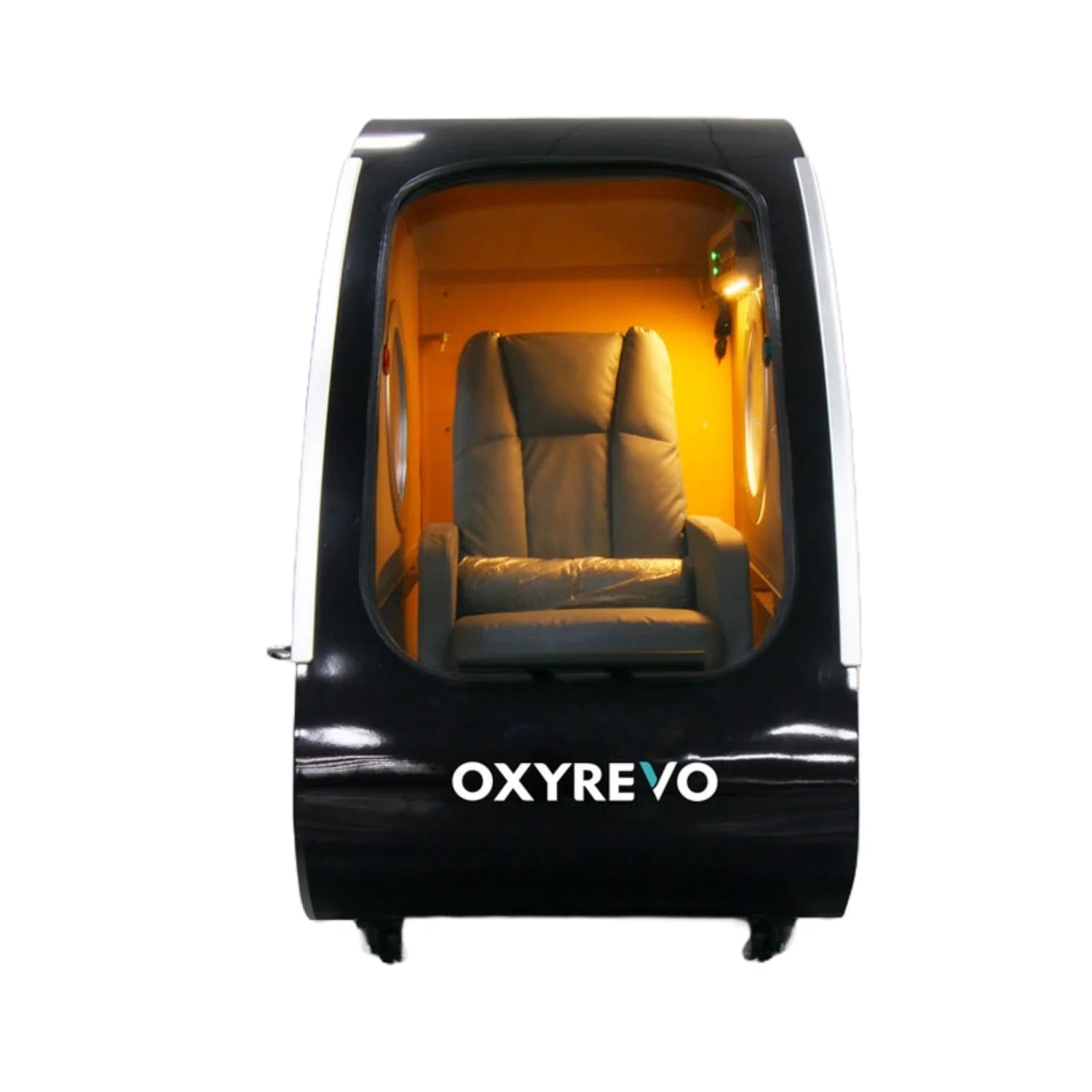

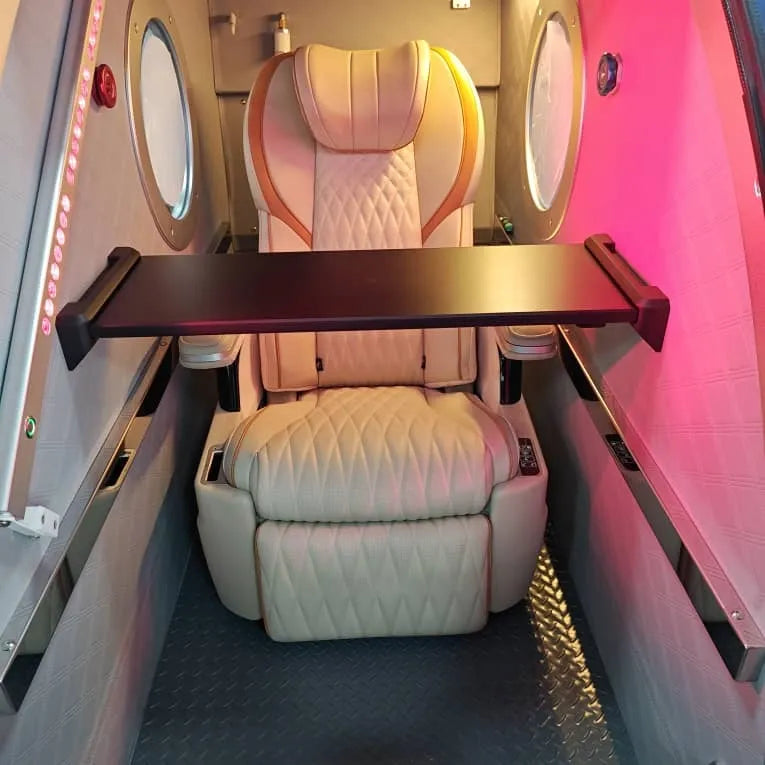

A premium folding recliner chair is included and comes in six colours: black, blackish green, coffee, cyan blue, dark gray fabric, and orange. Two paid upgrades are offered: an electric power chair in black, grey or red, and a luxury multi-function power chair in beige or black with recline, adjustable headrest, back massage, three-level seat ventilation and heating, and ambient LED. Only one chair fits at a time. The chamber shell itself is offered in white, black, navy or silver.

The standard unit ships with two cooling machines and a humidity water container, which OxyRevo describes as removing humidity and cooling the air inside. It is electrically driven, needs no ice water or Freon, and OxyRevo rates it as maintenance-free. In a room with working air conditioning the interior stays comfortable and the standard system handles condensation and airflow. For a hot or humid climate, or back-to-back commercial sessions, the optional water chiller air conditioner adds active cooling across an adjustable -10°C to 20°C range.

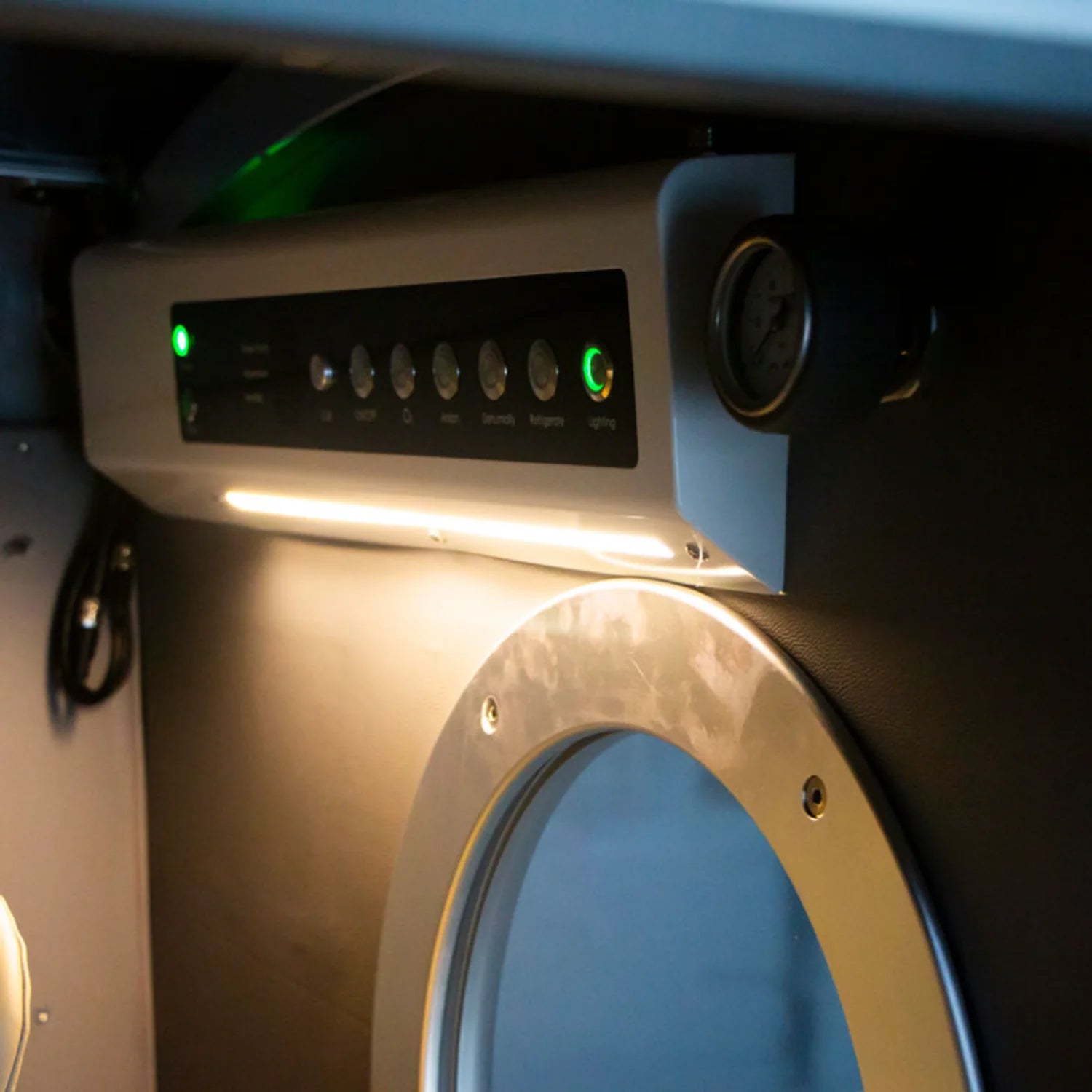

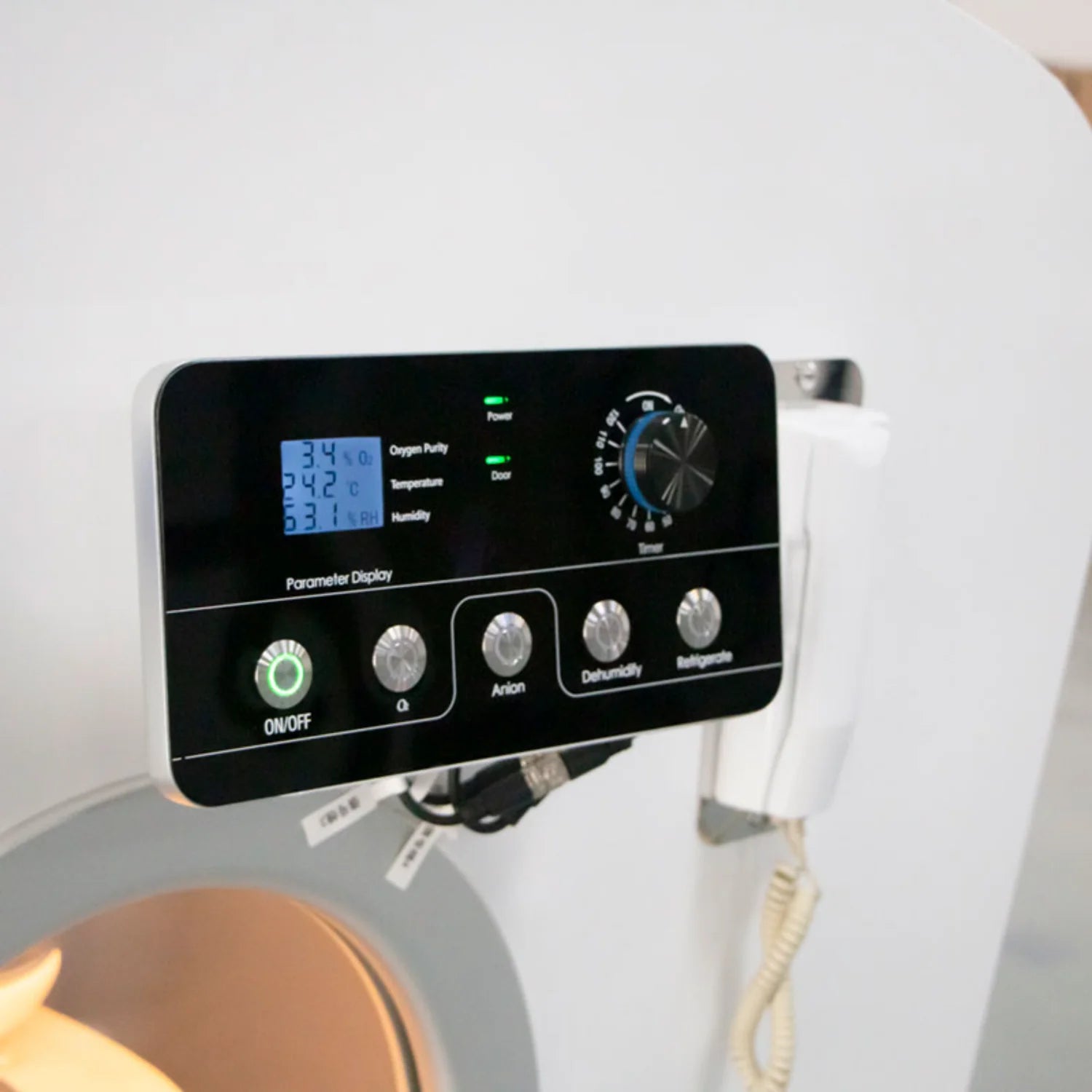

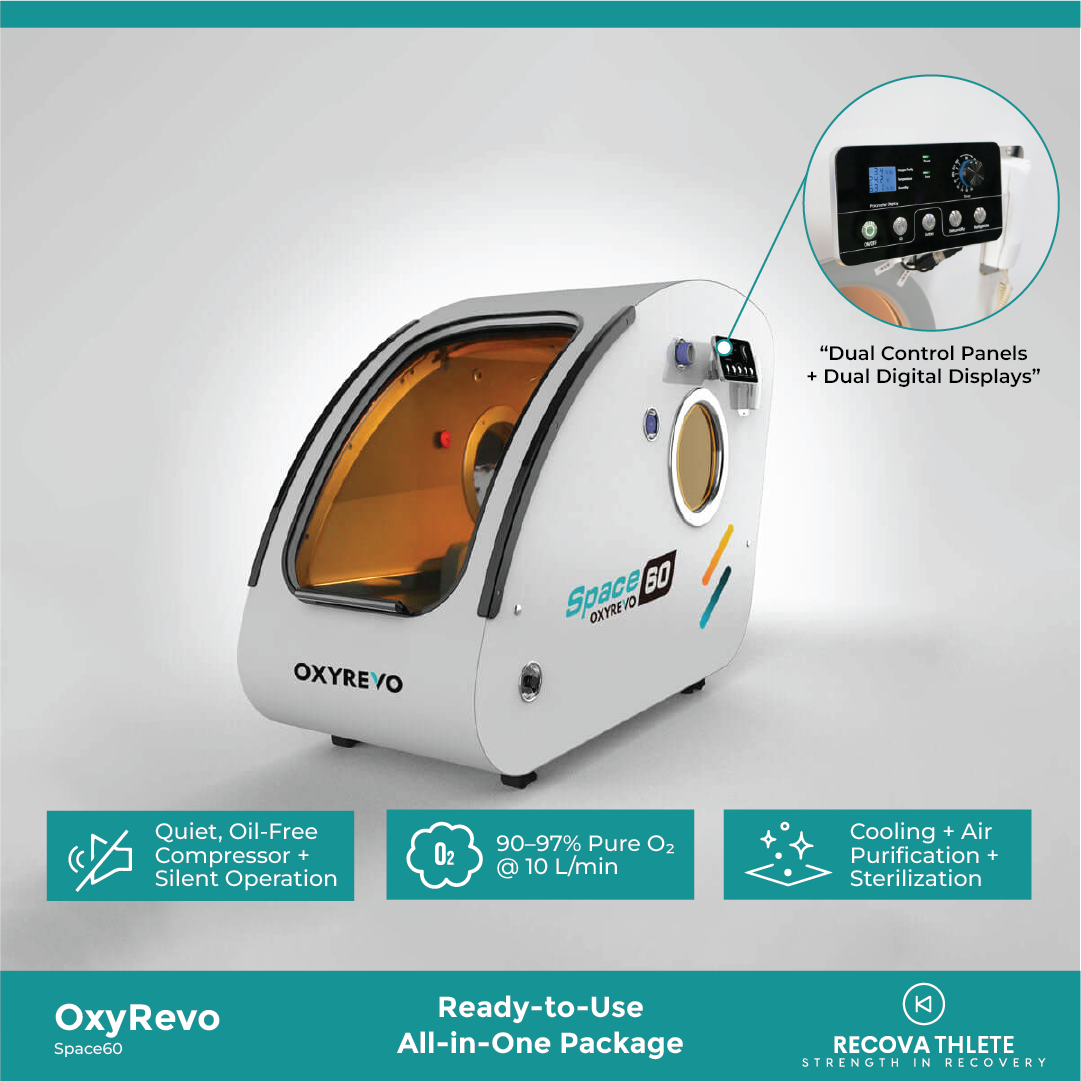

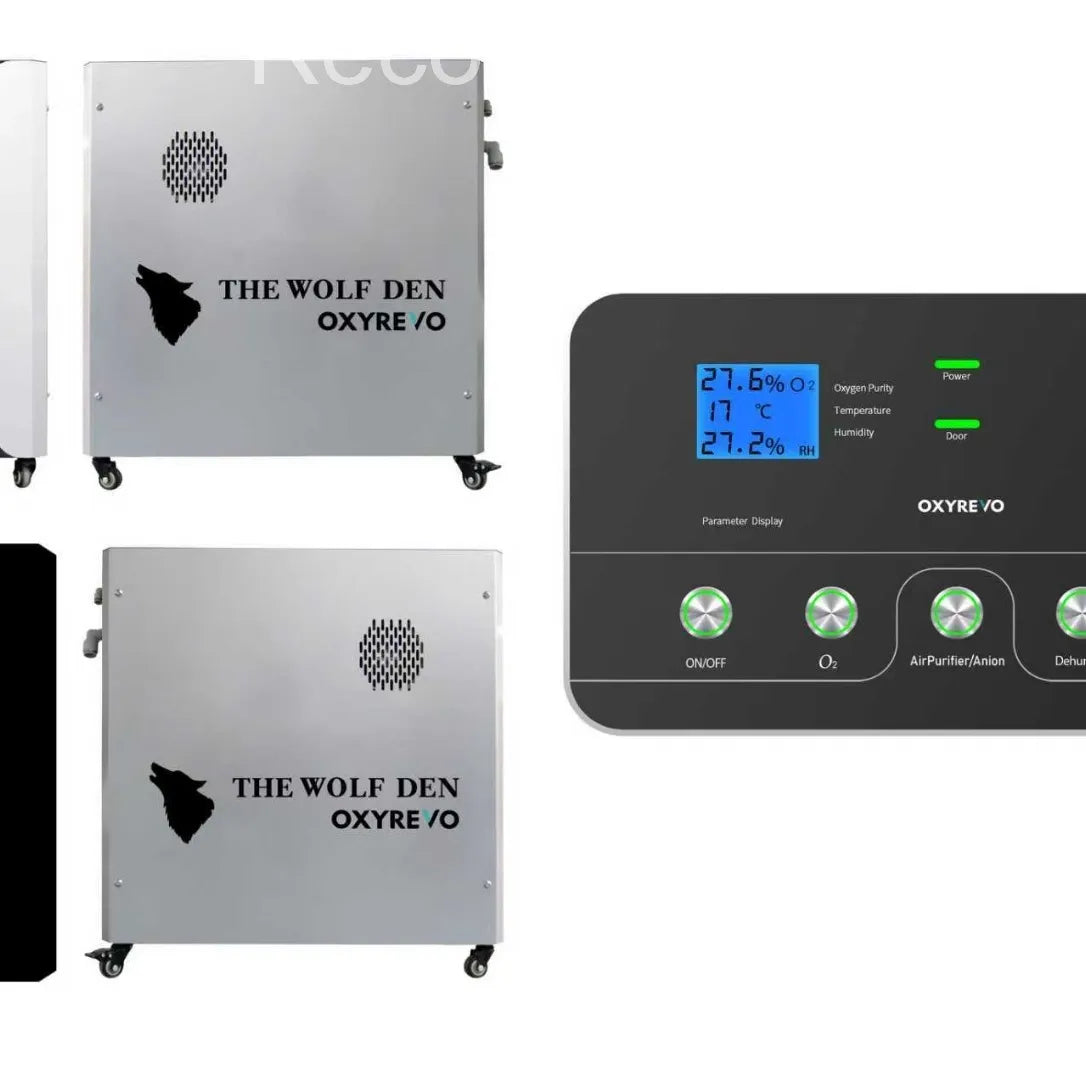

Yes. Pressurization, oxygen flow, lighting and dehumidification are all controlled from the internal panel, and pressure gauges and a display screen are duplicated inside. A phone communication system links inside to outside. You do not need a second person present to run a session. The manufacturer states a session length of 60 to 120 minutes, and the timing system runs automatically from 0 to 120 minutes.

The chamber runs a cleaning system as you use it. An anion generator disperses anions that capture 2.5 micron dust particles (PM2.5) during the session, and a water-nano air sterilizer works on bacteria, heavy odours and viruses, which is why this pairing matters in a clinic running back-to-back clients. For the oxygen headset, wipe it down with rubbing alcohol between users.

Any loose-fitting, comfortable clothing. OxyRevo asks that you remove shoes, jewellery and any sharp objects that could damage the chamber before getting in.

You will notice a pressure change in your ears as the chamber pressurizes and depressurizes, similar to a plane taking off or descending. Swallowing or yawning clears it, and OxyRevo notes ears commonly adjust after the first few sessions. Inside you can read under the LED light, listen to music, watch something on the optional TV holder, or rest.

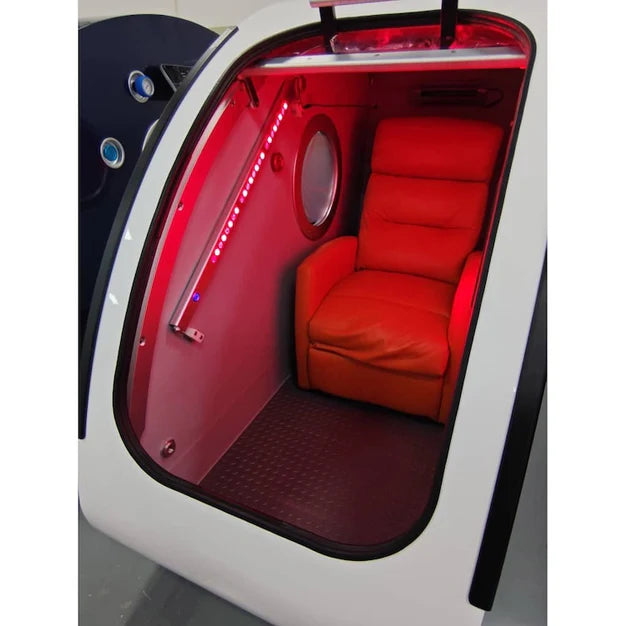

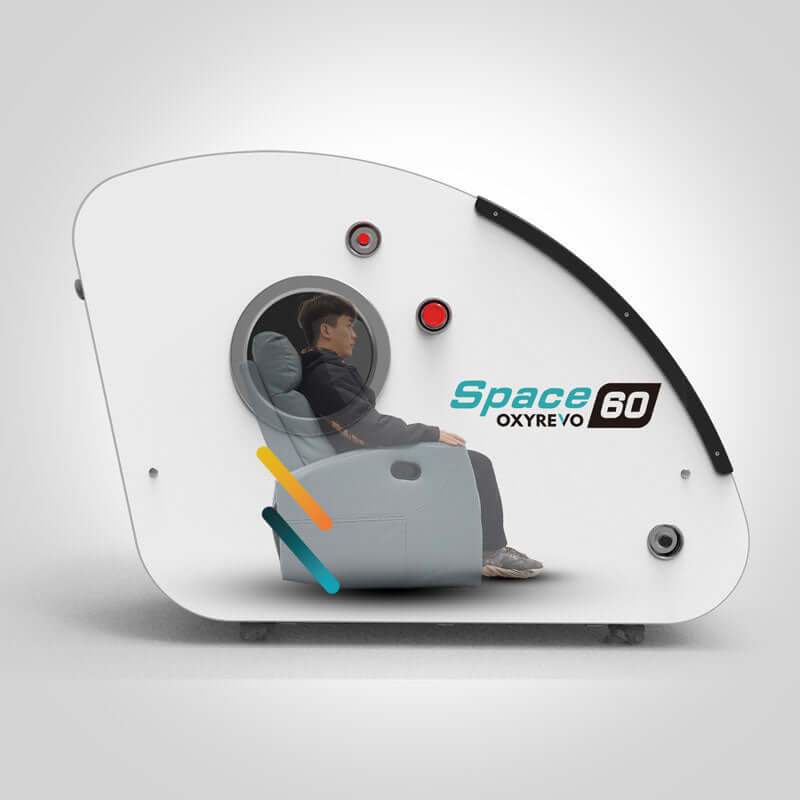

The Space60 has a transparent front door and two large polycarbonate windows at head and foot, which bring in light and open up the view in and out. The sitting design means you are upright, not lying in a tube. If you have strong concerns, ask us about viewing one before you buy.

No. The OxyRevo Space60 is certified CE as machinery, non-medical, and built to ISO 13485. It is not an FDA cleared or FDA approved medical device, and we make no medical or treatment claims about it. Whether hyperbaric oxygen therapy is right for you is a question for your physician.

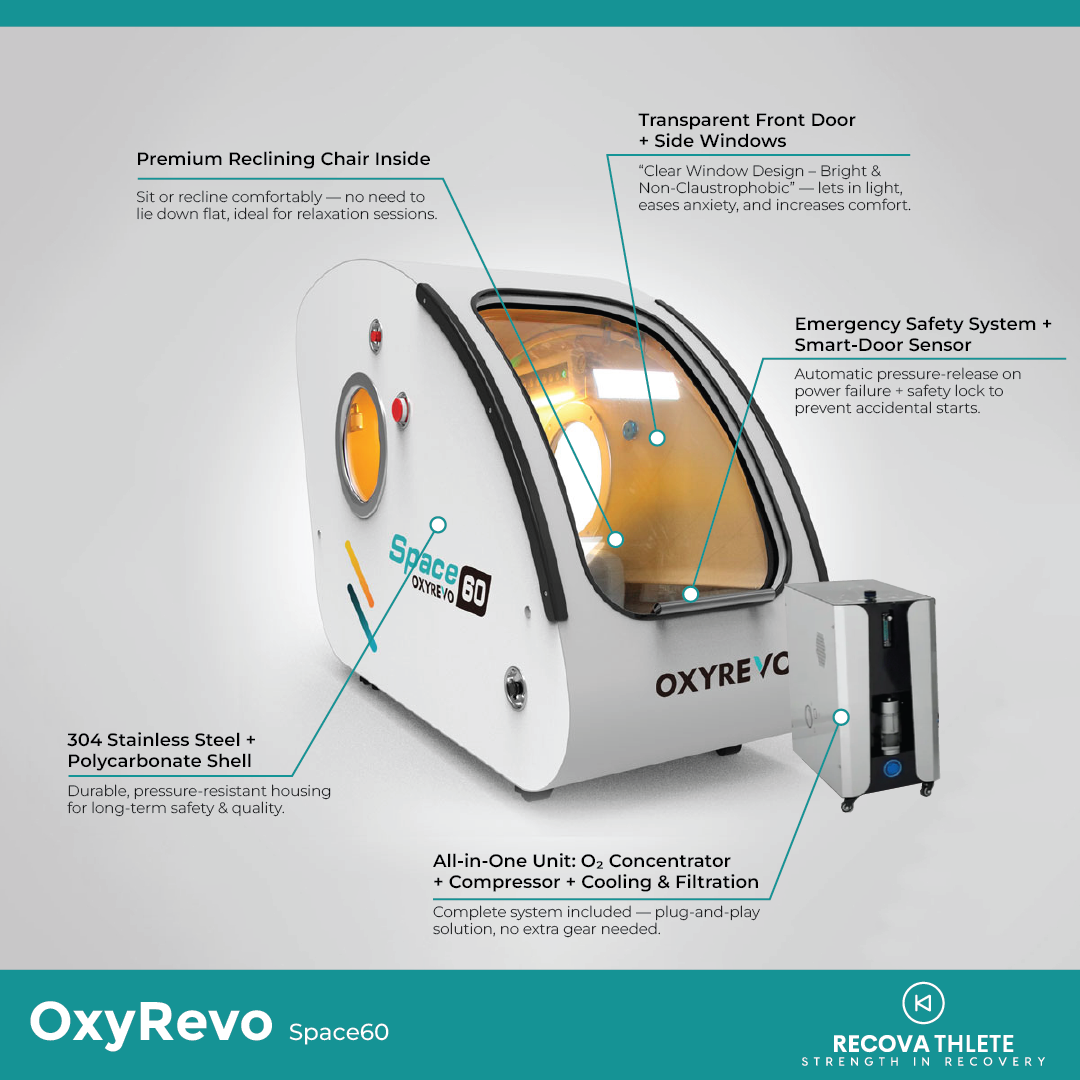

The Space60 has a door lock sensor that blocks operation until the door is fully closed, indicator lights inside and outside, pressure relief valves, an emergency valve that releases pressure in 30 seconds, and a power-failure system that vents the chamber gradually and lowers the door if power is lost. The chamber can be depressurized and opened from both inside and outside.

OxyRevo's manual lists people who should not use the chamber, including pregnant women, people with severe infectious diseases, bad colds, pneumothorax patients, severe emphysema, hypertension above 160/100, and severe heart problems. This is the manufacturer's own list, not medical advice from us. If any of these apply to you, speak to your physician before using the chamber. Talk to your physician first as well if you have any ear, sinus or lung condition.

This is a decision for a physician, and we ask you to speak with one before a minor uses the chamber. On the equipment side, it is a single-occupant chamber, and the controls are duplicated outside the shell, so an adult can run and monitor the whole session from the exterior panel. OxyRevo states that child use should be under adult care only.
