Align Pilates C8-Pro Pilates Reformer
Ships within 10 business days | $650 Shipping
- Regular price
- $2,750.00
- Regular price
-
- Sale price
- $2,750.00
- Unit price
- per
Shipping $650
10
Description
The compact studio reformer, and the leg height decision that comes with it

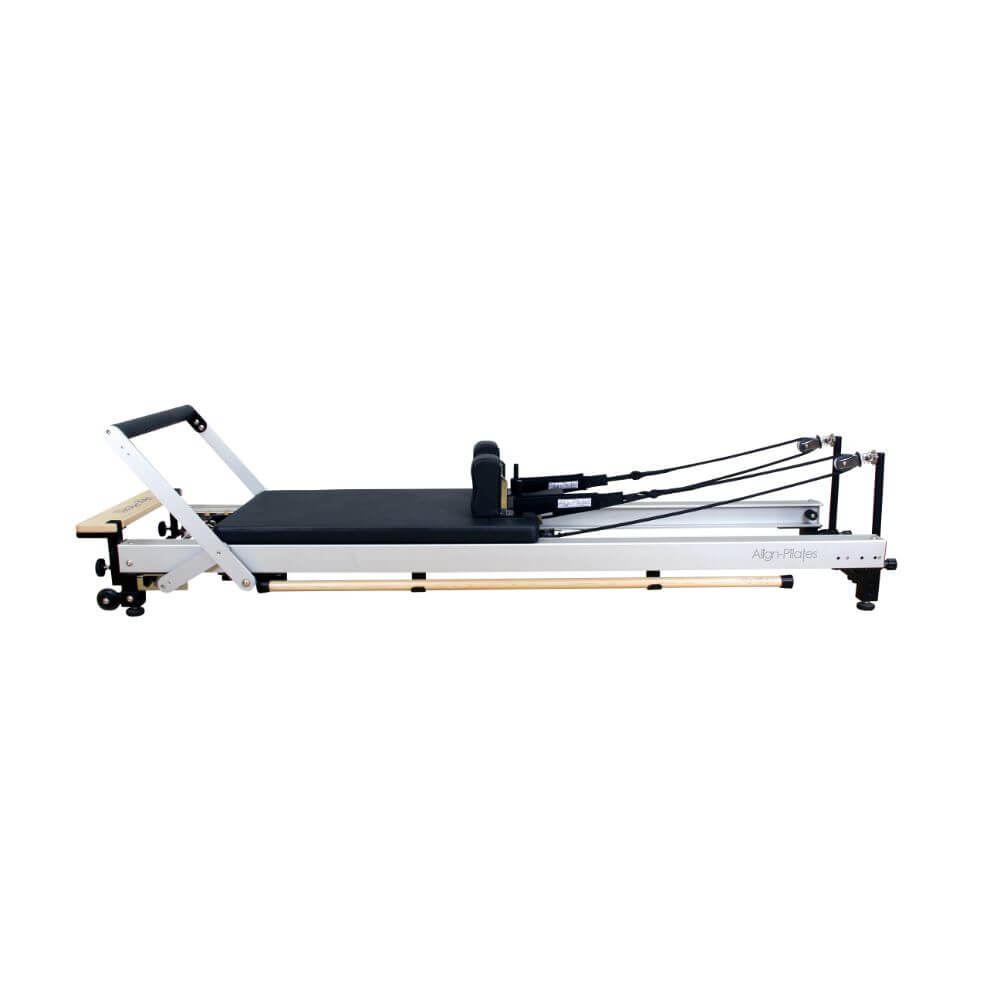

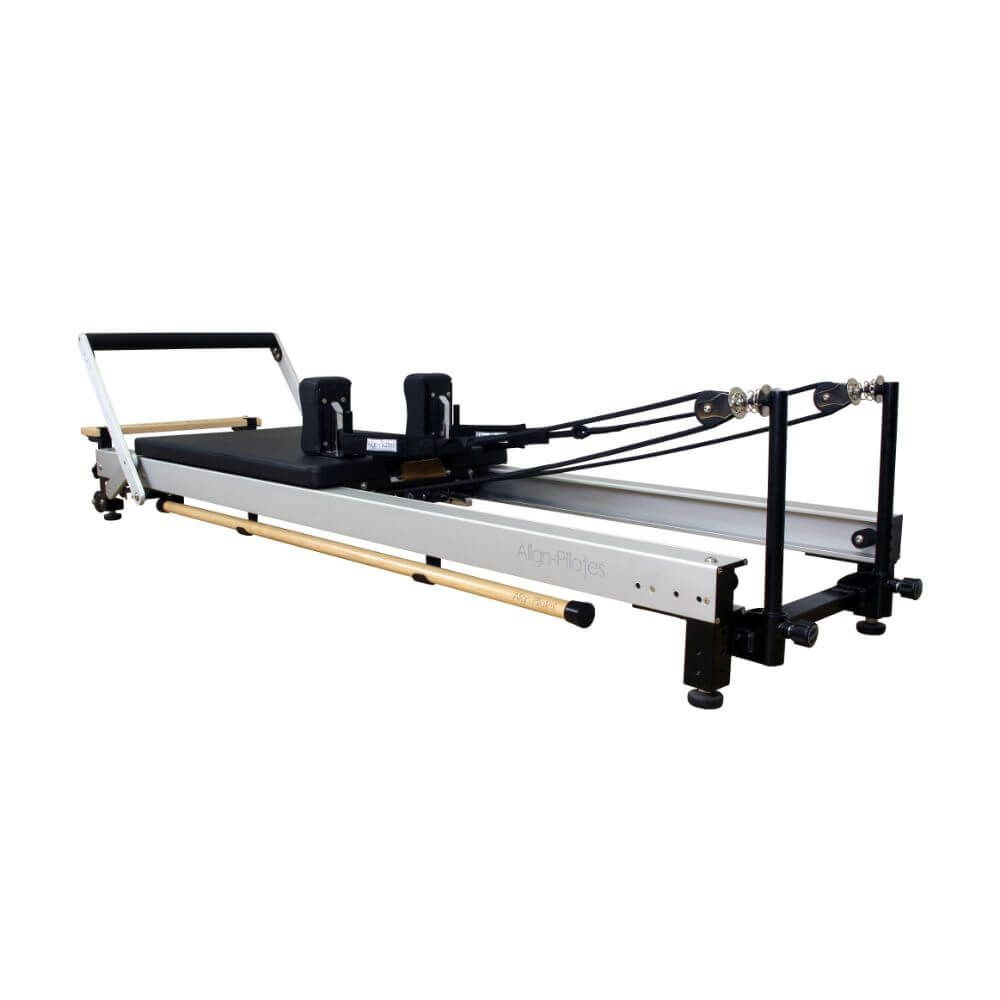

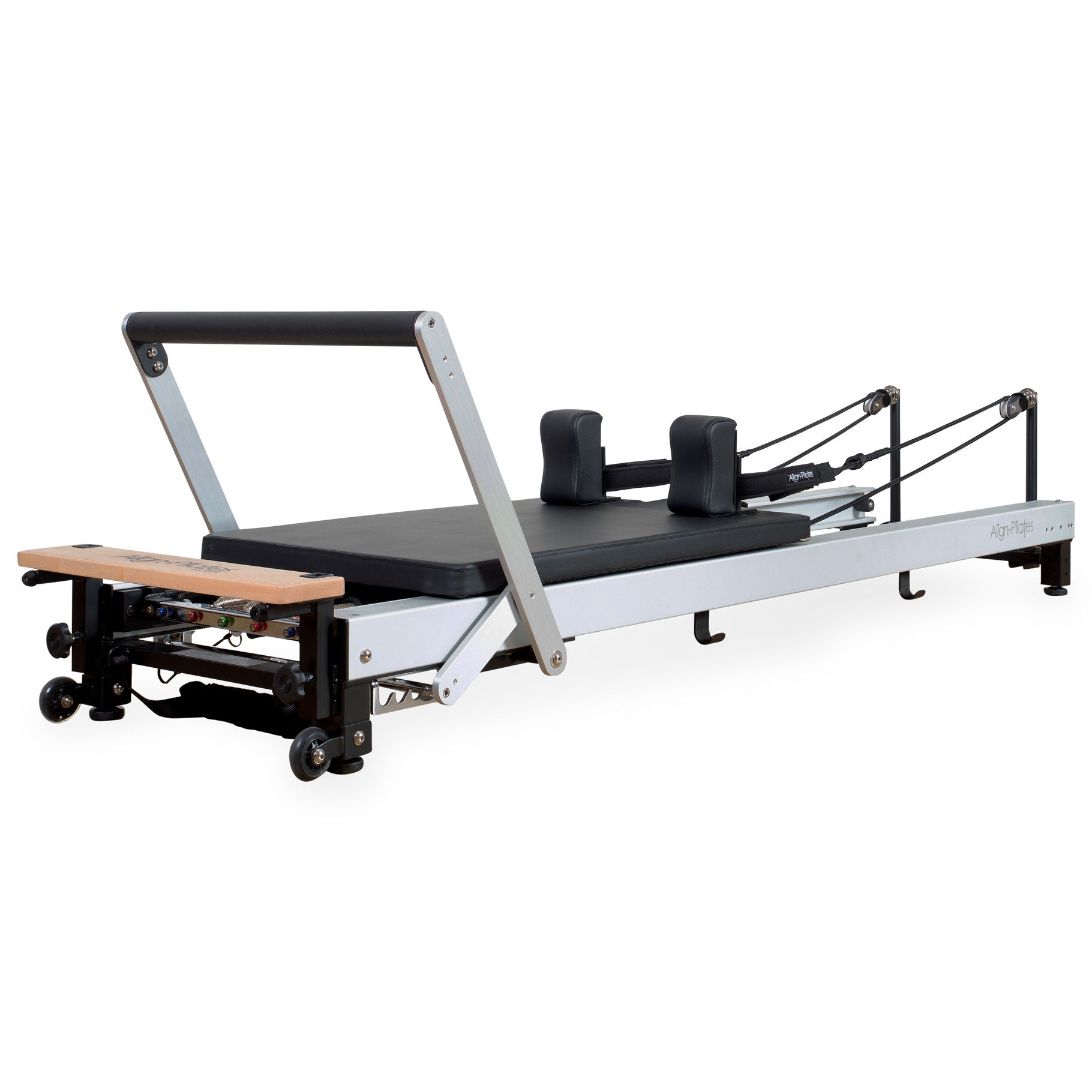

The Align Pilates C8-Pro Pilates Reformer is the machine most studios buy when the room is a normal room. It is 244cm long and 66cm wide, with 106.5cm of carriage travel on a 92cm by 58cm bed, built on an oversize aluminium profile frame with a wood look finish. Studio duty, independently tested to EN ISO 20957-1:2013, rated to 150kg.
What catches buyers out is height, not length. Every Pilates reformer in the C-Series ships at a 26cm bed height as standard, which is low. That suits a home room and low ceilings, and it is well under the working height an instructor expects on a studio floor. The 42cm studio height comes from the leg extensions, which are a variant on this page rather than an afterthought.
Decide the leg height before you order, not after

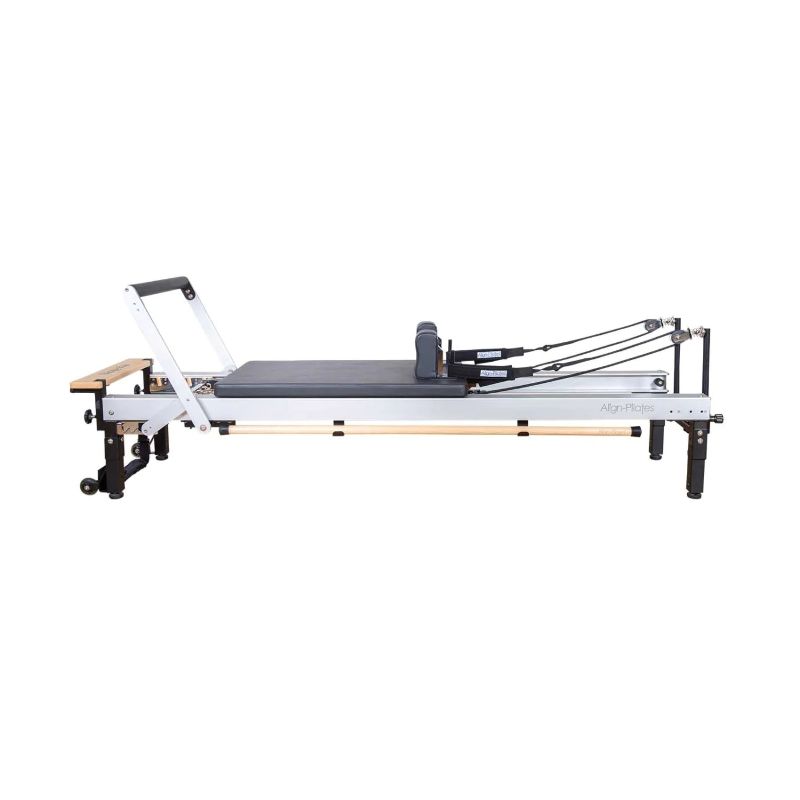

The standard C8-Pro sits at 26cm. That is fine on a home floor and low for teaching a full day, and the rope risers only reach their full 7 position range once the extension legs are fitted. If you want studio working height, order the With Leg Extensions variant with the machine rather than trying to add height later. Retro fitting means a second shipment and a strip down of the frame ends, and the risers and legs need to match. Call us if you are unsure which build the room needs.
Best for, and not ideal for
Best for
- Studios fitting several reformers into a normal room, where 244cm keeps the layout workable
- Owners who want a wood look machine in a client facing space on a metal frame underneath
- Home buyers who want studio duty build without studio floor space
- Rooms where the machine has to move or stack between uses
Not ideal for
- Instructors who need 42cm working height but order the standard build to save on the extensions
- Very tall clients who want the longest possible carriage travel, that is the A8-Pro
- Anyone who needs a machine that folds, the C8-Pro does not fold
- Studios planning a full Cadillac frame around the reformer later, check the fitting first
Why we carry this one
The comparison worth making is the C8-Pro against the C8-S Pro. Both are studio duty, both are rated to 150kg, both use the same Rapid Change spring bar and the same 8 PU wheel carriage. Moving to the C8-S is a change of layout and finish, and not a step up in duty class. The C8-S pulls the standing platform and the rope risers inside the frame, which keeps the outline tighter and gives you nothing hanging off the sides in a crowded room. Its risers are stainless where the C8-Pro's are painted, and Align's comparison sheet lists nine riser heights on the C8-S against seven here. Carriage travel goes the other way, 106.5cm on the C8-Pro and 105cm on the C8-S. The C8-S is finished in white. Choose on the room and the look you want in front of clients, and do not expect the white machine to last longer.
If the wood look is what you are after but the room is dark or the branding is not, the C8-Pro Noir is the same machine in a black finish. Every mechanical line on the spec sheet is identical, so it is a colour decision only.
C8-Pro, C8-S Pro or A8-Pro
Three C and A series machines share the Rapid Change spring bar and the 8 wheel carriage. What separates them is carriage travel, footbar range and how the machine looks in a client facing room.
The C8-Pro is the middle of the range and the one most studios buy. The C8-S Pro is the same working machine in white, with the rope risers moved inside the frame so they clear the walkway where an instructor stands. It gives up 1.5cm of travel and takes a Half Cadillac only, never a Full Cadillac. The A8-Pro is the flagship: 113cm of travel, a wider carriage, 6 footbar positions and three interchangeable leg heights. Take the A8-Pro if you teach tall clients or want leg height flexibility, and the C8-Pro if you want the same spring bar and wheel system on a smaller footprint.
| Specification | C8-Pro | C8-S Pro | A8-Pro |
|---|---|---|---|
| Carriage travel | 106.5cm | 105cm | 113cm |
| Carriage size | 92 x 58cm | 92 x 58cm | 91 x 67cm |
| Footbar positions | 4 | 4 | 6 |
| Leg options | 26cm, or 42cm with extensions | 26cm, or 42cm with extensions | 3 heights: 28, 42 and 64cm |
| Rope risers | Painted, outside frame, 7 positions | Stainless, inside frame, 7 positions | Stainless, outside frame, 5 heights |
| Frame weight | 66kg | 70.4kg | 75kg |
| Cadillac options | Half or Full | Half Cadillac only | Half Cadillac |

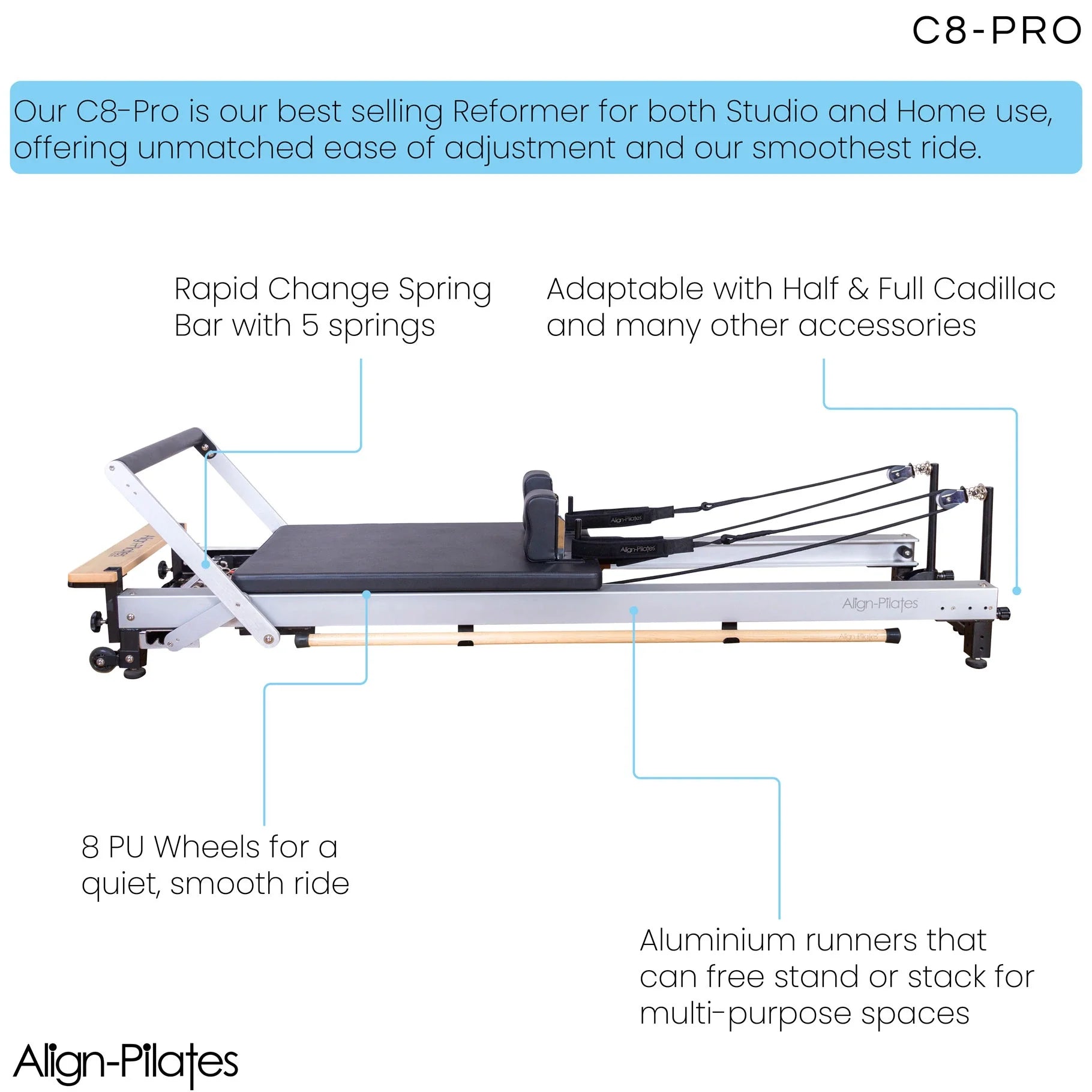

What the specs mean for you
| Specification | What it means in practice |
|---|---|
| 244cm x 66cm footprint | Fits a normal room and lets you run two or three machines across a floor that would only take two of the longer reformers |
| 106.5cm carriage travel | Enough range for most adult clients in footwork and long stretch. Clients over six foot two will feel the end of the track sooner than on the A8-Pro |
| 26cm standard bed height | Low. Easy for a steady client to sit onto, harder on the instructor's back across a full teaching day, which is what the extension legs solve |
| 42cm with the leg extensions | Normal studio working height, and it is what the rope risers need to reach their full 7 position range |
| Rapid Change spring bar | Spring load changes with one hand and the springs stay attached, so transitions in a class do not stall on hardware |
| 8 PU wheels on anodised aluminium runners | Quiet under load and less wheel servicing than a four wheel carriage across a commercial duty cycle |
| Free stands and wheels for storage | With either the freestanding legs or the leg extensions fitted, the machine stands and moves on its own rather than needing to be lifted |

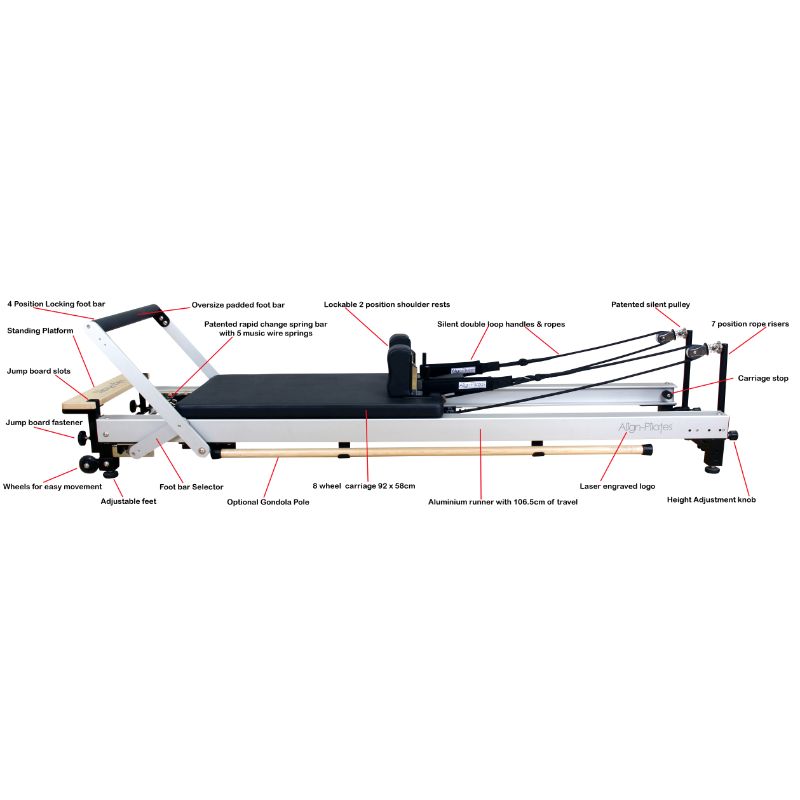

What ships with it
- C8-Pro reformer on an oversize aluminium profile frame, in the build you select

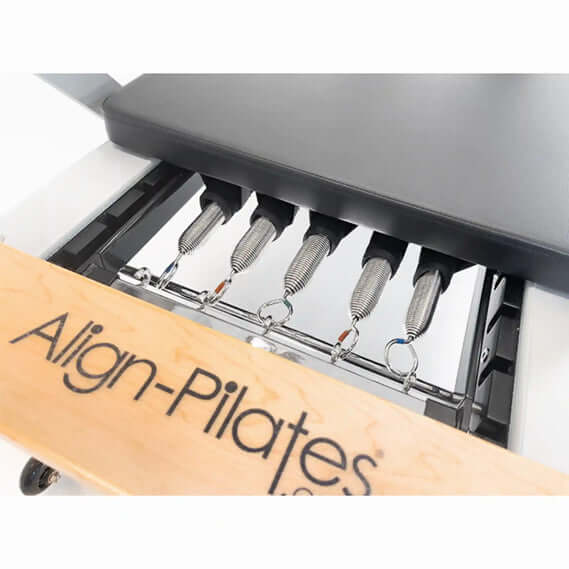

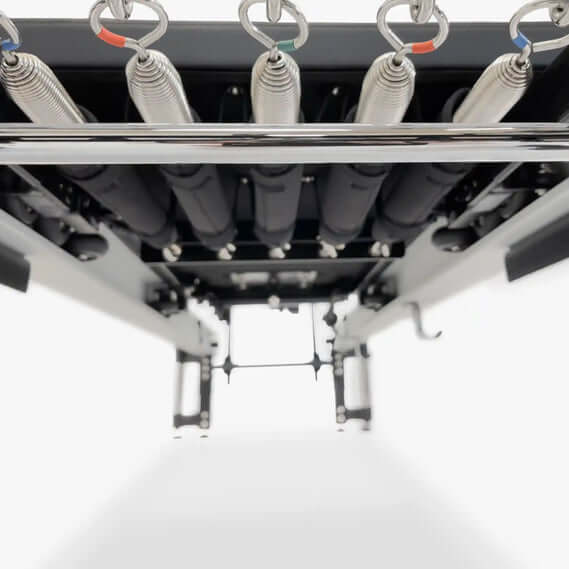

- 5 nickel plated music wire springs, two light, two medium, one strong

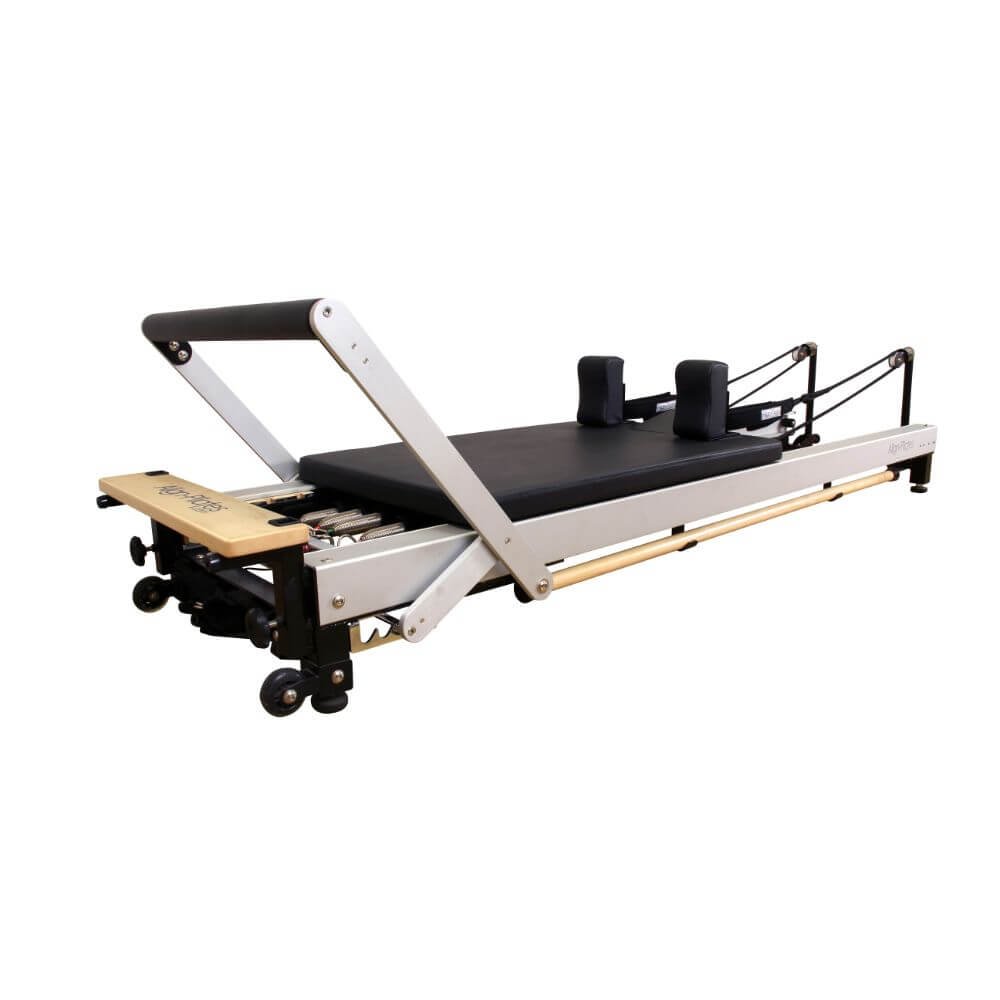

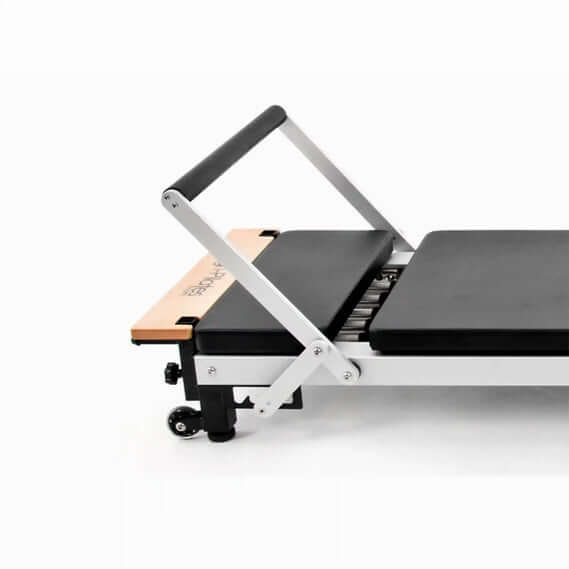

- Oversize aluminium footbar, 4 lockable positions including flat, and a 3 position head rest
- Removable, lockable shoulder rests with off centred pads for a choice of two widths

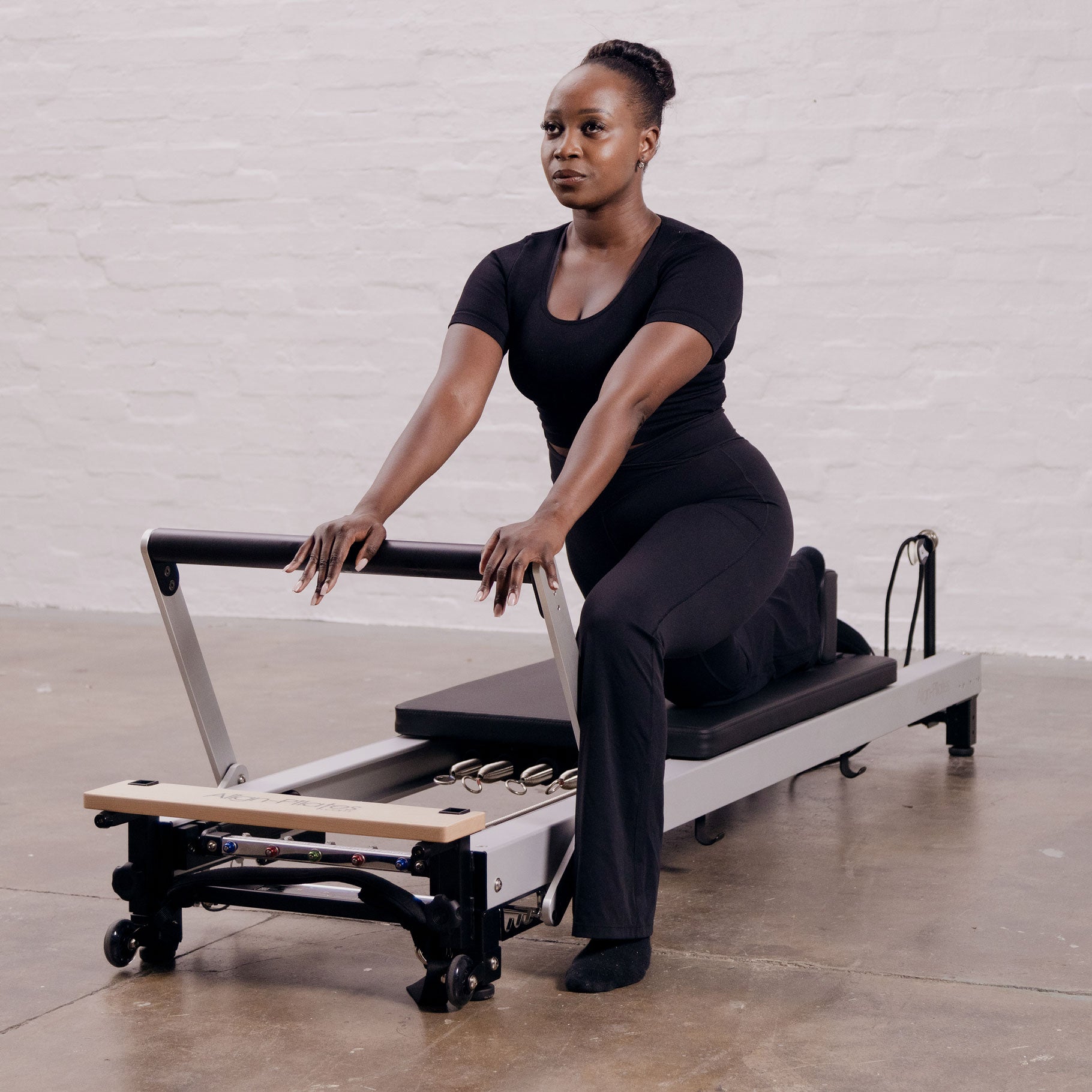

- Pro Rope Adjusters at the head rest, both ropes adjust together
- Removable painted rope risers outside the frame, 7 heights with the extension legs fitted
- Height adjustable feet so the carriage runs level on an uneven floor
The three builds on this page
- Normal. The reformer at its standard 26cm bed height. The lowest, lightest and least expensive way into the machine, and the right pick for a home room.

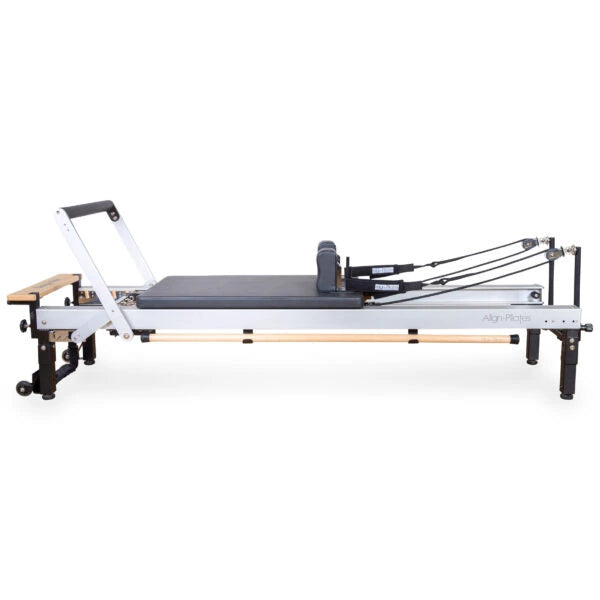

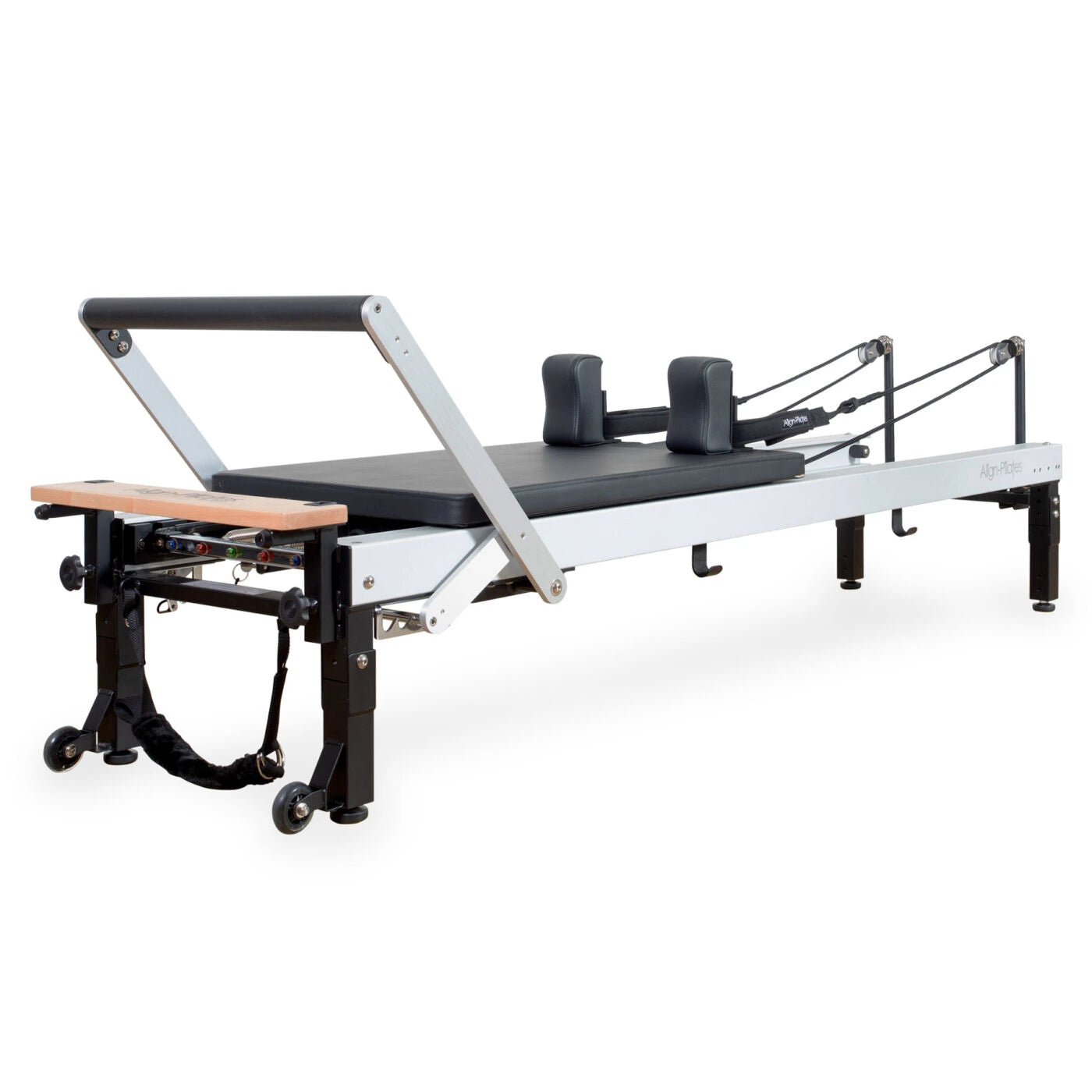

- With Leg Extensions. Raises the bed to 42cm studio working height and gives the rope risers their full range. This is the studio build, and the one most teaching floors should order.

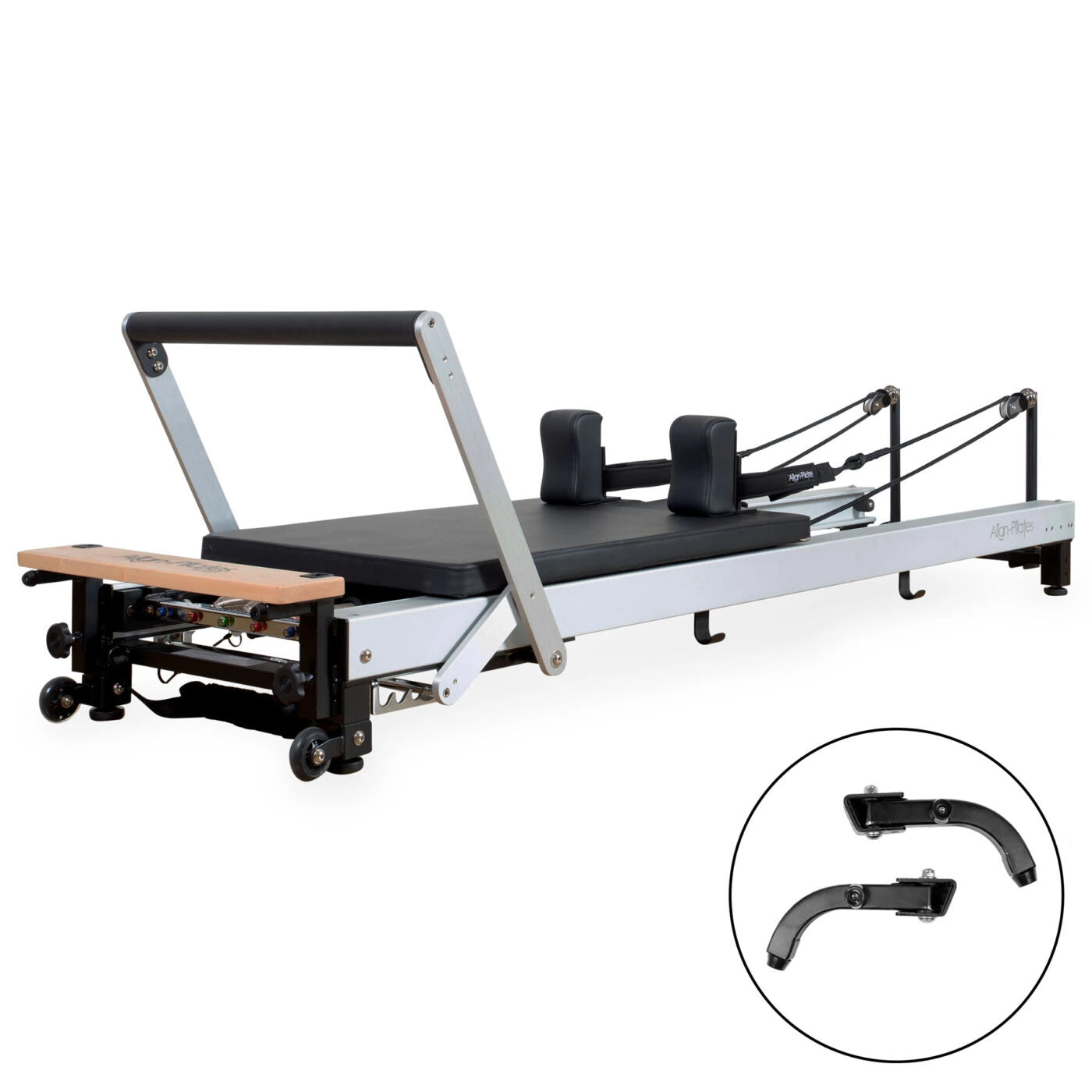

- With Freestanding Legs. Keeps the bed at standard height and puts the machine on its own feet, so it stands and wheels for storage without going up to 42cm. The answer for a shared room where the reformer gets moved.
Sold separately
- Jump board, the board shared across the C, F, H and R series
- C-Series mattress converter and C-Series platform extender, the pair that turns the carriage into a flat Cadillac bed
- 42cm leg extensions, if you ordered the standard build and want 42cm studio height later
- Freestanding legs, to stand and wheel the machine without raising the bed
- C-Series carriage protector, for studios that want the upholstery covered between clients

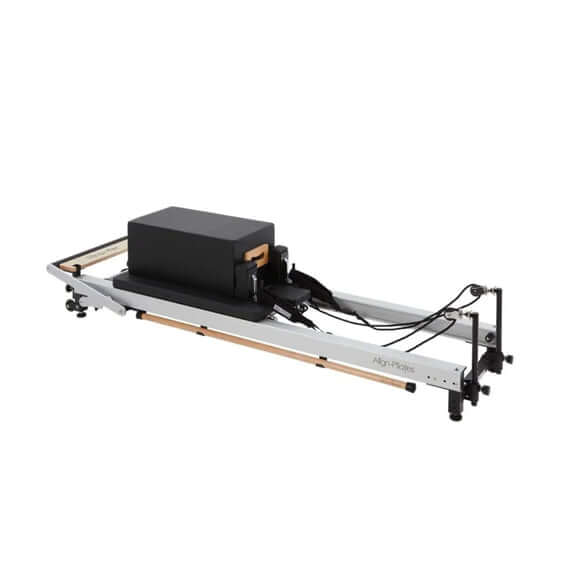

- Pro Sitting Box, Curved Pro Sitting Box or Frame Sitting Box for seated, side lying and long box work
- Planking handles, which clip to the footbar for plank and press work
- Half Cadillac frame with the C-Series bracket set, or the Full Cadillac frame with bracket PAP-C1PROFCADBKT for trapeze work
- Replacement and additional springs
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, if you want the build checked against your room and your teaching before ordering. White glove delivery and in room assembly are available as a paid add on.
Full specifications
| Specification | Detail |
|---|---|
| Product code | PAPREFORMERC8 |
| Dimensions | 244cm (L) x 66cm (W) x 26cm (H) |
| Carriage size | 92cm (L) x 58cm (W) |
| Carriage travel | 106.5cm |
| Reformer weight | 66kg |
| Wheels | 8 PU 'roller blade style' wheels running on precision anodised aluminium runners |
| Spring bar | Patent pending Rapid Change (RC) spring bar - adjusts with springs attached, one hand, single action |
| Springs included | 5 nickel plated music wire springs in 3 strengths (2x Light, 2x Medium, 1x Strong) |
| Footbar | Oversize aluminium footbar, 4 lockable positions including flat |
| Head rest | 3 position adjustable head rest |
| Shoulder rests | Removable & lockable, off-centred shoulder pads giving a choice of two widths |
| Rope adjustment | Pro Rope Adjusters for precise adjustment, accessible by the headrest (replaces old T-Bar system) |
| Rope risers | Removable, painted, outside frame - 7 height positions (when extension legs are used) |
| Adjustable feet | Yes - adjustable feet to ensure the reformer sits flat and runs smoothly |
| Leg options | 2 leg options - standard 26cm bed height, or 42cm with optional leg extensions |
| Maximum user weight | 150kg |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Folding | No |

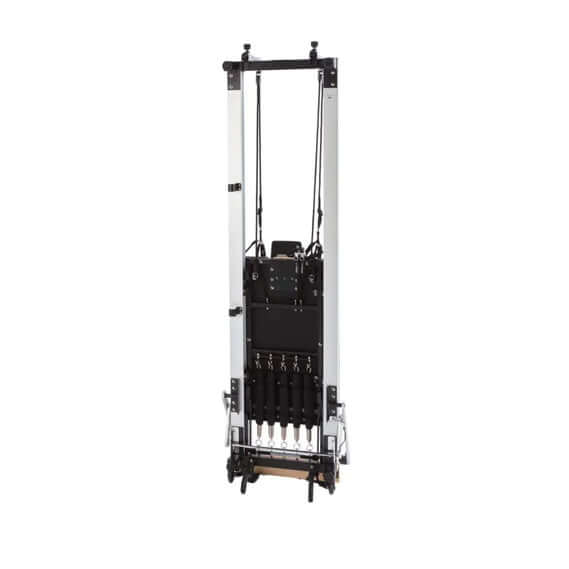

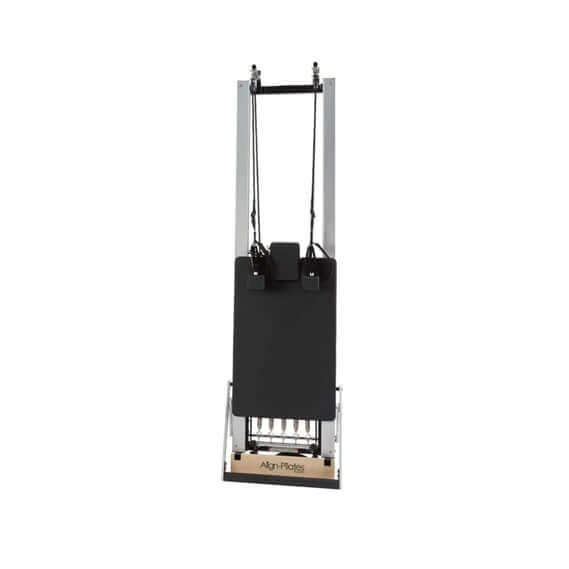

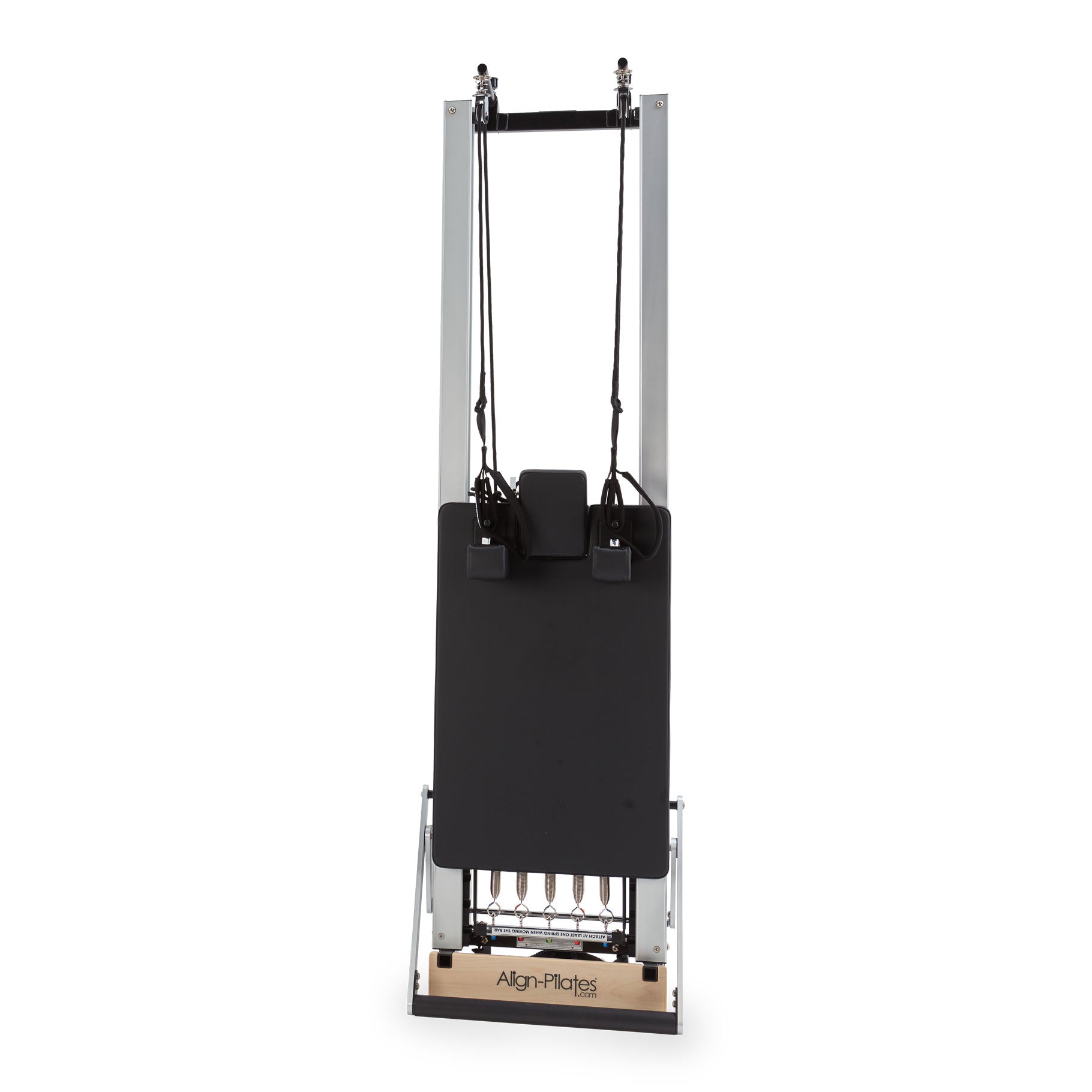

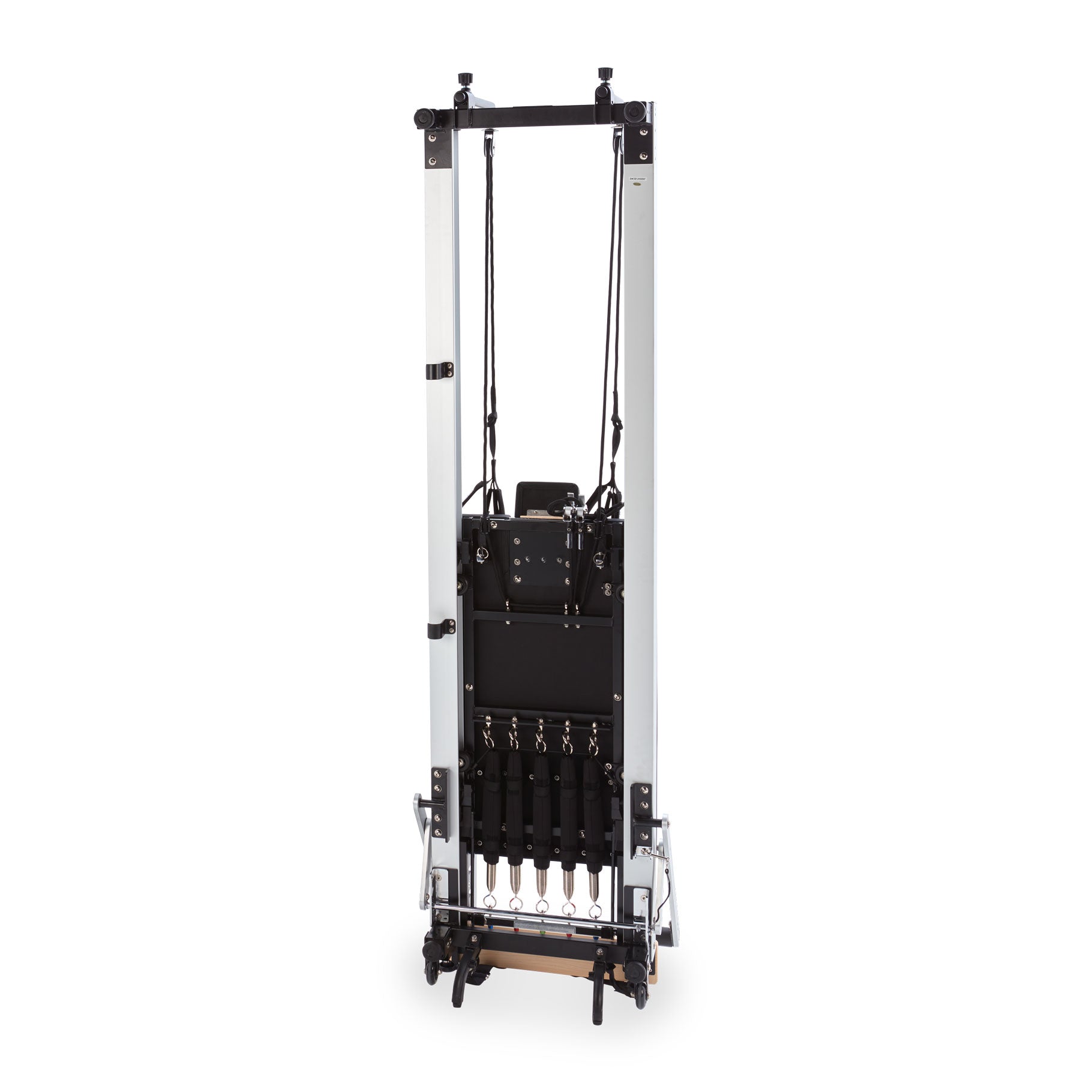

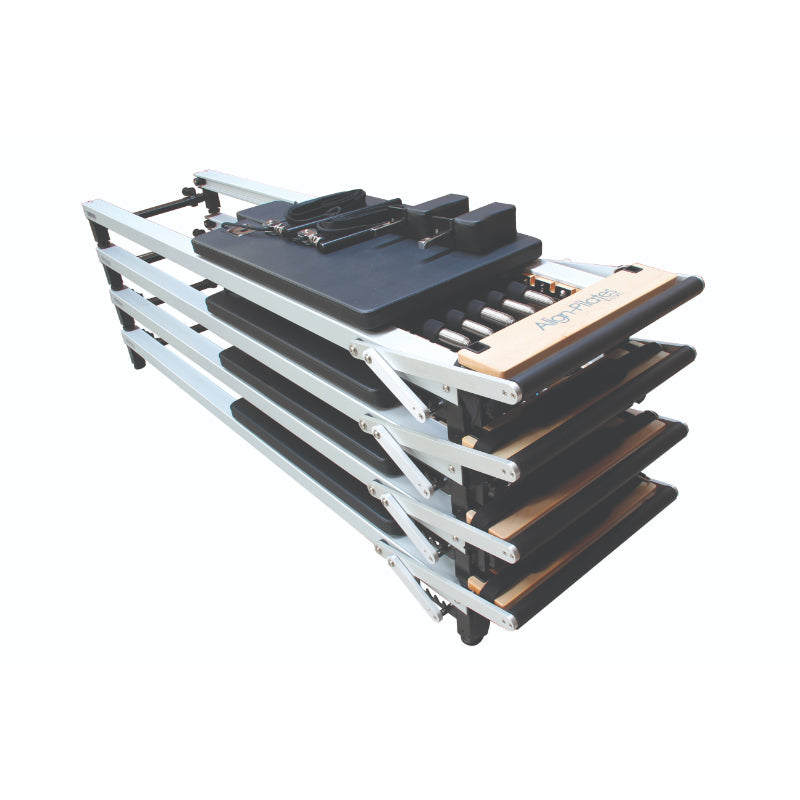

| Standing / stacking | Yes / Yes - freestands when fitted with either the optional freestanding feet or the leg extension option, and can be wheeled for movement and storage |
Delivery
The C8-Pro ships freight on a pallet and arrives partly assembled. Plan for two people to move it in and assemble it in the room where it will live, since a built reformer at 244cm and 66kg does not go through a doorway easily. Measure the route in before delivery day. Assembly guides and the full C8-Pro user guide are published by Align-Pilates and we send the links with your order confirmation.
Common questions
Do I need the leg extensions?
If you teach on this machine for a living, yes. 26cm is low to work over for hours and the rope risers only reach their full range with the extension legs fitted. If the reformer is for your own practice at home, the standard build is fine and easier to get onto.
Can leg extensions be added later?
We would rather you ordered them with the machine. Adding them afterwards means a second shipment and taking the frame ends apart, and the riser and leg parts have to match your build. Call us before ordering parts on their own and we will check what your machine takes.
How is this different from the C8-S Pro?
Layout and finish. The C8-S moves the standing platform and rope risers inside the frame, uses stainless risers with more height positions, runs 105cm of travel against 106.5cm here, and is finished in white. Both are studio duty and both are rated to 150kg, so it is not a step up in class.
Is the Noir version any different mechanically?
No. The C8-Pro Noir is the same reformer in a black finish. Carriage, travel, spring bar, wheels and load rating are identical, so pick on how it looks in your room.
How much space does it need?
The frame is 244cm by 66cm. Add standing room at the foot end for the ropes and clearance down at least one long side for one to one work. In a group layout, set the gap between carriages before you decide how many machines the floor takes.
120% Price Match
Financing
Shipping
Warranty
The compact studio reformer, and the leg height decision that comes with it
The Align Pilates C8-Pro Pilates Reformer is the machine most studios buy when the room is a normal room. It is 244cm long and 66cm wide, with 106.5cm of carriage travel on a 92cm by 58cm bed, built on an oversize aluminium profile frame with a wood look finish. Studio duty, independently tested to EN ISO 20957-1:2013, rated to 150kg.
What catches buyers out is height, not length. Every Pilates reformer in the C-Series ships at a 26cm bed height as standard, which is low. That suits a home room and low ceilings, and it is well under the working height an instructor expects on a studio floor. The 42cm studio height comes from the leg extensions, which are a variant on this page rather than an afterthought.
Decide the leg height before you order, not after
The standard C8-Pro sits at 26cm. That is fine on a home floor and low for teaching a full day, and the rope risers only reach their full 7 position range once the extension legs are fitted. If you want studio working height, order the With Leg Extensions variant with the machine rather than trying to add height later. Retro fitting means a second shipment and a strip down of the frame ends, and the risers and legs need to match. Call us if you are unsure which build the room needs.
Best for, and not ideal for
Best for
- Studios fitting several reformers into a normal room, where 244cm keeps the layout workable
- Owners who want a wood look machine in a client facing space on a metal frame underneath
- Home buyers who want studio duty build without studio floor space
- Rooms where the machine has to move or stack between uses
Not ideal for
- Instructors who need 42cm working height but order the standard build to save on the extensions
- Very tall clients who want the longest possible carriage travel, that is the A8-Pro
- Anyone who needs a machine that folds, the C8-Pro does not fold
- Studios planning a full Cadillac frame around the reformer later, check the fitting first
Why we carry this one
The comparison worth making is the C8-Pro against the C8-S Pro. Both are studio duty, both are rated to 150kg, both use the same Rapid Change spring bar and the same 8 PU wheel carriage. Moving to the C8-S is a change of layout and finish, and not a step up in duty class. The C8-S pulls the standing platform and the rope risers inside the frame, which keeps the outline tighter and gives you nothing hanging off the sides in a crowded room. Its risers are stainless where the C8-Pro's are painted, and Align's comparison sheet lists nine riser heights on the C8-S against seven here. Carriage travel goes the other way, 106.5cm on the C8-Pro and 105cm on the C8-S. The C8-S is finished in white. Choose on the room and the look you want in front of clients, and do not expect the white machine to last longer.
If the wood look is what you are after but the room is dark or the branding is not, the C8-Pro Noir is the same machine in a black finish. Every mechanical line on the spec sheet is identical, so it is a colour decision only.
C8-Pro, C8-S Pro or A8-Pro
Three C and A series machines share the Rapid Change spring bar and the 8 wheel carriage. What separates them is carriage travel, footbar range and how the machine looks in a client facing room.
The C8-Pro is the middle of the range and the one most studios buy. The C8-S Pro is the same working machine in white, with the rope risers moved inside the frame so they clear the walkway where an instructor stands. It gives up 1.5cm of travel and takes a Half Cadillac only, never a Full Cadillac. The A8-Pro is the flagship: 113cm of travel, a wider carriage, 6 footbar positions and three interchangeable leg heights. Take the A8-Pro if you teach tall clients or want leg height flexibility, and the C8-Pro if you want the same spring bar and wheel system on a smaller footprint.
| Specification | C8-Pro | C8-S Pro | A8-Pro |
|---|---|---|---|
| Carriage travel | 106.5cm | 105cm | 113cm |
| Carriage size | 92 x 58cm | 92 x 58cm | 91 x 67cm |
| Footbar positions | 4 | 4 | 6 |
| Leg options | 26cm, or 42cm with extensions | 26cm, or 42cm with extensions | 3 heights: 28, 42 and 64cm |
| Rope risers | Painted, outside frame, 7 positions | Stainless, inside frame, 7 positions | Stainless, outside frame, 5 heights |
| Frame weight | 66kg | 70.4kg | 75kg |
| Cadillac options | Half or Full | Half Cadillac only | Half Cadillac |
What the specs mean for you
| Specification | What it means in practice |
|---|---|
| 244cm x 66cm footprint | Fits a normal room and lets you run two or three machines across a floor that would only take two of the longer reformers |
| 106.5cm carriage travel | Enough range for most adult clients in footwork and long stretch. Clients over six foot two will feel the end of the track sooner than on the A8-Pro |
| 26cm standard bed height | Low. Easy for a steady client to sit onto, harder on the instructor's back across a full teaching day, which is what the extension legs solve |
| 42cm with the leg extensions | Normal studio working height, and it is what the rope risers need to reach their full 7 position range |
| Rapid Change spring bar | Spring load changes with one hand and the springs stay attached, so transitions in a class do not stall on hardware |
| 8 PU wheels on anodised aluminium runners | Quiet under load and less wheel servicing than a four wheel carriage across a commercial duty cycle |
| Free stands and wheels for storage | With either the freestanding legs or the leg extensions fitted, the machine stands and moves on its own rather than needing to be lifted |
What ships with it
- C8-Pro reformer on an oversize aluminium profile frame, in the build you select
- 5 nickel plated music wire springs, two light, two medium, one strong
- Oversize aluminium footbar, 4 lockable positions including flat, and a 3 position head rest
- Removable, lockable shoulder rests with off centred pads for a choice of two widths
- Pro Rope Adjusters at the head rest, both ropes adjust together
- Removable painted rope risers outside the frame, 7 heights with the extension legs fitted
- Height adjustable feet so the carriage runs level on an uneven floor
The three builds on this page
- Normal. The reformer at its standard 26cm bed height. The lowest, lightest and least expensive way into the machine, and the right pick for a home room.
- With Leg Extensions. Raises the bed to 42cm studio working height and gives the rope risers their full range. This is the studio build, and the one most teaching floors should order.
- With Freestanding Legs. Keeps the bed at standard height and puts the machine on its own feet, so it stands and wheels for storage without going up to 42cm. The answer for a shared room where the reformer gets moved.
Sold separately
- Jump board, the board shared across the C, F, H and R series
- C-Series mattress converter and C-Series platform extender, the pair that turns the carriage into a flat Cadillac bed
- 42cm leg extensions, if you ordered the standard build and want 42cm studio height later
- Freestanding legs, to stand and wheel the machine without raising the bed
- C-Series carriage protector, for studios that want the upholstery covered between clients
- Pro Sitting Box, Curved Pro Sitting Box or Frame Sitting Box for seated, side lying and long box work
- Planking handles, which clip to the footbar for plank and press work
- Half Cadillac frame with the C-Series bracket set, or the Full Cadillac frame with bracket PAP-C1PROFCADBKT for trapeze work
- Replacement and additional springs
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, if you want the build checked against your room and your teaching before ordering. White glove delivery and in room assembly are available as a paid add on.
Full specifications
| Specification | Detail |
|---|---|
| Product code | PAPREFORMERC8 |
| Dimensions | 244cm (L) x 66cm (W) x 26cm (H) |
| Carriage size | 92cm (L) x 58cm (W) |
| Carriage travel | 106.5cm |
| Reformer weight | 66kg |
| Wheels | 8 PU 'roller blade style' wheels running on precision anodised aluminium runners |
| Spring bar | Patent pending Rapid Change (RC) spring bar - adjusts with springs attached, one hand, single action |
| Springs included | 5 nickel plated music wire springs in 3 strengths (2x Light, 2x Medium, 1x Strong) |
| Footbar | Oversize aluminium footbar, 4 lockable positions including flat |
| Head rest | 3 position adjustable head rest |
| Shoulder rests | Removable & lockable, off-centred shoulder pads giving a choice of two widths |
| Rope adjustment | Pro Rope Adjusters for precise adjustment, accessible by the headrest (replaces old T-Bar system) |
| Rope risers | Removable, painted, outside frame - 7 height positions (when extension legs are used) |
| Adjustable feet | Yes - adjustable feet to ensure the reformer sits flat and runs smoothly |
| Leg options | 2 leg options - standard 26cm bed height, or 42cm with optional leg extensions |
| Maximum user weight | 150kg |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Folding | No |
| Standing / stacking | Yes / Yes - freestands when fitted with either the optional freestanding feet or the leg extension option, and can be wheeled for movement and storage |
Delivery
The C8-Pro ships freight on a pallet and arrives partly assembled. Plan for two people to move it in and assemble it in the room where it will live, since a built reformer at 244cm and 66kg does not go through a doorway easily. Measure the route in before delivery day. Assembly guides and the full C8-Pro user guide are published by Align-Pilates and we send the links with your order confirmation.
Common questions
Do I need the leg extensions?
If you teach on this machine for a living, yes. 26cm is low to work over for hours and the rope risers only reach their full range with the extension legs fitted. If the reformer is for your own practice at home, the standard build is fine and easier to get onto.
Can leg extensions be added later?
We would rather you ordered them with the machine. Adding them afterwards means a second shipment and taking the frame ends apart, and the riser and leg parts have to match your build. Call us before ordering parts on their own and we will check what your machine takes.
How is this different from the C8-S Pro?
Layout and finish. The C8-S moves the standing platform and rope risers inside the frame, uses stainless risers with more height positions, runs 105cm of travel against 106.5cm here, and is finished in white. Both are studio duty and both are rated to 150kg, so it is not a step up in class.
Is the Noir version any different mechanically?
No. The C8-Pro Noir is the same reformer in a black finish. Carriage, travel, spring bar, wheels and load rating are identical, so pick on how it looks in your room.
How much space does it need?
The frame is 244cm by 66cm. Add standing room at the foot end for the ropes and clearance down at least one long side for one to one work. In a group layout, set the gap between carriages before you decide how many machines the floor takes.
RecovAthlete's 120% Price Match Guarantee: Shop With Unmatched Confidence
At RecovAthlete, we're here to support your recovery and performance goals, without overpaying. Our 120% Price Match Guarantee makes sure you always get the best deal. If you find a lower price, not only will we match it, we'll beat it by adding 20% of the price difference back to your refund.
How It Works
- 60-Day Window: If you find the same item at a lower price from an authorized competitor within 60 days of your purchase, we'll match it.
- We Add 20%: Besides matching the price, we give you 20% of the difference back.
- Same Currency: Price comparisons must be in the same currency as your original purchase.
- MAP Policy Required: The competitor must be an authorized dealer of the product and follow a Minimum Advertised Price (MAP) policy set by the manufacturer.
Terms and Conditions
- Eligible Products: Must be the same model, SKU, and from an authorized seller.
- Verifiable Prices: We compare total verifiable selling prices (excluding taxes), including shipping.
- Manual Review: Our team reviews all claims for validity and eligibility.
Exclusions
- Used, refurbished, or secondary-market products
- Wholesale, contract, or below-cost pricing
- Marketplace sellers (Amazon, Walmart, Costco, etc.)
- Flash sales, closeouts, clearance, or limited-time promos
- Price matches can't be combined with other RecovAthlete discounts or offers
Our Ethical Pricing Pledge
We don't undercut manufacturers or sell below cost. We follow ethical pricing standards prioritizing fairness, brand integrity, and long-term trust.
How to Submit a Claim
- Get Proof: A screenshot, ad, or live link showing the competitor's lower price.
- Send Details: Include your order number, the product name, and the competitor info.
- Submit via Contact Page: contact the RecovAthlete team.
- Processing: Allow up to 6 weeks for verification and refund processing.
With our 120% Price Match Guarantee, you can shop knowing you'll never miss out on a better deal, because we'll beat it.
The compact studio reformer, and the leg height decision that comes with it

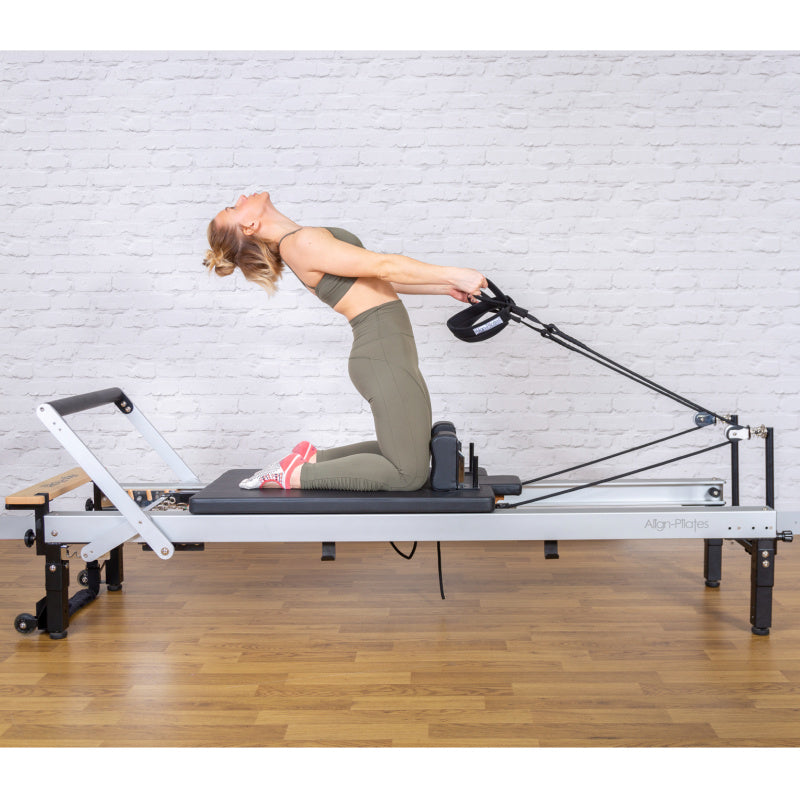

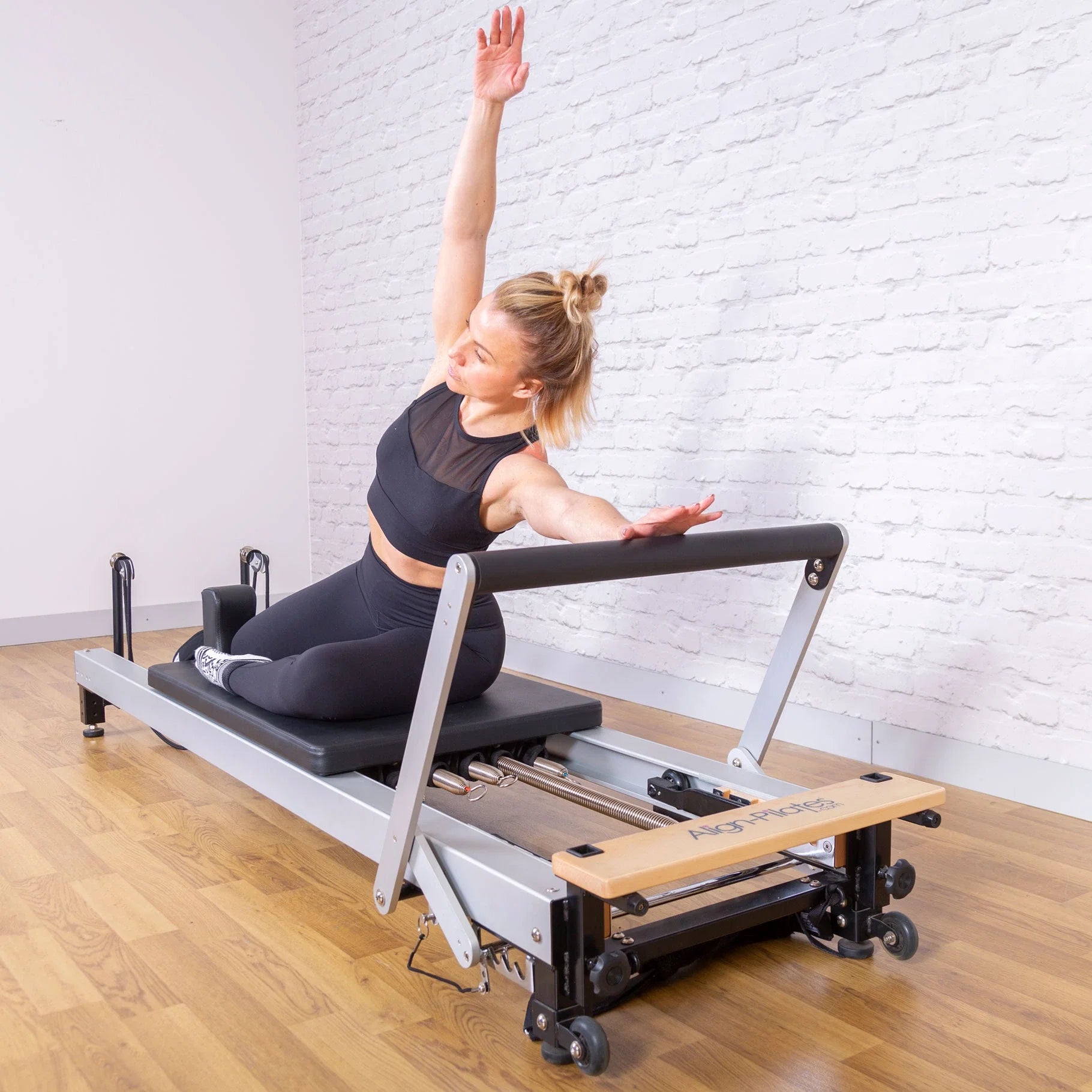

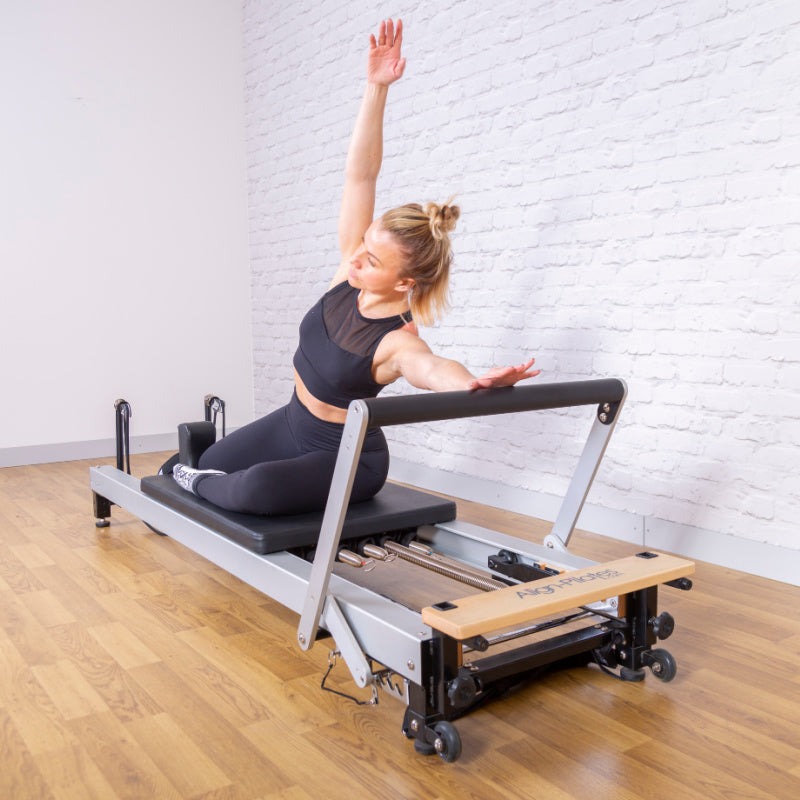

The Align Pilates C8-Pro Pilates Reformer is the machine most studios buy when the room is a normal room. It is 244cm long and 66cm wide, with 106.5cm of carriage travel on a 92cm by 58cm bed, built on an oversize aluminium profile frame with a wood look finish. Studio duty, independently tested to EN ISO 20957-1:2013, rated to 150kg.
What catches buyers out is height, not length. Every Pilates reformer in the C-Series ships at a 26cm bed height as standard, which is low. That suits a home room and low ceilings, and it is well under the working height an instructor expects on a studio floor. The 42cm studio height comes from the leg extensions, which are a variant on this page rather than an afterthought.
Decide the leg height before you order, not after
The standard C8-Pro sits at 26cm. That is fine on a home floor and low for teaching a full day, and the rope risers only reach their full 7 position range once the extension legs are fitted. If you want studio working height, order the With Leg Extensions variant with the machine rather than trying to add height later. Retro fitting means a second shipment and a strip down of the frame ends, and the risers and legs need to match. Call us if you are unsure which build the room needs.
Best for, and not ideal for
Best for
- Studios fitting several reformers into a normal room, where 244cm keeps the layout workable
- Owners who want a wood look machine in a client facing space on a metal frame underneath
- Home buyers who want studio duty build without studio floor space
- Rooms where the machine has to move or stack between uses
Not ideal for
- Instructors who need 42cm working height but order the standard build to save on the extensions
- Very tall clients who want the longest possible carriage travel, that is the A8-Pro
- Anyone who needs a machine that folds, the C8-Pro does not fold
- Studios planning a full Cadillac frame around the reformer later, check the fitting first
Why we carry this one
The comparison worth making is the C8-Pro against the C8-S Pro. Both are studio duty, both are rated to 150kg, both use the same Rapid Change spring bar and the same 8 PU wheel carriage. Moving to the C8-S is a change of layout and finish, and not a step up in duty class. The C8-S pulls the standing platform and the rope risers inside the frame, which keeps the outline tighter and gives you nothing hanging off the sides in a crowded room. Its risers are stainless where the C8-Pro's are painted, and Align's comparison sheet lists nine riser heights on the C8-S against seven here. Carriage travel goes the other way, 106.5cm on the C8-Pro and 105cm on the C8-S. The C8-S is finished in white. Choose on the room and the look you want in front of clients, and do not expect the white machine to last longer.
If the wood look is what you are after but the room is dark or the branding is not, the C8-Pro Noir is the same machine in a black finish. Every mechanical line on the spec sheet is identical, so it is a colour decision only.
C8-Pro, C8-S Pro or A8-Pro
Three C and A series machines share the Rapid Change spring bar and the 8 wheel carriage. What separates them is carriage travel, footbar range and how the machine looks in a client facing room.
The C8-Pro is the middle of the range and the one most studios buy. The C8-S Pro is the same working machine in white, with the rope risers moved inside the frame so they clear the walkway where an instructor stands. It gives up 1.5cm of travel and takes a Half Cadillac only, never a Full Cadillac. The A8-Pro is the flagship: 113cm of travel, a wider carriage, 6 footbar positions and three interchangeable leg heights. Take the A8-Pro if you teach tall clients or want leg height flexibility, and the C8-Pro if you want the same spring bar and wheel system on a smaller footprint.
| Specification | C8-Pro | C8-S Pro | A8-Pro |
|---|---|---|---|
| Carriage travel | 106.5cm | 105cm | 113cm |
| Carriage size | 92 x 58cm | 92 x 58cm | 91 x 67cm |
| Footbar positions | 4 | 4 | 6 |
| Leg options | 26cm, or 42cm with extensions | 26cm, or 42cm with extensions | 3 heights: 28, 42 and 64cm |
| Rope risers | Painted, outside frame, 7 positions | Stainless, inside frame, 7 positions | Stainless, outside frame, 5 heights |
| Frame weight | 66kg | 70.4kg | 75kg |
| Cadillac options | Half or Full | Half Cadillac only | Half Cadillac |
What the specs mean for you
| Specification | What it means in practice |
|---|---|
| 244cm x 66cm footprint | Fits a normal room and lets you run two or three machines across a floor that would only take two of the longer reformers |
| 106.5cm carriage travel | Enough range for most adult clients in footwork and long stretch. Clients over six foot two will feel the end of the track sooner than on the A8-Pro |
| 26cm standard bed height | Low. Easy for a steady client to sit onto, harder on the instructor's back across a full teaching day, which is what the extension legs solve |
| 42cm with the leg extensions | Normal studio working height, and it is what the rope risers need to reach their full 7 position range |
| Rapid Change spring bar | Spring load changes with one hand and the springs stay attached, so transitions in a class do not stall on hardware |
| 8 PU wheels on anodised aluminium runners | Quiet under load and less wheel servicing than a four wheel carriage across a commercial duty cycle |
| Free stands and wheels for storage | With either the freestanding legs or the leg extensions fitted, the machine stands and moves on its own rather than needing to be lifted |
What ships with it
- C8-Pro reformer on an oversize aluminium profile frame, in the build you select
- 5 nickel plated music wire springs, two light, two medium, one strong
- Oversize aluminium footbar, 4 lockable positions including flat, and a 3 position head rest
- Removable, lockable shoulder rests with off centred pads for a choice of two widths
- Pro Rope Adjusters at the head rest, both ropes adjust together
- Removable painted rope risers outside the frame, 7 heights with the extension legs fitted

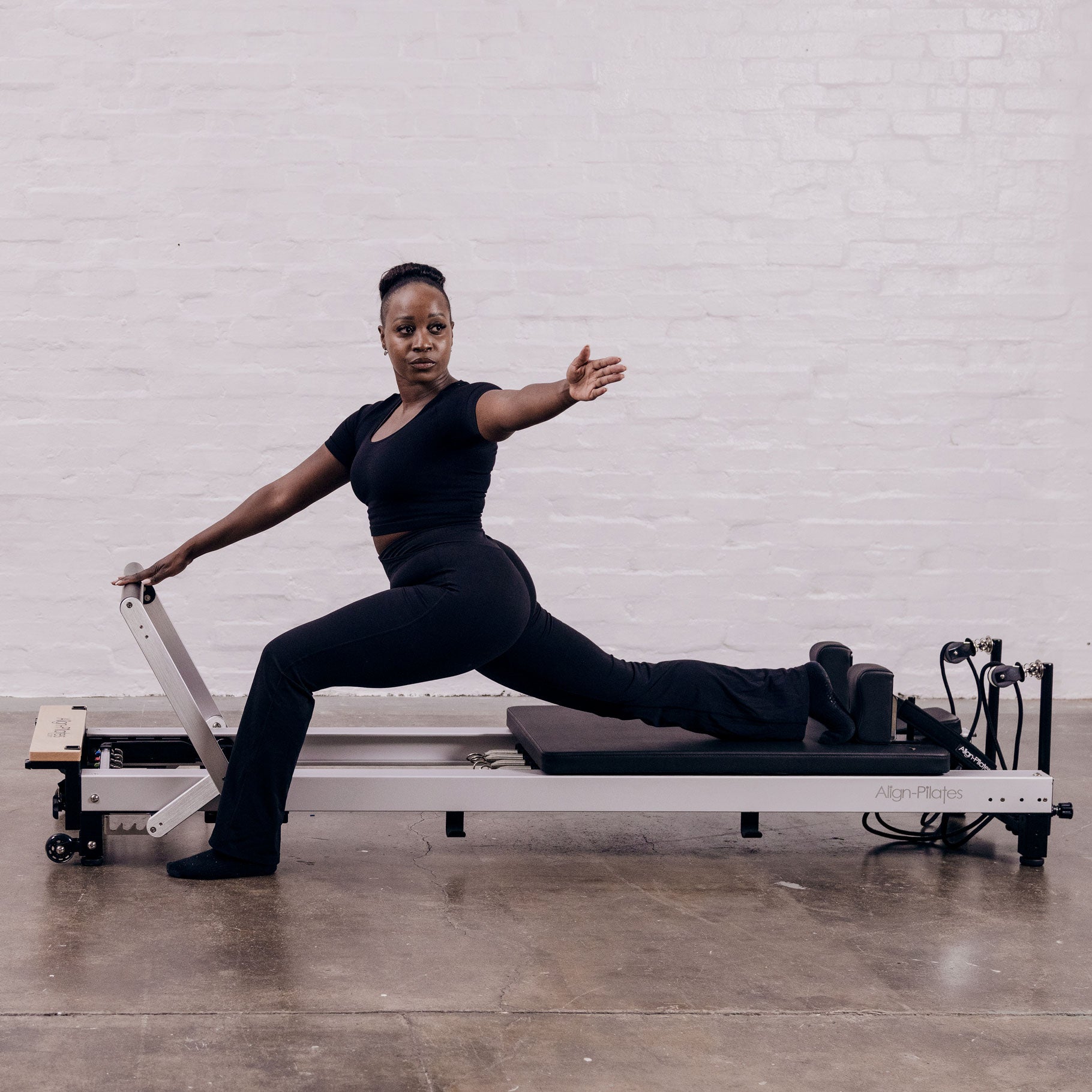

- Height adjustable feet so the carriage runs level on an uneven floor
The three builds on this page
- Normal. The reformer at its standard 26cm bed height. The lowest, lightest and least expensive way into the machine, and the right pick for a home room.
- With Leg Extensions. Raises the bed to 42cm studio working height and gives the rope risers their full range. This is the studio build, and the one most teaching floors should order.
- With Freestanding Legs. Keeps the bed at standard height and puts the machine on its own feet, so it stands and wheels for storage without going up to 42cm. The answer for a shared room where the reformer gets moved.
Sold separately
- Jump board, the board shared across the C, F, H and R series
- C-Series mattress converter and C-Series platform extender, the pair that turns the carriage into a flat Cadillac bed
- 42cm leg extensions, if you ordered the standard build and want 42cm studio height later
- Freestanding legs, to stand and wheel the machine without raising the bed
- C-Series carriage protector, for studios that want the upholstery covered between clients
- Pro Sitting Box, Curved Pro Sitting Box or Frame Sitting Box for seated, side lying and long box work
- Planking handles, which clip to the footbar for plank and press work
- Half Cadillac frame with the C-Series bracket set, or the Full Cadillac frame with bracket PAP-C1PROFCADBKT for trapeze work
- Replacement and additional springs
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, if you want the build checked against your room and your teaching before ordering. White glove delivery and in room assembly are available as a paid add on.
Full specifications
| Specification | Detail |
|---|---|
| Product code | PAPREFORMERC8 |
| Dimensions | 244cm (L) x 66cm (W) x 26cm (H) |
| Carriage size | 92cm (L) x 58cm (W) |
| Carriage travel | 106.5cm |
| Reformer weight | 66kg |
| Wheels | 8 PU 'roller blade style' wheels running on precision anodised aluminium runners |
| Spring bar | Patent pending Rapid Change (RC) spring bar - adjusts with springs attached, one hand, single action |
| Springs included | 5 nickel plated music wire springs in 3 strengths (2x Light, 2x Medium, 1x Strong) |
| Footbar | Oversize aluminium footbar, 4 lockable positions including flat |
| Head rest | 3 position adjustable head rest |
| Shoulder rests | Removable & lockable, off-centred shoulder pads giving a choice of two widths |
| Rope adjustment | Pro Rope Adjusters for precise adjustment, accessible by the headrest (replaces old T-Bar system) |
| Rope risers | Removable, painted, outside frame - 7 height positions (when extension legs are used) |
| Adjustable feet | Yes - adjustable feet to ensure the reformer sits flat and runs smoothly |
| Leg options | 2 leg options - standard 26cm bed height, or 42cm with optional leg extensions |
| Maximum user weight | 150kg |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Folding | No |
| Standing / stacking | Yes / Yes - freestands when fitted with either the optional freestanding feet or the leg extension option, and can be wheeled for movement and storage |
Delivery
The C8-Pro ships freight on a pallet and arrives partly assembled. Plan for two people to move it in and assemble it in the room where it will live, since a built reformer at 244cm and 66kg does not go through a doorway easily. Measure the route in before delivery day. Assembly guides and the full C8-Pro user guide are published by Align-Pilates and we send the links with your order confirmation.
Common questions
Do I need the leg extensions?
If you teach on this machine for a living, yes. 26cm is low to work over for hours and the rope risers only reach their full range with the extension legs fitted. If the reformer is for your own practice at home, the standard build is fine and easier to get onto.
Can leg extensions be added later?
We would rather you ordered them with the machine. Adding them afterwards means a second shipment and taking the frame ends apart, and the riser and leg parts have to match your build. Call us before ordering parts on their own and we will check what your machine takes.
How is this different from the C8-S Pro?
Layout and finish. The C8-S moves the standing platform and rope risers inside the frame, uses stainless risers with more height positions, runs 105cm of travel against 106.5cm here, and is finished in white. Both are studio duty and both are rated to 150kg, so it is not a step up in class.
Is the Noir version any different mechanically?
No. The C8-Pro Noir is the same reformer in a black finish. Carriage, travel, spring bar, wheels and load rating are identical, so pick on how it looks in your room.
How much space does it need?
The frame is 244cm by 66cm. Add standing room at the foot end for the ropes and clearance down at least one long side for one to one work. In a group layout, set the gap between carriages before you decide how many machines the floor takes.
Financing for Recovery and Fitness Equipment
Buying for yourself, spread the cost through Affirm at checkout. Buying for a gym, clinic, spa, or studio, apply with one of four business lenders and put the whole room on a single application.
RecovAthlete has no control over any financing decision. Approval is based on your creditworthiness and is solely the lender's decision.
Personal purchase
Affirm at checkout. Rates run 0% to 36% APR based on your credit profile. Soft check to prequalify, so no impact on your score. No prepayment penalty.
Business purchase
Brickhouse Capital, Reliant Capital, Acorn Finance, or KWIPPED. Apply with two of the four and compare. Financed equipment can qualify for a Section 179 deduction. Confirm with your accountant.
Financing by Equipment Category
Every page below has real prices, real monthly payment examples, and the lender comparison for that category. Pick the one you are buying.
Hyperbaric Chamber Financing
Soft-shell and hard-shell HBOT chambers. Session-volume payback math for clinics.
Sauna Financing
Infrared, traditional, barrel, and commercial saunas.
Cold Plunge Financing
Home tubs through commercial chillers and Medical Frozen units.
Red Light Therapy Financing
Panels, pods, and full-body beds for home and clinic.
PEMF Therapy Financing
PEMF mats, systems, and practitioner devices.
Vibration Plate Financing
Whole body vibration platforms for home, studio, and clinic.
Gym Equipment Financing
Home gyms through full commercial strength floors. Finance the floor, not the machine.
Treadmill Financing
Walking pads, commercial belts, and self-powered curved decks.
Commercial Recovery Equipment Financing
Building a recovery room? One quote, one purchase order, one application.
Building a Recovery Room?
Most business buyers are not buying one machine. They are building a room. Sauna, cold plunge, red light, vibration, hyperbaric, cryotherapy, and halotherapy all finance on the same paper through the same four lenders, and RecovAthlete quotes every category on one purchase order.
That means one freight schedule, one install window, and one financing application instead of six. It also gets you a better rate, because a bigger number on one application beats six small ones with six hard inquiries.
See commercial recovery equipment financing, or call 866-861-6317 and we will price the room.
Which Lender Should You Apply With?
| Lender | Type | Amount | Speed | Best for |
|---|---|---|---|---|
| Affirm | Consumer, at checkout | Order total | Seconds | Personal purchases. 0% to 36% APR based on credit. Soft check to prequalify. |
| Brickhouse Capital | Direct equipment lender | Up to $250K on a one-page application, $1M+ with financials | ~24 hours | A full room or a full floor. Credit decisions made in-house. Tied to the business, not your personal credit report. |
| Reliant Capital | Lender and broker | Up to $500K application-only, $5M with financials | 2 to 4 hours | Medical, aesthetic, and wellness. Deferred payment options. New or used equipment. |
| Acorn Finance | Lending marketplace | $1,000 to $100,000 | 60 seconds to prequalify | Comparing offers. One application goes to 30 or more lenders with no impact to your score. |
| KWIPPED (APPROVE) | Lender marketplace | Minimum $1,500 equipment value | 60-second application | Larger commercial orders. Lenders compete, which usually returns the best APR. Businesses only. |
Apply with two of the four and compare. It costs nothing and the spread between offers is often significant.
Apply now
Apply with Brickhouse Capital
Apply with Reliant Capital
Check your offers with Acorn Finance
For KWIPPED, call 866-861-6317 or email info@recovathlete.com and we will build the application around your order.
Financing Questions
What are Affirm's rates?
Pay in 4 splits the purchase into four interest-free payments charged every two weeks. Monthly installments spread the cost over a longer term, with rates from 0% to 36% APR depending on your credit profile. You see the exact terms before you agree to anything. No origination fees, no prepayment penalty, no late fees.
Will applying hurt my credit score?
Prequalification does not. Affirm and Acorn Finance both run a soft check to show you offers, which has no impact on your score. Proceeding with a monthly installment plan or a business loan may involve a hard inquiry. That is why it pays to prequalify with more than one lender first and only proceed with the best offer.
Can I finance equipment for a business?
Yes, and for most business buyers it is the better route. Brickhouse funds up to $250,000 on a one-page application with no financial statements. Reliant approves in 2 to 4 hours. Business financing is usually tied to the business rather than your personal credit report, and financed equipment can qualify for a Section 179 deduction. Confirm the tax position with your accountant.
Should I finance each machine separately?
No. This is the most common and most expensive mistake. Separate applications mean separate hard inquiries, separate payments, and a worse rate on each, because every individual ticket is small. Get one quote from RecovAthlete covering everything you are buying, including freight, and put that single number on one application.
Does Section 179 apply to financed equipment?
Financed equipment can qualify. Section 179 lets US businesses deduct the cost of qualifying equipment in the year it is placed in service, and financing the purchase does not by itself disqualify it. The equipment must be in service, not merely ordered, within the tax year. Annual limits and eligibility rules are set by the IRS and change year to year, so consult your accountant.
Can freight and installation be financed?
Freight, yes. On Affirm it is part of the order total at checkout. On business financing, put freight on the RecovAthlete quote and the whole quote amount goes on the application. Installation and room construction are harder, because some equipment lenders will not fund non-equipment costs. Ask the lender before you sign.
Can I pay off early?
Yes. Affirm charges no prepayment penalties. Acorn Finance and most business lenders also allow early payoff without penalty.
Not sure which option fits?
Tell us what you are buying and whether it is personal or for a business. We will point you at the right two lenders and quote freight and install as one number, which is also the number that goes on the application.
Call 866-861-6317 Book a 30 minute callThe compact studio reformer, and the leg height decision that comes with it
The Align Pilates C8-Pro Pilates Reformer is the machine most studios buy when the room is a normal room. It is 244cm long and 66cm wide, with 106.5cm of carriage travel on a 92cm by 58cm bed, built on an oversize aluminium profile frame with a wood look finish. Studio duty, independently tested to EN ISO 20957-1:2013, rated to 150kg.
What catches buyers out is height, not length. Every Pilates reformer in the C-Series ships at a 26cm bed height as standard, which is low. That suits a home room and low ceilings, and it is well under the working height an instructor expects on a studio floor. The 42cm studio height comes from the leg extensions, which are a variant on this page rather than an afterthought.
Decide the leg height before you order, not after
The standard C8-Pro sits at 26cm. That is fine on a home floor and low for teaching a full day, and the rope risers only reach their full 7 position range once the extension legs are fitted. If you want studio working height, order the With Leg Extensions variant with the machine rather than trying to add height later. Retro fitting means a second shipment and a strip down of the frame ends, and the risers and legs need to match. Call us if you are unsure which build the room needs.
Best for, and not ideal for
Best for
- Studios fitting several reformers into a normal room, where 244cm keeps the layout workable
- Owners who want a wood look machine in a client facing space on a metal frame underneath
- Home buyers who want studio duty build without studio floor space
- Rooms where the machine has to move or stack between uses
Not ideal for
- Instructors who need 42cm working height but order the standard build to save on the extensions
- Very tall clients who want the longest possible carriage travel, that is the A8-Pro
- Anyone who needs a machine that folds, the C8-Pro does not fold
- Studios planning a full Cadillac frame around the reformer later, check the fitting first
Why we carry this one
The comparison worth making is the C8-Pro against the C8-S Pro. Both are studio duty, both are rated to 150kg, both use the same Rapid Change spring bar and the same 8 PU wheel carriage. Moving to the C8-S is a change of layout and finish, and not a step up in duty class. The C8-S pulls the standing platform and the rope risers inside the frame, which keeps the outline tighter and gives you nothing hanging off the sides in a crowded room. Its risers are stainless where the C8-Pro's are painted, and Align's comparison sheet lists nine riser heights on the C8-S against seven here. Carriage travel goes the other way, 106.5cm on the C8-Pro and 105cm on the C8-S. The C8-S is finished in white. Choose on the room and the look you want in front of clients, and do not expect the white machine to last longer.
If the wood look is what you are after but the room is dark or the branding is not, the C8-Pro Noir is the same machine in a black finish. Every mechanical line on the spec sheet is identical, so it is a colour decision only.
C8-Pro, C8-S Pro or A8-Pro
Three C and A series machines share the Rapid Change spring bar and the 8 wheel carriage. What separates them is carriage travel, footbar range and how the machine looks in a client facing room.
The C8-Pro is the middle of the range and the one most studios buy. The C8-S Pro is the same working machine in white, with the rope risers moved inside the frame so they clear the walkway where an instructor stands. It gives up 1.5cm of travel and takes a Half Cadillac only, never a Full Cadillac. The A8-Pro is the flagship: 113cm of travel, a wider carriage, 6 footbar positions and three interchangeable leg heights. Take the A8-Pro if you teach tall clients or want leg height flexibility, and the C8-Pro if you want the same spring bar and wheel system on a smaller footprint.
| Specification | C8-Pro | C8-S Pro | A8-Pro |
|---|---|---|---|
| Carriage travel | 106.5cm | 105cm | 113cm |
| Carriage size | 92 x 58cm | 92 x 58cm | 91 x 67cm |
| Footbar positions | 4 | 4 | 6 |
| Leg options | 26cm, or 42cm with extensions | 26cm, or 42cm with extensions | 3 heights: 28, 42 and 64cm |
| Rope risers | Painted, outside frame, 7 positions | Stainless, inside frame, 7 positions | Stainless, outside frame, 5 heights |
| Frame weight | 66kg | 70.4kg | 75kg |
| Cadillac options | Half or Full | Half Cadillac only | Half Cadillac |
What the specs mean for you
| Specification | What it means in practice |
|---|---|
| 244cm x 66cm footprint | Fits a normal room and lets you run two or three machines across a floor that would only take two of the longer reformers |
| 106.5cm carriage travel | Enough range for most adult clients in footwork and long stretch. Clients over six foot two will feel the end of the track sooner than on the A8-Pro |
| 26cm standard bed height | Low. Easy for a steady client to sit onto, harder on the instructor's back across a full teaching day, which is what the extension legs solve |
| 42cm with the leg extensions | Normal studio working height, and it is what the rope risers need to reach their full 7 position range |
| Rapid Change spring bar | Spring load changes with one hand and the springs stay attached, so transitions in a class do not stall on hardware |
| 8 PU wheels on anodised aluminium runners | Quiet under load and less wheel servicing than a four wheel carriage across a commercial duty cycle |
| Free stands and wheels for storage | With either the freestanding legs or the leg extensions fitted, the machine stands and moves on its own rather than needing to be lifted |
What ships with it
- C8-Pro reformer on an oversize aluminium profile frame, in the build you select
- 5 nickel plated music wire springs, two light, two medium, one strong
- Oversize aluminium footbar, 4 lockable positions including flat, and a 3 position head rest
- Removable, lockable shoulder rests with off centred pads for a choice of two widths
- Pro Rope Adjusters at the head rest, both ropes adjust together
- Removable painted rope risers outside the frame, 7 heights with the extension legs fitted
- Height adjustable feet so the carriage runs level on an uneven floor
The three builds on this page
- Normal. The reformer at its standard 26cm bed height. The lowest, lightest and least expensive way into the machine, and the right pick for a home room.
- With Leg Extensions. Raises the bed to 42cm studio working height and gives the rope risers their full range. This is the studio build, and the one most teaching floors should order.
- With Freestanding Legs. Keeps the bed at standard height and puts the machine on its own feet, so it stands and wheels for storage without going up to 42cm. The answer for a shared room where the reformer gets moved.
Sold separately
- Jump board, the board shared across the C, F, H and R series
- C-Series mattress converter and C-Series platform extender, the pair that turns the carriage into a flat Cadillac bed
- 42cm leg extensions, if you ordered the standard build and want 42cm studio height later
- Freestanding legs, to stand and wheel the machine without raising the bed
- C-Series carriage protector, for studios that want the upholstery covered between clients
- Pro Sitting Box, Curved Pro Sitting Box or Frame Sitting Box for seated, side lying and long box work
- Planking handles, which clip to the footbar for plank and press work
- Half Cadillac frame with the C-Series bracket set, or the Full Cadillac frame with bracket PAP-C1PROFCADBKT for trapeze work
- Replacement and additional springs
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, if you want the build checked against your room and your teaching before ordering. White glove delivery and in room assembly are available as a paid add on.
Full specifications
| Specification | Detail |
|---|---|
| Product code | PAPREFORMERC8 |
| Dimensions | 244cm (L) x 66cm (W) x 26cm (H) |
| Carriage size | 92cm (L) x 58cm (W) |
| Carriage travel | 106.5cm |
| Reformer weight | 66kg |
| Wheels | 8 PU 'roller blade style' wheels running on precision anodised aluminium runners |
| Spring bar | Patent pending Rapid Change (RC) spring bar - adjusts with springs attached, one hand, single action |
| Springs included | 5 nickel plated music wire springs in 3 strengths (2x Light, 2x Medium, 1x Strong) |
| Footbar | Oversize aluminium footbar, 4 lockable positions including flat |
| Head rest | 3 position adjustable head rest |
| Shoulder rests | Removable & lockable, off-centred shoulder pads giving a choice of two widths |
| Rope adjustment | Pro Rope Adjusters for precise adjustment, accessible by the headrest (replaces old T-Bar system) |
| Rope risers | Removable, painted, outside frame - 7 height positions (when extension legs are used) |
| Adjustable feet | Yes - adjustable feet to ensure the reformer sits flat and runs smoothly |
| Leg options | 2 leg options - standard 26cm bed height, or 42cm with optional leg extensions |
| Maximum user weight | 150kg |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Folding | No |
| Standing / stacking | Yes / Yes - freestands when fitted with either the optional freestanding feet or the leg extension option, and can be wheeled for movement and storage |
Delivery
The C8-Pro ships freight on a pallet and arrives partly assembled. Plan for two people to move it in and assemble it in the room where it will live, since a built reformer at 244cm and 66kg does not go through a doorway easily. Measure the route in before delivery day. Assembly guides and the full C8-Pro user guide are published by Align-Pilates and we send the links with your order confirmation.
Common questions
Do I need the leg extensions?
If you teach on this machine for a living, yes. 26cm is low to work over for hours and the rope risers only reach their full range with the extension legs fitted. If the reformer is for your own practice at home, the standard build is fine and easier to get onto.
Can leg extensions be added later?
We would rather you ordered them with the machine. Adding them afterwards means a second shipment and taking the frame ends apart, and the riser and leg parts have to match your build. Call us before ordering parts on their own and we will check what your machine takes.
How is this different from the C8-S Pro?
Layout and finish. The C8-S moves the standing platform and rope risers inside the frame, uses stainless risers with more height positions, runs 105cm of travel against 106.5cm here, and is finished in white. Both are studio duty and both are rated to 150kg, so it is not a step up in class.
Is the Noir version any different mechanically?
No. The C8-Pro Noir is the same reformer in a black finish. Carriage, travel, spring bar, wheels and load rating are identical, so pick on how it looks in your room.
How much space does it need?
The frame is 244cm by 66cm. Add standing room at the foot end for the ropes and clearance down at least one long side for one to one work. In a group layout, set the gap between carriages before you decide how many machines the floor takes.
Everything you need to know about shipping, delivery, and returns for Align-Pilates equipment purchased through RecovAthlete. Have a question before ordering? Call 866-861-6317 or email support@recovathlete.com and we'll confirm exactly what's available for your location.
✅
Authorized Align-Pilates Dealer
RecovAthlete is an authorized dealer of Align-Pilates equipment. Every purchase is backed by the full manufacturer warranty directly from Align-Pilates and their exclusive North American distributor, Kloz Inc.
Shipping
Important
Once your order ships, the delivery address cannot be changed. If a shipment fails due to an incorrect address, return fees may apply. Inspect all equipment thoroughly upon delivery — any damage or concerns must be reported within 3 business days of receipt.
Returns Policy
Non-Returnable Items
Returns are not accepted on reformers, chairs, ladder barrels, full cadillacs, or half cadillacs — no exceptions. These items are only eligible for replacement if they arrive damaged or were shipped in error.
Accessories — 30-Day Returns
- Returns accepted within 30 days of purchase (shipping costs excluded)
- All goods must be returned in original condition
- Subject to a restocking charge
- Return shipping costs are the sole responsibility of the purchaser
Return Authorization Number (RNA) Required
All returns — for any reason — require a Return Authorization Number before sending anything back. Items returned without an RNA will not be accepted.
To obtain an RNA, contact Kloz Inc. (Align-Pilates' exclusive North American distributor) directly:
- Phone: 1-888-756-7798
- Email: info@klozinc.com
If Your Item Arrives Damaged or Defective
- Contact us within 3 business days of delivery at 866-861-6317 or support@recovathlete.com
- Provide photos and a description of the damage
- Once confirmed, we will coordinate a replacement or resolution with the distributor
Order Cancellations
- Cancel before shipment — no charge
- Cancel after shipment — 25% restocking fee plus return shipping charges apply
Warranty Overview
Align-Pilates equipment carries a multi-year manufacturer's warranty against defects in materials and workmanship. The warranty that applies depends on the product:
Maintenance Note
Reformers require regular basic maintenance and cleaning. Most issues that arise during ownership can be resolved through consistent, simple cleaning practices. Failure to follow Align-Pilates' maintenance guidelines may void the warranty. Contact us and we'll guide you through the correct maintenance routine for your machine.
Full warranty terms by product type: view the Align-Pilates Warranty page. Manufacturer warranty details also available at align-pilates.com/resources/warranty-maintenance.
The compact studio reformer, and the leg height decision that comes with it
The Align Pilates C8-Pro Pilates Reformer is the machine most studios buy when the room is a normal room. It is 244cm long and 66cm wide, with 106.5cm of carriage travel on a 92cm by 58cm bed, built on an oversize aluminium profile frame with a wood look finish. Studio duty, independently tested to EN ISO 20957-1:2013, rated to 150kg.
What catches buyers out is height, not length. Every Pilates reformer in the C-Series ships at a 26cm bed height as standard, which is low. That suits a home room and low ceilings, and it is well under the working height an instructor expects on a studio floor. The 42cm studio height comes from the leg extensions, which are a variant on this page rather than an afterthought.
Decide the leg height before you order, not after
The standard C8-Pro sits at 26cm. That is fine on a home floor and low for teaching a full day, and the rope risers only reach their full 7 position range once the extension legs are fitted. If you want studio working height, order the With Leg Extensions variant with the machine rather than trying to add height later. Retro fitting means a second shipment and a strip down of the frame ends, and the risers and legs need to match. Call us if you are unsure which build the room needs.
Best for, and not ideal for
Best for
- Studios fitting several reformers into a normal room, where 244cm keeps the layout workable
- Owners who want a wood look machine in a client facing space on a metal frame underneath
- Home buyers who want studio duty build without studio floor space
- Rooms where the machine has to move or stack between uses
Not ideal for
- Instructors who need 42cm working height but order the standard build to save on the extensions
- Very tall clients who want the longest possible carriage travel, that is the A8-Pro
- Anyone who needs a machine that folds, the C8-Pro does not fold
- Studios planning a full Cadillac frame around the reformer later, check the fitting first
Why we carry this one
The comparison worth making is the C8-Pro against the C8-S Pro. Both are studio duty, both are rated to 150kg, both use the same Rapid Change spring bar and the same 8 PU wheel carriage. Moving to the C8-S is a change of layout and finish, and not a step up in duty class. The C8-S pulls the standing platform and the rope risers inside the frame, which keeps the outline tighter and gives you nothing hanging off the sides in a crowded room. Its risers are stainless where the C8-Pro's are painted, and Align's comparison sheet lists nine riser heights on the C8-S against seven here. Carriage travel goes the other way, 106.5cm on the C8-Pro and 105cm on the C8-S. The C8-S is finished in white. Choose on the room and the look you want in front of clients, and do not expect the white machine to last longer.
If the wood look is what you are after but the room is dark or the branding is not, the C8-Pro Noir is the same machine in a black finish. Every mechanical line on the spec sheet is identical, so it is a colour decision only.
C8-Pro, C8-S Pro or A8-Pro
Three C and A series machines share the Rapid Change spring bar and the 8 wheel carriage. What separates them is carriage travel, footbar range and how the machine looks in a client facing room.
The C8-Pro is the middle of the range and the one most studios buy. The C8-S Pro is the same working machine in white, with the rope risers moved inside the frame so they clear the walkway where an instructor stands. It gives up 1.5cm of travel and takes a Half Cadillac only, never a Full Cadillac. The A8-Pro is the flagship: 113cm of travel, a wider carriage, 6 footbar positions and three interchangeable leg heights. Take the A8-Pro if you teach tall clients or want leg height flexibility, and the C8-Pro if you want the same spring bar and wheel system on a smaller footprint.
| Specification | C8-Pro | C8-S Pro | A8-Pro |
|---|---|---|---|
| Carriage travel | 106.5cm | 105cm | 113cm |
| Carriage size | 92 x 58cm | 92 x 58cm | 91 x 67cm |
| Footbar positions | 4 | 4 | 6 |
| Leg options | 26cm, or 42cm with extensions | 26cm, or 42cm with extensions | 3 heights: 28, 42 and 64cm |
| Rope risers | Painted, outside frame, 7 positions | Stainless, inside frame, 7 positions | Stainless, outside frame, 5 heights |
| Frame weight | 66kg | 70.4kg | 75kg |
| Cadillac options | Half or Full | Half Cadillac only | Half Cadillac |
What the specs mean for you
| Specification | What it means in practice |
|---|---|
| 244cm x 66cm footprint | Fits a normal room and lets you run two or three machines across a floor that would only take two of the longer reformers |
| 106.5cm carriage travel | Enough range for most adult clients in footwork and long stretch. Clients over six foot two will feel the end of the track sooner than on the A8-Pro |
| 26cm standard bed height | Low. Easy for a steady client to sit onto, harder on the instructor's back across a full teaching day, which is what the extension legs solve |
| 42cm with the leg extensions | Normal studio working height, and it is what the rope risers need to reach their full 7 position range |
| Rapid Change spring bar | Spring load changes with one hand and the springs stay attached, so transitions in a class do not stall on hardware |
| 8 PU wheels on anodised aluminium runners | Quiet under load and less wheel servicing than a four wheel carriage across a commercial duty cycle |
| Free stands and wheels for storage | With either the freestanding legs or the leg extensions fitted, the machine stands and moves on its own rather than needing to be lifted |
What ships with it
- C8-Pro reformer on an oversize aluminium profile frame, in the build you select
- 5 nickel plated music wire springs, two light, two medium, one strong
- Oversize aluminium footbar, 4 lockable positions including flat, and a 3 position head rest
- Removable, lockable shoulder rests with off centred pads for a choice of two widths
- Pro Rope Adjusters at the head rest, both ropes adjust together
- Removable painted rope risers outside the frame, 7 heights with the extension legs fitted
- Height adjustable feet so the carriage runs level on an uneven floor
The three builds on this page
- Normal. The reformer at its standard 26cm bed height. The lowest, lightest and least expensive way into the machine, and the right pick for a home room.
- With Leg Extensions. Raises the bed to 42cm studio working height and gives the rope risers their full range. This is the studio build, and the one most teaching floors should order.
- With Freestanding Legs. Keeps the bed at standard height and puts the machine on its own feet, so it stands and wheels for storage without going up to 42cm. The answer for a shared room where the reformer gets moved.
Sold separately
- Jump board, the board shared across the C, F, H and R series
- C-Series mattress converter and C-Series platform extender, the pair that turns the carriage into a flat Cadillac bed
- 42cm leg extensions, if you ordered the standard build and want 42cm studio height later
- Freestanding legs, to stand and wheel the machine without raising the bed
- C-Series carriage protector, for studios that want the upholstery covered between clients
- Pro Sitting Box, Curved Pro Sitting Box or Frame Sitting Box for seated, side lying and long box work
- Planking handles, which clip to the footbar for plank and press work
- Half Cadillac frame with the C-Series bracket set, or the Full Cadillac frame with bracket PAP-C1PROFCADBKT for trapeze work
- Replacement and additional springs
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, if you want the build checked against your room and your teaching before ordering. White glove delivery and in room assembly are available as a paid add on.
Full specifications
| Specification | Detail |
|---|---|
| Product code | PAPREFORMERC8 |
| Dimensions | 244cm (L) x 66cm (W) x 26cm (H) |
| Carriage size | 92cm (L) x 58cm (W) |
| Carriage travel | 106.5cm |
| Reformer weight | 66kg |
| Wheels | 8 PU 'roller blade style' wheels running on precision anodised aluminium runners |
| Spring bar | Patent pending Rapid Change (RC) spring bar - adjusts with springs attached, one hand, single action |
| Springs included | 5 nickel plated music wire springs in 3 strengths (2x Light, 2x Medium, 1x Strong) |
| Footbar | Oversize aluminium footbar, 4 lockable positions including flat |
| Head rest | 3 position adjustable head rest |
| Shoulder rests | Removable & lockable, off-centred shoulder pads giving a choice of two widths |
| Rope adjustment | Pro Rope Adjusters for precise adjustment, accessible by the headrest (replaces old T-Bar system) |
| Rope risers | Removable, painted, outside frame - 7 height positions (when extension legs are used) |
| Adjustable feet | Yes - adjustable feet to ensure the reformer sits flat and runs smoothly |
| Leg options | 2 leg options - standard 26cm bed height, or 42cm with optional leg extensions |
| Maximum user weight | 150kg |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Folding | No |
| Standing / stacking | Yes / Yes - freestands when fitted with either the optional freestanding feet or the leg extension option, and can be wheeled for movement and storage |
Delivery
The C8-Pro ships freight on a pallet and arrives partly assembled. Plan for two people to move it in and assemble it in the room where it will live, since a built reformer at 244cm and 66kg does not go through a doorway easily. Measure the route in before delivery day. Assembly guides and the full C8-Pro user guide are published by Align-Pilates and we send the links with your order confirmation.
Common questions
Do I need the leg extensions?
If you teach on this machine for a living, yes. 26cm is low to work over for hours and the rope risers only reach their full range with the extension legs fitted. If the reformer is for your own practice at home, the standard build is fine and easier to get onto.
Can leg extensions be added later?
We would rather you ordered them with the machine. Adding them afterwards means a second shipment and taking the frame ends apart, and the riser and leg parts have to match your build. Call us before ordering parts on their own and we will check what your machine takes.
How is this different from the C8-S Pro?
Layout and finish. The C8-S moves the standing platform and rope risers inside the frame, uses stainless risers with more height positions, runs 105cm of travel against 106.5cm here, and is finished in white. Both are studio duty and both are rated to 150kg, so it is not a step up in class.
Is the Noir version any different mechanically?
No. The C8-Pro Noir is the same reformer in a black finish. Carriage, travel, spring bar, wheels and load rating are identical, so pick on how it looks in your room.
How much space does it need?
The frame is 244cm by 66cm. Add standing room at the foot end for the ropes and clearance down at least one long side for one to one work. In a group layout, set the gap between carriages before you decide how many machines the floor takes.
Align-Pilates equipment is backed by manufacturer warranties issued directly by Align-Pilates Equipment Ltd. The warranty that applies to your purchase depends on the product type. All warranties are for the original purchaser only and are non-transferable.
✅
Authorized Align-Pilates Dealer
RecovAthlete is an authorized dealer of Align-Pilates equipment. All purchases qualify for full manufacturer warranty protection through Align-Pilates and their exclusive North American distributor, Kloz Inc.
Commercial Warranty — A, C & M Series Reformers
Applies to: A8-Pro, C8-Pro, C8-S Pro, C8-PRO Noir, M8-Pro, Full & Half Cadillac systems
Covers domestic and commercial usage up to 37.5 hours per week. User weight limit: 150 kg / 330 lbs. Align-Pilates will repair or replace any mechanical component that malfunctions due to defects in materials or workmanship during the warranty period.
Note: wooden frames must not be positioned next to convection radiators or air conditioning units. Springs showing signs of damage or wear must be replaced immediately regardless of age.
Light Commercial Warranty — R8-Pro & F3 Reformers
Applies to: R8-Pro (Black & White), F3 Folding Reformer
Covers domestic use and limited commercial usage up to 20 hours per week. User weight limit: 120 kg / 265 lbs. Align-Pilates will repair or replace any mechanical component that malfunctions due to defects in materials or workmanship during the warranty period.
Note: commercial use beyond 20 hours per week voids the warranty on these models.
Commercial Warranty — Combo Chairs & Ladder Barrels
Applies to: Combo Chair III, Ladder Barrel RC
Covers domestic and commercial usage up to 37.5 hours per week. User weight limit: 150 kg / 330 lbs.
Moving mechanisms include the Rapid Change Ladder Barrel and Combo Chair locking handles. Springs showing damage or wear must be replaced immediately regardless of age.
What Is Not Covered
- Normal wear and tear
- Damage from negligence, misuse, abuse, or improper maintenance
- Unauthorized modifications or repairs
- Superficial scratches to the finish
- Upholstery tears, cuts, burns, stains, or damage from improper use (jewelry, inappropriate clothing)
- Rust from improper storage — store in a clean, dry environment; in coastal areas, wipe down regularly and minimize exposure to sea air
- Shipping costs, customs fees, or installation costs for warranty parts
- Equipment used outside of recognized Pilates repertoire
Warranty Claim Procedure
- Contact us at 866-861-6317 or support@recovathlete.com to initiate a claim
- We will contact Align-Pilates or their authorized North American distributor on your behalf
- A return authorization number (RNA) will be issued if a return is required — items returned without an RNA will not be accepted
- You are responsible for the cost of shipping the item back for inspection
- Parts repaired or replaced under warranty are covered for the remainder of the original warranty period only
Full manufacturer warranty terms: align-pilates.com/resources/warranty-maintenance
Let customers speak for us
Have Questions? Talk to Our Equipment Team.
We respond within 2 hours.
US & Canada shipping. Financing available.
- Choosing a selection results in a full page refresh.
