Align Pilates A8-Pro Pilates Reformer
Ships within 10 business days | $650 Shipping
- Regular price
- $3,700.00
- Regular price
-
- Sale price
- $3,700.00
- Unit price
- per
Shipping $650
10
Description

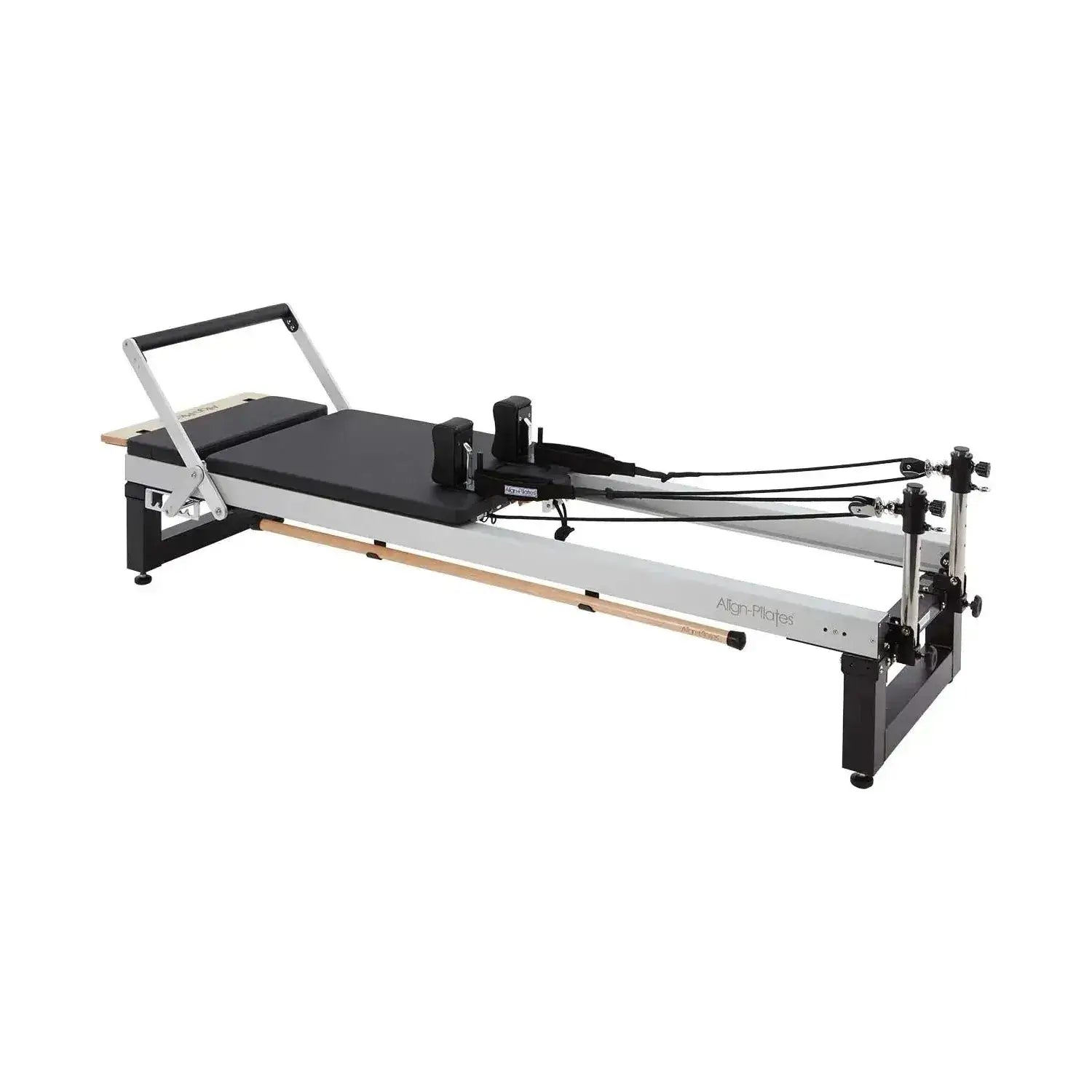

Align Pilates A8-Pro Pilates Reformer: 113cm of carriage travel, the longest in the Align range
A tall client runs out of track before they run out of movement. Footwork finishes early, long spine gets clipped, and the instructor quietly shortens the exercise to fit the machine rather than the person. The Align Pilates A8-Pro Pilates Reformer removes that compromise, which means the exercise finishes where the body finishes, not where the rail does. At 113cm, its carriage travel is the longest in the Align range, on the widest carriage Align builds at 67cm. If you have been asking which Pilates reformer suits tall clients, travel is the number that answers it, and this is where Align's range tops out.
The problem this machine is built around
Most studio reformers are sized for the average client, and that is usually fine. The trouble starts at the ends of the range. A 190cm athlete pushing into full extension hits the carriage stop before the leg is straight. A rehab client who needs the bed at hip height finds a machine with one fixed height and gives up. Neither is solved by cueing. Both are solved by a longer track and a deck height you choose at purchase.
Leg height is fixed at purchase. Choose it before you add to cart

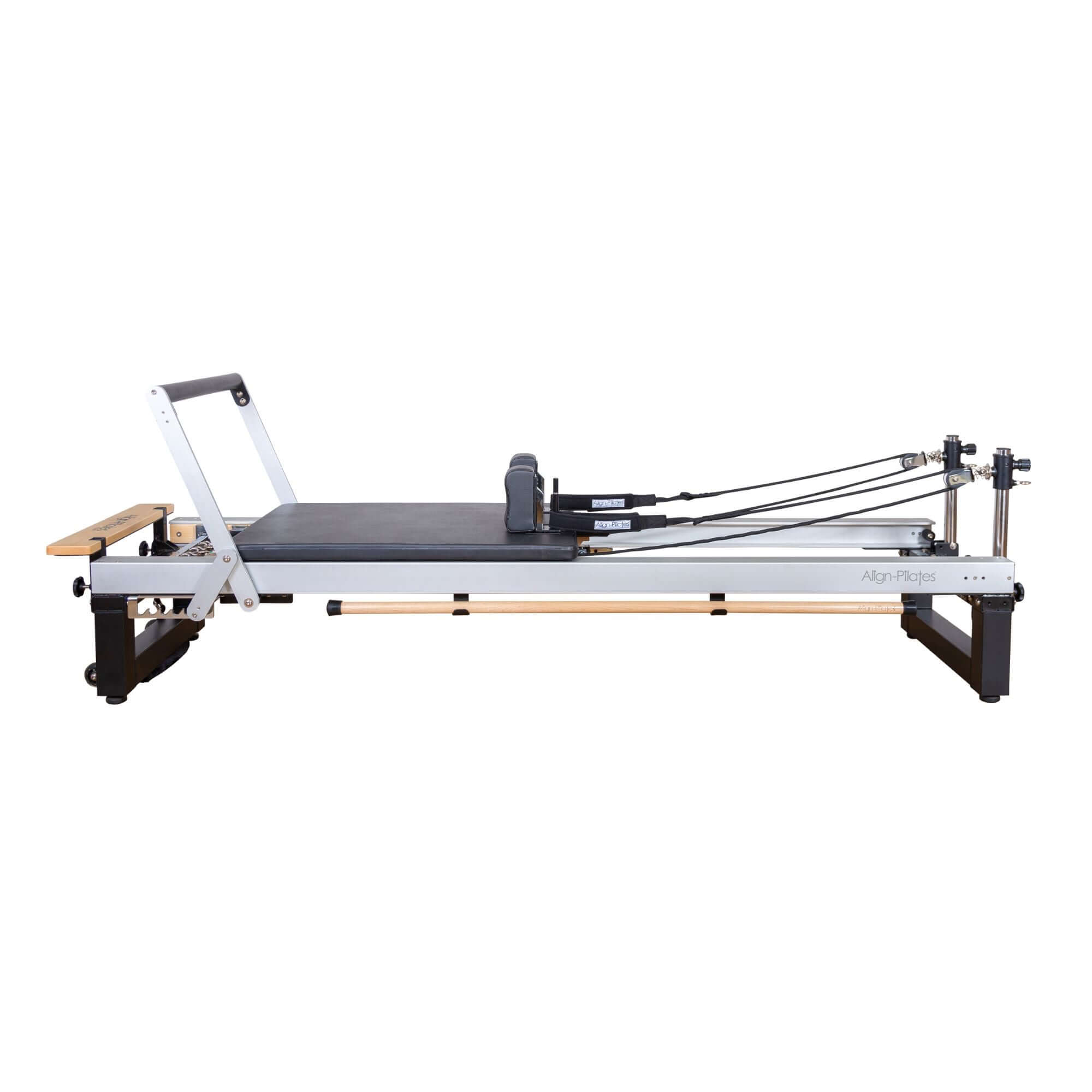

The A8-Pro ships with one of three interchangeable leg sets: low 28cm, standard 42cm, or rehab 64cm. Legs set deck height and nothing else. Travel, spring load, footbar range and exercise repertoire are identical across all three. A second set fits later, but it is a separate part and a bolt-off, bolt-on job with a 75kg frame on its side. If you are unsure, take the standard 42cm: the height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell.
Why buy the A8-Pro from RecovAthlete
We check leg height against the clients you actually teach, and confirm bracket and accessory compatibility against the machine you own, before the order goes in. On a built-to-order freight item, that conversation is worth more than anything else on this page.
The numbers that carry the argument

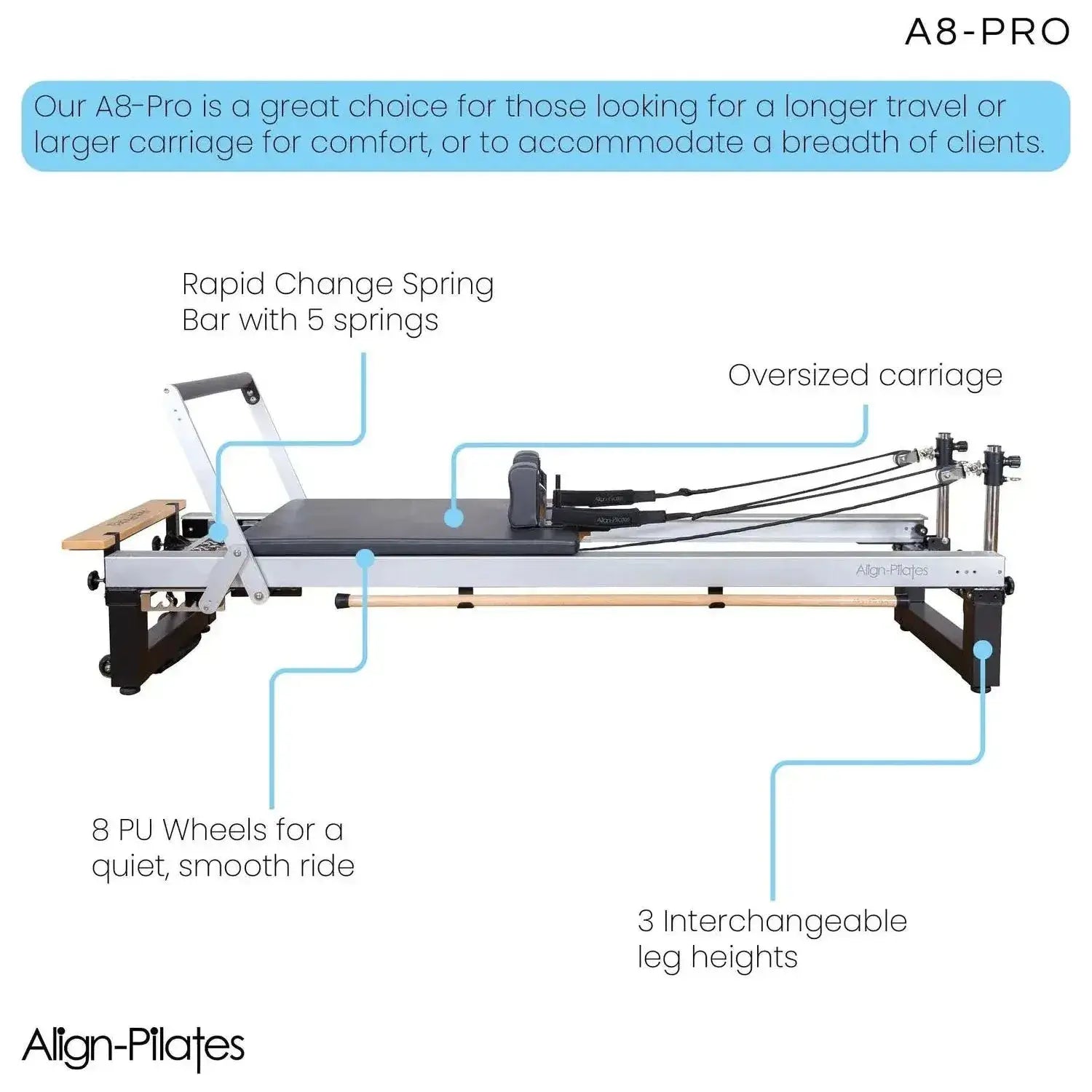

113cm of carriage travel is the headline, and it is a real difference rather than a rounding one: the A8-Pro gives 6.5cm more track than the C8-Pro, which is the difference between a tall client finishing footwork and running out of rail. The carriage itself is 91cm by 67cm, wider than the C-Series bed, so side lying and kneeling work stays stable on broader frames. Underneath, 8 polyurethane wheels run on precision aluminium runners, which spreads load and keeps the ride quiet as the machine ages.
Two details do more daily work than the headline figure. The patent-pending Rapid Change spring bar moves through 4 positions across a 20cm range with one hand, so changing load mid-class costs seconds instead of a reset. And the Silent system, meaning metal-free double loop handles, silent ropes and patented silent pulleys, keeps a room of machines quiet enough to teach over. Align has the A8-Pro independently tested to EN ISO 20957-1:2013 and rates it to a 150kg user.
Room, assembly and what changes later
The frame is 264cm long and 75cm wide, at 42cm on standard legs. It does not fold or stand on end, so it needs a permanent home with walking space at the foot end and one long side. It ships freight on a pallet, part assembled, and at 264cm it will not pass through a doorway once built, so it goes together in its final room. Two people. The rope risers fold down, which is what lets a Half Cadillac frame be added later on the A-Series bracket set, at 199cm, 213cm or 235cm assembled depending on your legs.
Best for, and not ideal for
Best for
- Studios teaching tall clients who run out of track on a shorter machine
- Rehab and physio rooms needing a high deck for transfers and standing work
- Instructors who want deck height matched to the clients they actually see
- Owners planning to add a Half Cadillac frame to the same machine later
Not ideal for
- Anyone who needs to clear the floor between sessions. The A8-Pro does not fold and does not stand upright
- Tight rooms. The frame is 264cm long before you add walk-around space
- Studios that want to change deck height often. Swapping leg sets is a workshop job, not a class-time adjustment
- Buyers who move machines daily. It stacks, but that is a two-person lift on a 75kg frame
Which leg height to choose
This is the only decision on the A8-Pro you cannot easily undo, so it is worth two minutes. Leg height changes how far the deck sits above the floor. What that changes in practice is how clients get on and off, where you stand to cue, and what standing work is sensible.
| Leg set | Deck height | Who it suits, and what to weigh up |
|---|---|---|

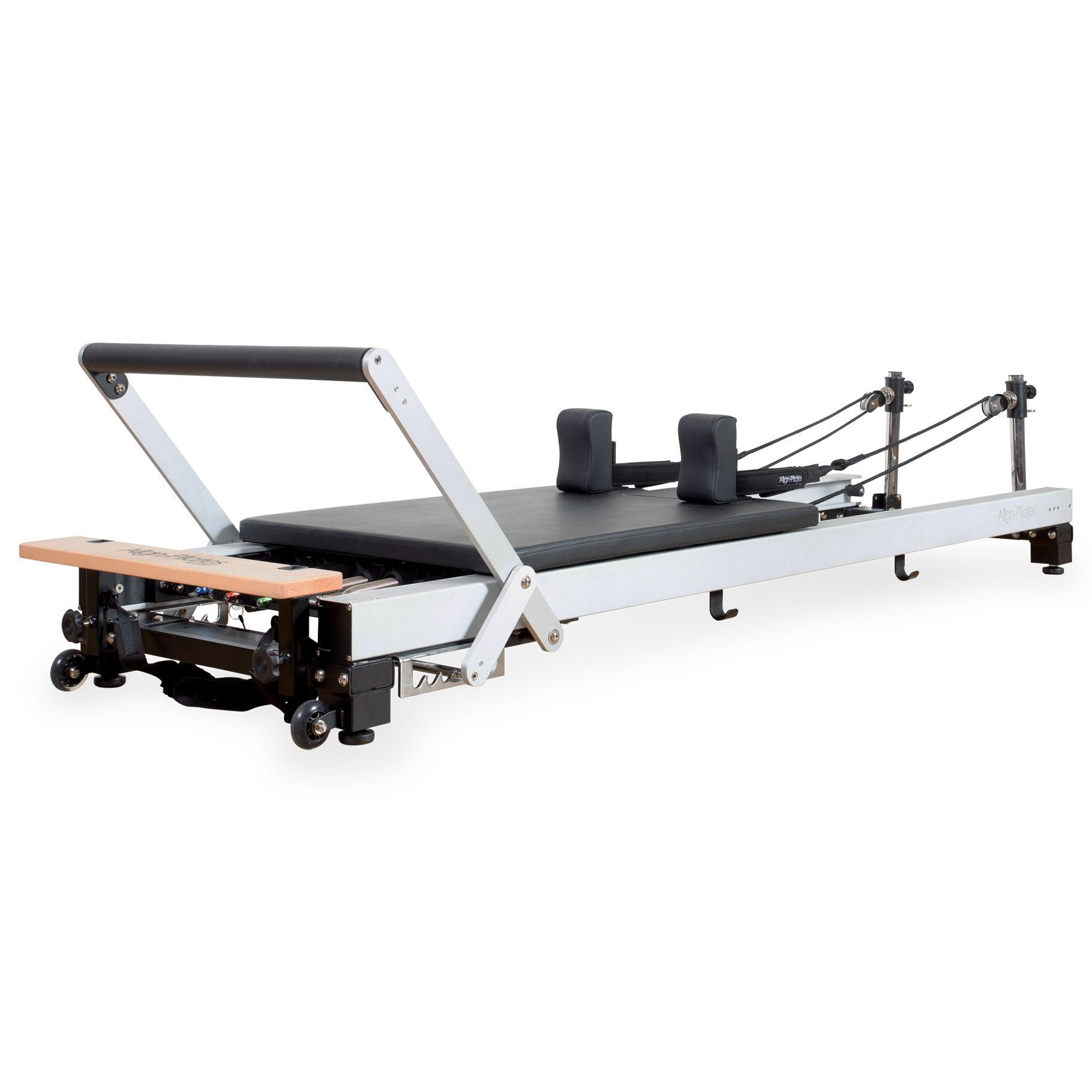

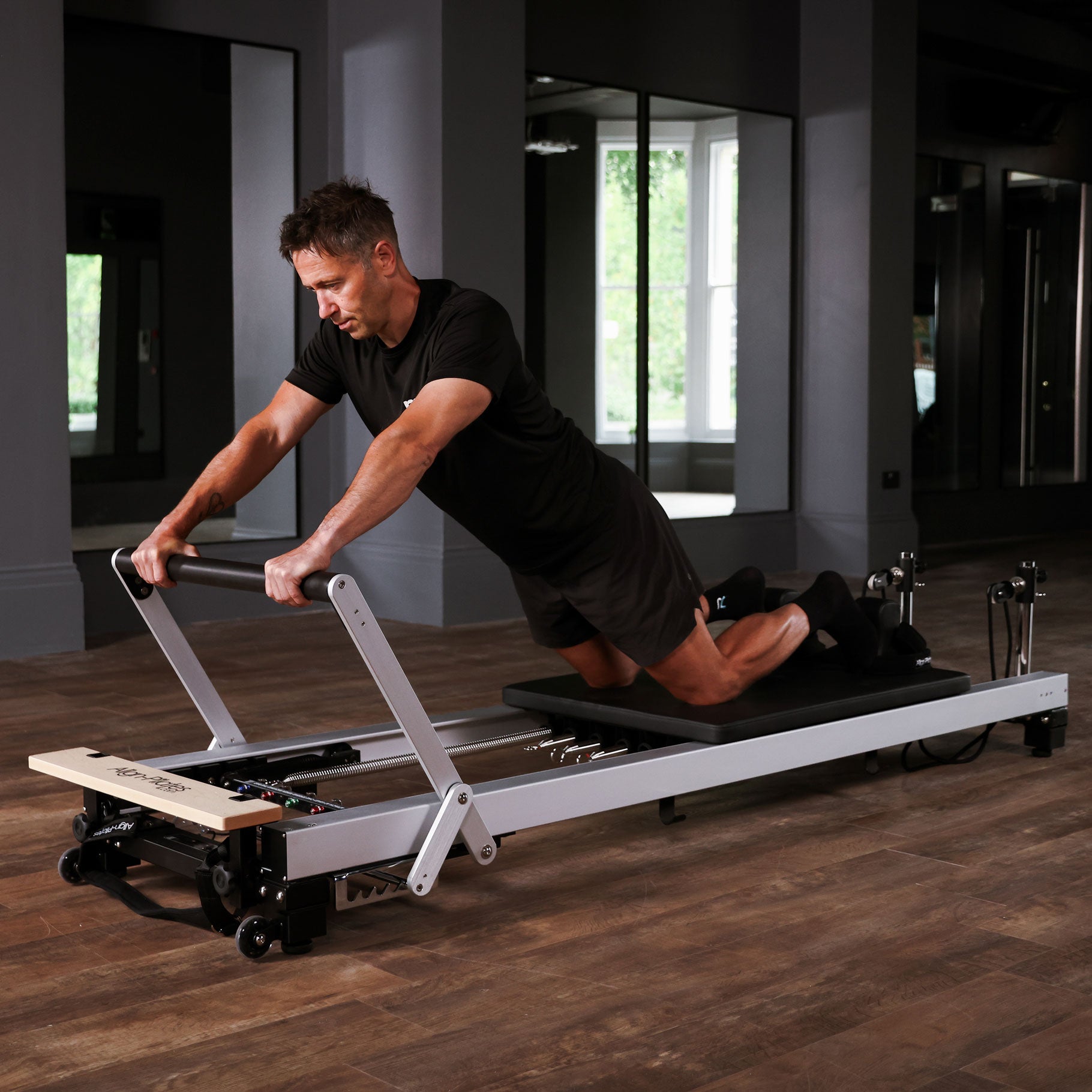

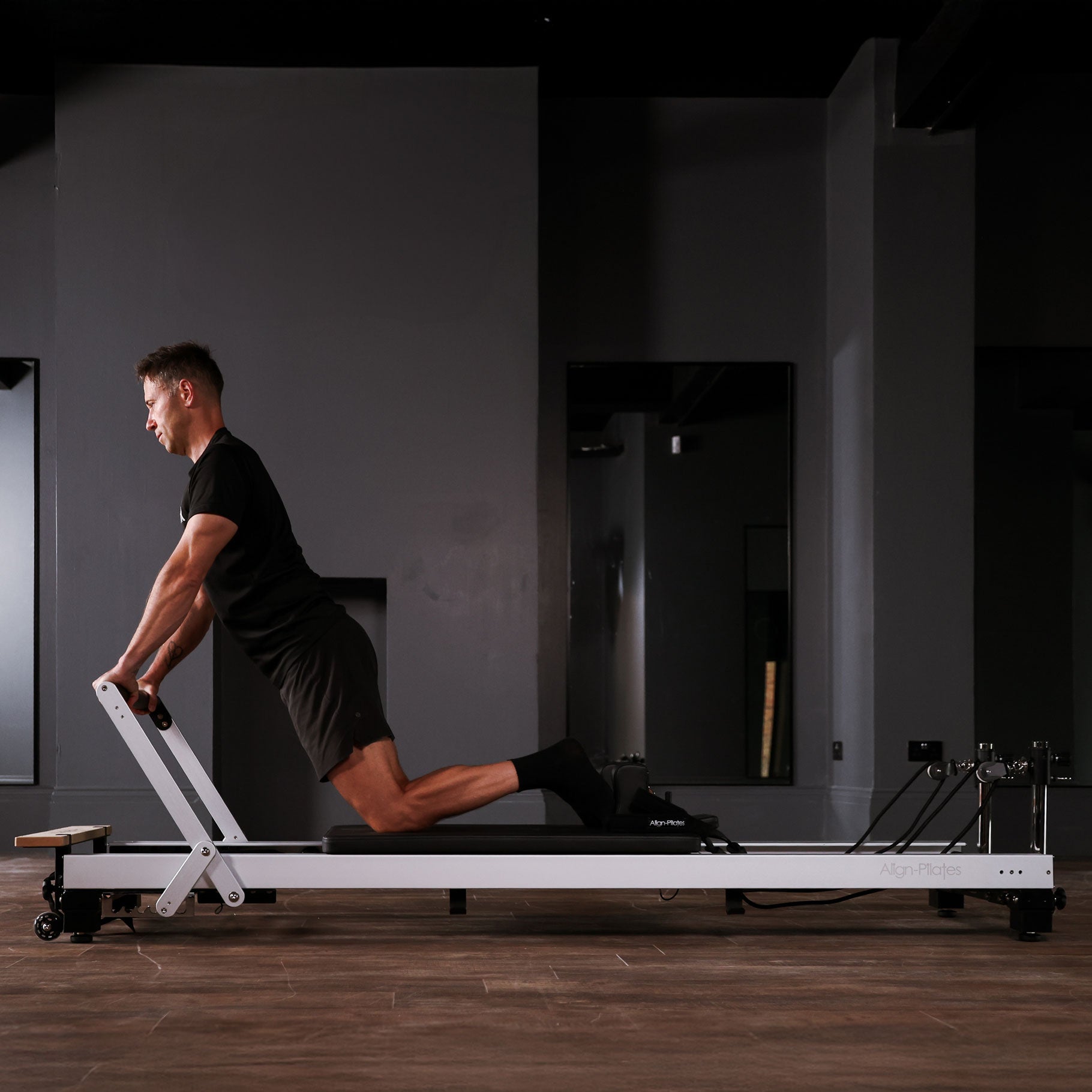

| Low | 28cm | Mat-level and floor work, and programmes that move between the mat and the machine. A deeper squat to get on, which is worth checking for restricted hips or knees. 199cm assembled with a Half Cadillac |

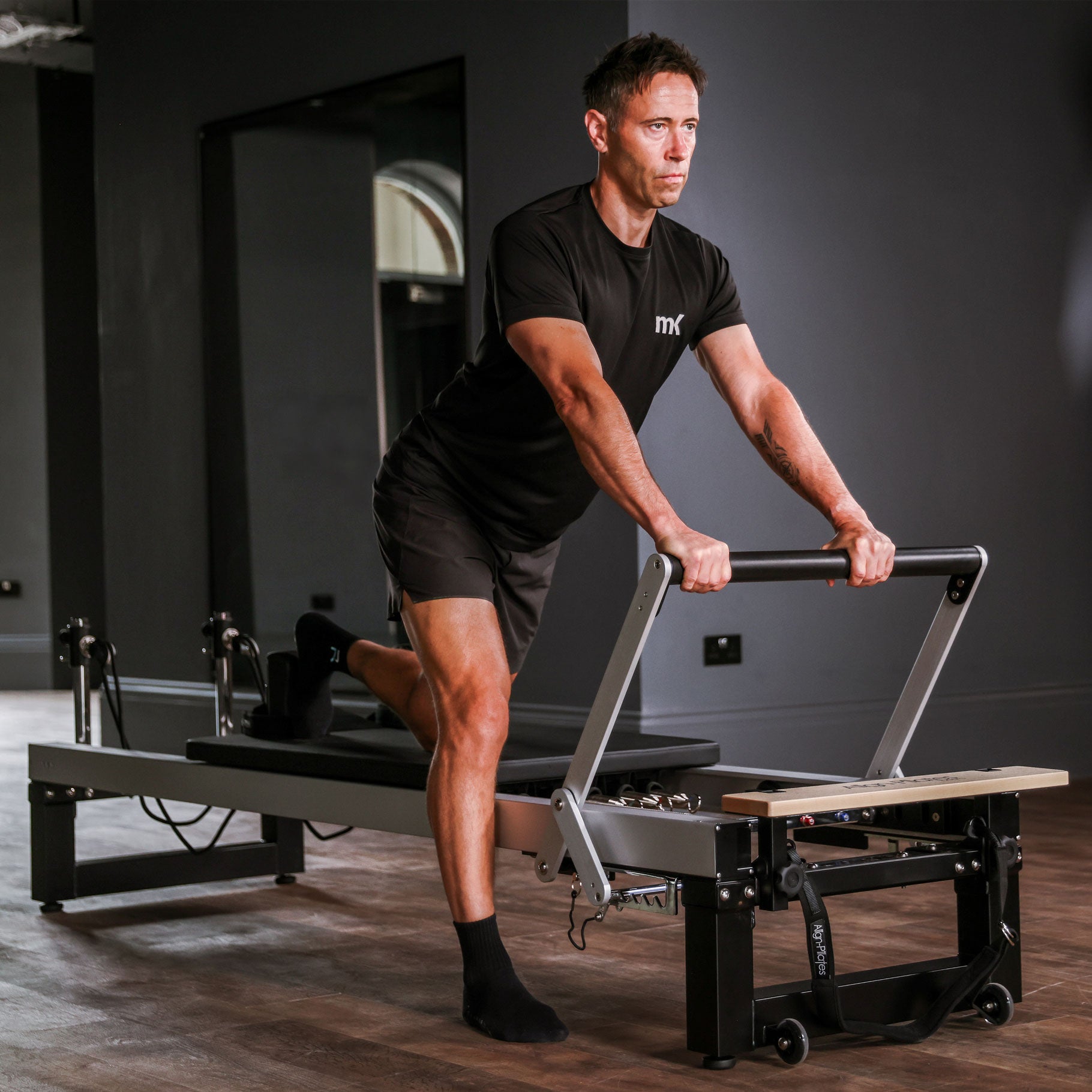

| Standard | 42cm | Most studios and mixed timetables. The height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell. 213cm assembled with a Half Cadillac |

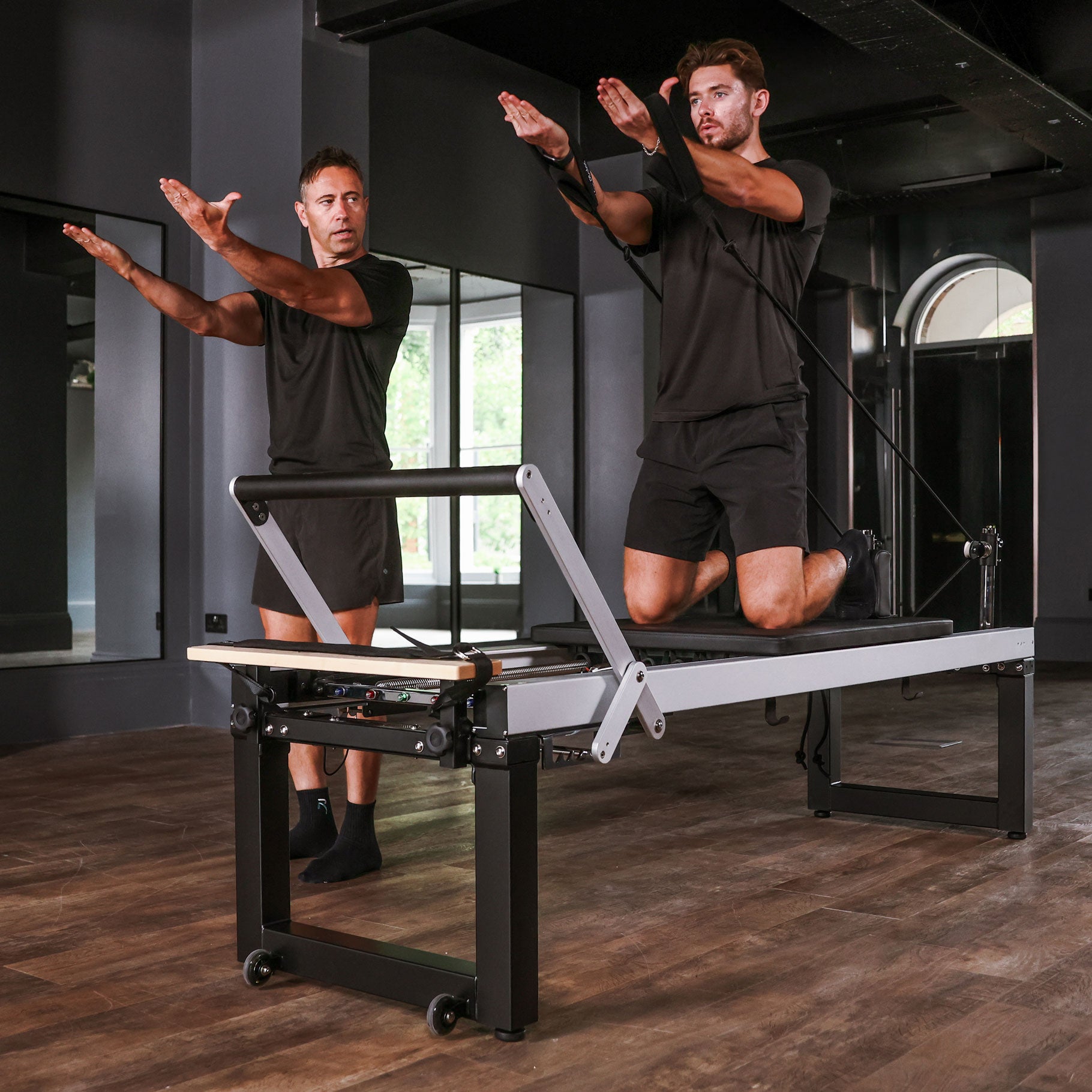

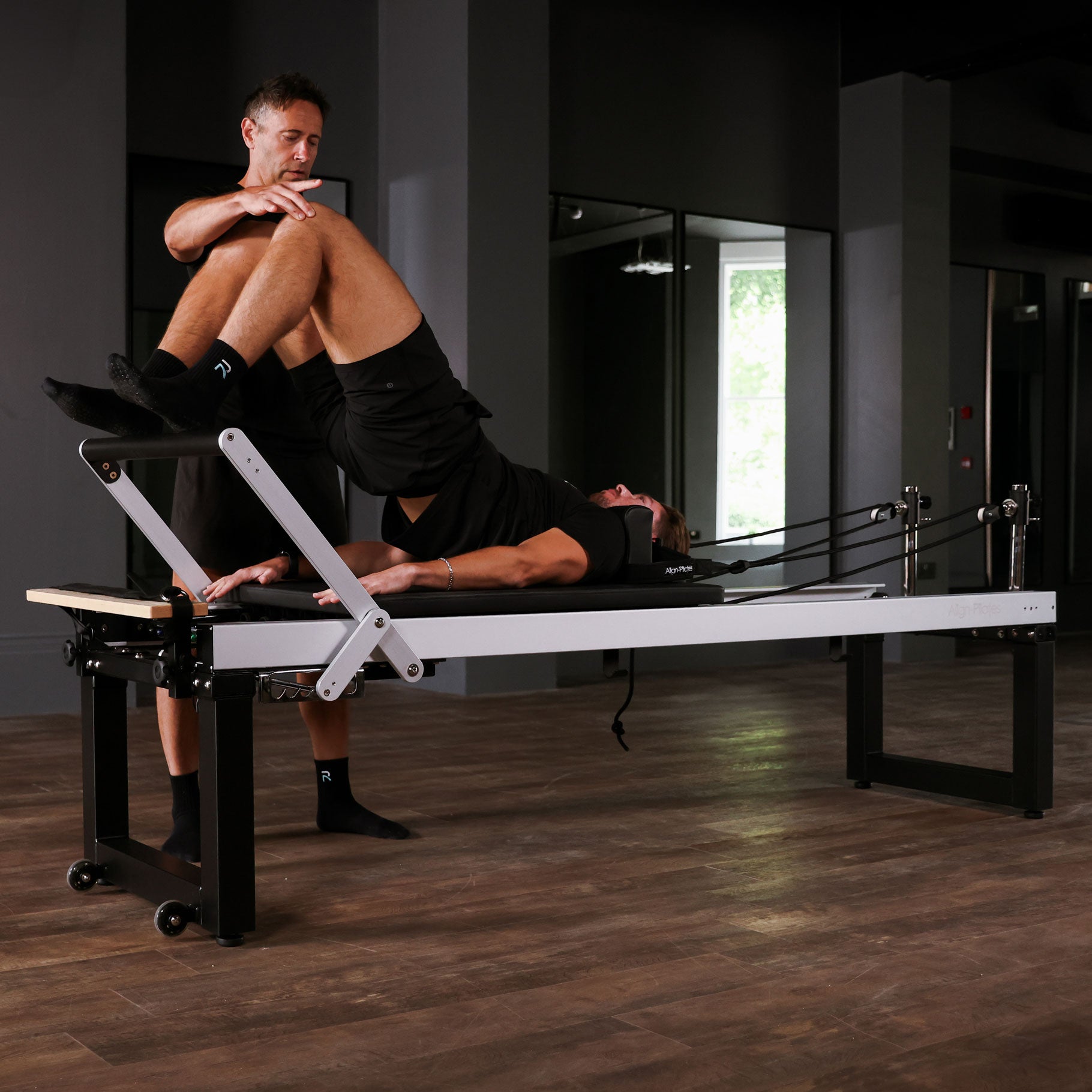

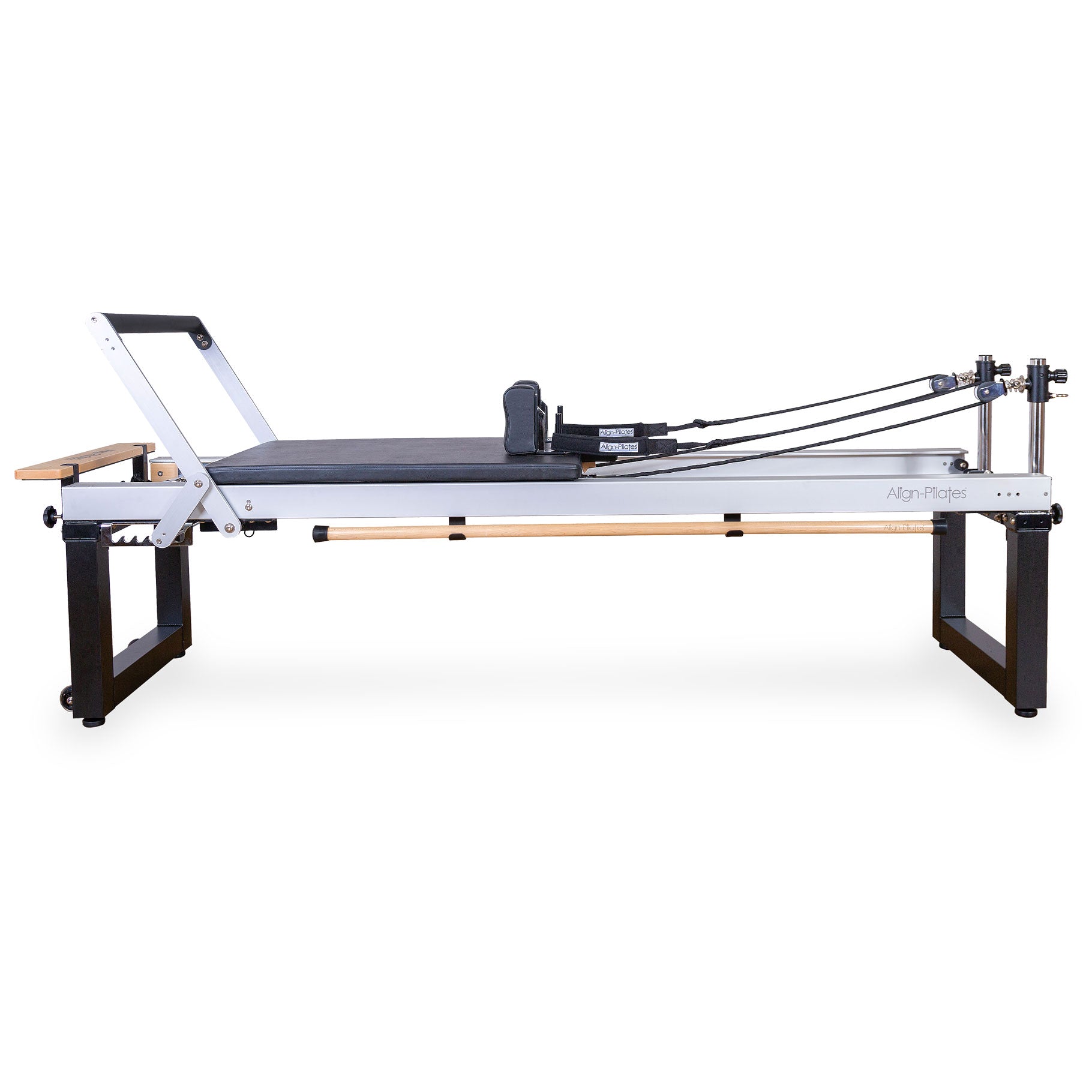

| Rehab | 64cm | Clinical and physio work, older and post-operative clients, sit-to-stand transfers, and standing work at practitioner height. 235cm assembled with a Half Cadillac |
Swipe the table sideways to see every column.
What you get, and the hardware behind it
| What it means in your studio | The hardware behind it |
|---|---|
| A tall client reaches full extension without hitting the stop | 113cm carriage travel, the longest in the Align range |
| Side lying and kneeling work stays stable on broader frames | 91cm by 67cm carriage |
| Spring load changes mid-class in seconds, without unclipping | Rapid Change spring bar, 4 positions across a 20cm range, one-handed |
| A room of machines stays quiet enough to teach over | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Both ropes stay matched, so you are not re-measuring between clients | Pro-Rope adjustment at the head rest, both ropes moving together |
| The machine sits flat on an old studio floor instead of rocking | Adjustable feet on all four corners |
| Quieter under load and less wheel wear across a commercial duty cycle | 8 polyurethane wheels on precision aluminium runners |
| Two shoulder widths without buying a second set of pads | Removable, lockable, off-centred shoulder rests |
Swipe the table sideways to see every column.
Who orders the A8-Pro
- Studio owners who have lost a tall client to a machine that did not fit them
- Physio and rehab practices working at 64cm leg height, where transfers matter more than footprint
- Instructors buying one machine for a mixed timetable who will not compromise on range
- Home buyers with a dedicated room and no plan to move the machine again
- Owners building toward a Cadillac setup on a frame that already takes the tower
Before you order
- Choose your leg height: 28cm, 42cm or 64cm. It is fixed at purchase
- Measure the room for a 264cm by 75cm frame, plus walk-around space on the foot end and one long side
- Check the delivery route: doorway width, lift, stairs and turns. The machine assembles in its final room
- If a Half Cadillac is in your plans, confirm ceiling height against the assembled figure for your leg set
- Lead times on Align-Pilates are confirmed at order. Call and we will give you the current window before you commit
Full specifications
| Specification | Detail |
|---|---|
| Dimensions and weight | |
| Frame dimensions | 264cm L x 75cm W, 42cm H on standard legs |
| Carriage size | 91cm L x 67cm W |
| Carriage travel | 113cm, the longest in the Align-Pilates range |
| Machine weight | 75kg |
| Leg heights | 28cm low, 42cm standard, 64cm rehab, interchangeable |
| Assembled height with Half Cadillac | 199cm low legs, 213cm standard legs, 235cm rehab legs |
| Materials and construction | |

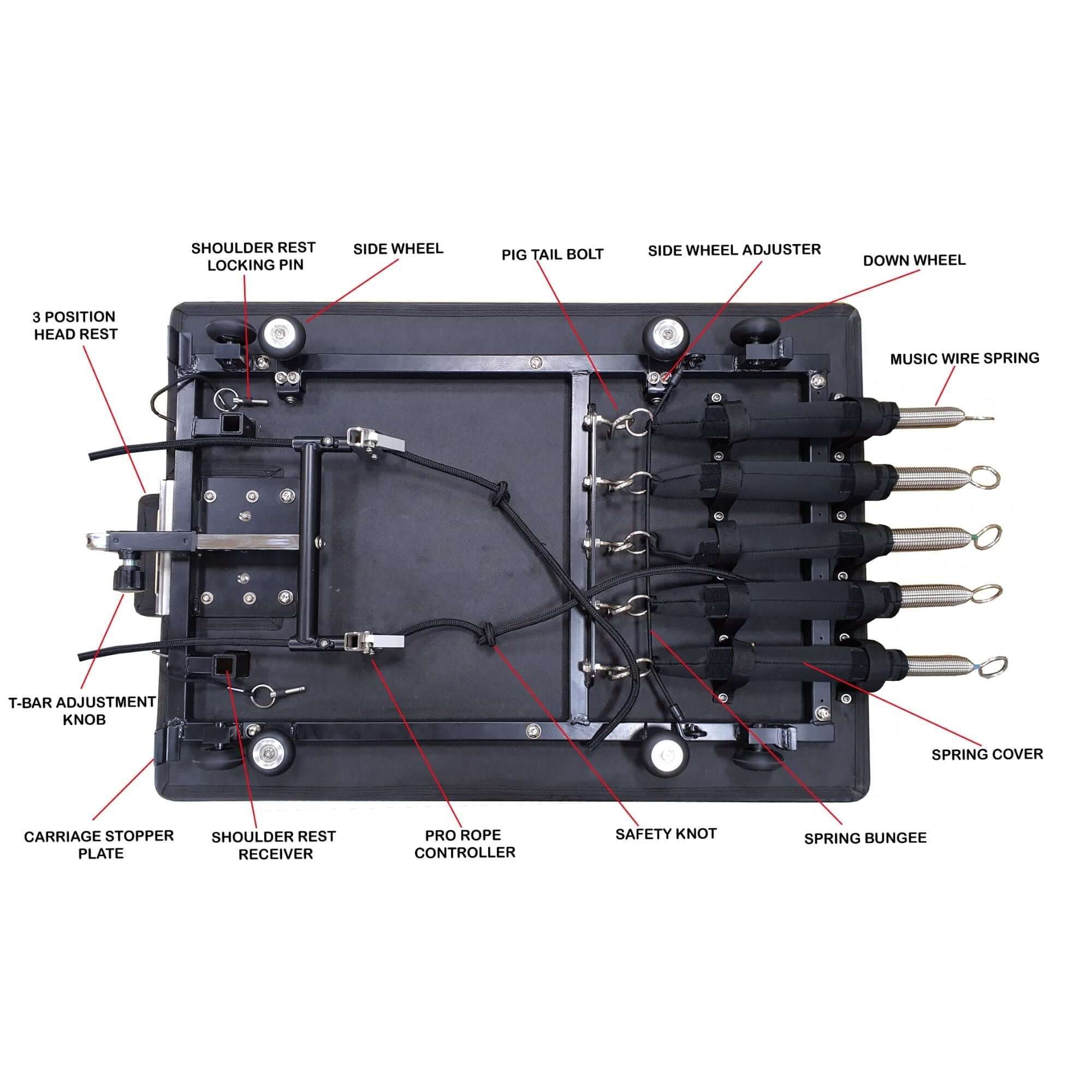

| Frame | Aluminium, with precision aluminium runners |
| Carriage wheels | 8 polyurethane wheels |
| Rope risers | Stainless steel, outside frame, 5 heights, fold down, eyelets for spring attachment |
| Adjustable feet | Yes, all four corners |
| Resistance and adjustment | |
| Spring bar | Rapid Change, patent pending, 4 positions across a 20cm range, one hand with springs attached |
| Springs supplied | 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong |
| Footbar | Oversize lockable, 6 positions including flat |
| Head rest | Adjustable, 3 positions |
| Shoulder rests | Removable, lockable, off-centred for two widths |
| Rope adjustment | Pro-Rope at the head rest, both ropes adjust together |
| Handles and pulleys | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Capacity, storage and certification | |
| Maximum user weight | 150kg |
| Folding | No |
| Standing and stacking | Does not stand upright. Stacks, but it is a two-person lift |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Product codes | PAPREFORMERA8L 28cm, PAPREFORMERA8S 42cm, PAPREFORMERA8R 64cm |
Swipe the table sideways to see every column.
What ships with the A8-Pro
- 1 A8-Pro aluminium frame with the leg set you select, 28cm, 42cm or 64cm
- 1 carriage, 91cm by 67cm, on 8 polyurethane wheels over precision aluminium runners
- 1 Rapid Change spring bar, 4 positions
- 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong
- 1 oversize lockable footbar, 6 positions including flat
- 1 adjustable head rest, 3 positions, and 1 pair of removable lockable shoulder rests
- 1 integral standing platform
- 1 pair of Silent double loop straps
- 1 adjustable Silent foot strap with fluffy cover
- 1 set of stainless steel rope risers, 5 heights, folding
- 1 Pro-Rope adjustment system at the head rest
Sold separately: alternative leg sets in 28cm, 42cm or 64cm; the A-Series jump board for plyometric and cardio work; the A-Series mat converter and platform extender, which are the pair that flattens the carriage into a Cadillac bed; a sitting box for seated, side lying and long box work; plank handles, which clip to the footbar for plank and press work; the Half Cadillac frame PAP-HALFCADA2 with the model-specific A-Series bracket set; and replacement or additional springs. Call and we will confirm the exact part codes against your machine before you order.
A8-Pro, C8-Pro or F3
The C8-Pro is the aluminium studio workhorse, bought when the floor plan is tight and the budget is set. The A8-Pro is the flagship: you give up floor space and you gain 6.5cm of travel, two more footbar positions, a third leg height and a 9cm wider carriage. The F3 is the one to buy if the room has to be cleared between sessions, with the important caveat that Align does not warrant the F3 for commercial use.
| Specification | A8-Pro | C8-Pro | F3 Folding |
|---|---|---|---|
| Carriage travel | 113cm | 106.5cm | 97cm |
| Carriage size | 91 x 67cm | 92 x 58cm | 89 x 58cm |
| Footbar positions | 6, including flat | 4, including flat | 4, including flat |
| Leg heights | 3: 28, 42 and 64cm | 2: 26cm, or 42cm with extensions | None |
| Spring bar | Rapid Change, 4 positions | Rapid Change | Fixed |
| Adjustable feet | Yes | Yes | Yes |
| Folds away | No | No | Yes, to 143.5 x 66 x 49cm |
| Maximum user weight | 150kg | 150kg | 120kg |
| Commercial use | Studio rated, EN ISO 20957-1:2013 | Studio rated, EN ISO 20957-1:2013 | Not warranted for commercial use |
Swipe the table sideways to see every column.
Also consider
If Cadillac repertoire is already on your list, the A8-Pro with Half Cadillac arrives complete in one delivery on standard 42cm legs, with the frame, A-Series brackets, mat converter, platform extender, sitting box and gondola pole. Retrofitting later works, but it means a second freight shipment.
Common questions
I am tall. Which Align reformer has the longest carriage?
Two different numbers get called carriage length, so it is worth separating them. For travel, meaning how far the carriage actually moves, the A8-Pro is the longest in the range at 113cm, against 106.5cm on the C8-Pro and 97cm on the F3, and Align describes it as the longest travel of any standard reformer. For the bed itself, the A8-Pro carriage is 91cm by 67cm, the widest Align builds. Travel is the figure that decides whether a tall client reaches full extension, so that is the one to buy on.
Which leg height do most studios order?
The standard 42cm set. It matches the deck height clients have met in other studios, and it is the height the A8-Pro Half Cadillac bundle ships at. The 28cm and 64cm sets are deliberate choices about how you teach rather than defaults, so take one of those only if floor-level work or clinical transfers are a real part of your timetable.
Can I change the leg height after delivery?
Yes. All three leg sets bolt to the same A8-Pro frame, and you buy the second set separately. Fitting them means tipping a 75kg machine on its side, so plan for two people and treat it as a workshop job rather than something you do between clients.

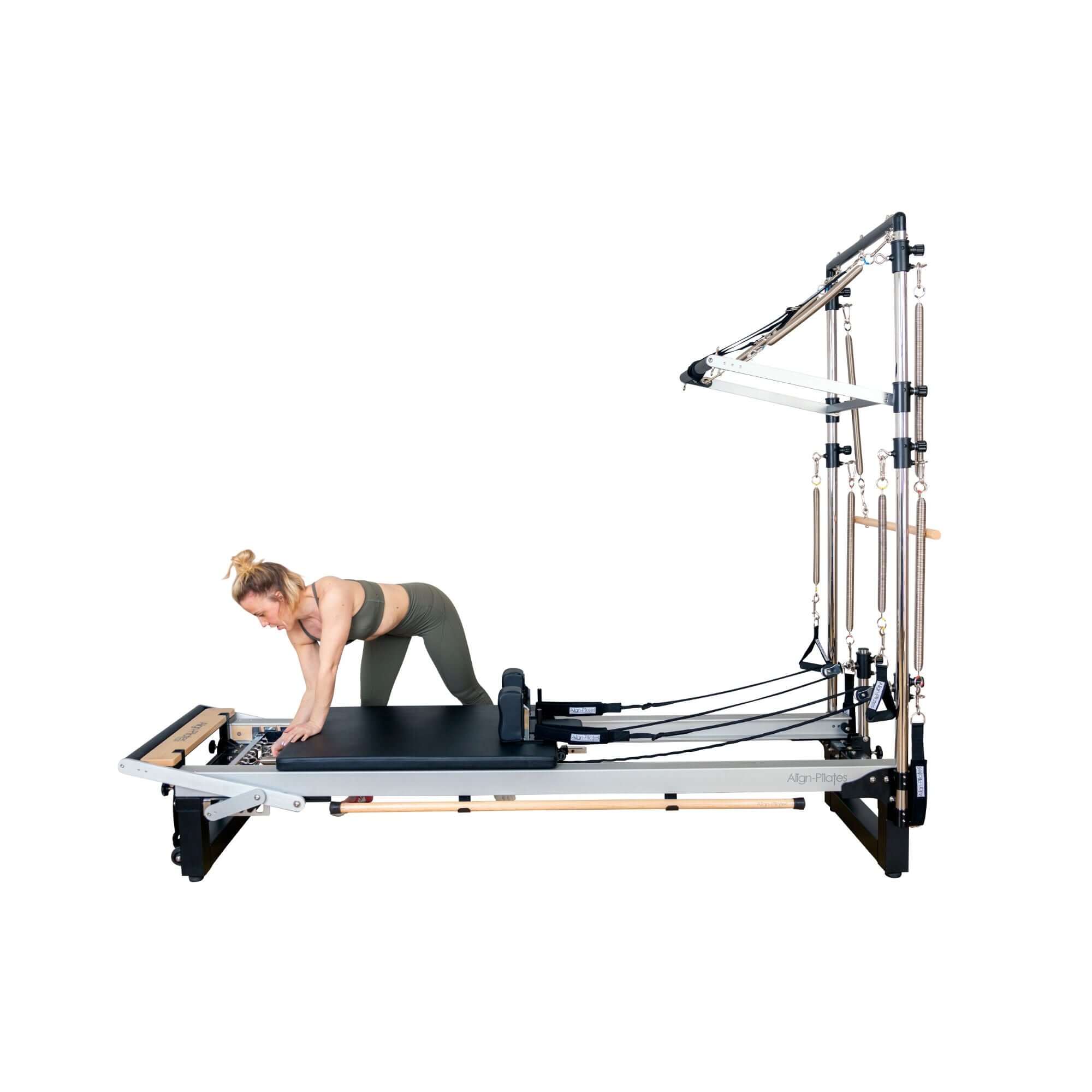

Will the A8-Pro take a Half Cadillac frame?
Yes. The stainless steel rope risers fold down so the frame sits over the machine, held by the A-Series bracket set, which is model specific and not interchangeable with the C-Series or M-Series brackets. Assembled height follows your leg choice: 199cm on low legs, 213cm on standard, 235cm on rehab. Measure to the lowest obstruction in the room, not the highest point of the ceiling.
How much room does the A8-Pro need?
The frame is 264cm long and 75cm wide. Allow clear space at the foot end and along one long side so you can cue and load springs. As a working guide we suggest about 60cm on each of those two sides, which puts the footprint at roughly 3.25m by 1.35m. That is our recommendation rather than an Align specification, and the A8-Pro does not fold or stand upright, so the space is permanent.
Is the A8-Pro rated for commercial studio use?
Yes. Align-Pilates specifies the A8-Pro as a commercial studio machine and has it independently tested to EN ISO 20957-1:2013, with a maximum user weight of 150kg. Align publishes no hours-per-week limit on the A8-Pro, unlike the R8-Pro, so if a duty-cycle figure matters for your insurer, call and we will get it in writing from the distributor.
Video
Assembly guides and the full manual are published by Align-Pilates, and we send the current links with your order confirmation.
Why this is the A8-Pro to buy
If every client fits inside 106.5cm of travel and the room is short, the C8-Pro is the sensible machine and we will say so on the phone. The A8-Pro earns its footprint when the people on it are tall, when a clinical deck height changes who can use the machine at all, or when you want one frame that stays right as the practice changes. The 113cm of track is the part you cannot add later.
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, and we will confirm leg height, bracket compatibility and the delivery route before you order. White glove delivery and in-room assembly are available as a paid add-on.
120% Price Match
Financing
Shipping
Warranty
Align Pilates A8-Pro Pilates Reformer: 113cm of carriage travel, the longest in the Align range
A tall client runs out of track before they run out of movement. Footwork finishes early, long spine gets clipped, and the instructor quietly shortens the exercise to fit the machine rather than the person. The Align Pilates A8-Pro Pilates Reformer removes that compromise, which means the exercise finishes where the body finishes, not where the rail does. At 113cm, its carriage travel is the longest in the Align range, on the widest carriage Align builds at 67cm. If you have been asking which Pilates reformer suits tall clients, travel is the number that answers it, and this is where Align's range tops out.
The problem this machine is built around
Most studio reformers are sized for the average client, and that is usually fine. The trouble starts at the ends of the range. A 190cm athlete pushing into full extension hits the carriage stop before the leg is straight. A rehab client who needs the bed at hip height finds a machine with one fixed height and gives up. Neither is solved by cueing. Both are solved by a longer track and a deck height you choose at purchase.
Leg height is fixed at purchase. Choose it before you add to cart
The A8-Pro ships with one of three interchangeable leg sets: low 28cm, standard 42cm, or rehab 64cm. Legs set deck height and nothing else. Travel, spring load, footbar range and exercise repertoire are identical across all three. A second set fits later, but it is a separate part and a bolt-off, bolt-on job with a 75kg frame on its side. If you are unsure, take the standard 42cm: the height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell.
Why buy the A8-Pro from RecovAthlete
We check leg height against the clients you actually teach, and confirm bracket and accessory compatibility against the machine you own, before the order goes in. On a built-to-order freight item, that conversation is worth more than anything else on this page.
The numbers that carry the argument
113cm of carriage travel is the headline, and it is a real difference rather than a rounding one: the A8-Pro gives 6.5cm more track than the C8-Pro, which is the difference between a tall client finishing footwork and running out of rail. The carriage itself is 91cm by 67cm, wider than the C-Series bed, so side lying and kneeling work stays stable on broader frames. Underneath, 8 polyurethane wheels run on precision aluminium runners, which spreads load and keeps the ride quiet as the machine ages.
Two details do more daily work than the headline figure. The patent-pending Rapid Change spring bar moves through 4 positions across a 20cm range with one hand, so changing load mid-class costs seconds instead of a reset. And the Silent system, meaning metal-free double loop handles, silent ropes and patented silent pulleys, keeps a room of machines quiet enough to teach over. Align has the A8-Pro independently tested to EN ISO 20957-1:2013 and rates it to a 150kg user.
Room, assembly and what changes later
The frame is 264cm long and 75cm wide, at 42cm on standard legs. It does not fold or stand on end, so it needs a permanent home with walking space at the foot end and one long side. It ships freight on a pallet, part assembled, and at 264cm it will not pass through a doorway once built, so it goes together in its final room. Two people. The rope risers fold down, which is what lets a Half Cadillac frame be added later on the A-Series bracket set, at 199cm, 213cm or 235cm assembled depending on your legs.
Best for, and not ideal for
Best for
- Studios teaching tall clients who run out of track on a shorter machine
- Rehab and physio rooms needing a high deck for transfers and standing work
- Instructors who want deck height matched to the clients they actually see
- Owners planning to add a Half Cadillac frame to the same machine later
Not ideal for
- Anyone who needs to clear the floor between sessions. The A8-Pro does not fold and does not stand upright
- Tight rooms. The frame is 264cm long before you add walk-around space
- Studios that want to change deck height often. Swapping leg sets is a workshop job, not a class-time adjustment
- Buyers who move machines daily. It stacks, but that is a two-person lift on a 75kg frame
Which leg height to choose
This is the only decision on the A8-Pro you cannot easily undo, so it is worth two minutes. Leg height changes how far the deck sits above the floor. What that changes in practice is how clients get on and off, where you stand to cue, and what standing work is sensible.
| Leg set | Deck height | Who it suits, and what to weigh up |
|---|---|---|
| Low | 28cm | Mat-level and floor work, and programmes that move between the mat and the machine. A deeper squat to get on, which is worth checking for restricted hips or knees. 199cm assembled with a Half Cadillac |
| Standard | 42cm | Most studios and mixed timetables. The height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell. 213cm assembled with a Half Cadillac |
| Rehab | 64cm | Clinical and physio work, older and post-operative clients, sit-to-stand transfers, and standing work at practitioner height. 235cm assembled with a Half Cadillac |
Swipe the table sideways to see every column.
What you get, and the hardware behind it
| What it means in your studio | The hardware behind it |
|---|---|
| A tall client reaches full extension without hitting the stop | 113cm carriage travel, the longest in the Align range |
| Side lying and kneeling work stays stable on broader frames | 91cm by 67cm carriage |
| Spring load changes mid-class in seconds, without unclipping | Rapid Change spring bar, 4 positions across a 20cm range, one-handed |
| A room of machines stays quiet enough to teach over | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Both ropes stay matched, so you are not re-measuring between clients | Pro-Rope adjustment at the head rest, both ropes moving together |
| The machine sits flat on an old studio floor instead of rocking | Adjustable feet on all four corners |
| Quieter under load and less wheel wear across a commercial duty cycle | 8 polyurethane wheels on precision aluminium runners |
| Two shoulder widths without buying a second set of pads | Removable, lockable, off-centred shoulder rests |
Swipe the table sideways to see every column.
Who orders the A8-Pro
- Studio owners who have lost a tall client to a machine that did not fit them
- Physio and rehab practices working at 64cm leg height, where transfers matter more than footprint
- Instructors buying one machine for a mixed timetable who will not compromise on range
- Home buyers with a dedicated room and no plan to move the machine again
- Owners building toward a Cadillac setup on a frame that already takes the tower
Before you order
- Choose your leg height: 28cm, 42cm or 64cm. It is fixed at purchase
- Measure the room for a 264cm by 75cm frame, plus walk-around space on the foot end and one long side
- Check the delivery route: doorway width, lift, stairs and turns. The machine assembles in its final room
- If a Half Cadillac is in your plans, confirm ceiling height against the assembled figure for your leg set
- Lead times on Align-Pilates are confirmed at order. Call and we will give you the current window before you commit
Full specifications
| Specification | Detail |
|---|---|
| Dimensions and weight | |
| Frame dimensions | 264cm L x 75cm W, 42cm H on standard legs |
| Carriage size | 91cm L x 67cm W |
| Carriage travel | 113cm, the longest in the Align-Pilates range |
| Machine weight | 75kg |
| Leg heights | 28cm low, 42cm standard, 64cm rehab, interchangeable |
| Assembled height with Half Cadillac | 199cm low legs, 213cm standard legs, 235cm rehab legs |
| Materials and construction | |
| Frame | Aluminium, with precision aluminium runners |
| Carriage wheels | 8 polyurethane wheels |
| Rope risers | Stainless steel, outside frame, 5 heights, fold down, eyelets for spring attachment |
| Adjustable feet | Yes, all four corners |
| Resistance and adjustment | |
| Spring bar | Rapid Change, patent pending, 4 positions across a 20cm range, one hand with springs attached |
| Springs supplied | 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong |
| Footbar | Oversize lockable, 6 positions including flat |
| Head rest | Adjustable, 3 positions |
| Shoulder rests | Removable, lockable, off-centred for two widths |
| Rope adjustment | Pro-Rope at the head rest, both ropes adjust together |
| Handles and pulleys | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Capacity, storage and certification | |
| Maximum user weight | 150kg |
| Folding | No |
| Standing and stacking | Does not stand upright. Stacks, but it is a two-person lift |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Product codes | PAPREFORMERA8L 28cm, PAPREFORMERA8S 42cm, PAPREFORMERA8R 64cm |
Swipe the table sideways to see every column.
What ships with the A8-Pro
- 1 A8-Pro aluminium frame with the leg set you select, 28cm, 42cm or 64cm
- 1 carriage, 91cm by 67cm, on 8 polyurethane wheels over precision aluminium runners
- 1 Rapid Change spring bar, 4 positions
- 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong
- 1 oversize lockable footbar, 6 positions including flat
- 1 adjustable head rest, 3 positions, and 1 pair of removable lockable shoulder rests
- 1 integral standing platform
- 1 pair of Silent double loop straps
- 1 adjustable Silent foot strap with fluffy cover
- 1 set of stainless steel rope risers, 5 heights, folding
- 1 Pro-Rope adjustment system at the head rest
Sold separately: alternative leg sets in 28cm, 42cm or 64cm; the A-Series jump board for plyometric and cardio work; the A-Series mat converter and platform extender, which are the pair that flattens the carriage into a Cadillac bed; a sitting box for seated, side lying and long box work; plank handles, which clip to the footbar for plank and press work; the Half Cadillac frame PAP-HALFCADA2 with the model-specific A-Series bracket set; and replacement or additional springs. Call and we will confirm the exact part codes against your machine before you order.
A8-Pro, C8-Pro or F3
The C8-Pro is the aluminium studio workhorse, bought when the floor plan is tight and the budget is set. The A8-Pro is the flagship: you give up floor space and you gain 6.5cm of travel, two more footbar positions, a third leg height and a 9cm wider carriage. The F3 is the one to buy if the room has to be cleared between sessions, with the important caveat that Align does not warrant the F3 for commercial use.
| Specification | A8-Pro | C8-Pro | F3 Folding |
|---|---|---|---|
| Carriage travel | 113cm | 106.5cm | 97cm |
| Carriage size | 91 x 67cm | 92 x 58cm | 89 x 58cm |
| Footbar positions | 6, including flat | 4, including flat | 4, including flat |
| Leg heights | 3: 28, 42 and 64cm | 2: 26cm, or 42cm with extensions | None |
| Spring bar | Rapid Change, 4 positions | Rapid Change | Fixed |
| Adjustable feet | Yes | Yes | Yes |
| Folds away | No | No | Yes, to 143.5 x 66 x 49cm |
| Maximum user weight | 150kg | 150kg | 120kg |
| Commercial use | Studio rated, EN ISO 20957-1:2013 | Studio rated, EN ISO 20957-1:2013 | Not warranted for commercial use |
Swipe the table sideways to see every column.
Also consider
If Cadillac repertoire is already on your list, the A8-Pro with Half Cadillac arrives complete in one delivery on standard 42cm legs, with the frame, A-Series brackets, mat converter, platform extender, sitting box and gondola pole. Retrofitting later works, but it means a second freight shipment.
Common questions
I am tall. Which Align reformer has the longest carriage?
Two different numbers get called carriage length, so it is worth separating them. For travel, meaning how far the carriage actually moves, the A8-Pro is the longest in the range at 113cm, against 106.5cm on the C8-Pro and 97cm on the F3, and Align describes it as the longest travel of any standard reformer. For the bed itself, the A8-Pro carriage is 91cm by 67cm, the widest Align builds. Travel is the figure that decides whether a tall client reaches full extension, so that is the one to buy on.
Which leg height do most studios order?
The standard 42cm set. It matches the deck height clients have met in other studios, and it is the height the A8-Pro Half Cadillac bundle ships at. The 28cm and 64cm sets are deliberate choices about how you teach rather than defaults, so take one of those only if floor-level work or clinical transfers are a real part of your timetable.
Can I change the leg height after delivery?
Yes. All three leg sets bolt to the same A8-Pro frame, and you buy the second set separately. Fitting them means tipping a 75kg machine on its side, so plan for two people and treat it as a workshop job rather than something you do between clients.
Will the A8-Pro take a Half Cadillac frame?
Yes. The stainless steel rope risers fold down so the frame sits over the machine, held by the A-Series bracket set, which is model specific and not interchangeable with the C-Series or M-Series brackets. Assembled height follows your leg choice: 199cm on low legs, 213cm on standard, 235cm on rehab. Measure to the lowest obstruction in the room, not the highest point of the ceiling.
How much room does the A8-Pro need?
The frame is 264cm long and 75cm wide. Allow clear space at the foot end and along one long side so you can cue and load springs. As a working guide we suggest about 60cm on each of those two sides, which puts the footprint at roughly 3.25m by 1.35m. That is our recommendation rather than an Align specification, and the A8-Pro does not fold or stand upright, so the space is permanent.
Is the A8-Pro rated for commercial studio use?
Yes. Align-Pilates specifies the A8-Pro as a commercial studio machine and has it independently tested to EN ISO 20957-1:2013, with a maximum user weight of 150kg. Align publishes no hours-per-week limit on the A8-Pro, unlike the R8-Pro, so if a duty-cycle figure matters for your insurer, call and we will get it in writing from the distributor.
Video
Assembly guides and the full manual are published by Align-Pilates, and we send the current links with your order confirmation.
Why this is the A8-Pro to buy
If every client fits inside 106.5cm of travel and the room is short, the C8-Pro is the sensible machine and we will say so on the phone. The A8-Pro earns its footprint when the people on it are tall, when a clinical deck height changes who can use the machine at all, or when you want one frame that stays right as the practice changes. The 113cm of track is the part you cannot add later.
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, and we will confirm leg height, bracket compatibility and the delivery route before you order. White glove delivery and in-room assembly are available as a paid add-on.
RecovAthlete's 120% Price Match Guarantee: Shop With Unmatched Confidence
At RecovAthlete, we're here to support your recovery and performance goals, without overpaying. Our 120% Price Match Guarantee makes sure you always get the best deal. If you find a lower price, not only will we match it, we'll beat it by adding 20% of the price difference back to your refund.
How It Works
- 60-Day Window: If you find the same item at a lower price from an authorized competitor within 60 days of your purchase, we'll match it.
- We Add 20%: Besides matching the price, we give you 20% of the difference back.
- Same Currency: Price comparisons must be in the same currency as your original purchase.
- MAP Policy Required: The competitor must be an authorized dealer of the product and follow a Minimum Advertised Price (MAP) policy set by the manufacturer.
Terms and Conditions
- Eligible Products: Must be the same model, SKU, and from an authorized seller.
- Verifiable Prices: We compare total verifiable selling prices (excluding taxes), including shipping.
- Manual Review: Our team reviews all claims for validity and eligibility.
Exclusions
- Used, refurbished, or secondary-market products
- Wholesale, contract, or below-cost pricing
- Marketplace sellers (Amazon, Walmart, Costco, etc.)
- Flash sales, closeouts, clearance, or limited-time promos
- Price matches can't be combined with other RecovAthlete discounts or offers
Our Ethical Pricing Pledge
We don't undercut manufacturers or sell below cost. We follow ethical pricing standards prioritizing fairness, brand integrity, and long-term trust.
How to Submit a Claim
- Get Proof: A screenshot, ad, or live link showing the competitor's lower price.
- Send Details: Include your order number, the product name, and the competitor info.
- Submit via Contact Page: contact the RecovAthlete team.
- Processing: Allow up to 6 weeks for verification and refund processing.
With our 120% Price Match Guarantee, you can shop knowing you'll never miss out on a better deal, because we'll beat it.
Align Pilates A8-Pro Pilates Reformer: 113cm of carriage travel, the longest in the Align range
A tall client runs out of track before they run out of movement. Footwork finishes early, long spine gets clipped, and the instructor quietly shortens the exercise to fit the machine rather than the person. The Align Pilates A8-Pro Pilates Reformer removes that compromise, which means the exercise finishes where the body finishes, not where the rail does. At 113cm, its carriage travel is the longest in the Align range, on the widest carriage Align builds at 67cm. If you have been asking which Pilates reformer suits tall clients, travel is the number that answers it, and this is where Align's range tops out.
The problem this machine is built around
Most studio reformers are sized for the average client, and that is usually fine. The trouble starts at the ends of the range. A 190cm athlete pushing into full extension hits the carriage stop before the leg is straight. A rehab client who needs the bed at hip height finds a machine with one fixed height and gives up. Neither is solved by cueing. Both are solved by a longer track and a deck height you choose at purchase.
Leg height is fixed at purchase. Choose it before you add to cart
The A8-Pro ships with one of three interchangeable leg sets: low 28cm, standard 42cm, or rehab 64cm. Legs set deck height and nothing else. Travel, spring load, footbar range and exercise repertoire are identical across all three. A second set fits later, but it is a separate part and a bolt-off, bolt-on job with a 75kg frame on its side. If you are unsure, take the standard 42cm: the height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell.
Why buy the A8-Pro from RecovAthlete
We check leg height against the clients you actually teach, and confirm bracket and accessory compatibility against the machine you own, before the order goes in. On a built-to-order freight item, that conversation is worth more than anything else on this page.
The numbers that carry the argument
113cm of carriage travel is the headline, and it is a real difference rather than a rounding one: the A8-Pro gives 6.5cm more track than the C8-Pro, which is the difference between a tall client finishing footwork and running out of rail. The carriage itself is 91cm by 67cm, wider than the C-Series bed, so side lying and kneeling work stays stable on broader frames. Underneath, 8 polyurethane wheels run on precision aluminium runners, which spreads load and keeps the ride quiet as the machine ages.
Two details do more daily work than the headline figure. The patent-pending Rapid Change spring bar moves through 4 positions across a 20cm range with one hand, so changing load mid-class costs seconds instead of a reset. And the Silent system, meaning metal-free double loop handles, silent ropes and patented silent pulleys, keeps a room of machines quiet enough to teach over. Align has the A8-Pro independently tested to EN ISO 20957-1:2013 and rates it to a 150kg user.
Room, assembly and what changes later
The frame is 264cm long and 75cm wide, at 42cm on standard legs. It does not fold or stand on end, so it needs a permanent home with walking space at the foot end and one long side. It ships freight on a pallet, part assembled, and at 264cm it will not pass through a doorway once built, so it goes together in its final room. Two people. The rope risers fold down, which is what lets a Half Cadillac frame be added later on the A-Series bracket set, at 199cm, 213cm or 235cm assembled depending on your legs.
Best for, and not ideal for
Best for
- Studios teaching tall clients who run out of track on a shorter machine
- Rehab and physio rooms needing a high deck for transfers and standing work
- Instructors who want deck height matched to the clients they actually see
- Owners planning to add a Half Cadillac frame to the same machine later
Not ideal for
- Anyone who needs to clear the floor between sessions. The A8-Pro does not fold and does not stand upright
- Tight rooms. The frame is 264cm long before you add walk-around space
- Studios that want to change deck height often. Swapping leg sets is a workshop job, not a class-time adjustment
- Buyers who move machines daily. It stacks, but that is a two-person lift on a 75kg frame
Which leg height to choose
This is the only decision on the A8-Pro you cannot easily undo, so it is worth two minutes. Leg height changes how far the deck sits above the floor. What that changes in practice is how clients get on and off, where you stand to cue, and what standing work is sensible.
| Leg set | Deck height | Who it suits, and what to weigh up |
|---|---|---|
| Low | 28cm | Mat-level and floor work, and programmes that move between the mat and the machine. A deeper squat to get on, which is worth checking for restricted hips or knees. 199cm assembled with a Half Cadillac |
| Standard | 42cm | Most studios and mixed timetables. The height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell. 213cm assembled with a Half Cadillac |
| Rehab | 64cm | Clinical and physio work, older and post-operative clients, sit-to-stand transfers, and standing work at practitioner height. 235cm assembled with a Half Cadillac |
Swipe the table sideways to see every column.
What you get, and the hardware behind it
| What it means in your studio | The hardware behind it |
|---|---|
| A tall client reaches full extension without hitting the stop | 113cm carriage travel, the longest in the Align range |
| Side lying and kneeling work stays stable on broader frames | 91cm by 67cm carriage |
| Spring load changes mid-class in seconds, without unclipping | Rapid Change spring bar, 4 positions across a 20cm range, one-handed |
| A room of machines stays quiet enough to teach over | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Both ropes stay matched, so you are not re-measuring between clients | Pro-Rope adjustment at the head rest, both ropes moving together |
| The machine sits flat on an old studio floor instead of rocking | Adjustable feet on all four corners |
| Quieter under load and less wheel wear across a commercial duty cycle | 8 polyurethane wheels on precision aluminium runners |
| Two shoulder widths without buying a second set of pads | Removable, lockable, off-centred shoulder rests |
Swipe the table sideways to see every column.
Who orders the A8-Pro
- Studio owners who have lost a tall client to a machine that did not fit them
- Physio and rehab practices working at 64cm leg height, where transfers matter more than footprint
- Instructors buying one machine for a mixed timetable who will not compromise on range
- Home buyers with a dedicated room and no plan to move the machine again
- Owners building toward a Cadillac setup on a frame that already takes the tower
Before you order
- Choose your leg height: 28cm, 42cm or 64cm. It is fixed at purchase
- Measure the room for a 264cm by 75cm frame, plus walk-around space on the foot end and one long side
- Check the delivery route: doorway width, lift, stairs and turns. The machine assembles in its final room
- If a Half Cadillac is in your plans, confirm ceiling height against the assembled figure for your leg set
- Lead times on Align-Pilates are confirmed at order. Call and we will give you the current window before you commit
Full specifications
| Specification | Detail |
|---|---|
| Dimensions and weight | |
| Frame dimensions | 264cm L x 75cm W, 42cm H on standard legs |
| Carriage size | 91cm L x 67cm W |
| Carriage travel | 113cm, the longest in the Align-Pilates range |
| Machine weight | 75kg |
| Leg heights | 28cm low, 42cm standard, 64cm rehab, interchangeable |
| Assembled height with Half Cadillac | 199cm low legs, 213cm standard legs, 235cm rehab legs |
| Materials and construction | |
| Frame | Aluminium, with precision aluminium runners |
| Carriage wheels | 8 polyurethane wheels |
| Rope risers | Stainless steel, outside frame, 5 heights, fold down, eyelets for spring attachment |
| Adjustable feet | Yes, all four corners |
| Resistance and adjustment | |
| Spring bar | Rapid Change, patent pending, 4 positions across a 20cm range, one hand with springs attached |
| Springs supplied | 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong |
| Footbar | Oversize lockable, 6 positions including flat |
| Head rest | Adjustable, 3 positions |
| Shoulder rests | Removable, lockable, off-centred for two widths |
| Rope adjustment | Pro-Rope at the head rest, both ropes adjust together |
| Handles and pulleys | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Capacity, storage and certification | |
| Maximum user weight | 150kg |
| Folding | No |
| Standing and stacking | Does not stand upright. Stacks, but it is a two-person lift |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Product codes | PAPREFORMERA8L 28cm, PAPREFORMERA8S 42cm, PAPREFORMERA8R 64cm |
Swipe the table sideways to see every column.
What ships with the A8-Pro
- 1 A8-Pro aluminium frame with the leg set you select, 28cm, 42cm or 64cm
- 1 carriage, 91cm by 67cm, on 8 polyurethane wheels over precision aluminium runners
- 1 Rapid Change spring bar, 4 positions
- 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong
- 1 oversize lockable footbar, 6 positions including flat
- 1 adjustable head rest, 3 positions, and 1 pair of removable lockable shoulder rests
- 1 integral standing platform
- 1 pair of Silent double loop straps
- 1 adjustable Silent foot strap with fluffy cover
- 1 set of stainless steel rope risers, 5 heights, folding
- 1 Pro-Rope adjustment system at the head rest
Sold separately: alternative leg sets in 28cm, 42cm or 64cm; the A-Series jump board for plyometric and cardio work; the A-Series mat converter and platform extender, which are the pair that flattens the carriage into a Cadillac bed; a sitting box for seated, side lying and long box work; plank handles, which clip to the footbar for plank and press work; the Half Cadillac frame PAP-HALFCADA2 with the model-specific A-Series bracket set; and replacement or additional springs. Call and we will confirm the exact part codes against your machine before you order.
A8-Pro, C8-Pro or F3
The C8-Pro is the aluminium studio workhorse, bought when the floor plan is tight and the budget is set. The A8-Pro is the flagship: you give up floor space and you gain 6.5cm of travel, two more footbar positions, a third leg height and a 9cm wider carriage. The F3 is the one to buy if the room has to be cleared between sessions, with the important caveat that Align does not warrant the F3 for commercial use.
| Specification | A8-Pro | C8-Pro | F3 Folding |
|---|---|---|---|
| Carriage travel | 113cm | 106.5cm | 97cm |
| Carriage size | 91 x 67cm | 92 x 58cm | 89 x 58cm |
| Footbar positions | 6, including flat | 4, including flat | 4, including flat |
| Leg heights | 3: 28, 42 and 64cm | 2: 26cm, or 42cm with extensions | None |
| Spring bar | Rapid Change, 4 positions | Rapid Change | Fixed |
| Adjustable feet | Yes | Yes | Yes |
| Folds away | No | No | Yes, to 143.5 x 66 x 49cm |
| Maximum user weight | 150kg | 150kg | 120kg |
| Commercial use | Studio rated, EN ISO 20957-1:2013 | Studio rated, EN ISO 20957-1:2013 | Not warranted for commercial use |
Swipe the table sideways to see every column.
Also consider
If Cadillac repertoire is already on your list, the A8-Pro with Half Cadillac arrives complete in one delivery on standard 42cm legs, with the frame, A-Series brackets, mat converter, platform extender, sitting box and gondola pole. Retrofitting later works, but it means a second freight shipment.
Common questions
I am tall. Which Align reformer has the longest carriage?
Two different numbers get called carriage length, so it is worth separating them. For travel, meaning how far the carriage actually moves, the A8-Pro is the longest in the range at 113cm, against 106.5cm on the C8-Pro and 97cm on the F3, and Align describes it as the longest travel of any standard reformer. For the bed itself, the A8-Pro carriage is 91cm by 67cm, the widest Align builds. Travel is the figure that decides whether a tall client reaches full extension, so that is the one to buy on.
Which leg height do most studios order?
The standard 42cm set. It matches the deck height clients have met in other studios, and it is the height the A8-Pro Half Cadillac bundle ships at. The 28cm and 64cm sets are deliberate choices about how you teach rather than defaults, so take one of those only if floor-level work or clinical transfers are a real part of your timetable.
Can I change the leg height after delivery?
Yes. All three leg sets bolt to the same A8-Pro frame, and you buy the second set separately. Fitting them means tipping a 75kg machine on its side, so plan for two people and treat it as a workshop job rather than something you do between clients.
Will the A8-Pro take a Half Cadillac frame?
Yes. The stainless steel rope risers fold down so the frame sits over the machine, held by the A-Series bracket set, which is model specific and not interchangeable with the C-Series or M-Series brackets. Assembled height follows your leg choice: 199cm on low legs, 213cm on standard, 235cm on rehab. Measure to the lowest obstruction in the room, not the highest point of the ceiling.
How much room does the A8-Pro need?
The frame is 264cm long and 75cm wide. Allow clear space at the foot end and along one long side so you can cue and load springs. As a working guide we suggest about 60cm on each of those two sides, which puts the footprint at roughly 3.25m by 1.35m. That is our recommendation rather than an Align specification, and the A8-Pro does not fold or stand upright, so the space is permanent.
Is the A8-Pro rated for commercial studio use?
Yes. Align-Pilates specifies the A8-Pro as a commercial studio machine and has it independently tested to EN ISO 20957-1:2013, with a maximum user weight of 150kg. Align publishes no hours-per-week limit on the A8-Pro, unlike the R8-Pro, so if a duty-cycle figure matters for your insurer, call and we will get it in writing from the distributor.
Video
Assembly guides and the full manual are published by Align-Pilates, and we send the current links with your order confirmation.
Why this is the A8-Pro to buy
If every client fits inside 106.5cm of travel and the room is short, the C8-Pro is the sensible machine and we will say so on the phone. The A8-Pro earns its footprint when the people on it are tall, when a clinical deck height changes who can use the machine at all, or when you want one frame that stays right as the practice changes. The 113cm of track is the part you cannot add later.
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, and we will confirm leg height, bracket compatibility and the delivery route before you order. White glove delivery and in-room assembly are available as a paid add-on.
Financing for Recovery and Fitness Equipment
Buying for yourself, spread the cost through Affirm at checkout. Buying for a gym, clinic, spa, or studio, apply with one of four business lenders and put the whole room on a single application.
RecovAthlete has no control over any financing decision. Approval is based on your creditworthiness and is solely the lender's decision.
Personal purchase
Affirm at checkout. Rates run 0% to 36% APR based on your credit profile. Soft check to prequalify, so no impact on your score. No prepayment penalty.
Business purchase
Brickhouse Capital, Reliant Capital, Acorn Finance, or KWIPPED. Apply with two of the four and compare. Financed equipment can qualify for a Section 179 deduction. Confirm with your accountant.
Financing by Equipment Category
Every page below has real prices, real monthly payment examples, and the lender comparison for that category. Pick the one you are buying.
Hyperbaric Chamber Financing
Soft-shell and hard-shell HBOT chambers. Session-volume payback math for clinics.
Sauna Financing
Infrared, traditional, barrel, and commercial saunas.
Cold Plunge Financing
Home tubs through commercial chillers and Medical Frozen units.
Red Light Therapy Financing
Panels, pods, and full-body beds for home and clinic.
PEMF Therapy Financing
PEMF mats, systems, and practitioner devices.
Vibration Plate Financing
Whole body vibration platforms for home, studio, and clinic.
Gym Equipment Financing
Home gyms through full commercial strength floors. Finance the floor, not the machine.
Treadmill Financing
Walking pads, commercial belts, and self-powered curved decks.
Commercial Recovery Equipment Financing
Building a recovery room? One quote, one purchase order, one application.
Building a Recovery Room?
Most business buyers are not buying one machine. They are building a room. Sauna, cold plunge, red light, vibration, hyperbaric, cryotherapy, and halotherapy all finance on the same paper through the same four lenders, and RecovAthlete quotes every category on one purchase order.
That means one freight schedule, one install window, and one financing application instead of six. It also gets you a better rate, because a bigger number on one application beats six small ones with six hard inquiries.
See commercial recovery equipment financing, or call 866-861-6317 and we will price the room.
Which Lender Should You Apply With?
| Lender | Type | Amount | Speed | Best for |
|---|---|---|---|---|
| Affirm | Consumer, at checkout | Order total | Seconds | Personal purchases. 0% to 36% APR based on credit. Soft check to prequalify. |
| Brickhouse Capital | Direct equipment lender | Up to $250K on a one-page application, $1M+ with financials | ~24 hours | A full room or a full floor. Credit decisions made in-house. Tied to the business, not your personal credit report. |
| Reliant Capital | Lender and broker | Up to $500K application-only, $5M with financials | 2 to 4 hours | Medical, aesthetic, and wellness. Deferred payment options. New or used equipment. |
| Acorn Finance | Lending marketplace | $1,000 to $100,000 | 60 seconds to prequalify | Comparing offers. One application goes to 30 or more lenders with no impact to your score. |
| KWIPPED (APPROVE) | Lender marketplace | Minimum $1,500 equipment value | 60-second application | Larger commercial orders. Lenders compete, which usually returns the best APR. Businesses only. |
Apply with two of the four and compare. It costs nothing and the spread between offers is often significant.
Apply now
Apply with Brickhouse Capital
Apply with Reliant Capital
Check your offers with Acorn Finance
For KWIPPED, call 866-861-6317 or email info@recovathlete.com and we will build the application around your order.
Financing Questions
What are Affirm's rates?
Pay in 4 splits the purchase into four interest-free payments charged every two weeks. Monthly installments spread the cost over a longer term, with rates from 0% to 36% APR depending on your credit profile. You see the exact terms before you agree to anything. No origination fees, no prepayment penalty, no late fees.
Will applying hurt my credit score?
Prequalification does not. Affirm and Acorn Finance both run a soft check to show you offers, which has no impact on your score. Proceeding with a monthly installment plan or a business loan may involve a hard inquiry. That is why it pays to prequalify with more than one lender first and only proceed with the best offer.
Can I finance equipment for a business?
Yes, and for most business buyers it is the better route. Brickhouse funds up to $250,000 on a one-page application with no financial statements. Reliant approves in 2 to 4 hours. Business financing is usually tied to the business rather than your personal credit report, and financed equipment can qualify for a Section 179 deduction. Confirm the tax position with your accountant.
Should I finance each machine separately?
No. This is the most common and most expensive mistake. Separate applications mean separate hard inquiries, separate payments, and a worse rate on each, because every individual ticket is small. Get one quote from RecovAthlete covering everything you are buying, including freight, and put that single number on one application.
Does Section 179 apply to financed equipment?
Financed equipment can qualify. Section 179 lets US businesses deduct the cost of qualifying equipment in the year it is placed in service, and financing the purchase does not by itself disqualify it. The equipment must be in service, not merely ordered, within the tax year. Annual limits and eligibility rules are set by the IRS and change year to year, so consult your accountant.
Can freight and installation be financed?
Freight, yes. On Affirm it is part of the order total at checkout. On business financing, put freight on the RecovAthlete quote and the whole quote amount goes on the application. Installation and room construction are harder, because some equipment lenders will not fund non-equipment costs. Ask the lender before you sign.
Can I pay off early?
Yes. Affirm charges no prepayment penalties. Acorn Finance and most business lenders also allow early payoff without penalty.
Not sure which option fits?
Tell us what you are buying and whether it is personal or for a business. We will point you at the right two lenders and quote freight and install as one number, which is also the number that goes on the application.
Call 866-861-6317 Book a 30 minute callAlign Pilates A8-Pro Pilates Reformer: 113cm of carriage travel, the longest in the Align range
A tall client runs out of track before they run out of movement. Footwork finishes early, long spine gets clipped, and the instructor quietly shortens the exercise to fit the machine rather than the person. The Align Pilates A8-Pro Pilates Reformer removes that compromise, which means the exercise finishes where the body finishes, not where the rail does. At 113cm, its carriage travel is the longest in the Align range, on the widest carriage Align builds at 67cm. If you have been asking which Pilates reformer suits tall clients, travel is the number that answers it, and this is where Align's range tops out.
The problem this machine is built around
Most studio reformers are sized for the average client, and that is usually fine. The trouble starts at the ends of the range. A 190cm athlete pushing into full extension hits the carriage stop before the leg is straight. A rehab client who needs the bed at hip height finds a machine with one fixed height and gives up. Neither is solved by cueing. Both are solved by a longer track and a deck height you choose at purchase.
Leg height is fixed at purchase. Choose it before you add to cart
The A8-Pro ships with one of three interchangeable leg sets: low 28cm, standard 42cm, or rehab 64cm. Legs set deck height and nothing else. Travel, spring load, footbar range and exercise repertoire are identical across all three. A second set fits later, but it is a separate part and a bolt-off, bolt-on job with a 75kg frame on its side. If you are unsure, take the standard 42cm: the height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell.
Why buy the A8-Pro from RecovAthlete
We check leg height against the clients you actually teach, and confirm bracket and accessory compatibility against the machine you own, before the order goes in. On a built-to-order freight item, that conversation is worth more than anything else on this page.
The numbers that carry the argument
113cm of carriage travel is the headline, and it is a real difference rather than a rounding one: the A8-Pro gives 6.5cm more track than the C8-Pro, which is the difference between a tall client finishing footwork and running out of rail. The carriage itself is 91cm by 67cm, wider than the C-Series bed, so side lying and kneeling work stays stable on broader frames. Underneath, 8 polyurethane wheels run on precision aluminium runners, which spreads load and keeps the ride quiet as the machine ages.
Two details do more daily work than the headline figure. The patent-pending Rapid Change spring bar moves through 4 positions across a 20cm range with one hand, so changing load mid-class costs seconds instead of a reset. And the Silent system, meaning metal-free double loop handles, silent ropes and patented silent pulleys, keeps a room of machines quiet enough to teach over. Align has the A8-Pro independently tested to EN ISO 20957-1:2013 and rates it to a 150kg user.
Room, assembly and what changes later
The frame is 264cm long and 75cm wide, at 42cm on standard legs. It does not fold or stand on end, so it needs a permanent home with walking space at the foot end and one long side. It ships freight on a pallet, part assembled, and at 264cm it will not pass through a doorway once built, so it goes together in its final room. Two people. The rope risers fold down, which is what lets a Half Cadillac frame be added later on the A-Series bracket set, at 199cm, 213cm or 235cm assembled depending on your legs.
Best for, and not ideal for
Best for
- Studios teaching tall clients who run out of track on a shorter machine
- Rehab and physio rooms needing a high deck for transfers and standing work
- Instructors who want deck height matched to the clients they actually see
- Owners planning to add a Half Cadillac frame to the same machine later
Not ideal for
- Anyone who needs to clear the floor between sessions. The A8-Pro does not fold and does not stand upright
- Tight rooms. The frame is 264cm long before you add walk-around space
- Studios that want to change deck height often. Swapping leg sets is a workshop job, not a class-time adjustment
- Buyers who move machines daily. It stacks, but that is a two-person lift on a 75kg frame
Which leg height to choose
This is the only decision on the A8-Pro you cannot easily undo, so it is worth two minutes. Leg height changes how far the deck sits above the floor. What that changes in practice is how clients get on and off, where you stand to cue, and what standing work is sensible.
| Leg set | Deck height | Who it suits, and what to weigh up |
|---|---|---|
| Low | 28cm | Mat-level and floor work, and programmes that move between the mat and the machine. A deeper squat to get on, which is worth checking for restricted hips or knees. 199cm assembled with a Half Cadillac |
| Standard | 42cm | Most studios and mixed timetables. The height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell. 213cm assembled with a Half Cadillac |
| Rehab | 64cm | Clinical and physio work, older and post-operative clients, sit-to-stand transfers, and standing work at practitioner height. 235cm assembled with a Half Cadillac |
Swipe the table sideways to see every column.
What you get, and the hardware behind it
| What it means in your studio | The hardware behind it |
|---|---|
| A tall client reaches full extension without hitting the stop | 113cm carriage travel, the longest in the Align range |
| Side lying and kneeling work stays stable on broader frames | 91cm by 67cm carriage |
| Spring load changes mid-class in seconds, without unclipping | Rapid Change spring bar, 4 positions across a 20cm range, one-handed |
| A room of machines stays quiet enough to teach over | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Both ropes stay matched, so you are not re-measuring between clients | Pro-Rope adjustment at the head rest, both ropes moving together |
| The machine sits flat on an old studio floor instead of rocking | Adjustable feet on all four corners |
| Quieter under load and less wheel wear across a commercial duty cycle | 8 polyurethane wheels on precision aluminium runners |
| Two shoulder widths without buying a second set of pads | Removable, lockable, off-centred shoulder rests |
Swipe the table sideways to see every column.
Who orders the A8-Pro
- Studio owners who have lost a tall client to a machine that did not fit them
- Physio and rehab practices working at 64cm leg height, where transfers matter more than footprint
- Instructors buying one machine for a mixed timetable who will not compromise on range
- Home buyers with a dedicated room and no plan to move the machine again
- Owners building toward a Cadillac setup on a frame that already takes the tower
Before you order
- Choose your leg height: 28cm, 42cm or 64cm. It is fixed at purchase
- Measure the room for a 264cm by 75cm frame, plus walk-around space on the foot end and one long side
- Check the delivery route: doorway width, lift, stairs and turns. The machine assembles in its final room
- If a Half Cadillac is in your plans, confirm ceiling height against the assembled figure for your leg set
- Lead times on Align-Pilates are confirmed at order. Call and we will give you the current window before you commit
Full specifications
| Specification | Detail |
|---|---|
| Dimensions and weight | |
| Frame dimensions | 264cm L x 75cm W, 42cm H on standard legs |
| Carriage size | 91cm L x 67cm W |
| Carriage travel | 113cm, the longest in the Align-Pilates range |
| Machine weight | 75kg |
| Leg heights | 28cm low, 42cm standard, 64cm rehab, interchangeable |
| Assembled height with Half Cadillac | 199cm low legs, 213cm standard legs, 235cm rehab legs |
| Materials and construction | |
| Frame | Aluminium, with precision aluminium runners |
| Carriage wheels | 8 polyurethane wheels |

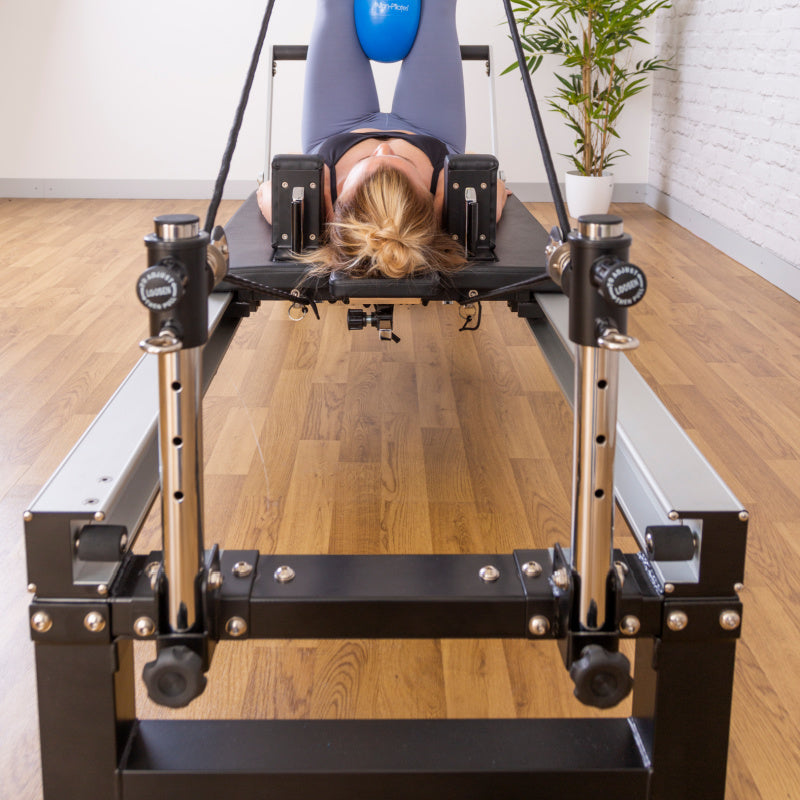

| Rope risers | Stainless steel, outside frame, 5 heights, fold down, eyelets for spring attachment |
| Adjustable feet | Yes, all four corners |
| Resistance and adjustment | |
| Spring bar | Rapid Change, patent pending, 4 positions across a 20cm range, one hand with springs attached |

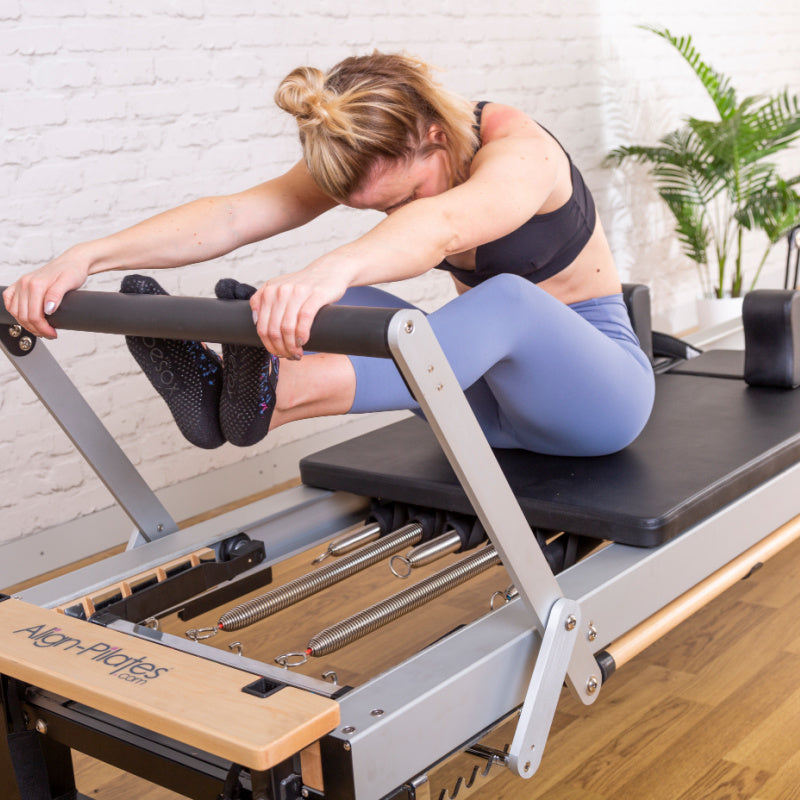

| Springs supplied | 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong |
| Footbar | Oversize lockable, 6 positions including flat |
| Head rest | Adjustable, 3 positions |
| Shoulder rests | Removable, lockable, off-centred for two widths |
| Rope adjustment | Pro-Rope at the head rest, both ropes adjust together |
| Handles and pulleys | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Capacity, storage and certification | |
| Maximum user weight | 150kg |
| Folding | No |
| Standing and stacking | Does not stand upright. Stacks, but it is a two-person lift |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Product codes | PAPREFORMERA8L 28cm, PAPREFORMERA8S 42cm, PAPREFORMERA8R 64cm |
Swipe the table sideways to see every column.
What ships with the A8-Pro
- 1 A8-Pro aluminium frame with the leg set you select, 28cm, 42cm or 64cm
- 1 carriage, 91cm by 67cm, on 8 polyurethane wheels over precision aluminium runners
- 1 Rapid Change spring bar, 4 positions
- 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong
- 1 oversize lockable footbar, 6 positions including flat
- 1 adjustable head rest, 3 positions, and 1 pair of removable lockable shoulder rests
- 1 integral standing platform
- 1 pair of Silent double loop straps
- 1 adjustable Silent foot strap with fluffy cover
- 1 set of stainless steel rope risers, 5 heights, folding
- 1 Pro-Rope adjustment system at the head rest
Sold separately: alternative leg sets in 28cm, 42cm or 64cm; the A-Series jump board for plyometric and cardio work; the A-Series mat converter and platform extender, which are the pair that flattens the carriage into a Cadillac bed; a sitting box for seated, side lying and long box work; plank handles, which clip to the footbar for plank and press work; the Half Cadillac frame PAP-HALFCADA2 with the model-specific A-Series bracket set; and replacement or additional springs. Call and we will confirm the exact part codes against your machine before you order.
A8-Pro, C8-Pro or F3
The C8-Pro is the aluminium studio workhorse, bought when the floor plan is tight and the budget is set. The A8-Pro is the flagship: you give up floor space and you gain 6.5cm of travel, two more footbar positions, a third leg height and a 9cm wider carriage. The F3 is the one to buy if the room has to be cleared between sessions, with the important caveat that Align does not warrant the F3 for commercial use.
| Specification | A8-Pro | C8-Pro | F3 Folding |
|---|---|---|---|
| Carriage travel | 113cm | 106.5cm | 97cm |
| Carriage size | 91 x 67cm | 92 x 58cm | 89 x 58cm |
| Footbar positions | 6, including flat | 4, including flat | 4, including flat |
| Leg heights | 3: 28, 42 and 64cm | 2: 26cm, or 42cm with extensions | None |
| Spring bar | Rapid Change, 4 positions | Rapid Change | Fixed |
| Adjustable feet | Yes | Yes | Yes |
| Folds away | No | No | Yes, to 143.5 x 66 x 49cm |
| Maximum user weight | 150kg | 150kg | 120kg |
| Commercial use | Studio rated, EN ISO 20957-1:2013 | Studio rated, EN ISO 20957-1:2013 | Not warranted for commercial use |
Swipe the table sideways to see every column.
Also consider
If Cadillac repertoire is already on your list, the A8-Pro with Half Cadillac arrives complete in one delivery on standard 42cm legs, with the frame, A-Series brackets, mat converter, platform extender, sitting box and gondola pole. Retrofitting later works, but it means a second freight shipment.
Common questions
I am tall. Which Align reformer has the longest carriage?
Two different numbers get called carriage length, so it is worth separating them. For travel, meaning how far the carriage actually moves, the A8-Pro is the longest in the range at 113cm, against 106.5cm on the C8-Pro and 97cm on the F3, and Align describes it as the longest travel of any standard reformer. For the bed itself, the A8-Pro carriage is 91cm by 67cm, the widest Align builds. Travel is the figure that decides whether a tall client reaches full extension, so that is the one to buy on.
Which leg height do most studios order?
The standard 42cm set. It matches the deck height clients have met in other studios, and it is the height the A8-Pro Half Cadillac bundle ships at. The 28cm and 64cm sets are deliberate choices about how you teach rather than defaults, so take one of those only if floor-level work or clinical transfers are a real part of your timetable.
Can I change the leg height after delivery?
Yes. All three leg sets bolt to the same A8-Pro frame, and you buy the second set separately. Fitting them means tipping a 75kg machine on its side, so plan for two people and treat it as a workshop job rather than something you do between clients.
Will the A8-Pro take a Half Cadillac frame?
Yes. The stainless steel rope risers fold down so the frame sits over the machine, held by the A-Series bracket set, which is model specific and not interchangeable with the C-Series or M-Series brackets. Assembled height follows your leg choice: 199cm on low legs, 213cm on standard, 235cm on rehab. Measure to the lowest obstruction in the room, not the highest point of the ceiling.
How much room does the A8-Pro need?
The frame is 264cm long and 75cm wide. Allow clear space at the foot end and along one long side so you can cue and load springs. As a working guide we suggest about 60cm on each of those two sides, which puts the footprint at roughly 3.25m by 1.35m. That is our recommendation rather than an Align specification, and the A8-Pro does not fold or stand upright, so the space is permanent.
Is the A8-Pro rated for commercial studio use?
Yes. Align-Pilates specifies the A8-Pro as a commercial studio machine and has it independently tested to EN ISO 20957-1:2013, with a maximum user weight of 150kg. Align publishes no hours-per-week limit on the A8-Pro, unlike the R8-Pro, so if a duty-cycle figure matters for your insurer, call and we will get it in writing from the distributor.
Video
Assembly guides and the full manual are published by Align-Pilates, and we send the current links with your order confirmation.
Why this is the A8-Pro to buy
If every client fits inside 106.5cm of travel and the room is short, the C8-Pro is the sensible machine and we will say so on the phone. The A8-Pro earns its footprint when the people on it are tall, when a clinical deck height changes who can use the machine at all, or when you want one frame that stays right as the practice changes. The 113cm of track is the part you cannot add later.
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, and we will confirm leg height, bracket compatibility and the delivery route before you order. White glove delivery and in-room assembly are available as a paid add-on.
Everything you need to know about shipping, delivery, and returns for Align-Pilates equipment purchased through RecovAthlete. Have a question before ordering? Call 866-861-6317 or email support@recovathlete.com and we'll confirm exactly what's available for your location.
✅
Authorized Align-Pilates Dealer
RecovAthlete is an authorized dealer of Align-Pilates equipment. Every purchase is backed by the full manufacturer warranty directly from Align-Pilates and their exclusive North American distributor, Kloz Inc.
Shipping
Important
Once your order ships, the delivery address cannot be changed. If a shipment fails due to an incorrect address, return fees may apply. Inspect all equipment thoroughly upon delivery — any damage or concerns must be reported within 3 business days of receipt.
Returns Policy
Non-Returnable Items
Returns are not accepted on reformers, chairs, ladder barrels, full cadillacs, or half cadillacs — no exceptions. These items are only eligible for replacement if they arrive damaged or were shipped in error.
Accessories — 30-Day Returns
- Returns accepted within 30 days of purchase (shipping costs excluded)
- All goods must be returned in original condition
- Subject to a restocking charge
- Return shipping costs are the sole responsibility of the purchaser
Return Authorization Number (RNA) Required
All returns — for any reason — require a Return Authorization Number before sending anything back. Items returned without an RNA will not be accepted.
To obtain an RNA, contact Kloz Inc. (Align-Pilates' exclusive North American distributor) directly:
- Phone: 1-888-756-7798
- Email: info@klozinc.com
If Your Item Arrives Damaged or Defective
- Contact us within 3 business days of delivery at 866-861-6317 or support@recovathlete.com
- Provide photos and a description of the damage
- Once confirmed, we will coordinate a replacement or resolution with the distributor
Order Cancellations
- Cancel before shipment — no charge
- Cancel after shipment — 25% restocking fee plus return shipping charges apply
Warranty Overview
Align-Pilates equipment carries a multi-year manufacturer's warranty against defects in materials and workmanship. The warranty that applies depends on the product:
Maintenance Note
Reformers require regular basic maintenance and cleaning. Most issues that arise during ownership can be resolved through consistent, simple cleaning practices. Failure to follow Align-Pilates' maintenance guidelines may void the warranty. Contact us and we'll guide you through the correct maintenance routine for your machine.
Full warranty terms by product type: view the Align-Pilates Warranty page. Manufacturer warranty details also available at align-pilates.com/resources/warranty-maintenance.

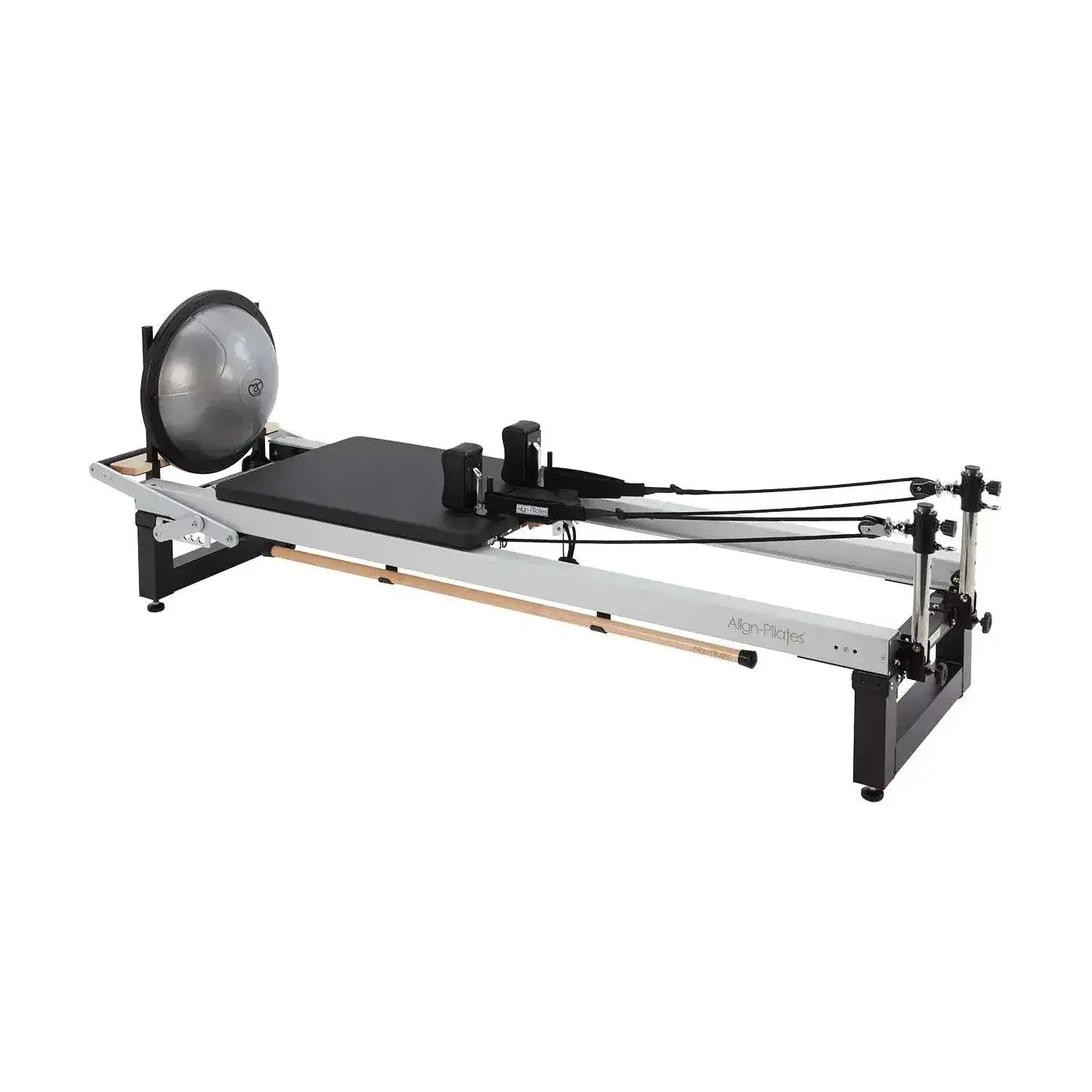

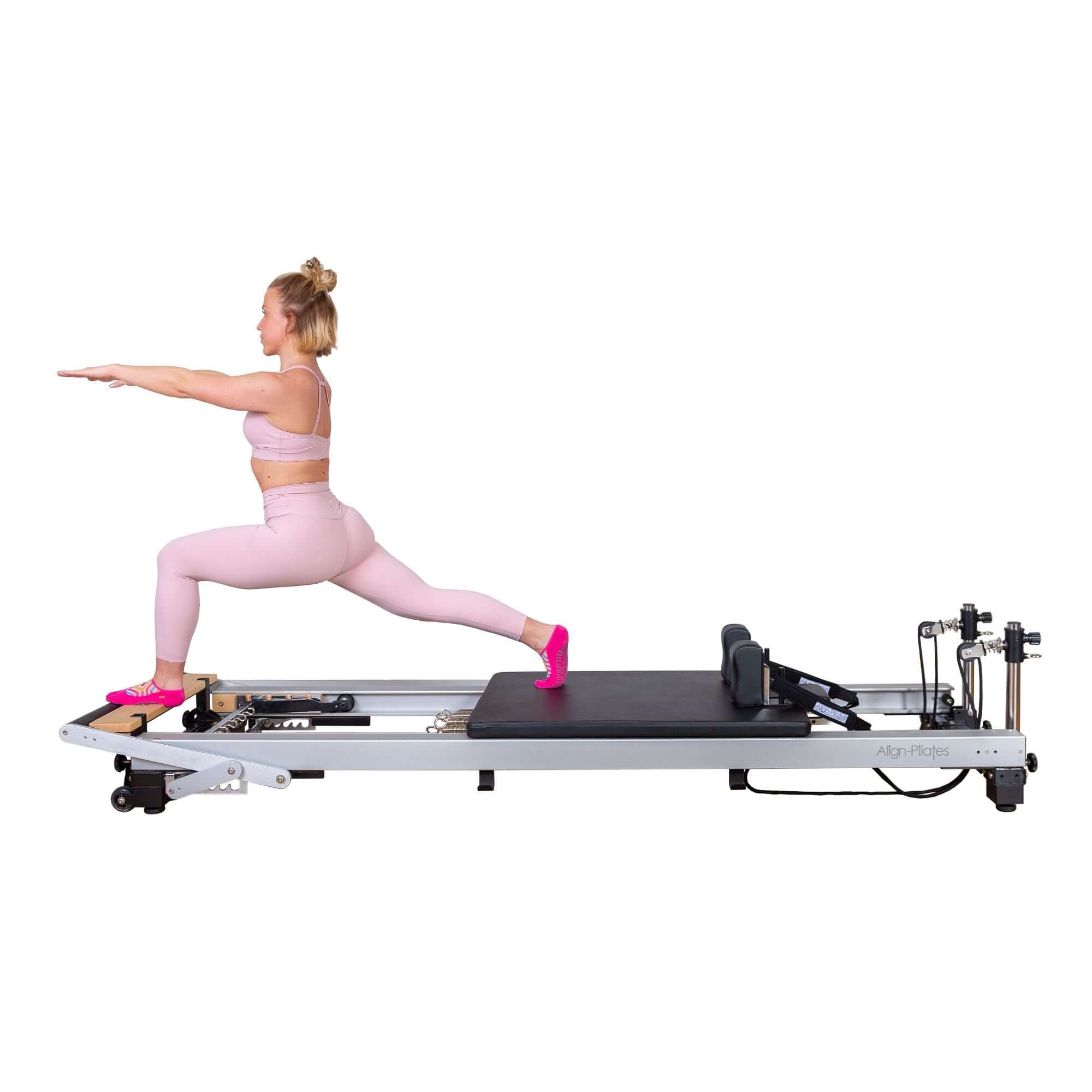

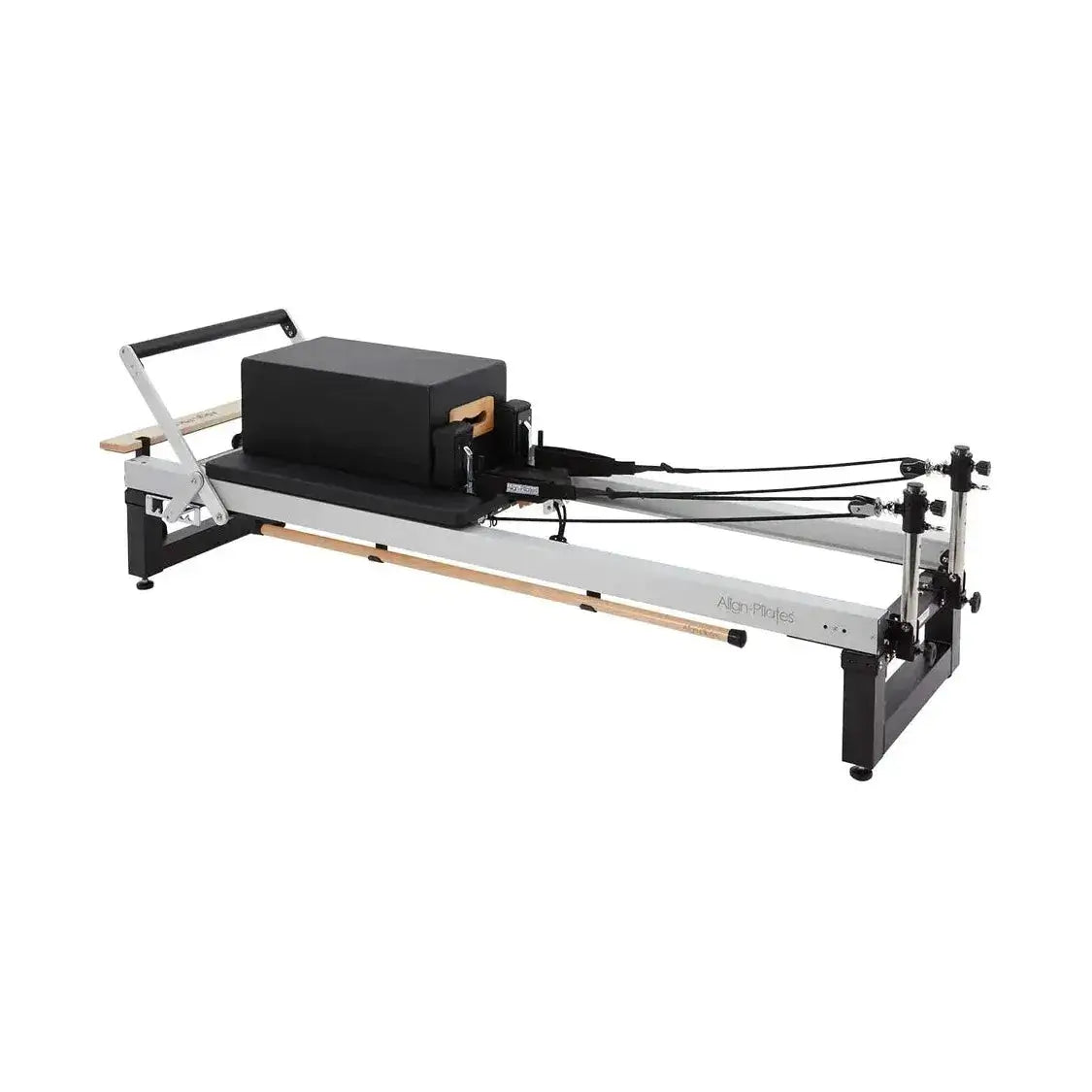

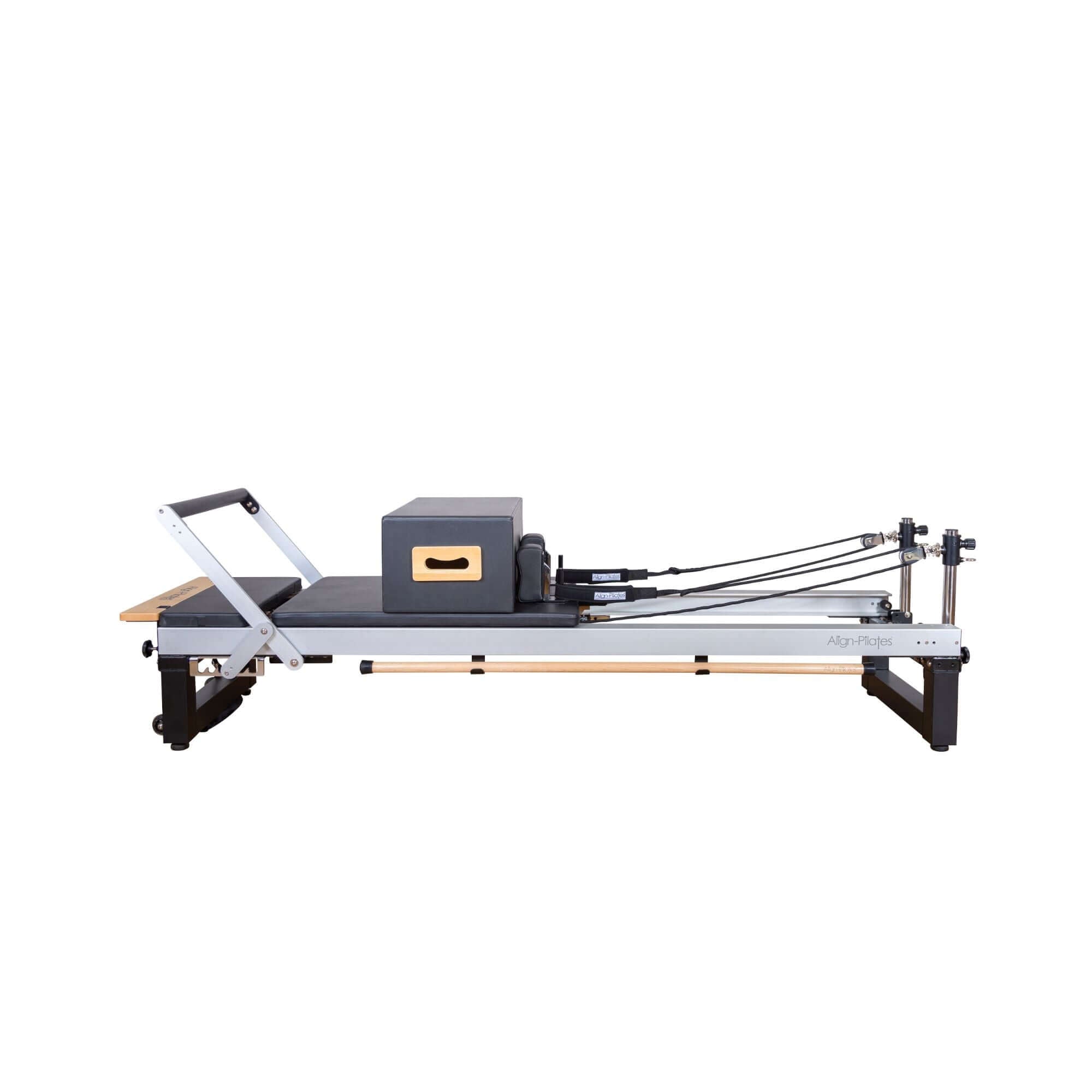

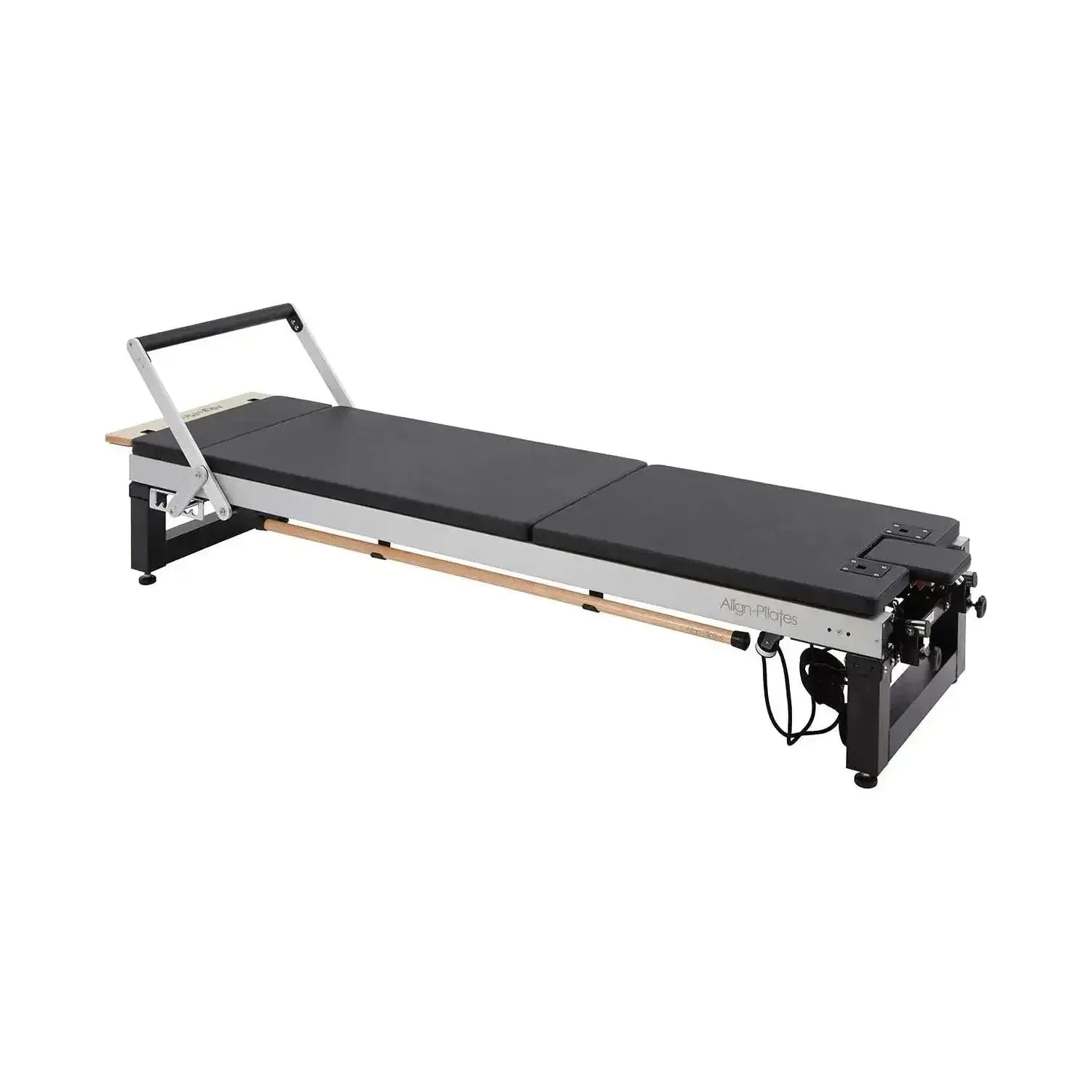

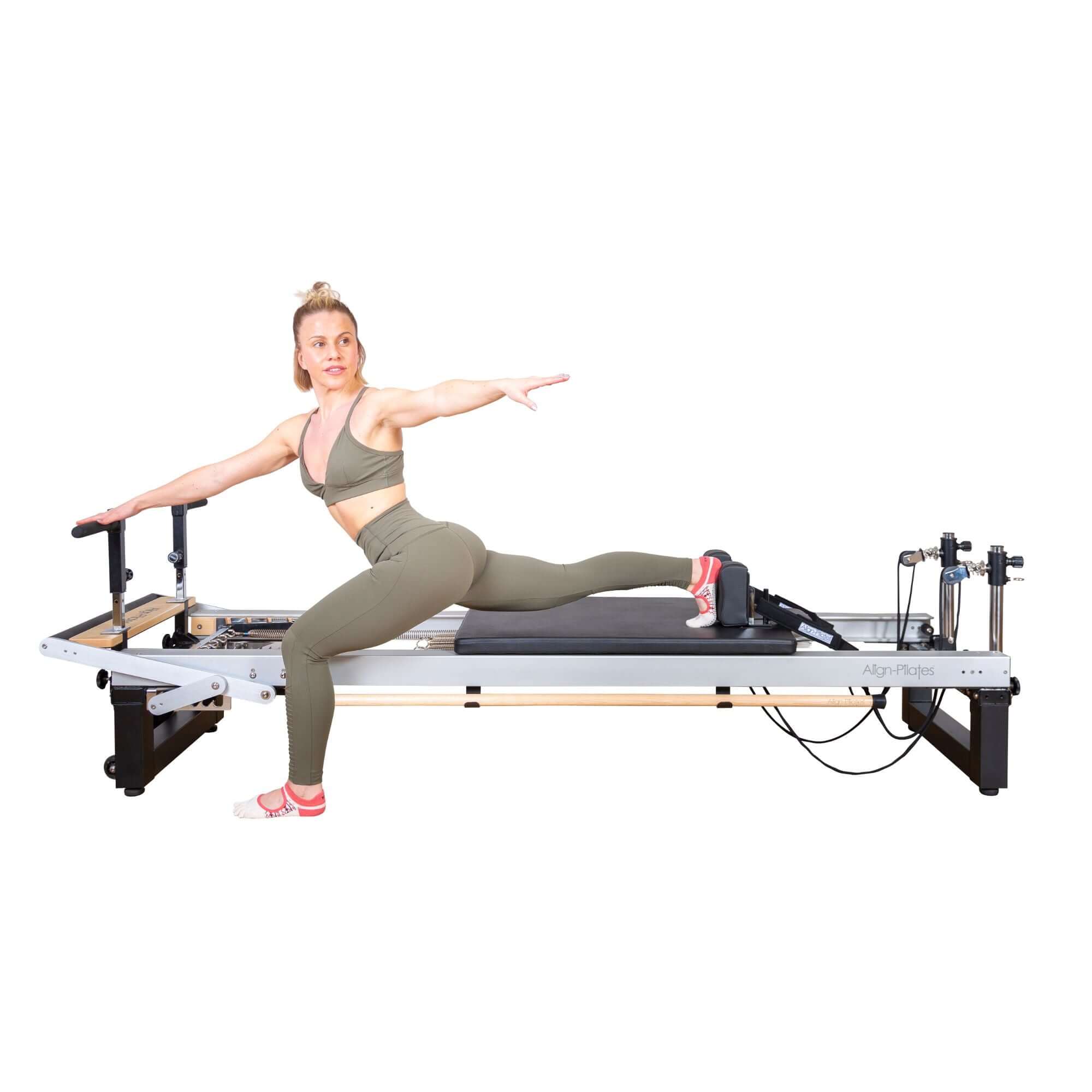

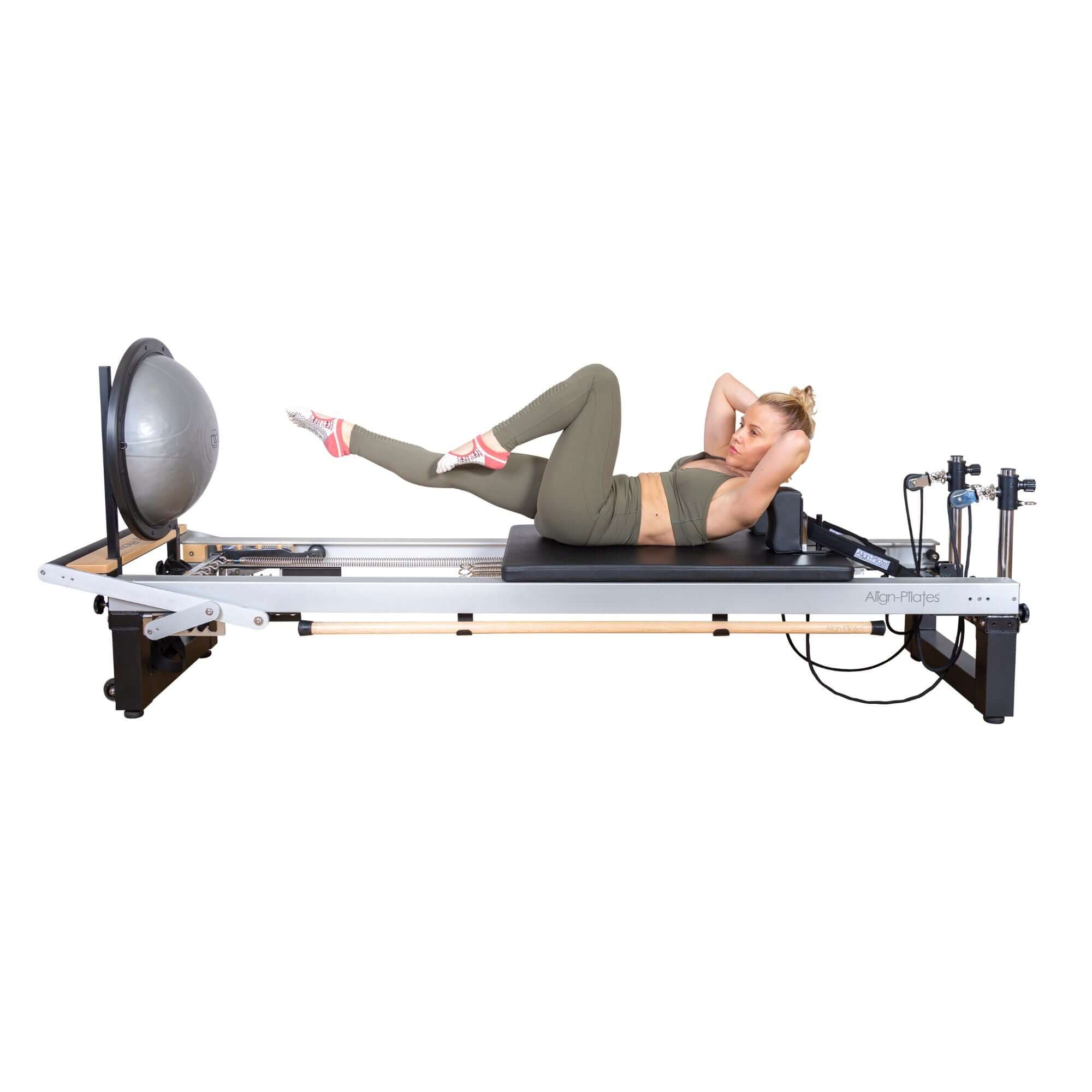

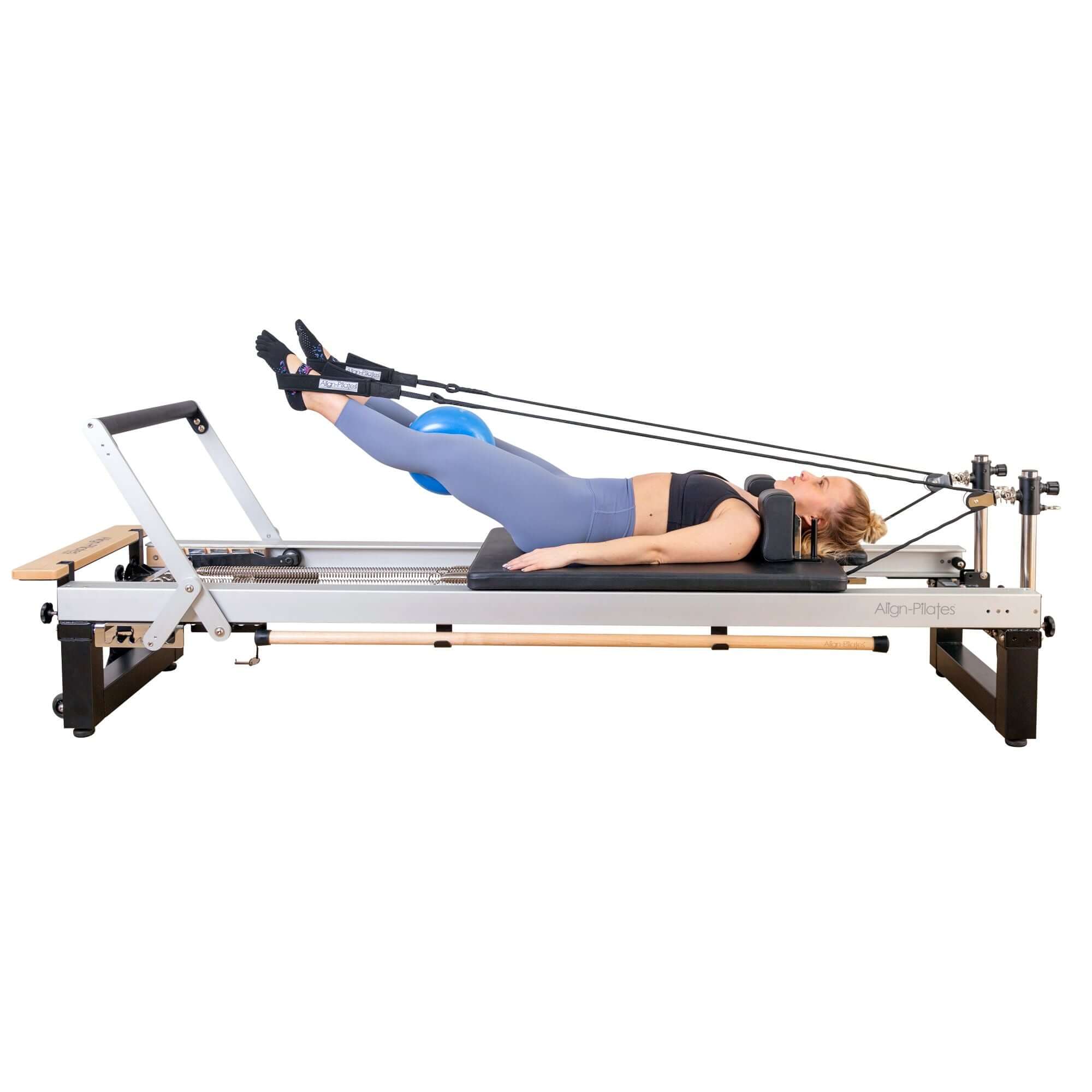

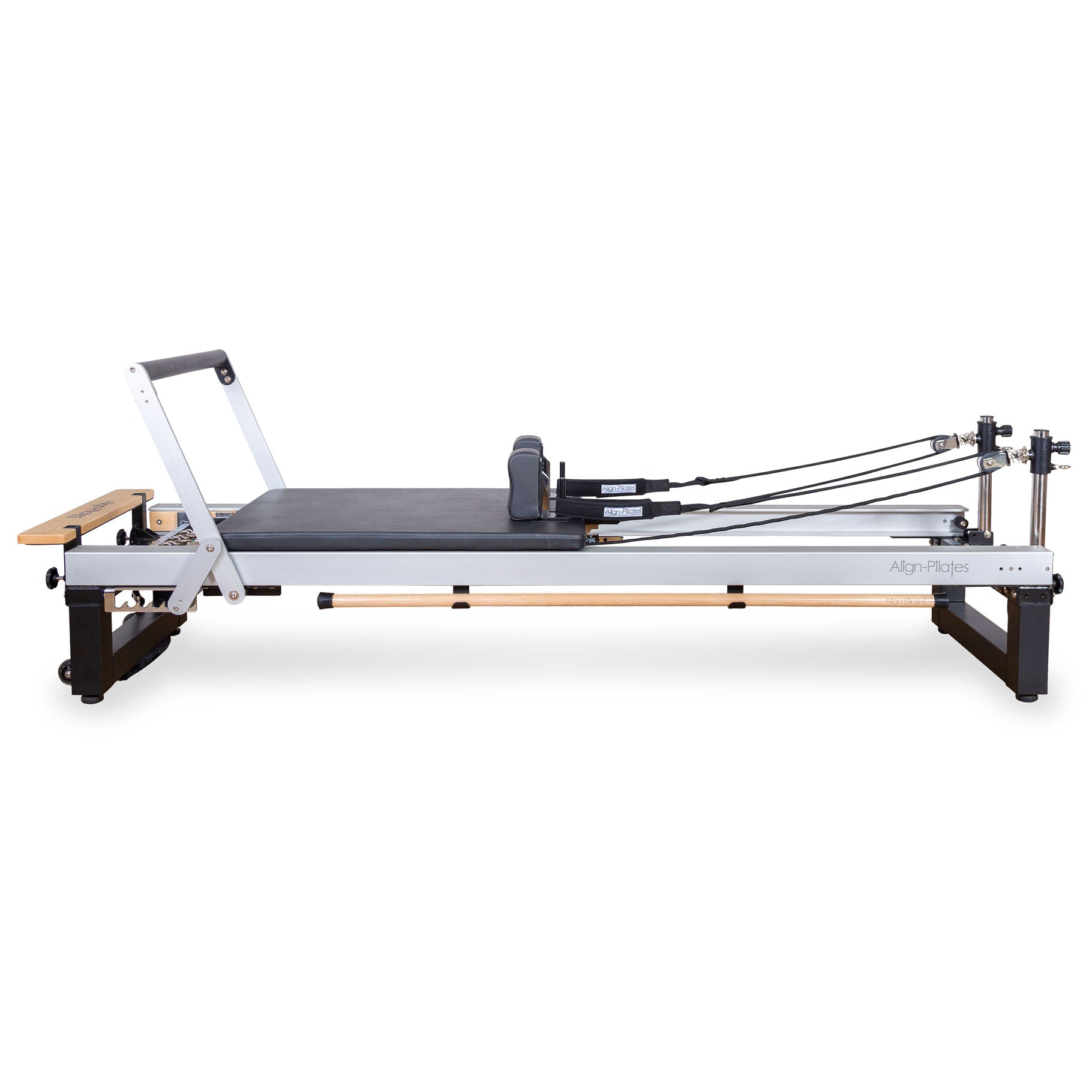

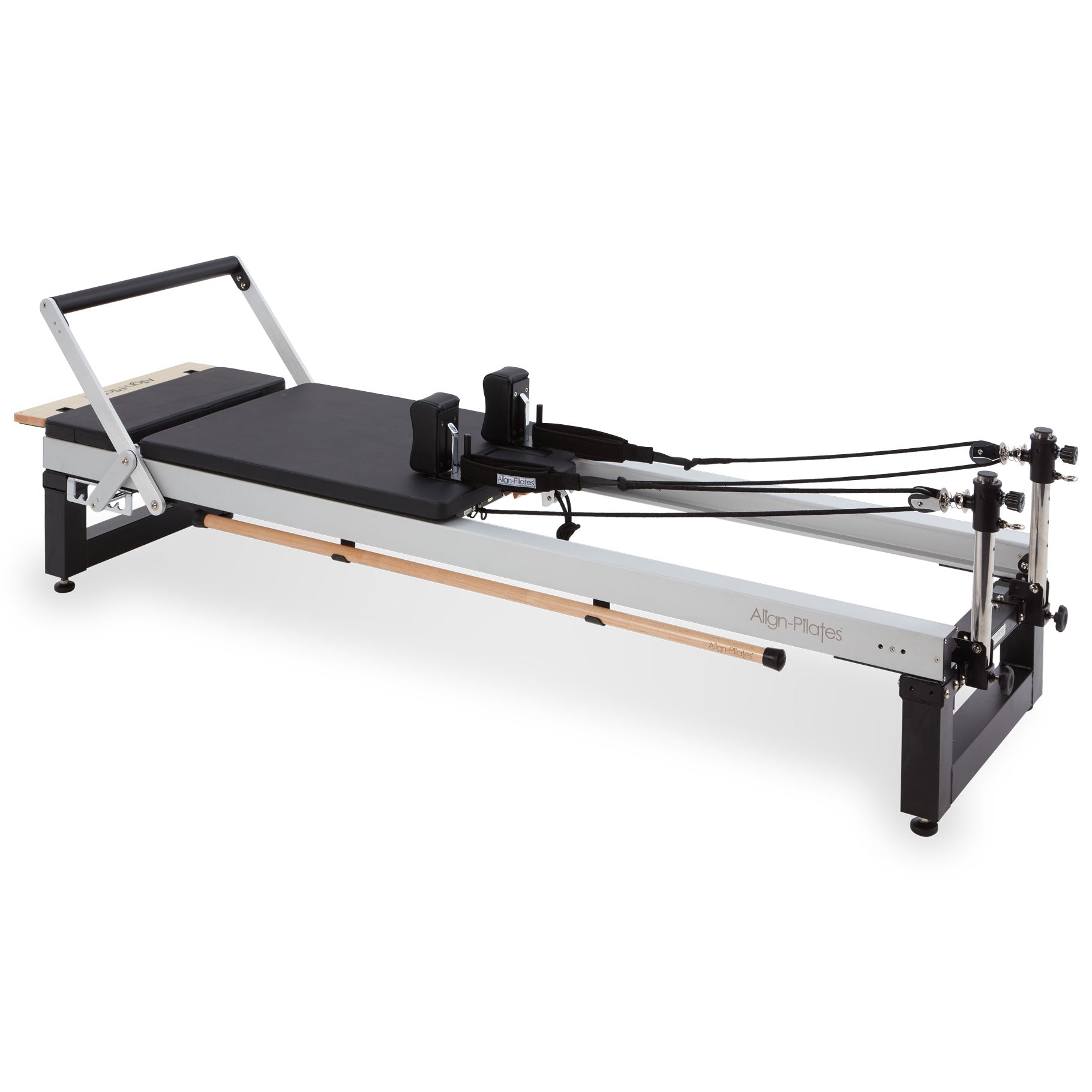

Align Pilates A8-Pro Pilates Reformer: 113cm of carriage travel, the longest in the Align range
A tall client runs out of track before they run out of movement. Footwork finishes early, long spine gets clipped, and the instructor quietly shortens the exercise to fit the machine rather than the person. The Align Pilates A8-Pro Pilates Reformer removes that compromise, which means the exercise finishes where the body finishes, not where the rail does. At 113cm, its carriage travel is the longest in the Align range, on the widest carriage Align builds at 67cm. If you have been asking which Pilates reformer suits tall clients, travel is the number that answers it, and this is where Align's range tops out.
The problem this machine is built around
Most studio reformers are sized for the average client, and that is usually fine. The trouble starts at the ends of the range. A 190cm athlete pushing into full extension hits the carriage stop before the leg is straight. A rehab client who needs the bed at hip height finds a machine with one fixed height and gives up. Neither is solved by cueing. Both are solved by a longer track and a deck height you choose at purchase.
Leg height is fixed at purchase. Choose it before you add to cart
The A8-Pro ships with one of three interchangeable leg sets: low 28cm, standard 42cm, or rehab 64cm. Legs set deck height and nothing else. Travel, spring load, footbar range and exercise repertoire are identical across all three. A second set fits later, but it is a separate part and a bolt-off, bolt-on job with a 75kg frame on its side. If you are unsure, take the standard 42cm: the height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell.
Why buy the A8-Pro from RecovAthlete
We check leg height against the clients you actually teach, and confirm bracket and accessory compatibility against the machine you own, before the order goes in. On a built-to-order freight item, that conversation is worth more than anything else on this page.
The numbers that carry the argument
113cm of carriage travel is the headline, and it is a real difference rather than a rounding one: the A8-Pro gives 6.5cm more track than the C8-Pro, which is the difference between a tall client finishing footwork and running out of rail. The carriage itself is 91cm by 67cm, wider than the C-Series bed, so side lying and kneeling work stays stable on broader frames. Underneath, 8 polyurethane wheels run on precision aluminium runners, which spreads load and keeps the ride quiet as the machine ages.
Two details do more daily work than the headline figure. The patent-pending Rapid Change spring bar moves through 4 positions across a 20cm range with one hand, so changing load mid-class costs seconds instead of a reset. And the Silent system, meaning metal-free double loop handles, silent ropes and patented silent pulleys, keeps a room of machines quiet enough to teach over. Align has the A8-Pro independently tested to EN ISO 20957-1:2013 and rates it to a 150kg user.
Room, assembly and what changes later
The frame is 264cm long and 75cm wide, at 42cm on standard legs. It does not fold or stand on end, so it needs a permanent home with walking space at the foot end and one long side. It ships freight on a pallet, part assembled, and at 264cm it will not pass through a doorway once built, so it goes together in its final room. Two people. The rope risers fold down, which is what lets a Half Cadillac frame be added later on the A-Series bracket set, at 199cm, 213cm or 235cm assembled depending on your legs.
Best for, and not ideal for
Best for
- Studios teaching tall clients who run out of track on a shorter machine
- Rehab and physio rooms needing a high deck for transfers and standing work
- Instructors who want deck height matched to the clients they actually see
- Owners planning to add a Half Cadillac frame to the same machine later
Not ideal for
- Anyone who needs to clear the floor between sessions. The A8-Pro does not fold and does not stand upright
- Tight rooms. The frame is 264cm long before you add walk-around space
- Studios that want to change deck height often. Swapping leg sets is a workshop job, not a class-time adjustment
- Buyers who move machines daily. It stacks, but that is a two-person lift on a 75kg frame
Which leg height to choose
This is the only decision on the A8-Pro you cannot easily undo, so it is worth two minutes. Leg height changes how far the deck sits above the floor. What that changes in practice is how clients get on and off, where you stand to cue, and what standing work is sensible.
| Leg set | Deck height | Who it suits, and what to weigh up |
|---|---|---|
| Low | 28cm | Mat-level and floor work, and programmes that move between the mat and the machine. A deeper squat to get on, which is worth checking for restricted hips or knees. 199cm assembled with a Half Cadillac |
| Standard | 42cm | Most studios and mixed timetables. The height clients have met elsewhere, the height the Half Cadillac bundle ships at, and the easiest to resell. 213cm assembled with a Half Cadillac |
| Rehab | 64cm | Clinical and physio work, older and post-operative clients, sit-to-stand transfers, and standing work at practitioner height. 235cm assembled with a Half Cadillac |
Swipe the table sideways to see every column.
What you get, and the hardware behind it
| What it means in your studio | The hardware behind it |
|---|---|
| A tall client reaches full extension without hitting the stop | 113cm carriage travel, the longest in the Align range |
| Side lying and kneeling work stays stable on broader frames | 91cm by 67cm carriage |
| Spring load changes mid-class in seconds, without unclipping | Rapid Change spring bar, 4 positions across a 20cm range, one-handed |
| A room of machines stays quiet enough to teach over | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Both ropes stay matched, so you are not re-measuring between clients | Pro-Rope adjustment at the head rest, both ropes moving together |
| The machine sits flat on an old studio floor instead of rocking | Adjustable feet on all four corners |
| Quieter under load and less wheel wear across a commercial duty cycle | 8 polyurethane wheels on precision aluminium runners |
| Two shoulder widths without buying a second set of pads | Removable, lockable, off-centred shoulder rests |
Swipe the table sideways to see every column.
Who orders the A8-Pro
- Studio owners who have lost a tall client to a machine that did not fit them
- Physio and rehab practices working at 64cm leg height, where transfers matter more than footprint
- Instructors buying one machine for a mixed timetable who will not compromise on range
- Home buyers with a dedicated room and no plan to move the machine again
- Owners building toward a Cadillac setup on a frame that already takes the tower
Before you order
- Choose your leg height: 28cm, 42cm or 64cm. It is fixed at purchase
- Measure the room for a 264cm by 75cm frame, plus walk-around space on the foot end and one long side
- Check the delivery route: doorway width, lift, stairs and turns. The machine assembles in its final room
- If a Half Cadillac is in your plans, confirm ceiling height against the assembled figure for your leg set
- Lead times on Align-Pilates are confirmed at order. Call and we will give you the current window before you commit
Full specifications
| Specification | Detail |
|---|---|
| Dimensions and weight | |
| Frame dimensions | 264cm L x 75cm W, 42cm H on standard legs |
| Carriage size | 91cm L x 67cm W |
| Carriage travel | 113cm, the longest in the Align-Pilates range |
| Machine weight | 75kg |
| Leg heights | 28cm low, 42cm standard, 64cm rehab, interchangeable |
| Assembled height with Half Cadillac | 199cm low legs, 213cm standard legs, 235cm rehab legs |
| Materials and construction | |
| Frame | Aluminium, with precision aluminium runners |
| Carriage wheels | 8 polyurethane wheels |
| Rope risers | Stainless steel, outside frame, 5 heights, fold down, eyelets for spring attachment |
| Adjustable feet | Yes, all four corners |
| Resistance and adjustment | |
| Spring bar | Rapid Change, patent pending, 4 positions across a 20cm range, one hand with springs attached |
| Springs supplied | 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong |
| Footbar | Oversize lockable, 6 positions including flat |
| Head rest | Adjustable, 3 positions |
| Shoulder rests | Removable, lockable, off-centred for two widths |
| Rope adjustment | Pro-Rope at the head rest, both ropes adjust together |
| Handles and pulleys | Silent system: metal-free double loop handles, silent ropes, patented silent pulleys |
| Capacity, storage and certification | |
| Maximum user weight | 150kg |
| Folding | No |
| Standing and stacking | Does not stand upright. Stacks, but it is a two-person lift |
| Certification | Independently tested to EN ISO 20957-1:2013 |
| Product codes | PAPREFORMERA8L 28cm, PAPREFORMERA8S 42cm, PAPREFORMERA8R 64cm |
Swipe the table sideways to see every column.
What ships with the A8-Pro
- 1 A8-Pro aluminium frame with the leg set you select, 28cm, 42cm or 64cm
- 1 carriage, 91cm by 67cm, on 8 polyurethane wheels over precision aluminium runners
- 1 Rapid Change spring bar, 4 positions
- 5 nickel-plated music wire springs: 2 light, 2 medium, 1 strong
- 1 oversize lockable footbar, 6 positions including flat
- 1 adjustable head rest, 3 positions, and 1 pair of removable lockable shoulder rests
- 1 integral standing platform
- 1 pair of Silent double loop straps
- 1 adjustable Silent foot strap with fluffy cover
- 1 set of stainless steel rope risers, 5 heights, folding
- 1 Pro-Rope adjustment system at the head rest
Sold separately: alternative leg sets in 28cm, 42cm or 64cm; the A-Series jump board for plyometric and cardio work; the A-Series mat converter and platform extender, which are the pair that flattens the carriage into a Cadillac bed; a sitting box for seated, side lying and long box work; plank handles, which clip to the footbar for plank and press work; the Half Cadillac frame PAP-HALFCADA2 with the model-specific A-Series bracket set; and replacement or additional springs. Call and we will confirm the exact part codes against your machine before you order.
A8-Pro, C8-Pro or F3
The C8-Pro is the aluminium studio workhorse, bought when the floor plan is tight and the budget is set. The A8-Pro is the flagship: you give up floor space and you gain 6.5cm of travel, two more footbar positions, a third leg height and a 9cm wider carriage. The F3 is the one to buy if the room has to be cleared between sessions, with the important caveat that Align does not warrant the F3 for commercial use.
| Specification | A8-Pro | C8-Pro | F3 Folding |
|---|---|---|---|
| Carriage travel | 113cm | 106.5cm | 97cm |
| Carriage size | 91 x 67cm | 92 x 58cm | 89 x 58cm |
| Footbar positions | 6, including flat | 4, including flat | 4, including flat |
| Leg heights | 3: 28, 42 and 64cm | 2: 26cm, or 42cm with extensions | None |
| Spring bar | Rapid Change, 4 positions | Rapid Change | Fixed |
| Adjustable feet | Yes | Yes | Yes |
| Folds away | No | No | Yes, to 143.5 x 66 x 49cm |
| Maximum user weight | 150kg | 150kg | 120kg |
| Commercial use | Studio rated, EN ISO 20957-1:2013 | Studio rated, EN ISO 20957-1:2013 | Not warranted for commercial use |
Swipe the table sideways to see every column.
Also consider
If Cadillac repertoire is already on your list, the A8-Pro with Half Cadillac arrives complete in one delivery on standard 42cm legs, with the frame, A-Series brackets, mat converter, platform extender, sitting box and gondola pole. Retrofitting later works, but it means a second freight shipment.
Common questions
I am tall. Which Align reformer has the longest carriage?
Two different numbers get called carriage length, so it is worth separating them. For travel, meaning how far the carriage actually moves, the A8-Pro is the longest in the range at 113cm, against 106.5cm on the C8-Pro and 97cm on the F3, and Align describes it as the longest travel of any standard reformer. For the bed itself, the A8-Pro carriage is 91cm by 67cm, the widest Align builds. Travel is the figure that decides whether a tall client reaches full extension, so that is the one to buy on.
Which leg height do most studios order?
The standard 42cm set. It matches the deck height clients have met in other studios, and it is the height the A8-Pro Half Cadillac bundle ships at. The 28cm and 64cm sets are deliberate choices about how you teach rather than defaults, so take one of those only if floor-level work or clinical transfers are a real part of your timetable.
Can I change the leg height after delivery?
Yes. All three leg sets bolt to the same A8-Pro frame, and you buy the second set separately. Fitting them means tipping a 75kg machine on its side, so plan for two people and treat it as a workshop job rather than something you do between clients.
Will the A8-Pro take a Half Cadillac frame?
Yes. The stainless steel rope risers fold down so the frame sits over the machine, held by the A-Series bracket set, which is model specific and not interchangeable with the C-Series or M-Series brackets. Assembled height follows your leg choice: 199cm on low legs, 213cm on standard, 235cm on rehab. Measure to the lowest obstruction in the room, not the highest point of the ceiling.
How much room does the A8-Pro need?
The frame is 264cm long and 75cm wide. Allow clear space at the foot end and along one long side so you can cue and load springs. As a working guide we suggest about 60cm on each of those two sides, which puts the footprint at roughly 3.25m by 1.35m. That is our recommendation rather than an Align specification, and the A8-Pro does not fold or stand upright, so the space is permanent.
Is the A8-Pro rated for commercial studio use?
Yes. Align-Pilates specifies the A8-Pro as a commercial studio machine and has it independently tested to EN ISO 20957-1:2013, with a maximum user weight of 150kg. Align publishes no hours-per-week limit on the A8-Pro, unlike the R8-Pro, so if a duty-cycle figure matters for your insurer, call and we will get it in writing from the distributor.
Video
Assembly guides and the full manual are published by Align-Pilates, and we send the current links with your order confirmation.
Why this is the A8-Pro to buy
If every client fits inside 106.5cm of travel and the room is short, the C8-Pro is the sensible machine and we will say so on the phone. The A8-Pro earns its footprint when the people on it are tall, when a clinical deck height changes who can use the machine at all, or when you want one frame that stays right as the practice changes. The 113cm of track is the part you cannot add later.
Call 866-861-6317 between 9am and 6pm EST, Monday to Friday, and we will confirm leg height, bracket compatibility and the delivery route before you order. White glove delivery and in-room assembly are available as a paid add-on.
Align-Pilates equipment is backed by manufacturer warranties issued directly by Align-Pilates Equipment Ltd. The warranty that applies to your purchase depends on the product type. All warranties are for the original purchaser only and are non-transferable.
✅
Authorized Align-Pilates Dealer
RecovAthlete is an authorized dealer of Align-Pilates equipment. All purchases qualify for full manufacturer warranty protection through Align-Pilates and their exclusive North American distributor, Kloz Inc.
Commercial Warranty — A, C & M Series Reformers
Applies to: A8-Pro, C8-Pro, C8-S Pro, C8-PRO Noir, M8-Pro, Full & Half Cadillac systems
Covers domestic and commercial usage up to 37.5 hours per week. User weight limit: 150 kg / 330 lbs. Align-Pilates will repair or replace any mechanical component that malfunctions due to defects in materials or workmanship during the warranty period.
Note: wooden frames must not be positioned next to convection radiators or air conditioning units. Springs showing signs of damage or wear must be replaced immediately regardless of age.
Light Commercial Warranty — R8-Pro & F3 Reformers
Applies to: R8-Pro (Black & White), F3 Folding Reformer
Covers domestic use and limited commercial usage up to 20 hours per week. User weight limit: 120 kg / 265 lbs. Align-Pilates will repair or replace any mechanical component that malfunctions due to defects in materials or workmanship during the warranty period.
Note: commercial use beyond 20 hours per week voids the warranty on these models.
Commercial Warranty — Combo Chairs & Ladder Barrels
Applies to: Combo Chair III, Ladder Barrel RC
Covers domestic and commercial usage up to 37.5 hours per week. User weight limit: 150 kg / 330 lbs.
Moving mechanisms include the Rapid Change Ladder Barrel and Combo Chair locking handles. Springs showing damage or wear must be replaced immediately regardless of age.
What Is Not Covered
- Normal wear and tear
- Damage from negligence, misuse, abuse, or improper maintenance
- Unauthorized modifications or repairs
- Superficial scratches to the finish
- Upholstery tears, cuts, burns, stains, or damage from improper use (jewelry, inappropriate clothing)
- Rust from improper storage — store in a clean, dry environment; in coastal areas, wipe down regularly and minimize exposure to sea air
- Shipping costs, customs fees, or installation costs for warranty parts
- Equipment used outside of recognized Pilates repertoire
Warranty Claim Procedure
- Contact us at 866-861-6317 or support@recovathlete.com to initiate a claim
- We will contact Align-Pilates or their authorized North American distributor on your behalf
- A return authorization number (RNA) will be issued if a return is required — items returned without an RNA will not be accepted
- You are responsible for the cost of shipping the item back for inspection
- Parts repaired or replaced under warranty are covered for the remainder of the original warranty period only
Full manufacturer warranty terms: align-pilates.com/resources/warranty-maintenance
Let customers speak for us
Have Questions? Talk to Our Equipment Team.
We respond within 2 hours.
US & Canada shipping. Financing available.
- Choosing a selection results in a full page refresh.
