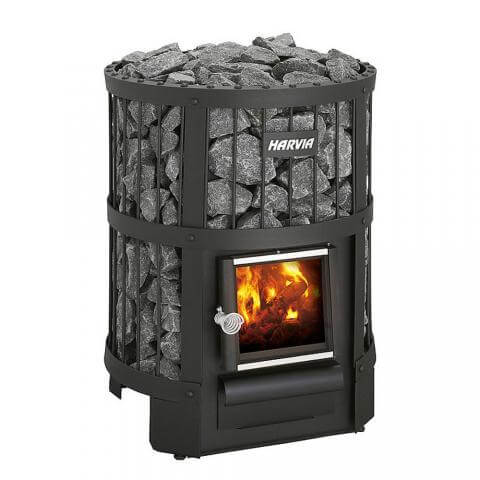

Harvia Legend 150 Wood Sauna Stove | WK150LD

If you want to heat your sauna from another room or outside the building then this Harvia Legend 150 is for you. The innovative structure that separates the combustion air and directs part of the air to the upper part of the fire chamber will give you a cleaner and more efficient way of burning. The large amount of stones integrated with the modern black steel grate structure gives this wood-burning heater a longer lifespan.

Harvia Legend 150 Features

• Wood-Burning
• Cleaner and efficient burning
• 16kW
• For sauna rooms from 212-459 cu. ft.
• 264 lbs stone capacity
• Black steel frame
• Floor model
• Adjustable feet
• Designed, engineered, and made in Finland
• Dimensions: 21"W (530mm) x 21"D (530mm) x 30"H (740mm)
• Limited 2-year warranty
• Requires 6 bags of Harvia Stones

The Harvia Legend 150 offers a comfortably moist sauna bath for a smaller sauna. The wood-burning heater is a treat for the eye and for the sauna bather, the Harvia Legend 150 is equipped with a cast-iron glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The adjustable legs make the wood-burning heater easy to place in the sauna.

• Harvia Legend Wood Burning Stoves Manual

Harvia Legend 150 Specifications

Harvia Legend 150 is equipped with a cast-iron-framed glass door and is designed for saunas up to 459 cubic feet (CF).

Product Information

 Package Contents

• Sauna Stove
• Stove Door
• Ash box
• Installation and Operation Manual
• 2-year Limited Warranty

Required for Operation

• Dry wood, 264 lbs stones (Harvia AC3000)
• Recommended accessory: Harvia WZ115155

Harvia Pipe Adapter (WZ115155)

All Harvia wood-burning sauna stoves are equipped with standard European exhaust piping that measures 115mm (4.5"). This adapter is required for North American 155 mm (6") piping conversion.

Safety Distances

Harvia Legend 150 Maintenance

Stove

• The ash box should always be emptied before heating the stove so that the combustion air that is lead through the box would cool off the fire grate and lengthen its life span. Get a metal container, preferably standing model, to put the ash in. As the removed ash may include hot embers, do not keep the ash container close to combustible material.
• Soot and ashes gathered in the smoke canals of the stove should be removed occasionally through the soot openings
• Due to large variations in temperature, the sauna stones disintegrate in use. Therefore, they should be rearranged at least once a year or even more often if the sauna is in frequent use. At the same time, any pieces of stones should be removed from the stone space, and disintegrated stones should be replaced with new ones.
• Wipe dust and dirt from the stove with a damp cloth.

Chimney

• The chimney and connection pipes should be swept at regular intervals and especially if the stove has not been used in a long time.
• Due to incomplete burning of fuel and failure of sweeping the chimney, the soot build-up in the flue may ignite. Actions to be taken in case of a chimney fire:

1. Close the ash box, stove door and damper plate (if installed).
2. Contact local fire authority.
3. Do not try to extinguish fire using water.
4. After a soot fire, a chimney sweeper must check the stove and the flue before use.
