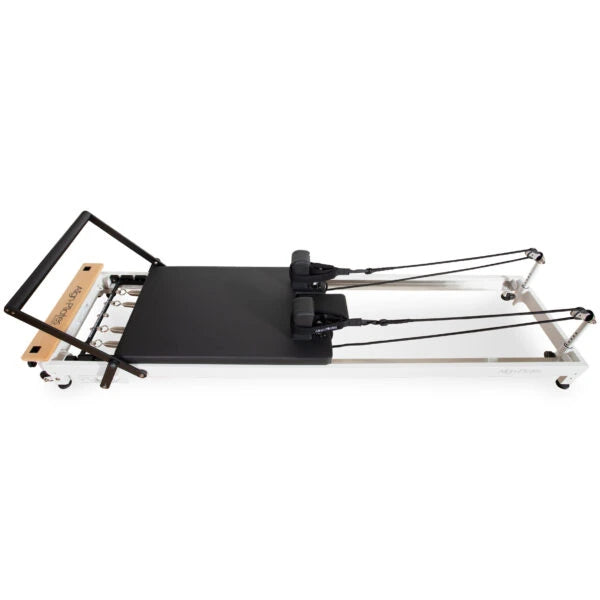

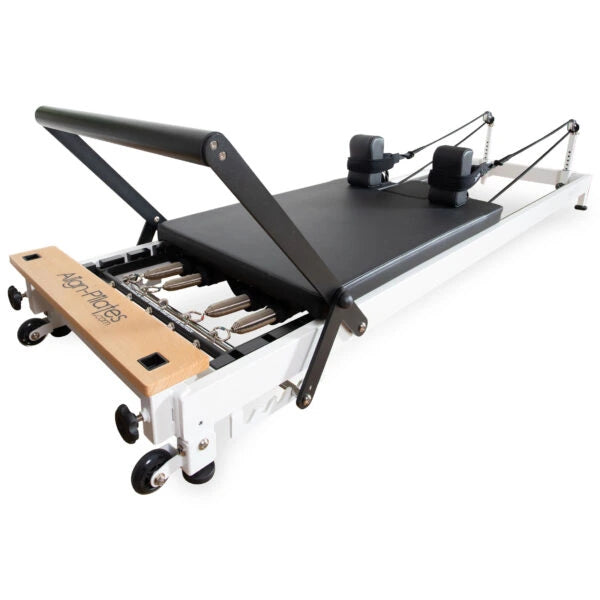

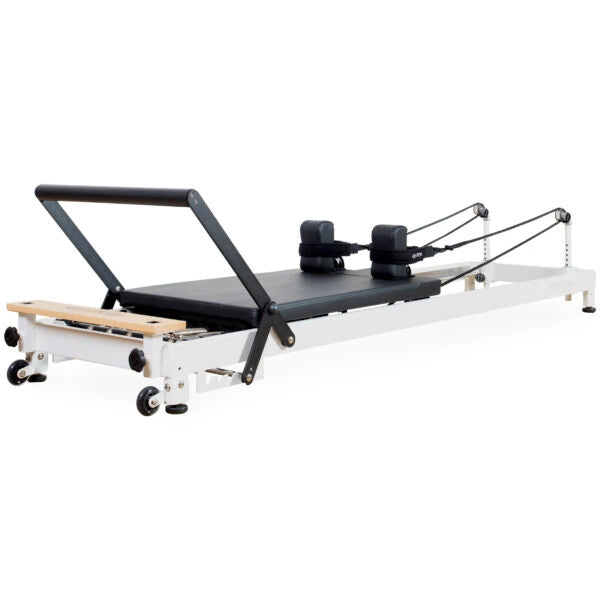

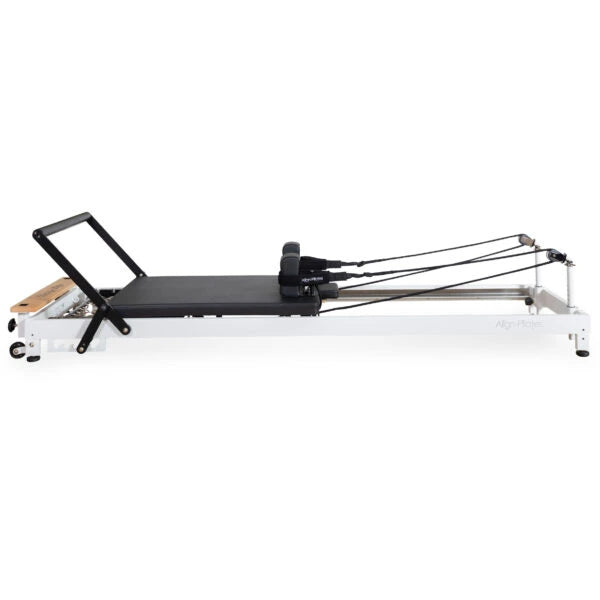

Align Pilates R8-Pro in White: Classic Reformer Geometry for Home Studios and Light Studio Use
The Align Pilates R8-Pro Reformer in White is a light commercial Pilates reformer for home studios and small practices. Align built it around the carriage, footbar and spring bar distances of Joseph Pilates's classic machines. On top of that it adds a patented Rapid Change spring bar, Pro Rope adjusters and an 8 wheel carriage.
R8 stands for Retro, 8 wheel. Silent ropes on height-adjustable risers replace classic leather straps, while the pulley position stays close to an original reformer.
RecovAthlete is an authorized Align Pilates dealer.
R8-Pro Pilates Reformer Size, Capacity and Setup
The frame measures 97.6 x 26.4 x 9.1 in (248 x 67 x 23 cm). The carriage is 35.0 x 22.0 in (89 x 56 cm) and travels 38.4 in (97.5 cm). Align rates it for users up to 264.6 lb (120 kg). The machine itself weighs 130.3 lb (59.1 kg).
Four springs come fitted: two strong, one medium and one light, with space for a fifth. The frame is white steel on stainless steel runners. Align tests it to ISO 20957-1 Class S.

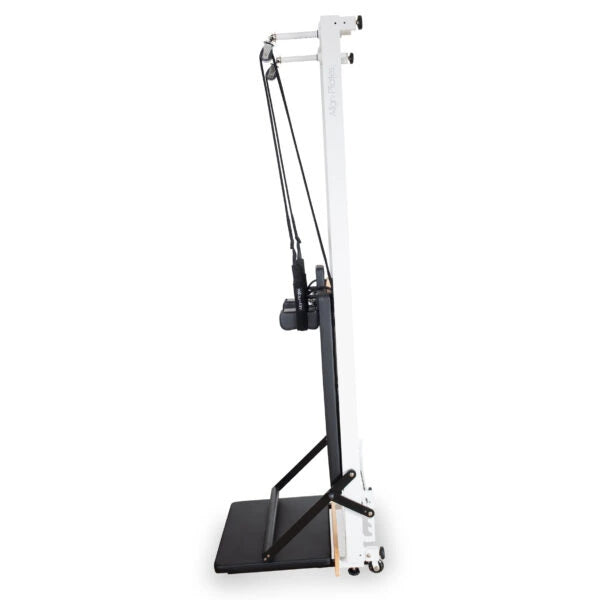

Align's warranty covers home use plus light commercial use of up to 20 hours a week. The R8-Pro is stackable, and it stands on end only with the optional jump board fitted. It does not fold. It arrives for assembly, and white glove delivery with in-room assembly is a paid add-on.
Check before ordering
Align's cover stops at 20 hours of use per week, per machine. A reformer on a full class timetable passes that quickly. Align also confirms the R8-Pro cannot take a Half Cadillac Tower, now or later.
Who it's built for
- Home studio owners teaching under 20 hours a week per machine, inside Align's light commercial cover.
- Instructors working from home who change carriage position often, using the 3 position Rapid Change spring bar.
- Households with users of different sizes: 5 footbar positions, 3 headrest positions and 9 riser heights with legs.
- Practices that want a white frame and a choice of 23 or 36 cm bed height.
When it's not the right fit
- Studios running a full timetable. The C8-Pro carries Align's full commercial warranty.
- Users over 264.6 lb (120 kg). That is Align's published limit for the R8-Pro.
- Buyers who want a tower. Look at the C8-Pro with Half Cadillac instead.
- Rooms that need the machine folded away. The F3 Folding Reformer folds; the R8-Pro does not.
Align R8-Pro Reformer Overview Video
Align's overview shows the black R8-Pro. The white model shares its frame, carriage, springs and adjustments.
Room size, standing storage height and your delivery route are covered on the Before You Order tab.
Send us your room size, the heights of your users and your weekly hours, or book a 30 minute call. We will confirm the R8-Pro fits before you order.
