Made to order, freight-delivered, non-returnable. Run these five checks before you buy.
Measure the narrowest point between the truck and the room: doorways, turns, stairwells. The crate is long.
Standard needs 12 ft of length and 5 ft of width; Short needs 10 ft. Full footprint on the Specifications tab.
None. Fully mechanical, standard ceiling height is enough.
Frame, upholstery color and add-ons are locked at order. Custom colors add about 12 weeks.
Standard freight is curbside, self-assembled (two people, Allen key). White Glove brings it into the room as a paid add-on.
The BASI Systems Reformer is the professional wood Pilates reformer built for serious home users, instructors, and commercial studios that want a permanent, studio-grade machine rather than a fold-away one. The pulleys move to the client, resistance steps up a gear at a time instead of a full spring, and the long carriage means taller users finish the movement.
BASI Systems is the equipment division of Body Arts and Science International, the school Rael Isacowitz founded in 1989. This reformer machine is the frame the BASI comprehensive program is taught on, so instructors who train on it already know the repertoire it was built for.

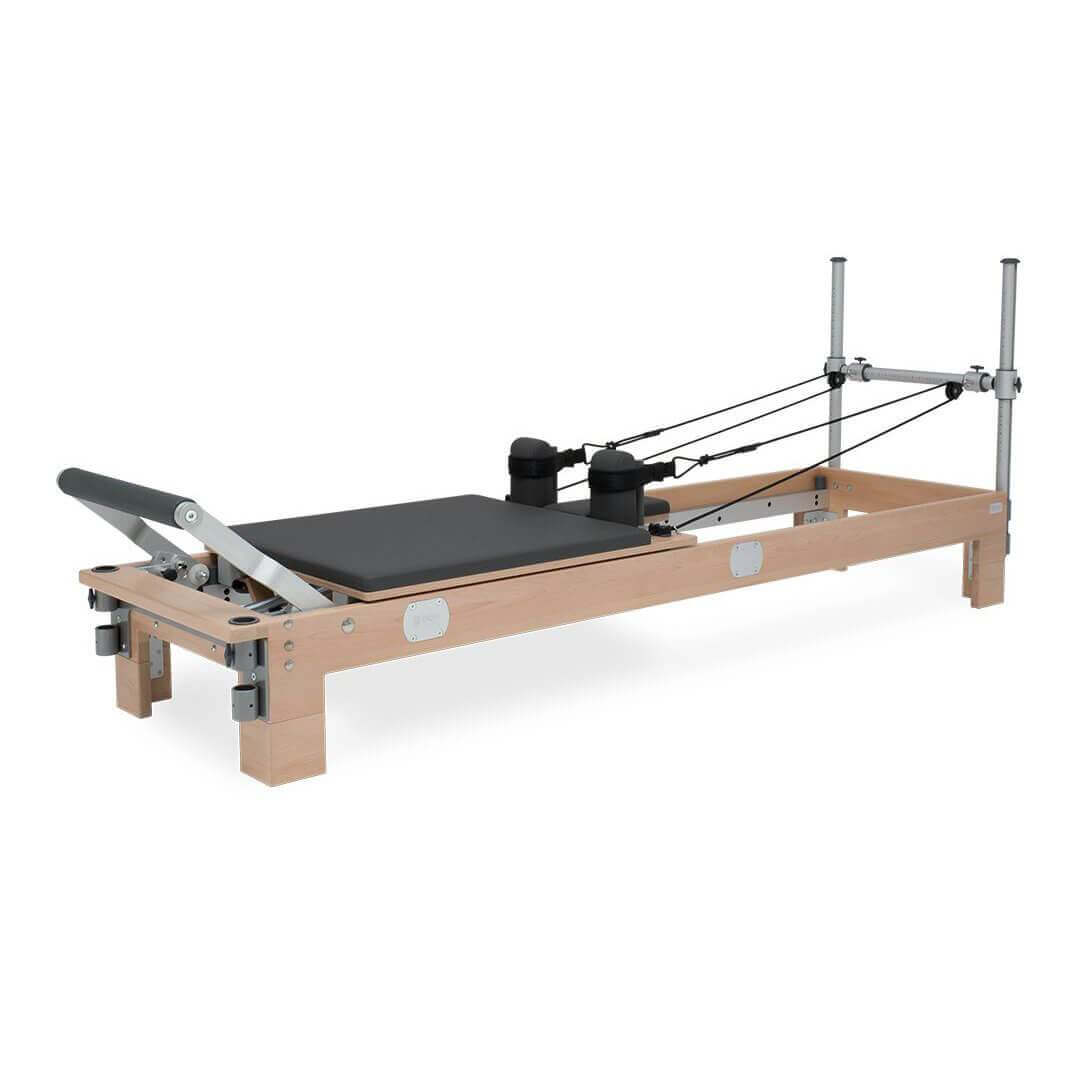

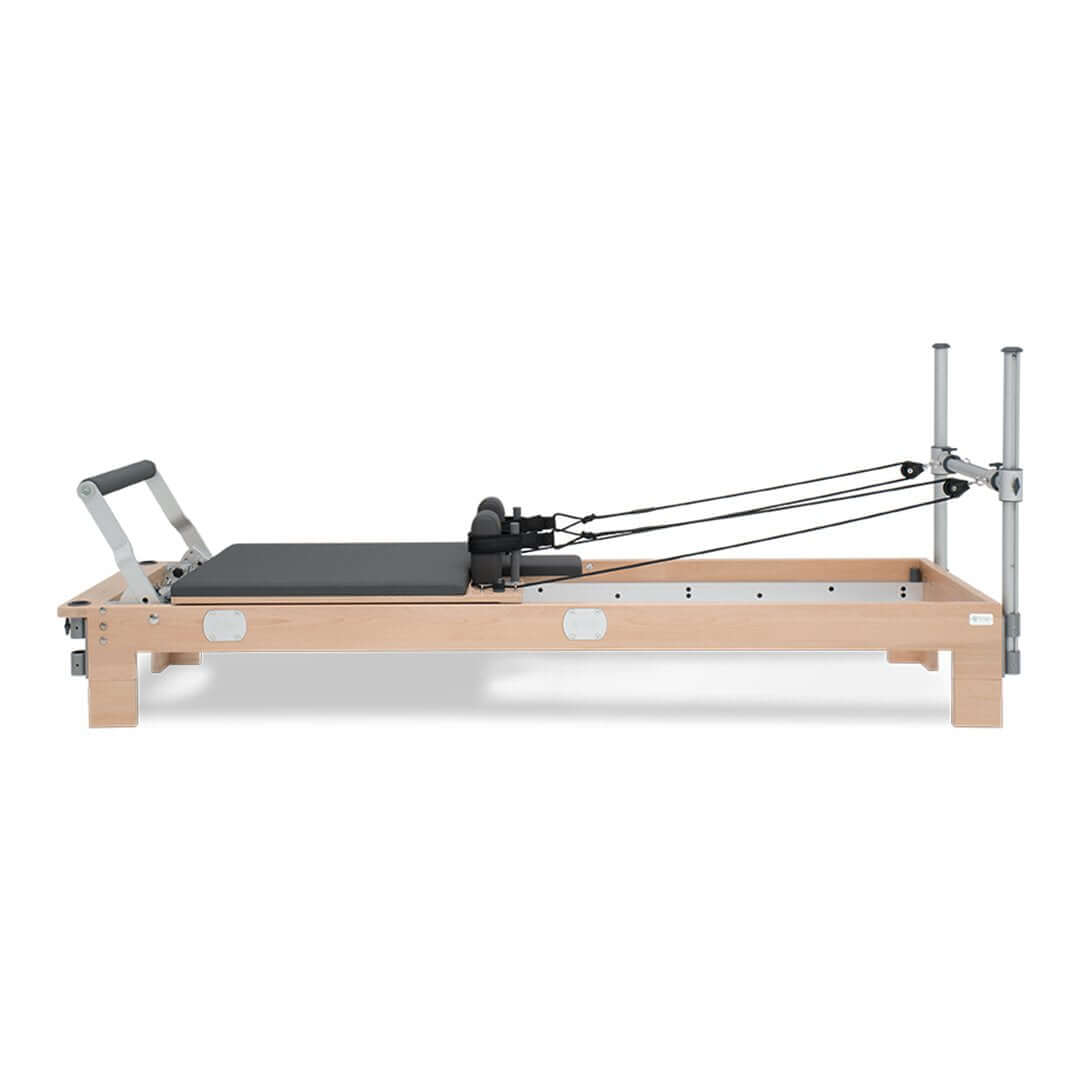

BASI Systems Reformer overview
BASI Systems Pilates equipment is built for professionals who teach daily, where performance and fine control matter. Four problems buyers hit with lesser reformers, and how this frame answers each.
Made to order and non-returnable. Check your room and route first, see the Before You Order tab.

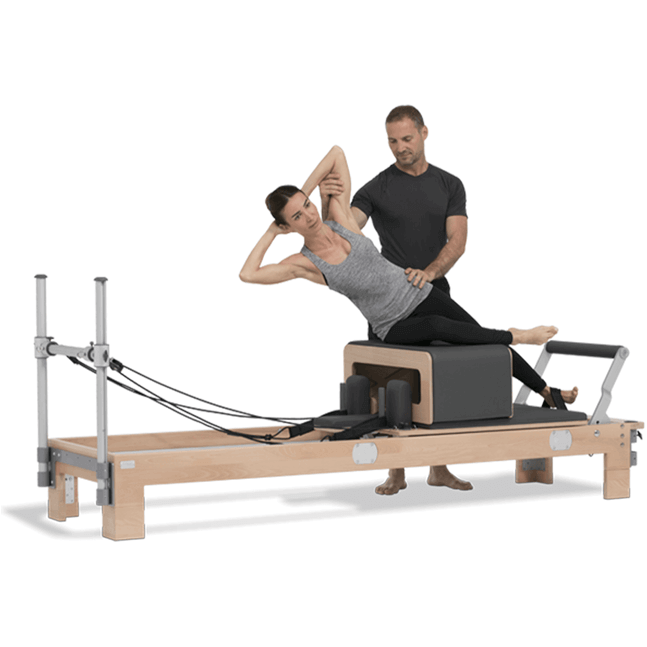

BASI Systems Reformer in use
| Measurement | Imperial | Metric |
|---|---|---|
| Frame width (bare) | 27.5 in | 70 cm |
| Frame length (bare) | 95.3 in | 242 cm |
| Frame height (bare) | 12.8 in | 32.5 cm |
| Width with half tower and footbar | 28.5 in | 72.5 cm |
| Length with half tower and footbar | 107.3 in | 272.5 cm |
| Height with half tower and footbar | 39.4 in | 100 cm |
| Carriage width | 27.5 in | 70 cm |
| Carriage length | 31.2 in | 79.3 cm |
| Carriage height | 2.36 in | 6 cm |
| Frame weight | 197.3 lb | 89.5 kg |
The Reformer Short is a shorter-frame version of the same machine for rooms with limited length. Carriage dimensions are identical.
| Measurement | Imperial | Metric |
|---|---|---|
| Frame width (bare) | 27.5 in | 70 cm |
| Frame length (bare) | 87.4 in | 222 cm |
| Frame height (bare) | 12.8 in | 32.5 cm |
| Width with half tower and footbar | 28.5 in | 72.5 cm |
| Length with half tower and footbar | 99.4 in | 252.5 cm |
| Height with half tower and footbar | 39.4 in | 100 cm |
| Carriage width | 27.5 in | 70 cm |
| Carriage length | 31.2 in | 79.3 cm |
| Carriage height | 2.36 in | 6 cm |
| Frame weight | 187 lb | 85 kg |
| Feature | Specification |
|---|---|
| Springs included | 5 (3 red, 1 blue, 1 yellow) |
| Red springs (heavy) | 3 |
| Blue spring (medium) | 1 |
| Yellow spring (light) | 1 |
| Gear options per spring | 3 levels |
| Resistance increment per gear step | 3 to 4% per spring |
| Spring replacement schedule | Every 2 years or 3,000 hours, whichever comes first |
| Component | Material |
|---|---|
| Frame | Solid beech wood |
| Tracks | Aircraft-grade aluminum |
| Carriage upholstery | Orthopedic padding, antibacterial hospital-grade vinyl |
| Transport wheels | Silicon |
| Hardware | Precision-engineered steel |
| Component | Positions / Range |
|---|---|
| Footbar angles | 5 positions (23, 40, 60, 75, 90 degrees) |

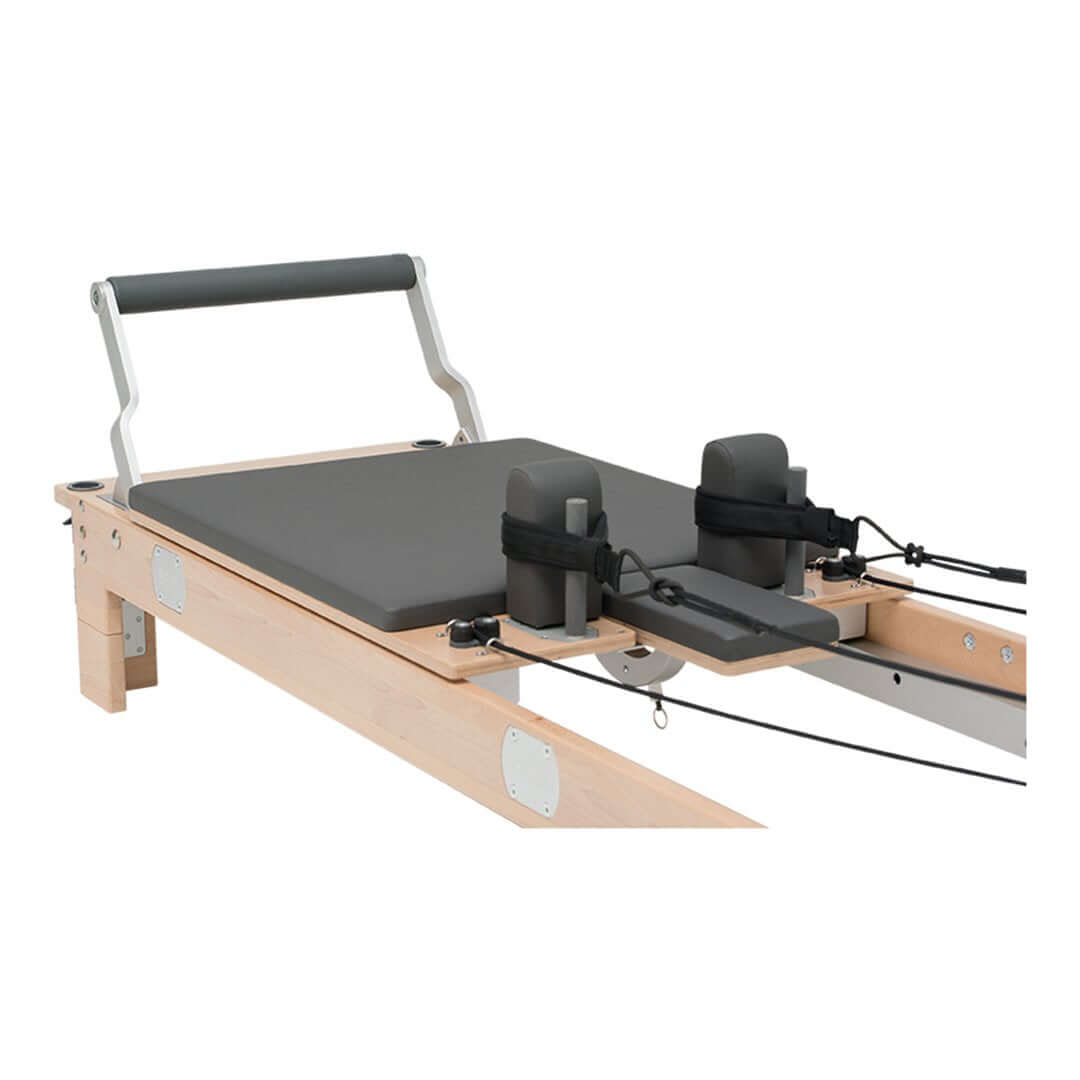

| Headrest | 3 positions |
| Shoulder rests | 4 positions |
| EPS pulley height | Any height along the half-tower |
| EPS pulley width | Any width along the half-tower |
| Extension leg heights | 3 options (ordered separately) |
| Dimension | Minimum |
|---|---|
| Room length | 12 ft (366 cm) recommended, with clearance at footbar end |
| Room width | 5 ft (152 cm) minimum; more gives instructor clearance on both sides |
| Ceiling height | Standard residential ceiling generally sufficient |
| Period | Covered parts |
|---|---|
| 10 years | Main wooden frame and structural wood components |
| 2 years | Steel and aluminum components, F2 systems, springs, plastic parts, fasteners |
| 1 year | Elastomer-coated parts (footbar, handbar, pedals, stoppers, handles, wheels) |
| 90 days | Pilates mat, upholstered parts, fabric accessories |
| Item | Detail |
|---|---|
| Patent | US 10,393,163 B2 |
| Dealer status | Authorized BASI Systems dealer |
| Power required | None |
Multiple upholstery colors available. Custom colors add approximately 12 weeks.
BASI Systems Jump Board, $450 value. Attaches to the footbar end for jump work and cardio. Lower the footbar, slide the poles into the pole bases, tighten the thumbscrew. No extra cost with this reformer.
F2 System, Sitting Box, Twin Mat Conversion, extension legs (medium and tall), Reformer with Tower and Reformer Combo conversion hardware.
| Specification | Standard Reformer | Reformer Short |
|---|---|---|
| Frame length | 95.3 in (242 cm) | 87.4 in (222 cm) |
| With half tower: length | 107.3 in (272.5 cm) | 99.4 in (252.5 cm) |
| Carriage | 31.2 x 27.5 in | 31.2 x 27.5 in |
| Weight | 197.3 lb (89.5 kg) | 187 lb (85 kg) |
| Springs | 5 (3R, 1B, 1Y) | 5 (3R, 1B, 1Y) |
| EPS pulleys | Yes | Yes |
| Gear bar | 3-level | 3-level |
| F2 ports | 4 | 4 |
| Recommended room length | 12 ft or more | 10 ft or more |
| Best for | Tall clients, full repertoire, standard studios | Shorter rooms, space-constrained studios |
Right for rooms 12 ft or longer, taller users, and studios standardizing on one frame across the full BASI repertoire.
Right for rooms under 12 feet. Same carriage, springs, EPS and F2 compatibility, 8 inches shorter.
| Feature | Reformer | With Tower | Combo |
|---|---|---|---|
| Frame | Beech, half tower | Beech, full tower | Beech, full Cadillac |
| Tower work | Half tower included | Full tower, same footprint | Full Cadillac functions |
| Cadillac functions | Upgrade later | Upgrade later | Yes |
| Ceiling clearance | Standard residential | Standard residential | Full clearance required |
| F2 conversion | Yes, ports built in | Not needed | Not needed |
| Best for | Starting point, room to expand | Full tower, no separate Cadillac | Full apparatus, larger space |
Yes, if you have a dedicated space. It uses the same beech frame, aluminum tracks, spring system and adjustability aimed at professional studios. At 197.3 lb it works as a permanent home-gym machine, not something you store after each session.
The 31.2" carriage, 95.3" frame and five footbar angles give taller users long-range room and setup flexibility. Fit still depends on body proportions and the exercise, so ask us for a fit check before ordering if you are near the top of the range.
BASI describes its Reformer as having one of the longest tracks and largest carriage cushions in the category, at 31.2" long by 27.5" wide. When comparing for a tall user, weigh overall track length, footbar adjustment and usable carriage travel, not carriage length alone.
It comes down to room length. The carriage, springs, EPS and F2 compatibility are identical on both. If your room is at least 12 feet long, the Standard fits; under that, the Short is the better frame. The full side-by-side is on the Comparison tab.
Neither is automatically better. BASI uses both: a solid beech structural frame with aircraft-grade aluminum carriage tracks, so you get the feel of a wood reformer with metal where smooth travel and durability matter. For home use, also weigh machine weight, room size and how permanent your setup is.

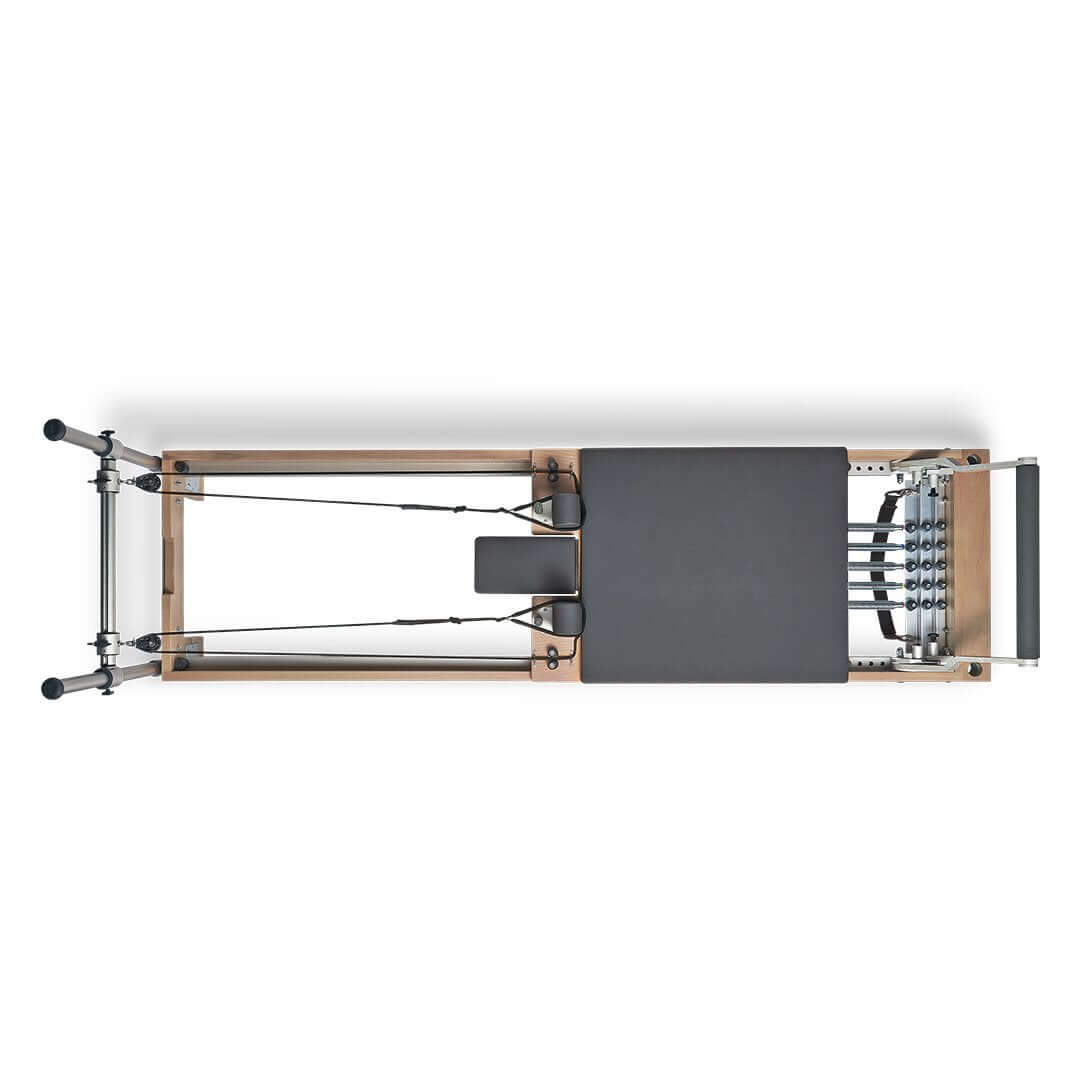

The five springs run across three gear positions each, so you can load or lighten a movement in small steps for core strength and full-body work. The optional F2 System adds more spring attachment positions and exercise options. For a broader setup, the Reformer with Tower or Combo extend the range further.

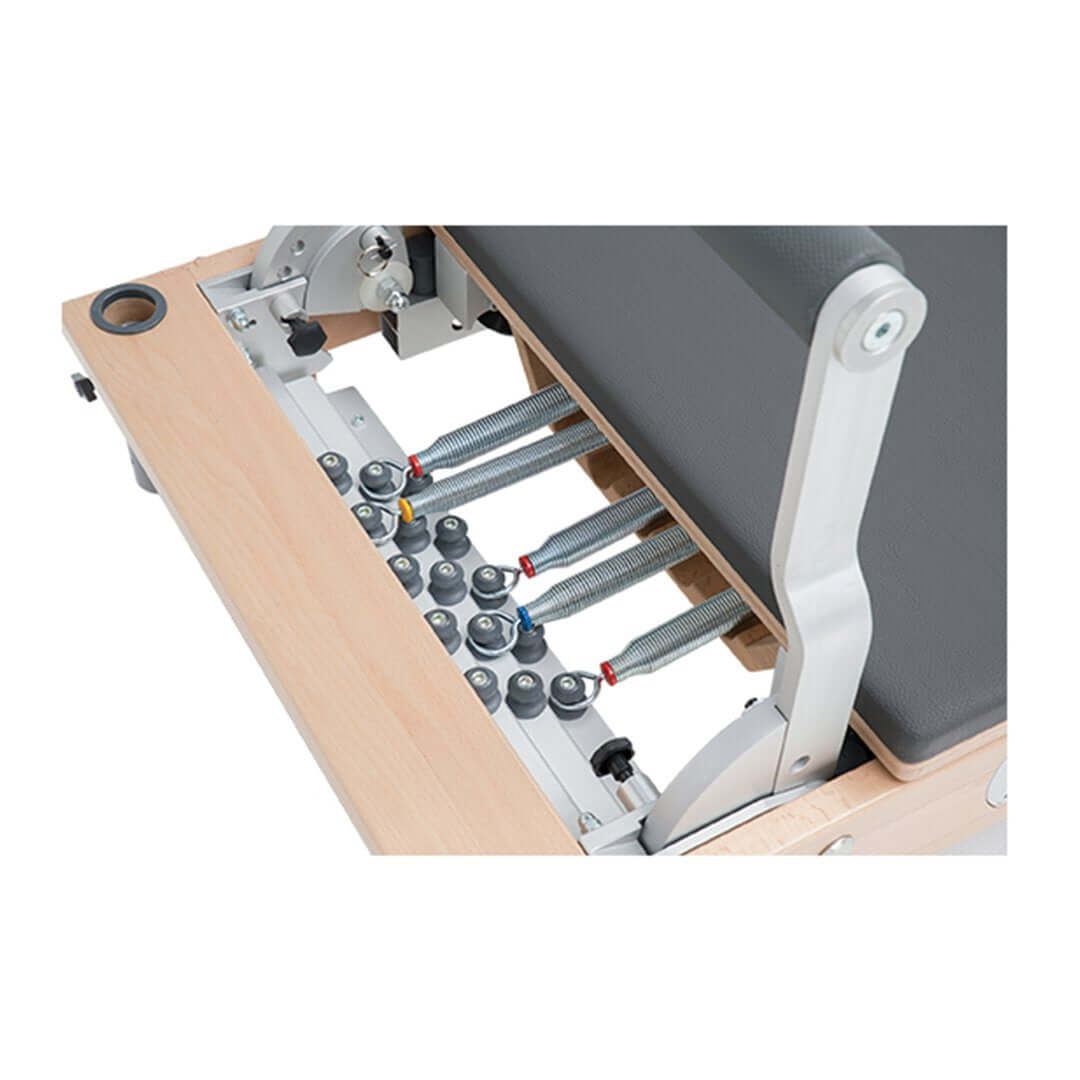

Five springs are included: three red, one blue, one yellow. Each spring uses three gear positions, and each step changes effective resistance by about 3 to 4%. That fine control suits both classical Pilates and the BASI Pilates block method, and is why PT and rehab clinics choose this frame.
The EPS is BASI's patented pulley system (Patent US 10,393,163 B2). Unlike fixed riser positions, it repositions along the half-tower so the direction of pull follows the client's body. See the Features tab for how it adjusts. It matters most in tower work and clinical setups.
Yes. Four F2 ports are built into the frame for future conversion. The Reformer with Tower adds a full vertical tower on the same footprint; the Reformer Combo adds full Cadillac functions but needs full ceiling clearance. Both are bought separately, no new frame needed. See the Comparison tab.
The price is at the top of this page and varies with configuration and delivery. BASI sets the price and every authorized dealer holds it, so you will not find it cheaper elsewhere. What varies between sellers is warranty validity, room sizing, delivery handling and parts support. Financing is available through Affirm, Brickhouse Capital, Reliant Capital and Acorn Finance.
It arrives partially assembled and needs two people, plus an Allen key for the pole base and F2 connectors. A walkthrough video is on the Package tab. Prefer it built for you? White Glove Delivery is covered on the Before You Order tab.
No. This is a permanent or semi-permanent installation. The silicon transport wheels reposition it inside a room, but it does not fold away between sessions. For limited room length, the Reformer Short is the better fit.
No. It is made to order and non-returnable, so confirm your measurements first. The Before You Order tab lists what to send us and how we confirm the fit.
No. The reformer is entirely mechanical. No power outlet is needed.
BASI uses tiered coverage rather than one blanket period: 10 years on the main wooden frame and structural wood, 2 years on steel and aluminum components, F2 systems, springs, plastic and fasteners, 1 year on elastomer-coated parts, and 90 days on upholstery and fabric. The warranty covers the original purchaser and is not transferable. As an authorized dealer, RecovAthlete keeps your coverage valid with direct BASI support.
Every 2 years or 3,000 hours of use, whichever comes first. Running springs past that can void the warranty. As an authorized dealer we can source replacement springs and other wear parts.
Clean the aluminum tracks regularly for a smooth carriage ride. Wipe the upholstery after each use with a damp microfiber cloth. Replace springs on the BASI schedule, and check ropes, handles, straps and hardware for wear, especially in commercial use.
BASI Systems equipment is made to order. Your delivery window starts the day your order is confirmed and payment clears, not the day it ships. All orders ship standard curbside freight.
| Color Variant | Estimated Delivery |
|---|---|
| Anthracite Grey (basic color) | 6 to 8 weeks |
| All other color variants | 8 to 10 weeks |
These timeframes include production and shipping. Other colors add roughly two weeks because the frame goes through a separate finishing run.
| Stage | What Happens | Timing |
|---|---|---|
| Order processing | We confirm your order and color, then release it to the BASI production queue. | Included in window above |
| Production | Your equipment is built to order at the BASI factory. | 6 to 10 weeks by color |
| Dispatch | The unit leaves the factory and you receive an email confirmation. | Day it ships |
| Transit | Curbside freight to your address. The carrier calls to book a delivery appointment. | Included in window above |
Express shipping is not available. Because each piece is made to order, production time cannot be shortened by paying more for freight. Anthracite Grey at 6 to 8 weeks is the fastest route. If you are working to a studio opening date, call 866-861-6317 (9am to 6pm EST, Monday to Friday) before you order and we will check the current production queue for you.
Shipping is calculated automatically at checkout based on your order value and destination. Nothing is added after checkout. For volume or studio fit-out orders, contact us and we will consolidate the freight booking, which usually costs less than separate shipments. International orders ship by quote, with duties and customs handled separately.
Standard curbside delivery means the carrier brings your equipment as close to your dwelling as possible, provided there are no obstacles at the time of delivery. The driver does not bring the equipment inside, up stairs, or into a specific room.
Inside delivery and white glove delivery are available as paid add-ons and require special quoting, since cost depends on your address, access, and the piece you bought. Contact us for a quote before you place your order so the cost can be added at the start.
BASI Systems equipment ships in a recyclable honeycomb cardboard container that can be flattened for storage. Sustainable materials are part of how BASI builds and packs its equipment.
All shipping times listed are estimates and are not guaranteed. BASI Systems is not responsible for shipping delays regardless of cause, including carrier issues, weather conditions, customs processing, factory scheduling, or other circumstances beyond our control. If your order runs past the window above, call 866-861-6317 and we will request a current build date from the factory.
