Align Pilates Half Cadillac Wall Unit with Wall Bracket
Ships within 12.0 business days | Free Shipping
- Regular price
- $1,870.00
- Regular price
-
- Sale price
- $1,870.00
- Unit price
- per
Shipping Free
12.0
Description
Half Cadillac repertoire off a wall, with no reformer underneath it and no floor given up

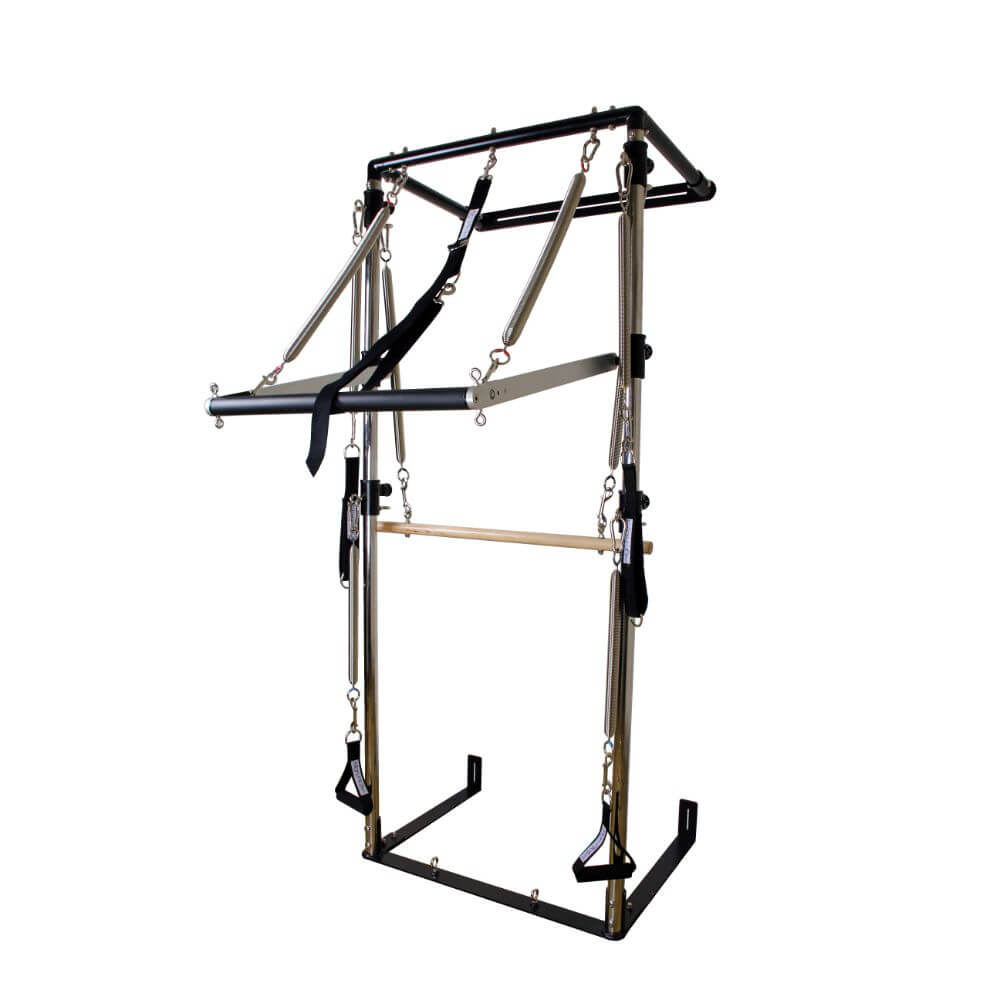

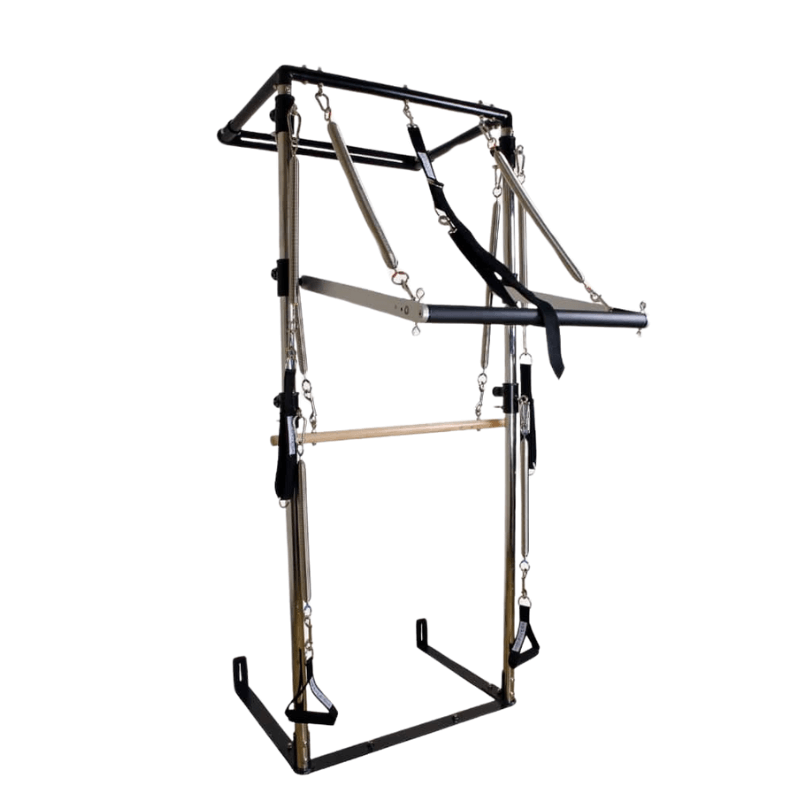

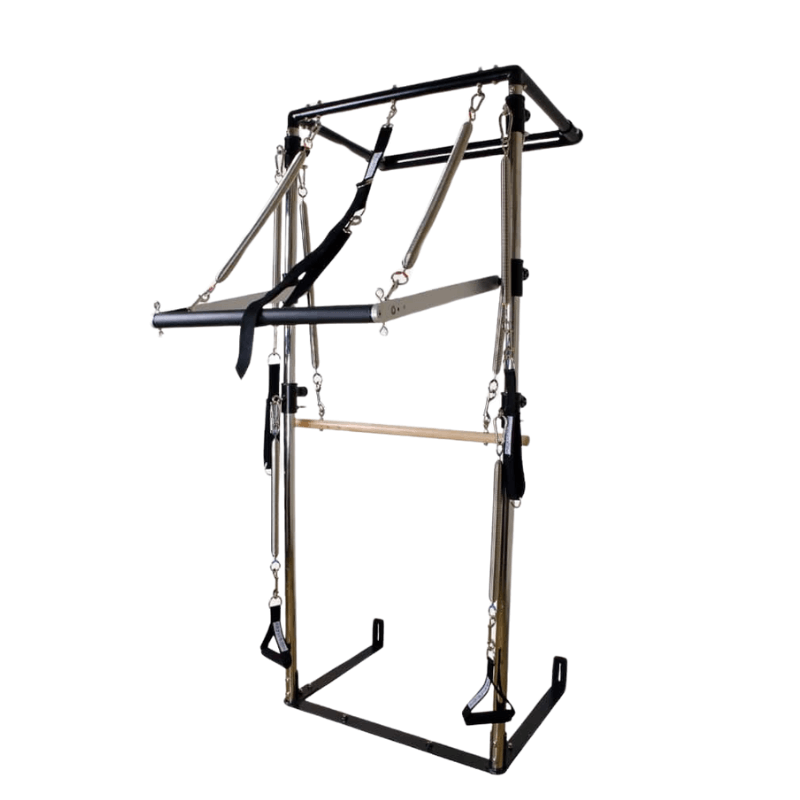

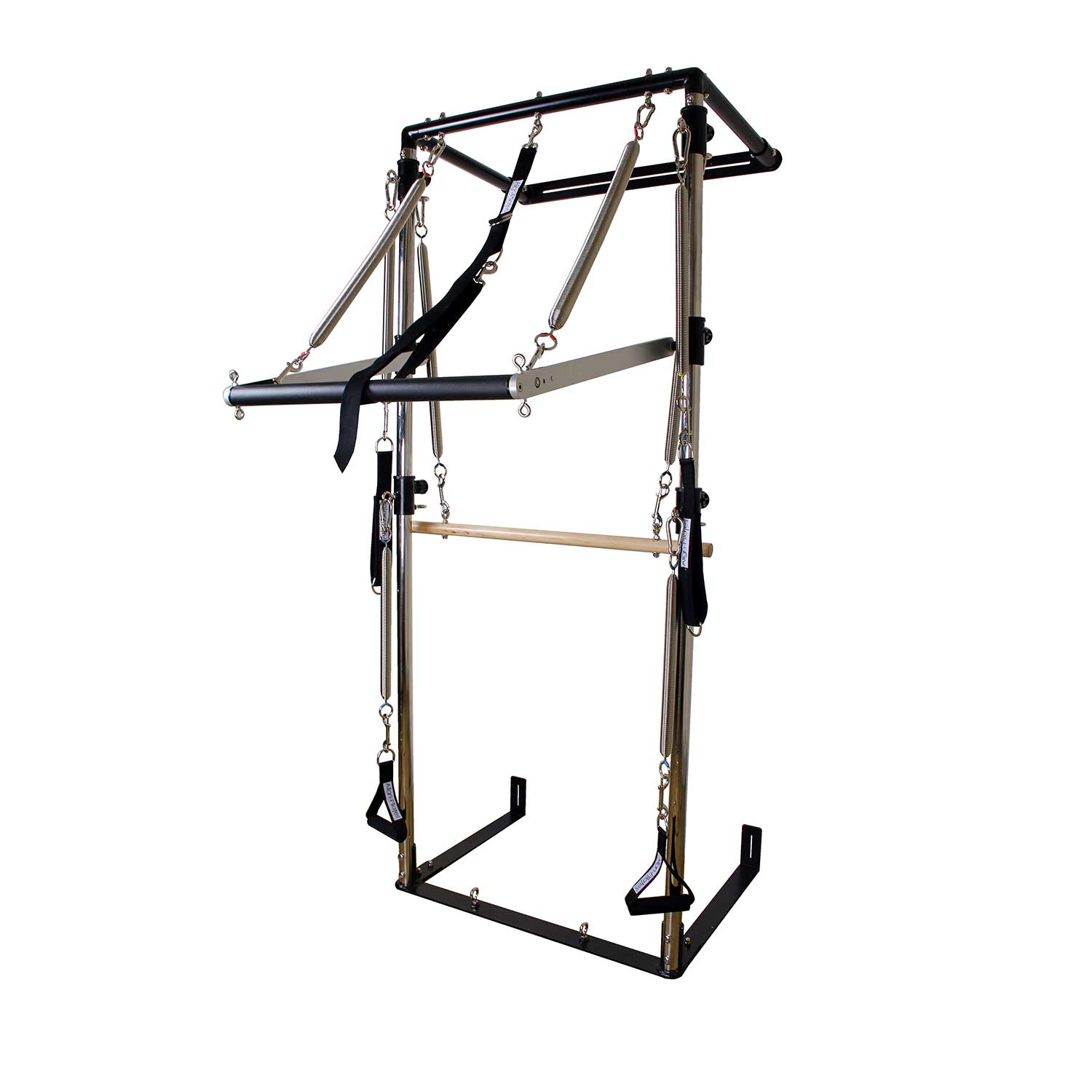

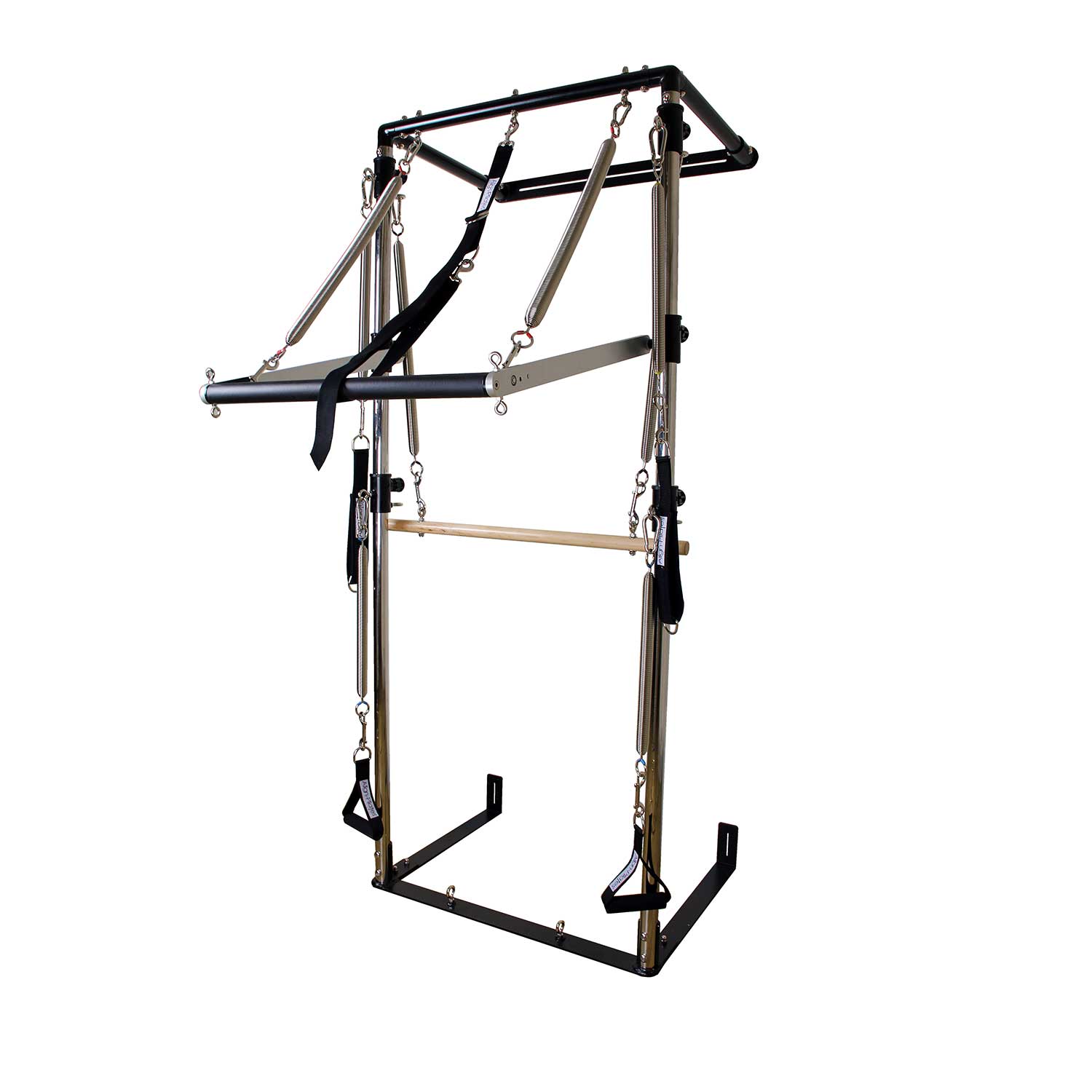

The Align Pilates Half Cadillac Wall Unit with Wall Bracket bolts the Half Cadillac frame onto a solid wall and runs as a standalone apparatus. No reformer sits under it and none is used. You get push through bar, roll down bar, arm and leg spring and standing spring work from a frame 189cm off the floor that projects 56cm into the room. The usual route to this repertoire is a reformer with a tower, which commits a reformer station and a lot of floor. This one spends wall instead. Buyers often call it a Pilates tower.
Three things decide whether you can install this. Check them before you order
1. It bolts to a wall, not to a reformer. Both bracket arms fix to the wall, nothing fixes to the floor, and the bracket will not fit a reformer.
2. Solid walls only. It cannot be used on stud walls. This is the most common reason a buyer ends up unable to install. Brick, block, concrete or solid masonry is required. A stud partition with plasterboard over it will not carry the frame or the spring loads pulled through it. There is no workaround. Check the wall before you order, not after the pallet arrives.
3. Wall fixings and bolts are not supplied. The right anchor depends on what your wall is made of. Align-Pilates recommends professional installation and does not provide it, so budget for an installer to specify the fixings.
Best for, and not ideal for
Best for
- Studios with a spare solid wall that want spring work without losing a reformer
- Rooms where floor area is the constraint and wall area is not
- Physio and rehab rooms adding spring work beside existing kit
- Home studios in masonry buildings with no room for a Cadillac footprint
Not ideal for
- Rooms where the only free wall is stud and plasterboard
- Rented space where drilling structural walls is not permitted
- Buyers who want the flat Cadillac bed, which needs a reformer carriage
- Anyone needing to move or store the apparatus between sessions
Why we carry this one
Most studios reach a point where they want Half Cadillac repertoire and cannot make the floor maths work. A Full Cadillac wants a permanent bay. A reformer mounted Half Cadillac ties up a machine that was earning its keep as a reformer. This unit answers both by using vertical space that was doing nothing.
The upper frame is the one used across the Half Cadillac line: full stainless steel, an aluminium push through bar with rapid adjust height changers, a maple roll down bar, a quick release safety strap and eight springs in two lengths. This is the newer bracket generation, reworked so the whole load path goes into the wall. If your wall is not solid, the answer is a different product, not a heavier bolt.
Wall mounted against reformer mounted
The same Half Cadillac frame does both jobs. What changes is what it hangs off. On this bracket it stands alone, uses no floor beyond its 56cm projection and stays put. What you give up is the flat bed, because Cadillac style supine work comes from a reformer carriage with a mattress converter and platform extender. This is a standing and spring station, not a table.

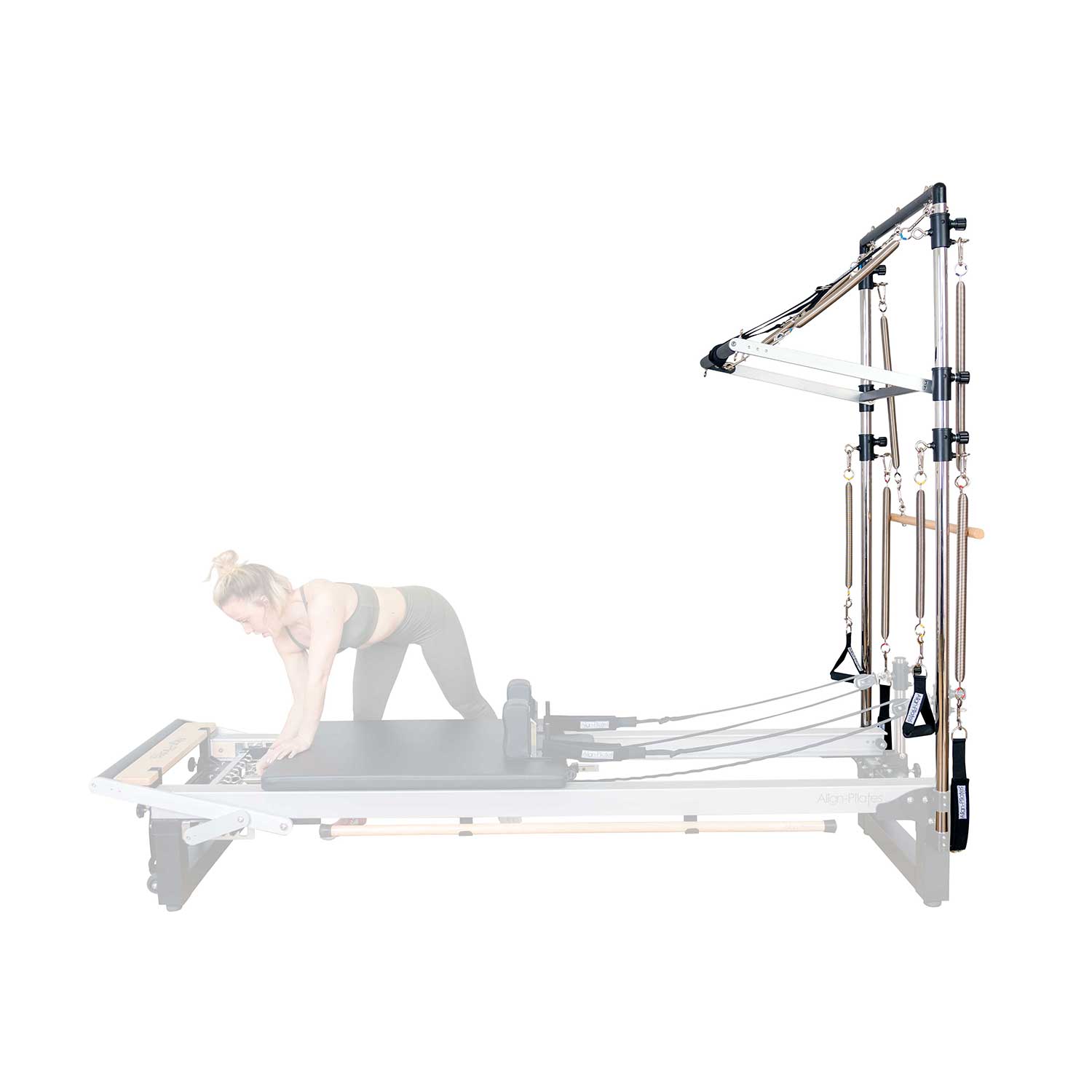

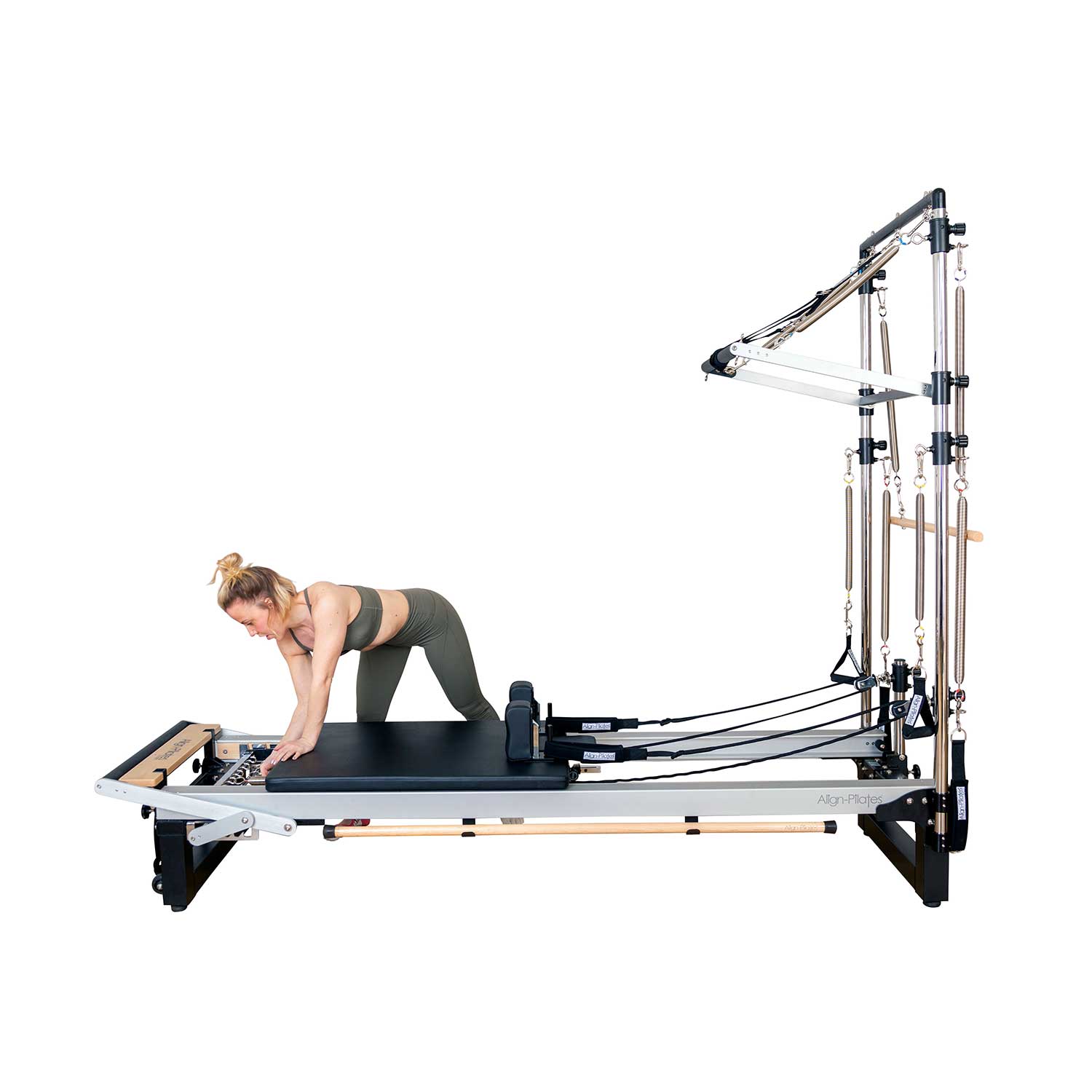

Mounted on a reformer, the frame turns a machine you own into a two in one. That needs a model specific reformer bracket set, sold separately, and fits A, M and C Series reformers except the C1. For that route already matched and boxed, see the C8-Pro reformer with Half Cadillac or the M8-Pro with Half Cadillac.
| Decision point | Wall mounted, this listing | Reformer mounted |
|---|---|---|
| Reformer needed | No, standalone | Yes, A, M or C Series, not the C1 |
| Extra parts | Wall fixings and bolts, sourced locally | Model specific reformer bracket set |
| Floor used | 56cm of projection | Full reformer length plus walk around space |
| Flat Cadillac bed | No | Yes, with converter and extender |
What the specs mean for you
| Specification | What it means in practice |
|---|---|
| 202.5cm H x 80.5cm W x 56cm D | Two metres of wall height, 80cm wide, intruding 56cm. A 2 metre working strip in front is comfortable |
| 189cm frame height | Sits below a standard ceiling, but allow headroom for the roll down bar arc and a standing client |
| Solid walls only | Brick, block, concrete or masonry. Confirm the substrate before ordering |
| 37.5kg assembled | The wall carries 30kg of frame and 15.7kg of bracket, plus whatever a client pulls through the springs |
| Stainless steel upper frame | Corrosion resistant and easy to wipe down in a humid room |
| 8 springs, two lengths | Standard 47cm and long 64cm, so short and long spring work needs no extra hardware |
| Ten minute frame assembly | Bolting the frame is quick. The skill and time go into fixing the bracket to the wall |
What ships with it
Supplied as a set, code PAPHALFCADA2WALLSET, so frame PAP-HALFCADA2 and bracket PAP-HALFADAPTA2 arrive together.

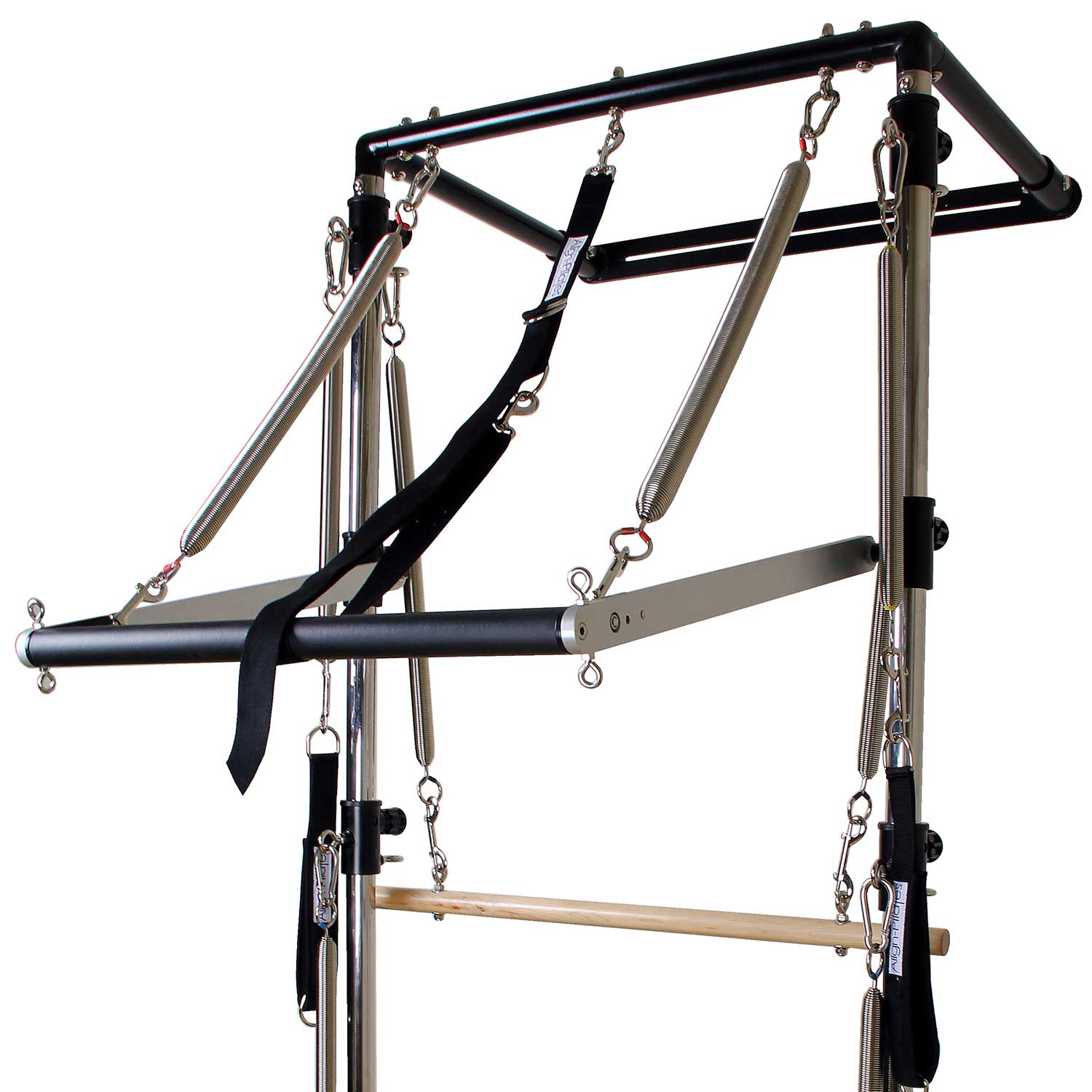

- Half Cadillac frame, stainless steel upper frame

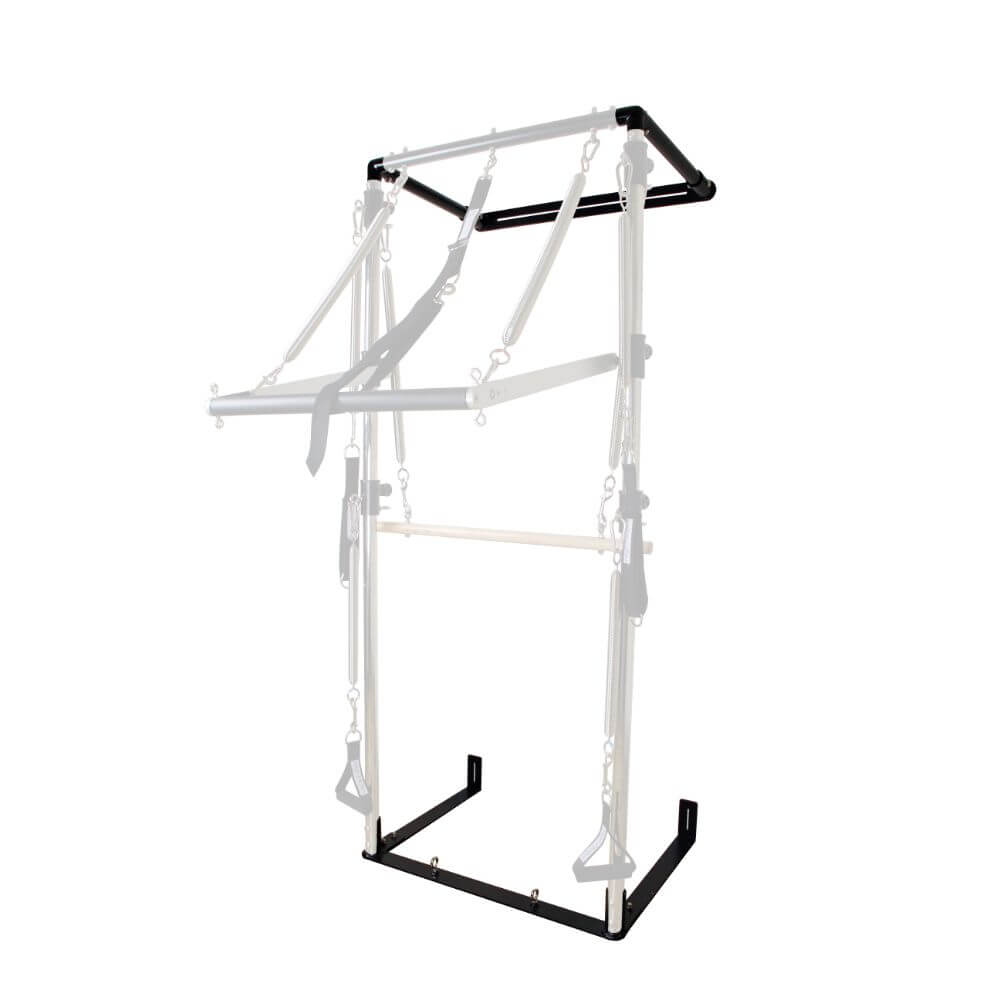

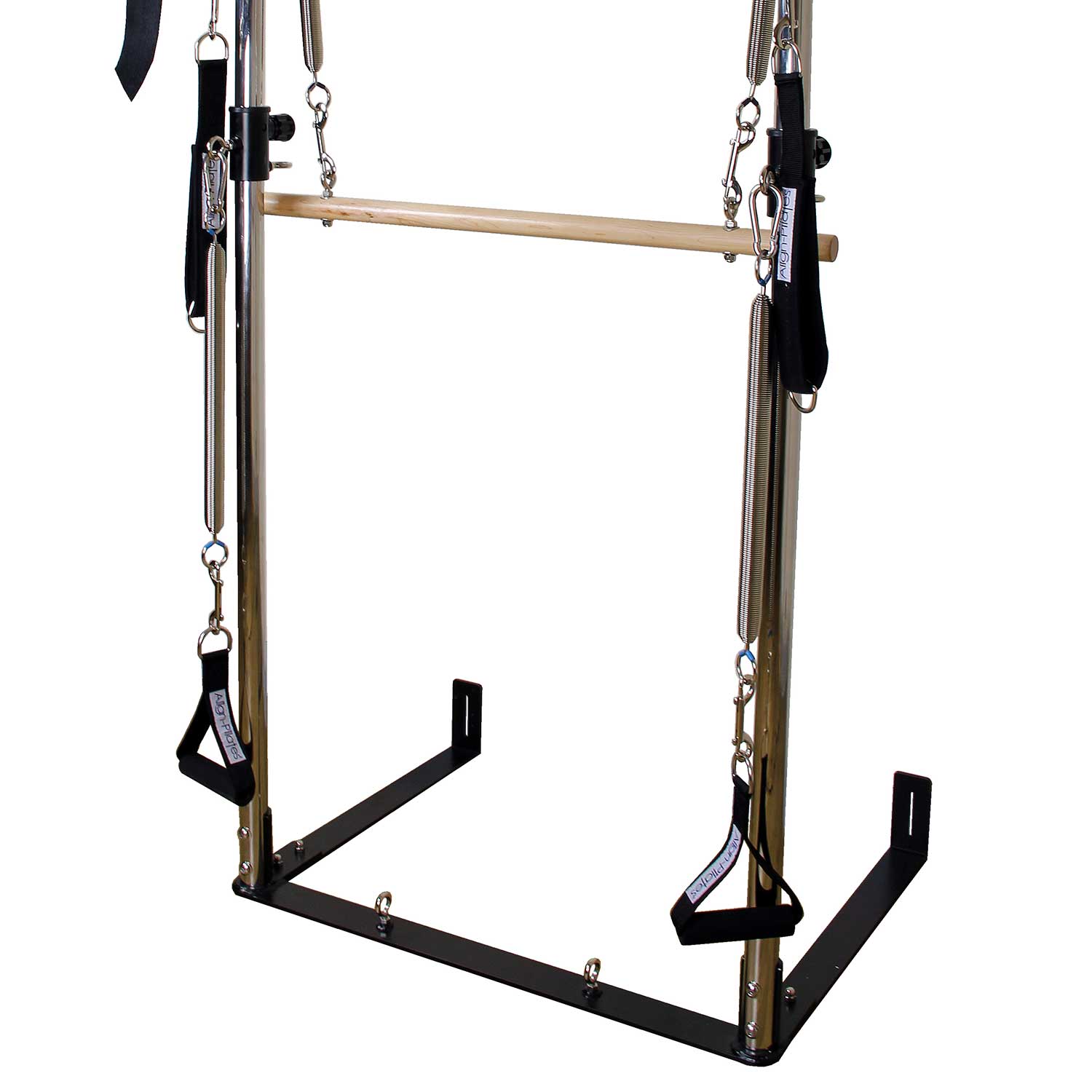

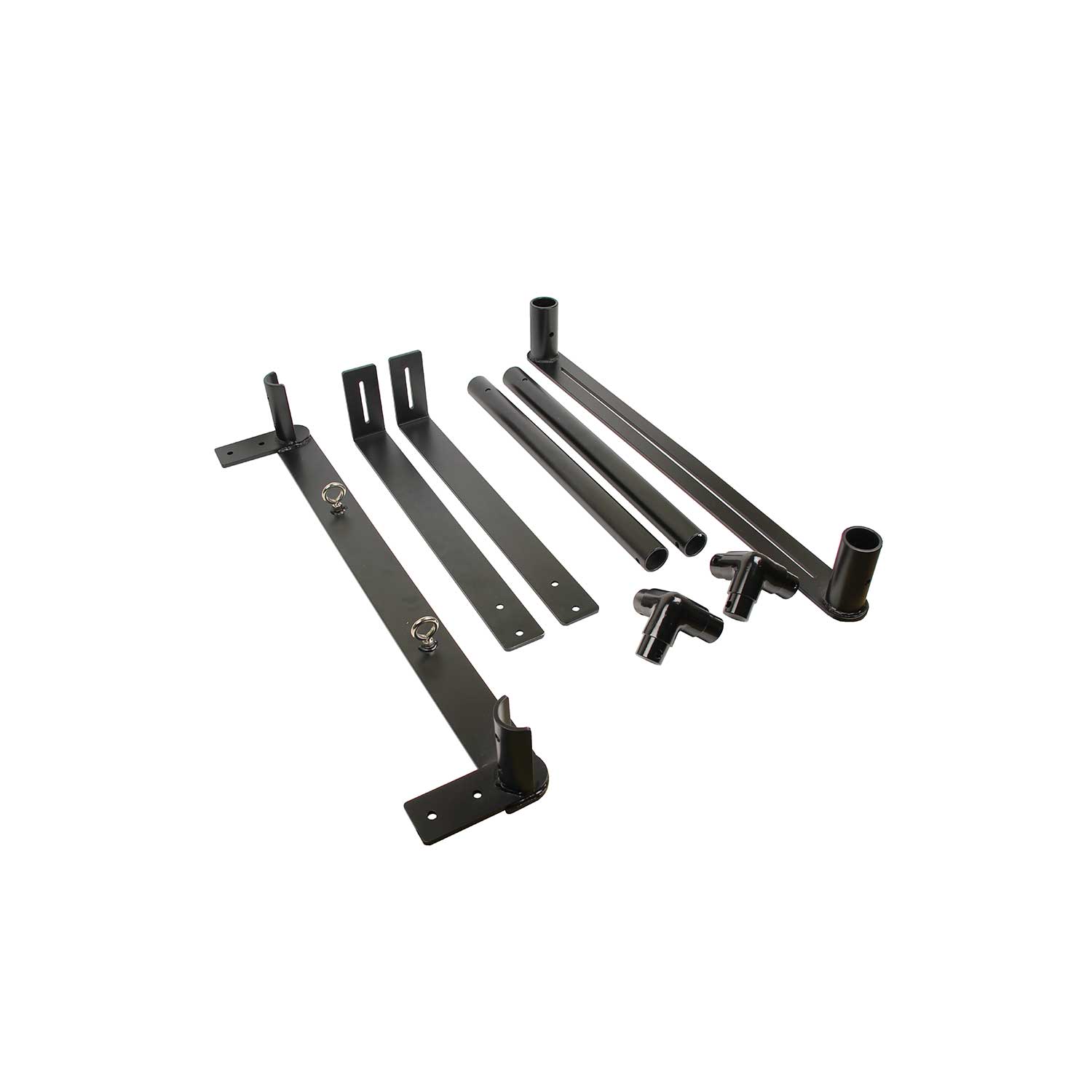

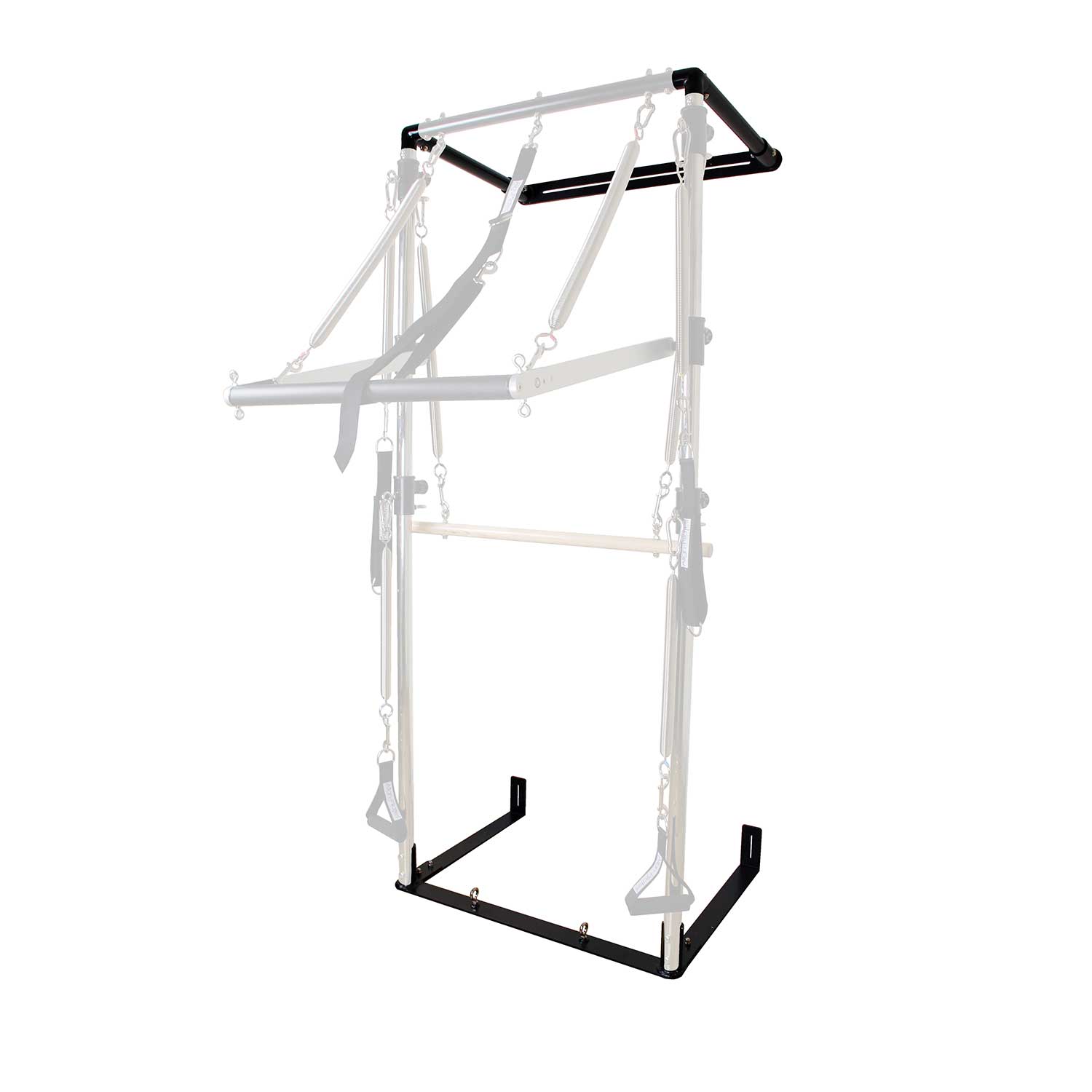

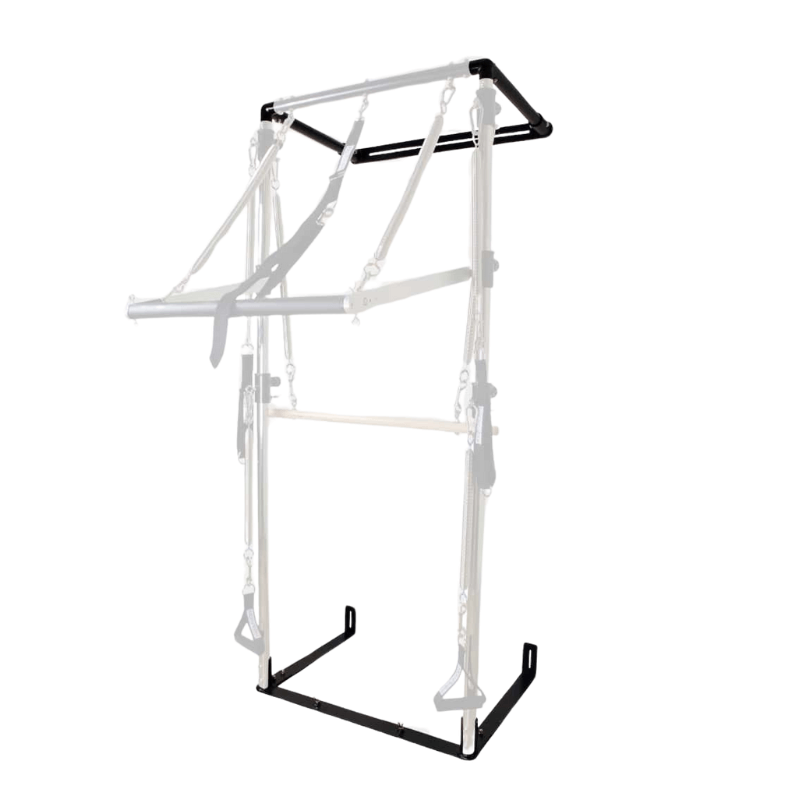

- Wall unit adapter bracket, top and bottom arms
- 1 aluminium push through bar with rapid adjust height changers
- 1 maple pull down bar, 1 quick release safety strap
- 1 pair of foot straps, 1 pair of hand handles
- 2 pairs of rapid adjust double eyelet spring holders, 8 aluminium carabiners, 8 double ended dog clips
- 8 nickel plated music wire springs: 2 standard 47cm very light yellow, 2 standard 47cm medium red, 2 long 64cm light purple, 2 long 64cm strong red
Also required, sold separately
Not usable straight out of the crate. Two things come from elsewhere.
- Wall fixings and bolts. Not supplied. The correct anchor depends on the wall material, so your installer specifies them.
- A solid wall and a qualified installer. Align-Pilates recommends professional installation and does not provide it. Stud walls are excluded outright.
Optional: additional or replacement springs, and a reformer bracket set if you later move the frame onto a machine.
Call 866-861-6317, 9am to 6pm EST Monday to Friday, and we will run a wall and compatibility check before you order. Tell us what the wall is built from and what the room measures. If it is wrong for your space, we will say so.
Full specifications
| Specification | Detail |
|---|---|
| Product codes | PAP-HALFCADA2 frame with PAP-HALFADAPTA2 wall bracket, supplied together as PAPHALFCADA2WALLSET |
| Assembled dimensions | 202.5cm H x 80.5cm W x 56cm D |
| Assembled weight | 37.5 kg |
| Frame height | 189cm from floor |
| Frame weight | 30 kg |
| Wall bracket weight | 15.7 kg |
| Wall bracket depth | 56 cm |
| Frame material | Full stainless steel upper frame |
| Mounting | Wall mounted. Top and bottom bracket arms fix to the wall, not to the floor and not to a reformer |
| Wall type required | Solid walls only. Cannot be used on stud walls |
| Wall fixings | Not included. Fixings and bolts depend on your wall. Professional installation recommended |
| Reformer required | No. The wall bracket lets the Half Cadillac be used as a standalone unit |
| Springs included | 8 nickel plated music wire springs: 2x Standard 47cm Very Light (Yellow), 2x Standard 47cm Medium (Red), 2x Long 64cm Light (Purple), 2x Long 64cm Strong (Red) |
| Push through bar | Aluminium, with rapid adjust height changers |
| Pull down bar | Maple roll down bar |
| Safety strap | Quick release |
| Assembly | Limited assembly. The frame alone takes about ten minutes |
| Frame compatibility if reformer mounted instead | A, M and C Series reformers except the C1, using the model specific reformer bracket sold separately |
Delivery
Ships freight on a pallet and needs two people to move into position. Assemble it in the room where it will live, against the wall it will be fixed to. White glove delivery and in room assembly are available as a paid add on. Drilling and anchoring into the building fabric stays with your installer.
Common questions
Can I mount this on a stud wall or a plasterboard partition?
No. Align-Pilates states the unit is only suitable for solid walls and cannot be used on stud walls. That covers timber stud, metal stud and any plasterboard skin over a void. If your only free wall is stud, a reformer mounted or freestanding Cadillac is the route.
Do I need a reformer to use this?
No, and that is the point of the bracket. It attaches to the wall and works standalone. Our earlier page said this bracket attaches to A-Series and C-Series reformers. That was wrong, and this page replaces it.
Are the bolts and wall fixings in the box?
No. The right anchor depends on the wall material, its condition and local building practice, so that is left to your installer. Buy them before your delivery date.
How much room do I need in front of it?
The unit is 202.5cm high, 80.5cm wide and projects 56cm. Beyond that, allow clear floor for a client to stand, kneel and lie in front of the frame and for both bars to travel. About 2 metres out is comfortable.
Can I move the frame onto a reformer later?
Yes. It is the standard Half Cadillac frame and fits A, M and C Series reformers except the C1, using the model specific reformer bracket set, a different part sold separately. Call with your model and we will confirm it.
