RopeFlex RX8100 Spartan Rope Pull Training Rig
- Regular price
- $21,500.00
- Regular price
-
$21,500.00 - Sale price
- $21,500.00
- Unit price
- per
Save $0.00
SHIPPING FREE
4
5% Off | Discount In Cart
RopeFlex RX8100 Spartan Rope Pull Training Rig: 16-position commercial rope rig proven at the Spartan Death Race
The RX8100 Spartan is Ropeflex's flagship multi-user training rig — a freestanding commercial structure that puts up to 16 RX2100 rope trainers in a single 10x10x8-foot bay. Built from 4x4-inch steel and rated IP64 for permanent outdoor installation, this is the machine that competed at the 2018 Spartan Death Race. It's not a gym accessory. It's a group conditioning station.
✓ Authorized Ropeflex Dealer — Full factory warranty, free shipping, no sales tax (most states)
Important: The RX8100 rig frame is sold separately from the RX2100 trainer units (up to 16 positions). At 1,400 lbs and 10x10x8 feet, professional delivery and structural floor assessment are required before installation. Contact us at 866-861-6317 to confirm floor load capacity and delivery logistics before ordering.
Best For
- Commercial gyms adding high-throughput rope conditioning
- Military, fire, and law enforcement training programs
- CrossFit boxes running simultaneous group WODs
- University and professional sports performance centers
- Outdoor obstacle training facilities and competition venues
Not Ideal For
- Home gym buyers — footprint is 10x10x8 ft, 1,400 lbs
- Single-user budgets (this is a group station)
- Facilities without professional installation capability
Why Buy From RecovAthlete
We carry the full Ropeflex commercial line and have experience specifying multi-unit installations. If you're planning a group rope training bay, we'll advise on trainer count, optional digital counters, outdoor cover configurations, and layout — before you buy.
Who Buys This
- Commercial gym operators expanding group conditioning capacity
- Military and first responder training directors needing documented, competition-proven equipment
- CrossFit box owners building out team WOD programming
- University athletic departments with 10+ athletes training simultaneously
What It Does

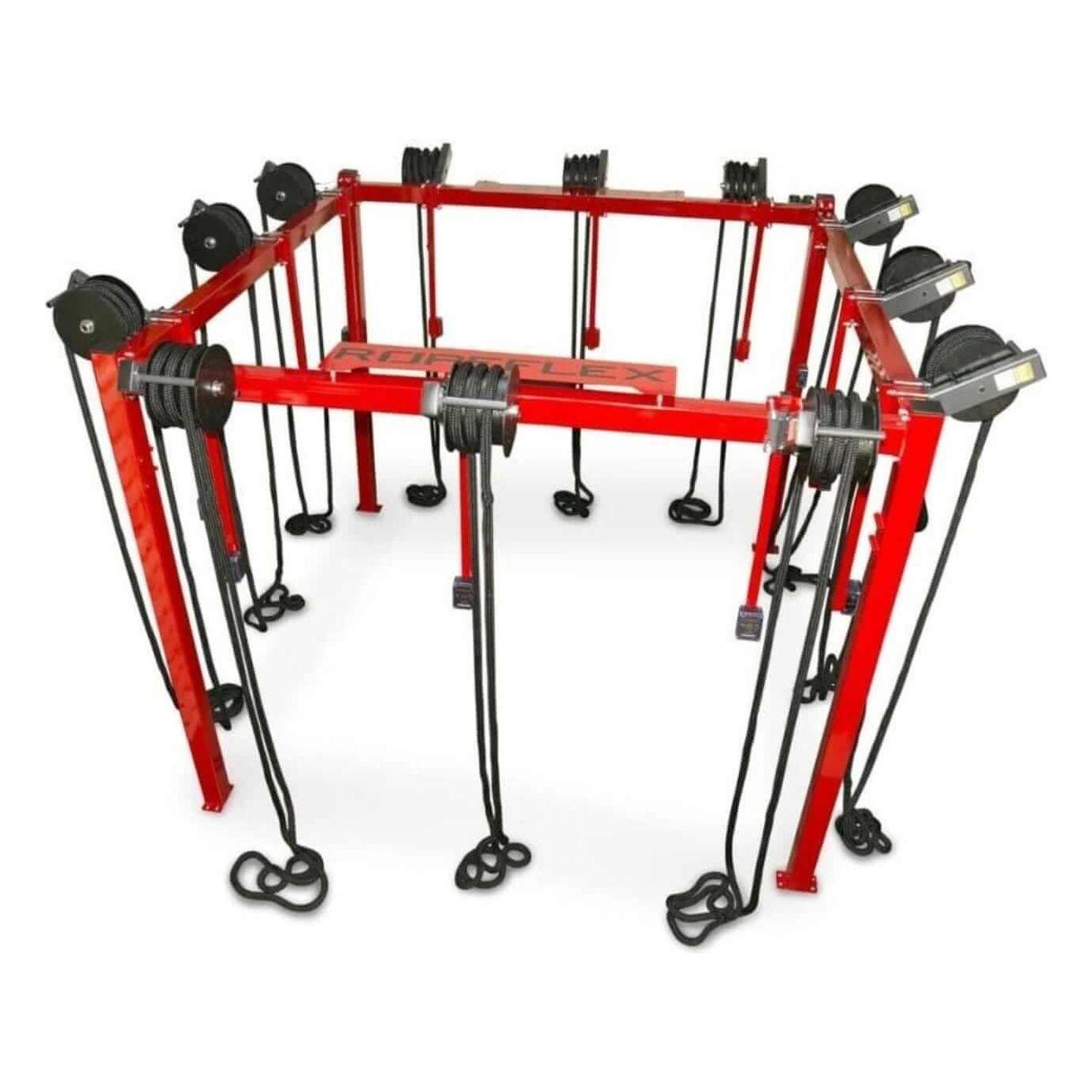

- Supports up to 16 RX2100 Endless Rope Trainers simultaneously (12 shown in standard config)
- Progressive Resistance auto-adjusts automatically per user — no setup between athletes

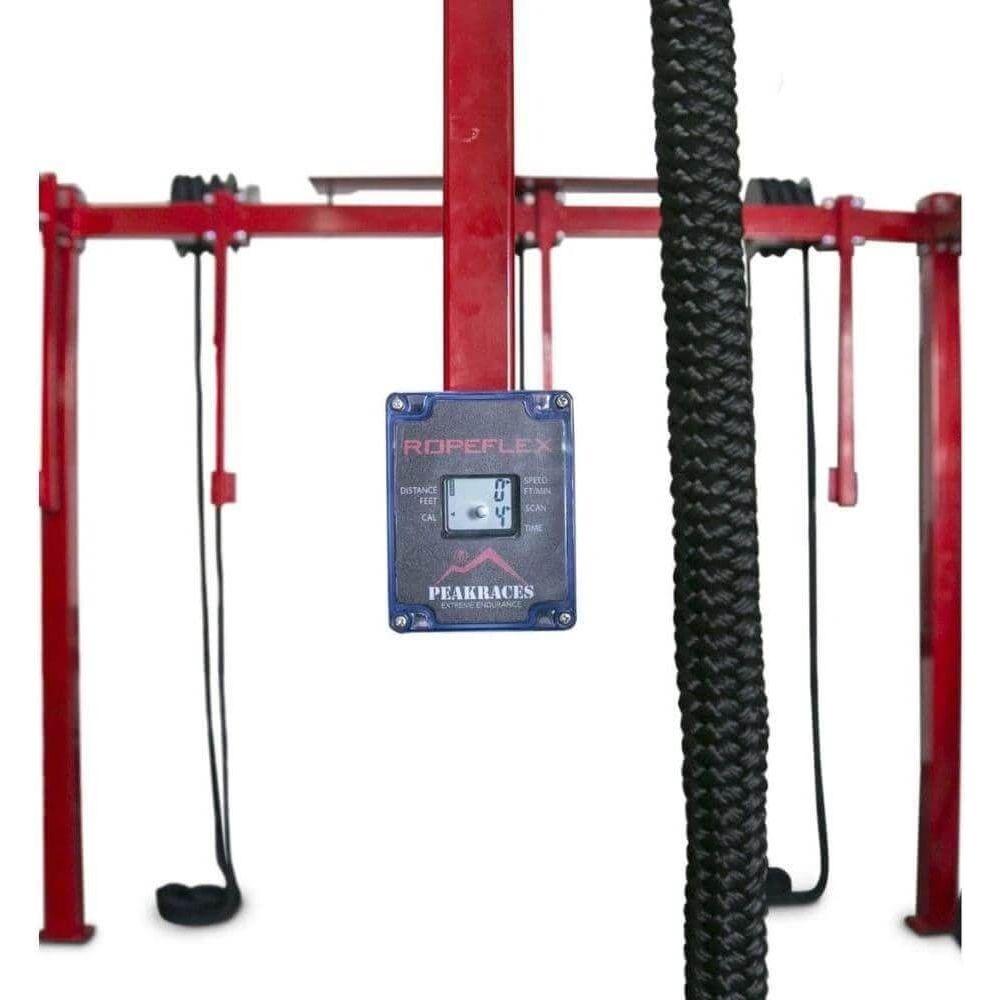

- Optional HIPERVISION digital counters track distance, speed, time, and calories per station

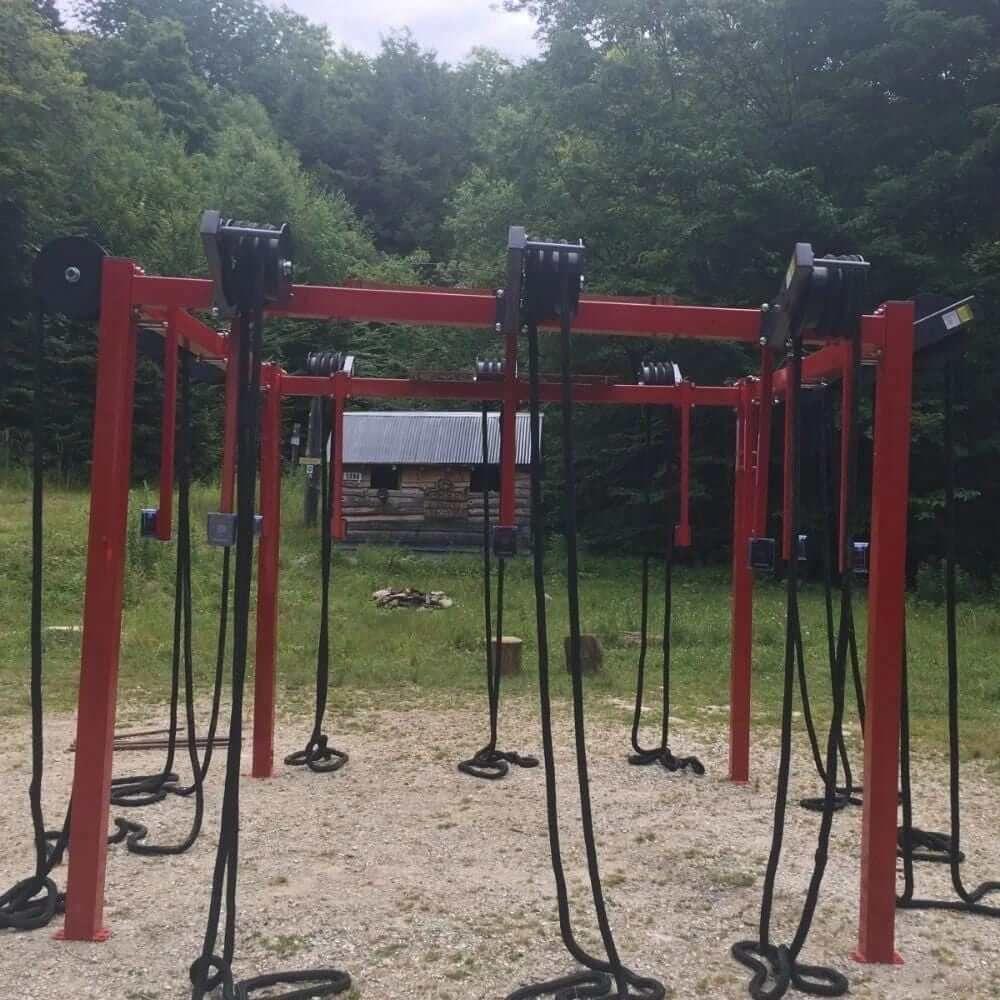

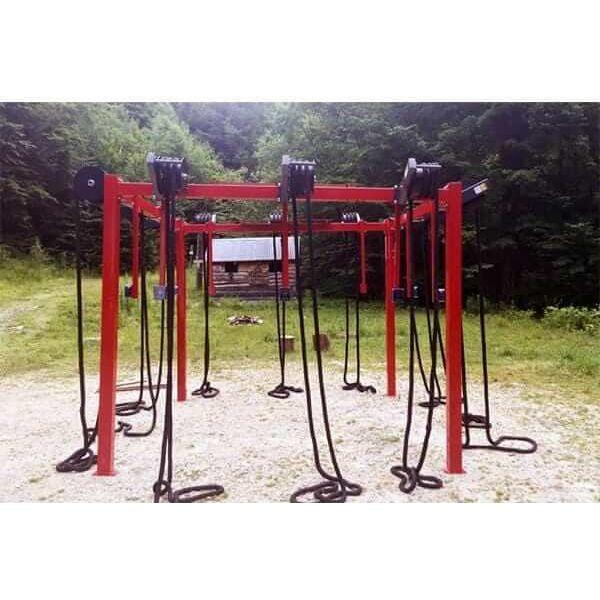

- IP64 outdoor rating: sealed against dust and water spray for permanent outdoor use
- Optional Outdoor Rig Configuration (OX2O) available without digital counters
What the Specs Actually Mean
| Specification | What It Means for You |
|---|---|

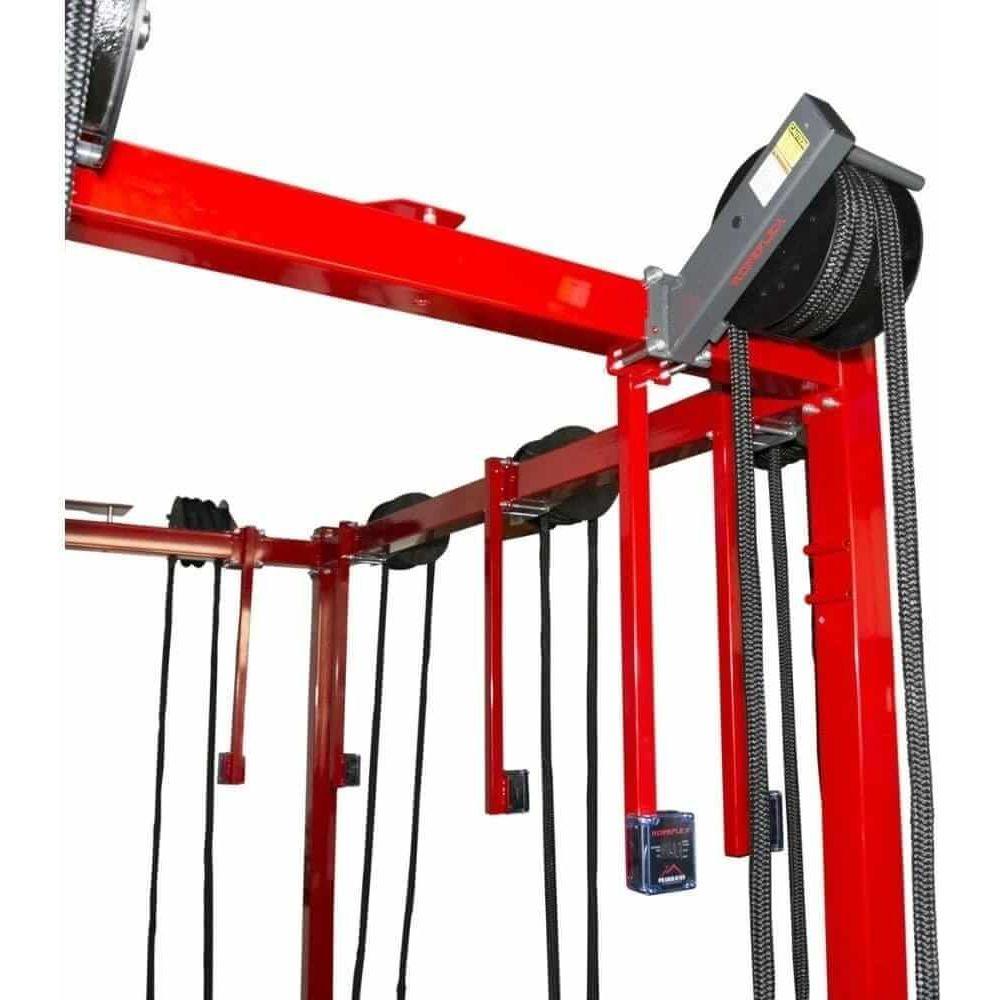

| 4x4 in (102x102 mm) steel tubing | Frame-grade structural steel. Handles dynamic pulling loads from 16 simultaneous users without flex. |
| 10 ft x 10 ft x 8 ft footprint | Fits a standard commercial gym bay. Requires approximately 200 sq ft of clear floor with 3 ft clearance per side. |
| Up to 16 RX2100 positions | Run group classes of 8-16 athletes simultaneously or in timed rotation. |
| IP64 outdoor rating | Fully sealed against dust and water spray. No weatherproofing required for permanent outdoor installation. |
| 1,400 lb (635 kg) total weight | Structurally stable under heavy dynamic loading. No floor anchoring required in most commercial applications. |
| Optional digital counters | Per-station metrics output distance, speed, time, and calories — compatible with leaderboard software. |
What Ships With This Unit
- RX8100 rig frame (assembled on delivery)
- Standard black rope configuration
- Optional: digital counters and outdoor covers for RX2100 units (specify at order)
- Product manual
Also Required: RX2100 Endless Rope Trainers (sold separately, up to 16 positions). Digital counters and outdoor covers are optional add-ons specified at order.
Full Specifications
| Specification | Detail |
|---|---|
| Material | 4x4 in (102x102 mm) steel tubing |
| Length | 10 ft (3 m) |
| Width | 10 ft (3 m) |
| Height | 8 ft (2.4 m) |
| Weight | 1,400 lb (635 kg) |
| Rope Trainer Capacity | Up to 16 RX2100 units |
| Outdoor Rating | IP64 |
| Progressive Resistance | Yes (per RX2100 unit) |
| HIPERVISION Ready | Optional |
| Frame Warranty | 10 years |
| Structural Parts | 10 years |
| Mechanical Parts | 3 years |
| Bearings | 3 years |
| Electronics | 1 year |
| Labor | 1 year |
| Rope | 6 months |
Shipping & Delivery
The RX8100 ships freight to commercial addresses in the continental United States. Due to its 1,400 lb weight and 10x10x8 ft footprint, delivery requires a loading dock or forklift at the destination. Contact us at 866-861-6317 to schedule delivery and confirm site readiness before ordering.
Frequently Asked Questions
Are RX2100 trainer units included?
No — the RX8100 is the rig frame only. RX2100 trainers are ordered separately, up to 16 positions. We can quote a complete rig + trainer package. Call 866-861-6317.
Is outdoor installation supported?
Yes. The rig has an IP64 outdoor rating and an optional outdoor rope trainer configuration (OX2O). No weatherproofing required for permanent outdoor use.
Does it require floor anchoring?
No anchoring is required in most commercial applications due to the 1,400 lb base weight. We recommend a structural floor assessment for any installation above standard concrete slab.
What are the HIPERVISION digital counters?
Optional per-station displays that track distance, speed, time, and calories. Compatible with group training leaderboard systems. Specified at the time of order.
What is the delivery process?
The RX8100 ships freight. You'll need a loading dock or forklift on-site. White-glove delivery and professional installation services are available — call us to arrange.
Also Consider
Ropeflex's Commitment to Excellence
Our mission at Ropeflex is to set the standard in customer service and support within the industry. We pride ourselves on designing and constructing highly reliable fitness equipment, utilizing only top-grade materials. This ensures that our products not only excel in quality but also offer the best value. We source our materials from the United States, with every product being crafted in our state-of-the-art facilities in California.
The Unique Appeal of Ropeflex Machines
What sets Ropeflex machines apart is their low maintenance design. Our machines feature a direct drive magnetic resistance mechanism that is virtually maintenance-free, eliminating the need for gears, belts, or pulleys. Our design process involves computer-aided design and extensive testing, both indoors and outdoors. Moreover, we offer customization for any of our products to meet specific customer needs, maintaining the same high-quality service and support as with our standard equipment.
Our Return Policy
-
Standard Returns: Unused items in new condition can be returned or exchanged within 15 days of delivery. Please note, restocking and shipping fees for returns and exchanges are the responsibility of the customer. All items must include original packaging. Used or damaged items may be ineligible for a refund or exchange.
-
Return Exceptions: Final Sale items, made-to-order items, and closeout items are non-returnable. Returns without complete items or original packaging may be denied a refund or exchange.
-
Return Process: Allow 5-8 business days for the processing of returns or exchanges once the original item(s) are received. Refunds typically revert to the original payment method used for the purchase. Original shipping charges are non-refundable.
-
Damaged or Incorrect Items: If you receive an incorrect or damaged item, please contact us immediately.
Cancellation Policy
- Stocked Items: Orders for stocked items can be canceled any time before shipment.
- Made-to-Order Items: Cancellations are accepted within 48 hours of order placement.
To cancel an order, please submit a request through our Contact Us page.
Our Commitment at Ropeflex
At Ropeflex, we're dedicated to delivering unparalleled service and support to our customers. Our approach focuses on crafting exceptionally reliable fitness equipment with the finest materials available. This commitment results in superior products offering outstanding value. We proudly source our materials domestically and manufacture all our products in California, utilizing cutting-edge production facilities. Our philosophy centers on bringing you the best in both quality and design, right from the heart of the fitness industry.
Ropeflex's Comprehensive Warranty Coverage
- Frame (Excluding Coatings): 10-Year Guarantee
- Structural Components: 10-Year Guarantee
- Pulleys: 3-Year Guarantee
- Bearings: 3-Year Guarantee
- Labor: 1-Year Guarantee
- Electronics: 1-Year Guarantee
- Upholstery: 6-Month Guarantee
- Accessories: 6-Month Guarantee
