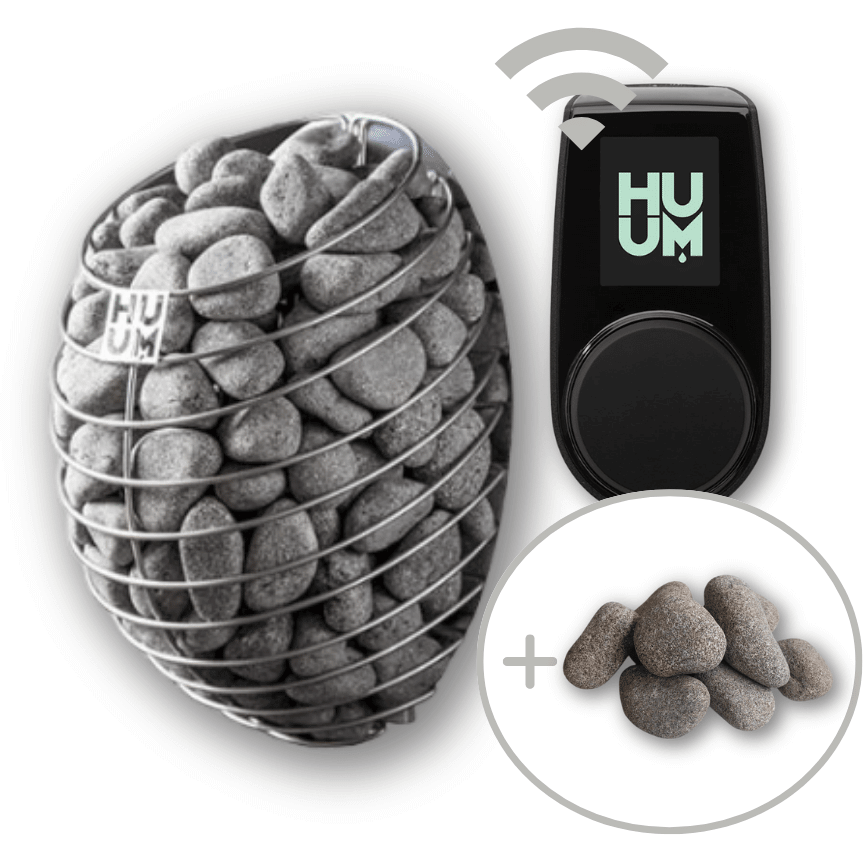

HUUM DROP Electric Heater w/ UKU Wifi Controller and Stones

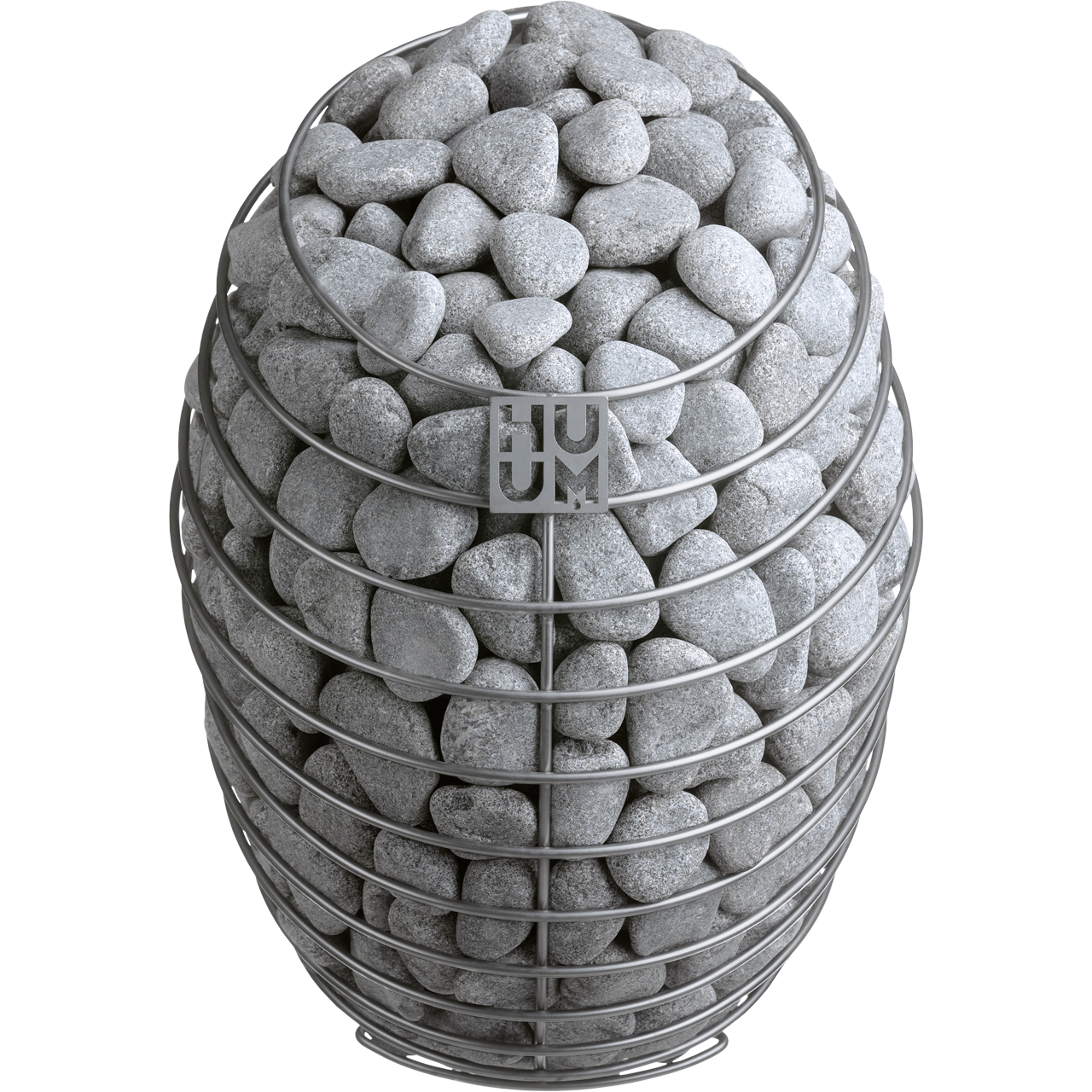

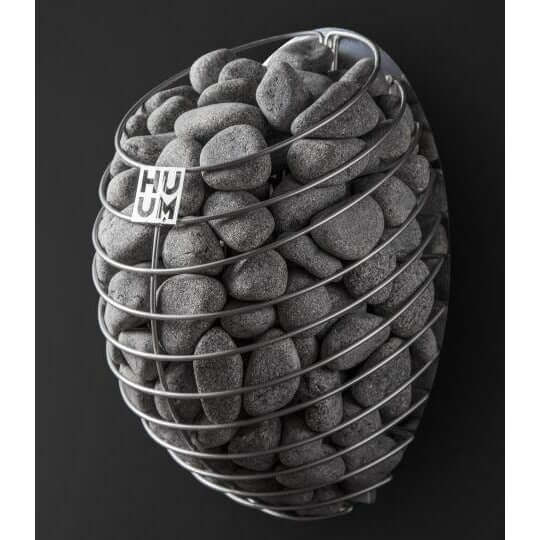

DROP heater is inspired by the purest element in nature – a water drop. Its round design softens and livens up the angular interior of a classic sauna, giving it a touch of elegance. But DROP isn’t only about the looks. This compact wall-mounted heater can actually fit up to 122 pounds of stones, exceeding most wood-burning stoves and guaranteeing long-lasting steam.

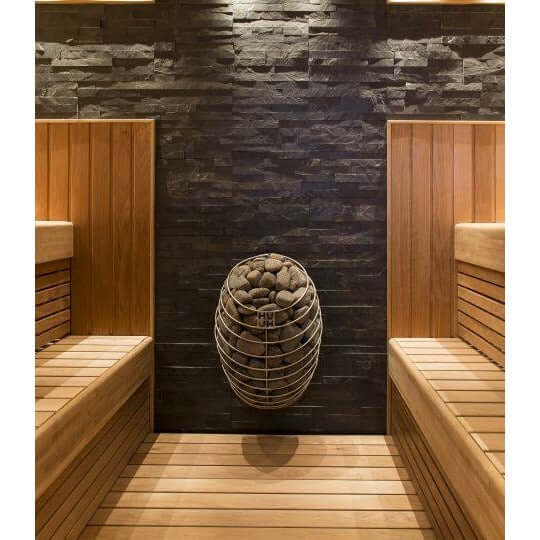

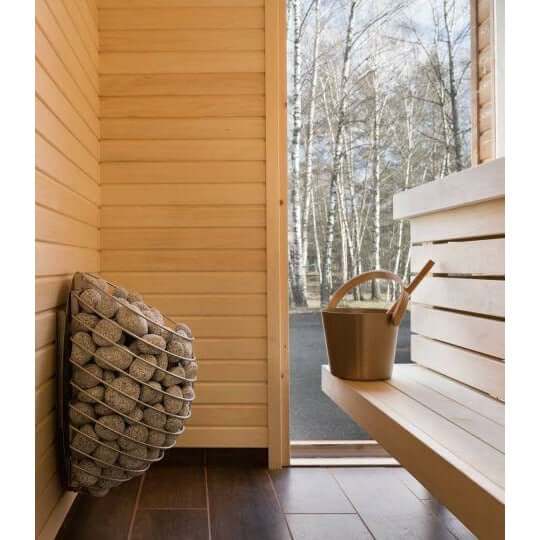

The organic and minimalist design of DROP heater makes it the statement piece of your sauna. Plus, it takes up very little space and fits a lot of stones to maintain a steady temperature.

HUUM heaters are made of stainless steel and go through a long and carefully supervised production process to guarantee the best quality of each product.

 Features:

• For sauna sizes from 106 - 530 cu.ft.
• 240V/1PH

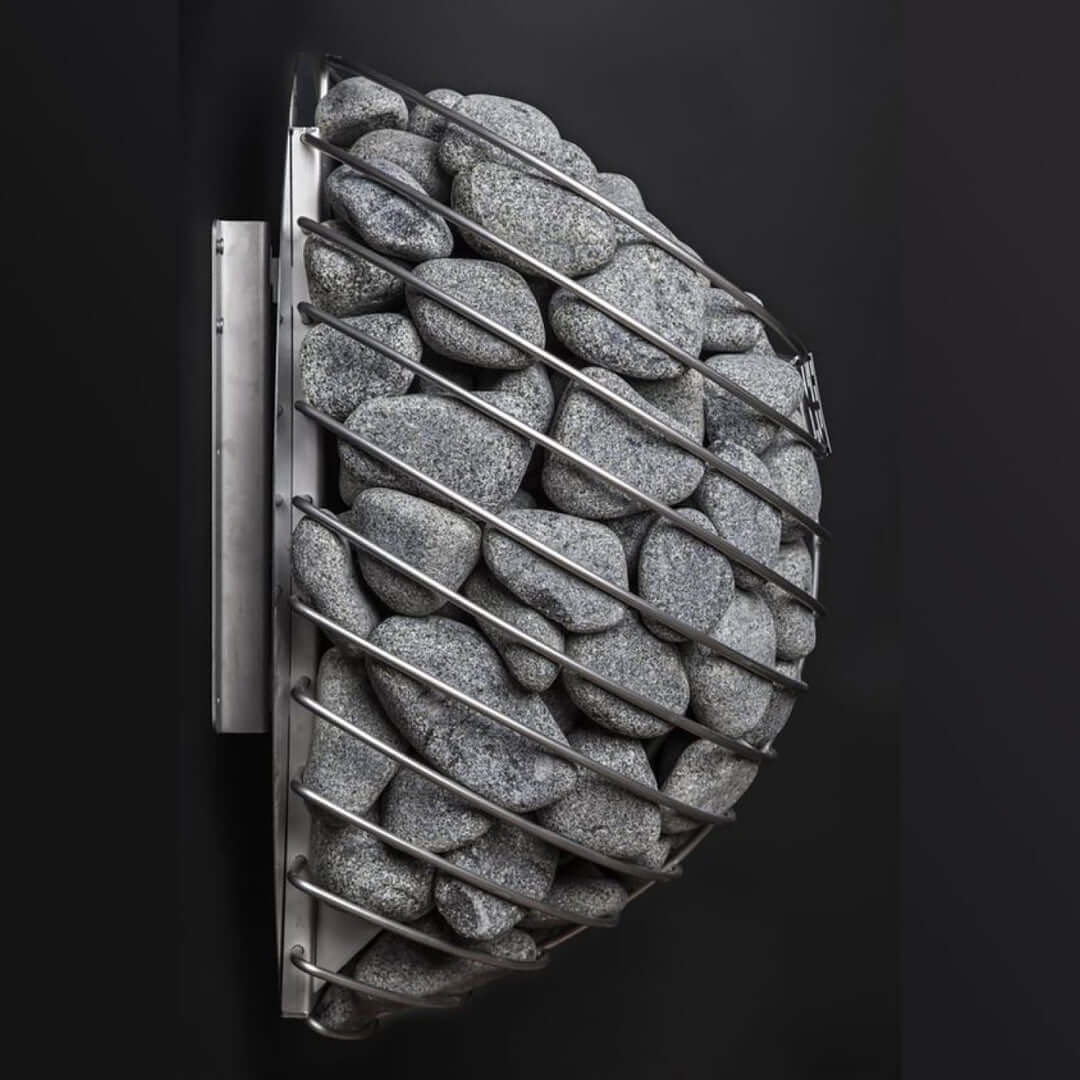

• Wall-mounted
• Unique water-drop design
• Stainless steel construction

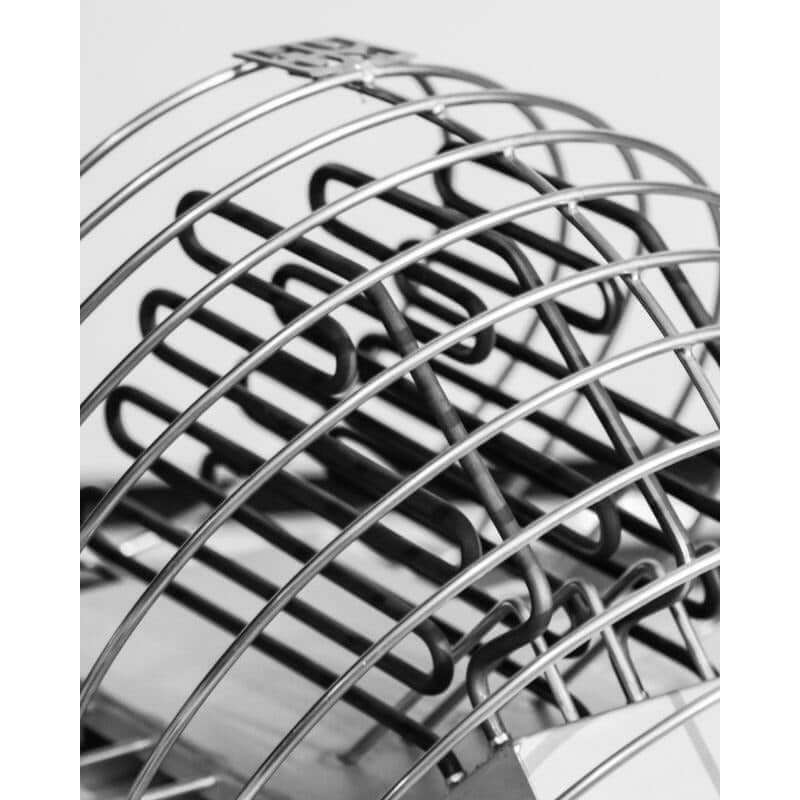

• Industrial-quality stainless steel heating elements
• Direct contact between stones and heating elements

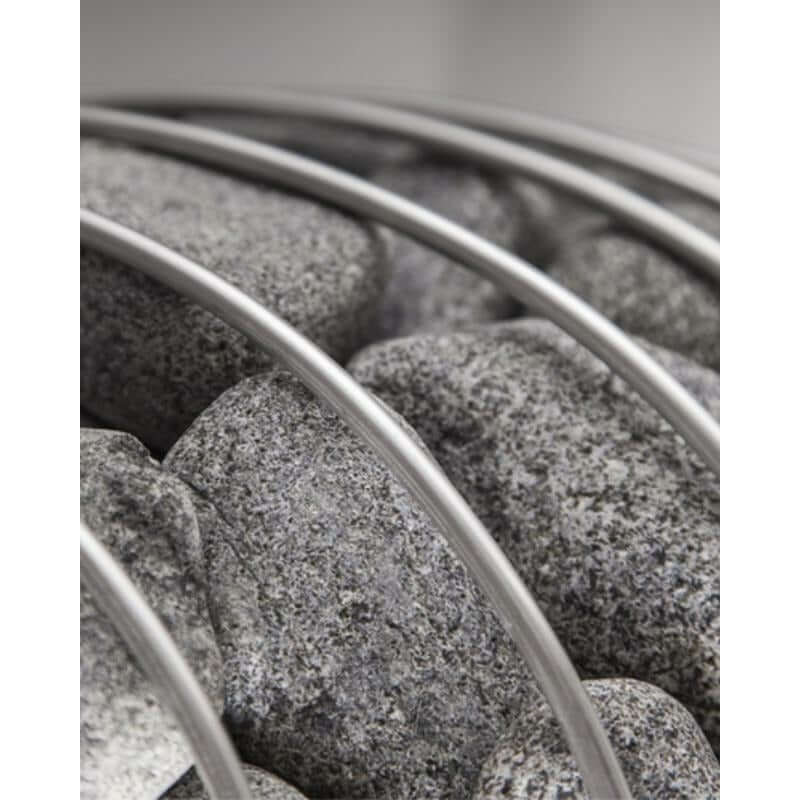

• More exposed stones for a longer, milder heat
• 122 pound stone capacity (requires 4 boxes sold separately)
• Works with UKU or UKU Wi-Fi controls (sold separately)
• Designed and precision-crafted in Estonia
• Limited 5-year warranty (excluding elements)

Includes

• Sauna heater
• HUUM UKU Wifi Sauna Controller (Wi-Fi capable)
• HUUM 2-4" rounded olivine sauna stones
• Wall-mount bracket
• Installation and operation manual
• Limited 5-year warranty (excluding elements)

Specifications

All HUUM DROP:

• Installation Type: Wall-Mount
• Voltage/Phase: 240V/1PH
• Dimensions: 15.4"W x 13.2"D x 23.3"H
• Stone capacity: 122 lbs
• Heater Weight: 24 lbs
• Min/Max Temperature: 104 F / 230 F

DROP 4.5 kW:

• Sauna room: 106 - 247 ft³ (3-7 m³)
• Amps: 18.8 A
• Circuit Breaker Amperage: 30 A
• Wire Size: 10 AWG

DROP 6.0 kW:

• Sauna room: 177-353 ft³ (5-10 m³)
• Amps: 25 A
• Circuit Breaker Amperage: 30 A
• Wire Size: 10 AWG

DROP 7.5 kW:

• Sauna room: 230-441 ft³ (7-12 m³)
• Amps: 31.25 A
• Circuit Breaker Amperage: 40 A
• Wire Size: 8 AWG

DROP 9.0 kW:

• Sauna room: 282-530 ft³ (8-15 m³)
• Amps: 37.5 A
• Circuit Breaker Amperage: 50 A
• Wire Size: 8 AWG

Manual

FAQs

What is unique about the HUUM sauna heaters?

The sleek and rounded shape of HUUM sauna heaters makes them some of the most stunning sauna heaters on the market. They provide gentle and long-lasting steam akin to traditional saunas due to their unusually high stone capacity. Because there isn't much metal in the heaters, the heat comes from the stones rather than the heated metal. Because of this, the air is filled with more negative ions, which are believed to be helpful to one's health. You can easily heat your sauna from your phone by pairing the heater with a UKU Wi-Fi or GSM controller.

How do I choose a heater with the right output?

The output of the sauna heater should be determined by the size and insulation of the sauna room.
To heat 1 m³ of the sauna room, you'll require 1 kW of power on average.
If the heater is too tiny, the sauna will heat up too slowly, not enough steam will be produced, and it will burn out more quickly. If a heater has a thermostat and is used correctly, a heater that is somewhat too strong will not cause problems.

The sauna room's insulation is the second key factor to consider. If the sauna room has any uninsulated brick, tile, glass, or logs walls, the sauna room size should be increased by 1.5 m³ for each m2 of uninsulated brick, tile, glass, or wood wall.

To determine the volume of your sauna room, utilize our sauna calculator. Multiply the height by the breadth and the length in meters to get a rough estimate. Then add the sum of uninsulated brick, tile, glass, or wood surfaces (m2) to the preceding result by multiplying it by 1.5. Because of this, you will be able to calculate the size of your sauna room in m³, from which you may choose the appropriate heater output. We recommend choosing the larger output value if the result lies between two alternative output values.

How long does it take to heat the sauna?

If the heater is large enough, it will heat up to 80 degrees Fahrenheit in an hour at a rate of roughly 10 degrees Fahrenheit per 8 minutes.

What material are HUUM heaters made of?

Stainless steel is used to make HUUM heaters.

Where are the heaters produced?

All HUUM products are made in Estonia.

How long is the guarantee?

There is a 5-year warranty on all HUUM sauna heaters.

What is included in the set?

The heater and adjustable legs (HIVE) or wall mount are included in the kit (DROP). Stones, controller, and power cable are not included in the set.

Who can install the heater?

The cabling and connection of the heater to the power source should be done by a licensed electrician.

How can I replace my existing sauna heater with a HUUM heater?

Is your existing sauna heater a mechanical heater or does it have a controller?

Simply replace the sauna heater if it has a temperature control option on the controller. Install the heater with the help of a certified electrician and according to the product installation manual.

Do you have a sauna heater that isn't controlled by a controller (the heater's switch is on)? You'll need a controller with a temperature control feature, as well as some connections to connect it to. Using the help of a competent electrician, follow the directions in the product installation manuals. It's possible that you'll need to tear down some walls and run new wires.

Which kind of wiring will I need?

Installation instructions for cables can be found in our product installation manuals. A licensed electrician is required to install the cables.
