The KIP is hardwired by a licensed electrician, with no plug. Confirm your supply and room before you choose an output.
Have these ready before ordering

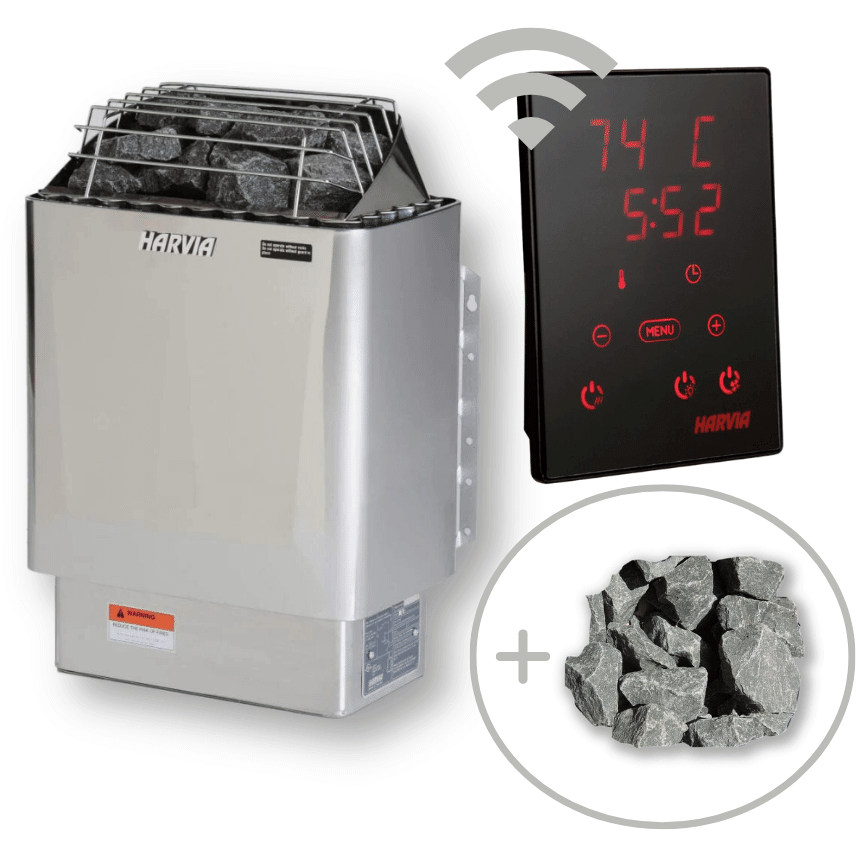

This package pairs a Harvia KIP sauna heater, a wall-mounted electric sauna heater, with a Xenio CX170 touch panel, a WiFi upgrade and one 44 lb box of stones. Choose 4.5, 6 or 8 kW for rooms from 100 to 425 cu ft.
The KIP itself has no dials. You set temperature, run time and the pre-set start on the Xenio panel, then check the sauna in the MyHarvia app. Harvia's manual says to allow at least 30 minutes for the room to reach sauna temperature.
Who it's built for
When it's not the right fit
Check before ordering
The app can start the heater only after an electrician adds a safety switch or door switch. That switch is sold separately.
Read Before You Order for wiring, clearances and control placement. Send us your room size and supply, and we confirm the output before it ships.
Per-output figures from the Harvia KIP manual (Y05-0623), Table 1 and the wiring tables. Your electrician works from that manual.
Swipe to see every output
| Heater model | Supply | Current | Wire size | Xenio version | Room volume | Floor area | Min. spacing to surfaces |
|---|---|---|---|---|---|---|---|
| KIP-45-W1, 4.5 kW | 240 V 1-phase | 18.8 A | #10/2 + #14/2 | CX170-U1 | 100 to 210 cu ft / 2.8 to 6 m³ | 16 to 30 sq ft / 1.5 to 2.8 m² | 3 in / 75 mm |
| KIP-60-W1, 6 kW | 240 V 1-phase | 25.0 A | #10/2 + #14/2 | CX170-U1 | 170 to 300 cu ft / 4.8 to 8.5 m³ | 28 to 40 sq ft / 2.6 to 3.7 m² | 4 in / 100 mm |
| KIP-80-W1, 8 kW | 240 V 1-phase | 33.3 A | #8/2 + #14/2 | CX170-U1-15 | 250 to 425 cu ft / 7.1 to 12 m³ | 40 to 65 sq ft / 3.7 to 6 m² | 5 in / 125 mm |
| KIP-60-W3, 6 kW | 208 V 3-phase | 16.7 A | #12/3 + #14/2 | CX170-U3 | 170 to 300 cu ft / 4.8 to 8.5 m³ | 28 to 40 sq ft / 2.6 to 3.7 m² | 4 in / 100 mm |
| KIP-80-W3, 8 kW | 208 V 3-phase | 22.2 A | #10/3 + #14/2 | CX170-U3 | 250 to 425 cu ft / 7.1 to 12 m³ | 40 to 65 sq ft / 3.7 to 6 m² | 5 in / 125 mm |
Swipe to see every option
| Deciding factor | KIP WiFi package (this page) | KIP Built-In Controller package | KIP heater only |
|---|---|---|---|
| How you control it | Xenio CX170 touch panel on the wall | Thermostat and timer dials on the heater | Needs a separate Xenio CX170 control |
| Timer | Pre-set start 10 min to 12 h | 60 min timer with up to 8 h delay | Set by the control you add |
| Phone app | Yes, MyHarvia through the WiFi upgrade | No | Only after adding Xenio and WiFi |
| Stones | 1 box, 44 lb / 20 kg, included | Included | Sold separately |
| Outputs on RecovAthlete | 4.5, 6 or 8 kW | 4.5, 6 or 8 kW | 4.5, 6 or 8 kW |
| Room volume | 100 to 425 cu ft / 2.8 to 12 m³ | 100 to 425 cu ft / 2.8 to 12 m³ | 100 to 425 cu ft / 2.8 to 12 m³ |
| Mounting | Wall-mounted | Wall-mounted | Wall-mounted |
| Pick it if | You want a door-side panel and app access | You want simple dials and fewer parts to wire | You already own a Xenio control and stones |
| Your situation | Best pick |
|---|---|
| Room of 100 to 210 cu ft (2.8 to 6 m³) | KIP WiFi package, 4.5 kW |
| Room of 170 to 300 cu ft (4.8 to 8.5 m³) | KIP WiFi package, 6 kW |
| Room of 250 to 425 cu ft (7.1 to 12 m³) | KIP WiFi package, 8 kW |
| 208 V 3-phase supply | KIP WiFi package, 6 or 8 kW 208 V version |
| Room over 425 cu ft | Not the KIP: see the Harvia Club heater |
| Room under 100 cu ft | Not this package: ask us for a smaller heater |
| You want dials and no app | KIP Built-In Controller package |
| You want an open stone column | Cilindro Half package |
Sold separately: supply cable, conduit and 2-pole breaker; a softwood guardrail around the heater; a safety switch or door switch for app start; bucket, ladle and thermometer.
Replacement parts: extra AC3000 stone boxes and a spare Xenio data cable are sold on RecovAthlete.
Harvia heaters carry Harvia's limited warranty against defects in materials and workmanship. In North America, Harvia US Inc. provides the warranty. It covers the first purchaser of a new heater bought from Harvia or an authorized dealer.
Full terms: harvia.com/en/warranty
Questions before you order? Call (866) 861-6317, 9am to 6pm EST, Monday to Friday, or email info@recovathlete.com.
The 6 kW KIP is rated for 170 to 300 cu ft (4.8 to 8.5 m³), with 28 to 40 sq ft of floor. The 4.5 kW and 8 kW ranges are in the Specifications table. Every output needs a ceiling of at least 75 in (1900 mm) in the USA.
The heater is the same KIP-W model. This package adds the Xenio CX170 panel, power unit, sensor, data cable, WiFi upgrade and one box of stones. The KIP heater on its own has no controls and cannot run until a Xenio control is wired to it.
It runs on 240 V 1-phase or, for the 6 and 8 kW, 208 V 3-phase. A licensed electrician hardwires it with copper wire rated 194°F (90°C) inside sauna walls. The manual specifies a 2-pole breaker, never a GFI type.
Yes, once a safety switch or door switch is wired in. Without one, the MyHarvia app can still show status and change settings. Per the Xenio manual, remote start is blocked for 6 hours after the heater was last turned off.
In home saunas the Xenio limits on-time to 1 hour per start. Longer on-time settings, up to 18 hours, are for commercial saunas only. The pre-set timer can delay the start by 10 minutes to 12 hours.
Yes. The Xenio has a light output and a fan output, each up to 100 W at 120 V. Harvia's manual calls for a vapor-proof wall light, with a bulb of no more than 75 W, kept away from the heater.

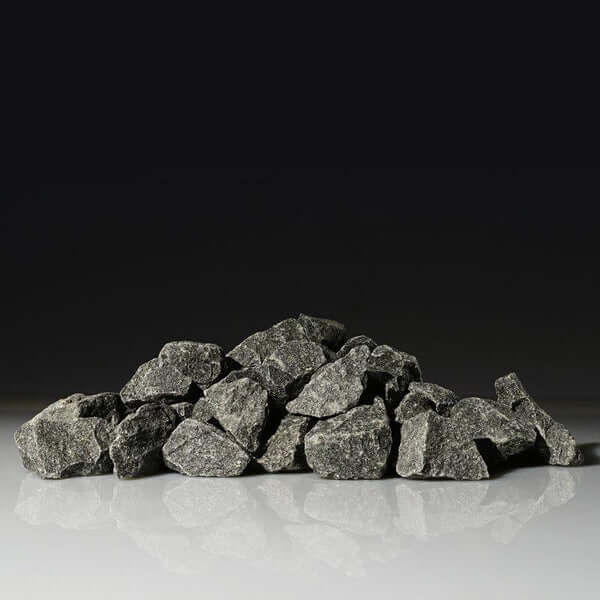

Yes. The package includes one 44 lb (20 kg) box of Harvia AC3000 split-face olivine diabase stones. Harvia lists the KIP stone capacity as 44 lb, so one box fills the heater.
Wash the stones first. Place smaller stones low, then larger ones, loosely between and around the elements. Stop about 2 in (50 mm) below the stone guard. The elements must be fully covered. A Harvia video on the Videos tab shows the method.
Use clean tap water only. Pool, spa and well water can damage the elements and void the warranty. Harvia says to heat the sauna for at least 30 minutes first, then pour one or two dippers at a time.
Harvia's manual says stones may need replacing after about 5 years of use, if they have crumbled or turned to powder. Extra AC3000 boxes are listed on the Package tab.
