Mr. Steam MS MAX Series 24KW Steam Shower Generator
Ships within business days |
- Regular price
- $4,900.00
- Regular price
-
$6,480.00 - Sale price
- $4,900.00
- Unit price
- per
Save $1,580.00
Save $1,580.00 USD
Description

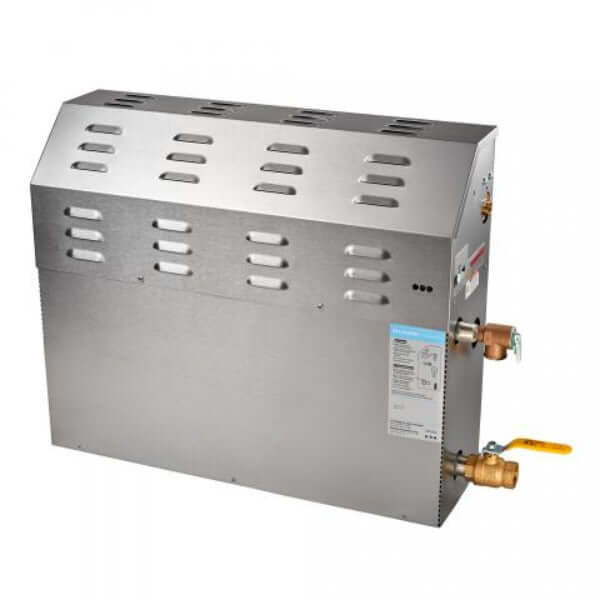

Mr. Steam MS MAX Series 24KW Steam Shower Generator
Improving on the popular MS Super 5E, the MX5 is engineered for home and day spa steam rooms up to 822 adjusted cubic feet (ACF). Required control package sold separately.
The Mr. Steam MX5E is designed to provide years of safe, reliable, and efficient operation. The steam unit features a full-port drain valve, ASME safety valve, electronic water-level control system, and LED color light indicators for easy-to-read visual diagnostics.
Constructed of surgical-quality stainless steel throughout, the MX5E generator offers long-lasting strength and durability. The unit is equipped with durable electronic components and runs off an advanced microprocessor platform, making it the perfect option for large residential and commercial bathing applications.
MS MAX Series generators feature the modular Plug and Play option so that you may easily add steam shower accessories such as ChromaTherapy, SteamLinx, and AromaTherapy.
The Mr. Steam MX5E 24kW steam generator is available in 208V and 240V single-phase (1PH) configurations. MS-eSeries generators come in various power ratings to best suit your needs.
The compact size of the generator, about the size of a briefcase, allows the unit to be installed conveniently out of sight up to 60 feet away from the steam room. The MX5E is perfect for any home steam shower kit.
The optional Express Steam feature features a built-in thermostat that maintains water temperature so that you may start steaming quickly.

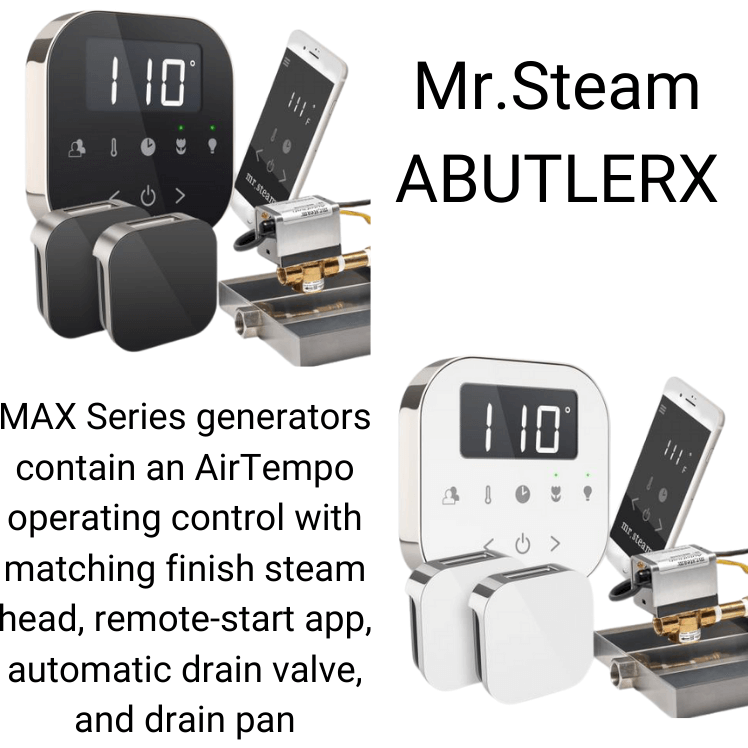

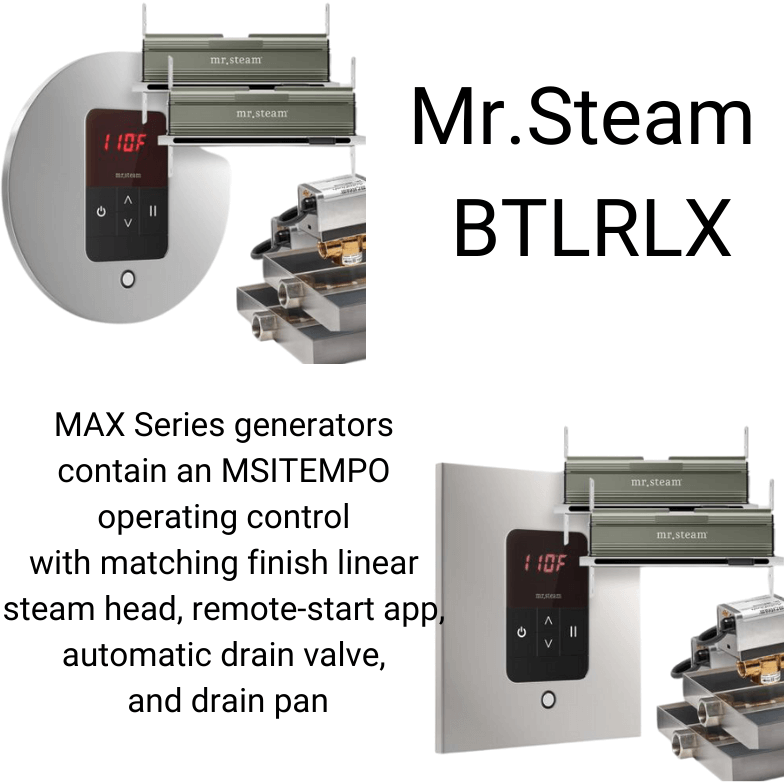

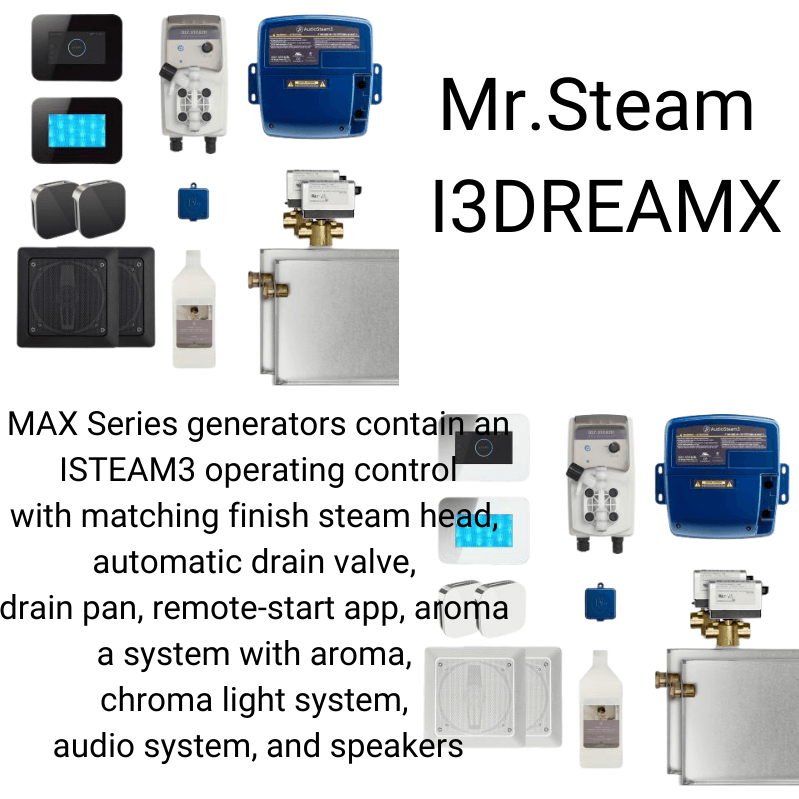

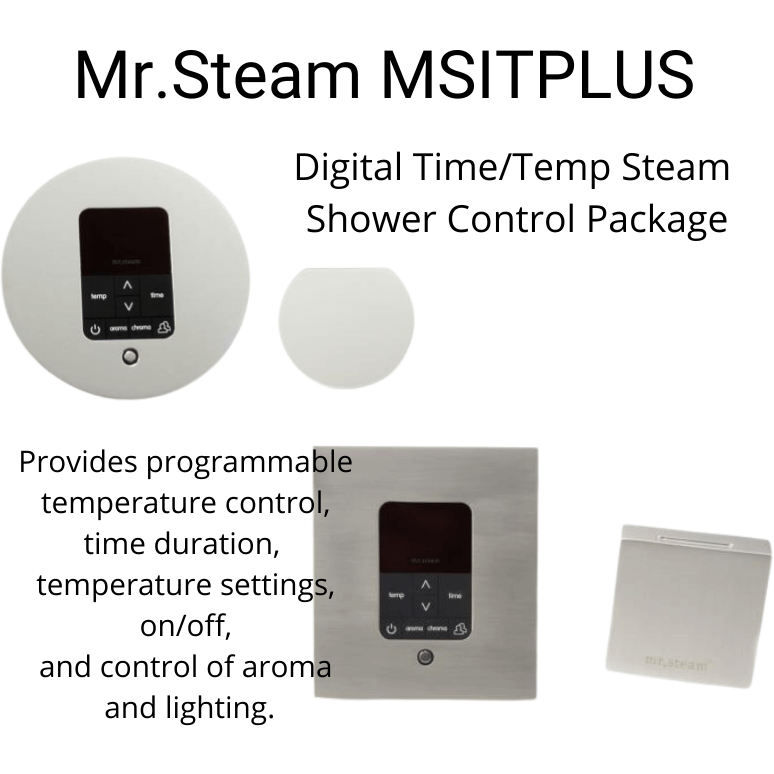

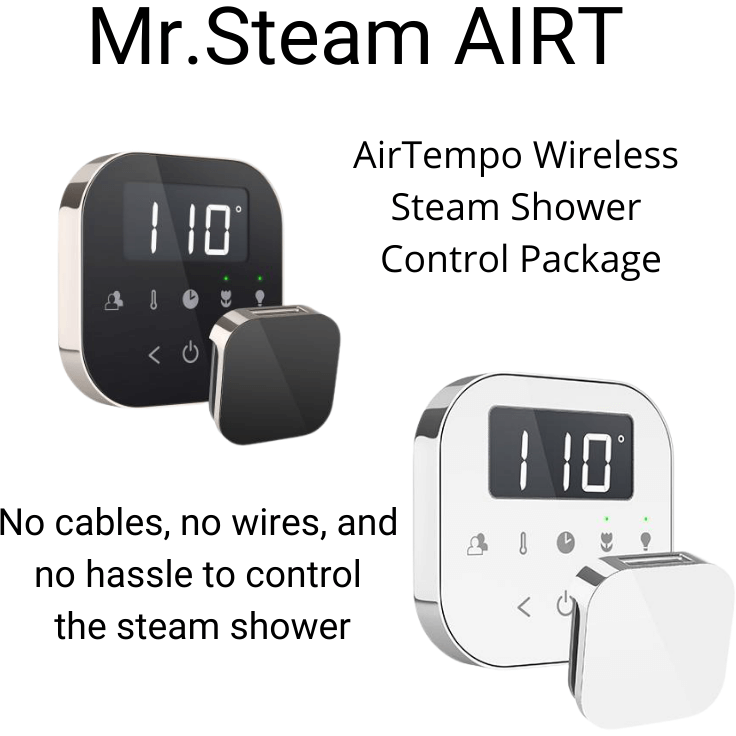

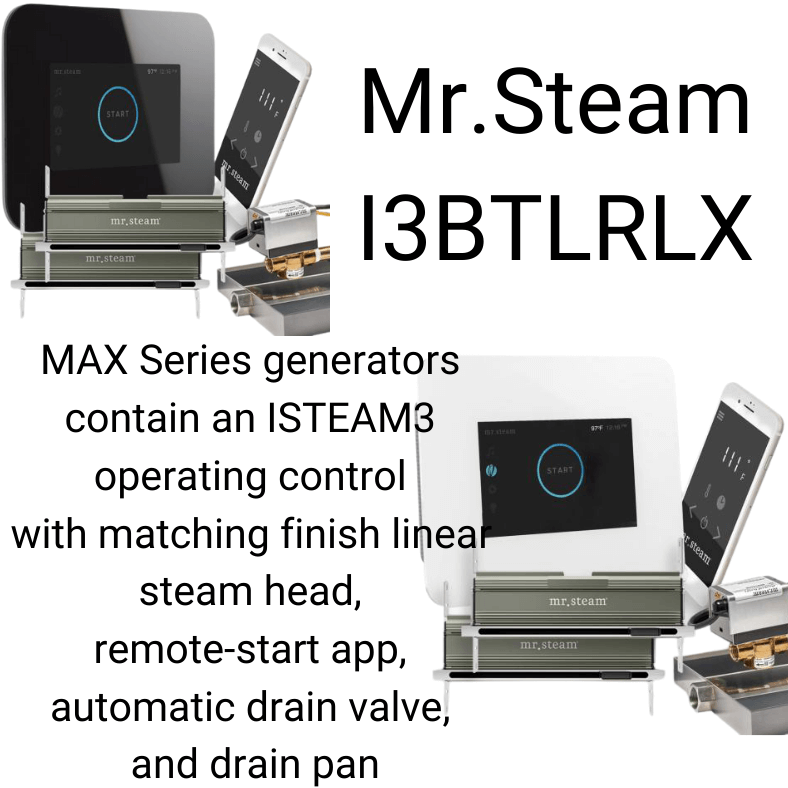

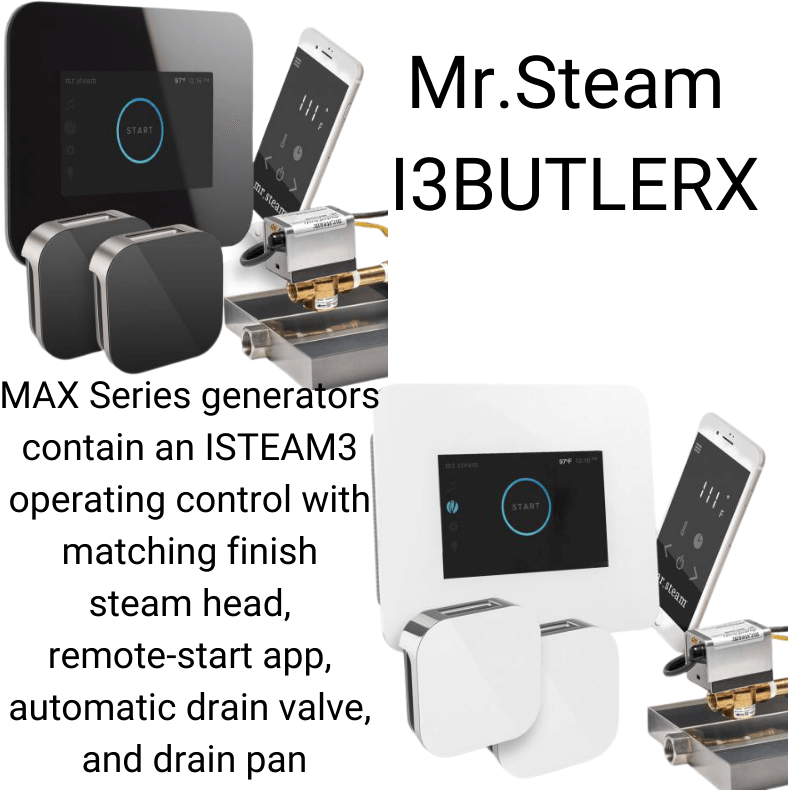

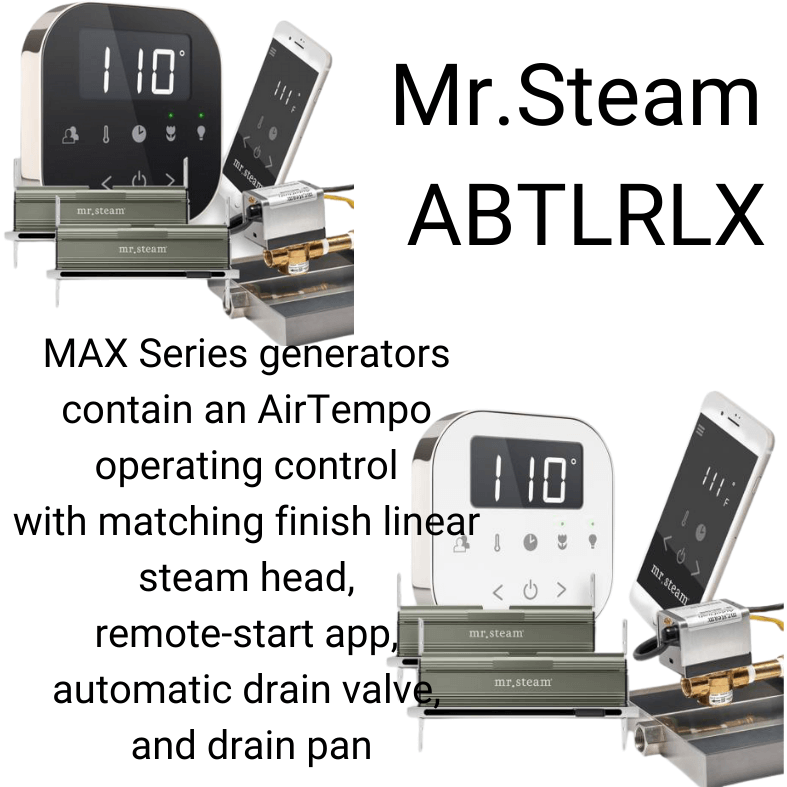

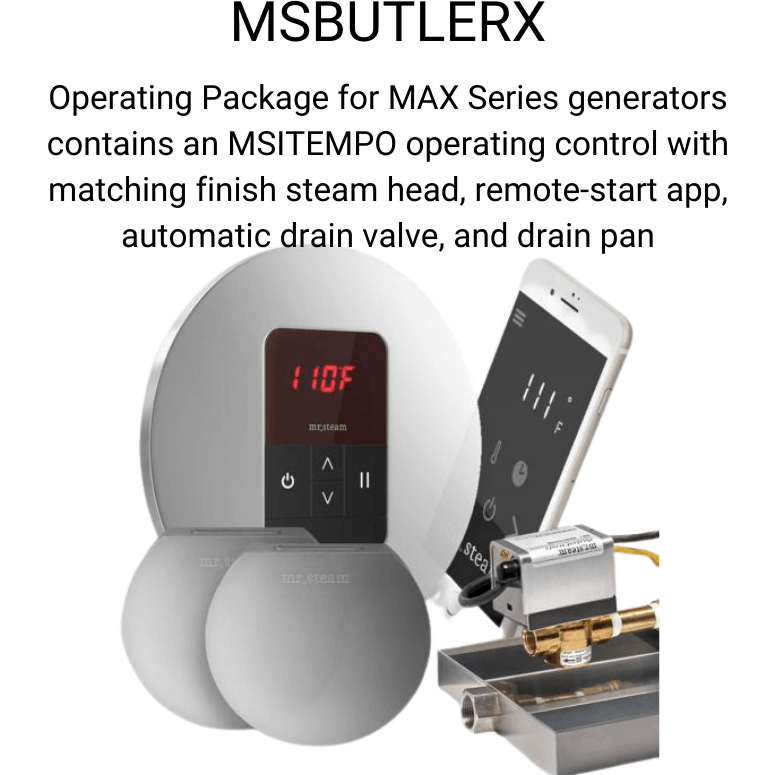

The MX5E generator requires a control or control package for operation. MX Series generators are compatible with all Mr. Steam controls and the Steamlinx mobile application.
The MS MX5E steam bath generator is fully serviceable and carries a limited lifetime warranty. Mr. Steam generators are US and Canadian UL listed and CE and NOM certified for your safety.
All Mr. Steam generators are designed, engineered, and constructed in the USA.
FEATURES
- For steam baths sized from 679 to 822 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
-
INCLUDES
- 24kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
- Installation and operation manual
- Limited warranty
SPECIFICATIONS
| Model | MX5E |
|---|---|
| Minimum Adjusted Cubic Feet | 679 |
| Maximum Adjusted Cubic Feet | 822 |
| Shipping Weight | 67 lbs |
| Kilowatt Rating | 24 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 27-5/8" |
| Depth | 7-7/8" |
| Height | 20-3/4" |
120% Price Match
Financing
Shipping
Warranty
Mr. Steam MS MAX Series 24KW Steam Shower Generator
Improving on the popular MS Super 5E, the MX5 is engineered for home and day spa steam rooms up to 822 adjusted cubic feet (ACF). Required control package sold separately.
The Mr. Steam MX5E is designed to provide years of safe, reliable, and efficient operation. The steam unit features a full-port drain valve, ASME safety valve, electronic water-level control system, and LED color light indicators for easy-to-read visual diagnostics.
Constructed of surgical-quality stainless steel throughout, the MX5E generator offers long-lasting strength and durability. The unit is equipped with durable electronic components and runs off an advanced microprocessor platform, making it the perfect option for large residential and commercial bathing applications.
MS MAX Series generators feature the modular Plug and Play option so that you may easily add steam shower accessories such as ChromaTherapy, SteamLinx, and AromaTherapy.
The Mr. Steam MX5E 24kW steam generator is available in 208V and 240V single-phase (1PH) configurations. MS-eSeries generators come in various power ratings to best suit your needs.
The compact size of the generator, about the size of a briefcase, allows the unit to be installed conveniently out of sight up to 60 feet away from the steam room. The MX5E is perfect for any home steam shower kit.
The optional Express Steam feature features a built-in thermostat that maintains water temperature so that you may start steaming quickly.
The MX5E generator requires a control or control package for operation. MX Series generators are compatible with all Mr. Steam controls and the Steamlinx mobile application.
The MS MX5E steam bath generator is fully serviceable and carries a limited lifetime warranty. Mr. Steam generators are US and Canadian UL listed and CE and NOM certified for your safety.
All Mr. Steam generators are designed, engineered, and constructed in the USA.
FEATURES
- For steam baths sized from 679 to 822 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
-
INCLUDES
- 24kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
- Installation and operation manual
- Limited warranty
SPECIFICATIONS
| Model | MX5E |
|---|---|
| Minimum Adjusted Cubic Feet | 679 |
| Maximum Adjusted Cubic Feet | 822 |
| Shipping Weight | 67 lbs |
| Kilowatt Rating | 24 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 27-5/8" |
| Depth | 7-7/8" |
| Height | 20-3/4" |
RecovAthlete's 120% Price Match Guarantee: Shop With Unmatched Confidence
At RecovAthlete, we're here to support your recovery and performance goals, without overpaying. Our 120% Price Match Guarantee makes sure you always get the best deal. If you find a lower price, not only will we match it, we'll beat it by adding 20% of the price difference back to your refund.
How It Works
- 60-Day Window: If you find the same item at a lower price from an authorized competitor within 60 days of your purchase, we'll match it.
- We Add 20%: Besides matching the price, we give you 20% of the difference back.
- Same Currency: Price comparisons must be in the same currency as your original purchase.
- MAP Policy Required: The competitor must be an authorized dealer of the product and follow a Minimum Advertised Price (MAP) policy set by the manufacturer.
Terms and Conditions
- Eligible Products: Must be the same model, SKU, and from an authorized seller.
- Verifiable Prices: We compare total verifiable selling prices (excluding taxes), including shipping.
- Manual Review: Our team reviews all claims for validity and eligibility.
Exclusions
- Used, refurbished, or secondary-market products
- Wholesale, contract, or below-cost pricing
- Marketplace sellers (Amazon, Walmart, Costco, etc.)
- Flash sales, closeouts, clearance, or limited-time promos
- Price matches can't be combined with other RecovAthlete discounts or offers
Our Ethical Pricing Pledge
We don't undercut manufacturers or sell below cost. We follow ethical pricing standards prioritizing fairness, brand integrity, and long-term trust.
How to Submit a Claim
- Get Proof: A screenshot, ad, or live link showing the competitor's lower price.
- Send Details: Include your order number, the product name, and the competitor info.
- Submit via Contact Page: contact the RecovAthlete team.
- Processing: Allow up to 6 weeks for verification and refund processing.
With our 120% Price Match Guarantee, you can shop knowing you'll never miss out on a better deal, because we'll beat it.
Mr. Steam MS MAX Series 24KW Steam Shower Generator
Improving on the popular MS Super 5E, the MX5 is engineered for home and day spa steam rooms up to 822 adjusted cubic feet (ACF). Required control package sold separately.
The Mr. Steam MX5E is designed to provide years of safe, reliable, and efficient operation. The steam unit features a full-port drain valve, ASME safety valve, electronic water-level control system, and LED color light indicators for easy-to-read visual diagnostics.
Constructed of surgical-quality stainless steel throughout, the MX5E generator offers long-lasting strength and durability. The unit is equipped with durable electronic components and runs off an advanced microprocessor platform, making it the perfect option for large residential and commercial bathing applications.
MS MAX Series generators feature the modular Plug and Play option so that you may easily add steam shower accessories such as ChromaTherapy, SteamLinx, and AromaTherapy.
The Mr. Steam MX5E 24kW steam generator is available in 208V and 240V single-phase (1PH) configurations. MS-eSeries generators come in various power ratings to best suit your needs.
The compact size of the generator, about the size of a briefcase, allows the unit to be installed conveniently out of sight up to 60 feet away from the steam room. The MX5E is perfect for any home steam shower kit.
The optional Express Steam feature features a built-in thermostat that maintains water temperature so that you may start steaming quickly.
The MX5E generator requires a control or control package for operation. MX Series generators are compatible with all Mr. Steam controls and the Steamlinx mobile application.
The MS MX5E steam bath generator is fully serviceable and carries a limited lifetime warranty. Mr. Steam generators are US and Canadian UL listed and CE and NOM certified for your safety.
All Mr. Steam generators are designed, engineered, and constructed in the USA.
FEATURES
- For steam baths sized from 679 to 822 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
-
INCLUDES
- 24kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
- Installation and operation manual
- Limited warranty
SPECIFICATIONS
| Model | MX5E |
|---|---|
| Minimum Adjusted Cubic Feet | 679 |
| Maximum Adjusted Cubic Feet | 822 |
| Shipping Weight | 67 lbs |
| Kilowatt Rating | 24 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 27-5/8" |
| Depth | 7-7/8" |
| Height | 20-3/4" |
Financing for Recovery and Fitness Equipment
Buying for yourself, spread the cost through Affirm at checkout. Buying for a gym, clinic, spa, or studio, apply with one of four business lenders and put the whole room on a single application.
RecovAthlete has no control over any financing decision. Approval is based on your creditworthiness and is solely the lender's decision.
Personal purchase
Affirm at checkout. Rates run 0% to 36% APR based on your credit profile. Soft check to prequalify, so no impact on your score. No prepayment penalty.
Business purchase
Brickhouse Capital, Reliant Capital, Acorn Finance, or KWIPPED. Apply with two of the four and compare. Financed equipment can qualify for a Section 179 deduction. Confirm with your accountant.
Financing by Equipment Category
Every page below has real prices, real monthly payment examples, and the lender comparison for that category. Pick the one you are buying.
Hyperbaric Chamber Financing
Soft-shell and hard-shell HBOT chambers. Session-volume payback math for clinics.
Sauna Financing
Infrared, traditional, barrel, and commercial saunas.
Cold Plunge Financing
Home tubs through commercial chillers and Medical Frozen units.
Red Light Therapy Financing
Panels, pods, and full-body beds for home and clinic.
PEMF Therapy Financing
PEMF mats, systems, and practitioner devices.
Vibration Plate Financing
Whole body vibration platforms for home, studio, and clinic.
Gym Equipment Financing
Home gyms through full commercial strength floors. Finance the floor, not the machine.
Treadmill Financing
Walking pads, commercial belts, and self-powered curved decks.
Commercial Recovery Equipment Financing
Building a recovery room? One quote, one purchase order, one application.
Building a Recovery Room?
Most business buyers are not buying one machine. They are building a room. Sauna, cold plunge, red light, vibration, hyperbaric, cryotherapy, and halotherapy all finance on the same paper through the same four lenders, and RecovAthlete quotes every category on one purchase order.
That means one freight schedule, one install window, and one financing application instead of six. It also gets you a better rate, because a bigger number on one application beats six small ones with six hard inquiries.
See commercial recovery equipment financing, or call 866-861-6317 and we will price the room.
Which Lender Should You Apply With?
| Lender | Type | Amount | Speed | Best for |
|---|---|---|---|---|
| Affirm | Consumer, at checkout | Order total | Seconds | Personal purchases. 0% to 36% APR based on credit. Soft check to prequalify. |
| Brickhouse Capital | Direct equipment lender | Up to $250K on a one-page application, $1M+ with financials | ~24 hours | A full room or a full floor. Credit decisions made in-house. Tied to the business, not your personal credit report. |
| Reliant Capital | Lender and broker | Up to $500K application-only, $5M with financials | 2 to 4 hours | Medical, aesthetic, and wellness. Deferred payment options. New or used equipment. |
| Acorn Finance | Lending marketplace | $1,000 to $100,000 | 60 seconds to prequalify | Comparing offers. One application goes to 30 or more lenders with no impact to your score. |
| KWIPPED (APPROVE) | Lender marketplace | Minimum $1,500 equipment value | 60-second application | Larger commercial orders. Lenders compete, which usually returns the best APR. Businesses only. |
Apply with two of the four and compare. It costs nothing and the spread between offers is often significant.
Apply now
Apply with Brickhouse Capital
Apply with Reliant Capital
Check your offers with Acorn Finance
For KWIPPED, call 866-861-6317 or email info@recovathlete.com and we will build the application around your order.
Financing Questions
What are Affirm's rates?
Pay in 4 splits the purchase into four interest-free payments charged every two weeks. Monthly installments spread the cost over a longer term, with rates from 0% to 36% APR depending on your credit profile. You see the exact terms before you agree to anything. No origination fees, no prepayment penalty, no late fees.
Will applying hurt my credit score?
Prequalification does not. Affirm and Acorn Finance both run a soft check to show you offers, which has no impact on your score. Proceeding with a monthly installment plan or a business loan may involve a hard inquiry. That is why it pays to prequalify with more than one lender first and only proceed with the best offer.
Can I finance equipment for a business?
Yes, and for most business buyers it is the better route. Brickhouse funds up to $250,000 on a one-page application with no financial statements. Reliant approves in 2 to 4 hours. Business financing is usually tied to the business rather than your personal credit report, and financed equipment can qualify for a Section 179 deduction. Confirm the tax position with your accountant.
Should I finance each machine separately?
No. This is the most common and most expensive mistake. Separate applications mean separate hard inquiries, separate payments, and a worse rate on each, because every individual ticket is small. Get one quote from RecovAthlete covering everything you are buying, including freight, and put that single number on one application.
Does Section 179 apply to financed equipment?
Financed equipment can qualify. Section 179 lets US businesses deduct the cost of qualifying equipment in the year it is placed in service, and financing the purchase does not by itself disqualify it. The equipment must be in service, not merely ordered, within the tax year. Annual limits and eligibility rules are set by the IRS and change year to year, so consult your accountant.
Can freight and installation be financed?
Freight, yes. On Affirm it is part of the order total at checkout. On business financing, put freight on the RecovAthlete quote and the whole quote amount goes on the application. Installation and room construction are harder, because some equipment lenders will not fund non-equipment costs. Ask the lender before you sign.
Can I pay off early?
Yes. Affirm charges no prepayment penalties. Acorn Finance and most business lenders also allow early payoff without penalty.
Not sure which option fits?
Tell us what you are buying and whether it is personal or for a business. We will point you at the right two lenders and quote freight and install as one number, which is also the number that goes on the application.
Call 866-861-6317 Book a 30 minute callMr. Steam MS MAX Series 24KW Steam Shower Generator
Improving on the popular MS Super 5E, the MX5 is engineered for home and day spa steam rooms up to 822 adjusted cubic feet (ACF). Required control package sold separately.
The Mr. Steam MX5E is designed to provide years of safe, reliable, and efficient operation. The steam unit features a full-port drain valve, ASME safety valve, electronic water-level control system, and LED color light indicators for easy-to-read visual diagnostics.
Constructed of surgical-quality stainless steel throughout, the MX5E generator offers long-lasting strength and durability. The unit is equipped with durable electronic components and runs off an advanced microprocessor platform, making it the perfect option for large residential and commercial bathing applications.

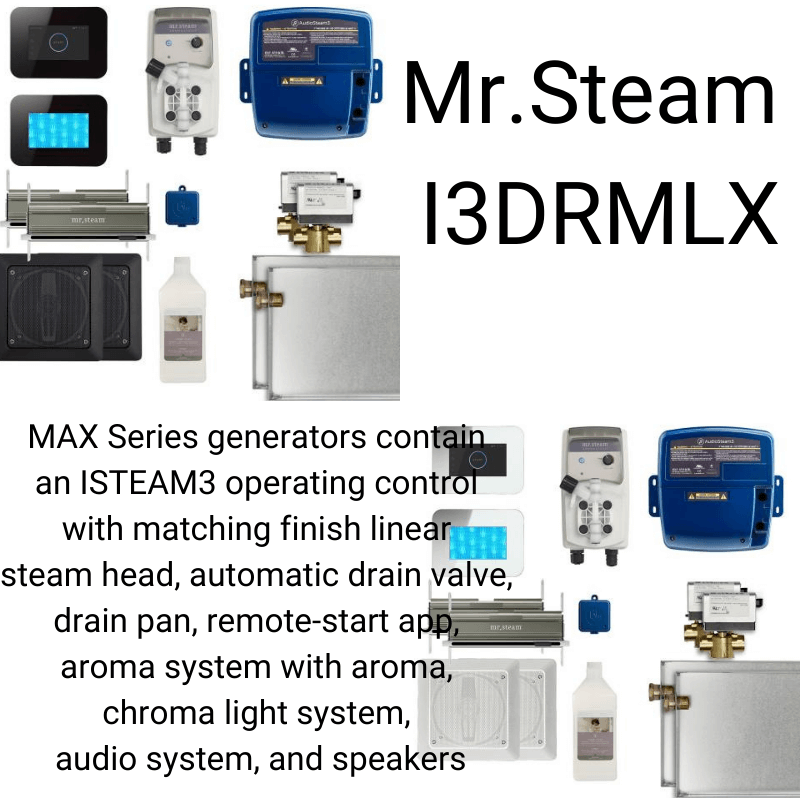

MS MAX Series generators feature the modular Plug and Play option so that you may easily add steam shower accessories such as ChromaTherapy, SteamLinx, and AromaTherapy.
The Mr. Steam MX5E 24kW steam generator is available in 208V and 240V single-phase (1PH) configurations. MS-eSeries generators come in various power ratings to best suit your needs.
The compact size of the generator, about the size of a briefcase, allows the unit to be installed conveniently out of sight up to 60 feet away from the steam room. The MX5E is perfect for any home steam shower kit.
The optional Express Steam feature features a built-in thermostat that maintains water temperature so that you may start steaming quickly.

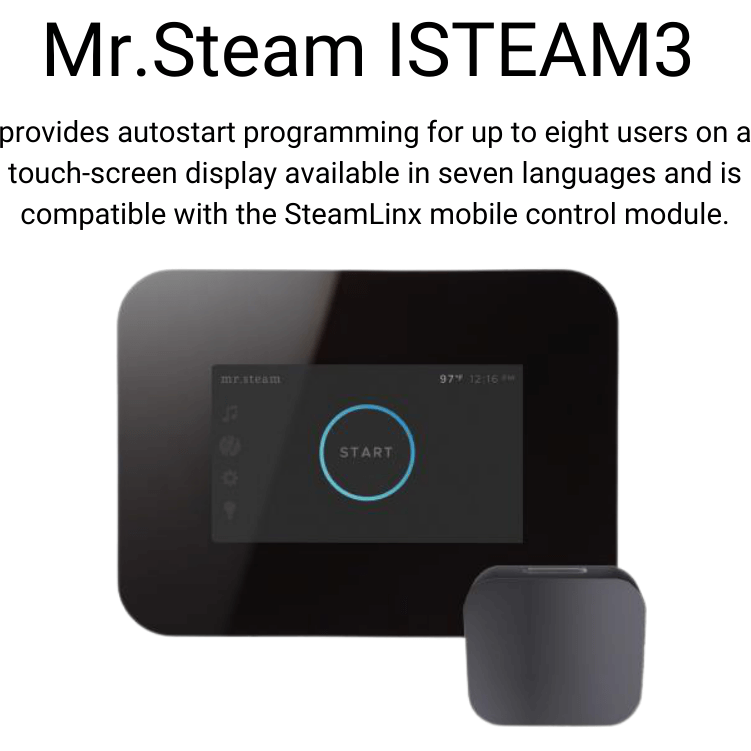

The MX5E generator requires a control or control package for operation. MX Series generators are compatible with all Mr. Steam controls and the Steamlinx mobile application.
The MS MX5E steam bath generator is fully serviceable and carries a limited lifetime warranty. Mr. Steam generators are US and Canadian UL listed and CE and NOM certified for your safety.
All Mr. Steam generators are designed, engineered, and constructed in the USA.
FEATURES
- For steam baths sized from 679 to 822 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
-
INCLUDES
- 24kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
- Installation and operation manual
- Limited warranty
SPECIFICATIONS
| Model | MX5E |
|---|---|
| Minimum Adjusted Cubic Feet | 679 |
| Maximum Adjusted Cubic Feet | 822 |
| Shipping Weight | 67 lbs |
| Kilowatt Rating | 24 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 27-5/8" |
| Depth | 7-7/8" |
| Height | 20-3/4" |
Mr. Steam MS MAX Series 24KW Steam Shower Generator
Improving on the popular MS Super 5E, the MX5 is engineered for home and day spa steam rooms up to 822 adjusted cubic feet (ACF). Required control package sold separately.
The Mr. Steam MX5E is designed to provide years of safe, reliable, and efficient operation. The steam unit features a full-port drain valve, ASME safety valve, electronic water-level control system, and LED color light indicators for easy-to-read visual diagnostics.
Constructed of surgical-quality stainless steel throughout, the MX5E generator offers long-lasting strength and durability. The unit is equipped with durable electronic components and runs off an advanced microprocessor platform, making it the perfect option for large residential and commercial bathing applications.
MS MAX Series generators feature the modular Plug and Play option so that you may easily add steam shower accessories such as ChromaTherapy, SteamLinx, and AromaTherapy.
The Mr. Steam MX5E 24kW steam generator is available in 208V and 240V single-phase (1PH) configurations. MS-eSeries generators come in various power ratings to best suit your needs.
The compact size of the generator, about the size of a briefcase, allows the unit to be installed conveniently out of sight up to 60 feet away from the steam room. The MX5E is perfect for any home steam shower kit.
The optional Express Steam feature features a built-in thermostat that maintains water temperature so that you may start steaming quickly.
The MX5E generator requires a control or control package for operation. MX Series generators are compatible with all Mr. Steam controls and the Steamlinx mobile application.
The MS MX5E steam bath generator is fully serviceable and carries a limited lifetime warranty. Mr. Steam generators are US and Canadian UL listed and CE and NOM certified for your safety.
All Mr. Steam generators are designed, engineered, and constructed in the USA.
FEATURES
- For steam baths sized from 679 to 822 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
-
INCLUDES
- 24kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
- Installation and operation manual
- Limited warranty
SPECIFICATIONS
| Model | MX5E |
|---|---|
| Minimum Adjusted Cubic Feet | 679 |
| Maximum Adjusted Cubic Feet | 822 |
| Shipping Weight | 67 lbs |
| Kilowatt Rating | 24 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 27-5/8" |
| Depth | 7-7/8" |
| Height | 20-3/4" |
REGISTER YOUR MRSTEAM WARRANTY
Thank you for choosing MrSteam! Here is where you can download the warranty for your MrSteam product as well as register your warranty on the MrSteam portal.
To register a MrSteam product, simply complete the MrSteam registration form and you'll receive confirmation of your submission.
To download a copy of a warranty, click on the MrSteam product category you have purchased:
- MrSteam Steambath Generator Warranty
- MrSteam Control & Accessories Warranty
- MrSteam Steam@Home Warranty
- MrSteam Towel Warmer Warranty
- MrSteam Day Spa Steambath CT Series Warranty
- MrSteam Commercial Steambath CX Series Warranty
By completing this form, not only will MrSteam be better able to serve you, but we'll have information that allows us to continue to improve our products and our communications with you.
Please note that all of your information will be treated with the highest confidentiality.
Let customers speak for us
Have Questions? Talk to Our Equipment Team.
We respond within 2 hours.
US & Canada shipping. Financing available.
Recently viewed
- Choosing a selection results in a full page refresh.
