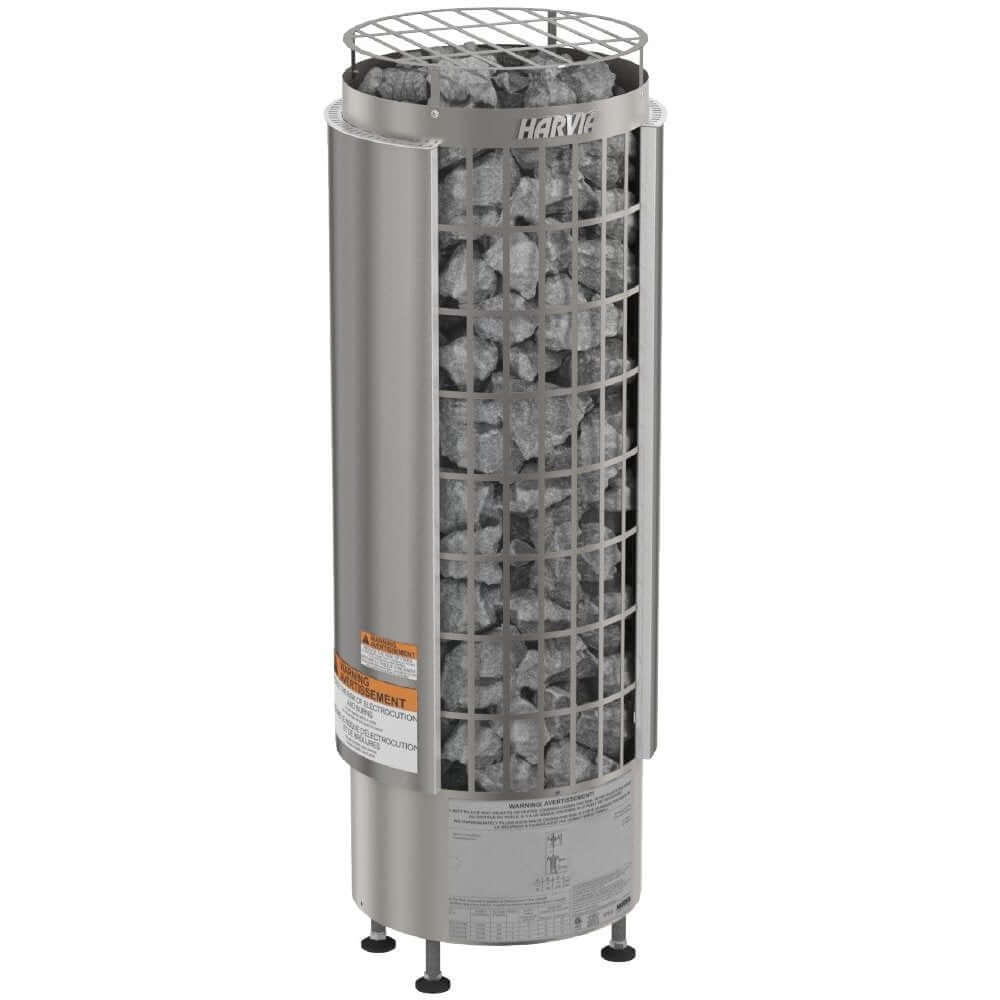

The Harvia Cilindro H electric heater has an outer casing that is partially open at the front, allowing users to enjoy the benefits of a large stone surface and place the heater containing a massive amount of stones in a small space. You can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar.
Ā
Ā
Harvia Cilindro-Half Features
Stainless Steel housing
Stainless Steel elements
Elements run-down center of the heater

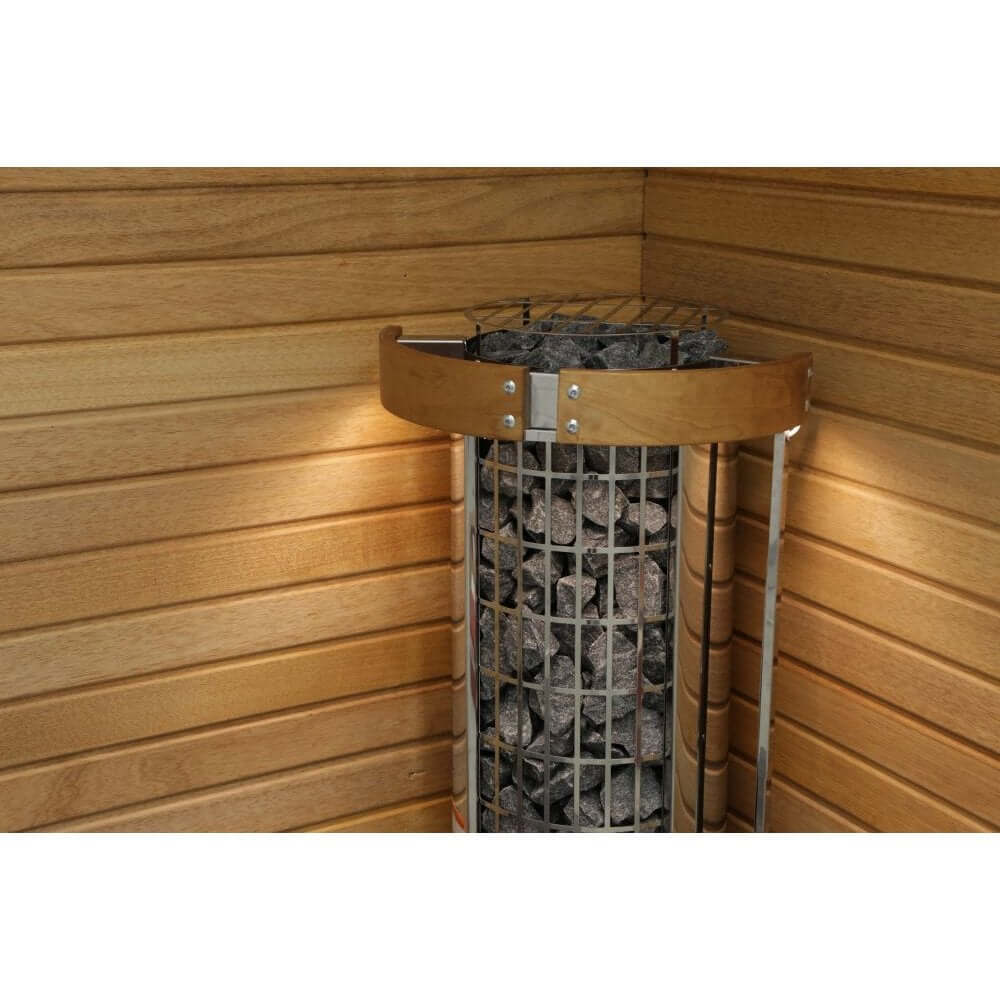

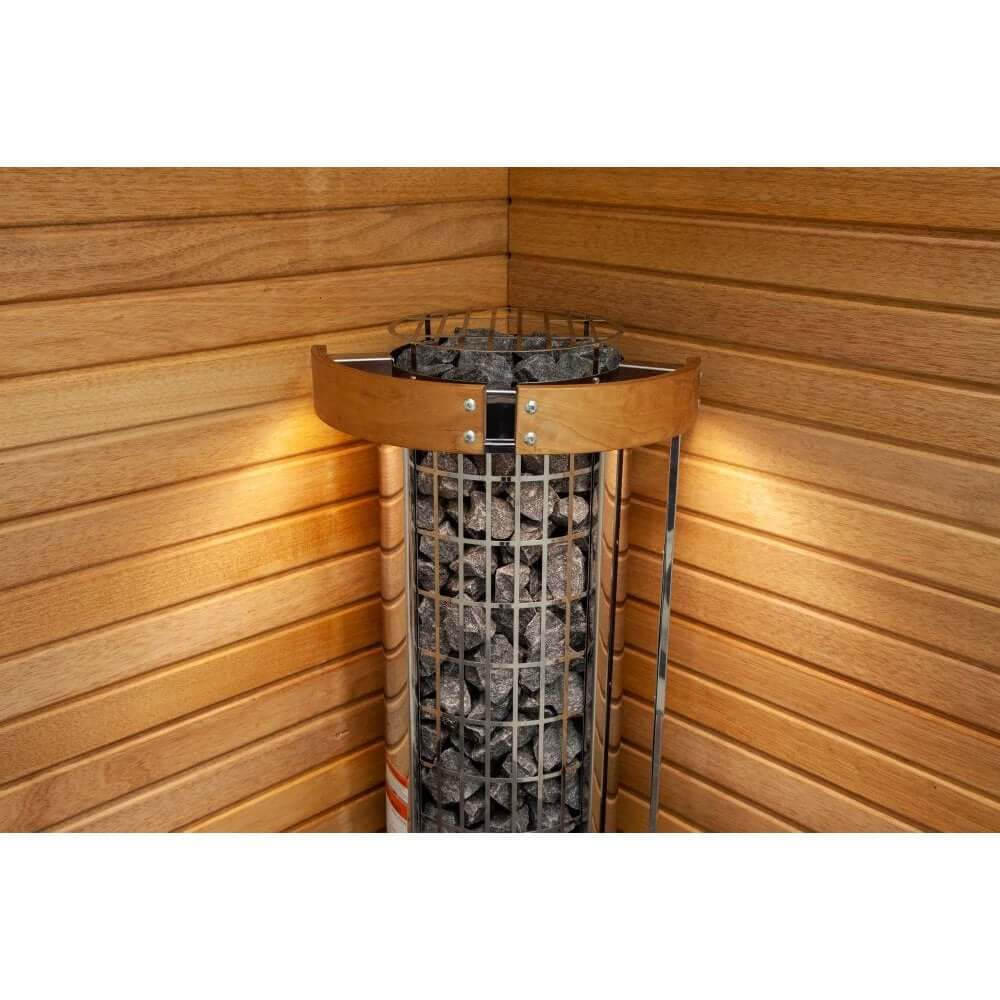

Sidewall or corner of room install
Stone capacity 200 lbs. &Ā 265 lbs. forĀ HPCS11U1H.
The Harvia Cilindro electric heater gives off top-quality steam in large saunas as well as saunas where glass surfaces increase the heater power requirements. Manual heaters have their fixed operating switches located on the front of the heater. The E-model heaters are controlled by a separate control unit. The EE-model heaters are controlled with an external control panel that can be placed inside or outside the sauna room.
Ā
Harvia Cilindro Electric Heater Dimensions
Dimensions
Ā
PART NUMBER
PRODUCT WEIGHT
LENGTH/WIDTH
WIDTH/DEPTH
HEIGHT
DIAMETER
DIMENSIONS
HPCS6U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS8U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS9U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS11U1H
47 lbs
16"
15"
45"
N/A
16"W x 15"D x 45"H
Ā
Ā
Ā
CILINDRO-6.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 -294 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: HPC2, HPCU2L, HPC3, HPCU3L
KW: 6.0
WATTS:Ā 6000
VOLTS: 240VAC
AMPS:Ā 25
PHASE: 1PH
COMPATIBLE SAUNA CONTROL: CX30-U1-U3
CILINDRO-8.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 431 CU. FT
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES:Ā HPC2, HPCU2L, HPC3, HPCU3L
KW: 8.0
WATTS:Ā 8000
VOLTS:Ā 240VAC
AMPS:Ā 33.4
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-9.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 494 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: N/A
KW:Ā 9.0
WATTS:Ā 9000
VOLTS:Ā 240VAC
AMPS:Ā 37.5
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-10.5KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 636 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 265lbs stones
OPTIONAL ACCESSORIES: HPC7, HPCU7L, HPC4, HPCU4L
KW:Ā 10.5
WATTS:Ā 10500
VOLTS:Ā 240VAC
AMPS:Ā 43.75
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
Ā
Harvia Cilindro Half Maintenance
MAINTENANCE INSTRUCTIONS
Use only clean water on Sauna stones.Ā Do notĀ use spa or pool water as it will destroy your heater.
Clean water should always be used in Sauna buckets and water should be dumped out after every use. Scour buckets and dippers occasionally when film collects from usage. Use a plastic bucket liner in the bucket to prevent water leakage.
Scrub benches with a soft brush, using soap and water or a mild disinfectant when needed ā about once a week in commercial Saunas, or depending upon Sauna usage. For sanitation, each bather should sit or lie on a towel (this will prolong bench life).
Remove possible removable flooring and wash the waterproof floor with disinfectant (e.g. Pine-Sol) about once a week or as often as needed. Hose off removable flooring to clean.
To maintain the beautiful appearance of the Sauna heater, remove water stains by wiping with a damp cloth occasionally.
Sauna Heaters require no special maintenance when properly installed by a qualified electrical contractor. After 5 years of usage, the rocks may need replacing if they have crumbled or powdered.
We strongly recommend a floor that can be easily cleaned (concrete, ceramic tile, or a poured type of flooring). When this is provided, the Sauna can be easily cleaned and kept in a sanitary condition with little effort. A carpet is NOT recommended for aĀ Sauna! A carpet becomes a perfect breeding ground for bacteria in the moist conditions of a Sauna, and a carpet promotes the spreadĀ of foot diseases such as athleteās foot. For the same reasons, wooden duckboard should not be used for flooring.
In new construction, a floor drain should also be provided, especially in commercial Saunas for sanitary cleaning and maintenance.
Seal wood around glass in doorāinside and outsideāwith Thompsonās Water Seal to prevent warpage.
When Sauna wood becomes stained from perspiration, the wood may be lightly sanded with fine sandpaper to restore beautiful appearance. We do not recommend stainsĀ or sealers as toxic vapors may appear when heated. However, 2 coats of Thompsonās Water Seal may be used on the wood benches in a commercial Sauna, so that the wood may be more easily cleaned and kept sanitary ā the wood will not absorb perspiration.
The Sauna room will heat faster if the higher vent is kept in a closed position when heating. The lower vent may always be kept in an open position.
Required warning signs should be posted according to the instructions.
Ā
IMPORTANT!
Owner of the sauna heater must make sure that the sauna heater is turned off correctly every time after bathing.
Owner of the sauna heater must obey these maintenance instructions!
Description
Harvia Cilindro Half Electric Heater
The Harvia Cilindro H electric heater has an outer casing that is partially open at the front, allowing users to enjoy the benefits of a large stone surface and place the heater containing a massive amount of stones in a small space. You can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar.
Ā
Ā
Harvia Cilindro-Half Features
Stainless Steel housing
Stainless Steel elements
Elements run-down center of the heater
Sidewall or corner of room install
Stone capacity 200 lbs. &Ā 265 lbs. forĀ HPCS11U1H.
The Harvia Cilindro electric heater gives off top-quality steam in large saunas as well as saunas where glass surfaces increase the heater power requirements. Manual heaters have their fixed operating switches located on the front of the heater. The E-model heaters are controlled by a separate control unit. The EE-model heaters are controlled with an external control panel that can be placed inside or outside the sauna room.
Ā
Harvia Cilindro Electric Heater Dimensions
Dimensions
Ā
PART NUMBER
PRODUCT WEIGHT
LENGTH/WIDTH
WIDTH/DEPTH
HEIGHT
DIAMETER
DIMENSIONS
HPCS6U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS8U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS9U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS11U1H
47 lbs
16"
15"
45"
N/A
16"W x 15"D x 45"H
Ā
Ā
Ā
CILINDRO-6.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 -294 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: HPC2, HPCU2L, HPC3, HPCU3L
KW: 6.0
WATTS:Ā 6000
VOLTS: 240VAC
AMPS:Ā 25
PHASE: 1PH
COMPATIBLE SAUNA CONTROL: CX30-U1-U3
CILINDRO-8.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 431 CU. FT
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES:Ā HPC2, HPCU2L, HPC3, HPCU3L
KW: 8.0
WATTS:Ā 8000
VOLTS:Ā 240VAC
AMPS:Ā 33.4
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-9.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 494 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: N/A
KW:Ā 9.0
WATTS:Ā 9000
VOLTS:Ā 240VAC
AMPS:Ā 37.5
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-10.5KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 636 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 265lbs stones
OPTIONAL ACCESSORIES: HPC7, HPCU7L, HPC4, HPCU4L
KW:Ā 10.5
WATTS:Ā 10500
VOLTS:Ā 240VAC
AMPS:Ā 43.75
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
Ā
Harvia Cilindro Half Maintenance
MAINTENANCE INSTRUCTIONS
Use only clean water on Sauna stones.Ā Do notĀ use spa or pool water as it will destroy your heater.
Clean water should always be used in Sauna buckets and water should be dumped out after every use. Scour buckets and dippers occasionally when film collects from usage. Use a plastic bucket liner in the bucket to prevent water leakage.
Scrub benches with a soft brush, using soap and water or a mild disinfectant when needed ā about once a week in commercial Saunas, or depending upon Sauna usage. For sanitation, each bather should sit or lie on a towel (this will prolong bench life).
Remove possible removable flooring and wash the waterproof floor with disinfectant (e.g. Pine-Sol) about once a week or as often as needed. Hose off removable flooring to clean.
To maintain the beautiful appearance of the Sauna heater, remove water stains by wiping with a damp cloth occasionally.
Sauna Heaters require no special maintenance when properly installed by a qualified electrical contractor. After 5 years of usage, the rocks may need replacing if they have crumbled or powdered.
We strongly recommend a floor that can be easily cleaned (concrete, ceramic tile, or a poured type of flooring). When this is provided, the Sauna can be easily cleaned and kept in a sanitary condition with little effort. A carpet is NOT recommended for aĀ Sauna! A carpet becomes a perfect breeding ground for bacteria in the moist conditions of a Sauna, and a carpet promotes the spreadĀ of foot diseases such as athleteās foot. For the same reasons, wooden duckboard should not be used for flooring.
In new construction, a floor drain should also be provided, especially in commercial Saunas for sanitary cleaning and maintenance.
Seal wood around glass in doorāinside and outsideāwith Thompsonās Water Seal to prevent warpage.
When Sauna wood becomes stained from perspiration, the wood may be lightly sanded with fine sandpaper to restore beautiful appearance. We do not recommend stainsĀ or sealers as toxic vapors may appear when heated. However, 2 coats of Thompsonās Water Seal may be used on the wood benches in a commercial Sauna, so that the wood may be more easily cleaned and kept sanitary ā the wood will not absorb perspiration.
The Sauna room will heat faster if the higher vent is kept in a closed position when heating. The lower vent may always be kept in an open position.
Required warning signs should be posted according to the instructions.
Ā
IMPORTANT!
Owner of the sauna heater must make sure that the sauna heater is turned off correctly every time after bathing.
Owner of the sauna heater must obey these maintenance instructions!
Warranty
Secure Your Sauna Experience with RecovAthlete's' Harvia Electric Heater Warranty
Enjoy peace of mind with your Harvia Electric Sauna Heater purchase, backed by RecovAthlete's comprehensive limited warranty. This commitment guarantees that your sauna heater will be protected against defects in materials and workmanship, ensuring a seamless and worry-free experience.
Key Features of Your Warranty:
Coverage for Defects: Rest assured knowing that any defects in materials and workmanship are covered for a specified period. This includes one year for heating elements (coils) and five years for other sauna heater components from the date of delivery.
Exclusive to Original Purchaser: This warranty is specifically tailored to protect you, the original consumer, emphasizing our commitment to your satisfaction.
Variety of Remedies Available: In case of any defects, RecovAthleteĀ offers multiple solutions:
Replacement Parts or Entire Product: We'll provide parts or replace the product if it's beyond repair, completely free of charge.
Refund Option: Depending on the defect's extent, get a partial or full refund of the purchase price.
Shipping Fees Covered for Returns: If returning the defective product is necessary, we'll handle the shipping costs, ensuring a hassle-free process.
Important Warranty Details:
Exclusions: Note that the warranty does not cover damages due to transportation, storage, improper use, lack of maintenance, unauthorized repairs, and wear and tear.
How to Claim: Simply contact our after-sales team at info@recovathlete.com with product details and a description of the defect during the warranty period.
Limitation of Liability: While we strive for excellence, our liability is limited to the actual amount paid for the defective product, excluding consequential or incidental damages.
By choosing Harvia Electric Sauna Heaters from RecovAthlete, you're not just buying a product; you're investing in a reliable and stress-free sauna experience. Our warranty is designed to ensure that your satisfaction remains our top priority.
120% Price Match
RecovAthlete's 120% Price Match Guarantee: Shop With Unmatched Confidence
At RecovAthlete, we are dedicated to supporting your health and fitness journey, and ensuring you receive the best value for your purchases. Our 120% Price Match Guarantee reflects this commitment, providing you with unmatched assurance.
How Our 120% Price Match Guarantee Works:
60-Day Window: If you find an identical item advertised at a lower price by a competitor within 60 days of your purchase, we will match it.
Beyond Matching: We don't just match the lower price; we also give you an additional 20% of the competitor's price.
Currency Consistency: The comparison must be in the same currency as your original purchase for fairness.
Detailed Terms and Conditions:
Product Eligibility: This guarantee applies to identical products (same manufacturer, model, features, and SKU Style Number) and from authorized dealers.
Price Verification: We base our comparison on the total verifiable selling price, excluding taxes. Shipping and handling are considered, especially when RecovAthlete offers free shipping.
Fairness in Comparison: Our team ensures each price match claim is valid and fair.
Exclusions to Note:
Secondary Market and Used Items: Excludes prices from secondary sellers, and used or refurbished items.
Non-Public Offers: Excludes wholesale, dealer, contract, and below-wholesale cost pricing.
Special Sales Events: Excludes pricing from sales, flash sales, promotions, closeouts, and clearance events.
Combination with Other Offers: Cannot be combined with other RecovAthlete offers, discounts, or promotions.
Our Ethical Pricing Pledge: We commit to never selling products below cost, ensuring quality and fairness.
Submitting Your Price Match Claim:
Gather Evidence: Collect the competitor's advertisement or written quote.
Provide Details: Include your contact information, order number, and product specifics.
Patience with Processing: Please allow up to six weeks for refund processing. Our 120% Price Match Guarantee is our promise to you that shopping at RecovAthlete means always getting the best value.
Shipping
Our Shipping & Returns Policy applies to all products and orders on our website. It aims to protect our customers and our business, ensuring a convenient buying experience. We encourage you to read and familiarize yourself with all our policies.
Acknowledgment and Agreement
By placing an order on our website, you confirm that you have read, understood, and agreed to our Shipping & Returns Policy, Terms of Service, and Privacy Policy.
Order Confirmation
Confirmation Email: Upon placing your order, you'll receive a confirmation email, indicating we've received your order and pre-authorized your credit card.
Stock Availability: If your item(s) is ready for immediate shipment, we'll process the charges and proceed with shipping. For backordered or out-of-stock items, we'll contact you to decide if you wish to wait.
Order Accuracy: Itās crucial to review your order confirmation email to ensure all product details are correct.
Customer Responsibilities Before Ordering
Ensure the item(s) can fit the intended space and can be moved through doors, corridors, and staircases in its packaging. Returns due to sizing issues are the customerās responsibility (applicable only for returnable products).
Shipping Information
Shipping Times: In-stock items typically ship within 3-5 business days. Custom-made products might take up to 2 weeks before shipping.
Lead Times: Shipping times may extend during holidays, rush periods, or due to supplier backlogs. We will inform you via email for your permission to proceed in such cases.
Delivery Estimates: Delivery times vary and are not guaranteed. Details can be found on each product page.
Shipping Restrictions: We ship within the USA, excluding PO Boxes, military addresses, Hawaii, Puerto Rico, Alaska.
Address Changes: Once an order has shipped, address changes are not permitted. Returns due to address changes will incur fees as per our policy.
Freight Shipping: Some products require insured freight shipping, which differs from standard ground shipping. All shipments are delivered curbside by default.
Tracking Your Order
Tracking Information: Within 24 hours of dispatch, we'll send tracking details to your email. If you don't receive this information within the estimated shipping time, please contact us.
Troubleshooting: Check your spam/junk folders for the email. For tracking issues, contact the carrier directly with the provided information.
Deliveries
Freight Carrier Deliveries: These require scheduling a delivery appointment. Itās the customer's responsibility to schedule this with the carrier.
Appointment Flexibility: Appointments are subject to change and not guaranteed. We recommend proactive communication with the carrier.
Cancellation Policy: Cancellations due to delivery issues are not accepted. We rely on the freight company to resolve any shipping issues.
Adult Presence Required: Someone over 18 must be present to receive the shipment and sign the Bill of Lading.
Receiving Freight Shipments
Important Guidelines
Box Count: Verify you have all boxes as per the bill of lading. Report any discrepancies immediately.
Inspect for Damage: Check for visible damage before accepting delivery. Note any damage on the Bill of Lading.
Liability: Failing to report damage at the time of delivery waives your right to file shipping insurance claims.
Professional Installation: Available for an additional fee, performed by external parties. We are not liable for any installation-related damages.
Color Variations: Actual product colors may vary from online images. We suggest requesting a color sample before purchase. Returns based on color differences are not accepted.
Legal and Miscellaneous Notes
Manufacturerās Policy: In cases of policy omission, the manufacturer's policy will apply.
Cancellation Policy: Orders can be canceled via email or phone. Refunds for cancellations before processing; post-processing cancellations follow our 30-Day Return Policy.
High-Value Orders: Orders above $5,000 or multiple cancellations may incur a 5% cancellation fee.
Note: Our return policies are influenced by the brands' own policies. Details on exceptions are listed on product pages. In all return cases, RecoAthlete reserves the right to inspect returned products and adjust credits based on the condition of the returned items.
For detailed information on our Shipping & Returns policies, please refer to our FAQ page. If you wish to initiate a return or have questions, please contact us at info@recovathlete.com.
Return any item within 30 days for a full refund*.
Initiate your return by emailing us for simple steps.
Note: Return shipping and restocking fees apply.
Return Conditions
Items must be in original condition, unused, with tags and packaging.
How to Start a Return
Contact us at info@recovathlete.com for a Return Authorization (RA#) and shipping label.
Returns without prior request will not be accepted.
Dealing with Damages & Issues
Inspect your order upon arrival.
Contact us immediately for defective or incorrect items.
We'll replace parts or issue a refund as needed.
Exchanges
Not satisfied? Contact us for an exchange.
Refund Process
Email us with your order number and refund reason.
Include photos of damage if applicable.
We'll guide you through the brand-specific refund process.
Approved refunds processed within 10 business days to the original payment method.
Contact us if refunds take longer than 10 business days.
Ā

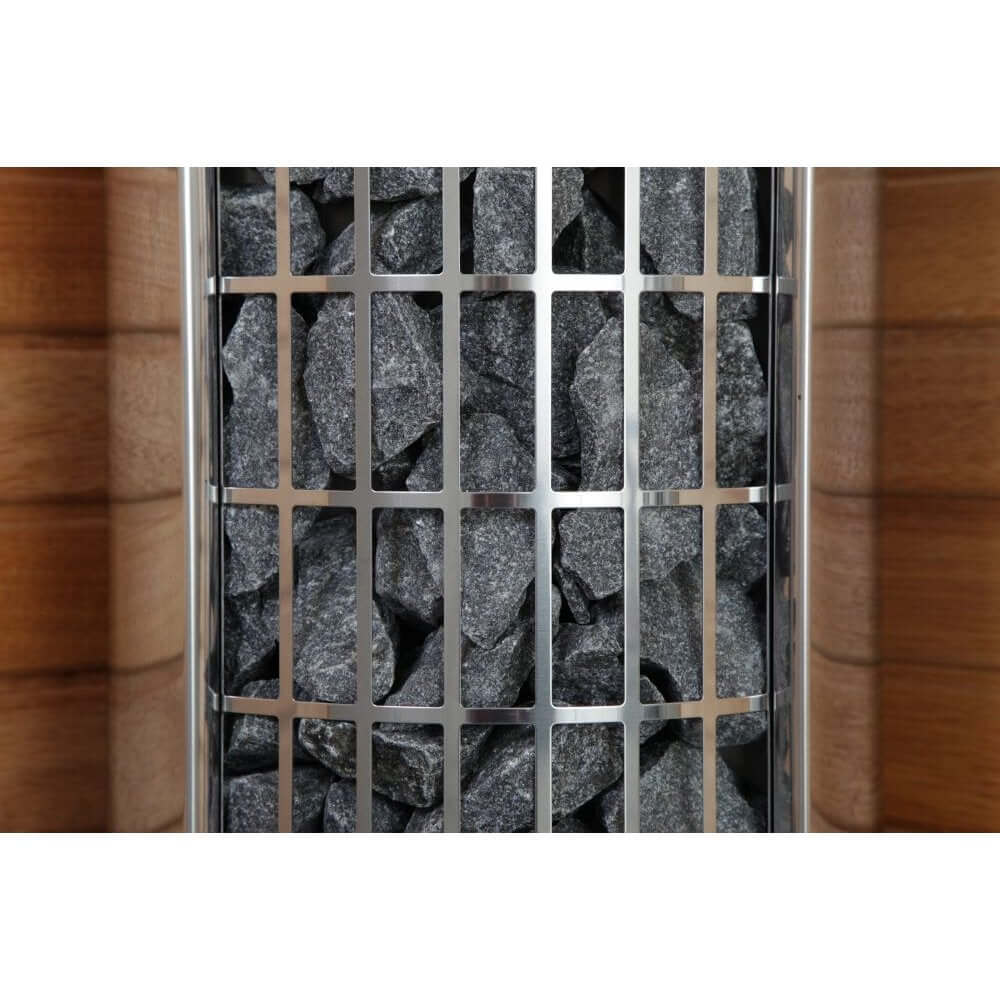

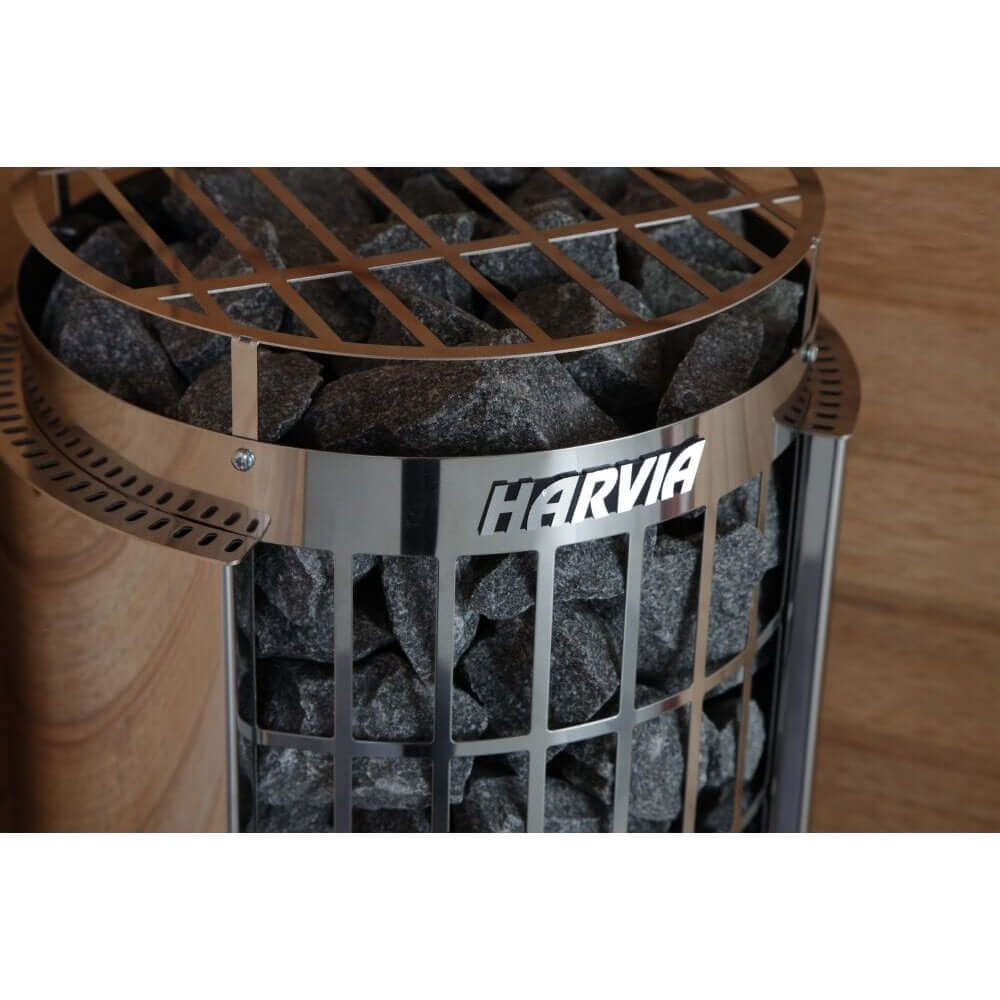

Harvia Cilindro Half Electric Heater
The Harvia Cilindro H electric heater has an outer casing that is partially open at the front, allowing users to enjoy the benefits of a large stone surface and place the heater containing a massive amount of stones in a small space. You can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar.
Ā
Ā
Harvia Cilindro-Half Features
Stainless Steel housing
Stainless Steel elements
Elements run-down center of the heater

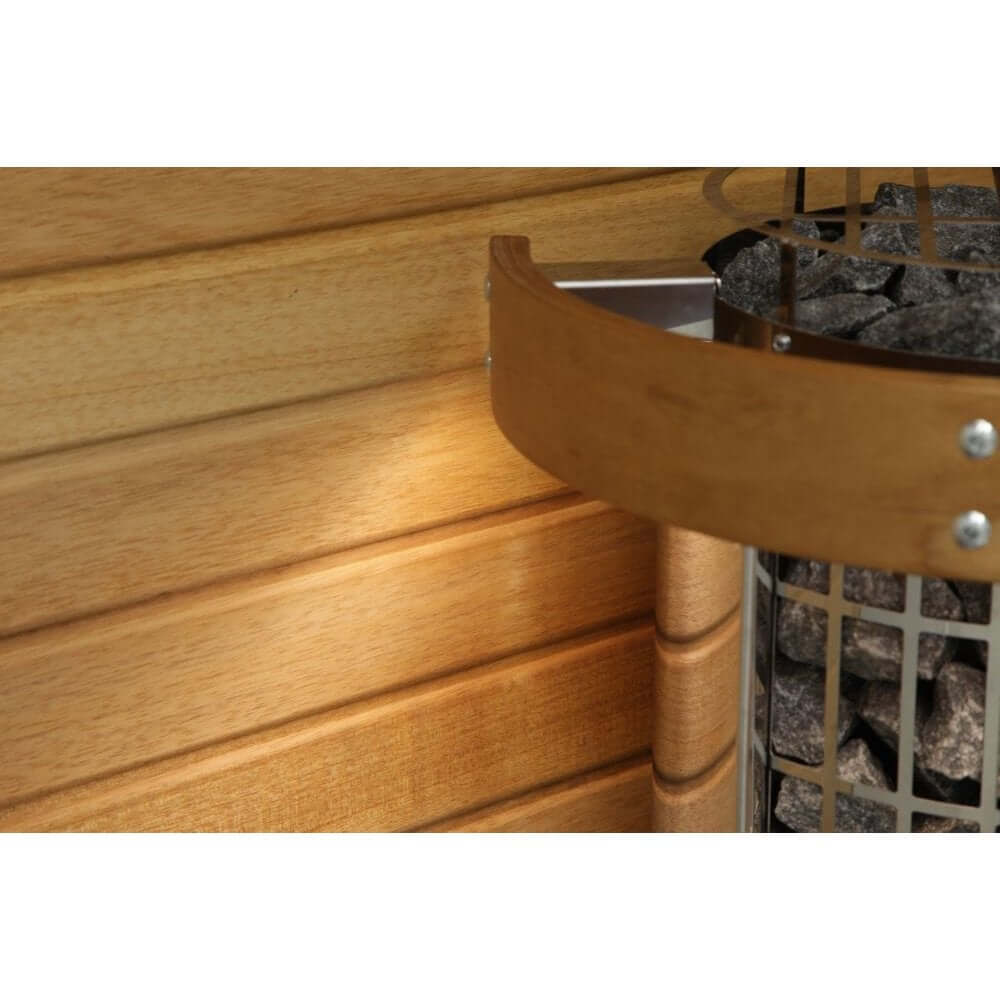

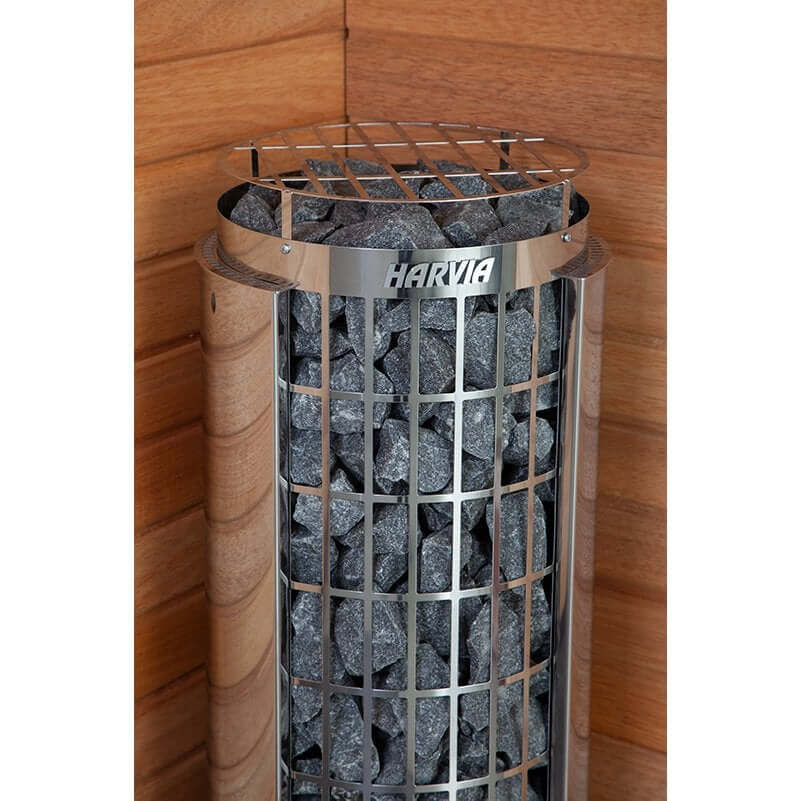

Sidewall or corner of room install
Stone capacity 200 lbs. &Ā 265 lbs. forĀ HPCS11U1H.
The Harvia Cilindro electric heater gives off top-quality steam in large saunas as well as saunas where glass surfaces increase the heater power requirements. Manual heaters have their fixed operating switches located on the front of the heater. The E-model heaters are controlled by a separate control unit. The EE-model heaters are controlled with an external control panel that can be placed inside or outside the sauna room.
Ā
Harvia Cilindro Electric Heater Dimensions
Dimensions
Ā
PART NUMBER
PRODUCT WEIGHT
LENGTH/WIDTH
WIDTH/DEPTH
HEIGHT
DIAMETER
DIMENSIONS
HPCS6U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS8U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS9U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS11U1H
47 lbs
16"
15"
45"
N/A
16"W x 15"D x 45"H
Ā
Ā
Ā
CILINDRO-6.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 -294 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: HPC2, HPCU2L, HPC3, HPCU3L
KW: 6.0
WATTS:Ā 6000
VOLTS: 240VAC
AMPS:Ā 25
PHASE: 1PH
COMPATIBLE SAUNA CONTROL: CX30-U1-U3
CILINDRO-8.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 431 CU. FT
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES:Ā HPC2, HPCU2L, HPC3, HPCU3L
KW: 8.0
WATTS:Ā 8000
VOLTS:Ā 240VAC
AMPS:Ā 33.4
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-9.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 494 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: N/A
KW:Ā 9.0
WATTS:Ā 9000
VOLTS:Ā 240VAC
AMPS:Ā 37.5
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-10.5KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 636 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 265lbs stones
OPTIONAL ACCESSORIES: HPC7, HPCU7L, HPC4, HPCU4L
KW:Ā 10.5
WATTS:Ā 10500
VOLTS:Ā 240VAC
AMPS:Ā 43.75
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
Ā
Harvia Cilindro Half Maintenance
MAINTENANCE INSTRUCTIONS
Use only clean water on Sauna stones.Ā Do notĀ use spa or pool water as it will destroy your heater.
Clean water should always be used in Sauna buckets and water should be dumped out after every use. Scour buckets and dippers occasionally when film collects from usage. Use a plastic bucket liner in the bucket to prevent water leakage.
Scrub benches with a soft brush, using soap and water or a mild disinfectant when needed ā about once a week in commercial Saunas, or depending upon Sauna usage. For sanitation, each bather should sit or lie on a towel (this will prolong bench life).
Remove possible removable flooring and wash the waterproof floor with disinfectant (e.g. Pine-Sol) about once a week or as often as needed. Hose off removable flooring to clean.
To maintain the beautiful appearance of the Sauna heater, remove water stains by wiping with a damp cloth occasionally.
Sauna Heaters require no special maintenance when properly installed by a qualified electrical contractor. After 5 years of usage, the rocks may need replacing if they have crumbled or powdered.
We strongly recommend a floor that can be easily cleaned (concrete, ceramic tile, or a poured type of flooring). When this is provided, the Sauna can be easily cleaned and kept in a sanitary condition with little effort. A carpet is NOT recommended for aĀ Sauna! A carpet becomes a perfect breeding ground for bacteria in the moist conditions of a Sauna, and a carpet promotes the spreadĀ of foot diseases such as athleteās foot. For the same reasons, wooden duckboard should not be used for flooring.
In new construction, a floor drain should also be provided, especially in commercial Saunas for sanitary cleaning and maintenance.
Seal wood around glass in doorāinside and outsideāwith Thompsonās Water Seal to prevent warpage.
When Sauna wood becomes stained from perspiration, the wood may be lightly sanded with fine sandpaper to restore beautiful appearance. We do not recommend stainsĀ or sealers as toxic vapors may appear when heated. However, 2 coats of Thompsonās Water Seal may be used on the wood benches in a commercial Sauna, so that the wood may be more easily cleaned and kept sanitary ā the wood will not absorb perspiration.
The Sauna room will heat faster if the higher vent is kept in a closed position when heating. The lower vent may always be kept in an open position.
Required warning signs should be posted according to the instructions.
Ā
IMPORTANT!
Owner of the sauna heater must make sure that the sauna heater is turned off correctly every time after bathing.
Owner of the sauna heater must obey these maintenance instructions!
Secure Your Sauna Experience with RecovAthlete's' Harvia Electric Heater Warranty
Enjoy peace of mind with your Harvia Electric Sauna Heater purchase, backed by RecovAthlete's comprehensive limited warranty. This commitment guarantees that your sauna heater will be protected against defects in materials and workmanship, ensuring a seamless and worry-free experience.
Key Features of Your Warranty:
Coverage for Defects: Rest assured knowing that any defects in materials and workmanship are covered for a specified period. This includes one year for heating elements (coils) and five years for other sauna heater components from the date of delivery.
Exclusive to Original Purchaser: This warranty is specifically tailored to protect you, the original consumer, emphasizing our commitment to your satisfaction.
Variety of Remedies Available: In case of any defects, RecovAthleteĀ offers multiple solutions:
Replacement Parts or Entire Product: We'll provide parts or replace the product if it's beyond repair, completely free of charge.
Refund Option: Depending on the defect's extent, get a partial or full refund of the purchase price.
Shipping Fees Covered for Returns: If returning the defective product is necessary, we'll handle the shipping costs, ensuring a hassle-free process.
Important Warranty Details:
Exclusions: Note that the warranty does not cover damages due to transportation, storage, improper use, lack of maintenance, unauthorized repairs, and wear and tear.
How to Claim: Simply contact our after-sales team at info@recovathlete.com with product details and a description of the defect during the warranty period.
Limitation of Liability: While we strive for excellence, our liability is limited to the actual amount paid for the defective product, excluding consequential or incidental damages.
By choosing Harvia Electric Sauna Heaters from RecovAthlete, you're not just buying a product; you're investing in a reliable and stress-free sauna experience. Our warranty is designed to ensure that your satisfaction remains our top priority.
Harvia Cilindro Half Electric Heater
The Harvia Cilindro H electric heater has an outer casing that is partially open at the front, allowing users to enjoy the benefits of a large stone surface and place the heater containing a massive amount of stones in a small space. You can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar.
Ā
Ā
Harvia Cilindro-Half Features
Stainless Steel housing
Stainless Steel elements
Elements run-down center of the heater
Sidewall or corner of room install
Stone capacity 200 lbs. &Ā 265 lbs. forĀ HPCS11U1H.
The Harvia Cilindro electric heater gives off top-quality steam in large saunas as well as saunas where glass surfaces increase the heater power requirements. Manual heaters have their fixed operating switches located on the front of the heater. The E-model heaters are controlled by a separate control unit. The EE-model heaters are controlled with an external control panel that can be placed inside or outside the sauna room.
Ā
Harvia Cilindro Electric Heater Dimensions
Dimensions
Ā
PART NUMBER
PRODUCT WEIGHT
LENGTH/WIDTH
WIDTH/DEPTH
HEIGHT
DIAMETER
DIMENSIONS
HPCS6U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS8U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS9U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS11U1H
47 lbs
16"
15"
45"
N/A
16"W x 15"D x 45"H
Ā
Ā
Ā
CILINDRO-6.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 -294 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: HPC2, HPCU2L, HPC3, HPCU3L
KW: 6.0
WATTS:Ā 6000
VOLTS: 240VAC
AMPS:Ā 25
PHASE: 1PH
COMPATIBLE SAUNA CONTROL: CX30-U1-U3
CILINDRO-8.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 431 CU. FT
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES:Ā HPC2, HPCU2L, HPC3, HPCU3L
KW: 8.0
WATTS:Ā 8000
VOLTS:Ā 240VAC
AMPS:Ā 33.4
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-9.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 494 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: N/A
KW:Ā 9.0
WATTS:Ā 9000
VOLTS:Ā 240VAC
AMPS:Ā 37.5
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-10.5KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 636 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 265lbs stones
OPTIONAL ACCESSORIES: HPC7, HPCU7L, HPC4, HPCU4L
KW:Ā 10.5
WATTS:Ā 10500
VOLTS:Ā 240VAC
AMPS:Ā 43.75
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
Ā
Harvia Cilindro Half Maintenance
MAINTENANCE INSTRUCTIONS
Use only clean water on Sauna stones.Ā Do notĀ use spa or pool water as it will destroy your heater.
Clean water should always be used in Sauna buckets and water should be dumped out after every use. Scour buckets and dippers occasionally when film collects from usage. Use a plastic bucket liner in the bucket to prevent water leakage.
Scrub benches with a soft brush, using soap and water or a mild disinfectant when needed ā about once a week in commercial Saunas, or depending upon Sauna usage. For sanitation, each bather should sit or lie on a towel (this will prolong bench life).
Remove possible removable flooring and wash the waterproof floor with disinfectant (e.g. Pine-Sol) about once a week or as often as needed. Hose off removable flooring to clean.
To maintain the beautiful appearance of the Sauna heater, remove water stains by wiping with a damp cloth occasionally.
Sauna Heaters require no special maintenance when properly installed by a qualified electrical contractor. After 5 years of usage, the rocks may need replacing if they have crumbled or powdered.
We strongly recommend a floor that can be easily cleaned (concrete, ceramic tile, or a poured type of flooring). When this is provided, the Sauna can be easily cleaned and kept in a sanitary condition with little effort. A carpet is NOT recommended for aĀ Sauna! A carpet becomes a perfect breeding ground for bacteria in the moist conditions of a Sauna, and a carpet promotes the spreadĀ of foot diseases such as athleteās foot. For the same reasons, wooden duckboard should not be used for flooring.
In new construction, a floor drain should also be provided, especially in commercial Saunas for sanitary cleaning and maintenance.
Seal wood around glass in doorāinside and outsideāwith Thompsonās Water Seal to prevent warpage.
When Sauna wood becomes stained from perspiration, the wood may be lightly sanded with fine sandpaper to restore beautiful appearance. We do not recommend stainsĀ or sealers as toxic vapors may appear when heated. However, 2 coats of Thompsonās Water Seal may be used on the wood benches in a commercial Sauna, so that the wood may be more easily cleaned and kept sanitary ā the wood will not absorb perspiration.
The Sauna room will heat faster if the higher vent is kept in a closed position when heating. The lower vent may always be kept in an open position.
Required warning signs should be posted according to the instructions.
Ā
IMPORTANT!
Owner of the sauna heater must make sure that the sauna heater is turned off correctly every time after bathing.
Owner of the sauna heater must obey these maintenance instructions!
RecovAthlete's 120% Price Match Guarantee: Shop With Unmatched Confidence
At RecovAthlete, we are dedicated to supporting your health and fitness journey, and ensuring you receive the best value for your purchases. Our 120% Price Match Guarantee reflects this commitment, providing you with unmatched assurance.
How Our 120% Price Match Guarantee Works:
60-Day Window: If you find an identical item advertised at a lower price by a competitor within 60 days of your purchase, we will match it.
Beyond Matching: We don't just match the lower price; we also give you an additional 20% of the competitor's price.
Currency Consistency: The comparison must be in the same currency as your original purchase for fairness.
Detailed Terms and Conditions:
Product Eligibility: This guarantee applies to identical products (same manufacturer, model, features, and SKU Style Number) and from authorized dealers.
Price Verification: We base our comparison on the total verifiable selling price, excluding taxes. Shipping and handling are considered, especially when RecovAthlete offers free shipping.
Fairness in Comparison: Our team ensures each price match claim is valid and fair.
Exclusions to Note:
Secondary Market and Used Items: Excludes prices from secondary sellers, and used or refurbished items.
Non-Public Offers: Excludes wholesale, dealer, contract, and below-wholesale cost pricing.
Special Sales Events: Excludes pricing from sales, flash sales, promotions, closeouts, and clearance events.
Combination with Other Offers: Cannot be combined with other RecovAthlete offers, discounts, or promotions.
Our Ethical Pricing Pledge: We commit to never selling products below cost, ensuring quality and fairness.
Submitting Your Price Match Claim:
Gather Evidence: Collect the competitor's advertisement or written quote.
Provide Details: Include your contact information, order number, and product specifics.
Patience with Processing: Please allow up to six weeks for refund processing. Our 120% Price Match Guarantee is our promise to you that shopping at RecovAthlete means always getting the best value.
Harvia Cilindro Half Electric Heater
The Harvia Cilindro H electric heater has an outer casing that is partially open at the front, allowing users to enjoy the benefits of a large stone surface and place the heater containing a massive amount of stones in a small space. You can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar.
Ā
Ā
Harvia Cilindro-Half Features
Stainless Steel housing
Stainless Steel elements
Elements run-down center of the heater
Sidewall or corner of room install
Stone capacity 200 lbs. &Ā 265 lbs. forĀ HPCS11U1H.
The Harvia Cilindro electric heater gives off top-quality steam in large saunas as well as saunas where glass surfaces increase the heater power requirements. Manual heaters have their fixed operating switches located on the front of the heater. The E-model heaters are controlled by a separate control unit. The EE-model heaters are controlled with an external control panel that can be placed inside or outside the sauna room.
Ā
Harvia Cilindro Electric Heater Dimensions
Dimensions
Ā
PART NUMBER
PRODUCT WEIGHT
LENGTH/WIDTH
WIDTH/DEPTH
HEIGHT
DIAMETER
DIMENSIONS
HPCS6U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS8U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS9U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS11U1H
47 lbs
16"
15"
45"
N/A
16"W x 15"D x 45"H
Ā
Ā
Ā
CILINDRO-6.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 -294 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: HPC2, HPCU2L, HPC3, HPCU3L
KW: 6.0
WATTS:Ā 6000
VOLTS: 240VAC
AMPS:Ā 25
PHASE: 1PH
COMPATIBLE SAUNA CONTROL: CX30-U1-U3
CILINDRO-8.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 431 CU. FT
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES:Ā HPC2, HPCU2L, HPC3, HPCU3L
KW: 8.0
WATTS:Ā 8000
VOLTS:Ā 240VAC
AMPS:Ā 33.4
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-9.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 494 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: N/A
KW:Ā 9.0
WATTS:Ā 9000
VOLTS:Ā 240VAC
AMPS:Ā 37.5
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-10.5KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 636 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 265lbs stones
OPTIONAL ACCESSORIES: HPC7, HPCU7L, HPC4, HPCU4L
KW:Ā 10.5
WATTS:Ā 10500
VOLTS:Ā 240VAC
AMPS:Ā 43.75
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
Ā
Harvia Cilindro Half Maintenance
MAINTENANCE INSTRUCTIONS
Use only clean water on Sauna stones.Ā Do notĀ use spa or pool water as it will destroy your heater.
Clean water should always be used in Sauna buckets and water should be dumped out after every use. Scour buckets and dippers occasionally when film collects from usage. Use a plastic bucket liner in the bucket to prevent water leakage.
Scrub benches with a soft brush, using soap and water or a mild disinfectant when needed ā about once a week in commercial Saunas, or depending upon Sauna usage. For sanitation, each bather should sit or lie on a towel (this will prolong bench life).
Remove possible removable flooring and wash the waterproof floor with disinfectant (e.g. Pine-Sol) about once a week or as often as needed. Hose off removable flooring to clean.
To maintain the beautiful appearance of the Sauna heater, remove water stains by wiping with a damp cloth occasionally.
Sauna Heaters require no special maintenance when properly installed by a qualified electrical contractor. After 5 years of usage, the rocks may need replacing if they have crumbled or powdered.
We strongly recommend a floor that can be easily cleaned (concrete, ceramic tile, or a poured type of flooring). When this is provided, the Sauna can be easily cleaned and kept in a sanitary condition with little effort. A carpet is NOT recommended for aĀ Sauna! A carpet becomes a perfect breeding ground for bacteria in the moist conditions of a Sauna, and a carpet promotes the spreadĀ of foot diseases such as athleteās foot. For the same reasons, wooden duckboard should not be used for flooring.
In new construction, a floor drain should also be provided, especially in commercial Saunas for sanitary cleaning and maintenance.
Seal wood around glass in doorāinside and outsideāwith Thompsonās Water Seal to prevent warpage.
When Sauna wood becomes stained from perspiration, the wood may be lightly sanded with fine sandpaper to restore beautiful appearance. We do not recommend stainsĀ or sealers as toxic vapors may appear when heated. However, 2 coats of Thompsonās Water Seal may be used on the wood benches in a commercial Sauna, so that the wood may be more easily cleaned and kept sanitary ā the wood will not absorb perspiration.
The Sauna room will heat faster if the higher vent is kept in a closed position when heating. The lower vent may always be kept in an open position.
Required warning signs should be posted according to the instructions.
Ā
IMPORTANT!
Owner of the sauna heater must make sure that the sauna heater is turned off correctly every time after bathing.
Owner of the sauna heater must obey these maintenance instructions!
Our Shipping & Returns Policy applies to all products and orders on our website. It aims to protect our customers and our business, ensuring a convenient buying experience. We encourage you to read and familiarize yourself with all our policies.
Acknowledgment and Agreement
By placing an order on our website, you confirm that you have read, understood, and agreed to our Shipping & Returns Policy, Terms of Service, and Privacy Policy.
Order Confirmation
Confirmation Email: Upon placing your order, you'll receive a confirmation email, indicating we've received your order and pre-authorized your credit card.
Stock Availability: If your item(s) is ready for immediate shipment, we'll process the charges and proceed with shipping. For backordered or out-of-stock items, we'll contact you to decide if you wish to wait.
Order Accuracy: Itās crucial to review your order confirmation email to ensure all product details are correct.
Customer Responsibilities Before Ordering
Ensure the item(s) can fit the intended space and can be moved through doors, corridors, and staircases in its packaging. Returns due to sizing issues are the customerās responsibility (applicable only for returnable products).
Shipping Information
Shipping Times: In-stock items typically ship within 3-5 business days. Custom-made products might take up to 2 weeks before shipping.
Lead Times: Shipping times may extend during holidays, rush periods, or due to supplier backlogs. We will inform you via email for your permission to proceed in such cases.
Delivery Estimates: Delivery times vary and are not guaranteed. Details can be found on each product page.
Shipping Restrictions: We ship within the USA, excluding PO Boxes, military addresses, Hawaii, Puerto Rico, Alaska.
Address Changes: Once an order has shipped, address changes are not permitted. Returns due to address changes will incur fees as per our policy.
Freight Shipping: Some products require insured freight shipping, which differs from standard ground shipping. All shipments are delivered curbside by default.
Tracking Your Order
Tracking Information: Within 24 hours of dispatch, we'll send tracking details to your email. If you don't receive this information within the estimated shipping time, please contact us.
Troubleshooting: Check your spam/junk folders for the email. For tracking issues, contact the carrier directly with the provided information.
Deliveries
Freight Carrier Deliveries: These require scheduling a delivery appointment. Itās the customer's responsibility to schedule this with the carrier.
Appointment Flexibility: Appointments are subject to change and not guaranteed. We recommend proactive communication with the carrier.
Cancellation Policy: Cancellations due to delivery issues are not accepted. We rely on the freight company to resolve any shipping issues.
Adult Presence Required: Someone over 18 must be present to receive the shipment and sign the Bill of Lading.
Receiving Freight Shipments
Important Guidelines
Box Count: Verify you have all boxes as per the bill of lading. Report any discrepancies immediately.
Inspect for Damage: Check for visible damage before accepting delivery. Note any damage on the Bill of Lading.
Liability: Failing to report damage at the time of delivery waives your right to file shipping insurance claims.
Professional Installation: Available for an additional fee, performed by external parties. We are not liable for any installation-related damages.
Color Variations: Actual product colors may vary from online images. We suggest requesting a color sample before purchase. Returns based on color differences are not accepted.
Legal and Miscellaneous Notes
Manufacturerās Policy: In cases of policy omission, the manufacturer's policy will apply.
Cancellation Policy: Orders can be canceled via email or phone. Refunds for cancellations before processing; post-processing cancellations follow our 30-Day Return Policy.
High-Value Orders: Orders above $5,000 or multiple cancellations may incur a 5% cancellation fee.
Note: Our return policies are influenced by the brands' own policies. Details on exceptions are listed on product pages. In all return cases, RecoAthlete reserves the right to inspect returned products and adjust credits based on the condition of the returned items.
For detailed information on our Shipping & Returns policies, please refer to our FAQ page. If you wish to initiate a return or have questions, please contact us at info@recovathlete.com.
The Harvia Cilindro H electric heater has an outer casing that is partially open at the front, allowing users to enjoy the benefits of a large stone surface and place the heater containing a massive amount of stones in a small space. You can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar.
Ā
Ā
Harvia Cilindro-Half Features
Stainless Steel housing
Stainless Steel elements
Elements run-down center of the heater
Sidewall or corner of room install
Stone capacity 200 lbs. &Ā 265 lbs. forĀ HPCS11U1H.
The Harvia Cilindro electric heater gives off top-quality steam in large saunas as well as saunas where glass surfaces increase the heater power requirements. Manual heaters have their fixed operating switches located on the front of the heater. The E-model heaters are controlled by a separate control unit. The EE-model heaters are controlled with an external control panel that can be placed inside or outside the sauna room.
Ā
Harvia Cilindro Electric Heater Dimensions
Dimensions
Ā
PART NUMBER
PRODUCT WEIGHT
LENGTH/WIDTH
WIDTH/DEPTH
HEIGHT
DIAMETER
DIMENSIONS
HPCS6U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS8U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS9U1H
38 lbs
14"
13"
40"
N/A
14"W x 13"D x 40"H
HPCS11U1H
47 lbs
16"
15"
45"
N/A
16"W x 15"D x 45"H
Ā
Ā
Ā
CILINDRO-6.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 -294 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: HPC2, HPCU2L, HPC3, HPCU3L
KW: 6.0
WATTS:Ā 6000
VOLTS: 240VAC
AMPS:Ā 25
PHASE: 1PH
COMPATIBLE SAUNA CONTROL: CX30-U1-U3
CILINDRO-8.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 431 CU. FT
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES:Ā HPC2, HPCU2L, HPC3, HPCU3L
KW: 8.0
WATTS:Ā 8000
VOLTS:Ā 240VAC
AMPS:Ā 33.4
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-9.0KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 494 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION:Ā Xenio Control, 200lbs stones
OPTIONAL ACCESSORIES: N/A
KW:Ā 9.0
WATTS:Ā 9000
VOLTS:Ā 240VAC
AMPS:Ā 37.5
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
CILINDRO-10.5KW / 240VAC / 1PH
ROOM SAUNA VOLUME: 141 - 636 CU. FT.
PACKAGE CONTENTS: Sauna heater, Installation and operation manual, Limited warranty
REQUIRED FOR OPERATION: Xenio Control, 265lbs stones
OPTIONAL ACCESSORIES: HPC7, HPCU7L, HPC4, HPCU4L
KW:Ā 10.5
WATTS:Ā 10500
VOLTS:Ā 240VAC
AMPS:Ā 43.75
PHASE: 1PH
COMPATIBLE SAUNA CONTROL:Ā CX30-U1-U3
Ā
Harvia Cilindro Half Maintenance
MAINTENANCE INSTRUCTIONS
Use only clean water on Sauna stones.Ā Do notĀ use spa or pool water as it will destroy your heater.
Clean water should always be used in Sauna buckets and water should be dumped out after every use. Scour buckets and dippers occasionally when film collects from usage. Use a plastic bucket liner in the bucket to prevent water leakage.
Scrub benches with a soft brush, using soap and water or a mild disinfectant when needed ā about once a week in commercial Saunas, or depending upon Sauna usage. For sanitation, each bather should sit or lie on a towel (this will prolong bench life).
Remove possible removable flooring and wash the waterproof floor with disinfectant (e.g. Pine-Sol) about once a week or as often as needed. Hose off removable flooring to clean.
To maintain the beautiful appearance of the Sauna heater, remove water stains by wiping with a damp cloth occasionally.
Sauna Heaters require no special maintenance when properly installed by a qualified electrical contractor. After 5 years of usage, the rocks may need replacing if they have crumbled or powdered.
We strongly recommend a floor that can be easily cleaned (concrete, ceramic tile, or a poured type of flooring). When this is provided, the Sauna can be easily cleaned and kept in a sanitary condition with little effort. A carpet is NOT recommended for aĀ Sauna! A carpet becomes a perfect breeding ground for bacteria in the moist conditions of a Sauna, and a carpet promotes the spreadĀ of foot diseases such as athleteās foot. For the same reasons, wooden duckboard should not be used for flooring.
In new construction, a floor drain should also be provided, especially in commercial Saunas for sanitary cleaning and maintenance.
Seal wood around glass in doorāinside and outsideāwith Thompsonās Water Seal to prevent warpage.
When Sauna wood becomes stained from perspiration, the wood may be lightly sanded with fine sandpaper to restore beautiful appearance. We do not recommend stainsĀ or sealers as toxic vapors may appear when heated. However, 2 coats of Thompsonās Water Seal may be used on the wood benches in a commercial Sauna, so that the wood may be more easily cleaned and kept sanitary ā the wood will not absorb perspiration.
The Sauna room will heat faster if the higher vent is kept in a closed position when heating. The lower vent may always be kept in an open position.
Required warning signs should be posted according to the instructions.
Ā
IMPORTANT!
Owner of the sauna heater must make sure that the sauna heater is turned off correctly every time after bathing.
Owner of the sauna heater must obey these maintenance instructions!
Easy Returns & Refunds Policy
30-Day Hassle-Free Returns
Return any item within 30 days for a full refund*.
Initiate your return by emailing us for simple steps.
Note: Return shipping and restocking fees apply.
Return Conditions
Items must be in original condition, unused, with tags and packaging.
How to Start a Return
Contact us at info@recovathlete.com for a Return Authorization (RA#) and shipping label.
Returns without prior request will not be accepted.
Dealing with Damages & Issues
Inspect your order upon arrival.
Contact us immediately for defective or incorrect items.
We'll replace parts or issue a refund as needed.
Exchanges
Not satisfied? Contact us for an exchange.
Refund Process
Email us with your order number and refund reason.
Include photos of damage if applicable.
We'll guide you through the brand-specific refund process.
Approved refunds processed within 10 business days to the original payment method.
Contact us if refunds take longer than 10 business days.
