Harvia Smoke Pipe: the 115 mm run between the stove and the chimney

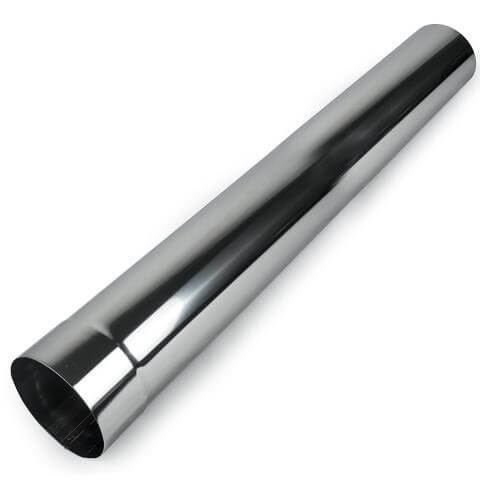

Every Harvia wood stove connects at 115 mm, and the pipe from the stove collar to the chimney is almost never included. These are the four sections that cover most runs: the WZ11520 at 200 mm, the WZ11550 at 500 mm and the WZ115100 at 1000 mm in stainless steel, plus the WZ050M at 500 mm in black.
Work out the run before you order
Measure from the stove collar to where the pipe enters the chimney, then make that up from the available lengths. The 200 mm section is the one people forget: it is what closes a short gap without cutting, and cutting a smoke pipe to length is not something to do on site. Match the finish to the stove and to any visible chimney above it.
BEFORE YOU ORDER: THE PIPE HAS ITS OWN SAFETY DISTANCES
An unshielded 115 mm smoke pipe needs 500 mm to combustible material at the front, behind and each side, 0 mm to non-combustible, and 1000 mm to the ceiling. The WZ020130 radiation shield brings the 500 mm down to 250 mm. These are separate from the stove clearances and both have to be met. Chimney work is a job for a certified installer and is usually subject to local permit. A stove that clears its own safety distances can still fail on the pipe run, so measure both before you buy anything.
Benefits and Features
- 115 mm, the standard across the Harvia wood stove range
- 200 mm, 500 mm and 1000 mm sections
- Stainless steel or black
- Fits all Harvia wood-heated sauna heaters except the Harvia 50
- Made in Finland
BEST FOR
- Completing a wood stove install that arrived without pipe
- Replacing a corroded section
- Closing a short gap with the 200 mm section
NOT IDEAL FOR
- The Harvia 50, which Harvia excludes from this fitment
- Electric heaters
- Runs that cannot give the pipe its own 500 mm clearance
Swipe to see the full table
| Part | Length | Diameter | Finish |
|---|---|---|---|
| WZ11520 | 200 mm | 115 mm | Stainless steel |
| WZ11550 | 500 mm | 115 mm | Stainless steel |

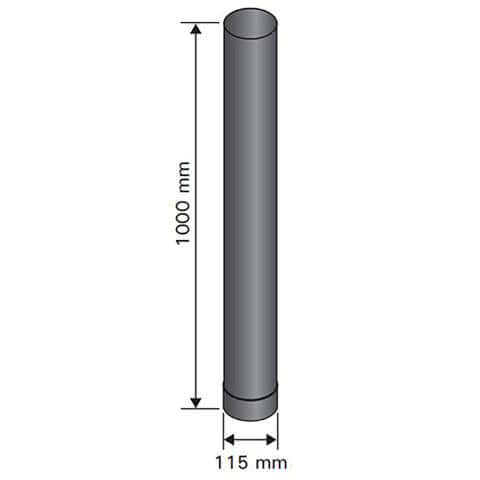

| WZ115100 | 1000 mm | 115 mm | Stainless steel |
| WZ050M | 500 mm | 115 mm | Black |
Also Consider
For dampers, lead-through flanges and reducing pipes, see the Harvia smoke pipe and fittings page. For the chimney above it, see the Harvia chimney extensions.
Why buy this from RecovAthlete
Half the calls we take on wood stoves are someone who has the stove and is one fitting short. Tell us your stove model and how the pipe leaves the room and we will list the exact sections. Call 866-861-6317, 9am to 6pm EST, Monday to Friday, or book a call.
Questions buyers ask
What diameter are these?
115 mm, which is 4.5 inches, and it is the standard collar size across the Harvia wood stove range.
How much clearance does the pipe need?
500 mm to combustible material at the front, behind and each side, 0 mm to non-combustible, and 1000 mm to the ceiling. A radiation shield brings the 500 mm to 250.
Can I cut a section to length?
Do not cut on site. Make the run up from the available lengths, including the 200 mm section for short gaps.
