Align Pilates M8 Pro Maple Reformer with Tower Bundle
Ships within 12.0 business days | $850 Shipping
- Regular price
- $5,500.00
- Regular price
-
$6,588.00 - Sale price
- $5,500.00
- Unit price
- per
Save $1,088.00
Save $1,088.00 USD
Shipping $850
12.0
Description
Affirm FinancingMonthly payments at checkout
Authorized DealerFull manufacturer warranty
ISO Class SFull commercial certification
Complete SystemReformer + Half Cadillac
Quick answer: The Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle is the complete classical Pilates system. It pairs the solid North American maple M8-Pro reformer with a Half Cadillac frame, plus the Pro Sitting Box, 60″ Maple Gondola Pole, mattress converter, platform extender, and 8 springs. Delivers the full reformer, tower, box, mat, and arm spring repertoire from one apparatus. ISO 20957-1 Class S certified for professional studio use.
Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle: solid North American maple reformer paired with a Half Cadillac frame, Pro Sitting Box, and Maple Gondola Pole. The complete classical Pilates system in one order.
RecovAthlete is an authorized dealer of Align Pilates. All products are brand-new, factory-direct, and covered by the full manufacturer warranty.
The M8-Pro is Align-Pilates' premium wood-frame reformer, crafted from extremely durable North American maple and designed to marry classical styling with contemporary functionality. It offers refined performance with extensive adjustability, a luxurious oversized carriage, and 104 cm of smooth silent travel. This bundle adds the Half Cadillac frame with brackets so you get arm spring work, standing Pilates, push-through bar exercises, and full mat conversion, plus the Pro Sitting Box and 60″ Maple Gondola Pole. Nothing else to buy to teach the full method.
IMPORTANT: TOWER TYPE & CONFIGURATION. The tower in this bundle is the Align-Pilates Half Cadillac frame, which attaches to the M8-Pro via M-Series brackets. It gives you most of the full Cadillac repertoire without the full trapeze table footprint. For hanging or full trapeze work, see the M8-Pro Maple Reformer with Full Cadillac Frame. Call 866-861-6317 to configure your system.
BEST FOR
Studios teaching the complete Pilates method from a single apparatus. Home practitioners who want reformer, tower, box, and mat work without buying separate equipment. Physical therapists and rehab clinics using push-through bar and arm spring protocols.
NOT IDEAL FOR
Buyers who need dedicated full Cadillac exercises like hanging or trapeze work. The Half Cadillac frame delivers most of the Cadillac repertoire, but not all. For those, see the M8-Pro Maple Reformer with Full Cadillac Frame.
WHY RECOVATHLETE CARRIES THIS
We carry this bundle because it solves the space-plus-repertoire problem in one purchase. Studios that would otherwise buy a reformer plus a separate Cadillac plus box save floor space and roughly $2,000 to $3,000 versus buying the apparatus individually. The maple reformer keeps the classical aesthetic. The Half Cadillac frame adds the functional range. The Sitting Box and Gondola Pole round out the system. Bracket attachment means the tower can be removed if you later add a full Cadillac.

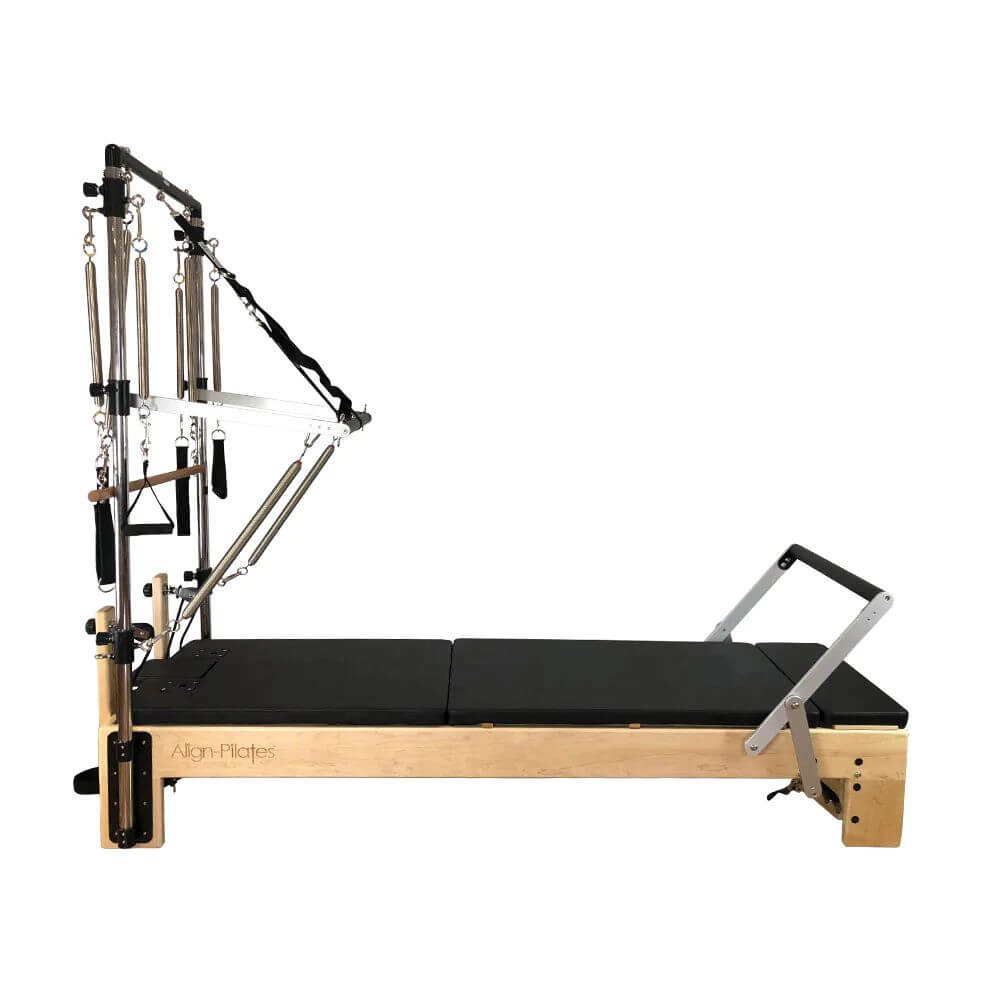

What the Half Cadillac Adds
- Push-through bar work. Included with the Half Cadillac. Supine arm work, spinal articulation, and progressive resistance patterns from the tower.
- Arm spring exercises. Standard equipment in classical and contemporary repertoire. Uses the Long springs supplied with this bundle.
- Standing Pilates. Pull-down bar and hand handles let you work in a fully upright position from the standing platform.
- Mat conversion. The included mattress converter and platform extender turn the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises.
- Safety strap. Included. Standard requirement for many push-through bar exercises and rehab protocols.
Is This the Right Setup for Home Use?
Yes, for serious home practitioners who want the complete classical Pilates method rather than reformer-only repertoire. The bundle fits homes because:
- One machine, full method. Reformer, tower, sitting box, and gondola pole all included. No separate purchases.
- Silent operation. Align-Pilates Silent System with metal-free handles, silent ropes, and patented silent pulleys. No metal-on-metal clank.
- Reads as furniture, not gym gear. The maple reformer keeps the classical aesthetic even with the tower attached.
- Financing available. Affirm at checkout spreads the cost across monthly payments.
Trade-off to know: with the Half Cadillac attached, the total height reaches 213 cm. Confirm ceiling clearance before ordering. The unit is not stackable or foldable and needs a permanent footprint of 254 × 76 cm.
Why This Over the Reformer-Only Bundle
- Same solid North American maple reformer with satin lacquer finish, same 104 cm carriage travel, same 8-wheel PU carriage system.
- Adds the Half Cadillac frame, push-through bar, pull-down bar, safety strap, and additional long springs for tower work.
- Includes the mattress converter and platform extender needed to convert the carriage into a flat mat surface.
- Includes the Pro Sitting Box for box work from day one.
- Includes the 60″ Maple Gondola Pole for standing balance and stretch exercises. Stores on the under-runner hooks.
- Bracket-based tower attachment means the Half Cadillac can be removed if you upgrade to a full Cadillac later.
Included Springs
Eight nickel-plated music wire springs, sized for reformer and tower use:
2× YellowStandard 47 cmVery Light
2× RedStandard 47 cmMedium
2× PurpleLong 64 cmLight
2× RedLong 64 cmStrong
The patent-pending Rapid Change (RC) spring bar on the reformer allows one-hand spring changes with springs attached. This is particularly beneficial in group class environments where fast transitions matter.
Setup and Assembly
The bundle ships on a pallet to your driveway or building entrance. Assembly is more involved than the reformer alone because the Half Cadillac brackets and frame need to be attached in the correct order. Most buyers complete the full setup in one afternoon with two people. Below is the official Align-Pilates video showing Half Cadillac bracket attachment, plus PDF manuals for both components.

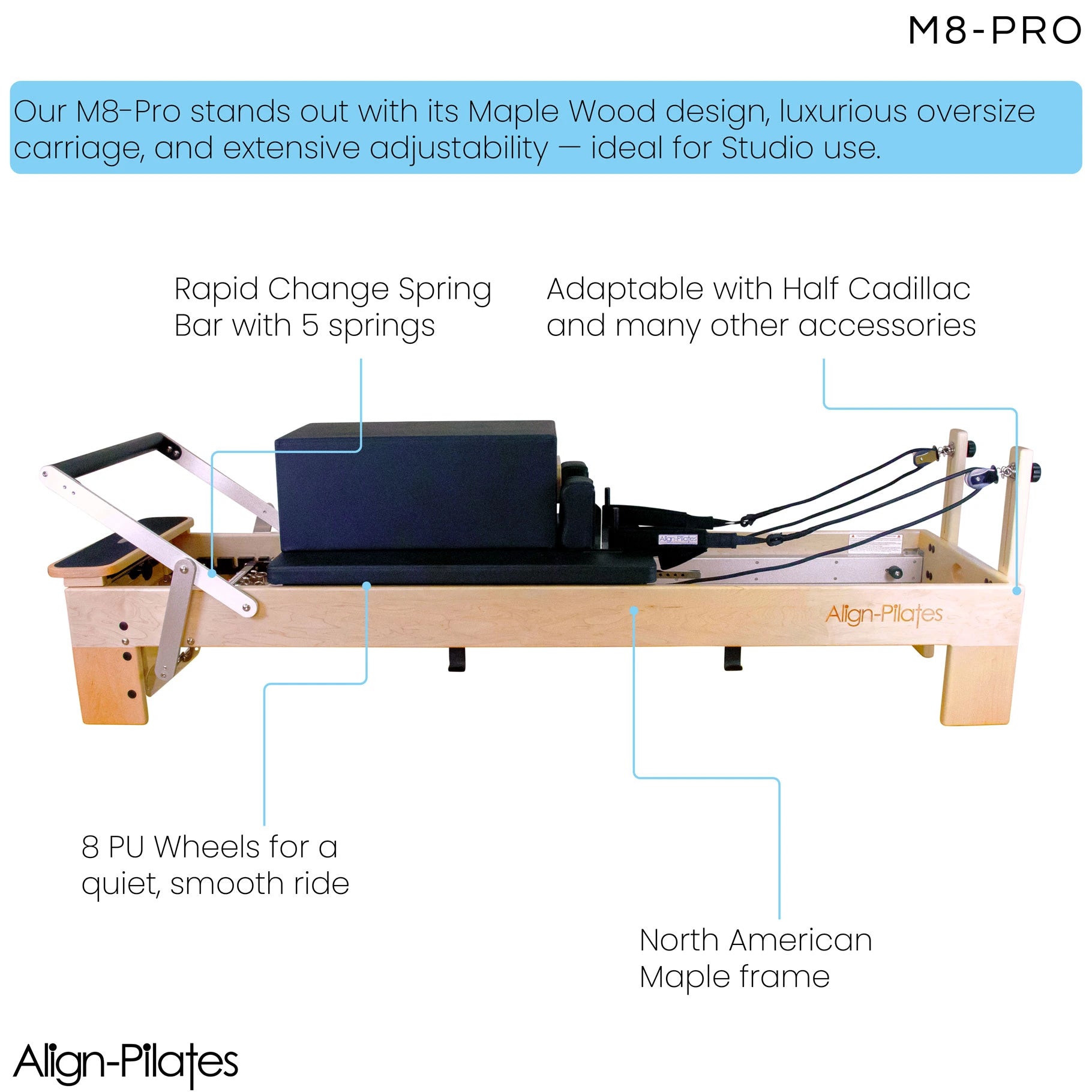

Features
Rapid Change (RC) Spring Bar
Patent-pending RC Spring Bar moves with one hand in a single action, springs attached. The fastest spring bar change available. Integral carriage stoppers prevent stressed springs and protect spring life through busy teaching schedules.

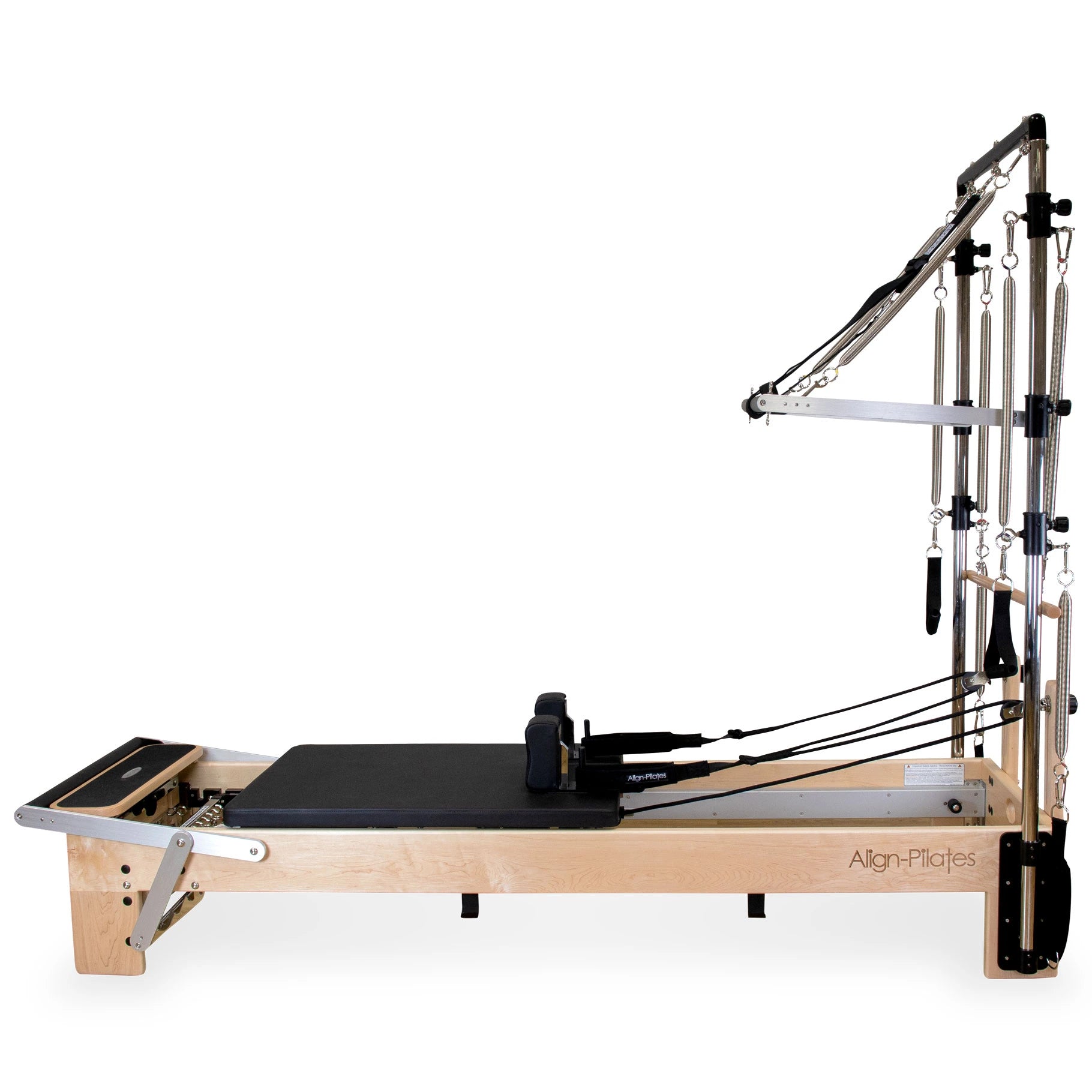

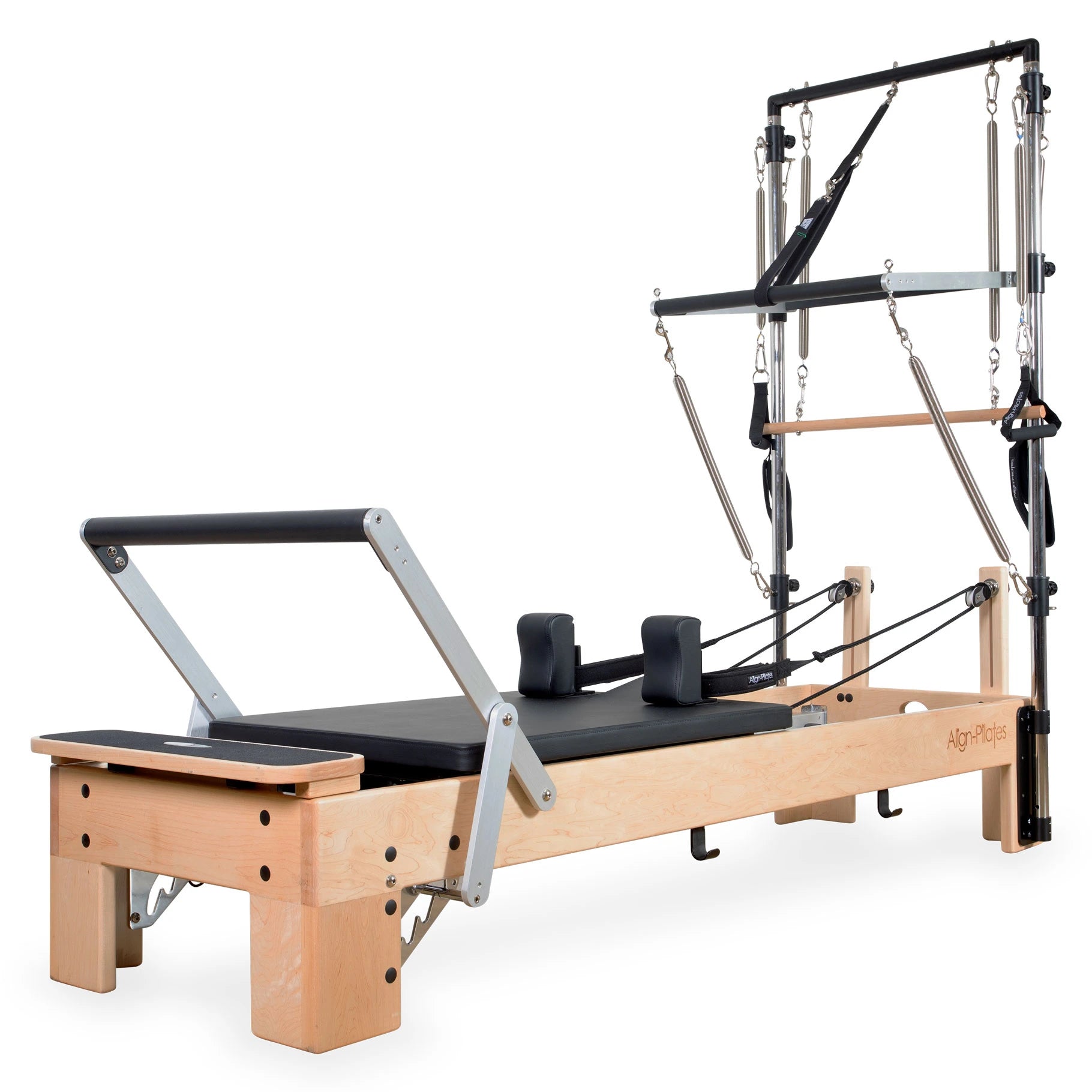

Half Cadillac Frame + Brackets
Align-Pilates Half Cadillac frame attaches to the M8-Pro via M-Series brackets. Adds push-through bar, pull-down bar, safety strap, and hand handle attachment points for the arm spring repertoire, standing Pilates, and rehab protocols. Removable if you later upgrade to a full Cadillac.
Solid North American Maple Frame
FSC-certified solid maple with a satin lacquer finish. Not veneer, not composite. The warmth, grain, and weight of real wood, with heavy-duty construction rated to a 150 kg user weight.
Mattress Converter + Platform Extender
Included with this bundle. The mattress converter turns the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises. The platform extender adds usable surface length for taller practitioners.
Variable-Width Shoulder Rests
Removable, lockable shoulder rests with off-centered pads give a choice of two widths. Narrow for smaller frames, wide for broader shoulders, and fully removable for exercises that need a clear carriage.
8 Nickel-Plated Springs
Eight springs in mixed lengths and strengths for both reformer and tower work. Two Standard Yellow (Very Light), two Standard Red (Medium), two Long Purple (Light), and two Long Red (Strong). Rapid Change spring bar allows one-handed swaps.
Align-Pilates Silent System
Metal-free double loop handles, silent ropes, adjustable foot straps with fluffy covers, and patented silent pulleys. Combined T-Bar and Pro-Rope adjuster keeps both ropes at matching length. Exceptionally quiet for treatment rooms, home studios, and back-to-back classes.
8-Wheel Carriage System
Eight polyurethane wheels on precision aluminum rails instead of the usual four. Smoother travel across the full 104 cm carriage run, better load distribution, and reduced maintenance.
60″ Maple Gondola Pole + Storage Hooks
Included with this bundle. The 60″ maple gondola pole is used for standing balance work, stretch exercises, and mat repertoire. Storage hooks beneath the runner keep it within reach and off the studio floor.
Specs Translated Into What They Mean
| Spec | What it means for you |
|---|---|
| Solid North American maple reformer | Real wood, satin lacquer finish. Not veneer or composite. |
| Half Cadillac frame + brackets | Adds arm spring, push-through bar, standing, and mat repertoire. |
| 93 × 66 cm carriage | Widest carriage in the Align-Pilates lineup. Comfort for all body sizes. |
| 104 cm carriage travel | Full commercial repertoire range. |
| Rapid Change spring bar | Single-hand spring adjustment with springs attached. |
| 8 springs, 4 strengths, 2 lengths | Full resistance range for both reformer and tower work. |
| Mattress converter + platform extender | Convert the carriage to a flat mat surface for Cadillac-style work. |
| Pro Sitting Box + Gondola Pole included | Box, standing balance, and stretch work from day one. |
| ISO 20957-1 Class S | Highest studio certification. Built for professional studio use. |
| Total height 213 cm | Check ceiling clearance before ordering. |
| 130 kg unit weight | Permanent fixture. Not stackable or foldable. |
What Ships With It
Main components:
- M8-Pro Maple Reformer
- Half Cadillac Frame
- Half Cadillac Brackets (M-Series)
- Mattress Converter
- Platform Extender
- Pro Sitting Box
- 60″ Maple Gondola Pole
- Removable maple standing platform
Tower attachments:
- 1 Push-Through Bar
- 1 Pull-Down Bar
- 1 Safety Strap
- 1 pair Foot Straps
- 1 pair Hand Handles
- 2 pairs Rapid-Adjust Double Eyelet Spring Holders
- 8 Aluminium Carabiners
- 8 Double-Ended Dog Clips
Reformer components:
- 8 nickel-plated springs (see spring chart above)
- Silent ropes + patented silent pulleys
- Metal-free double loop handles
- Adjustable padded silent foot strap
- 3-position adjustable headrest
- Removable variable-width shoulder rests
ALSO AVAILABLE SEPARATELY
- Upholstered Jump Board. Interchangeable with the standing platform.
- Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire.
Full Specifications
| Model | Align Pilates M8-Pro Maple Reformer with Half Cadillac Bundle |
| Supplier code | PAPM8HALFCAD |
| Brand | Align-Pilates |
| Reformer frame | Solid North American maple, FSC-certified, satin lacquer finish |
| Tower frame | Align-Pilates Half Cadillac, M-Series bracket attachment |
| Total dimensions (with Half Cadillac) | 254 cm (L) × 76 cm (W) × 213 cm (H) |
| Carriage size | 93 × 66 cm (widest in Align-Pilates range) |
| Carriage travel | 104 cm | 41″ |
| Reformer weight | 80 kg | 177 lbs |
| Total unit weight (with Half Cadillac) | 130 kg | 287 lbs |
| Max user weight | 150 kg | 330 lbs |
| Suitable users | 4 ft 10 in to 6 ft 4 in (145 to 193 cm) |
| Wheels | 8 PU wheels, precision aluminum rails |
| Springs | 8 nickel-plated music wire (2 Yellow Very Light, 2 Red Medium, 2 Purple Light, 2 Red Strong) |
| Spring bar | Patent-pending Rapid Change (RC) |
| Foot bar | 4 lockable positions including flat |
| Rope adjuster | Combined T-Bar and Pro-Rope adjustment system |
| Rope risers | Maple, fully adjustable, 5 height positions |
| Head rest | 3-position adjustable |
| Shoulder rests | Removable, variable width, off-centered pads |
| Upholstery | PU leather with EVA foam padding |
| Ropes | Multi-woven nylon, Silent System |
| Storage | Not stackable. Permanent fixture |
| Certification | EN ISO 20957-1:2013 Class S, Attestation of Conformity |
| Warranty | 5-year wooden frame and foot bar mechanism, 2-year components, 2-year / 3,000-hour springs |
Shipping and Financing
Shipping and delivery: All Align-Pilates equipment ships via freight carrier. Delivery timelines and options (curbside, threshold, or room-of-choice) vary by location. Contact us at 866-861-6317 or info@recovathlete.com before ordering and we'll confirm exactly what's available for your zip code, including any current lead times.
Financing: Affirm financing is available at checkout. Monthly payment options shown at checkout based on cart total and approved credit.
Frequently Asked Questions
Is the Half Cadillac frame made of maple like the reformer?
No. Only the reformer is solid North American maple. The Half Cadillac is the standard Align-Pilates tower frame and attaches to the reformer via M-Series brackets. It complements the maple reformer visually and is engineered to match its performance standards.
What is a Half Cadillac and what can I do with it?
A Half Cadillac is a partial trapeze table structure that mounts to a reformer. It gives you access to most of the full Cadillac repertoire including arm springs, push-through bar work, pull-down bar exercises, standing Pilates, and mat conversion work. It does not include hanging or full trapeze exercises, which require a Full Cadillac.
Can the Half Cadillac be removed if I upgrade to a full Cadillac later?
Yes. The Half Cadillac attaches via M-Series brackets and can be removed. If you later add a full Cadillac frame to the M8-Pro, the same reformer supports it.
Does this bundle include everything I need to teach the full method?
Yes. Reformer, tower with push-through bar, pull-down bar, safety strap, Pro Sitting Box, and 60″ Maple Gondola Pole are all included. Mattress converter and platform extender are included so you can also do mat and Cadillac-style flat-bed exercises. The only optional add-on is the upholstered Jump Board for plyometric cardio work.
What are the 8 springs used for?
The 8 springs cover both reformer and tower work. Standard 47 cm springs (yellow and red) are for the reformer. Long 64 cm springs (purple and red) are for the Half Cadillac push-through bar and arm spring work. The Rapid Change spring bar lets you swap reformer springs one-handed with them still attached.
How does the M8-Pro carriage compare to other reformers?
At 93 × 66 cm it's the widest carriage in the Align-Pilates lineup, with 104 cm of travel on an 8-wheel PU system running on precision aluminum rails. It fits users from 4 ft 10 in to 6 ft 4 in and carries the same ISO Class S certification as the steel-framed C8-Pro.
How is the Rapid Change (RC) Spring Bar different from a normal spring bar?
A traditional spring bar uses a separate carriage stopper and can take up to 12 actions to change on a 5-spring reformer. The RC Spring Bar has integral carriage stoppers and adjusts with the springs attached. One hand, one action. This is particularly beneficial in group class environments.
What ceiling height do I need?
Total unit height is 213 cm (roughly 7 feet). Add clearance for the push-through bar in use and allow a comfortable working height above that. A minimum ceiling height of 235 cm (roughly 7 ft 8 in) is recommended, with more space if the primary user is over 6 ft.
How long does assembly take?
Most buyers complete the reformer, Half Cadillac, and accessory setup in a single afternoon with two people. The reformer arrives largely pre-built. The Half Cadillac brackets and frame attach in a specific order. See the Align-Pilates assembly video and the two PDF manuals linked in the Setup section above.
How will my bundle be delivered?
Ships on pallets to your driveway or the front of the building via freight carrier. The driver unloads; you take components inside from there. Suitable access for van or truck deliveries is required. Call 866-861-6317 before ordering to confirm delivery options for your zip code.
What financing options are available?
Affirm financing is available at checkout. Monthly payment options are shown at checkout based on cart total and approved credit. For questions on financing or upgrading to a full Cadillac, call 866-861-6317.
Also Consider
- M8-Pro Maple Wood Reformer + Sitting Box Bundle. Reformer only, without the Half Cadillac. Entry point for classical reformer work.
- M8-Pro with Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire including hanging and trapeze work.
- A8-Pro Reformer with Tower. Aluminium commercial alternative with a similar tower system.
120% Price Match
Financing
Shipping
Warranty
Affirm FinancingMonthly payments at checkout
Authorized DealerFull manufacturer warranty
ISO Class SFull commercial certification
Complete SystemReformer + Half Cadillac
Quick answer: The Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle is the complete classical Pilates system. It pairs the solid North American maple M8-Pro reformer with a Half Cadillac frame, plus the Pro Sitting Box, 60″ Maple Gondola Pole, mattress converter, platform extender, and 8 springs. Delivers the full reformer, tower, box, mat, and arm spring repertoire from one apparatus. ISO 20957-1 Class S certified for professional studio use.
Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle: solid North American maple reformer paired with a Half Cadillac frame, Pro Sitting Box, and Maple Gondola Pole. The complete classical Pilates system in one order.
RecovAthlete is an authorized dealer of Align Pilates. All products are brand-new, factory-direct, and covered by the full manufacturer warranty.
The M8-Pro is Align-Pilates' premium wood-frame reformer, crafted from extremely durable North American maple and designed to marry classical styling with contemporary functionality. It offers refined performance with extensive adjustability, a luxurious oversized carriage, and 104 cm of smooth silent travel. This bundle adds the Half Cadillac frame with brackets so you get arm spring work, standing Pilates, push-through bar exercises, and full mat conversion, plus the Pro Sitting Box and 60″ Maple Gondola Pole. Nothing else to buy to teach the full method.
IMPORTANT: TOWER TYPE & CONFIGURATION. The tower in this bundle is the Align-Pilates Half Cadillac frame, which attaches to the M8-Pro via M-Series brackets. It gives you most of the full Cadillac repertoire without the full trapeze table footprint. For hanging or full trapeze work, see the M8-Pro Maple Reformer with Full Cadillac Frame. Call 866-861-6317 to configure your system.
BEST FOR
Studios teaching the complete Pilates method from a single apparatus. Home practitioners who want reformer, tower, box, and mat work without buying separate equipment. Physical therapists and rehab clinics using push-through bar and arm spring protocols.
NOT IDEAL FOR
Buyers who need dedicated full Cadillac exercises like hanging or trapeze work. The Half Cadillac frame delivers most of the Cadillac repertoire, but not all. For those, see the M8-Pro Maple Reformer with Full Cadillac Frame.
WHY RECOVATHLETE CARRIES THIS
We carry this bundle because it solves the space-plus-repertoire problem in one purchase. Studios that would otherwise buy a reformer plus a separate Cadillac plus box save floor space and roughly $2,000 to $3,000 versus buying the apparatus individually. The maple reformer keeps the classical aesthetic. The Half Cadillac frame adds the functional range. The Sitting Box and Gondola Pole round out the system. Bracket attachment means the tower can be removed if you later add a full Cadillac.
What the Half Cadillac Adds
- Push-through bar work. Included with the Half Cadillac. Supine arm work, spinal articulation, and progressive resistance patterns from the tower.
- Arm spring exercises. Standard equipment in classical and contemporary repertoire. Uses the Long springs supplied with this bundle.
- Standing Pilates. Pull-down bar and hand handles let you work in a fully upright position from the standing platform.
- Mat conversion. The included mattress converter and platform extender turn the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises.
- Safety strap. Included. Standard requirement for many push-through bar exercises and rehab protocols.
Is This the Right Setup for Home Use?
Yes, for serious home practitioners who want the complete classical Pilates method rather than reformer-only repertoire. The bundle fits homes because:
- One machine, full method. Reformer, tower, sitting box, and gondola pole all included. No separate purchases.
- Silent operation. Align-Pilates Silent System with metal-free handles, silent ropes, and patented silent pulleys. No metal-on-metal clank.
- Reads as furniture, not gym gear. The maple reformer keeps the classical aesthetic even with the tower attached.
- Financing available. Affirm at checkout spreads the cost across monthly payments.
Trade-off to know: with the Half Cadillac attached, the total height reaches 213 cm. Confirm ceiling clearance before ordering. The unit is not stackable or foldable and needs a permanent footprint of 254 × 76 cm.
Why This Over the Reformer-Only Bundle
- Same solid North American maple reformer with satin lacquer finish, same 104 cm carriage travel, same 8-wheel PU carriage system.
- Adds the Half Cadillac frame, push-through bar, pull-down bar, safety strap, and additional long springs for tower work.
- Includes the mattress converter and platform extender needed to convert the carriage into a flat mat surface.
- Includes the Pro Sitting Box for box work from day one.
- Includes the 60″ Maple Gondola Pole for standing balance and stretch exercises. Stores on the under-runner hooks.
- Bracket-based tower attachment means the Half Cadillac can be removed if you upgrade to a full Cadillac later.
Included Springs
Eight nickel-plated music wire springs, sized for reformer and tower use:
2× YellowStandard 47 cmVery Light
2× RedStandard 47 cmMedium
2× PurpleLong 64 cmLight
2× RedLong 64 cmStrong
The patent-pending Rapid Change (RC) spring bar on the reformer allows one-hand spring changes with springs attached. This is particularly beneficial in group class environments where fast transitions matter.
Setup and Assembly
The bundle ships on a pallet to your driveway or building entrance. Assembly is more involved than the reformer alone because the Half Cadillac brackets and frame need to be attached in the correct order. Most buyers complete the full setup in one afternoon with two people. Below is the official Align-Pilates video showing Half Cadillac bracket attachment, plus PDF manuals for both components.
Features
Rapid Change (RC) Spring Bar
Patent-pending RC Spring Bar moves with one hand in a single action, springs attached. The fastest spring bar change available. Integral carriage stoppers prevent stressed springs and protect spring life through busy teaching schedules.
Half Cadillac Frame + Brackets
Align-Pilates Half Cadillac frame attaches to the M8-Pro via M-Series brackets. Adds push-through bar, pull-down bar, safety strap, and hand handle attachment points for the arm spring repertoire, standing Pilates, and rehab protocols. Removable if you later upgrade to a full Cadillac.
Solid North American Maple Frame
FSC-certified solid maple with a satin lacquer finish. Not veneer, not composite. The warmth, grain, and weight of real wood, with heavy-duty construction rated to a 150 kg user weight.
Mattress Converter + Platform Extender
Included with this bundle. The mattress converter turns the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises. The platform extender adds usable surface length for taller practitioners.
Variable-Width Shoulder Rests
Removable, lockable shoulder rests with off-centered pads give a choice of two widths. Narrow for smaller frames, wide for broader shoulders, and fully removable for exercises that need a clear carriage.
8 Nickel-Plated Springs
Eight springs in mixed lengths and strengths for both reformer and tower work. Two Standard Yellow (Very Light), two Standard Red (Medium), two Long Purple (Light), and two Long Red (Strong). Rapid Change spring bar allows one-handed swaps.
Align-Pilates Silent System
Metal-free double loop handles, silent ropes, adjustable foot straps with fluffy covers, and patented silent pulleys. Combined T-Bar and Pro-Rope adjuster keeps both ropes at matching length. Exceptionally quiet for treatment rooms, home studios, and back-to-back classes.
8-Wheel Carriage System
Eight polyurethane wheels on precision aluminum rails instead of the usual four. Smoother travel across the full 104 cm carriage run, better load distribution, and reduced maintenance.
60″ Maple Gondola Pole + Storage Hooks
Included with this bundle. The 60″ maple gondola pole is used for standing balance work, stretch exercises, and mat repertoire. Storage hooks beneath the runner keep it within reach and off the studio floor.
Specs Translated Into What They Mean
| Spec | What it means for you |
|---|---|
| Solid North American maple reformer | Real wood, satin lacquer finish. Not veneer or composite. |
| Half Cadillac frame + brackets | Adds arm spring, push-through bar, standing, and mat repertoire. |
| 93 × 66 cm carriage | Widest carriage in the Align-Pilates lineup. Comfort for all body sizes. |
| 104 cm carriage travel | Full commercial repertoire range. |
| Rapid Change spring bar | Single-hand spring adjustment with springs attached. |
| 8 springs, 4 strengths, 2 lengths | Full resistance range for both reformer and tower work. |
| Mattress converter + platform extender | Convert the carriage to a flat mat surface for Cadillac-style work. |
| Pro Sitting Box + Gondola Pole included | Box, standing balance, and stretch work from day one. |
| ISO 20957-1 Class S | Highest studio certification. Built for professional studio use. |
| Total height 213 cm | Check ceiling clearance before ordering. |
| 130 kg unit weight | Permanent fixture. Not stackable or foldable. |
What Ships With It
Main components:
- M8-Pro Maple Reformer
- Half Cadillac Frame
- Half Cadillac Brackets (M-Series)
- Mattress Converter
- Platform Extender
- Pro Sitting Box
- 60″ Maple Gondola Pole
- Removable maple standing platform
Tower attachments:
- 1 Push-Through Bar
- 1 Pull-Down Bar
- 1 Safety Strap
- 1 pair Foot Straps
- 1 pair Hand Handles
- 2 pairs Rapid-Adjust Double Eyelet Spring Holders
- 8 Aluminium Carabiners
- 8 Double-Ended Dog Clips
Reformer components:
- 8 nickel-plated springs (see spring chart above)
- Silent ropes + patented silent pulleys
- Metal-free double loop handles
- Adjustable padded silent foot strap
- 3-position adjustable headrest
- Removable variable-width shoulder rests
ALSO AVAILABLE SEPARATELY
- Upholstered Jump Board. Interchangeable with the standing platform.
- Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire.
Full Specifications
| Model | Align Pilates M8-Pro Maple Reformer with Half Cadillac Bundle |
| Supplier code | PAPM8HALFCAD |
| Brand | Align-Pilates |
| Reformer frame | Solid North American maple, FSC-certified, satin lacquer finish |
| Tower frame | Align-Pilates Half Cadillac, M-Series bracket attachment |
| Total dimensions (with Half Cadillac) | 254 cm (L) × 76 cm (W) × 213 cm (H) |
| Carriage size | 93 × 66 cm (widest in Align-Pilates range) |
| Carriage travel | 104 cm | 41″ |
| Reformer weight | 80 kg | 177 lbs |
| Total unit weight (with Half Cadillac) | 130 kg | 287 lbs |
| Max user weight | 150 kg | 330 lbs |
| Suitable users | 4 ft 10 in to 6 ft 4 in (145 to 193 cm) |
| Wheels | 8 PU wheels, precision aluminum rails |
| Springs | 8 nickel-plated music wire (2 Yellow Very Light, 2 Red Medium, 2 Purple Light, 2 Red Strong) |
| Spring bar | Patent-pending Rapid Change (RC) |
| Foot bar | 4 lockable positions including flat |
| Rope adjuster | Combined T-Bar and Pro-Rope adjustment system |
| Rope risers | Maple, fully adjustable, 5 height positions |
| Head rest | 3-position adjustable |
| Shoulder rests | Removable, variable width, off-centered pads |
| Upholstery | PU leather with EVA foam padding |
| Ropes | Multi-woven nylon, Silent System |
| Storage | Not stackable. Permanent fixture |
| Certification | EN ISO 20957-1:2013 Class S, Attestation of Conformity |
| Warranty | 5-year wooden frame and foot bar mechanism, 2-year components, 2-year / 3,000-hour springs |
Shipping and Financing
Shipping and delivery: All Align-Pilates equipment ships via freight carrier. Delivery timelines and options (curbside, threshold, or room-of-choice) vary by location. Contact us at 866-861-6317 or info@recovathlete.com before ordering and we'll confirm exactly what's available for your zip code, including any current lead times.
Financing: Affirm financing is available at checkout. Monthly payment options shown at checkout based on cart total and approved credit.
Frequently Asked Questions
Is the Half Cadillac frame made of maple like the reformer?
No. Only the reformer is solid North American maple. The Half Cadillac is the standard Align-Pilates tower frame and attaches to the reformer via M-Series brackets. It complements the maple reformer visually and is engineered to match its performance standards.
What is a Half Cadillac and what can I do with it?
A Half Cadillac is a partial trapeze table structure that mounts to a reformer. It gives you access to most of the full Cadillac repertoire including arm springs, push-through bar work, pull-down bar exercises, standing Pilates, and mat conversion work. It does not include hanging or full trapeze exercises, which require a Full Cadillac.
Can the Half Cadillac be removed if I upgrade to a full Cadillac later?
Yes. The Half Cadillac attaches via M-Series brackets and can be removed. If you later add a full Cadillac frame to the M8-Pro, the same reformer supports it.
Does this bundle include everything I need to teach the full method?
Yes. Reformer, tower with push-through bar, pull-down bar, safety strap, Pro Sitting Box, and 60″ Maple Gondola Pole are all included. Mattress converter and platform extender are included so you can also do mat and Cadillac-style flat-bed exercises. The only optional add-on is the upholstered Jump Board for plyometric cardio work.
What are the 8 springs used for?
The 8 springs cover both reformer and tower work. Standard 47 cm springs (yellow and red) are for the reformer. Long 64 cm springs (purple and red) are for the Half Cadillac push-through bar and arm spring work. The Rapid Change spring bar lets you swap reformer springs one-handed with them still attached.
How does the M8-Pro carriage compare to other reformers?
At 93 × 66 cm it's the widest carriage in the Align-Pilates lineup, with 104 cm of travel on an 8-wheel PU system running on precision aluminum rails. It fits users from 4 ft 10 in to 6 ft 4 in and carries the same ISO Class S certification as the steel-framed C8-Pro.
How is the Rapid Change (RC) Spring Bar different from a normal spring bar?
A traditional spring bar uses a separate carriage stopper and can take up to 12 actions to change on a 5-spring reformer. The RC Spring Bar has integral carriage stoppers and adjusts with the springs attached. One hand, one action. This is particularly beneficial in group class environments.
What ceiling height do I need?
Total unit height is 213 cm (roughly 7 feet). Add clearance for the push-through bar in use and allow a comfortable working height above that. A minimum ceiling height of 235 cm (roughly 7 ft 8 in) is recommended, with more space if the primary user is over 6 ft.
How long does assembly take?
Most buyers complete the reformer, Half Cadillac, and accessory setup in a single afternoon with two people. The reformer arrives largely pre-built. The Half Cadillac brackets and frame attach in a specific order. See the Align-Pilates assembly video and the two PDF manuals linked in the Setup section above.
How will my bundle be delivered?
Ships on pallets to your driveway or the front of the building via freight carrier. The driver unloads; you take components inside from there. Suitable access for van or truck deliveries is required. Call 866-861-6317 before ordering to confirm delivery options for your zip code.
What financing options are available?
Affirm financing is available at checkout. Monthly payment options are shown at checkout based on cart total and approved credit. For questions on financing or upgrading to a full Cadillac, call 866-861-6317.
Also Consider
- M8-Pro Maple Wood Reformer + Sitting Box Bundle. Reformer only, without the Half Cadillac. Entry point for classical reformer work.
- M8-Pro with Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire including hanging and trapeze work.
- A8-Pro Reformer with Tower. Aluminium commercial alternative with a similar tower system.
RecovAthlete's 120% Price Match Guarantee: Shop With Unmatched Confidence
At RecovAthlete, we're here to support your recovery and performance goals, without overpaying. Our 120% Price Match Guarantee makes sure you always get the best deal. If you find a lower price, not only will we match it, we'll beat it by adding 20% of the price difference back to your refund.
How It Works
- 60-Day Window: If you find the same item at a lower price from an authorized competitor within 60 days of your purchase, we'll match it.
- We Add 20%: Besides matching the price, we give you 20% of the difference back.
- Same Currency: Price comparisons must be in the same currency as your original purchase.
- MAP Policy Required: The competitor must be an authorized dealer of the product and follow a Minimum Advertised Price (MAP) policy set by the manufacturer.
Terms and Conditions
- Eligible Products: Must be the same model, SKU, and from an authorized seller.
- Verifiable Prices: We compare total verifiable selling prices (excluding taxes), including shipping.
- Manual Review: Our team reviews all claims for validity and eligibility.
Exclusions
- Used, refurbished, or secondary-market products
- Wholesale, contract, or below-cost pricing
- Marketplace sellers (Amazon, Walmart, Costco, etc.)
- Flash sales, closeouts, clearance, or limited-time promos
- Price matches can't be combined with other RecovAthlete discounts or offers
Our Ethical Pricing Pledge
We don't undercut manufacturers or sell below cost. We follow ethical pricing standards prioritizing fairness, brand integrity, and long-term trust.
How to Submit a Claim
- Get Proof: A screenshot, ad, or live link showing the competitor's lower price.
- Send Details: Include your order number, the product name, and the competitor info.
- Submit via Contact Page: contact the RecovAthlete team.
- Processing: Allow up to 6 weeks for verification and refund processing.
With our 120% Price Match Guarantee, you can shop knowing you'll never miss out on a better deal, because we'll beat it.
Affirm FinancingMonthly payments at checkout
Authorized DealerFull manufacturer warranty
ISO Class SFull commercial certification
Complete SystemReformer + Half Cadillac
Quick answer: The Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle is the complete classical Pilates system. It pairs the solid North American maple M8-Pro reformer with a Half Cadillac frame, plus the Pro Sitting Box, 60″ Maple Gondola Pole, mattress converter, platform extender, and 8 springs. Delivers the full reformer, tower, box, mat, and arm spring repertoire from one apparatus. ISO 20957-1 Class S certified for professional studio use.
Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle: solid North American maple reformer paired with a Half Cadillac frame, Pro Sitting Box, and Maple Gondola Pole. The complete classical Pilates system in one order.
RecovAthlete is an authorized dealer of Align Pilates. All products are brand-new, factory-direct, and covered by the full manufacturer warranty.
The M8-Pro is Align-Pilates' premium wood-frame reformer, crafted from extremely durable North American maple and designed to marry classical styling with contemporary functionality. It offers refined performance with extensive adjustability, a luxurious oversized carriage, and 104 cm of smooth silent travel. This bundle adds the Half Cadillac frame with brackets so you get arm spring work, standing Pilates, push-through bar exercises, and full mat conversion, plus the Pro Sitting Box and 60″ Maple Gondola Pole. Nothing else to buy to teach the full method.
IMPORTANT: TOWER TYPE & CONFIGURATION. The tower in this bundle is the Align-Pilates Half Cadillac frame, which attaches to the M8-Pro via M-Series brackets. It gives you most of the full Cadillac repertoire without the full trapeze table footprint. For hanging or full trapeze work, see the M8-Pro Maple Reformer with Full Cadillac Frame. Call 866-861-6317 to configure your system.
BEST FOR
Studios teaching the complete Pilates method from a single apparatus. Home practitioners who want reformer, tower, box, and mat work without buying separate equipment. Physical therapists and rehab clinics using push-through bar and arm spring protocols.
NOT IDEAL FOR
Buyers who need dedicated full Cadillac exercises like hanging or trapeze work. The Half Cadillac frame delivers most of the Cadillac repertoire, but not all. For those, see the M8-Pro Maple Reformer with Full Cadillac Frame.
WHY RECOVATHLETE CARRIES THIS
We carry this bundle because it solves the space-plus-repertoire problem in one purchase. Studios that would otherwise buy a reformer plus a separate Cadillac plus box save floor space and roughly $2,000 to $3,000 versus buying the apparatus individually. The maple reformer keeps the classical aesthetic. The Half Cadillac frame adds the functional range. The Sitting Box and Gondola Pole round out the system. Bracket attachment means the tower can be removed if you later add a full Cadillac.
What the Half Cadillac Adds
- Push-through bar work. Included with the Half Cadillac. Supine arm work, spinal articulation, and progressive resistance patterns from the tower.
- Arm spring exercises. Standard equipment in classical and contemporary repertoire. Uses the Long springs supplied with this bundle.
- Standing Pilates. Pull-down bar and hand handles let you work in a fully upright position from the standing platform.
- Mat conversion. The included mattress converter and platform extender turn the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises.
- Safety strap. Included. Standard requirement for many push-through bar exercises and rehab protocols.
Is This the Right Setup for Home Use?
Yes, for serious home practitioners who want the complete classical Pilates method rather than reformer-only repertoire. The bundle fits homes because:
- One machine, full method. Reformer, tower, sitting box, and gondola pole all included. No separate purchases.
- Silent operation. Align-Pilates Silent System with metal-free handles, silent ropes, and patented silent pulleys. No metal-on-metal clank.
- Reads as furniture, not gym gear. The maple reformer keeps the classical aesthetic even with the tower attached.
- Financing available. Affirm at checkout spreads the cost across monthly payments.
Trade-off to know: with the Half Cadillac attached, the total height reaches 213 cm. Confirm ceiling clearance before ordering. The unit is not stackable or foldable and needs a permanent footprint of 254 × 76 cm.
Why This Over the Reformer-Only Bundle
- Same solid North American maple reformer with satin lacquer finish, same 104 cm carriage travel, same 8-wheel PU carriage system.
- Adds the Half Cadillac frame, push-through bar, pull-down bar, safety strap, and additional long springs for tower work.
- Includes the mattress converter and platform extender needed to convert the carriage into a flat mat surface.
- Includes the Pro Sitting Box for box work from day one.
- Includes the 60″ Maple Gondola Pole for standing balance and stretch exercises. Stores on the under-runner hooks.
- Bracket-based tower attachment means the Half Cadillac can be removed if you upgrade to a full Cadillac later.
Included Springs
Eight nickel-plated music wire springs, sized for reformer and tower use:
2× YellowStandard 47 cmVery Light
2× RedStandard 47 cmMedium
2× PurpleLong 64 cmLight
2× RedLong 64 cmStrong
The patent-pending Rapid Change (RC) spring bar on the reformer allows one-hand spring changes with springs attached. This is particularly beneficial in group class environments where fast transitions matter.
Setup and Assembly
The bundle ships on a pallet to your driveway or building entrance. Assembly is more involved than the reformer alone because the Half Cadillac brackets and frame need to be attached in the correct order. Most buyers complete the full setup in one afternoon with two people. Below is the official Align-Pilates video showing Half Cadillac bracket attachment, plus PDF manuals for both components.
Features
Rapid Change (RC) Spring Bar
Patent-pending RC Spring Bar moves with one hand in a single action, springs attached. The fastest spring bar change available. Integral carriage stoppers prevent stressed springs and protect spring life through busy teaching schedules.
Half Cadillac Frame + Brackets
Align-Pilates Half Cadillac frame attaches to the M8-Pro via M-Series brackets. Adds push-through bar, pull-down bar, safety strap, and hand handle attachment points for the arm spring repertoire, standing Pilates, and rehab protocols. Removable if you later upgrade to a full Cadillac.
Solid North American Maple Frame
FSC-certified solid maple with a satin lacquer finish. Not veneer, not composite. The warmth, grain, and weight of real wood, with heavy-duty construction rated to a 150 kg user weight.
Mattress Converter + Platform Extender
Included with this bundle. The mattress converter turns the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises. The platform extender adds usable surface length for taller practitioners.
Variable-Width Shoulder Rests
Removable, lockable shoulder rests with off-centered pads give a choice of two widths. Narrow for smaller frames, wide for broader shoulders, and fully removable for exercises that need a clear carriage.
8 Nickel-Plated Springs
Eight springs in mixed lengths and strengths for both reformer and tower work. Two Standard Yellow (Very Light), two Standard Red (Medium), two Long Purple (Light), and two Long Red (Strong). Rapid Change spring bar allows one-handed swaps.
Align-Pilates Silent System
Metal-free double loop handles, silent ropes, adjustable foot straps with fluffy covers, and patented silent pulleys. Combined T-Bar and Pro-Rope adjuster keeps both ropes at matching length. Exceptionally quiet for treatment rooms, home studios, and back-to-back classes.
8-Wheel Carriage System
Eight polyurethane wheels on precision aluminum rails instead of the usual four. Smoother travel across the full 104 cm carriage run, better load distribution, and reduced maintenance.
60″ Maple Gondola Pole + Storage Hooks
Included with this bundle. The 60″ maple gondola pole is used for standing balance work, stretch exercises, and mat repertoire. Storage hooks beneath the runner keep it within reach and off the studio floor.
Specs Translated Into What They Mean
| Spec | What it means for you |
|---|---|
| Solid North American maple reformer | Real wood, satin lacquer finish. Not veneer or composite. |
| Half Cadillac frame + brackets | Adds arm spring, push-through bar, standing, and mat repertoire. |
| 93 × 66 cm carriage | Widest carriage in the Align-Pilates lineup. Comfort for all body sizes. |
| 104 cm carriage travel | Full commercial repertoire range. |
| Rapid Change spring bar | Single-hand spring adjustment with springs attached. |
| 8 springs, 4 strengths, 2 lengths | Full resistance range for both reformer and tower work. |
| Mattress converter + platform extender | Convert the carriage to a flat mat surface for Cadillac-style work. |
| Pro Sitting Box + Gondola Pole included | Box, standing balance, and stretch work from day one. |
| ISO 20957-1 Class S | Highest studio certification. Built for professional studio use. |
| Total height 213 cm | Check ceiling clearance before ordering. |
| 130 kg unit weight | Permanent fixture. Not stackable or foldable. |
What Ships With It
Main components:
- M8-Pro Maple Reformer
- Half Cadillac Frame
- Half Cadillac Brackets (M-Series)
- Mattress Converter
- Platform Extender
- Pro Sitting Box
- 60″ Maple Gondola Pole
- Removable maple standing platform
Tower attachments:
- 1 Push-Through Bar
- 1 Pull-Down Bar
- 1 Safety Strap
- 1 pair Foot Straps
- 1 pair Hand Handles
- 2 pairs Rapid-Adjust Double Eyelet Spring Holders
- 8 Aluminium Carabiners
- 8 Double-Ended Dog Clips
Reformer components:
- 8 nickel-plated springs (see spring chart above)
- Silent ropes + patented silent pulleys
- Metal-free double loop handles
- Adjustable padded silent foot strap
- 3-position adjustable headrest
- Removable variable-width shoulder rests
ALSO AVAILABLE SEPARATELY
- Upholstered Jump Board. Interchangeable with the standing platform.
- Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire.
Full Specifications
| Model | Align Pilates M8-Pro Maple Reformer with Half Cadillac Bundle |
| Supplier code | PAPM8HALFCAD |
| Brand | Align-Pilates |
| Reformer frame | Solid North American maple, FSC-certified, satin lacquer finish |
| Tower frame | Align-Pilates Half Cadillac, M-Series bracket attachment |
| Total dimensions (with Half Cadillac) | 254 cm (L) × 76 cm (W) × 213 cm (H) |
| Carriage size | 93 × 66 cm (widest in Align-Pilates range) |
| Carriage travel | 104 cm | 41″ |
| Reformer weight | 80 kg | 177 lbs |
| Total unit weight (with Half Cadillac) | 130 kg | 287 lbs |
| Max user weight | 150 kg | 330 lbs |
| Suitable users | 4 ft 10 in to 6 ft 4 in (145 to 193 cm) |
| Wheels | 8 PU wheels, precision aluminum rails |
| Springs | 8 nickel-plated music wire (2 Yellow Very Light, 2 Red Medium, 2 Purple Light, 2 Red Strong) |
| Spring bar | Patent-pending Rapid Change (RC) |
| Foot bar | 4 lockable positions including flat |
| Rope adjuster | Combined T-Bar and Pro-Rope adjustment system |
| Rope risers | Maple, fully adjustable, 5 height positions |
| Head rest | 3-position adjustable |
| Shoulder rests | Removable, variable width, off-centered pads |
| Upholstery | PU leather with EVA foam padding |
| Ropes | Multi-woven nylon, Silent System |
| Storage | Not stackable. Permanent fixture |
| Certification | EN ISO 20957-1:2013 Class S, Attestation of Conformity |
| Warranty | 5-year wooden frame and foot bar mechanism, 2-year components, 2-year / 3,000-hour springs |
Shipping and Financing
Shipping and delivery: All Align-Pilates equipment ships via freight carrier. Delivery timelines and options (curbside, threshold, or room-of-choice) vary by location. Contact us at 866-861-6317 or info@recovathlete.com before ordering and we'll confirm exactly what's available for your zip code, including any current lead times.
Financing: Affirm financing is available at checkout. Monthly payment options shown at checkout based on cart total and approved credit.
Frequently Asked Questions
Is the Half Cadillac frame made of maple like the reformer?
No. Only the reformer is solid North American maple. The Half Cadillac is the standard Align-Pilates tower frame and attaches to the reformer via M-Series brackets. It complements the maple reformer visually and is engineered to match its performance standards.
What is a Half Cadillac and what can I do with it?
A Half Cadillac is a partial trapeze table structure that mounts to a reformer. It gives you access to most of the full Cadillac repertoire including arm springs, push-through bar work, pull-down bar exercises, standing Pilates, and mat conversion work. It does not include hanging or full trapeze exercises, which require a Full Cadillac.
Can the Half Cadillac be removed if I upgrade to a full Cadillac later?
Yes. The Half Cadillac attaches via M-Series brackets and can be removed. If you later add a full Cadillac frame to the M8-Pro, the same reformer supports it.
Does this bundle include everything I need to teach the full method?
Yes. Reformer, tower with push-through bar, pull-down bar, safety strap, Pro Sitting Box, and 60″ Maple Gondola Pole are all included. Mattress converter and platform extender are included so you can also do mat and Cadillac-style flat-bed exercises. The only optional add-on is the upholstered Jump Board for plyometric cardio work.
What are the 8 springs used for?
The 8 springs cover both reformer and tower work. Standard 47 cm springs (yellow and red) are for the reformer. Long 64 cm springs (purple and red) are for the Half Cadillac push-through bar and arm spring work. The Rapid Change spring bar lets you swap reformer springs one-handed with them still attached.
How does the M8-Pro carriage compare to other reformers?
At 93 × 66 cm it's the widest carriage in the Align-Pilates lineup, with 104 cm of travel on an 8-wheel PU system running on precision aluminum rails. It fits users from 4 ft 10 in to 6 ft 4 in and carries the same ISO Class S certification as the steel-framed C8-Pro.
How is the Rapid Change (RC) Spring Bar different from a normal spring bar?
A traditional spring bar uses a separate carriage stopper and can take up to 12 actions to change on a 5-spring reformer. The RC Spring Bar has integral carriage stoppers and adjusts with the springs attached. One hand, one action. This is particularly beneficial in group class environments.
What ceiling height do I need?
Total unit height is 213 cm (roughly 7 feet). Add clearance for the push-through bar in use and allow a comfortable working height above that. A minimum ceiling height of 235 cm (roughly 7 ft 8 in) is recommended, with more space if the primary user is over 6 ft.
How long does assembly take?
Most buyers complete the reformer, Half Cadillac, and accessory setup in a single afternoon with two people. The reformer arrives largely pre-built. The Half Cadillac brackets and frame attach in a specific order. See the Align-Pilates assembly video and the two PDF manuals linked in the Setup section above.
How will my bundle be delivered?
Ships on pallets to your driveway or the front of the building via freight carrier. The driver unloads; you take components inside from there. Suitable access for van or truck deliveries is required. Call 866-861-6317 before ordering to confirm delivery options for your zip code.
What financing options are available?
Affirm financing is available at checkout. Monthly payment options are shown at checkout based on cart total and approved credit. For questions on financing or upgrading to a full Cadillac, call 866-861-6317.
Also Consider
- M8-Pro Maple Wood Reformer + Sitting Box Bundle. Reformer only, without the Half Cadillac. Entry point for classical reformer work.
- M8-Pro with Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire including hanging and trapeze work.
- A8-Pro Reformer with Tower. Aluminium commercial alternative with a similar tower system.
Financing for Recovery and Fitness Equipment
Buying for yourself, spread the cost through Affirm at checkout. Buying for a gym, clinic, spa, or studio, apply with one of four business lenders and put the whole room on a single application.
RecovAthlete has no control over any financing decision. Approval is based on your creditworthiness and is solely the lender's decision.
Personal purchase
Affirm at checkout. Rates run 0% to 36% APR based on your credit profile. Soft check to prequalify, so no impact on your score. No prepayment penalty.
Business purchase
Brickhouse Capital, Reliant Capital, Acorn Finance, or KWIPPED. Apply with two of the four and compare. Financed equipment can qualify for a Section 179 deduction. Confirm with your accountant.
Financing by Equipment Category
Every page below has real prices, real monthly payment examples, and the lender comparison for that category. Pick the one you are buying.
Hyperbaric Chamber Financing
Soft-shell and hard-shell HBOT chambers. Session-volume payback math for clinics.
Sauna Financing
Infrared, traditional, barrel, and commercial saunas.
Cold Plunge Financing
Home tubs through commercial chillers and Medical Frozen units.
Red Light Therapy Financing
Panels, pods, and full-body beds for home and clinic.
PEMF Therapy Financing
PEMF mats, systems, and practitioner devices.
Vibration Plate Financing
Whole body vibration platforms for home, studio, and clinic.
Gym Equipment Financing
Home gyms through full commercial strength floors. Finance the floor, not the machine.
Treadmill Financing
Walking pads, commercial belts, and self-powered curved decks.
Commercial Recovery Equipment Financing
Building a recovery room? One quote, one purchase order, one application.
Building a Recovery Room?
Most business buyers are not buying one machine. They are building a room. Sauna, cold plunge, red light, vibration, hyperbaric, cryotherapy, and halotherapy all finance on the same paper through the same four lenders, and RecovAthlete quotes every category on one purchase order.
That means one freight schedule, one install window, and one financing application instead of six. It also gets you a better rate, because a bigger number on one application beats six small ones with six hard inquiries.
See commercial recovery equipment financing, or call 866-861-6317 and we will price the room.
Which Lender Should You Apply With?
| Lender | Type | Amount | Speed | Best for |
|---|---|---|---|---|
| Affirm | Consumer, at checkout | Order total | Seconds | Personal purchases. 0% to 36% APR based on credit. Soft check to prequalify. |
| Brickhouse Capital | Direct equipment lender | Up to $250K on a one-page application, $1M+ with financials | ~24 hours | A full room or a full floor. Credit decisions made in-house. Tied to the business, not your personal credit report. |
| Reliant Capital | Lender and broker | Up to $500K application-only, $5M with financials | 2 to 4 hours | Medical, aesthetic, and wellness. Deferred payment options. New or used equipment. |
| Acorn Finance | Lending marketplace | $1,000 to $100,000 | 60 seconds to prequalify | Comparing offers. One application goes to 30 or more lenders with no impact to your score. |
| KWIPPED (APPROVE) | Lender marketplace | Minimum $1,500 equipment value | 60-second application | Larger commercial orders. Lenders compete, which usually returns the best APR. Businesses only. |
Apply with two of the four and compare. It costs nothing and the spread between offers is often significant.
Apply now
Apply with Brickhouse Capital
Apply with Reliant Capital
Check your offers with Acorn Finance
For KWIPPED, call 866-861-6317 or email info@recovathlete.com and we will build the application around your order.
Financing Questions
What are Affirm's rates?
Pay in 4 splits the purchase into four interest-free payments charged every two weeks. Monthly installments spread the cost over a longer term, with rates from 0% to 36% APR depending on your credit profile. You see the exact terms before you agree to anything. No origination fees, no prepayment penalty, no late fees.
Will applying hurt my credit score?
Prequalification does not. Affirm and Acorn Finance both run a soft check to show you offers, which has no impact on your score. Proceeding with a monthly installment plan or a business loan may involve a hard inquiry. That is why it pays to prequalify with more than one lender first and only proceed with the best offer.
Can I finance equipment for a business?
Yes, and for most business buyers it is the better route. Brickhouse funds up to $250,000 on a one-page application with no financial statements. Reliant approves in 2 to 4 hours. Business financing is usually tied to the business rather than your personal credit report, and financed equipment can qualify for a Section 179 deduction. Confirm the tax position with your accountant.
Should I finance each machine separately?
No. This is the most common and most expensive mistake. Separate applications mean separate hard inquiries, separate payments, and a worse rate on each, because every individual ticket is small. Get one quote from RecovAthlete covering everything you are buying, including freight, and put that single number on one application.
Does Section 179 apply to financed equipment?
Financed equipment can qualify. Section 179 lets US businesses deduct the cost of qualifying equipment in the year it is placed in service, and financing the purchase does not by itself disqualify it. The equipment must be in service, not merely ordered, within the tax year. Annual limits and eligibility rules are set by the IRS and change year to year, so consult your accountant.
Can freight and installation be financed?
Freight, yes. On Affirm it is part of the order total at checkout. On business financing, put freight on the RecovAthlete quote and the whole quote amount goes on the application. Installation and room construction are harder, because some equipment lenders will not fund non-equipment costs. Ask the lender before you sign.
Can I pay off early?
Yes. Affirm charges no prepayment penalties. Acorn Finance and most business lenders also allow early payoff without penalty.
Not sure which option fits?
Tell us what you are buying and whether it is personal or for a business. We will point you at the right two lenders and quote freight and install as one number, which is also the number that goes on the application.
Call 866-861-6317 Book a 30 minute call
Affirm FinancingMonthly payments at checkout
Authorized DealerFull manufacturer warranty
ISO Class SFull commercial certification
Complete SystemReformer + Half Cadillac
Quick answer: The Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle is the complete classical Pilates system. It pairs the solid North American maple M8-Pro reformer with a Half Cadillac frame, plus the Pro Sitting Box, 60″ Maple Gondola Pole, mattress converter, platform extender, and 8 springs. Delivers the full reformer, tower, box, mat, and arm spring repertoire from one apparatus. ISO 20957-1 Class S certified for professional studio use.
Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle: solid North American maple reformer paired with a Half Cadillac frame, Pro Sitting Box, and Maple Gondola Pole. The complete classical Pilates system in one order.
RecovAthlete is an authorized dealer of Align Pilates. All products are brand-new, factory-direct, and covered by the full manufacturer warranty.
The M8-Pro is Align-Pilates' premium wood-frame reformer, crafted from extremely durable North American maple and designed to marry classical styling with contemporary functionality. It offers refined performance with extensive adjustability, a luxurious oversized carriage, and 104 cm of smooth silent travel. This bundle adds the Half Cadillac frame with brackets so you get arm spring work, standing Pilates, push-through bar exercises, and full mat conversion, plus the Pro Sitting Box and 60″ Maple Gondola Pole. Nothing else to buy to teach the full method.
IMPORTANT: TOWER TYPE & CONFIGURATION. The tower in this bundle is the Align-Pilates Half Cadillac frame, which attaches to the M8-Pro via M-Series brackets. It gives you most of the full Cadillac repertoire without the full trapeze table footprint. For hanging or full trapeze work, see the M8-Pro Maple Reformer with Full Cadillac Frame. Call 866-861-6317 to configure your system.
BEST FOR
Studios teaching the complete Pilates method from a single apparatus. Home practitioners who want reformer, tower, box, and mat work without buying separate equipment. Physical therapists and rehab clinics using push-through bar and arm spring protocols.
NOT IDEAL FOR
Buyers who need dedicated full Cadillac exercises like hanging or trapeze work. The Half Cadillac frame delivers most of the Cadillac repertoire, but not all. For those, see the M8-Pro Maple Reformer with Full Cadillac Frame.
WHY RECOVATHLETE CARRIES THIS
We carry this bundle because it solves the space-plus-repertoire problem in one purchase. Studios that would otherwise buy a reformer plus a separate Cadillac plus box save floor space and roughly $2,000 to $3,000 versus buying the apparatus individually. The maple reformer keeps the classical aesthetic. The Half Cadillac frame adds the functional range. The Sitting Box and Gondola Pole round out the system. Bracket attachment means the tower can be removed if you later add a full Cadillac.
What the Half Cadillac Adds

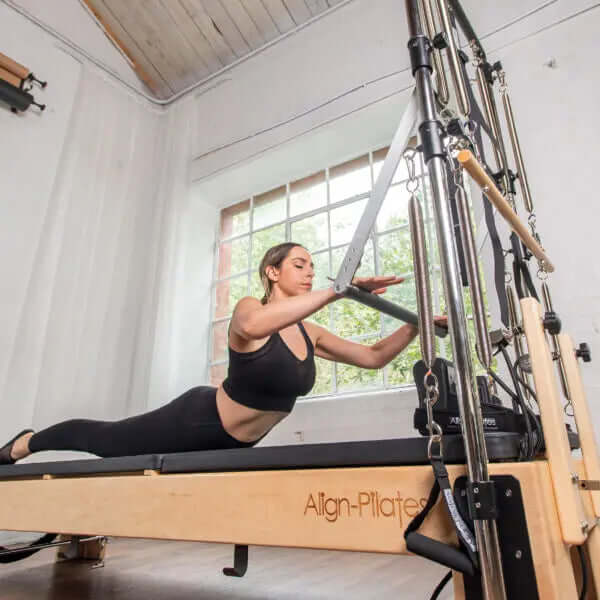

- Push-through bar work. Included with the Half Cadillac. Supine arm work, spinal articulation, and progressive resistance patterns from the tower.
- Arm spring exercises. Standard equipment in classical and contemporary repertoire. Uses the Long springs supplied with this bundle.

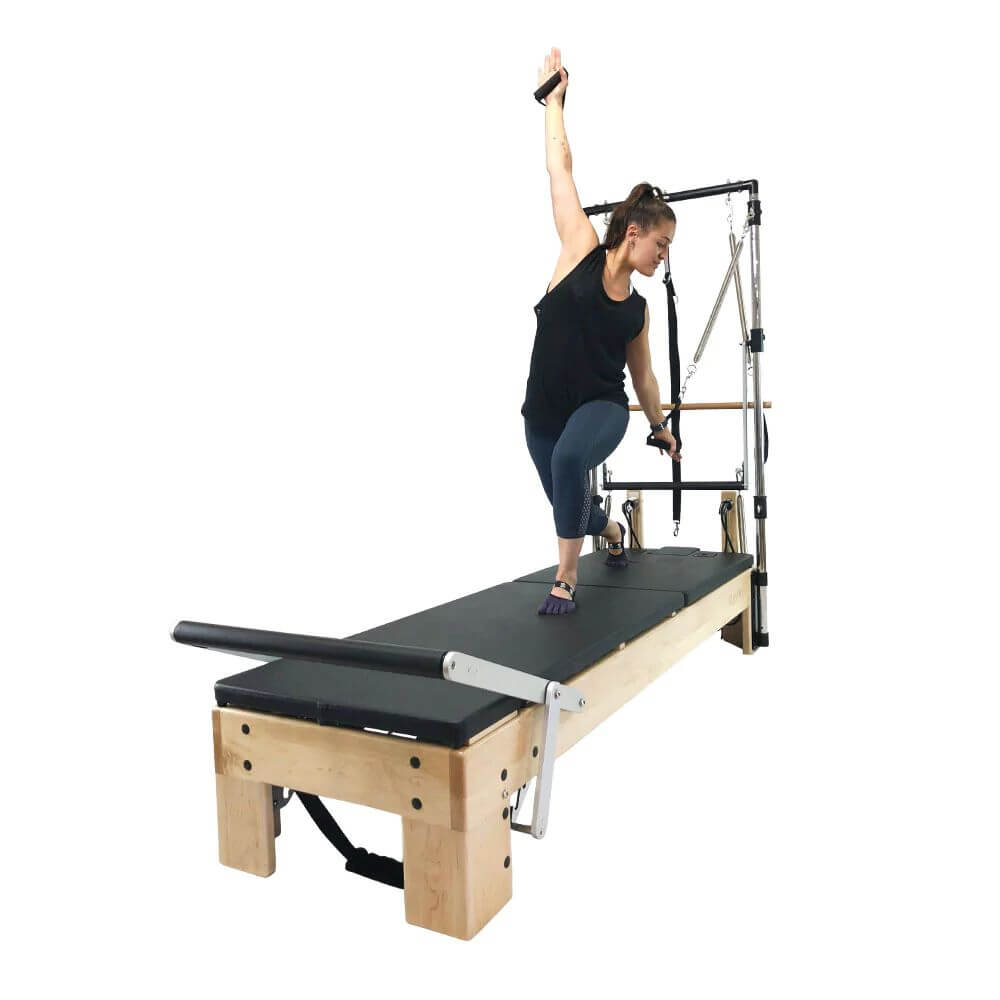

- Standing Pilates. Pull-down bar and hand handles let you work in a fully upright position from the standing platform.
- Mat conversion. The included mattress converter and platform extender turn the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises.
- Safety strap. Included. Standard requirement for many push-through bar exercises and rehab protocols.
Is This the Right Setup for Home Use?
Yes, for serious home practitioners who want the complete classical Pilates method rather than reformer-only repertoire. The bundle fits homes because:
- One machine, full method. Reformer, tower, sitting box, and gondola pole all included. No separate purchases.
- Silent operation. Align-Pilates Silent System with metal-free handles, silent ropes, and patented silent pulleys. No metal-on-metal clank.
- Reads as furniture, not gym gear. The maple reformer keeps the classical aesthetic even with the tower attached.
- Financing available. Affirm at checkout spreads the cost across monthly payments.
Trade-off to know: with the Half Cadillac attached, the total height reaches 213 cm. Confirm ceiling clearance before ordering. The unit is not stackable or foldable and needs a permanent footprint of 254 × 76 cm.
Why This Over the Reformer-Only Bundle
- Same solid North American maple reformer with satin lacquer finish, same 104 cm carriage travel, same 8-wheel PU carriage system.
- Adds the Half Cadillac frame, push-through bar, pull-down bar, safety strap, and additional long springs for tower work.
- Includes the mattress converter and platform extender needed to convert the carriage into a flat mat surface.
- Includes the Pro Sitting Box for box work from day one.
- Includes the 60″ Maple Gondola Pole for standing balance and stretch exercises. Stores on the under-runner hooks.
- Bracket-based tower attachment means the Half Cadillac can be removed if you upgrade to a full Cadillac later.
Included Springs
Eight nickel-plated music wire springs, sized for reformer and tower use:
2× YellowStandard 47 cmVery Light
2× RedStandard 47 cmMedium
2× PurpleLong 64 cmLight
2× RedLong 64 cmStrong
The patent-pending Rapid Change (RC) spring bar on the reformer allows one-hand spring changes with springs attached. This is particularly beneficial in group class environments where fast transitions matter.
Setup and Assembly
The bundle ships on a pallet to your driveway or building entrance. Assembly is more involved than the reformer alone because the Half Cadillac brackets and frame need to be attached in the correct order. Most buyers complete the full setup in one afternoon with two people. Below is the official Align-Pilates video showing Half Cadillac bracket attachment, plus PDF manuals for both components.
Features
Rapid Change (RC) Spring Bar
Patent-pending RC Spring Bar moves with one hand in a single action, springs attached. The fastest spring bar change available. Integral carriage stoppers prevent stressed springs and protect spring life through busy teaching schedules.
Half Cadillac Frame + Brackets
Align-Pilates Half Cadillac frame attaches to the M8-Pro via M-Series brackets. Adds push-through bar, pull-down bar, safety strap, and hand handle attachment points for the arm spring repertoire, standing Pilates, and rehab protocols. Removable if you later upgrade to a full Cadillac.
Solid North American Maple Frame
FSC-certified solid maple with a satin lacquer finish. Not veneer, not composite. The warmth, grain, and weight of real wood, with heavy-duty construction rated to a 150 kg user weight.
Mattress Converter + Platform Extender
Included with this bundle. The mattress converter turns the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises. The platform extender adds usable surface length for taller practitioners.
Variable-Width Shoulder Rests
Removable, lockable shoulder rests with off-centered pads give a choice of two widths. Narrow for smaller frames, wide for broader shoulders, and fully removable for exercises that need a clear carriage.
8 Nickel-Plated Springs
Eight springs in mixed lengths and strengths for both reformer and tower work. Two Standard Yellow (Very Light), two Standard Red (Medium), two Long Purple (Light), and two Long Red (Strong). Rapid Change spring bar allows one-handed swaps.
Align-Pilates Silent System
Metal-free double loop handles, silent ropes, adjustable foot straps with fluffy covers, and patented silent pulleys. Combined T-Bar and Pro-Rope adjuster keeps both ropes at matching length. Exceptionally quiet for treatment rooms, home studios, and back-to-back classes.
8-Wheel Carriage System
Eight polyurethane wheels on precision aluminum rails instead of the usual four. Smoother travel across the full 104 cm carriage run, better load distribution, and reduced maintenance.
60″ Maple Gondola Pole + Storage Hooks
Included with this bundle. The 60″ maple gondola pole is used for standing balance work, stretch exercises, and mat repertoire. Storage hooks beneath the runner keep it within reach and off the studio floor.
Specs Translated Into What They Mean
| Spec | What it means for you |
|---|---|
| Solid North American maple reformer | Real wood, satin lacquer finish. Not veneer or composite. |
| Half Cadillac frame + brackets | Adds arm spring, push-through bar, standing, and mat repertoire. |
| 93 × 66 cm carriage | Widest carriage in the Align-Pilates lineup. Comfort for all body sizes. |
| 104 cm carriage travel | Full commercial repertoire range. |
| Rapid Change spring bar | Single-hand spring adjustment with springs attached. |
| 8 springs, 4 strengths, 2 lengths | Full resistance range for both reformer and tower work. |
| Mattress converter + platform extender | Convert the carriage to a flat mat surface for Cadillac-style work. |
| Pro Sitting Box + Gondola Pole included | Box, standing balance, and stretch work from day one. |
| ISO 20957-1 Class S | Highest studio certification. Built for professional studio use. |
| Total height 213 cm | Check ceiling clearance before ordering. |
| 130 kg unit weight | Permanent fixture. Not stackable or foldable. |
What Ships With It
Main components:
- M8-Pro Maple Reformer
- Half Cadillac Frame
- Half Cadillac Brackets (M-Series)
- Mattress Converter
- Platform Extender
- Pro Sitting Box
- 60″ Maple Gondola Pole
- Removable maple standing platform
Tower attachments:
- 1 Push-Through Bar
- 1 Pull-Down Bar
- 1 Safety Strap
- 1 pair Foot Straps
- 1 pair Hand Handles
- 2 pairs Rapid-Adjust Double Eyelet Spring Holders
- 8 Aluminium Carabiners
- 8 Double-Ended Dog Clips
Reformer components:
- 8 nickel-plated springs (see spring chart above)
- Silent ropes + patented silent pulleys
- Metal-free double loop handles
- Adjustable padded silent foot strap
- 3-position adjustable headrest
- Removable variable-width shoulder rests
ALSO AVAILABLE SEPARATELY
- Upholstered Jump Board. Interchangeable with the standing platform.
- Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire.
Full Specifications
| Model | Align Pilates M8-Pro Maple Reformer with Half Cadillac Bundle |
| Supplier code | PAPM8HALFCAD |
| Brand | Align-Pilates |
| Reformer frame | Solid North American maple, FSC-certified, satin lacquer finish |
| Tower frame | Align-Pilates Half Cadillac, M-Series bracket attachment |
| Total dimensions (with Half Cadillac) | 254 cm (L) × 76 cm (W) × 213 cm (H) |
| Carriage size | 93 × 66 cm (widest in Align-Pilates range) |
| Carriage travel | 104 cm | 41″ |
| Reformer weight | 80 kg | 177 lbs |
| Total unit weight (with Half Cadillac) | 130 kg | 287 lbs |
| Max user weight | 150 kg | 330 lbs |
| Suitable users | 4 ft 10 in to 6 ft 4 in (145 to 193 cm) |
| Wheels | 8 PU wheels, precision aluminum rails |
| Springs | 8 nickel-plated music wire (2 Yellow Very Light, 2 Red Medium, 2 Purple Light, 2 Red Strong) |
| Spring bar | Patent-pending Rapid Change (RC) |
| Foot bar | 4 lockable positions including flat |
| Rope adjuster | Combined T-Bar and Pro-Rope adjustment system |
| Rope risers | Maple, fully adjustable, 5 height positions |
| Head rest | 3-position adjustable |
| Shoulder rests | Removable, variable width, off-centered pads |
| Upholstery | PU leather with EVA foam padding |
| Ropes | Multi-woven nylon, Silent System |
| Storage | Not stackable. Permanent fixture |
| Certification | EN ISO 20957-1:2013 Class S, Attestation of Conformity |
| Warranty | 5-year wooden frame and foot bar mechanism, 2-year components, 2-year / 3,000-hour springs |
Shipping and Financing
Shipping and delivery: All Align-Pilates equipment ships via freight carrier. Delivery timelines and options (curbside, threshold, or room-of-choice) vary by location. Contact us at 866-861-6317 or info@recovathlete.com before ordering and we'll confirm exactly what's available for your zip code, including any current lead times.
Financing: Affirm financing is available at checkout. Monthly payment options shown at checkout based on cart total and approved credit.
Frequently Asked Questions
Is the Half Cadillac frame made of maple like the reformer?
No. Only the reformer is solid North American maple. The Half Cadillac is the standard Align-Pilates tower frame and attaches to the reformer via M-Series brackets. It complements the maple reformer visually and is engineered to match its performance standards.
What is a Half Cadillac and what can I do with it?
A Half Cadillac is a partial trapeze table structure that mounts to a reformer. It gives you access to most of the full Cadillac repertoire including arm springs, push-through bar work, pull-down bar exercises, standing Pilates, and mat conversion work. It does not include hanging or full trapeze exercises, which require a Full Cadillac.
Can the Half Cadillac be removed if I upgrade to a full Cadillac later?
Yes. The Half Cadillac attaches via M-Series brackets and can be removed. If you later add a full Cadillac frame to the M8-Pro, the same reformer supports it.
Does this bundle include everything I need to teach the full method?
Yes. Reformer, tower with push-through bar, pull-down bar, safety strap, Pro Sitting Box, and 60″ Maple Gondola Pole are all included. Mattress converter and platform extender are included so you can also do mat and Cadillac-style flat-bed exercises. The only optional add-on is the upholstered Jump Board for plyometric cardio work.
What are the 8 springs used for?
The 8 springs cover both reformer and tower work. Standard 47 cm springs (yellow and red) are for the reformer. Long 64 cm springs (purple and red) are for the Half Cadillac push-through bar and arm spring work. The Rapid Change spring bar lets you swap reformer springs one-handed with them still attached.
How does the M8-Pro carriage compare to other reformers?
At 93 × 66 cm it's the widest carriage in the Align-Pilates lineup, with 104 cm of travel on an 8-wheel PU system running on precision aluminum rails. It fits users from 4 ft 10 in to 6 ft 4 in and carries the same ISO Class S certification as the steel-framed C8-Pro.
How is the Rapid Change (RC) Spring Bar different from a normal spring bar?
A traditional spring bar uses a separate carriage stopper and can take up to 12 actions to change on a 5-spring reformer. The RC Spring Bar has integral carriage stoppers and adjusts with the springs attached. One hand, one action. This is particularly beneficial in group class environments.
What ceiling height do I need?
Total unit height is 213 cm (roughly 7 feet). Add clearance for the push-through bar in use and allow a comfortable working height above that. A minimum ceiling height of 235 cm (roughly 7 ft 8 in) is recommended, with more space if the primary user is over 6 ft.
How long does assembly take?
Most buyers complete the reformer, Half Cadillac, and accessory setup in a single afternoon with two people. The reformer arrives largely pre-built. The Half Cadillac brackets and frame attach in a specific order. See the Align-Pilates assembly video and the two PDF manuals linked in the Setup section above.
How will my bundle be delivered?
Ships on pallets to your driveway or the front of the building via freight carrier. The driver unloads; you take components inside from there. Suitable access for van or truck deliveries is required. Call 866-861-6317 before ordering to confirm delivery options for your zip code.
What financing options are available?
Affirm financing is available at checkout. Monthly payment options are shown at checkout based on cart total and approved credit. For questions on financing or upgrading to a full Cadillac, call 866-861-6317.
Also Consider
- M8-Pro Maple Wood Reformer + Sitting Box Bundle. Reformer only, without the Half Cadillac. Entry point for classical reformer work.
- M8-Pro with Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire including hanging and trapeze work.
- A8-Pro Reformer with Tower. Aluminium commercial alternative with a similar tower system.
Everything you need to know about shipping, delivery, and returns for Align-Pilates equipment purchased through RecovAthlete. Have a question before ordering? Call 866-861-6317 or email support@recovathlete.com and we'll confirm exactly what's available for your location.
✅
Authorized Align-Pilates Dealer
RecovAthlete is an authorized dealer of Align-Pilates equipment. Every purchase is backed by the full manufacturer warranty directly from Align-Pilates and their exclusive North American distributor, Kloz Inc.
Shipping
Important
Once your order ships, the delivery address cannot be changed. If a shipment fails due to an incorrect address, return fees may apply. Inspect all equipment thoroughly upon delivery — any damage or concerns must be reported within 3 business days of receipt.
Returns Policy
Non-Returnable Items
Returns are not accepted on reformers, chairs, ladder barrels, full cadillacs, or half cadillacs — no exceptions. These items are only eligible for replacement if they arrive damaged or were shipped in error.
Accessories — 30-Day Returns
- Returns accepted within 30 days of purchase (shipping costs excluded)
- All goods must be returned in original condition
- Subject to a restocking charge
- Return shipping costs are the sole responsibility of the purchaser
Return Authorization Number (RNA) Required
All returns — for any reason — require a Return Authorization Number before sending anything back. Items returned without an RNA will not be accepted.
To obtain an RNA, contact Kloz Inc. (Align-Pilates' exclusive North American distributor) directly:
- Phone: 1-888-756-7798
- Email: info@klozinc.com
If Your Item Arrives Damaged or Defective
- Contact us within 3 business days of delivery at 866-861-6317 or support@recovathlete.com
- Provide photos and a description of the damage
- Once confirmed, we will coordinate a replacement or resolution with the distributor
Order Cancellations
- Cancel before shipment — no charge
- Cancel after shipment — 25% restocking fee plus return shipping charges apply
Warranty Overview
Align-Pilates equipment carries a multi-year manufacturer's warranty against defects in materials and workmanship. The warranty that applies depends on the product:
Maintenance Note
Reformers require regular basic maintenance and cleaning. Most issues that arise during ownership can be resolved through consistent, simple cleaning practices. Failure to follow Align-Pilates' maintenance guidelines may void the warranty. Contact us and we'll guide you through the correct maintenance routine for your machine.
Full warranty terms by product type: view the Align-Pilates Warranty page. Manufacturer warranty details also available at align-pilates.com/resources/warranty-maintenance.
Affirm FinancingMonthly payments at checkout
Authorized DealerFull manufacturer warranty
ISO Class SFull commercial certification
Complete SystemReformer + Half Cadillac
Quick answer: The Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle is the complete classical Pilates system. It pairs the solid North American maple M8-Pro reformer with a Half Cadillac frame, plus the Pro Sitting Box, 60″ Maple Gondola Pole, mattress converter, platform extender, and 8 springs. Delivers the full reformer, tower, box, mat, and arm spring repertoire from one apparatus. ISO 20957-1 Class S certified for professional studio use.

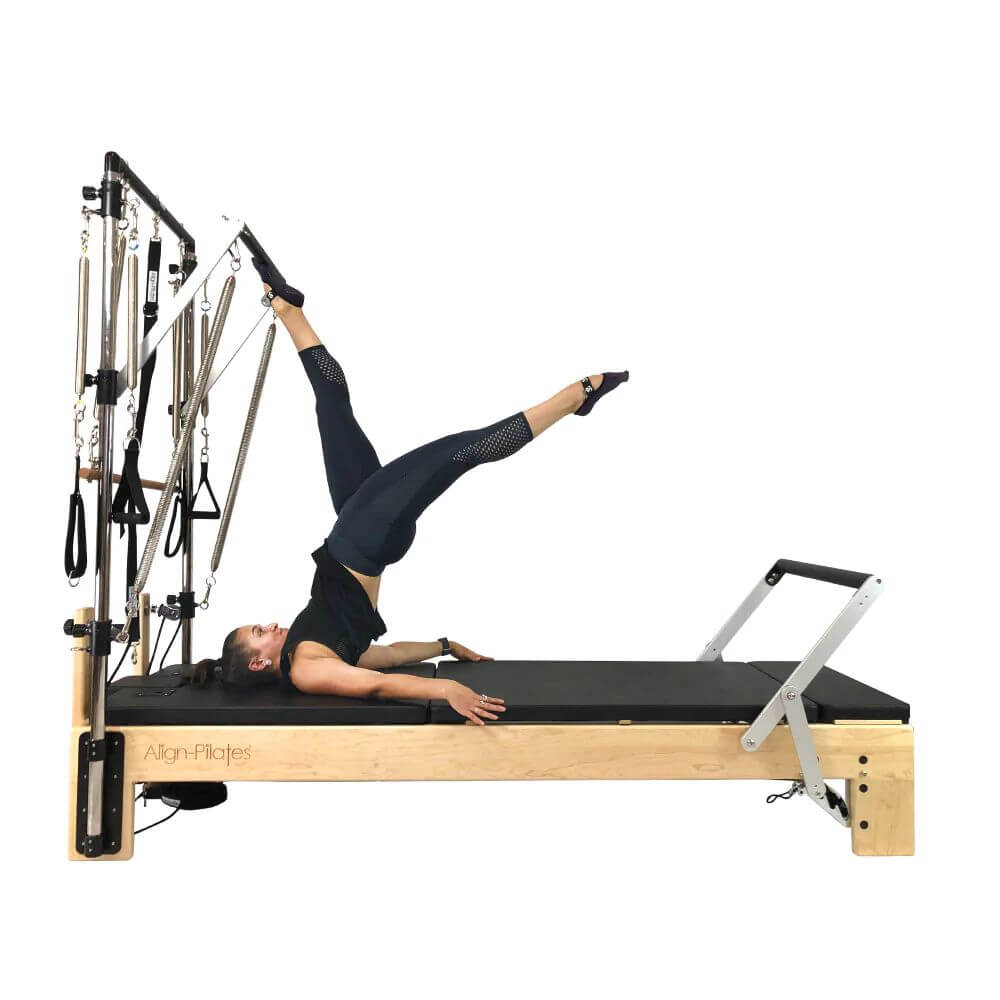

Align Pilates M8-Pro Maple Wood Reformer with Tower Bundle: solid North American maple reformer paired with a Half Cadillac frame, Pro Sitting Box, and Maple Gondola Pole. The complete classical Pilates system in one order.
RecovAthlete is an authorized dealer of Align Pilates. All products are brand-new, factory-direct, and covered by the full manufacturer warranty.
The M8-Pro is Align-Pilates' premium wood-frame reformer, crafted from extremely durable North American maple and designed to marry classical styling with contemporary functionality. It offers refined performance with extensive adjustability, a luxurious oversized carriage, and 104 cm of smooth silent travel. This bundle adds the Half Cadillac frame with brackets so you get arm spring work, standing Pilates, push-through bar exercises, and full mat conversion, plus the Pro Sitting Box and 60″ Maple Gondola Pole. Nothing else to buy to teach the full method.
IMPORTANT: TOWER TYPE & CONFIGURATION. The tower in this bundle is the Align-Pilates Half Cadillac frame, which attaches to the M8-Pro via M-Series brackets. It gives you most of the full Cadillac repertoire without the full trapeze table footprint. For hanging or full trapeze work, see the M8-Pro Maple Reformer with Full Cadillac Frame. Call 866-861-6317 to configure your system.
BEST FOR
Studios teaching the complete Pilates method from a single apparatus. Home practitioners who want reformer, tower, box, and mat work without buying separate equipment. Physical therapists and rehab clinics using push-through bar and arm spring protocols.
NOT IDEAL FOR
Buyers who need dedicated full Cadillac exercises like hanging or trapeze work. The Half Cadillac frame delivers most of the Cadillac repertoire, but not all. For those, see the M8-Pro Maple Reformer with Full Cadillac Frame.
WHY RECOVATHLETE CARRIES THIS
We carry this bundle because it solves the space-plus-repertoire problem in one purchase. Studios that would otherwise buy a reformer plus a separate Cadillac plus box save floor space and roughly $2,000 to $3,000 versus buying the apparatus individually. The maple reformer keeps the classical aesthetic. The Half Cadillac frame adds the functional range. The Sitting Box and Gondola Pole round out the system. Bracket attachment means the tower can be removed if you later add a full Cadillac.
What the Half Cadillac Adds
- Push-through bar work. Included with the Half Cadillac. Supine arm work, spinal articulation, and progressive resistance patterns from the tower.
- Arm spring exercises. Standard equipment in classical and contemporary repertoire. Uses the Long springs supplied with this bundle.
- Standing Pilates. Pull-down bar and hand handles let you work in a fully upright position from the standing platform.
- Mat conversion. The included mattress converter and platform extender turn the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises.
- Safety strap. Included. Standard requirement for many push-through bar exercises and rehab protocols.
Is This the Right Setup for Home Use?
Yes, for serious home practitioners who want the complete classical Pilates method rather than reformer-only repertoire. The bundle fits homes because:
- One machine, full method. Reformer, tower, sitting box, and gondola pole all included. No separate purchases.
- Silent operation. Align-Pilates Silent System with metal-free handles, silent ropes, and patented silent pulleys. No metal-on-metal clank.
- Reads as furniture, not gym gear. The maple reformer keeps the classical aesthetic even with the tower attached.
- Financing available. Affirm at checkout spreads the cost across monthly payments.
Trade-off to know: with the Half Cadillac attached, the total height reaches 213 cm. Confirm ceiling clearance before ordering. The unit is not stackable or foldable and needs a permanent footprint of 254 × 76 cm.
Why This Over the Reformer-Only Bundle
- Same solid North American maple reformer with satin lacquer finish, same 104 cm carriage travel, same 8-wheel PU carriage system.
- Adds the Half Cadillac frame, push-through bar, pull-down bar, safety strap, and additional long springs for tower work.
- Includes the mattress converter and platform extender needed to convert the carriage into a flat mat surface.
- Includes the Pro Sitting Box for box work from day one.
- Includes the 60″ Maple Gondola Pole for standing balance and stretch exercises. Stores on the under-runner hooks.
- Bracket-based tower attachment means the Half Cadillac can be removed if you upgrade to a full Cadillac later.
Included Springs
Eight nickel-plated music wire springs, sized for reformer and tower use:
2× YellowStandard 47 cmVery Light
2× RedStandard 47 cmMedium
2× PurpleLong 64 cmLight
2× RedLong 64 cmStrong
The patent-pending Rapid Change (RC) spring bar on the reformer allows one-hand spring changes with springs attached. This is particularly beneficial in group class environments where fast transitions matter.
Setup and Assembly
The bundle ships on a pallet to your driveway or building entrance. Assembly is more involved than the reformer alone because the Half Cadillac brackets and frame need to be attached in the correct order. Most buyers complete the full setup in one afternoon with two people. Below is the official Align-Pilates video showing Half Cadillac bracket attachment, plus PDF manuals for both components.
Features
Rapid Change (RC) Spring Bar
Patent-pending RC Spring Bar moves with one hand in a single action, springs attached. The fastest spring bar change available. Integral carriage stoppers prevent stressed springs and protect spring life through busy teaching schedules.

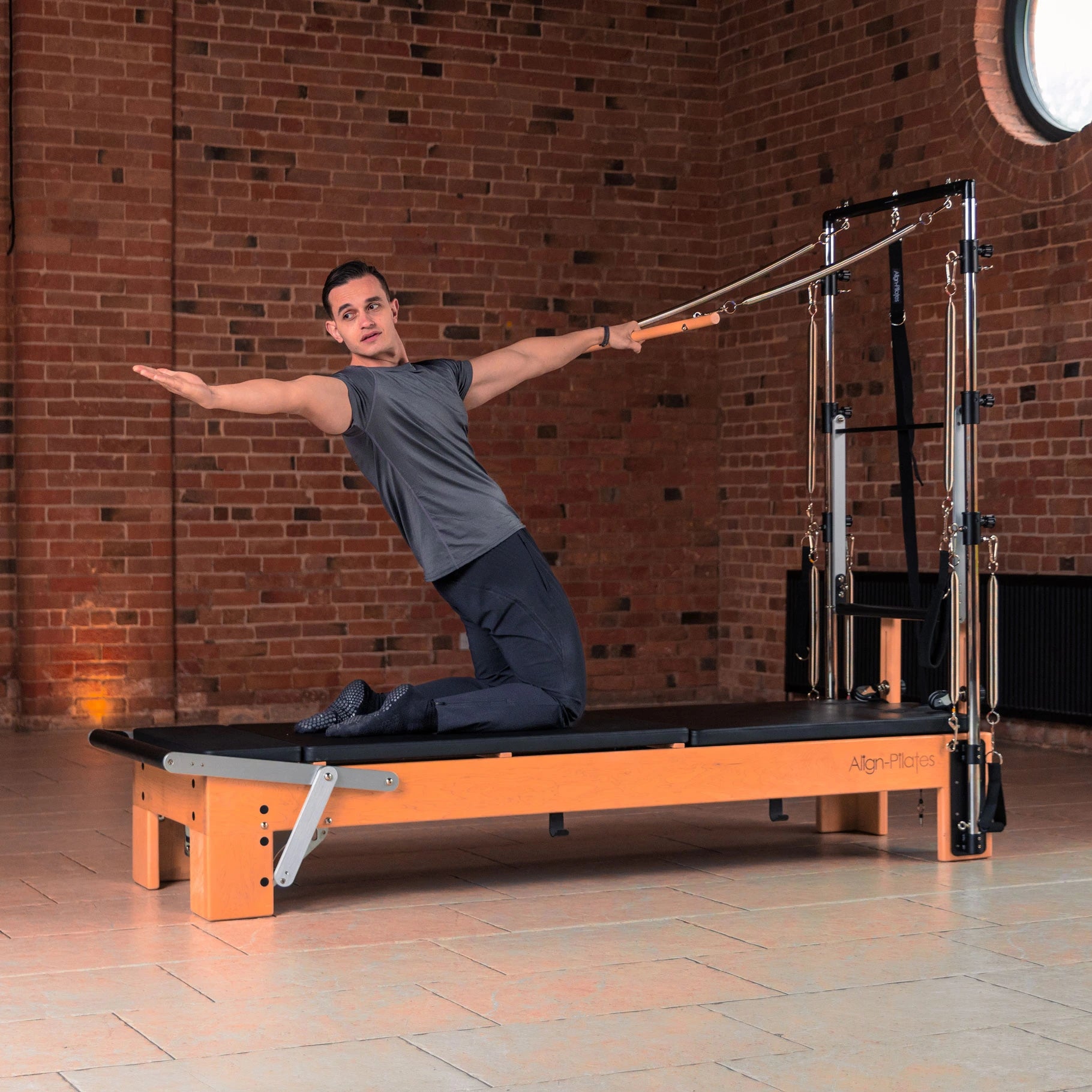

Half Cadillac Frame + Brackets
Align-Pilates Half Cadillac frame attaches to the M8-Pro via M-Series brackets. Adds push-through bar, pull-down bar, safety strap, and hand handle attachment points for the arm spring repertoire, standing Pilates, and rehab protocols. Removable if you later upgrade to a full Cadillac.
Solid North American Maple Frame
FSC-certified solid maple with a satin lacquer finish. Not veneer, not composite. The warmth, grain, and weight of real wood, with heavy-duty construction rated to a 150 kg user weight.
Mattress Converter + Platform Extender
Included with this bundle. The mattress converter turns the reformer carriage into a completely flat bed for mat repertoire and Cadillac-style exercises. The platform extender adds usable surface length for taller practitioners.
Variable-Width Shoulder Rests
Removable, lockable shoulder rests with off-centered pads give a choice of two widths. Narrow for smaller frames, wide for broader shoulders, and fully removable for exercises that need a clear carriage.
8 Nickel-Plated Springs
Eight springs in mixed lengths and strengths for both reformer and tower work. Two Standard Yellow (Very Light), two Standard Red (Medium), two Long Purple (Light), and two Long Red (Strong). Rapid Change spring bar allows one-handed swaps.
Align-Pilates Silent System
Metal-free double loop handles, silent ropes, adjustable foot straps with fluffy covers, and patented silent pulleys. Combined T-Bar and Pro-Rope adjuster keeps both ropes at matching length. Exceptionally quiet for treatment rooms, home studios, and back-to-back classes.
8-Wheel Carriage System
Eight polyurethane wheels on precision aluminum rails instead of the usual four. Smoother travel across the full 104 cm carriage run, better load distribution, and reduced maintenance.
60″ Maple Gondola Pole + Storage Hooks
Included with this bundle. The 60″ maple gondola pole is used for standing balance work, stretch exercises, and mat repertoire. Storage hooks beneath the runner keep it within reach and off the studio floor.
Specs Translated Into What They Mean
| Spec | What it means for you |
|---|---|
| Solid North American maple reformer | Real wood, satin lacquer finish. Not veneer or composite. |
| Half Cadillac frame + brackets | Adds arm spring, push-through bar, standing, and mat repertoire. |
| 93 × 66 cm carriage | Widest carriage in the Align-Pilates lineup. Comfort for all body sizes. |
| 104 cm carriage travel | Full commercial repertoire range. |
| Rapid Change spring bar | Single-hand spring adjustment with springs attached. |
| 8 springs, 4 strengths, 2 lengths | Full resistance range for both reformer and tower work. |
| Mattress converter + platform extender | Convert the carriage to a flat mat surface for Cadillac-style work. |
| Pro Sitting Box + Gondola Pole included | Box, standing balance, and stretch work from day one. |
| ISO 20957-1 Class S | Highest studio certification. Built for professional studio use. |
| Total height 213 cm | Check ceiling clearance before ordering. |
| 130 kg unit weight | Permanent fixture. Not stackable or foldable. |
What Ships With It
Main components:
- M8-Pro Maple Reformer
- Half Cadillac Frame
- Half Cadillac Brackets (M-Series)
- Mattress Converter
- Platform Extender
- Pro Sitting Box
- 60″ Maple Gondola Pole
- Removable maple standing platform
Tower attachments:
- 1 Push-Through Bar
- 1 Pull-Down Bar
- 1 Safety Strap
- 1 pair Foot Straps
- 1 pair Hand Handles
- 2 pairs Rapid-Adjust Double Eyelet Spring Holders
- 8 Aluminium Carabiners
- 8 Double-Ended Dog Clips
Reformer components:
- 8 nickel-plated springs (see spring chart above)
- Silent ropes + patented silent pulleys
- Metal-free double loop handles
- Adjustable padded silent foot strap
- 3-position adjustable headrest
- Removable variable-width shoulder rests
ALSO AVAILABLE SEPARATELY
- Upholstered Jump Board. Interchangeable with the standing platform.
- Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire.
Full Specifications
| Model | Align Pilates M8-Pro Maple Reformer with Half Cadillac Bundle |
| Supplier code | PAPM8HALFCAD |
| Brand | Align-Pilates |
| Reformer frame | Solid North American maple, FSC-certified, satin lacquer finish |
| Tower frame | Align-Pilates Half Cadillac, M-Series bracket attachment |
| Total dimensions (with Half Cadillac) | 254 cm (L) × 76 cm (W) × 213 cm (H) |
| Carriage size | 93 × 66 cm (widest in Align-Pilates range) |
| Carriage travel | 104 cm | 41″ |
| Reformer weight | 80 kg | 177 lbs |
| Total unit weight (with Half Cadillac) | 130 kg | 287 lbs |
| Max user weight | 150 kg | 330 lbs |
| Suitable users | 4 ft 10 in to 6 ft 4 in (145 to 193 cm) |
| Wheels | 8 PU wheels, precision aluminum rails |
| Springs | 8 nickel-plated music wire (2 Yellow Very Light, 2 Red Medium, 2 Purple Light, 2 Red Strong) |
| Spring bar | Patent-pending Rapid Change (RC) |
| Foot bar | 4 lockable positions including flat |
| Rope adjuster | Combined T-Bar and Pro-Rope adjustment system |
| Rope risers | Maple, fully adjustable, 5 height positions |
| Head rest | 3-position adjustable |
| Shoulder rests | Removable, variable width, off-centered pads |
| Upholstery | PU leather with EVA foam padding |
| Ropes | Multi-woven nylon, Silent System |
| Storage | Not stackable. Permanent fixture |
| Certification | EN ISO 20957-1:2013 Class S, Attestation of Conformity |
| Warranty | 5-year wooden frame and foot bar mechanism, 2-year components, 2-year / 3,000-hour springs |
Shipping and Financing
Shipping and delivery: All Align-Pilates equipment ships via freight carrier. Delivery timelines and options (curbside, threshold, or room-of-choice) vary by location. Contact us at 866-861-6317 or info@recovathlete.com before ordering and we'll confirm exactly what's available for your zip code, including any current lead times.
Financing: Affirm financing is available at checkout. Monthly payment options shown at checkout based on cart total and approved credit.
Frequently Asked Questions
Is the Half Cadillac frame made of maple like the reformer?
No. Only the reformer is solid North American maple. The Half Cadillac is the standard Align-Pilates tower frame and attaches to the reformer via M-Series brackets. It complements the maple reformer visually and is engineered to match its performance standards.
What is a Half Cadillac and what can I do with it?
A Half Cadillac is a partial trapeze table structure that mounts to a reformer. It gives you access to most of the full Cadillac repertoire including arm springs, push-through bar work, pull-down bar exercises, standing Pilates, and mat conversion work. It does not include hanging or full trapeze exercises, which require a Full Cadillac.
Can the Half Cadillac be removed if I upgrade to a full Cadillac later?
Yes. The Half Cadillac attaches via M-Series brackets and can be removed. If you later add a full Cadillac frame to the M8-Pro, the same reformer supports it.
Does this bundle include everything I need to teach the full method?
Yes. Reformer, tower with push-through bar, pull-down bar, safety strap, Pro Sitting Box, and 60″ Maple Gondola Pole are all included. Mattress converter and platform extender are included so you can also do mat and Cadillac-style flat-bed exercises. The only optional add-on is the upholstered Jump Board for plyometric cardio work.
What are the 8 springs used for?
The 8 springs cover both reformer and tower work. Standard 47 cm springs (yellow and red) are for the reformer. Long 64 cm springs (purple and red) are for the Half Cadillac push-through bar and arm spring work. The Rapid Change spring bar lets you swap reformer springs one-handed with them still attached.
How does the M8-Pro carriage compare to other reformers?
At 93 × 66 cm it's the widest carriage in the Align-Pilates lineup, with 104 cm of travel on an 8-wheel PU system running on precision aluminum rails. It fits users from 4 ft 10 in to 6 ft 4 in and carries the same ISO Class S certification as the steel-framed C8-Pro.
How is the Rapid Change (RC) Spring Bar different from a normal spring bar?
A traditional spring bar uses a separate carriage stopper and can take up to 12 actions to change on a 5-spring reformer. The RC Spring Bar has integral carriage stoppers and adjusts with the springs attached. One hand, one action. This is particularly beneficial in group class environments.
What ceiling height do I need?
Total unit height is 213 cm (roughly 7 feet). Add clearance for the push-through bar in use and allow a comfortable working height above that. A minimum ceiling height of 235 cm (roughly 7 ft 8 in) is recommended, with more space if the primary user is over 6 ft.
How long does assembly take?
Most buyers complete the reformer, Half Cadillac, and accessory setup in a single afternoon with two people. The reformer arrives largely pre-built. The Half Cadillac brackets and frame attach in a specific order. See the Align-Pilates assembly video and the two PDF manuals linked in the Setup section above.
How will my bundle be delivered?
Ships on pallets to your driveway or the front of the building via freight carrier. The driver unloads; you take components inside from there. Suitable access for van or truck deliveries is required. Call 866-861-6317 before ordering to confirm delivery options for your zip code.
What financing options are available?
Affirm financing is available at checkout. Monthly payment options are shown at checkout based on cart total and approved credit. For questions on financing or upgrading to a full Cadillac, call 866-861-6317.
Also Consider
- M8-Pro Maple Wood Reformer + Sitting Box Bundle. Reformer only, without the Half Cadillac. Entry point for classical reformer work.
- M8-Pro with Full Cadillac Frame. Upgrade path for the complete Cadillac repertoire including hanging and trapeze work.
- A8-Pro Reformer with Tower. Aluminium commercial alternative with a similar tower system.
Align-Pilates equipment is backed by manufacturer warranties issued directly by Align-Pilates Equipment Ltd. The warranty that applies to your purchase depends on the product type. All warranties are for the original purchaser only and are non-transferable.
✅
Authorized Align-Pilates Dealer
RecovAthlete is an authorized dealer of Align-Pilates equipment. All purchases qualify for full manufacturer warranty protection through Align-Pilates and their exclusive North American distributor, Kloz Inc.
Commercial Warranty — A, C & M Series Reformers
Applies to: A8-Pro, C8-Pro, C8-S Pro, C8-PRO Noir, M8-Pro, Full & Half Cadillac systems
Covers domestic and commercial usage up to 37.5 hours per week. User weight limit: 150 kg / 330 lbs. Align-Pilates will repair or replace any mechanical component that malfunctions due to defects in materials or workmanship during the warranty period.
Note: wooden frames must not be positioned next to convection radiators or air conditioning units. Springs showing signs of damage or wear must be replaced immediately regardless of age.
Light Commercial Warranty — R8-Pro & F3 Reformers
Applies to: R8-Pro (Black & White), F3 Folding Reformer
Covers domestic use and limited commercial usage up to 20 hours per week. User weight limit: 120 kg / 265 lbs. Align-Pilates will repair or replace any mechanical component that malfunctions due to defects in materials or workmanship during the warranty period.
Note: commercial use beyond 20 hours per week voids the warranty on these models.
Commercial Warranty — Combo Chairs & Ladder Barrels
Applies to: Combo Chair III, Ladder Barrel RC
Covers domestic and commercial usage up to 37.5 hours per week. User weight limit: 150 kg / 330 lbs.
Moving mechanisms include the Rapid Change Ladder Barrel and Combo Chair locking handles. Springs showing damage or wear must be replaced immediately regardless of age.
What Is Not Covered
- Normal wear and tear
- Damage from negligence, misuse, abuse, or improper maintenance
- Unauthorized modifications or repairs
- Superficial scratches to the finish
- Upholstery tears, cuts, burns, stains, or damage from improper use (jewelry, inappropriate clothing)
- Rust from improper storage — store in a clean, dry environment; in coastal areas, wipe down regularly and minimize exposure to sea air
- Shipping costs, customs fees, or installation costs for warranty parts
- Equipment used outside of recognized Pilates repertoire
Warranty Claim Procedure
- Contact us at 866-861-6317 or support@recovathlete.com to initiate a claim
- We will contact Align-Pilates or their authorized North American distributor on your behalf
- A return authorization number (RNA) will be issued if a return is required — items returned without an RNA will not be accepted
- You are responsible for the cost of shipping the item back for inspection
- Parts repaired or replaced under warranty are covered for the remainder of the original warranty period only
Full manufacturer warranty terms: align-pilates.com/resources/warranty-maintenance
Let customers speak for us
Have Questions? Talk to Our Equipment Team.
We respond within 2 hours.
US & Canada shipping. Financing available.
- Choosing a selection results in a full page refresh.
