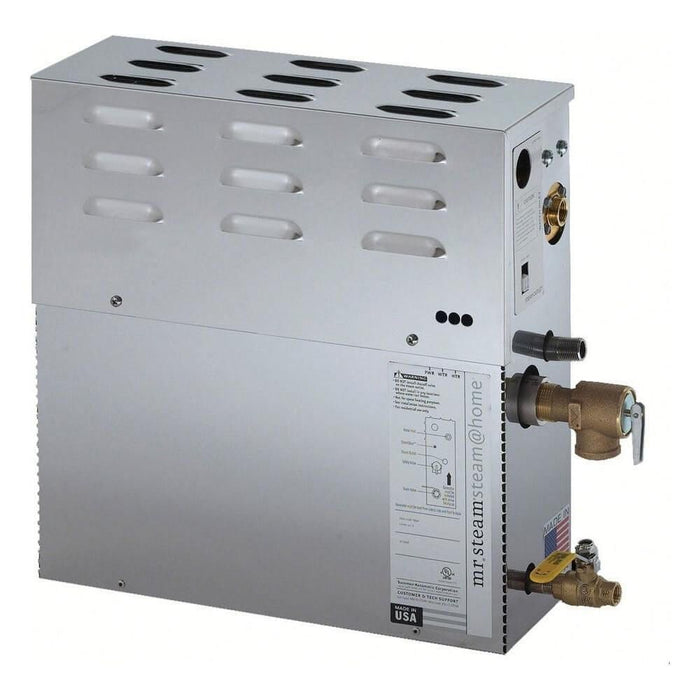

Mr.Steam SAH6000 Steam@Home Series 6kW Steam Shower Generator Package
The Steam@Home® 6kW (6000 W) Steam Shower Generator Package equips your home steam room with a powerful steam generator, convenient power control, aromatic steam head, and built-in drain valve. This American-made package is perfect for steam rooms ranging from 111 to 150 ACF, providing a top-quality luxury experience at an affordable price. While compact in size, this package offers all the features and benefits of a full-size steam shower. Transform your daily routine with an invigorating and revitalizing steam bath in the comfort of your own home. Whether you are remodeling, building, or upgrading your shower, Steam@Home® is the perfect addition to create a personal wellness spa.
Features:
- 60 minute automatic cutoff, low voltage board, designed for easy access safe service
- Designed to save water and energy. Uses less than two gallons of water vs 40 gallons for an ordinary bath
- Easily install spa therapy accessories or components such as AromaTherapy, ChromaTherapy®, Steamlinx, and more
- Exclusive micro processor operating system is the brains of our intelligent steam generator
- Free from defects in materials and craftsmanship for its lifetime. Mr.Steam® will repair or replace (at its option) a Generator which fails to conform to this warranty
- Installs in areas such as a cabinet, closet, under a sealed bench or in an insulated attic
- LED indicators to help you troubleshoot any connection and maintenance challenges
- Naturally corrosion resistant, 100 percent recyclable Stainless Steel inside and out
- Reliable, industrial grade, and the industries largest copper heating element heats fast and is easy to remove and service
- US and Canadian UL listed, and CE and NoM certified for unsurpassed quality and safety
Includes
- 6.0KW Steam bath generator
- SteamStart surface-mounted control, 1-1/2” diameter, 1/8” deep
- 3-Pin Control cable, 30’ long, hard-wired to control with plug-in connector
- Cool-to-the-Touch steamhead, 1/2” NPT, 3-1/16” diameter, 1-13/16” deep
- Acrylic shield, 4-3/8" diameter, 1/2" deep
- RTV silicone sealant, .5 ounce tube
- Installation and operation manual
- Limited warranty
Specifications
- Maximum Adjusted Cubic Feet: 150
- Kilowatt Rating: 6.0 KW
- Adjustable Time: No
- Session Timing: 20 minutes
- Water Supply Connection: 3/8" NPT
- Generator Steam Line Connection: 3/8" NPT
- Steam Head Connection: 1/2" NPT
- Drain Connection: 1/4" NPT
- Safety Relief Valve Connection: 3/4" NPT
- Safety Relief Valve PSIG: 15 PSIG
- Control "Rough In" Cut Out: 7/8" Diameter
- Generator Control Connection: 3-Pin, Plug-In Connector
- Generator Control Cable: 30', 3 Conductor, 24 AWG, Shielded Cable
- Width: 14-3/8"
- Depth: 5-3/16"
- Height: 14-7/8"
- Shipping Weight: 25 lbs
