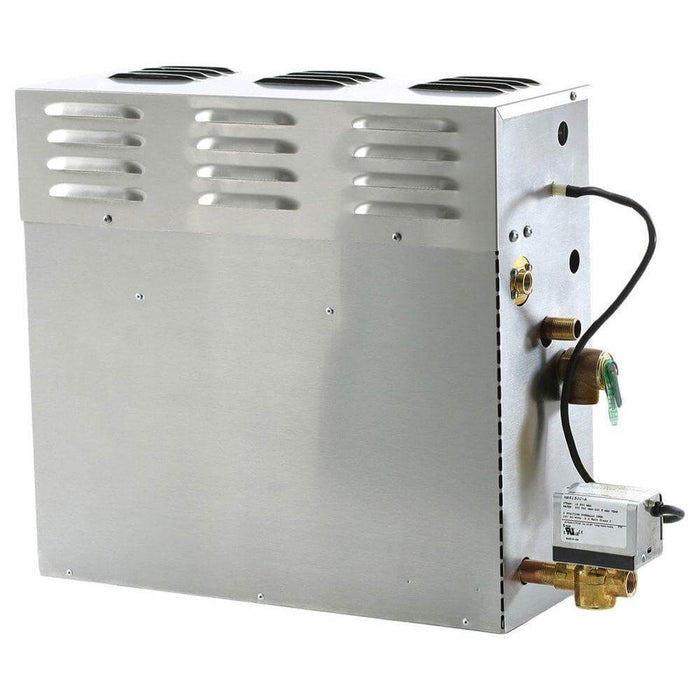

Mr.Steam CT Steam Generator 9
Commercial Steam Bath Generator, CT Spa Series, 9kW, Stainless Steel
The Mr.Steam CT9E Commercial Steam Shower Generator is specifically designed for day spa and hotel steam rooms with dimensions up to 257 adjusted cubic feet (ACF). Its CU Series meets strict requirements and testing standards, such as UL and ASME. This results in a high-quality product that is also National Board Registered. Despite its powerful performance, the generator has a small vertical construction, allowing it to fit even in tight mechanical rooms. The use of top-of-the-line fibrous glass pressure vessel insulation ensures maximum energy efficiency. Additionally, the generator is made with a durable stainless-steel casing and equipped with cutting-edge technology, making it the perfect choice for any resort or day spa steam shower. Its Express Steam feature includes a built-in thermostat for quick and easy steam sessions. Available in 240V and 208V single-phase (1PH) options, this day spa generator only uses 1.2 gallons of water during a 20-minute session, making it both environmentally conscious and economical
Features:
- Stainless steel heating elements are corrosion-resistant
- ASME-grade flanges support longevity and reliable performance
- An Integral pressure gauge and sight glass provides operating information at a glance
- Standard full port drain valve enables maximum draining of the pressure vessel
- Comes equipped with a hinged access door for ease of installation and service
- Optional Automatic Blowdown System features electronically controlled maintenance and 24-hour/7-day programming
Includes
- CT Day Spa 9kW Generator
- Express Steam (Factory Installed)
- Installation and Operation Manual
- UL/cUL Listed and CE Approved
- Limited Warranty
Specifications
- Kilowatt Rating: 9kW
- Minimum Adjusted Cubic Feet: 108
- Maximum Adjusted Cubic Feet: 257
- Water Supply Connection: 3/8" NPT
- Generator Steam Line Connection: 1/2" NPT
- Steam Head Connection: 1/2" NPT
- Drain Connection: 1" NPT
- Safety Relief Valve Connection: 3/4" NPT
- Safety Relief Valve PSIG: 15 PSIG
- Length: 17"
- Depth: 7 7/8"
- Height: 18 1/2"
- Shipping Weight: 40 lbs
