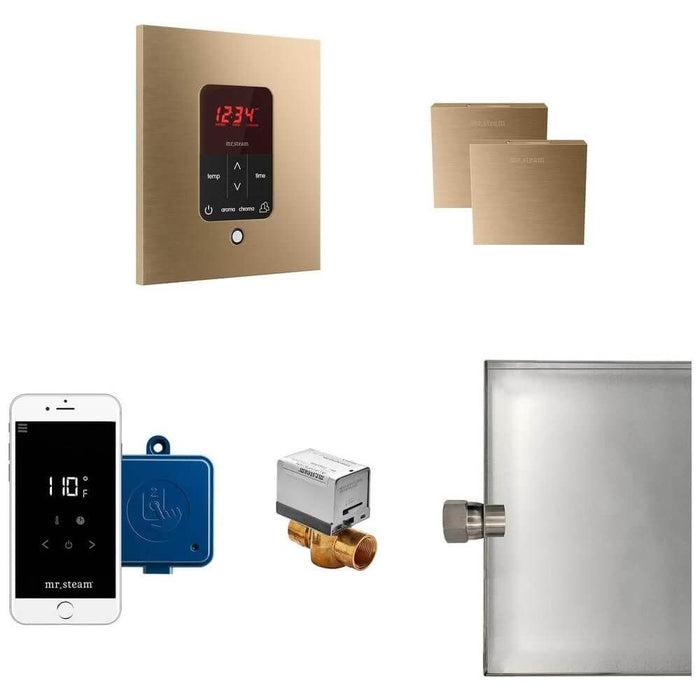

The Mr. Steam Butler Max Operating Control Package, designed for MAX Series generators by Mr. Steam, includes an MS iTempo operating control and matching-finish steam head, as well as a remote-start app, automatic drain valve, and drain pan. These features enhance the steam bathing experience and make it seamless with the flush-mounted iTempoPlus Control. Take control of more than just steam with this user-friendly interface and easily add AromaSteam and ChromaSteam capabilities. Optimize your steam shower experience effortlessly with this sleek control.
Features:
MS ITPLUS Operating Control
- Available in round or square
- Programmable time and temperature control
- Two preferred time and temperature memory settings
- Initiates Aromasteam and Chromasteam options
- Digital readout display
- Preset 60-minute time cycle
- On/Off and pause modes
- Soft touch keypad
- Inside or outside the steam/shower enclosure installation
- Low voltage operation
- Displays troubleshooting codes
- Available in Polished Chrome, Antique Brass, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Polished Gold, Polished Nickel and Satin Nickel designer finishes
SteamLinx
- Secondary Control using your Smart Phone and mobile app
- Operate Time, Temperature, On/Off remotely with your Smart Phone (Smart phone not included)
- Connects to your existing home wifi router
Steam Head
- Integral reservoir for a scented steam bath
- 3/4" NPT connection
- Available in Polished Chrome, Antique Brass, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Polished Gold, White Facia, Black Facia, Polished Nickel and Satin Nickel designer finishes
Automatic Drain
- 24 volts AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2
- Two position, normally open
- Brass valve body with 1" NPT connections
- Two lead integral electrical lead for terminal connection
- Gravity drain
Drain Pan
- Galvanized sheet metal construction
- Integral 3/4", female PVC drain connection
Includes
- MS ITPLUS surface-mounted control, 3-7/8" diameter, 7/8" deep
- MiniDIN control cable, 30' long
- RTV silicone sealant, .5 oz tube
- Steam head, 1/2" NPT, 3-1/16" diameter, 1-13/16" deep
- Automatic drain valve
- Drain pan
- Steamlinx generator module, 3-3/8" x 2-3/4"W x 7/8"D
- Steamlinx router module, 3-3/8"H x 2-3/4"W x 7/8"D
- Ethernet cable, 6' long
- Power adapter
- Installation and operation manual
- Limited warranty
