Mr.Steam CU-BDT-ASME36

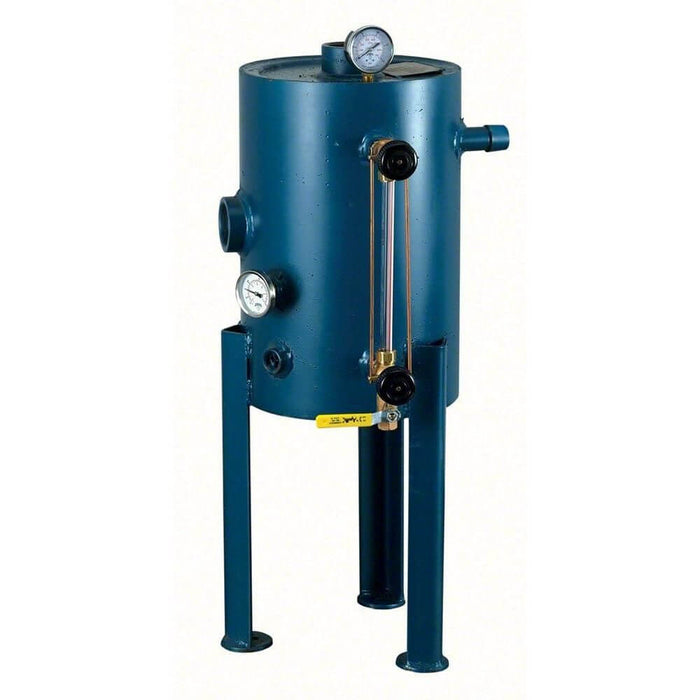

This tank is an essential piece of equipment for efficiently completing automatic blowdown maintenance in accordance with building codes that require a maximum discharge of 140° F. By utilizing separators, it effectively reduces the temperature and pressure of water to ensure a safe discharge of water and sludge. It also features a water seal at the outlet to further lower the outlet temperature. The CU-BDT-ASME36 includes a temperature gauge, pressure gauge, and gauge glass assembly for monitoring. Once the contents have cooled, the pressurized water/sediment can be safely drained. This tank is compatible with models CU360-3000 and comes equipped with temperature and pressure gauges, as well as a gauge glass assembly.
Features:
- Built to ASME Section VIII and is an ASME Code UM vessel
- No electrical hookup required
- For use with CU360–2000 Generators
- Meets ASME code requirements
- Built-in temperature gauge
- Built-in pressure gauge
- Gauge glass assembly
- Utilizes water seal at outlet
- No electrical hookup required
- 32” H x 12” Dia. 125 lbs.
