Macy Pan HP1501 Hard-Shell Hyperbaric Chamber (1.5–1.8 ATA)
Professional Dual-User Hyperbaric Oxygen Therapy Chamber for Home or Clinic

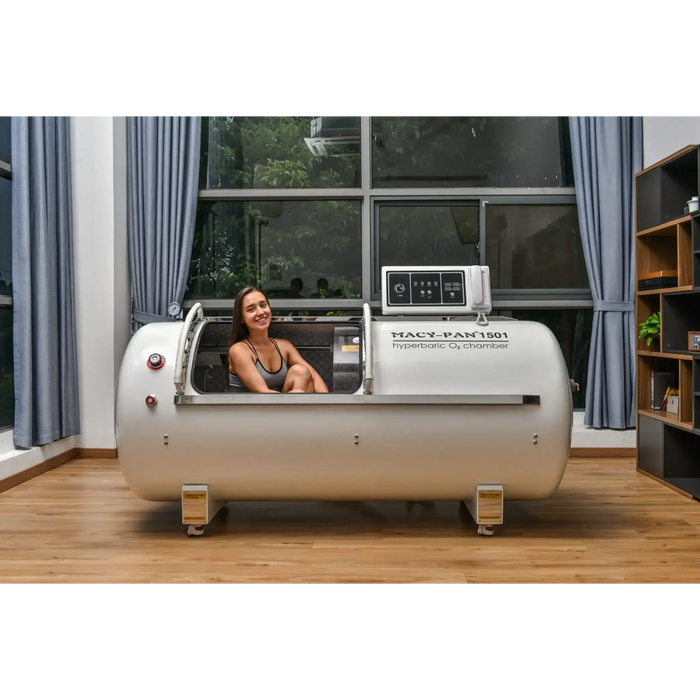

The Macy Pan HP1501 is a hard-shell, medical-grade hyperbaric chamber designed for two-person therapy in both sitting and lying positions. Built from high-strength stainless steel and polycarbonate, it offers clinical reliability, comfort, and ease of operation. Operating at 1.5 ATA (upgradeable to 1.8 ATA), it provides safe, deep-pressurized oxygen therapy to accelerate recovery, improve circulation, and promote healing.
Its integrated all-in-one oxygen system combines a compressor, oxygen concentrator, and air cooler into a single, compact unit—ideal for home use, wellness centers, and professional clinics.
What’s Included
Chamber Features
- Durable stainless-steel shell with thick polycarbonate viewing windows for visibility and safety.
- Slide-type transparent entry door with automatic air pressure sealing and emergency release system.
- Internal and external control panels for convenient operation from inside or outside the chamber.
- Soft LED lighting system designed with eye-protection technology to reduce glare and strain during longer sessions.
- Built-in two-way interphone communication system for clear conversation between user and operator.
- Emergency pressure relief valves for fast decompression and safety during any power interruption.
- Automatic digital display system that monitors oxygen purity, air pressure, humidity, and temperature in real time.
- Self-adjustable timer allowing session duration from 0 to 120 minutes.
- Transparent large viewing window to minimize claustrophobia and enhance comfort.
- Integrated wheel base for easy movement and relocation of the chamber within your facility.
- FREE White Glove Delivery (+$4000 Value)
Operating Unit
- All-in-one integrated system combining air compressor, oxygen concentrator, and air cooler for seamless operation.
- Air compressor operates oil-free for cleaner airflow and long service life.
- Dual air filtration system (PM2.5 protection) ensures purified oxygen and clean air inside the chamber.
- Built-in anion air purification system that releases negative ions to freshen and sterilize the air.
- Cooling and humidity control module maintains a stable and comfortable internal environment.
- Digital control display showing real-time readings of pressure, oxygen levels, humidity, and temperature.
- Optional air-conditioning unit available for warm or coastal environments.
- Noise reduction technology keeps operational sound below 55 dB for a quiet therapy experience.
Accessories
- Medical-grade oxygen headset and face mask for high-purity oxygen delivery.
- Full-size integrated bedding system for maximum comfort during long sessions.
- Oxygen and air tubing, connectors, and power cables.
- Comprehensive operation and safety manual.
- Free Hyperbaric Protocol Book ($1000 Value) with step-by-step therapy guidance for 20+ wellness conditions.
- 72-Month Manufacturer’s Warranty for peace of mind and long-term reliability.
Main Features
- Pressure Range: Standard operating pressure of 1.5 ATA (7 PSI) with upgrade capability to 1.8 ATA for deeper therapeutic benefits.
- Dual-User Design: Spacious 40-inch diameter model allows up to two users to sit or lie comfortably inside.
- Advanced Safety Systems: Includes emergency depressurization valve, power-failure safety release, door-close sensor, and automatic shutdown protection.
- Digital Monitoring: LCD touch display shows oxygen purity, pressure, humidity, and temperature for precise control and peace of mind.
- Independent Operation: Self-operable In-Out Control system lets the user start, stop, and adjust pressure without external assistance.
- Comfort Airflow System: Built-in cooling and humidity control system keeps internal temperature stable for long-duration sessions.
- Air Purity and Filtration: Dual filtration and anion purification system ensure constant circulation of fresh, clean air.
- Quiet Operation: Engineered noise level below 55 dB ensures a calm and relaxing hyperbaric experience.
- Mobile Convenience: Equipped with heavy-duty wheels for easy movement and positioning within clinics or homes.
- Transparent Chamber Windows: Reduces confinement anxiety and enhances user comfort during pressurized therapy.
Detailed Specifications
Chamber Construction
- Material: Stainless Steel Frame + Polycarbonate Viewing Windows
- Length: 87 inches (220 cm)
- Pressure: 1.5 ATA to 1.8 ATA (adjustable)
- Door Type: Transparent sliding door with pressure seal and emergency manual release
- Lighting: Eye-protection LED interior lighting system
- Control System: Internal and external analog control with optional LCD touchscreen upgrade
- Mobility: Four-wheel base for easy transport
Model Options
- HP1501-75: 30-inch diameter (76 cm) — 309 lbs (140 kg)
- HP1501-85: 34-inch diameter (85 cm) — 331 lbs (150 kg)
- HP1501-90: 36-inch diameter (90 cm) — 375 lbs (170 kg)
- HP1501-100: 40-inch diameter (100 cm) — 419 lbs (190 kg)
System Machine
- Type: All-in-one unit combining air compressor, oxygen concentrator, and air cooler
- Size: 30 × 18 × 26 inches (76 × 45 × 65 cm)
- Weight: 80 kg
- Air Flow: 72 liters per minute
- Oxygen Flow: 10 liters per minute
- Oxygen Purity: 93–96% concentration via headset or mask
- Air Filtration: Dual air filters for medical-grade air quality
- Voltage: 110/220 VAC ±10%
- Noise Level: ≤55 dB during operation
- Cooling: Integrated air cooler and humidity stabilizer
- Optional: Dedicated air conditioner for high-temperature regions
Oxygen Concentrator
- Flow Rate: 10 liters per minute (LPM)
- Oxygen Purity: 93–96%
- Weight: 28 kg
- Compressor: Oil-free design for extended service life
Air Conditioner (Optional)
- Size: 18 × 18 × 27 inches (47 × 46 × 69 cm)
- Weight: 35 kg
- Cooling Capacity: Maintains 22–26°C temperature inside the chamber
Manuals/Downloads
- Macy Pan Hard Shell Chamber Upgrades
- Macy Pan HP1501 User Manual
- Oxygen Concentrator Manual
- Filter Maintenance Instructions
Applications
- Accelerates recovery from muscle injury, surgery, or fatigue
- Reduces inflammation and oxidative stress throughout the body
- Improves circulation and oxygen delivery to cells and tissues
- Supports neurological recovery (PTSD, autism, stroke, etc.)
- Boosts immune response and metabolic health
- Promotes collagen renewal and anti-aging effects on skin
- Improves sleep, mood, and overall energy levels
Maintenance and Warranty
Maintenance
- Replace dual air filters every 6–12 months depending on usage.
- Clean the air intake and exterior surface regularly with mild disinfectant.
- Use included step-by-step maintenance videos for simple DIY service.
Warranty
- Comprehensive 3-Year Manufacturer Warranty covering all chamber components.
- Free replacement of defective parts within the warranty period.
- All troubleshooting handled remotely via photo or video verification—no return shipping needed.
- After two years, parts and shipping fees apply at standard rates.
- Note: Macy Pan and OxyRevo chambers are non-returnable; exchange or on-site inspection support available.
About Macy Pan
Macy Pan has been a trusted global manufacturer of hyperbaric oxygen chambers for over 15 years, delivering certified medical-grade systems to more than 123 countries worldwide. Each chamber is produced under ISO 13485, ISO 9001, and CE certifications, ensuring precision engineering, reliability, and user safety.
The HP1501 represents Macy Pan’s commitment to combining performance, safety, and comfort for users seeking professional-level HBOT at home or in clinical environments.
