Harvia M3 16.5kW Wood Burning Sauna Stove Complete Kit

Regular price
$3,355.20
Sale price
$3,355.20
Regular price
$3,728.00
Sold out
Unit price
Quantity must be 1 or more

Harvia M3 Wood-Burning Sauna Stove Complete Kit

The Harvia M3 wood burning heater has a classic design and is suitable for small saunas up to 459 cubic feet. It turns a sauna bath into a pleasurable experience and adds a touch of traditional sauna atmosphere. The even heat and efficient air circulation guarantee an enjoyable bath.

The Harvia M3 is equipped with a glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The color of the wood burning heater is elegant graphite black and it has a stainless steel air-flow spoiler.

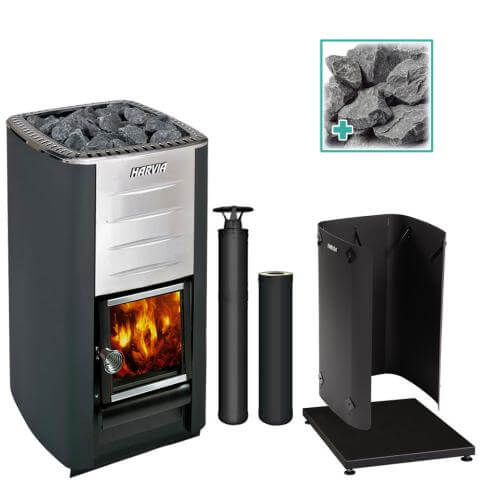

The Harvia M3 package is perfect for when you want it all in one place. This complete package includes: M3 heater, Stones, Protective bedding, 1500MM chimney kit, 1000MM chimney extension, and a protective sheath. The sleek black finish brings class to your sauna and with this package your dream sauna is just one "add to cart" click away.

M3 Heater

  • For sauna rooms 212 cu. ft. to 459 cu. ft.
  • 16.5 kilowatts
  • Stainless Steel
  • Black color
  • Floor installation
  • Dimensions: 15" W x 18" D x 28" H
  • 2-year warranty

Protective Bedding

  • Aluminum-zinc coated steel
  • Black
  • Adjustable feet
  • For wood-burning sauna heaters
  • Helps protect floors
  • Dimensions: 17.7" W (450mm), 26" D (665mm), 2.4"-3" H (60-75mm)
  • Can be installed on a sloping floor
  • 2-year warranty

1500MM Chimney Kit

  • Black powder-coated steel
  • CE marking
  • Mineral wool insulation material
  • Mounts in a vertical position
  • Able to be easily extended
  • Touch protection is not needed if installed in a sauna
  • Soot fire resistant
  • Freeze-thaw resistant
  • Made in Finland
  • 2-year warranty

1000MM Chimney Extension

  • Innovative design
  • Black powder-coated steel
  • Prevents movement caused by temperature changes
  • Can be installed indoors and outdoors
  • Designed, engineered, and made in Finland
  • Dimensions: 8.6" D (220mm) x 39.3" H (1000mm)
  • 2-year warranty

Protective Sheath

  • 3-sided sheath
  • Black color
  • Reduces safety distance to combustible materials
  • 2 year warranty

Stones

  • Olivine diabase sauna stones
  • Split-Face
  • Durable with high-heat capacity
  • Stones range from 4" to 6" (10-15 cm)

Includes

M3 Heater

  • Sauna heater
  • Adjustable legs
  • Stove door
  • Ash box
  • Installation and operation manual
  • 2-Year warranty

Protective Bedding

  • Harvia Stove Protective Bedding
  • Installation manual
  • 2-Year warranty

1500MM Chimney Kit

  • Utility box
  • Non-insulated smoke pipe
  • Rain cap
  • Rubber rain flange
  • Installation set for rain flange
  • Stainless steel lead-through flange for ceiling
  • Lead-through insulation and protector
  • Installation manual
  • 2-Year warranty

1000MM Chimney Extension

  • 1000mm black chimney extension
  • 2-Year warranty

Protective Sheath

  • 3 sided sheath
  • Installation Manual
  • 2-Year warranty

Stones

  • 88 lbs of 4" to 6" (10-15 cm) Olivine Split-Face stones

Specifications

Model M3
Kilowatt Rating 16.5 kW
Primary Fuel Wood
Minimum Cubic Feet 212 CF
Maximum Cubic Feet 459 CF
Heater Weight 97 lbs
Shipping Weight with Sauna Stones 163 lbs
Width 15"
Depth 18"
Height 28"
Model WL100
Material Steel
Weight 23.5 lbs
Width 17.7" (450mm)
Depth 26" (665mm)
Height 2.4"-3" (60-75mm)
Model WHP1500M
Material Black powder coated steel
Non-vertical installations Not Allowed
Product Height 59" (1500mm)
Product Diameter 8-5/8" (220mm)
Net Weight 25 lbs
Model WHP1000M
Flexural Strength- tensile strength 16.4 ft (5m)
Non-vertical installations Not Allowed
Wind Load 6.5 ft (2m) above last support
Maximum spacing of lateral supports 9.8 ft (3m)
Weight 14.8 lbs
Diameter 8.6" (220mm)
Height 39.3" (1000mm)
Model WL450
Weight 14 lbs
Width 17.91"
Depth 18.89"
Height 31.49"
